Introduction
WG600S industrial variable-speed peristaltic pump is suitable for high-flow liquid transfer in industrial applications. Driven by a brushless servo motor, it provides stronger power. It features basic functions such as forward and reverse rotation, start/stop, full-speed (cleaning) and speed adjustment. It supports external control for speed regulation, start/stop and direction control, and is equipped with a simple timing function. In addition, it adopts the MODBUS protocol for RS485 communication, enabling easier connection with other control devices such as computers, HMI and PLC. The pump is housed in a stainless steel casing for corrosion resistance.
Applications
Features

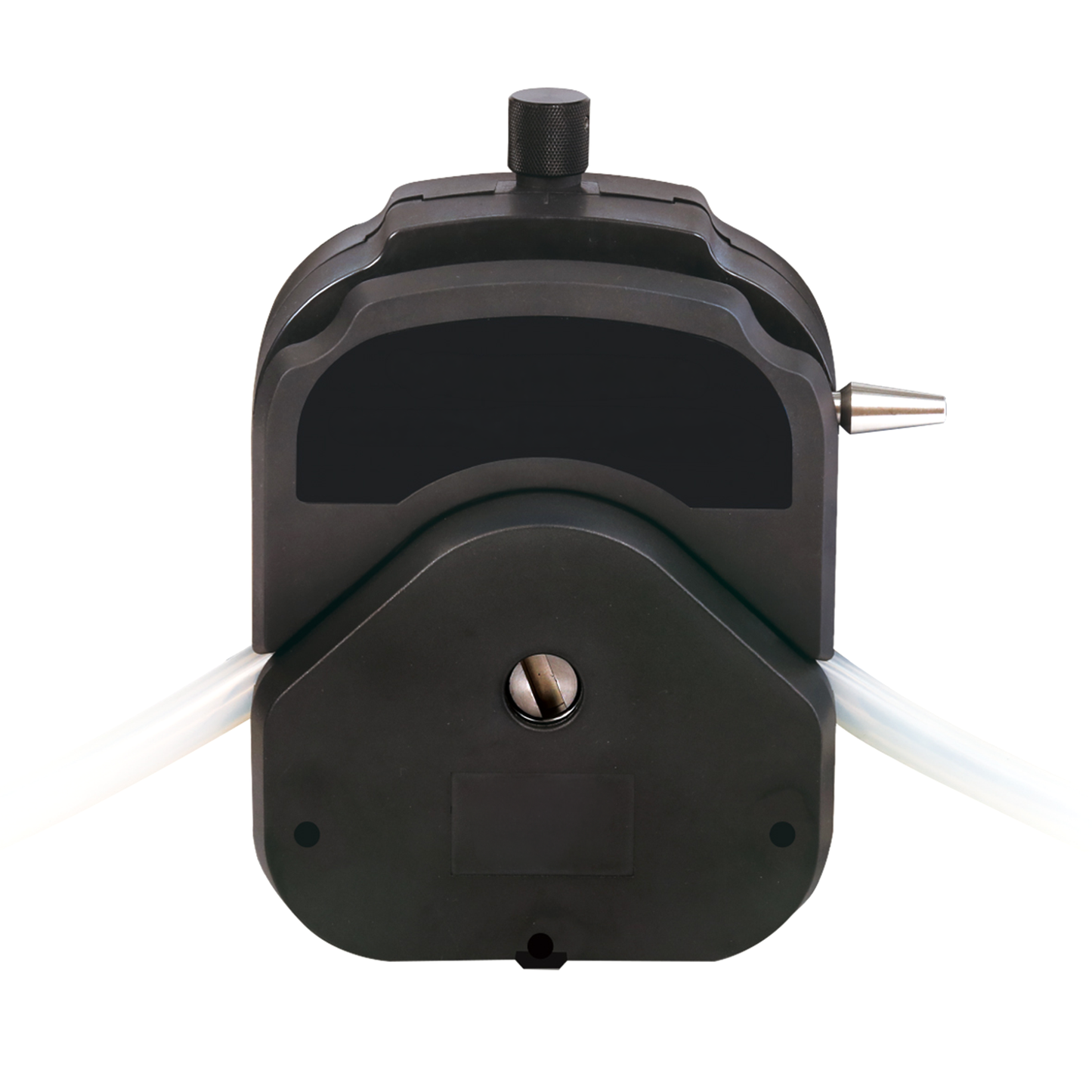

- Industrial & High Flow Rate: Equipped with YZ35 pump head, the WG600S offers a maximum flow rate of 1–13200 mL/min. As an industrial variable-speed peristaltic pump, it is ideal for high-flow liquid transfer in industrial applications.
- Core Parameters (WG600S): Speed range 0.1-600 rpm, speed accuracy ≤±0.5%.
- Humanized Design:Controlled via button, knob and toggle switch, with a 4-digit LED display for clear data readout and easy operation. Stainless steel housing: corrosion-resistant and easy to clean.
- Mode Switch: Modes can be switched via a button. Simple timing function is supported.
- Multiple Control Compatibility: Supports RS485 communication (Modbus protocol), external control signal input, etc.
User Manual
To learn how to use this product, please refer to the WG600S Peristaltic Pump User Manual and YZ35 Pump Head User Manual respectively.
Packing List
| ① | 1 × Complete Unit – WG600S + YZ35 | ② | 1 × User Manual for Pump WG600S | ||
| ③ | 1 × User Manual for Pump Head YZ35 Series | ④ | 73#,82# - 1 pc each × 2m | ||
| ⑤ | 1 x Power Cable | ||||
*To view the full table on mobile, please swipe left or right on the screen.
Technical Data
| Type | Speed-Variable Type(WG600S) | Timing Test Range | 0.1-999s |
| Pump Head Model | YZ35 | Suitable Tubing | 73#,82# |
| Display | 4-digit LED | Control | Button + Knob |
| Flow Rate Range | 1-13200 mL/min | With timing function | Yes |
| Speed Range | 0.1-600rpm, adjustable | Power Supply | AC110V |
| Speed Accuracy | <±0.5% | Motor Type | Brushless Servo Motor |
| Speed Resolution | 0.1rpm(0-100rpm), 1rpm(100-600rpm) | Power Consumption | ≤300W |
| Housing Material | Stainless Steel | IP Rate | IP31 |
| Communication | RS485 (Modbus RTU protocol) | Condition Temperature | 0-40℃ |
| External Control | Yes | Gross Weight | 28.5 lb |
*To view the full table on mobile, please swipe left or right on the screen.
FAQ
1.What type of peristaltic pump is this? What are its main functions?
As the most basic type of peristaltic pump, it supports core functions including speed adjustment, start/stop control, direction reversal, and full-speed operation. Additionally, the WG600S series offers a simple timing function.
2.Does it have a timing function?
Yes, it has a basic timer. You can set the duration (max 999s), and the pump will stop automatically when the time runs out. The timer remembers the last set value.
Note: It can only be set via the knob (not by external control), and it does not support scheduling by specific date or time. For more details, please refer to the
manual.
3.Does it support external control?
Yes. Please note that the buttons and knobs will no longer work after switching to external control mode. In this mode, only start/stop, direction reversal, and speed adjustment can be controlled externally; the timing function is not supported in external control mode. For any questions regarding external control and communication control, please refer to the manual or contact our customer service directly.
4.Which types of tubing are compatible with this peristaltic pump? Are they included in the package?
The compatible tubing models include 73# and 82#. When you purchase this product, one piece of each 73# and 82# tubing (2 meters per piece) will be included as a bonus. Below is the information for common-sized tubing:
5.What does the parameter Flow Rate Range mean in peristaltic pumps?
Generally, the pump head supports multiple types of tubing. This range refers to the minimum flow rate of the smallest tubing to the maximum flow rate of the largest tubing. In other words, to achieve the desired flow rate, you need to select the appropriate size of tubing and adjust the proper rotational speed.
