يُعد الطراز ثلاثي الأسلاك مثاليًا للمواقف التي تتطلب التحكم بنقطتين. يمكن توصيل سلكين مباشرة بمفتاح تبديل، ويمكن توصيل السلك الثالث بنقطة تحكم ثانية. وهذا يسمح بالتشغيل باستخدام مفتاح فتح/إغلاق، بينما تسمح نقطة التحكم الثانية بالتشغيل الآلي. تأتي جميع الطرز مع تعليمات ومخططات الأسلاك حتى تتمكن من الشعور بالراحة التامة مع صمامك الجديد.
صمام الكرة المصنوع من الفولاذ المقاوم للصدأ معتمد من NSF ، مما يعني أنه يمكنك تثبيته في خط أنابيب مياه الشرب.

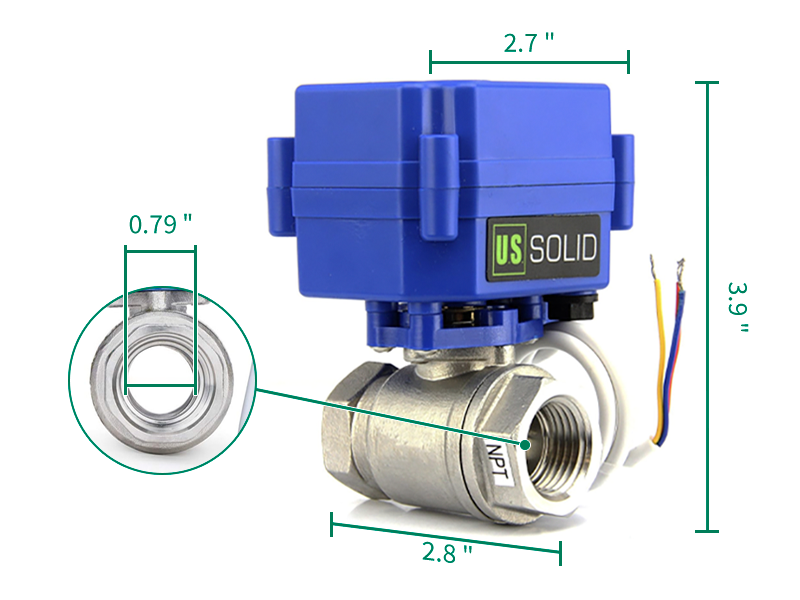

تحديد
نموذج الولايات المتحدة الصلبة: USS-MSV00002
مادة الصمام: SS304
الكرة البحرية ل : PTFE
وقت التشغيل: 3-5 ثواني
جهد التشغيل: 9-24 فولت تيار متردد/مستمر
الحد الأقصى للطاقة: 2 وات
أقصى عزم دوران: 2 نيوتن متر
أقصى ضغط متوسط: 1.0 ميجا باسكال
نطاق درجة الحرارة لوسيط التدفق: من 0 درجة مئوية إلى 90 درجة مئوية
نطاق درجة الحرارة المحيطة: من -10 درجة مئوية إلى 40 درجة مئوية
تصنيف العلبة: IP65
متوسط العمر المتوقع: 80,000 إلى 100,000 دورة
نوع التجويف : كامل
نوع الخيط : NPT
نوع الأسلاك: فيديو إعداد 3 أسلاك
- Reviews
- Questions
Integration with Home Automation
Have not actually installed this yet, but it tested well with SONOFF 4CHProR3 Wi-Fi Smart Switch, making it compatible with eWelink app and Alexa. I can open/close valve remotely by phone/voice, and automated schedules. Hope to integrate with water leak sensors to also trigger closing the valve automatically... waiting for SONOFF RF Bridge to test that.
Great Valve with low break in torque 0.55A
I used this valve in conjunction with my Winland Waterbug WB-800. I needed a valve with very low (less than 1) amps as the SPDT C-relay on the sensor was not designed to control a shut off device. This valve met the specifications with an average of 0.2 A. Now I have a great leak detection and automatic shut off system!!
U.S. Solid Motorized Ball Valve- 3/4” Stainless Steel
I have to say that the customer service is terrible! The product is terrible! I left 3 VM asking to be called back and never received one. Sent email with issues and the reply didn't address the issues. Then when I went to turn the valve back on, I found that it was jammed. In other words, it was stuck in the open position. Also, it leaked from the casting around the ball valve. So, I can never recommend this product or your company. If I could remove the valve to be returned, I would, but the copper pipe has already been cut and I have to leave in place. Please feel free to respond to me. And feel free to place this review on your website!
U.S. Solid Motorized Ball Valve- 3/4” Stainless Steel
I have to say that the customer service is terrible! The product is terrible! I left 3 VM asking to be called back and never received one. Sent email with issues and the reply didn't address the issues. Then when I went to turn the valve back on, I found that it was jammed. In other words, it was stuck in the open position. Also, it leaked from the casting around the ball valve. So, I can never recommend this product or your company. If I could remove the valve to be returned, I would, but the copper pipe has already been cut and I have to leave in place. Please feel free to respond to me. And feel free to place this review on your website!
Buen producto
Funcionan bien, la seleccion de 3 cables es perfecta para usar con control de llenado.
