Introduction

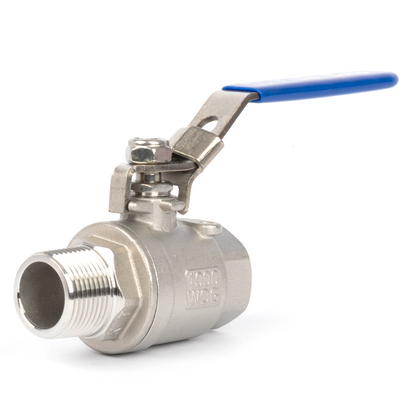

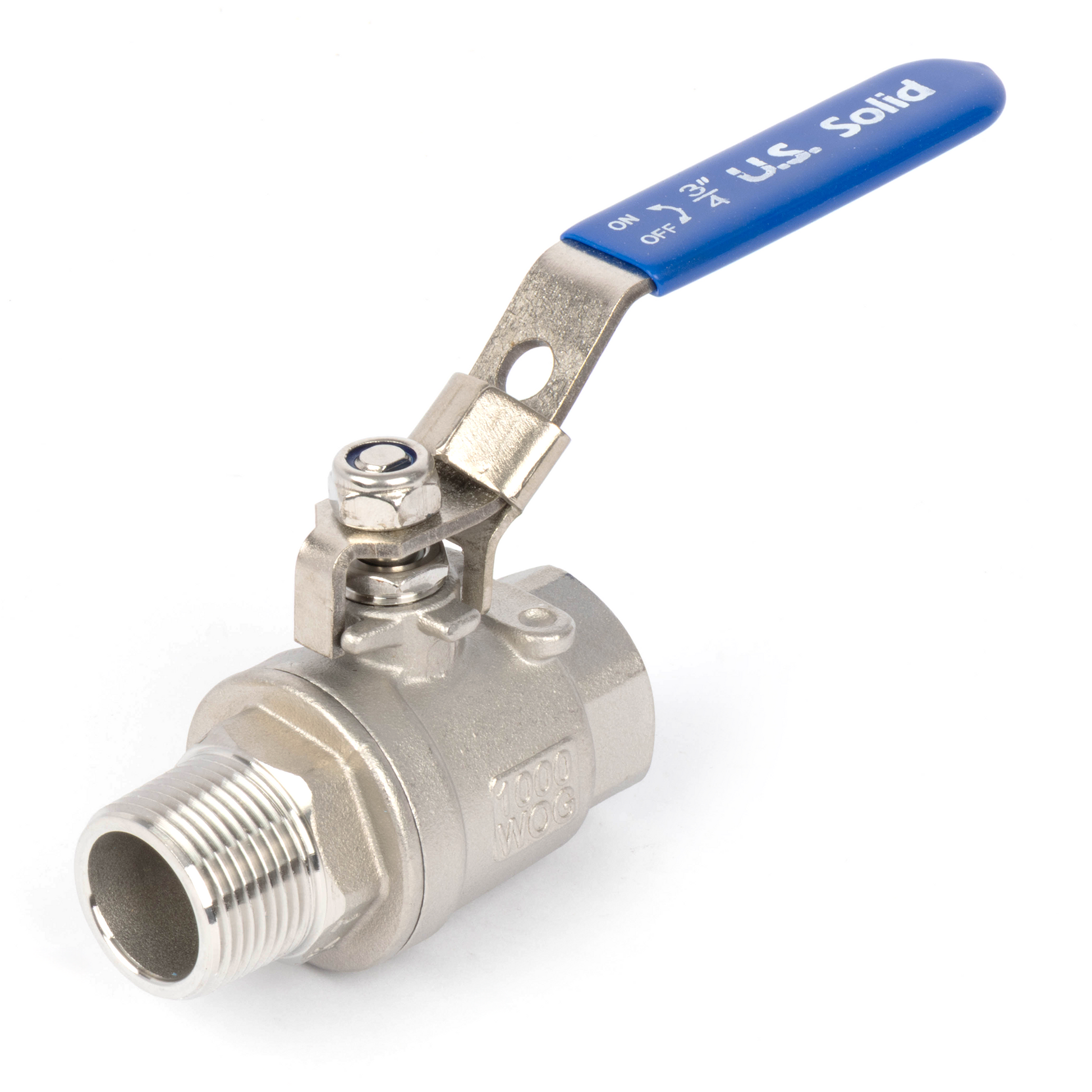

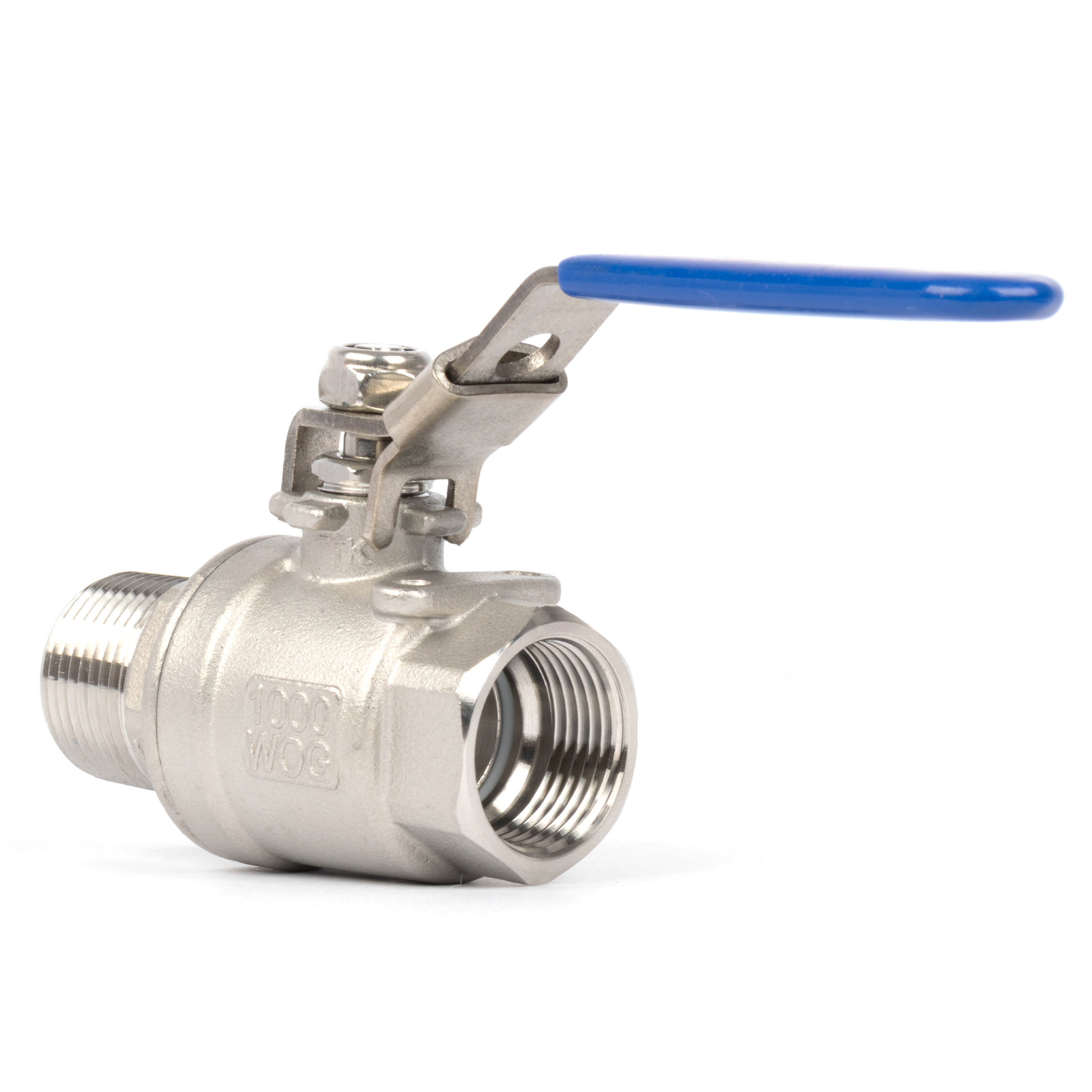

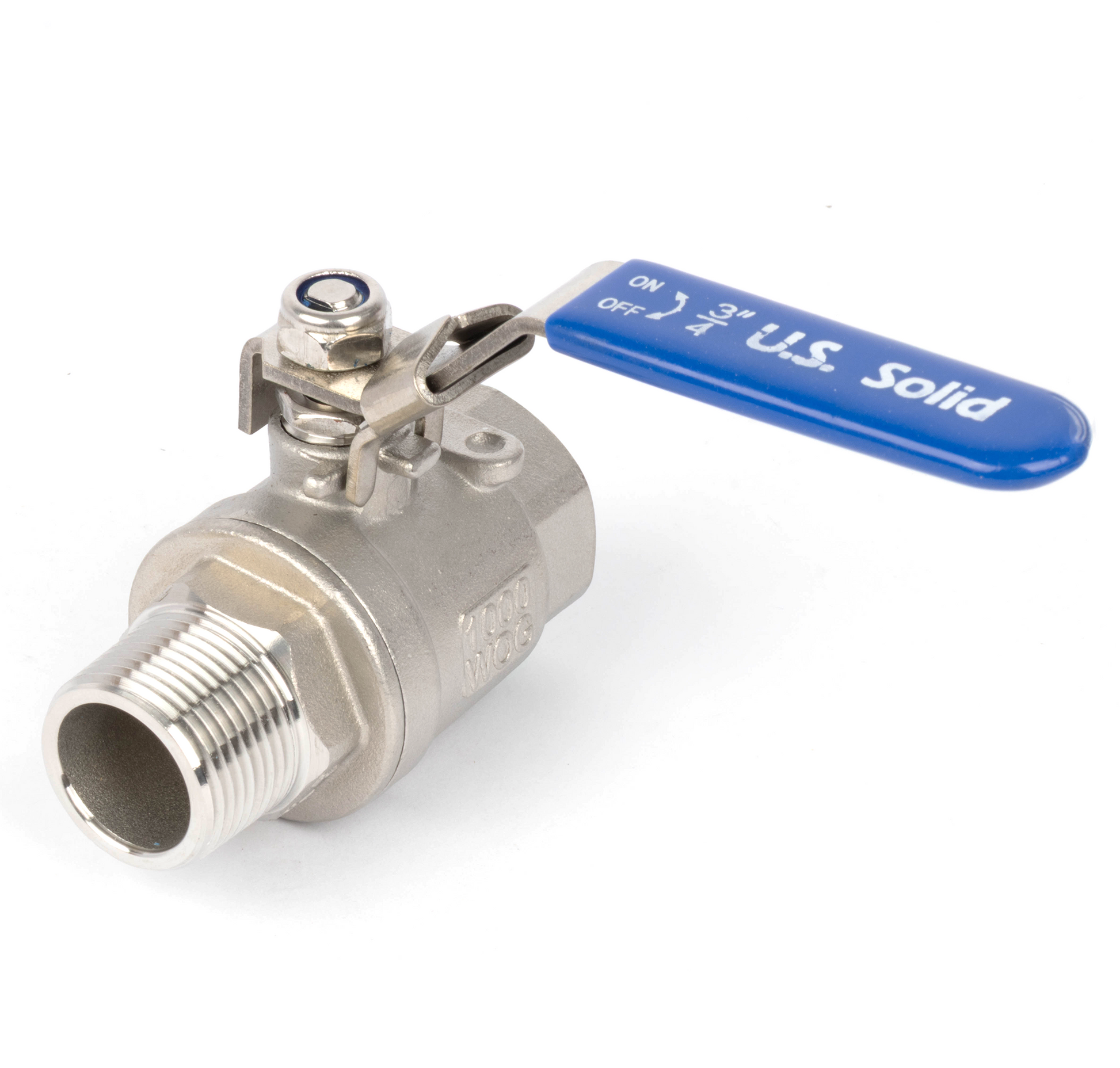

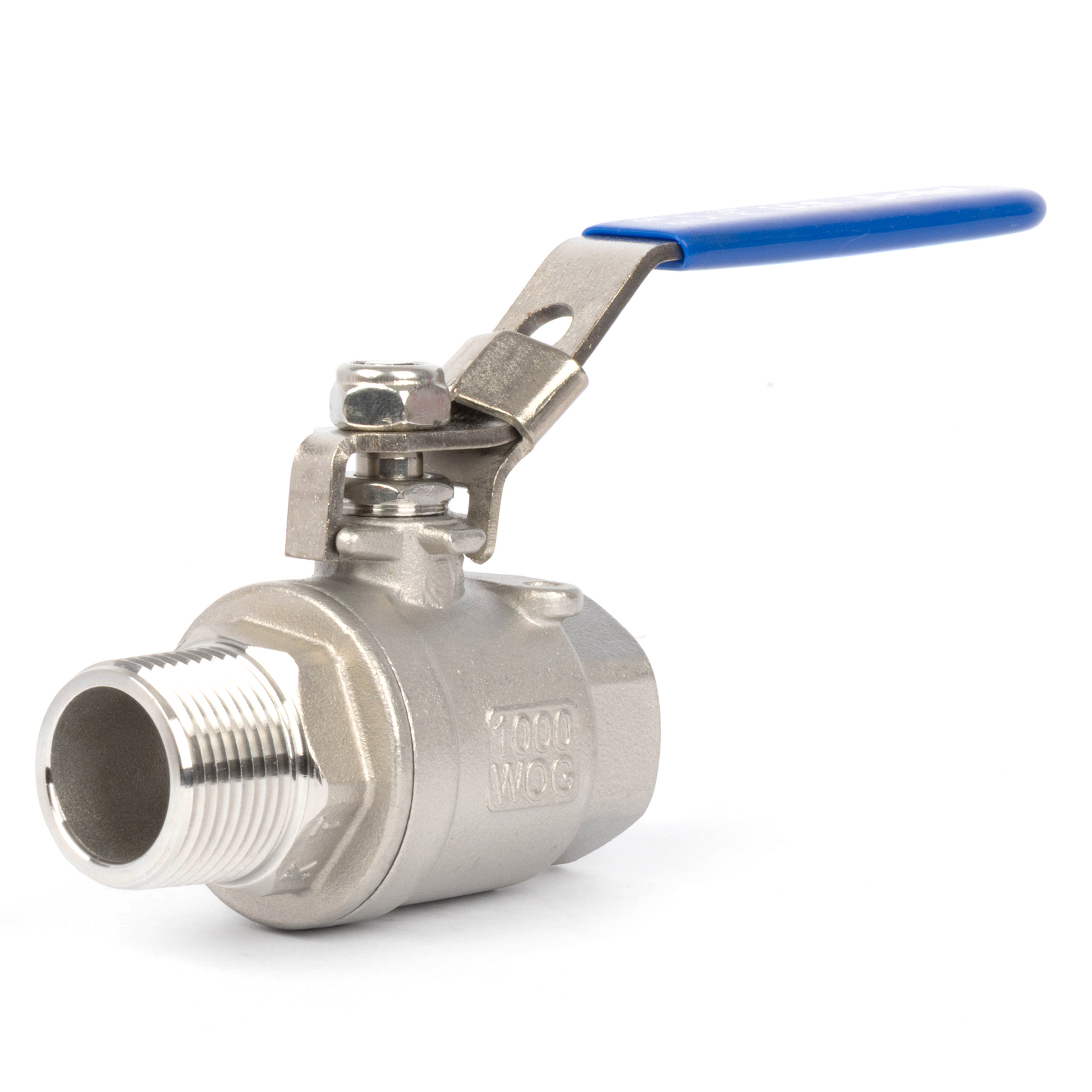

This high-quality ball valve is built from premium stainless steel for excellent durability and leak-free performance. It handles high-pressure applications with ease and offers precise flow control, making it ideal for both industrial systems and household plumbing.

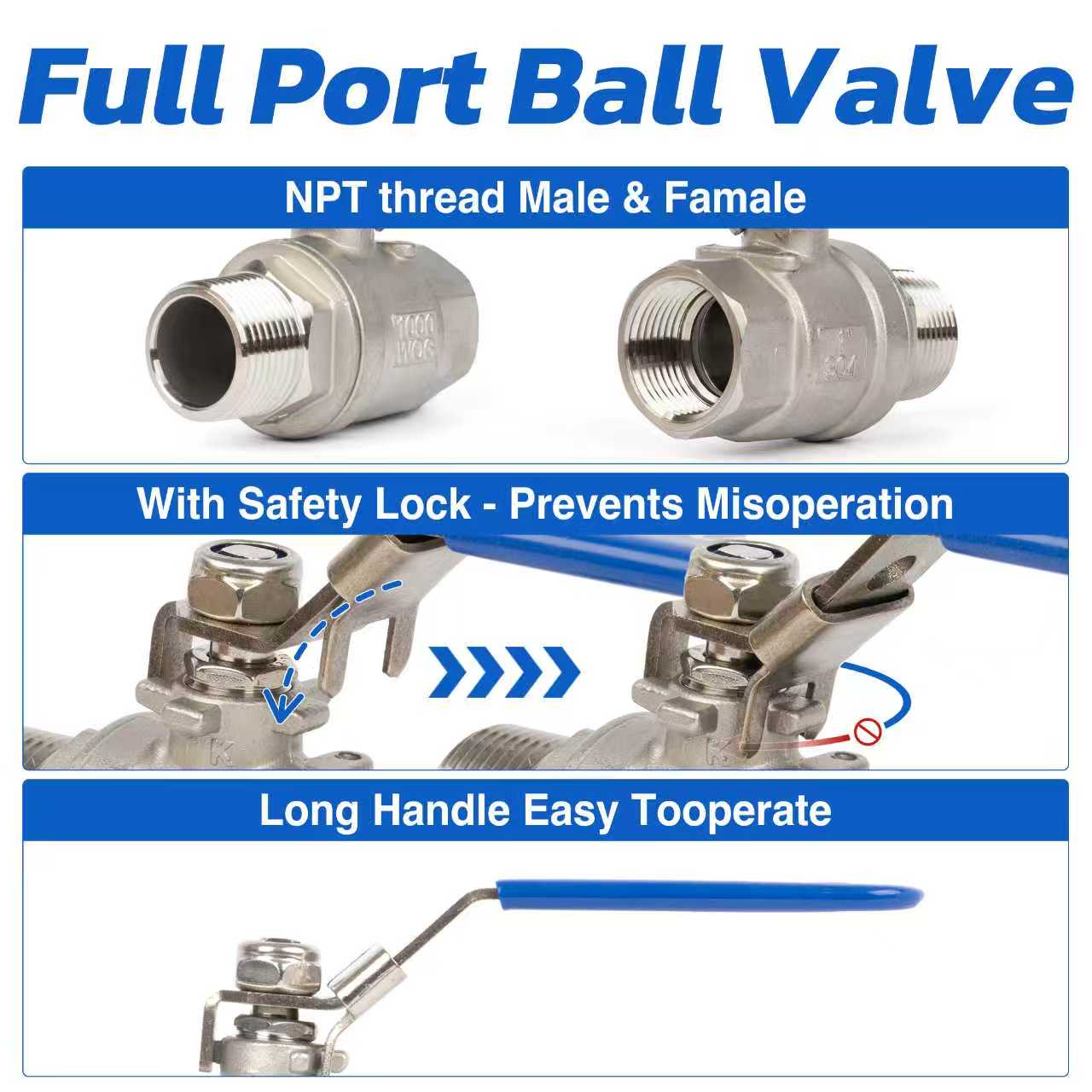

This manual ball valve model features a safety lock to prevent misoperation.
2-Pack Version: JFBV00064
Features
- CONSTRUCTION: Made of high-quality stainless steel for superior durability and corrosion resistance in demanding industrial applications

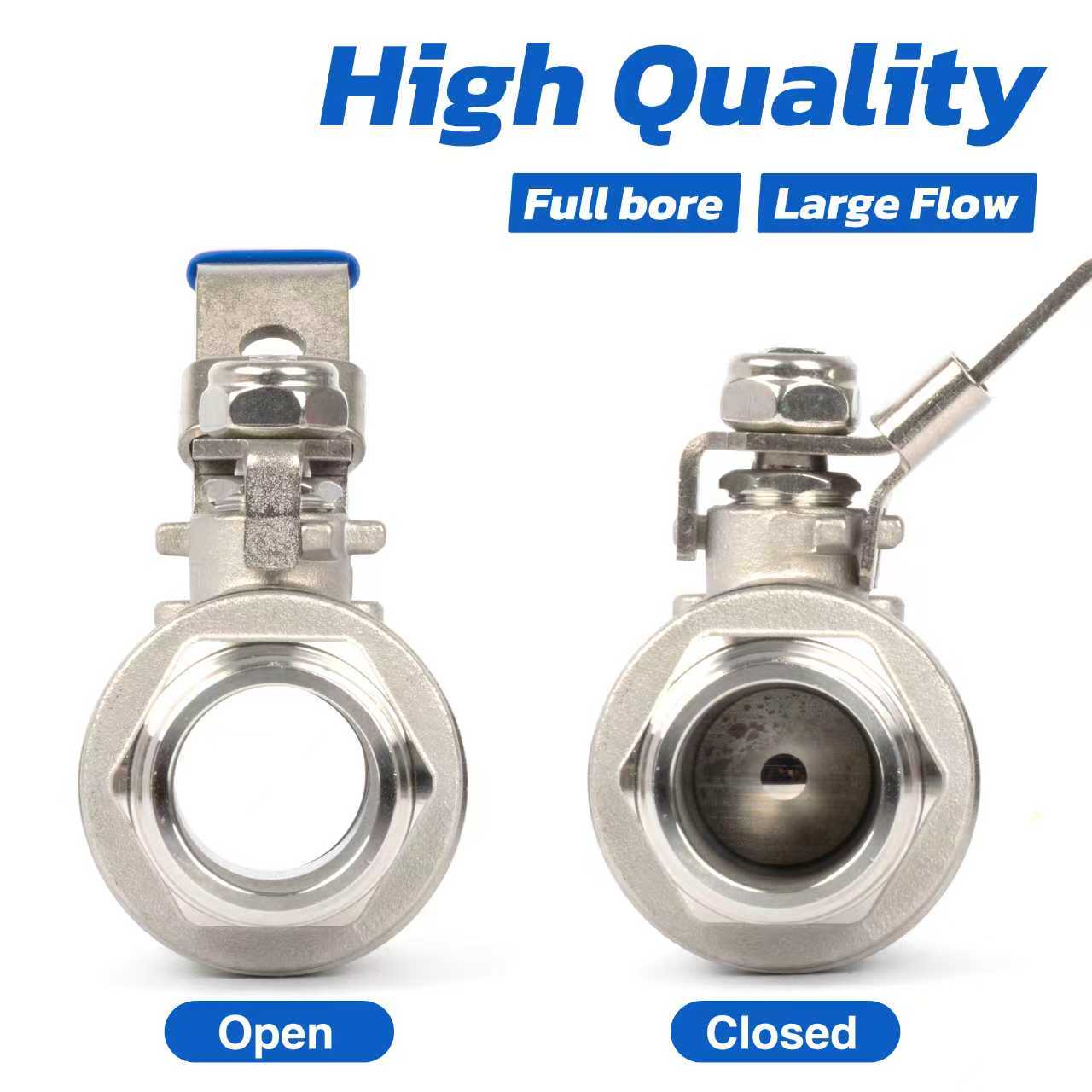

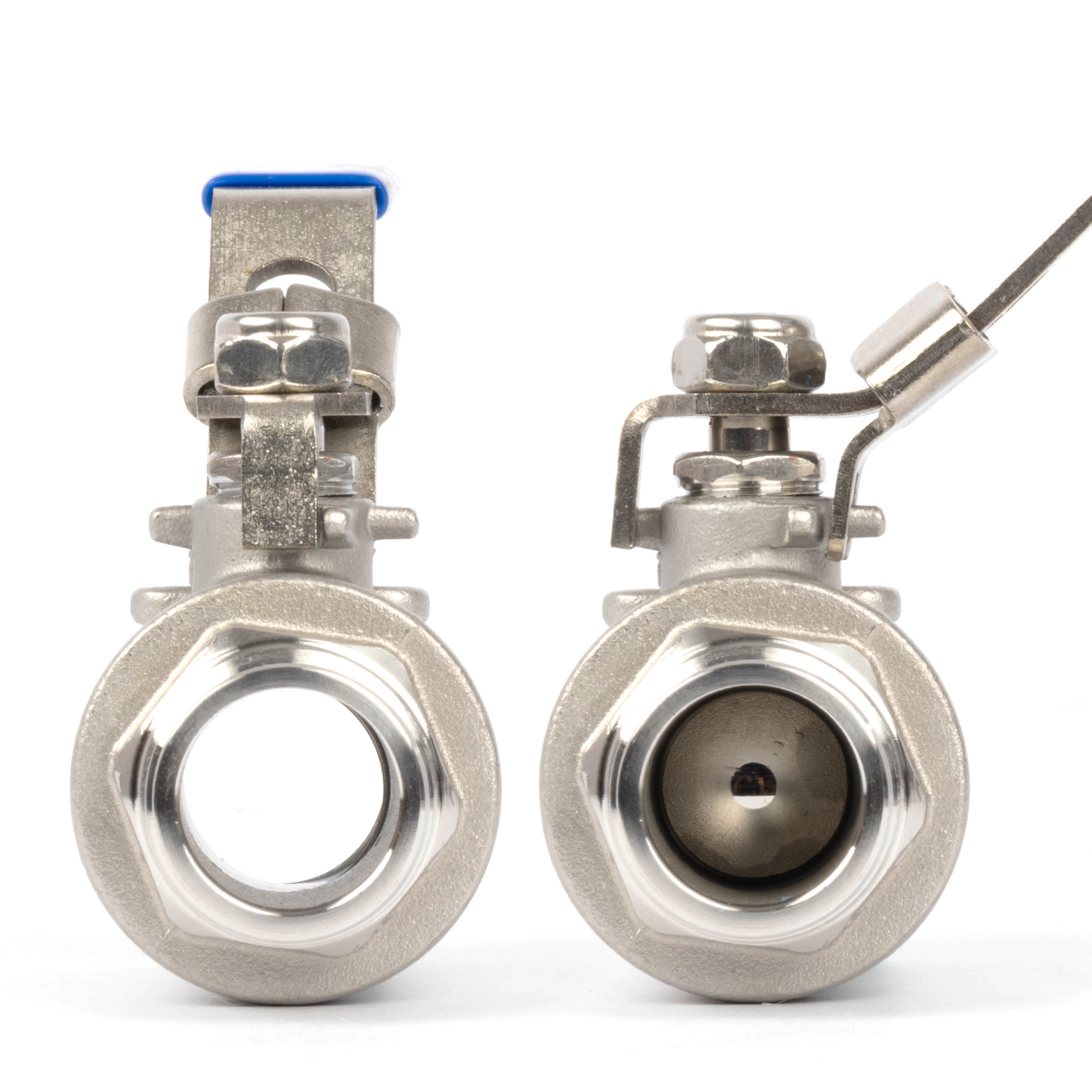

- DESIGN TYPE: Full port ball valve configuration ensures maximum flow capacity with minimal pressure drop
- CONNECTION: Male x Female NPT threaded ends provide secure and reliable pipe connections for various installations
- VERSATILITY: Suitable for controlling flow of water, oil, and gas in industrial processes and utility systems

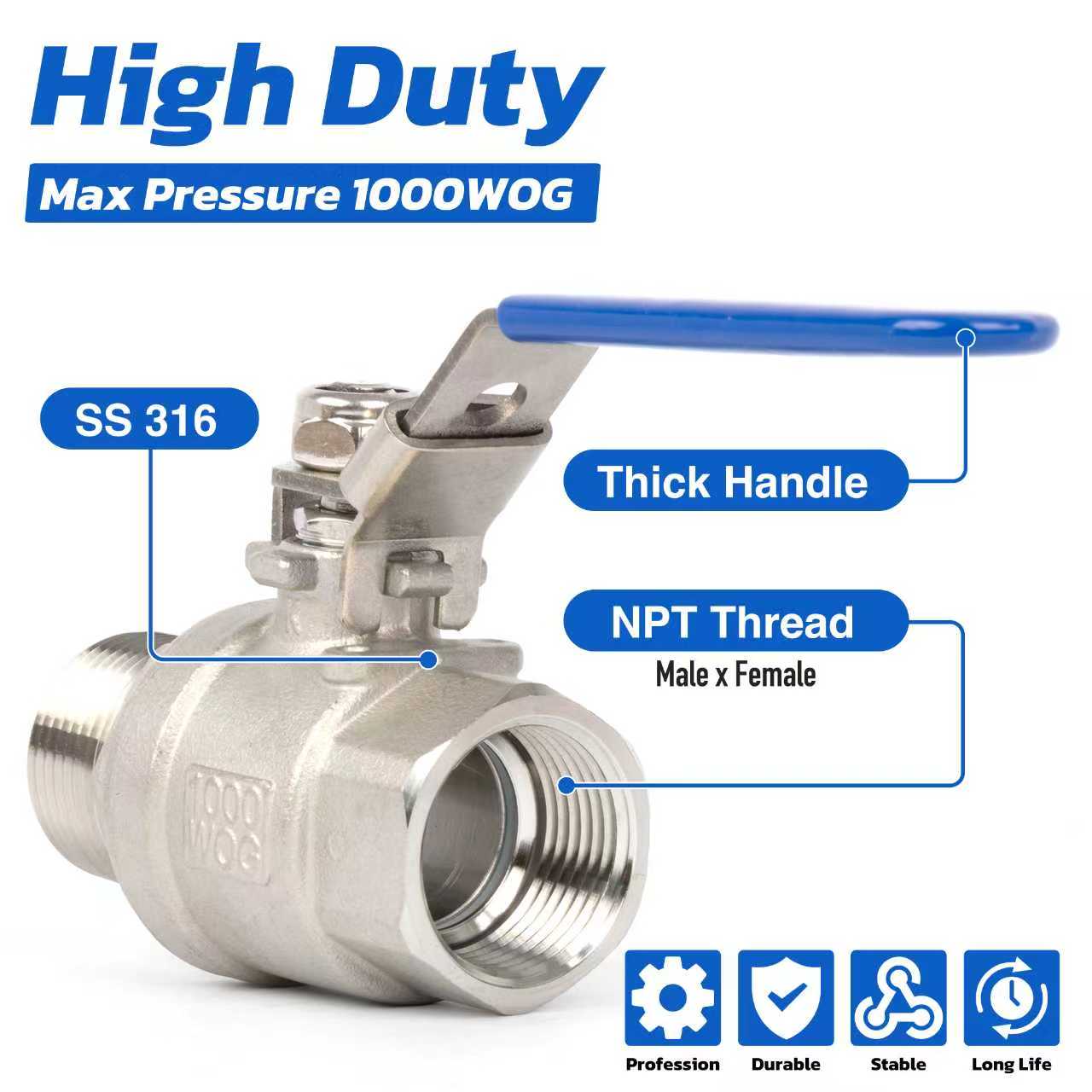

- PRESSURE RATING: Heavy-duty 1000 WOG (Water, Oil, Gas) rating for high-pressure applications
Technical Data
Model: USS-BV00054/ USS-BV00054-G
Threading: NPT/ G
Size: 3/4"

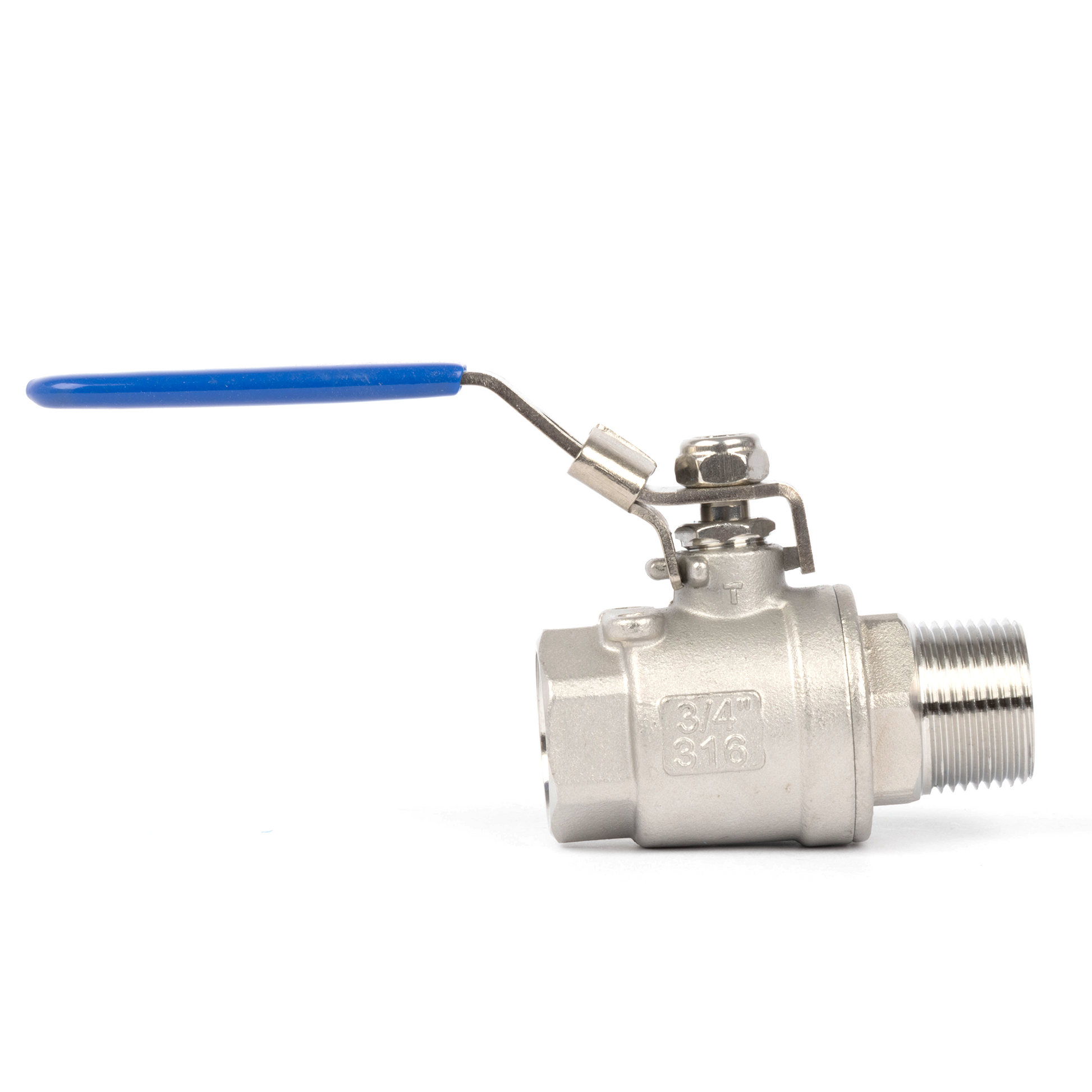

Material: 316 Stainless Steel
Working Pressure: 16 Bar
Medium Temperature: -30-120°C(-22-248℉)
Orifice: 20 mm
Seal: PTFE
Flow Value: 11.67 Cv
Applicable Media: Water, gas and oil
Operating State: Normally Closed
