INTRODUCTION

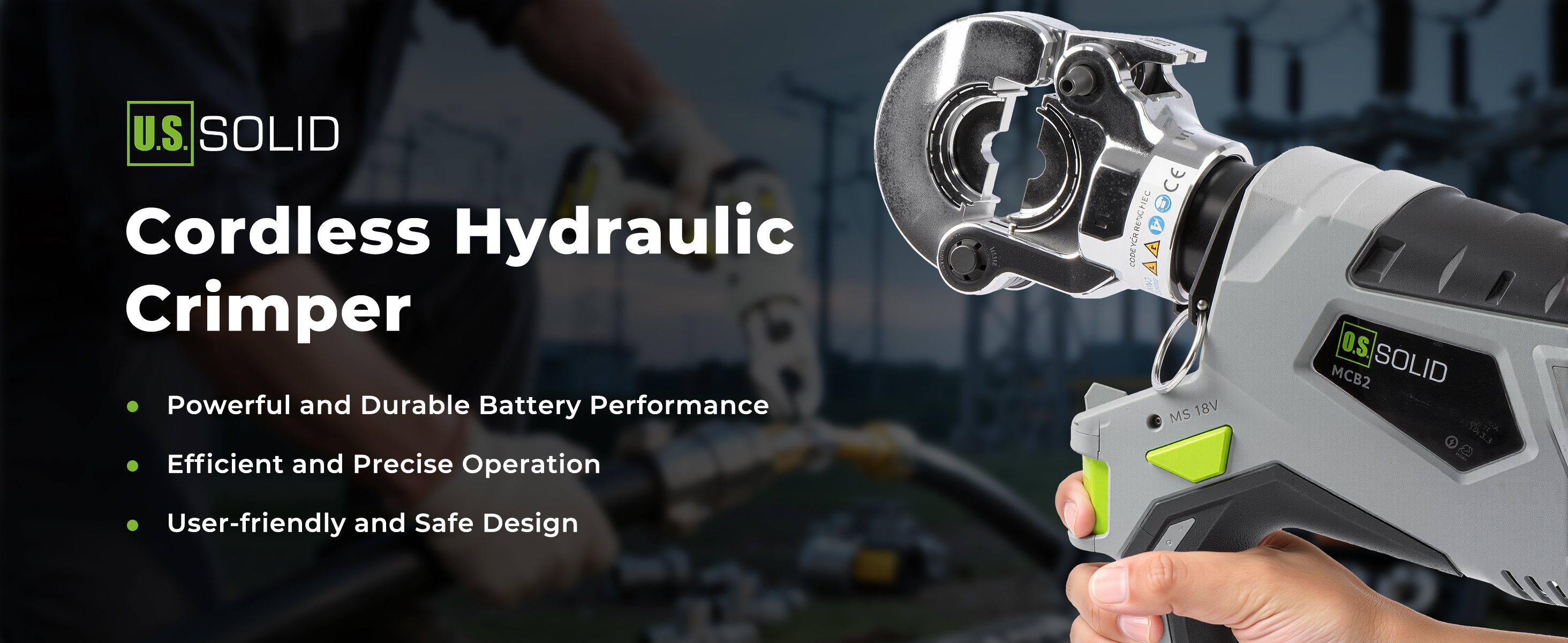

This versatile tool kit is the perfect addition to any professional or DIY user's gear, offering superior performance and reliability in a compact, portable carrying case. Amp up your crimping tasks with this feature-rich cordless crimper tool kit.The HD LCD Display provides a bilingual interface in English and Chinese, offering real-time monitoring of the tool's operational parameters such as current temperature, remaining battery life, and crimping operations count for user convenience and efficiency.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-HC00001 | Brand | U.S. Solid |
|---|---|---|---|
| Crimping time | 4 s (CU 300MCM) | Oil storage | 166 ml |
| Max pressure | 70 Mpa | Max output | 65 KN |
| Hydraulic oil | Shell Tellus 15# Low freezing anti-wear hydraulic oil | Temperature range | -10~40 Celsius Degree |
| Battery | 18 V 4 Ah | Crimp times | About 300 times(CU 300MCM) |
| Charging voltage | 100 V~240 V 50~60 Hz | Charging time | 3 hours |
| Crimping range | CU 600MCM | Working stroke | 17 mm |
WARNING
1.Use only designated battery packs and dies specified in this manual. Incompatible components may compromise tool functionality.
2.Charge the battery exclusively with the provided charger to avoid potential damage to the battery or tool.
3.Store the tool and battery in a dry, temperature-controlled environment (0°C–30°C for long-term storage). Avoid exposure to extreme heat, moisture, or direct sunlight.
4.Regularly inspect hydraulic oil levels and replace annually using the recommended Shell Tellus 15# oil.
5.Monitor the LCD display and fault alerts (e.g., temperature warnings, low battery signals) and address issues promptly.
PACKING LIST
- Bare tool x1
- Lithium-ion battery x2
- Battery charger x1
- #8 - 600 MCM Copper Die Kit 1 SET: x12
- Operator manual x1
- Carrying case x1
- Tool holder belt x1
- Power Cable x1
- User Manual x1
Download user manual here
