INTRODUCTION
This 90 Degree 1/4" NPT Female to 1/4" NPT Female brass elbow connects two threaded pipes with same or different diameters and can change the direction of piping.Material - The U.S. Solid 90 degree brass elbow is made of brass, making it durable and corrosion resistant. There may be some small flaws on the brass surface caused by storage or transportation, which are normal and will not affect the function.Note - This product contains two 90 Degree 1/4" NPT Female to 1/4" NPT Female brass elbows.NPT, national pipe thread standards, is not actual diameter, but nominal pipe size. Its full name is American National Standard Pipe Thread standards, used by U.S. national technical standards for screw threads on threaded pipes and pipe fittings.

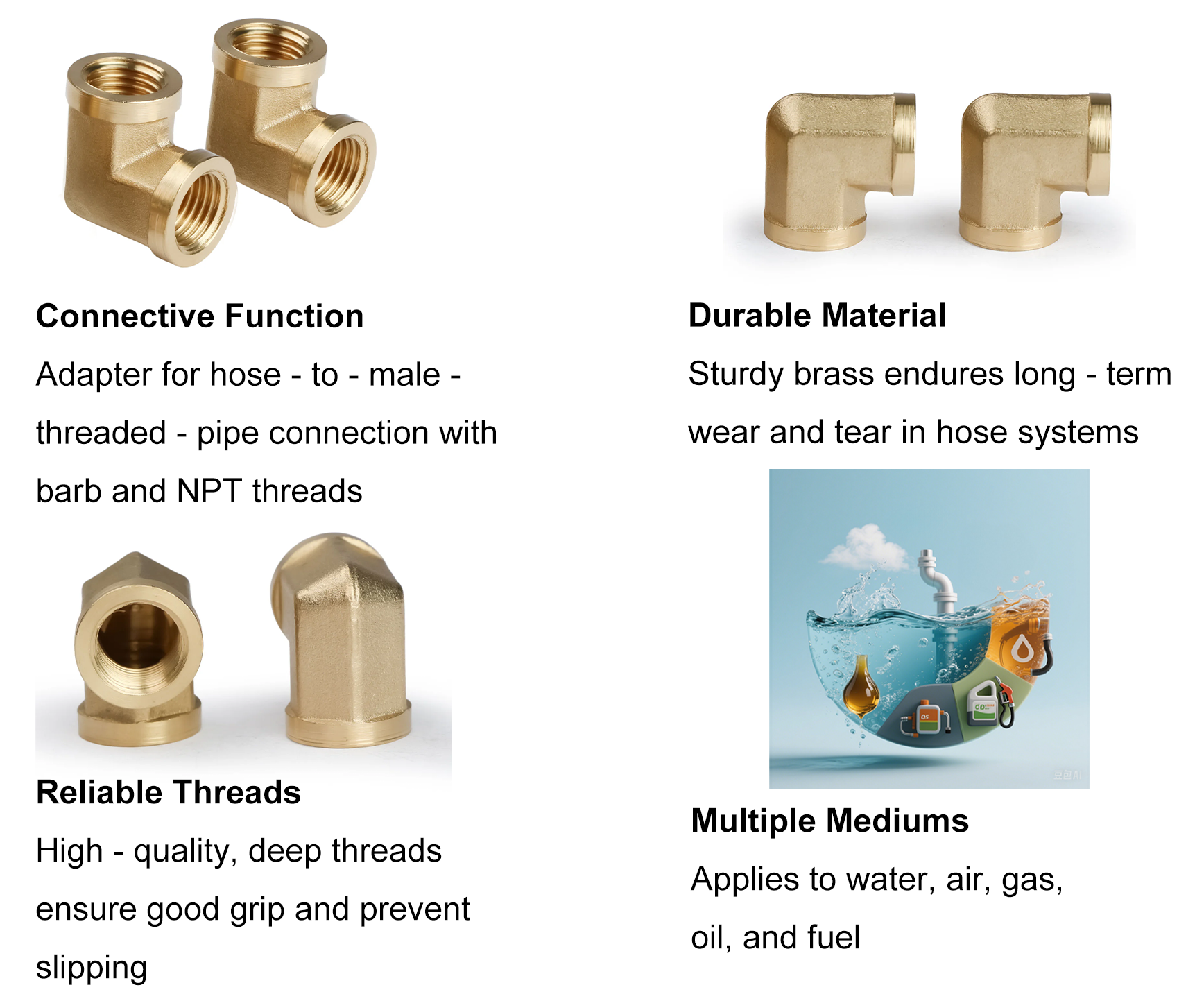

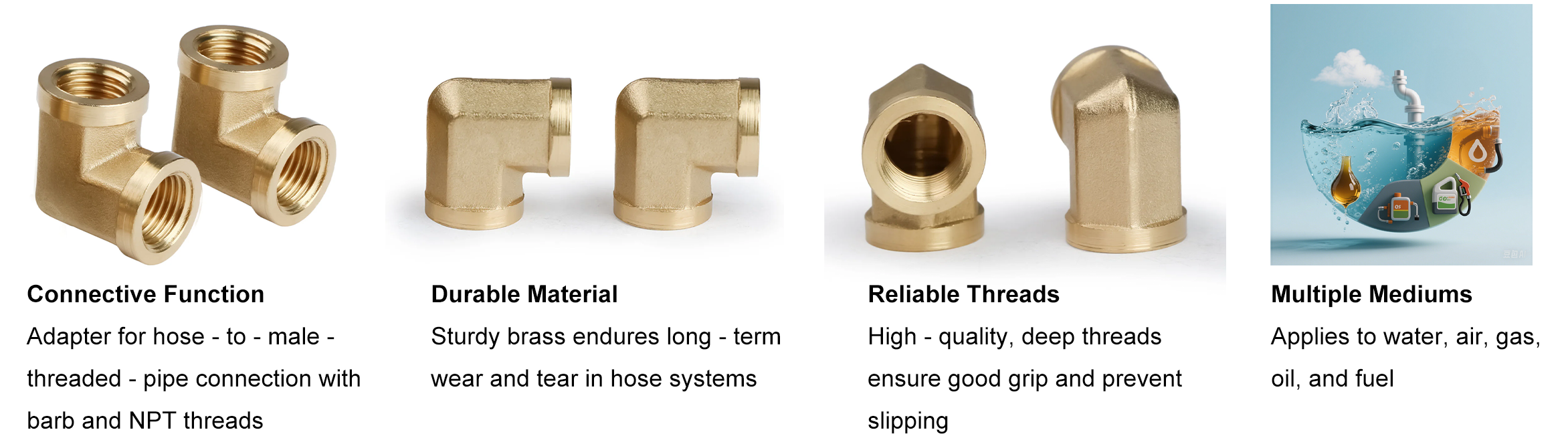

FEATURES
APPLICATION
SPECIFICATION
| Model | USS-FIT00042 | Brand | U.S. Solid |
|---|---|---|---|
| Size | 1/4" NPT Female to 1/4" NPT Female | Material | Brass |
| Connector Type | Elbow | Exterior Finish | Brass |
| Thread Type | NPT | Temperature Range | -53 ~ 121°C (-65 ~ 250°F) |
| Maximum pressure | 150 PSI | Medium | fluid, air, gas, oil and fuel |
WARNING
