Introduction
Our electric UPVC ball valve series has been upgraded to include three larger sizes: 1-1/4", 1-1/2", and 2". These larger valves feature a unique US standard socket end & double union connection—enabling exceptional ease of installation and maintenance with a simple solvent cement bond, unlike threaded NPT or G connections. For other connection standards, please contact our customer service.
These valves utilize a 3-wire, double-control configuration. Unlike the 2-wire auto-return model, this version does not automatically reset if power is lost; instead, it remains in its current position, providing stable operation for specific flow requirements. The 3-wire setup includes a common wire, an opening control wire, and a closing control wire—energize the opening control wire to open the valve, and energize the closing control wire to close it. A manual override is also included for use during power outages. All valves have EPDM seals for reliable performance.
To learn how to use this product, please refer to the user manual.

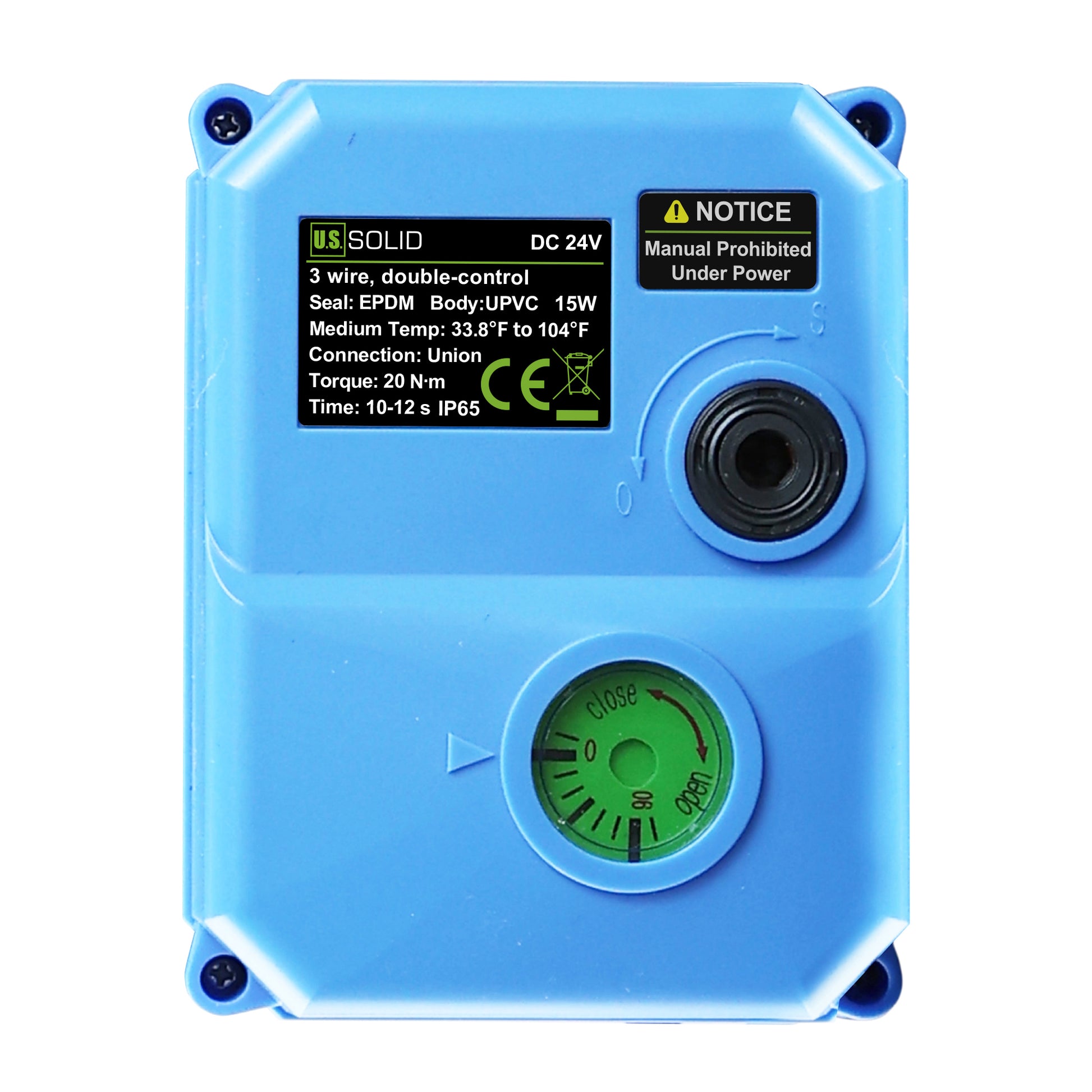

Specifications
Model: USS-MSV480
Size: 1-1/2"
Connection: Union & Socket End
Socket Inside Diameter: 48.3mm
Material: UPVC
Working Voltage: DC 24V
Max Power: 15W
Max Torque: 20 N·m
Max. Pressure: 232 psi
Medium Temp: 33.8℉ to 104℉
IP Rating: IP65
Life Expectancy: 20,000Cycles
Close/Open Time: 10-12s
Wiring: 3-wire double-control
Manual Function: Yes
Signal feedback function: No
Seal: EPDM
Factory set: The valve is set to CLOSED by default. It is a non-spring return model, meaning it does not have a predefined Normally Open (NO) or Normally Closed (NC) state.
