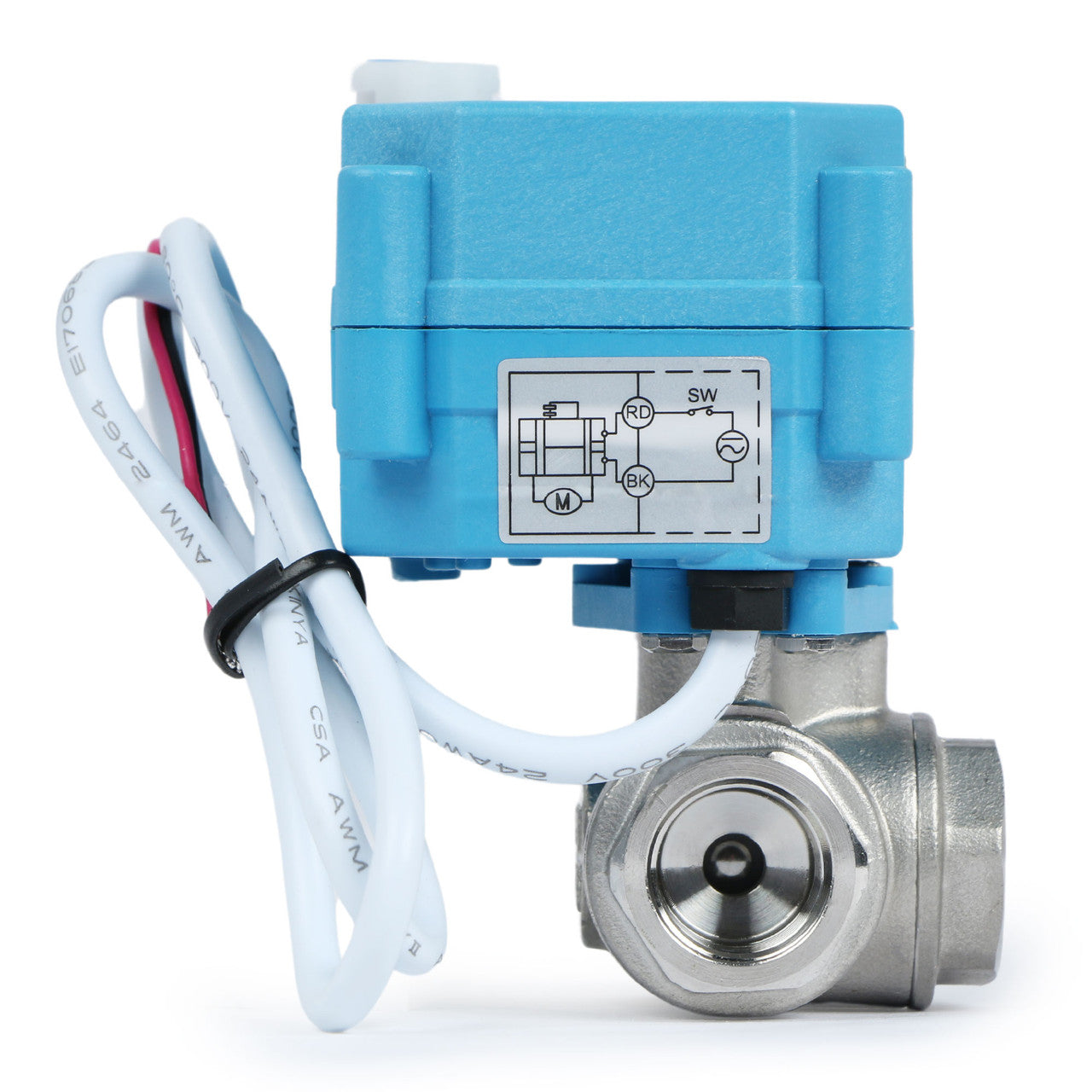

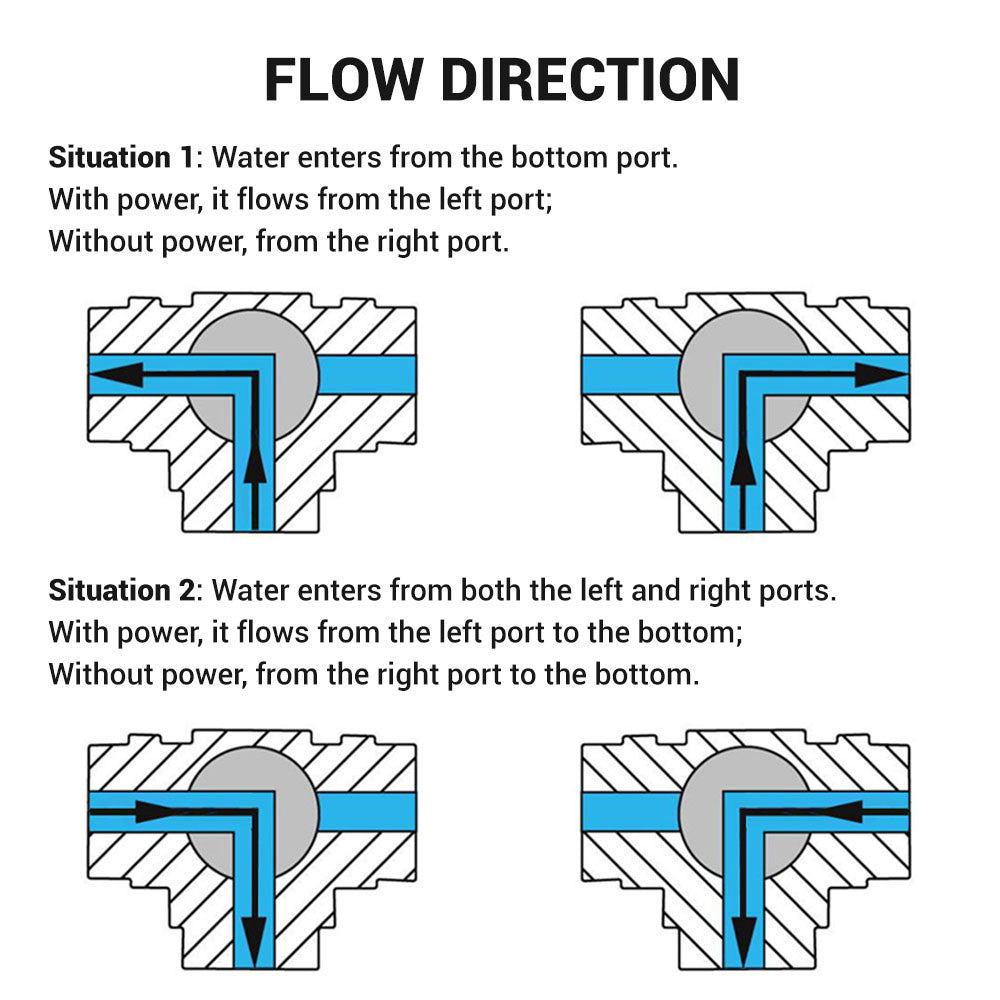

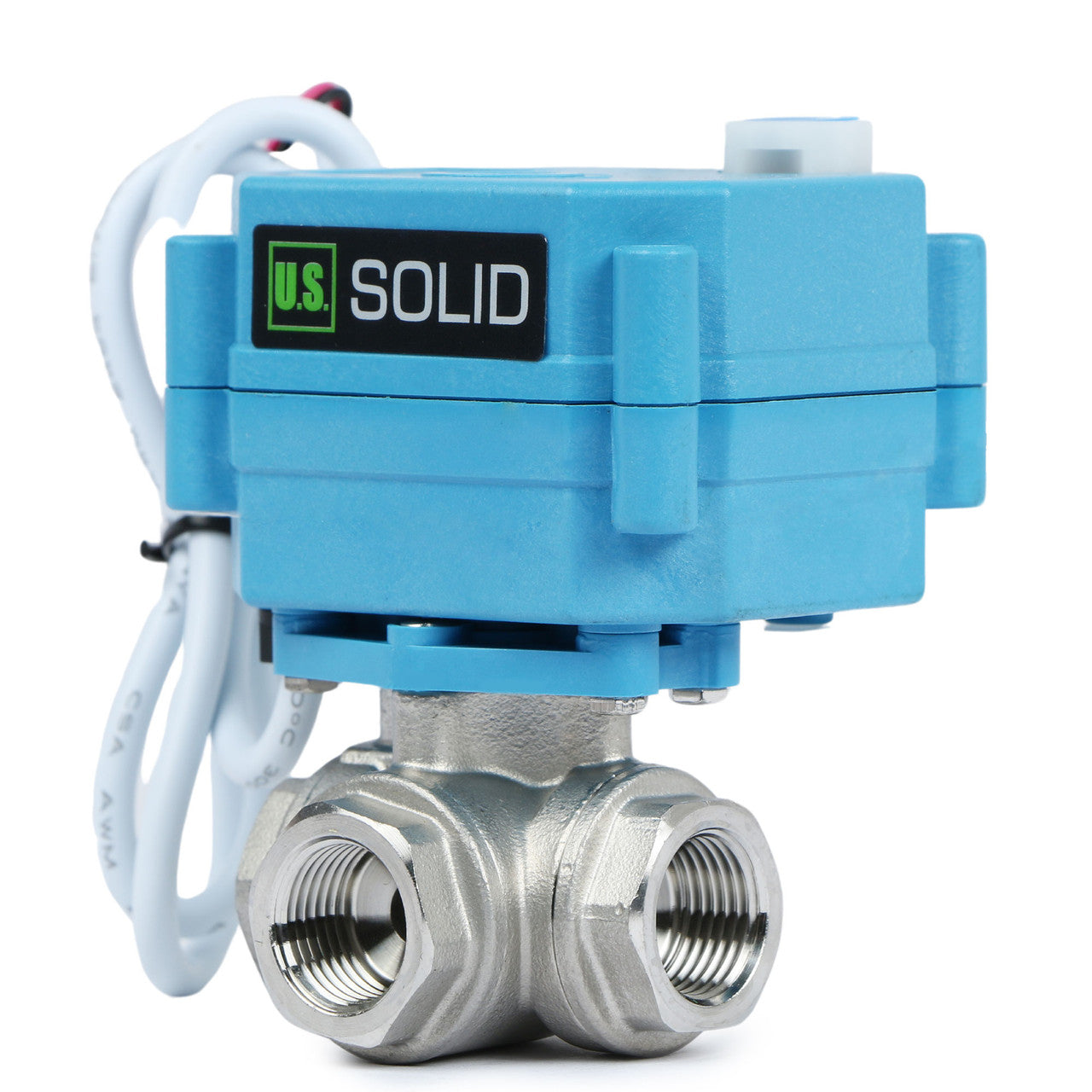

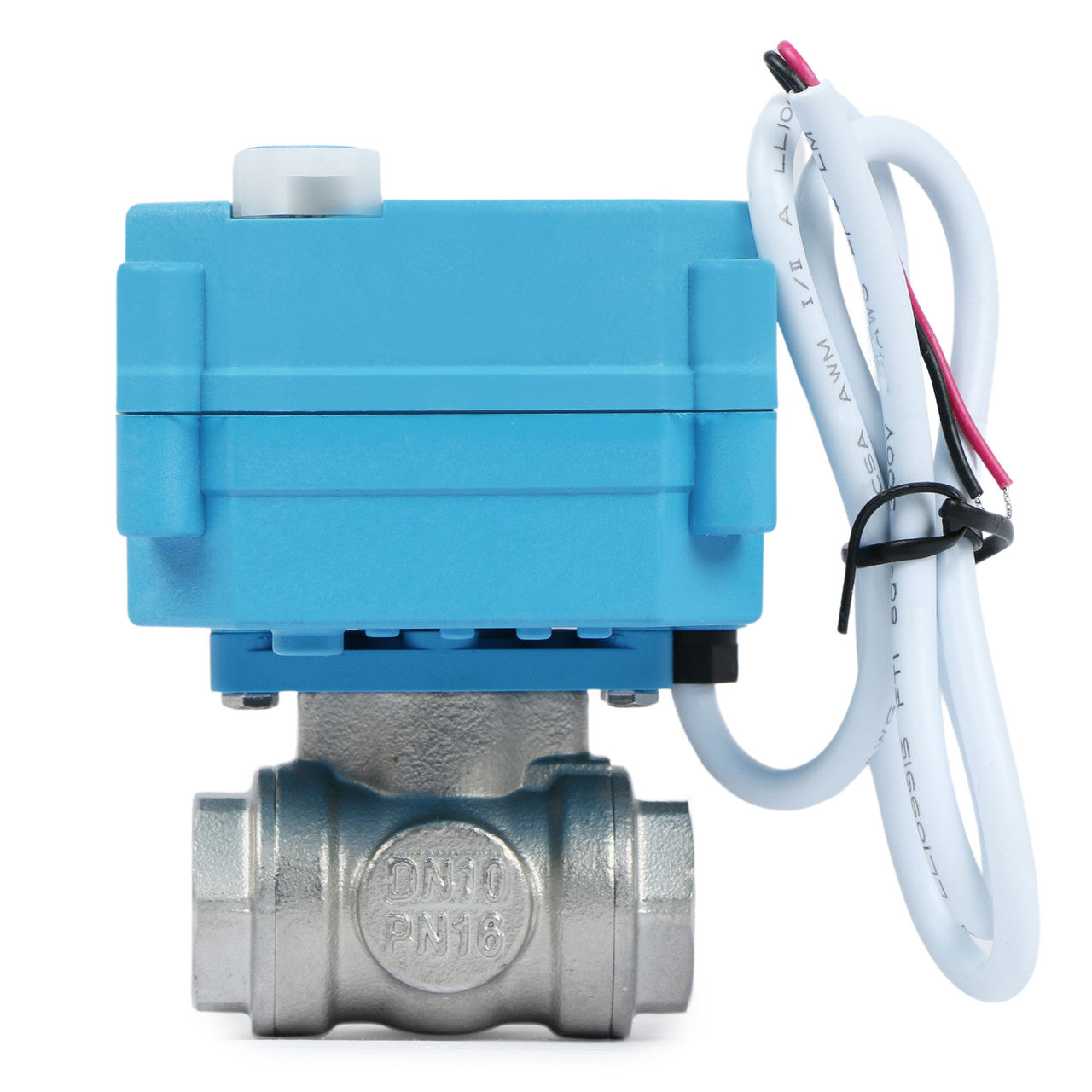

Designed for user-friendly and durable performance, this three-way valve offers a variety of voltage configurations, integrated limit switches, two-wire control, and a built-in capacitor return for enhanced current and water conservation. Upon power connection, water flows from the left port, and when the power is disconnected, water flows from the right port. Additionally, the flow direction can be manually adjusted using the hand-wheel for added versatility.
Specifications：
Model: USS-MSV10012
Valve Body Material: Stainless Steel
Port Size: 3/8''
Voltage: 9-24V AC/DC
Max. Torque: 3 N m
Open/Close Time: ~ 5 seconds
Max. Power: 5 W
Max. Pressure: 1.0 MPa
Flow Medium Temp. Rage: 0 to 90 ℃
Ambient Temp. Range: -15 ℃ to 50℃
Life Time: ≥70000 times
Actuator Material: PPO
O-ring: FKM
Sealing: PTFE
Manual Override: Yes

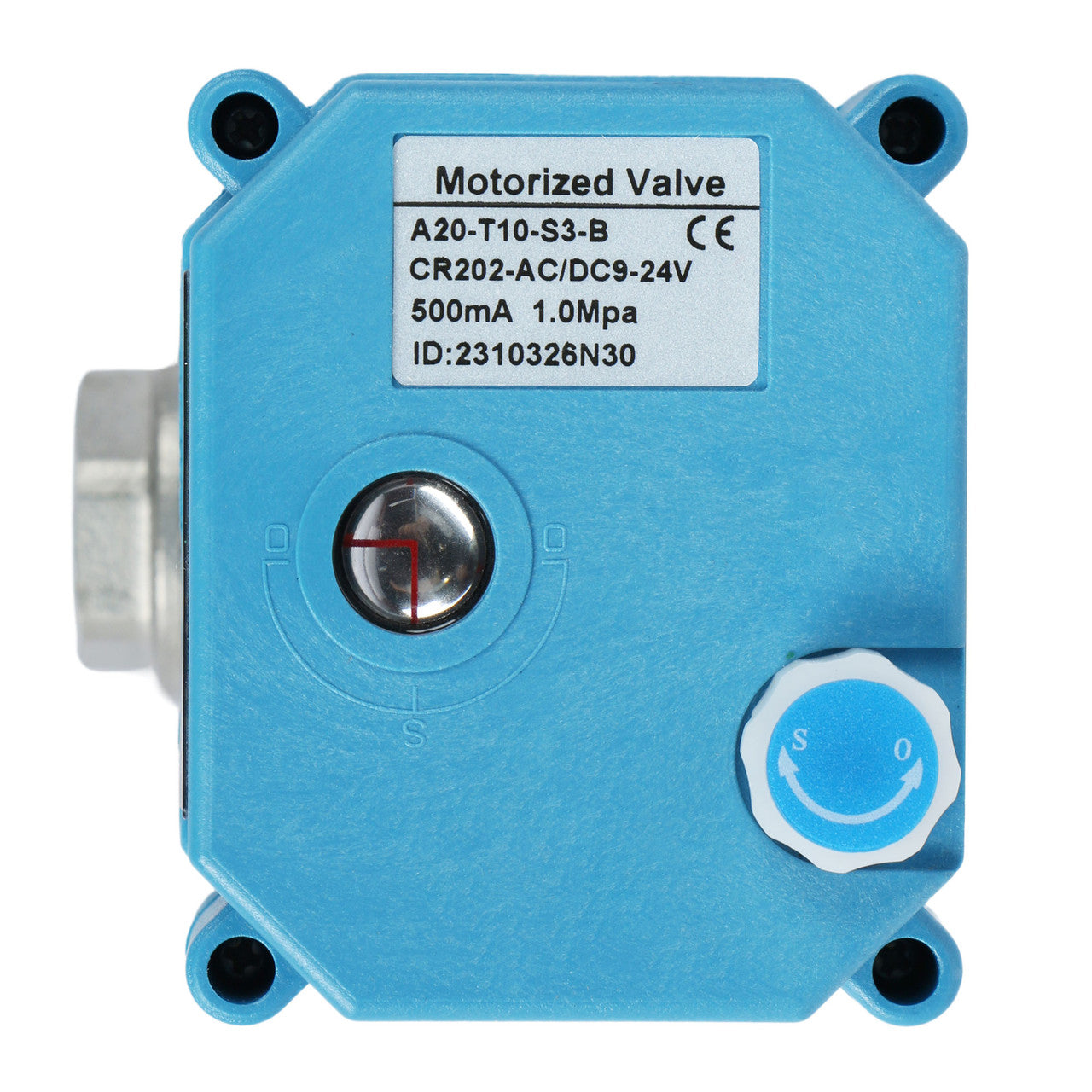

On/Off Indicator: Yes
IP Rating: IP 67
Bore Type: Standard Port
Item Dimension: 3.39*2.48*2.09 in
Item Weight: 0.84 lb
