U.S. Solid Manual Coil Winder NZ-2 Automatic Coil Winding Machine

U.S. Solid Manual Coil Winder NZ-2 Automatic Coil Winding Machine

SKU: Product SKU: JFHWM00003

24 in stock

Regular price $213.44 USD
Regular price Sale price $213.44 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details

INTRODUCTION

The Automatic Coil Winding Machine creates coils for a wide range of applications such as low frequency transformers, inductors, resistors, relays, solenoid valves, generators, and motors. Accepting wires with diameters between 0.12-0.91 mm, this machine has a great deal of flexibility. Two separate speeds gives you further control over the final product. A 1:6 speed ratio generally used for thinner wire creates coils in less time while the 1:1.5 speed ratio generally used for thick wires gives you more control over the final product. Either way, the output is a neat and evenly distributed coil with length up to 110 mm and a diameter between 12-150 mm.

FEATURES

APPLICATIONS

SPECIFICATIONS

Model USS-HWM00003 Brand U.S. Solid
Applicable Diameter of Wires 0.0047 - 0.0358" (0.12 - 0.91 mm) Diameter of Coils Fit to be Wound 0.4724 - 5.9055" (12 - 150 mm)
Length of Wire Disc Applying to the Wire-Discharging Stand 3.3465" (85 mm) Diameter of Wire Disc Applying to the Wire-Discharging Stand 5.1181" (130 mm)
Length of Coils Fit to be Wound 0.2362 - 4.3307" (6 - 110 mm) Count Range 0 - 2500 Rounds

WARNING

1.Strictly adhere to: diameter (12-150 mm), length (6-110 mm), wire thickness (0.12-0.91 mm). Exceeding limits risks spindle overload, tension arm deformation, or mechanical failure. Verify dimensions with calipers before winding.

2.Thick wires (0.12-0.91 mm): Engage 69-tooth gear (1:1.5 speed ratio).Fine wires (0.3-0.8 mm): Engage 35-tooth gear (1:6 speed ratio).Incorrect pairing causes uneven winding or gear slippage. Confirm gear alignment via manual rotation before power-on.

3.Rotate hand wheel when adjusting rubber wheel position to prevent surface damage. Clean with dry cloth to remove oil/dust; contamination degrades wire alignment. Avoid direct hand contact to minimize residue transfer.

4.After changing wire thickness, recalibrate long lead screw knob to match new wire size. Unadjusted screws cause inconsistent coil density or wire breakage. Test with 5-10 trial windings post-adjustment.

5.Set positioning ring to match target coil length. Over-travel risks lead screw damage or misaligned layers. Use mechanical stops for batches exceeding 50 coils.

Download user manual here

Customer Reviews
4.5 Based on 4 Reviews
5 ★
75%
3
4 ★
0%
0
3 ★
25%
1
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Loading more...
A
07/07/2023
Anonymous
United States
I recommend this product

Awesome.

Awesome. Did the job perfectly well.

SP
02/18/2023
Scott P.
United States
I recommend this product

Solid machine from an era gone by

Great old world machinery. Very rugged and durable. I replaced the gearing with stepper motors so I could wind finer wire. I probably have the most capable and reliable coil winder there is! Couldn’t babe done it without a good head start using the US Solid machine. One problem was that the carriage shaft had been bent, probably in shipping. It’s fairly malleable and I was able to get it back to fairly straight. Flexible motor couplings make up for the rest.

BM
05/09/2021
Bill M.
United States
I recommend this product

Greatly helps

It has greatly helped my work. When receiving it, the machine is covered with oil, which prevents rust. Just wipe the oil off. It is very sturdy, and easy to install. The pointer is very sensitive. When turning the handle slightly, it starts counting. I love this product very much.

RH
04/03/2021
Robert H.
United States
I recommend this product

Decent but not great

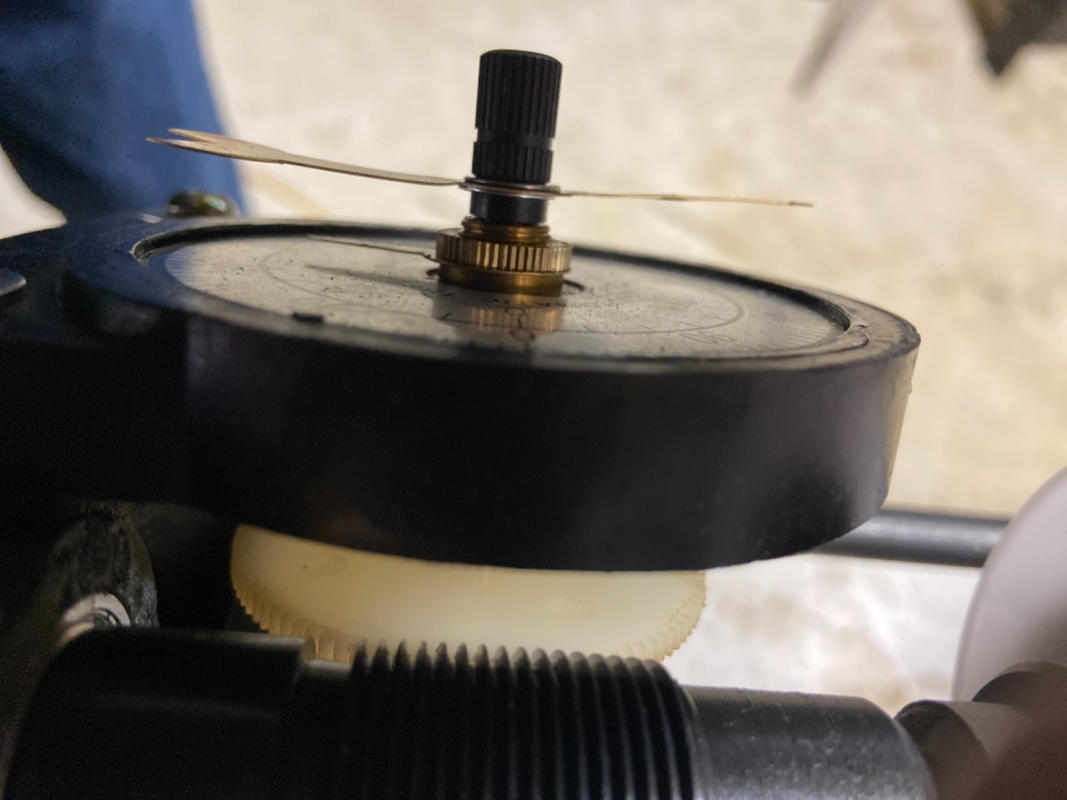

The overall machine is great but it has a few flaws. First the holder for the feed spool won’t fit standard spools. You have to wined to another spool that fits or notch out the casting. The material used for the counter dials is so thin it is more like foil than sheet metal and bends with the slightest touch. It winds a decent coil automatically but if you want a perfect one it needs constant attention. We will see how durable it is over time.
