The Automatic Coil Winding Machine creates coils for a wide range of applications such as low frequency transformers, inductors, resistors, relays, solenoid valves, generators, and motors. Accepting wires with diameters between 0.12-0.91 mm, this machine has a great deal of flexibility. Two separate speeds gives you further control over the final product. A 1:6 speed ratio generally used for thinner wire creates coils in less time while the 1:1.5 speed ratio generally used for thick wires gives you more control over the final product. Either way, the output is a neat and evenly distributed coil with length up to 110 mm and a diameter between 12-150 mm.

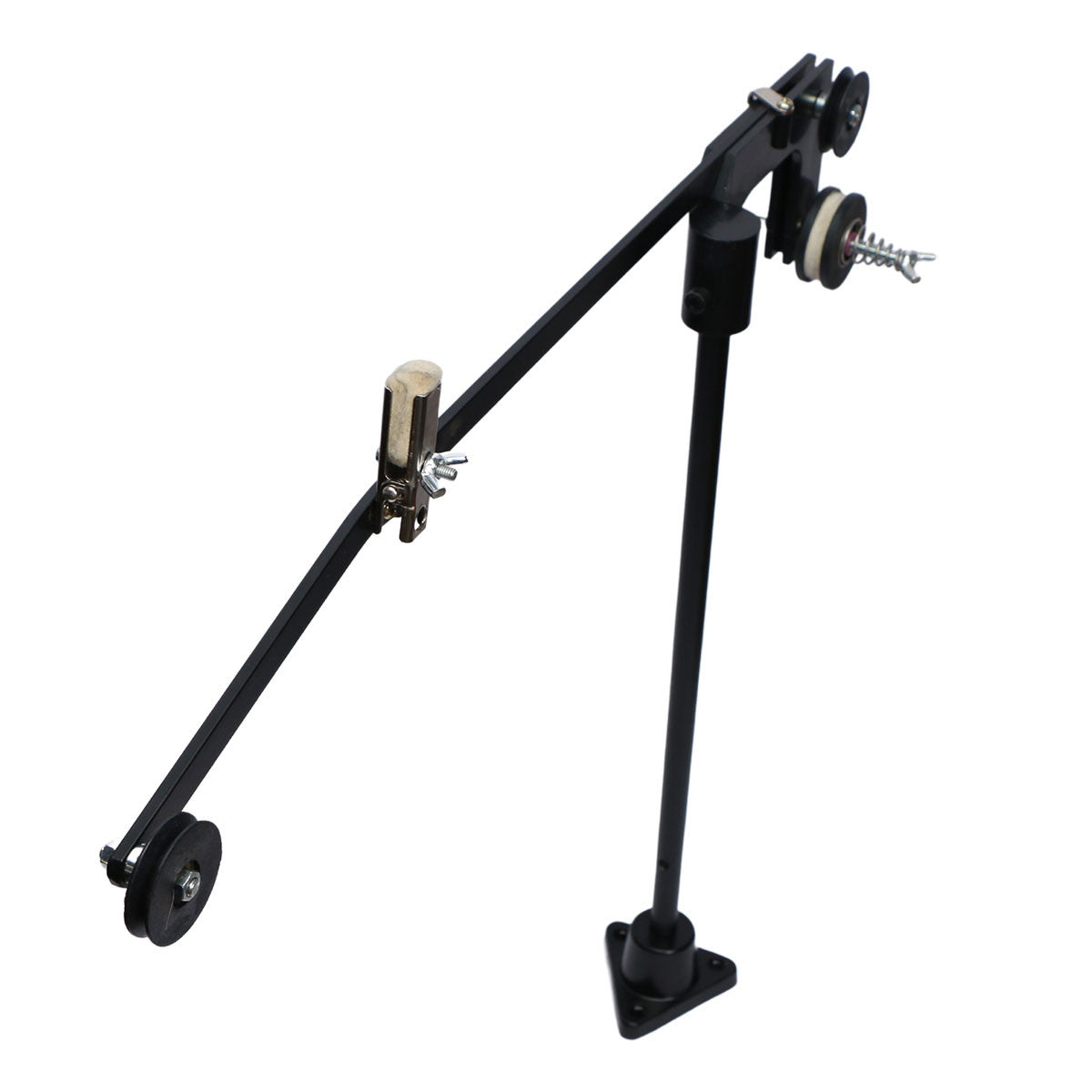

Package includes: coil winder, wire-discharging stand, thick wire strainer, screw
Specifications:
|
Model |
NZ-2 |
|
Applicable Diameter of Wires |
0.0047 - 0.0358" (0.12 - 0.91 mm) |
|
Diameter of Coils Fit to be Wound |
0.4724 - 5.9055" (12 - 150 mm) |
|
Length of Coils Fit to be Wound |
0.2362 - 4.3307" (6 - 110 mm) |
|

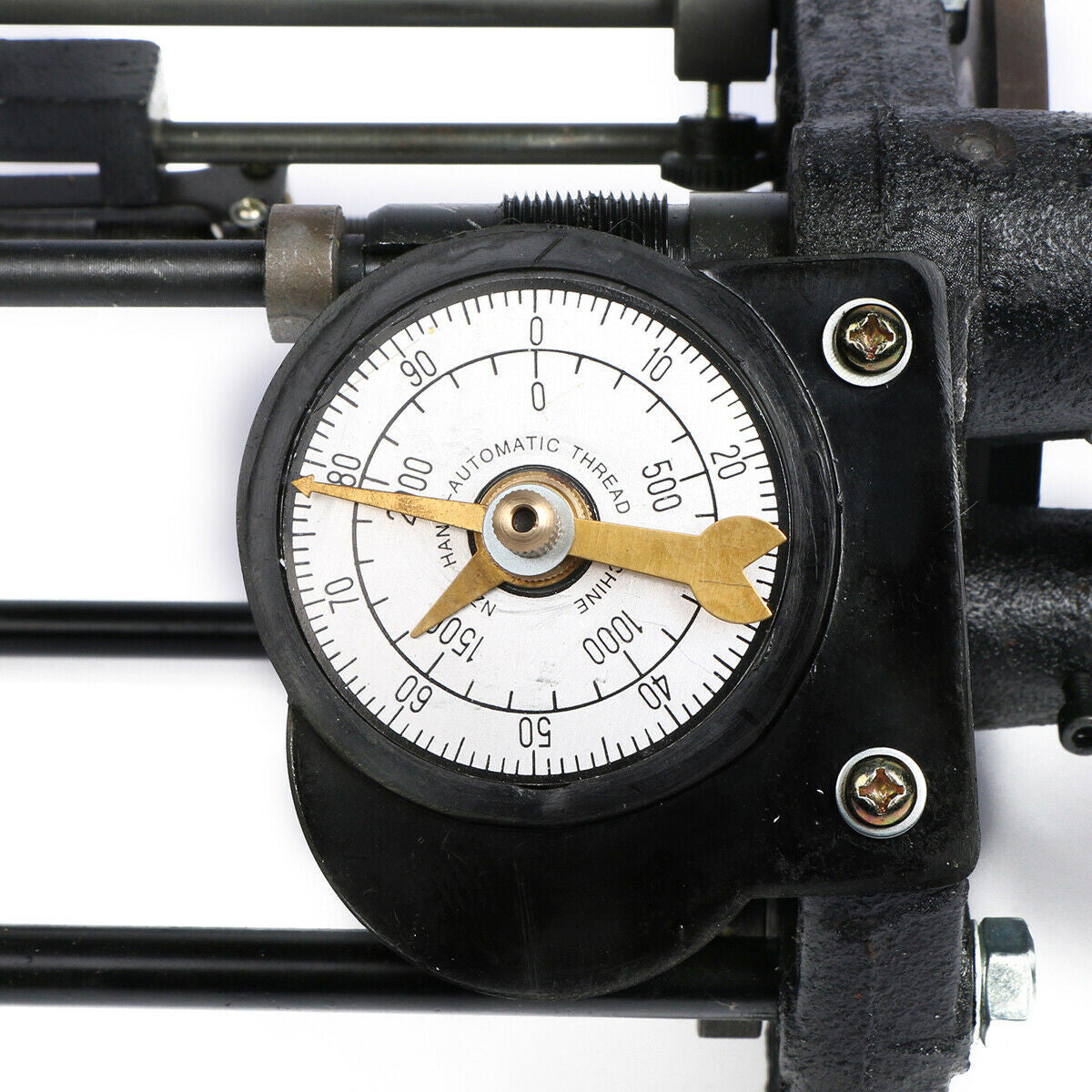

Counting Range |
0 - 2500 Rounds |
|

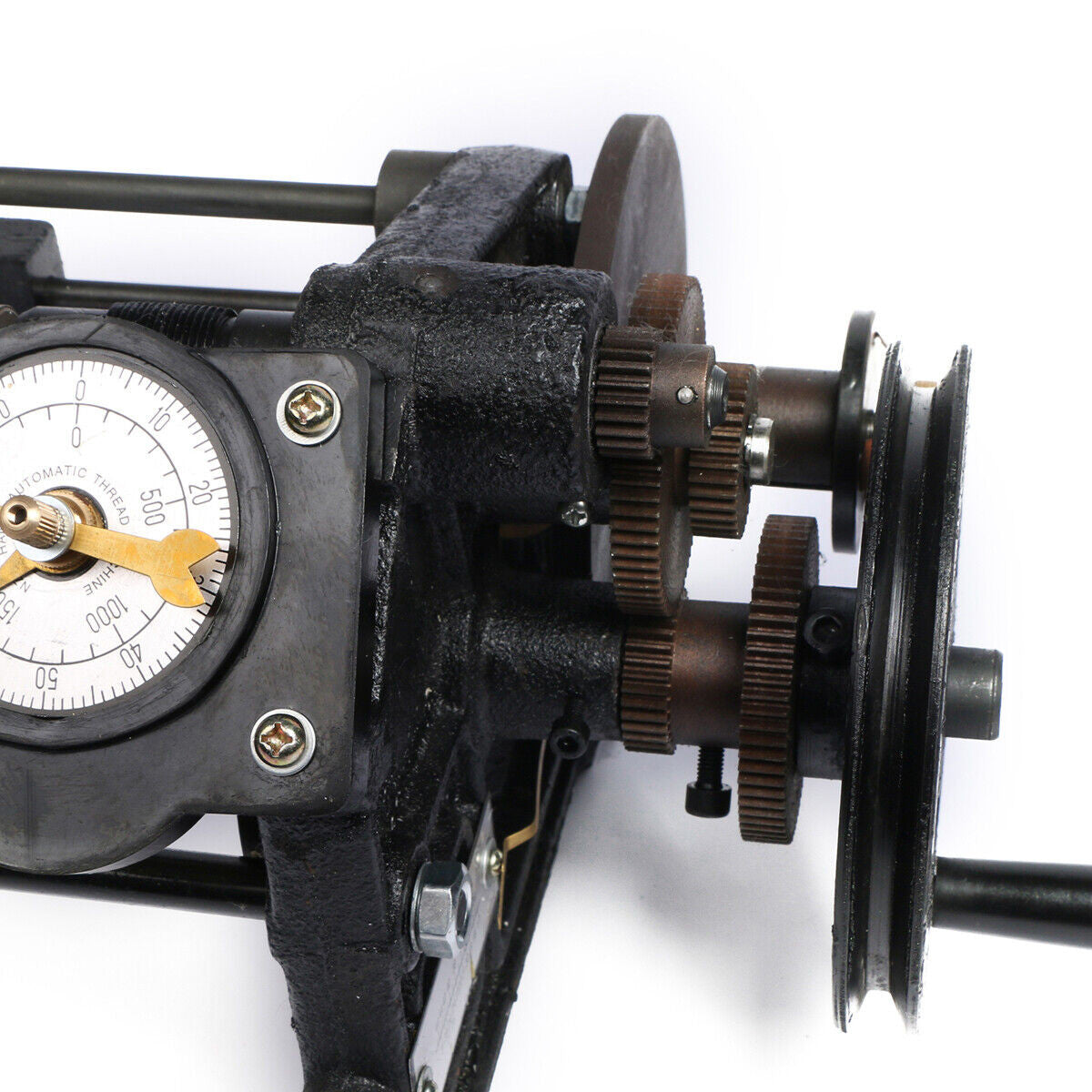

Transmission Ratio |
1:6 (Fast), 1:1.5 (Slow) |
|
Length of Wire Disc Applying to the Wire-Discharging Stand |
3.3465" (85 mm) |
|
Diameter of Wire Disc Applying to the Wire-Discharging Stand |
5.1181" (130 mm)
|
