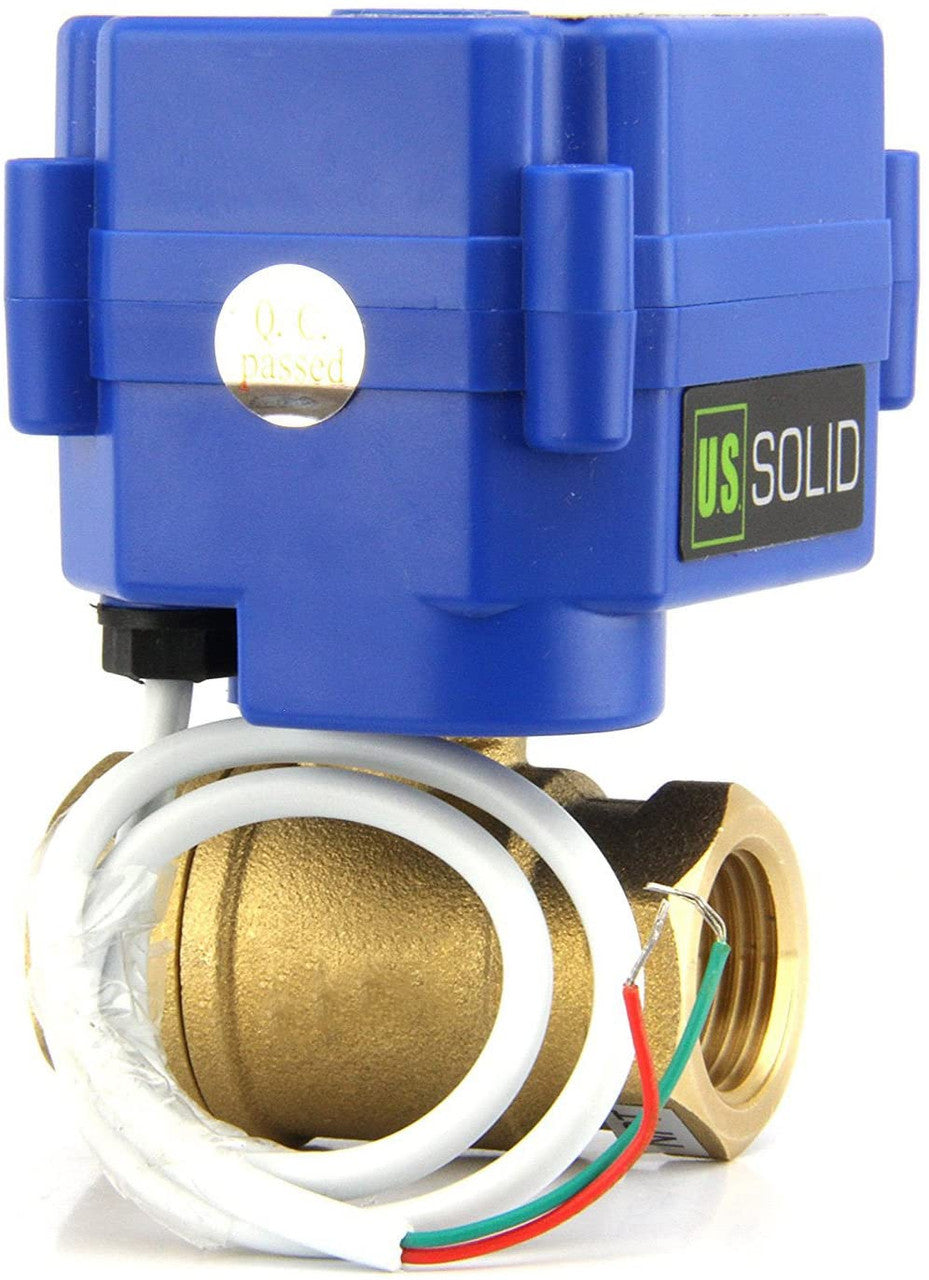

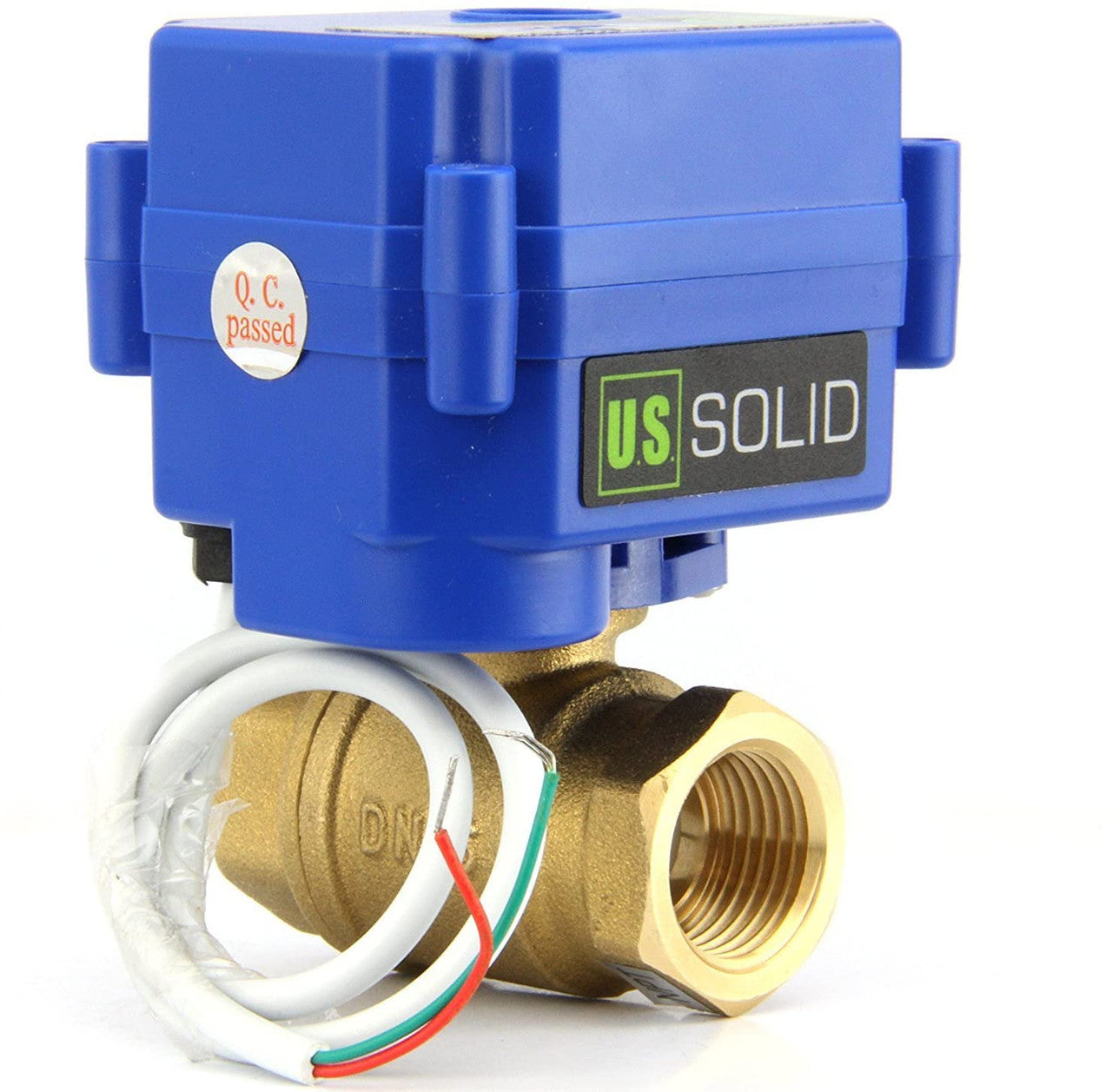

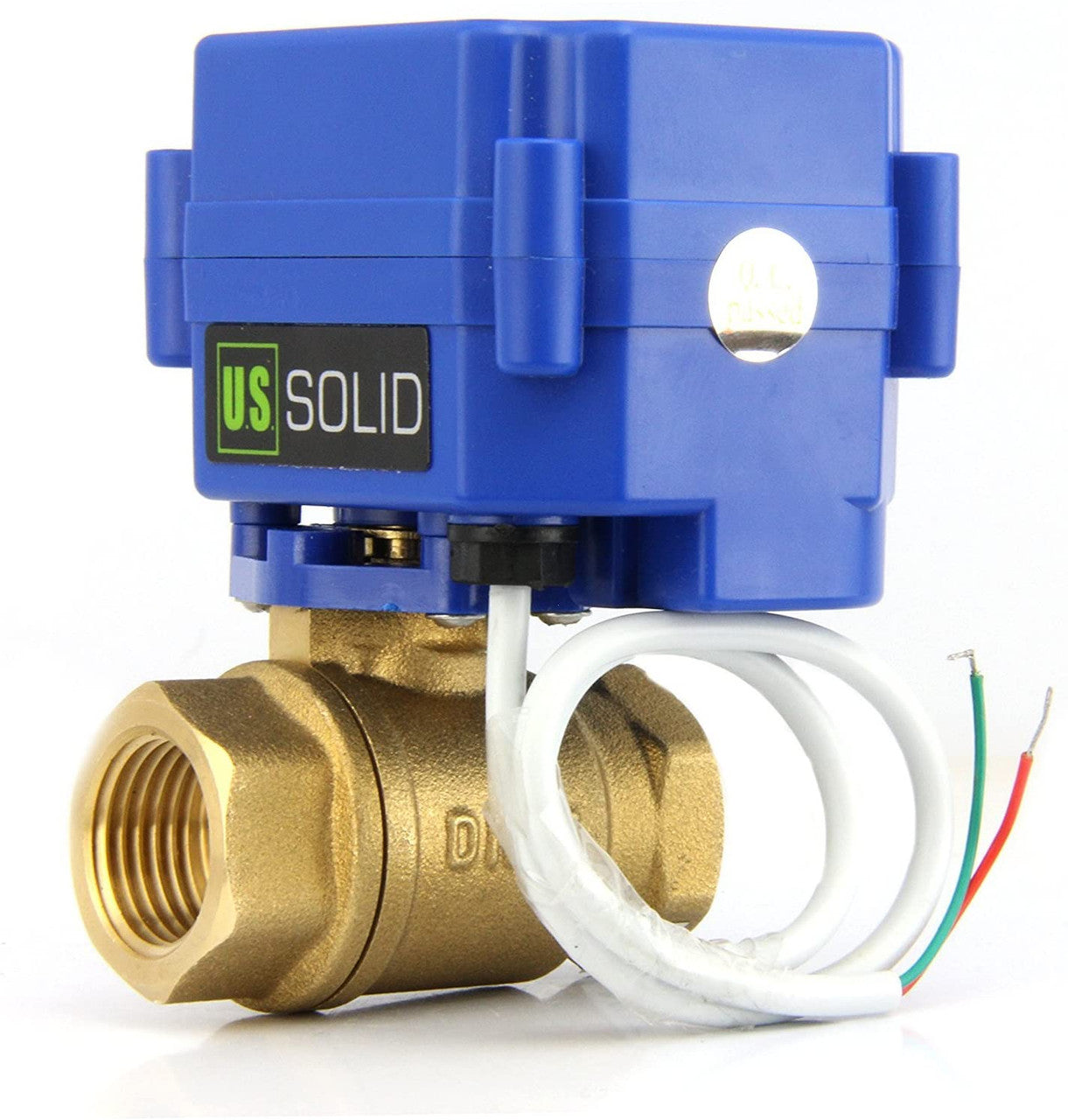

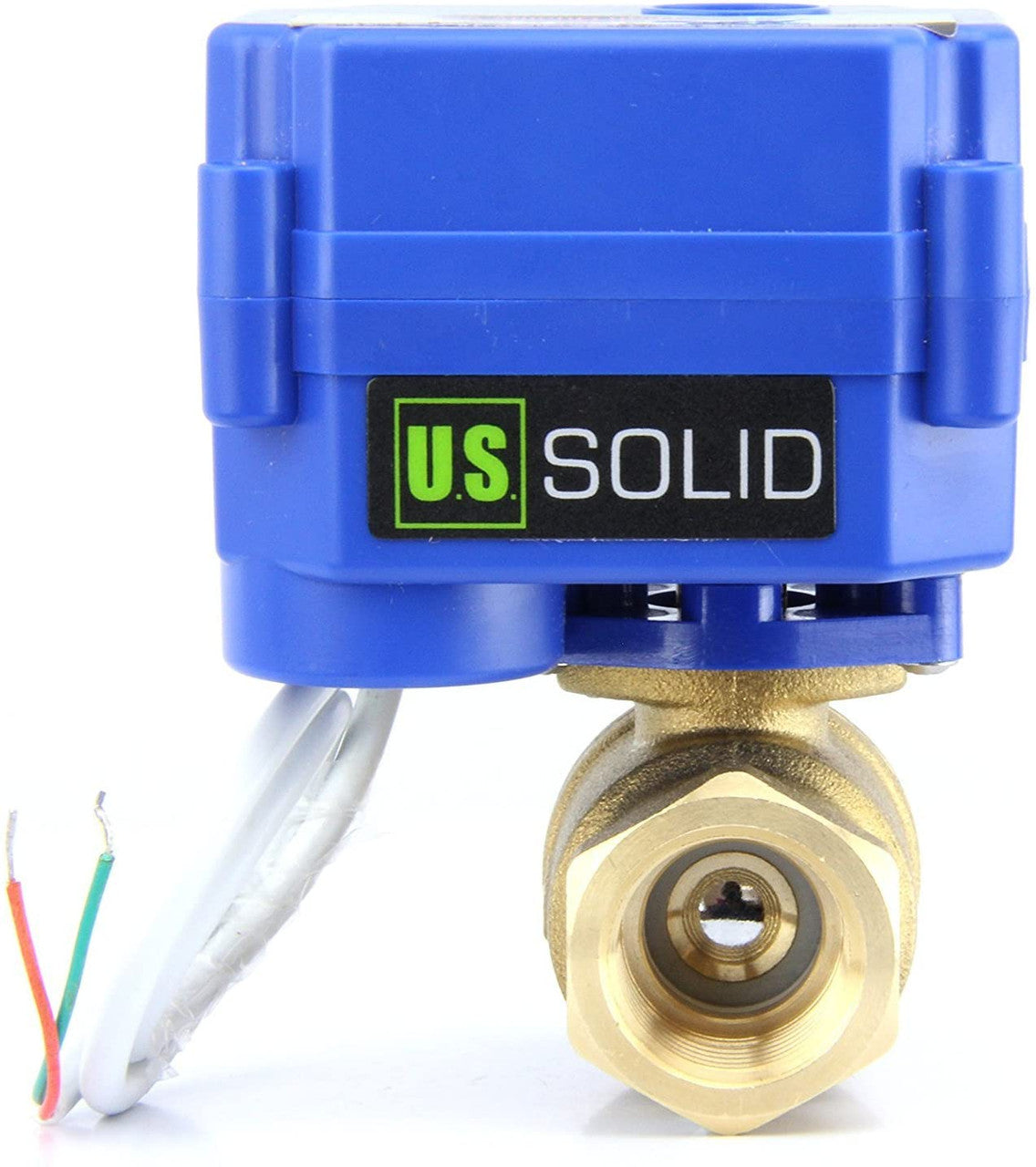

U.S. Solid Motorized Ball Valve- 3/4” Brass Electrical Ball Valve with Standard Port, 85-265 V AC, 2 Wire Auto Return

U.S. Solid Motorized Ball Valve- 3/4” Brass Electrical Ball Valve with Standard Port, 85-265 V AC, 2 Wire Auto Return

Product SKU: JFMSV00050

181 in stock

$45.99 USD
$45.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Motorized ball valves are a vital piece of equipment in numerous applications. This 3/4” brass model opens and closes in 6-8 seconds, and remains in its new position while expending no energy. This is a key difference between motorized ball valves and many solenoid valves. Most solenoid valves are energized continuously when in a new position, while motorized ball valves expend energy only when changing from open to close, or vice versa.


Motorized ball valves are used in various home automation systems. They can be used as emergency backups for water systems, and they are a favorite of home brewers across the country. U.S. Solid motorized ball valves combine industry quality construction with affordability for the individual purchaser.

Specifications:
U.S. Solid Model: USS-MSV00050
Valve Material : Brass
Ball Seat: PTFE
Seal: EPDM
Operating Time : 3-5 Seconds
Working Voltage : 85-265 V AC
Max Power : 2 W
Max Torque : 2 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 100°C
Ambient Temperature Range : -5°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type: Standard
Thread Type : NPT
Wiring Type : 2 Wire Auto Return Video

Please note: To ensure automatic reset functionality when the power is disconnected, it is essential to power the device for approximately one minute to charge the capacitor in 2-wire auto return motorized ball valves.
