INTRODUCTION

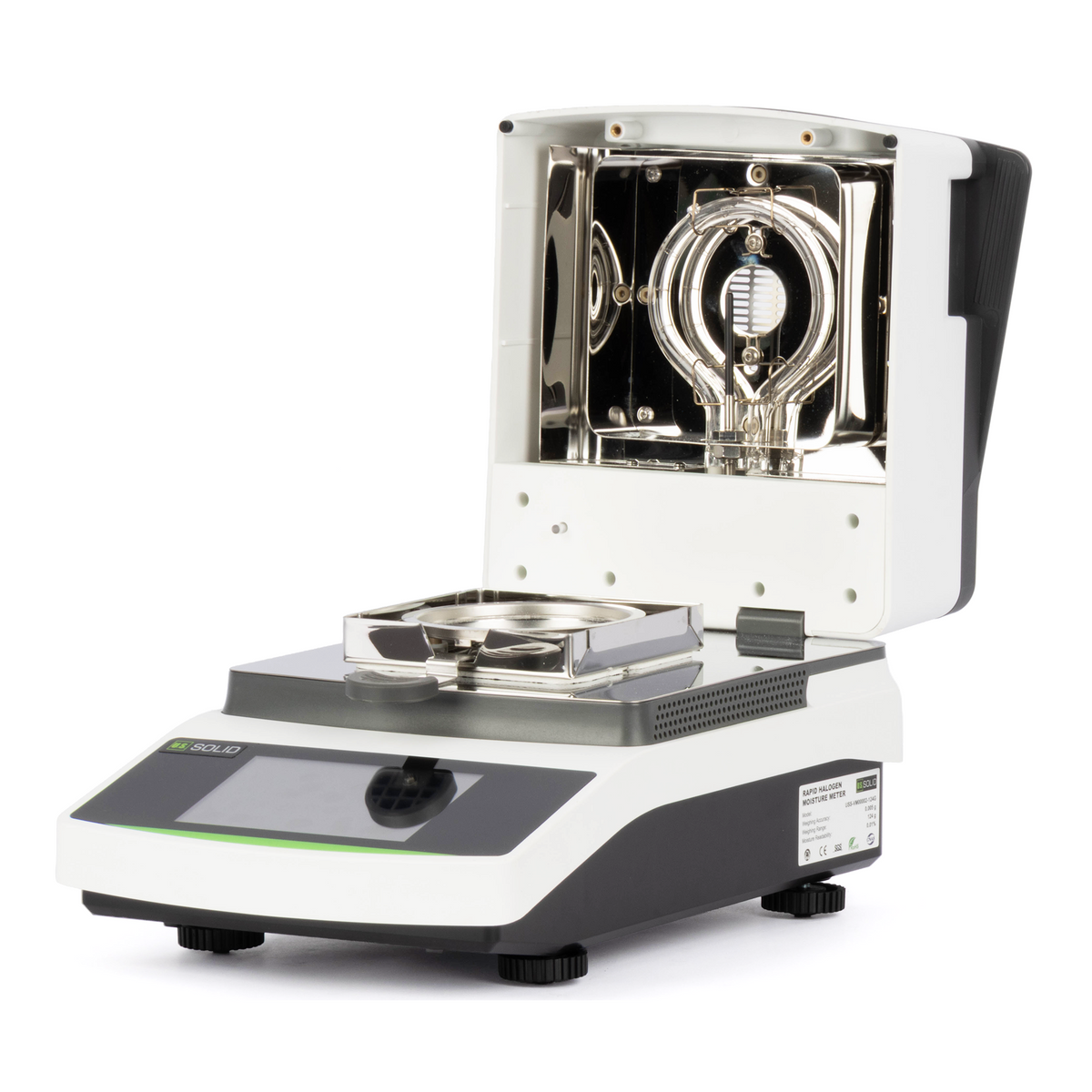

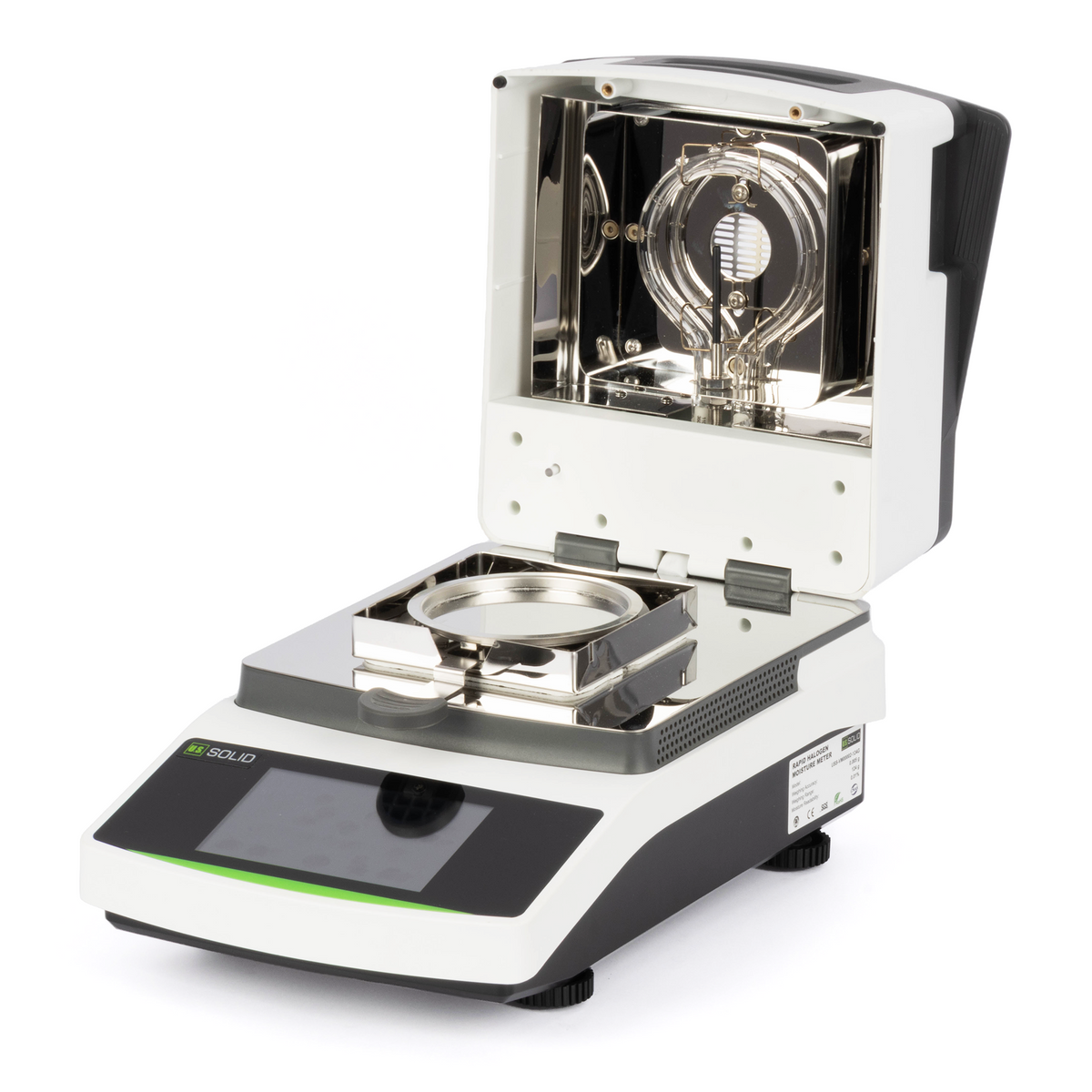

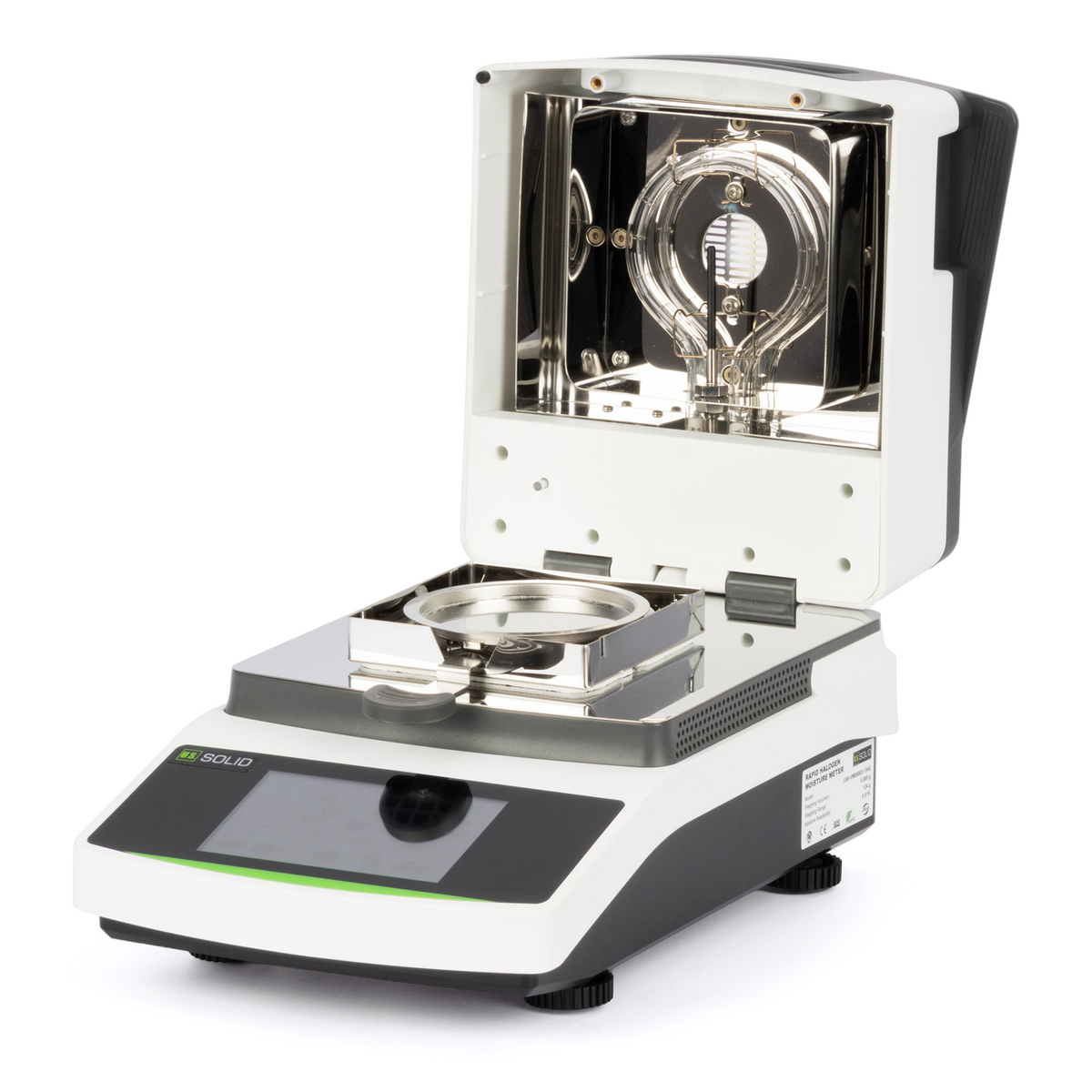

The U.S. Solid USS-VM00004-220G halogen moisture analyzer combines a 220 g capacity with a 40 to 230 deg C drying range, 0.001 g weighing readability and 0.01 percent moisture readability. It uses an electromagnetic force weighing sensor, a PT1000 temperature sensor and a glass panel between the lamp and sample area.
The 5 in touchscreen displays drying curves; store 96 methods and 2004 test records, with USB-C data import and export and RS232 printer connectivity. Operates on 110 V AC, 60 Hz with a US plug
FEATURES
APPLICATIONS
CE CERTIFICATION
SPECIFICATIONS
| Model | USS-VM00004-220G | Capacity | 220 g |
|---|---|---|---|
| Weighing Readability | 0.001 g | Moisture Readability | 0.01% |
| Weighing Repeatability | Standard deviation up to 3d; d = weighing readability | Weighing Sensor | Electromagnetic force |
| Glass Heater Shield | Fitted | Moisture / Solids Display Range | 0–100% |

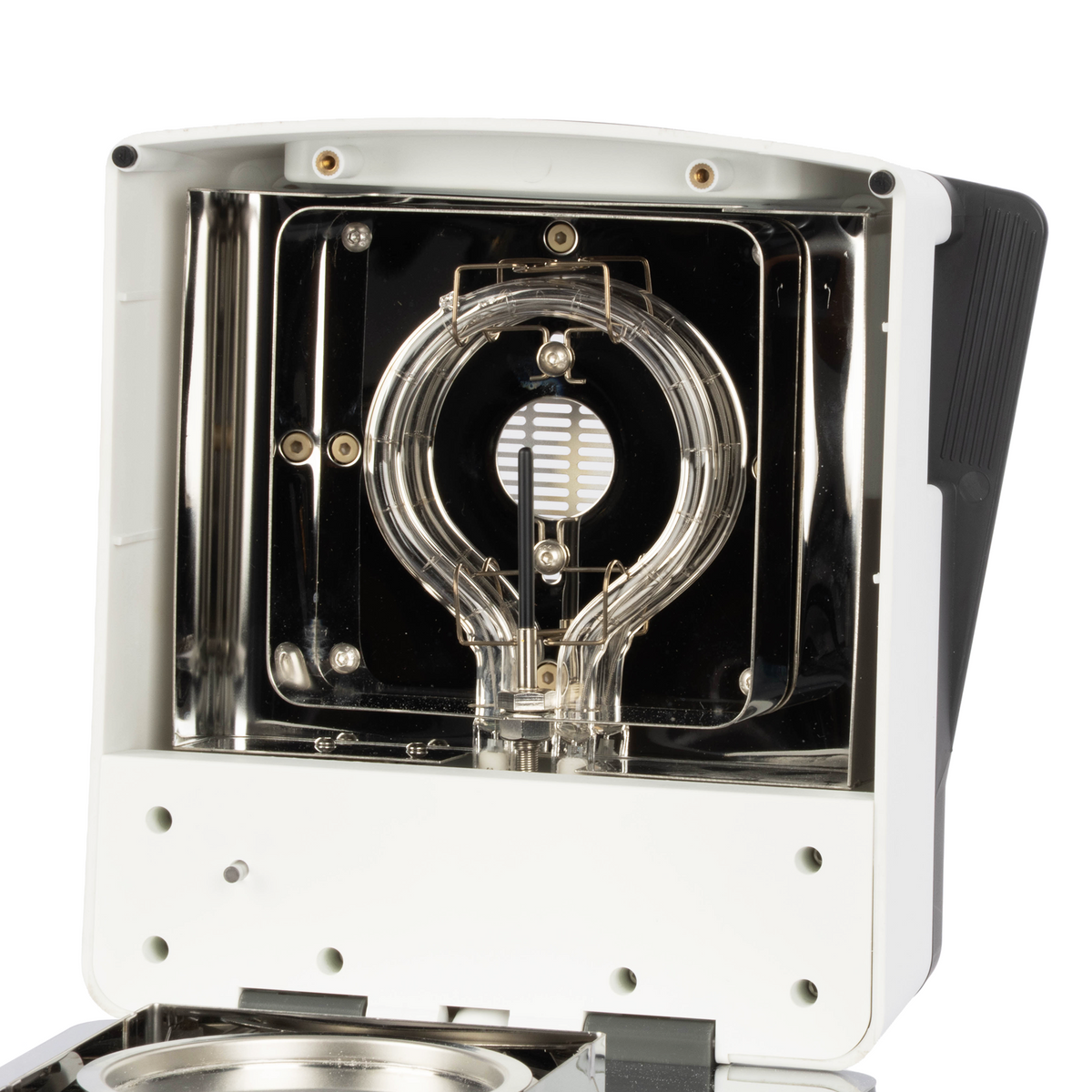

| Heating Source | 350 W halogen lamp | Temperature Setting Range | 40–230 °C (104–446 °F) |
| Temperature Resolution / Setting Step | 0.1 °C / 0.1 °C | Temperature Sensor / Control | PT1000 / PID |
| Power Supply | 110 V AC, 60 Hz, grounded US plug | Maximum Instrument Input | 500 W (distinct from lamp power) |
| Display | 5 in color touchscreen | Heating Programs | Standard, gentle, rapid, step |
| Stopping Modes | Automatic, timed, manual | Timed Mode Duration | 1–99 min; 1-second setting increments |
| Method Storage | Up to 96 custom methods | Result Storage | Up to 2004 completed records |
| USB Data Port | USB-C data import/export; up to 2000 HTML records per export | Calibration | External weight calibration; use model-specific prompted mass within capacity; separate compatible temperature calibrator |
| Stabilization Time | None specified | Heating Chamber Opening Method | Manual |
| Sample Pan Diameter | 90 mm | Heating Chamber Height | 24.5 mm |
| Dimensions | 23.4 × 35 × 20.5 cm | Interfaces | RS-232C; USB-C data import/export |
| RS-232C Settings | Asynchronous; 2400 / 4800 / 9600 / 19200 baud; 8 data bits, no parity, 1 stop bit (8N1); ASCII output | Operating Ambient Temperature | 1–38 °C; ideally 18–25 °C |
FAQ
How should the analyzer be prepared before a measurement?
Place it on a firm, level bench, install a clean and dry sample pan, allow at least 30 minutes of powered warm-up, and check or calibrate the weighing system as needed.
Which heating mode should be selected?
Use standard heating for routine samples, gentle heating for heat-sensitive materials, rapid heating for suitable high-moisture samples, and step heating when the validated method requires staged drying.
Why can results vary between repeated tests?
Differences in sample uniformity, sample amount, preparation, starting chamber conditions, temperature, heating program, or endpoint can change the result. Keep these conditions consistent when comparing tests.
Does the displayed moisture result measure water only?
Not necessarily. The result is based on mass lost during heating and may include volatile substances other than water. Validate the method against an appropriate reference method when water-specific results are required.
How should the analyzer be cleaned?
Switch off, unplug, and allow the instrument to cool completely. Clean removable parts and exterior surfaces with a soft, lightly dampened lint-free cloth. Do not immerse the instrument, spray liquid onto it, or use abrasive cleaners or organic solvents.
WARNING
- Use only the specified 110 V AC, 60 Hz supply and a grounded US power cord. Do not operate the analyzer with damaged wiring or allow liquid to enter the housing or connectors.

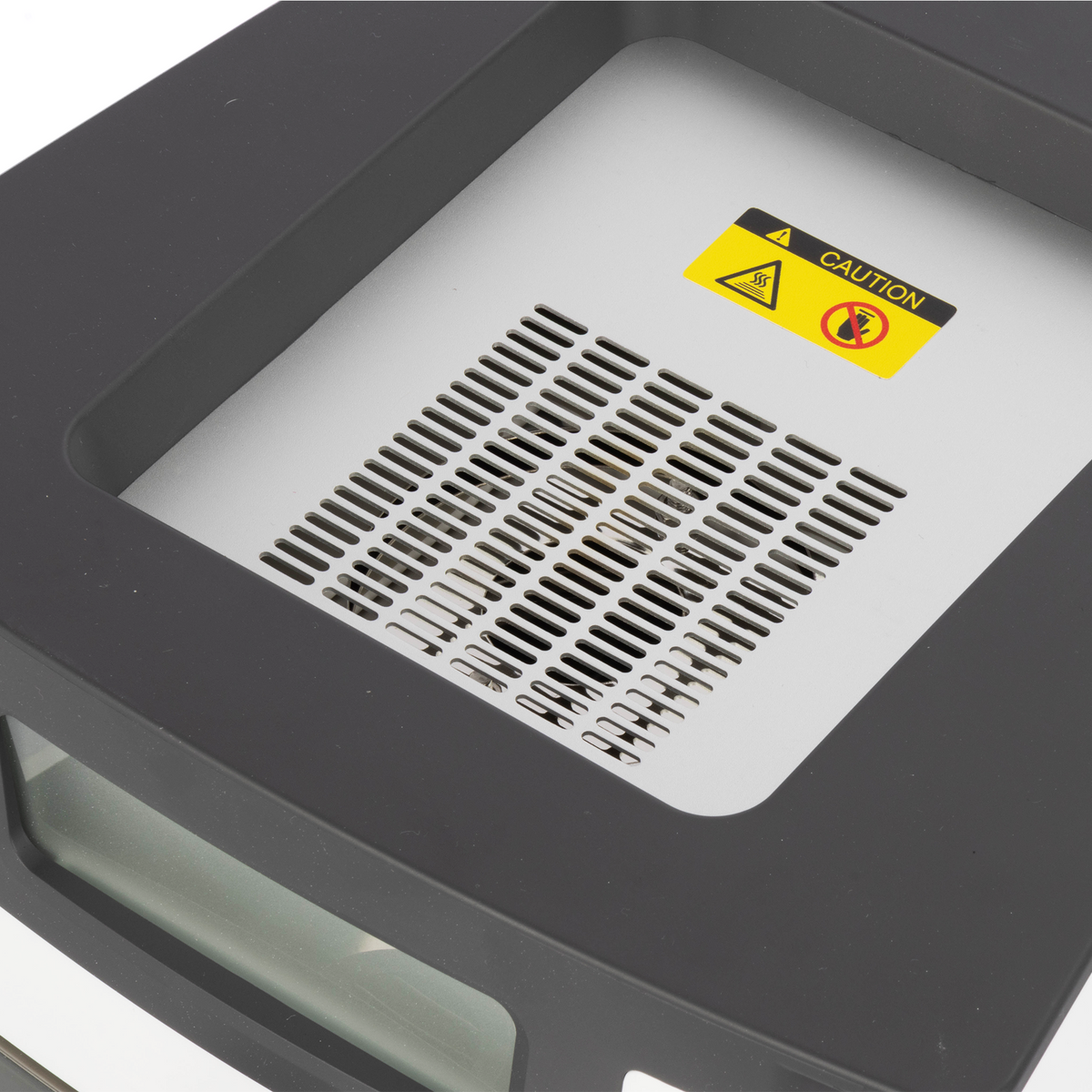

- The heater, chamber, sample pan, and sample can remain hot after testing. Keep ventilation openings clear, maintain at least 1 m (39.4 in) of overhead clearance, and use suitable tools and heat protection.
- Do not test explosive materials or samples that may react dangerously. Flammable, solvent-containing, toxic, or corrosive samples require a documented safety assessment and suitable extraction before testing.
- Do not exceed the instrument capacity. Taring does not increase capacity, and a 100 g calibration weight must never be placed on a 62 g model.
- Switch off, unplug, and allow the analyzer to cool before cleaning, moving, or connecting accessories. Do not open the housing or attempt internal repairs.
USER MANUAL
Download the user manual (PDF)
