Motorized ball valves present an energy-efficient substitute for solenoid valves, particularly when it comes to prolonged positioning. They primarily consume power during the processes of opening and closing, and the energy consumption is negligible once they are fully opened. This characteristic enables a permanent connection, eliminating the risks of overheating or burnout.
Features:
1. Premium Safety and Reliability: The valve body is constructed from SS304 steel and holds NSF certification, guaranteeing its safety for use with drinking water. With an impressive lifespan ranging from 80,000 to 100,000 cycles, it offers long-term and dependable performance. This durability and safety assurance make it a reliable choice for various applications where consistent and secure operation is essential.

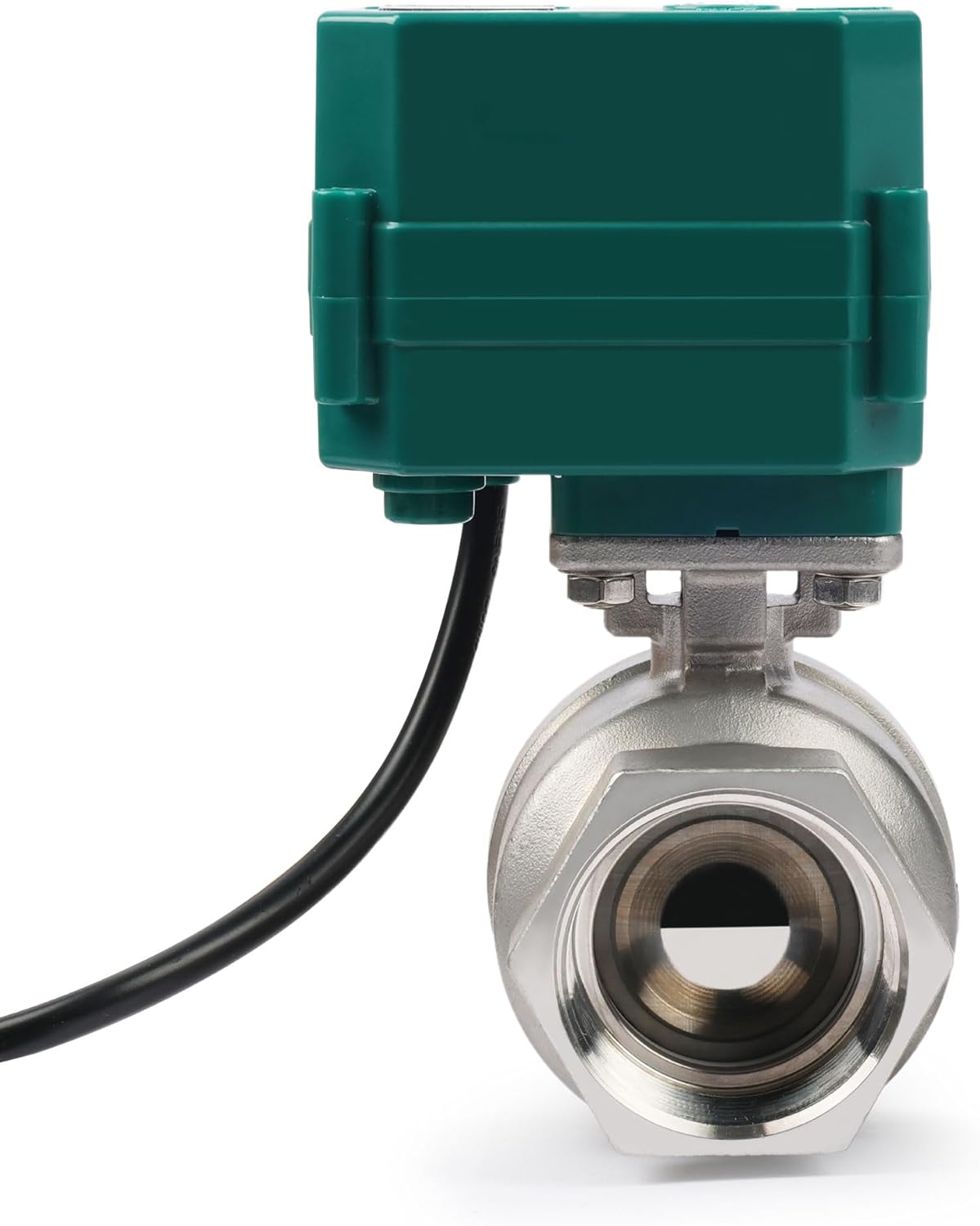

2. Precision NPT Threading: It features ½" stainless steel threading that is manufactured and measured in strict accordance with National Pipe Thread standards. As a full port electrical ball valve with a complete ½” bore in the ball, it minimizes pressure loss during fluid flow. This characteristic is highly beneficial for home automation projects, ensuring efficient water distribution and system operation.

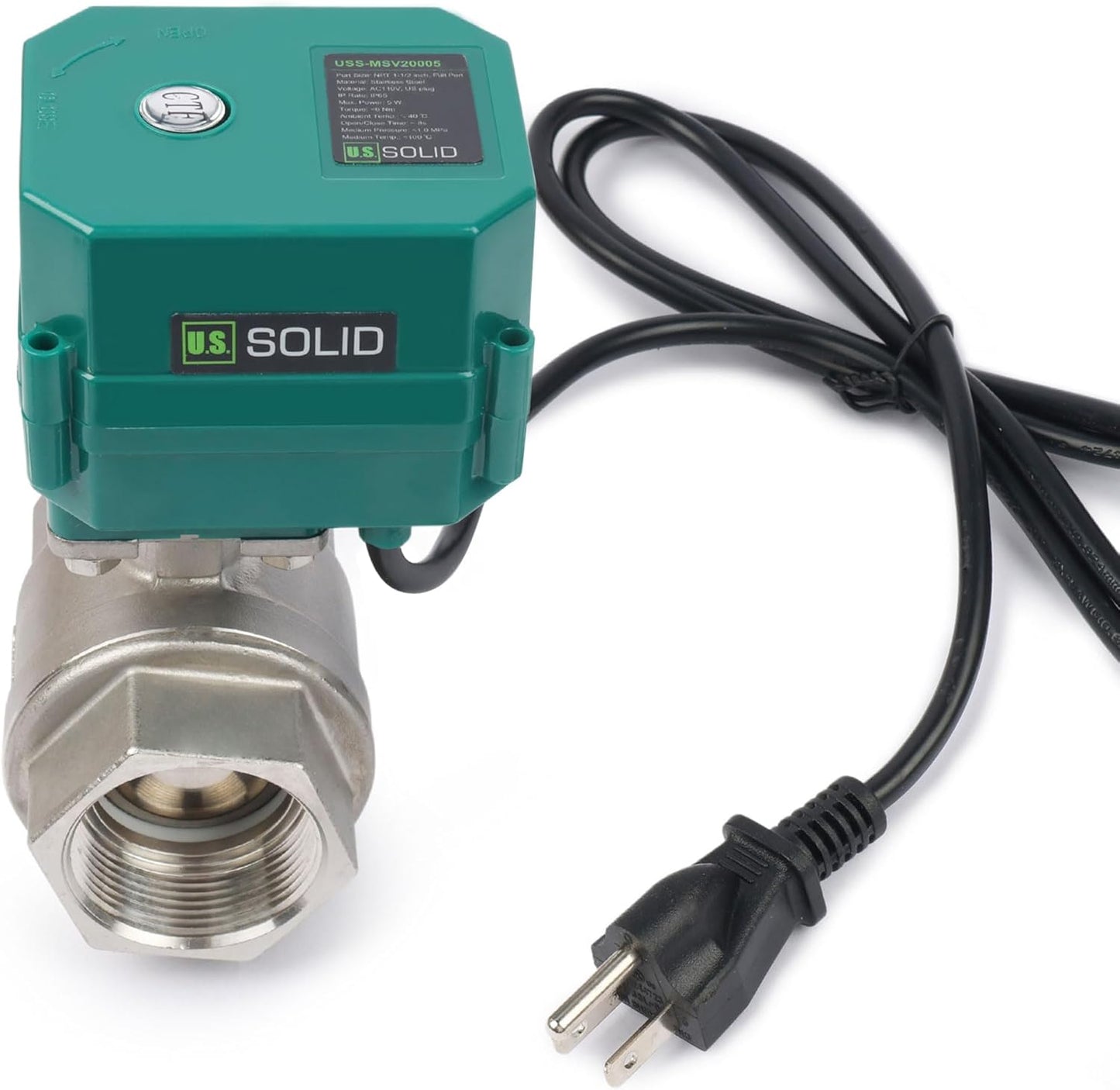

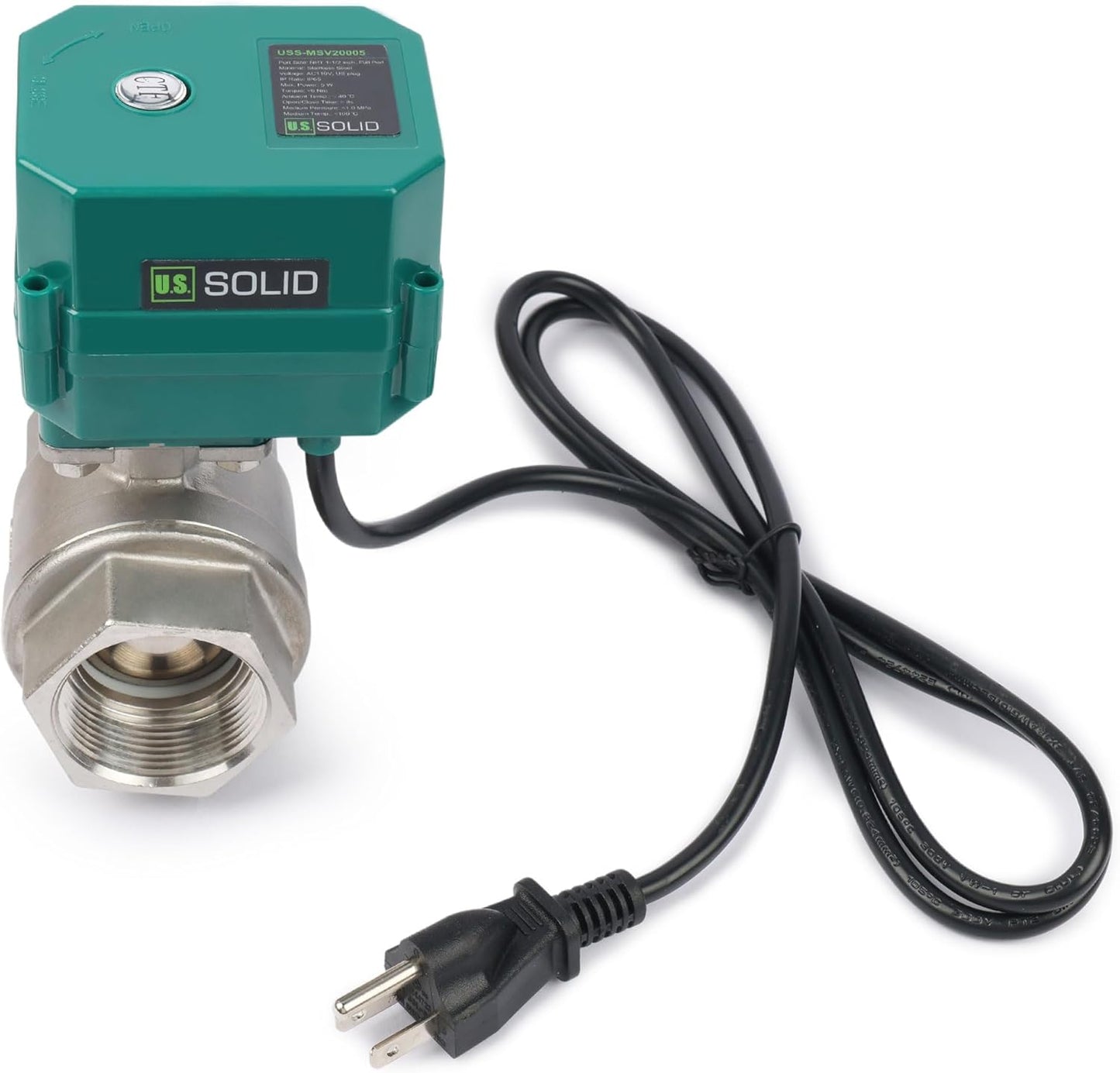

3. Convenient US Plug: The motorized ball valve is supplied with a US plug, simplifying the installation process. This plug-and-play feature allows for quick and easy setup, saving time and effort during installation and making it accessible to a wide range of users.
4. Superior Alternative to Solenoid Valves: This valve automatically cuts off power once it reaches the fully open or fully closed position. This unique feature significantly reduces the risk of overheating, making it an outstanding alternative to solenoid valves, especially in projects where the valve needs to remain open for an extended duration. It offers enhanced energy efficiency and safety, contributing to the overall reliability of the system.

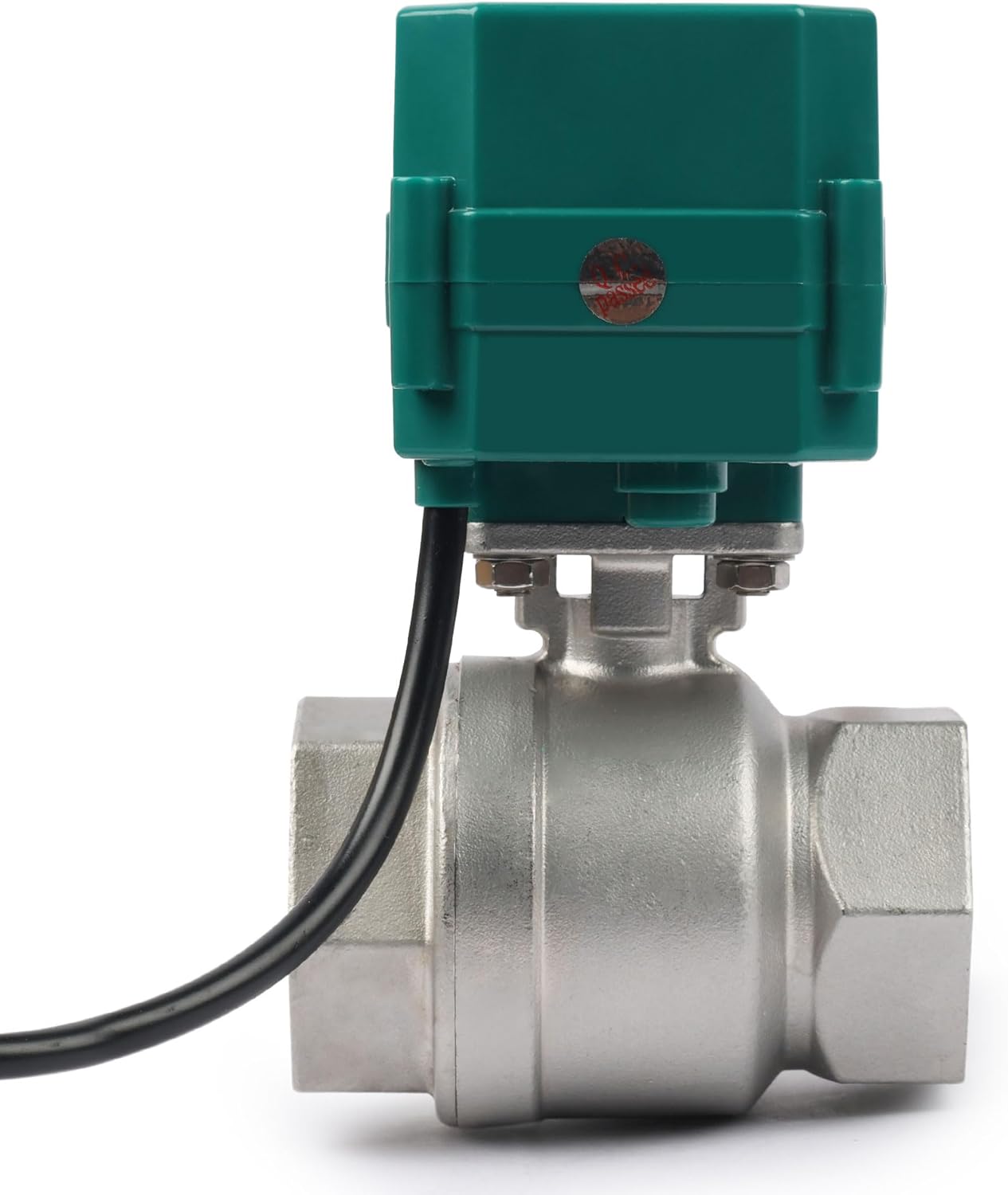

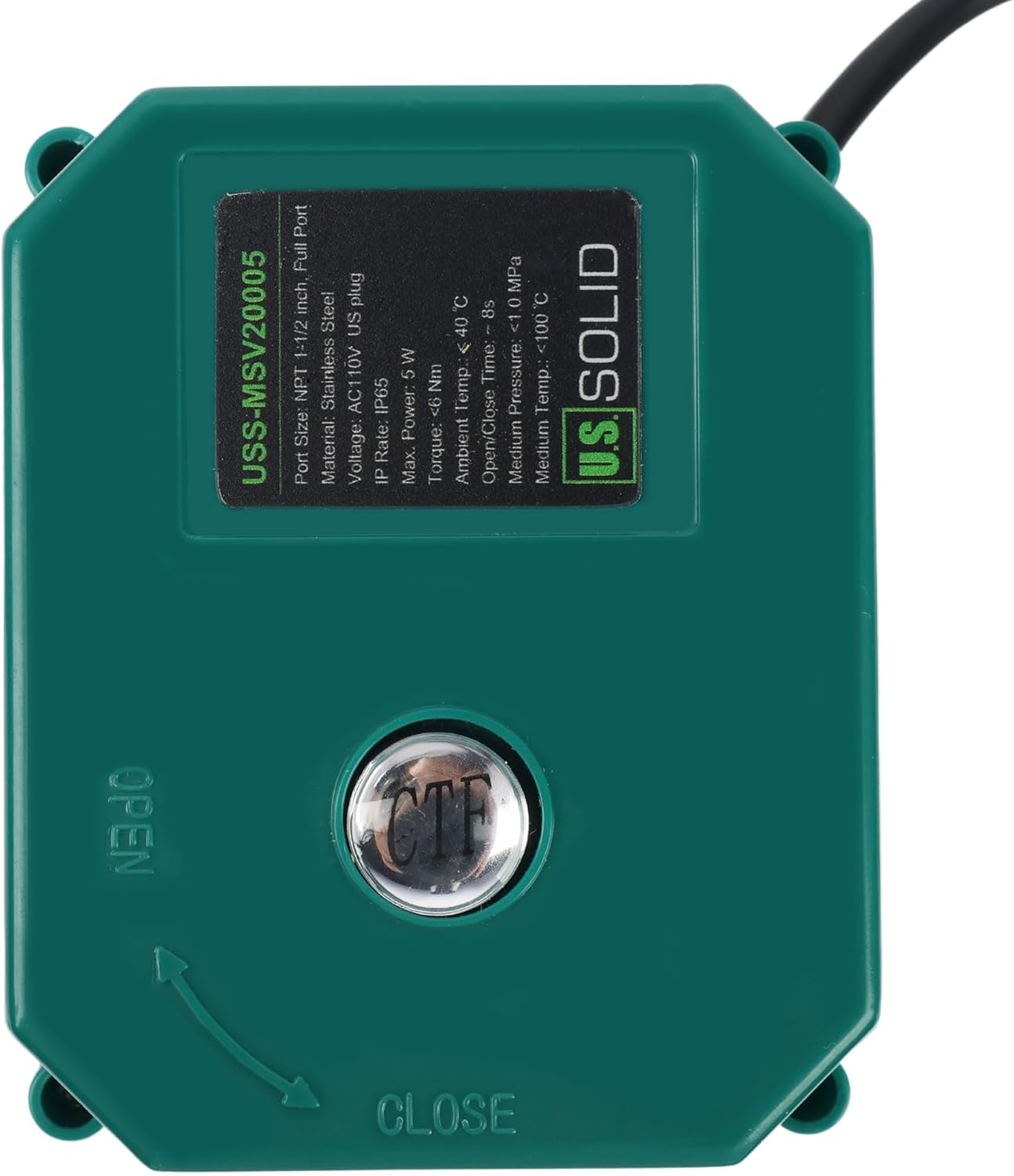

5. Clear Position Indicator: Equipped with a position indicator, the motorized ball valve provides users with accurate and real-time information about its status, clearly showing whether it is open or closed. This visual feedback is crucial for effective system monitoring and control, allowing for prompt responses and ensuring proper operation in any given situation.
Specifications:
Port Size: 1-1/2" NPT (Full Port)
Valve Material: Stainless Steel
Close/Open Time: 6-8 Seconds
Working Voltage: 110V AC
Max Power: 5 W
Max Torque: 6 N m
Max. Pressure: 145 PSI （1.0 Mpa）
Temperature Range: Medium Temp: 32℉ to 194℉; Ambient Temp.: 14℉ to 104℉
Applicable Medium: Water
Life Expectancy: 80,000-100,000 Cycles

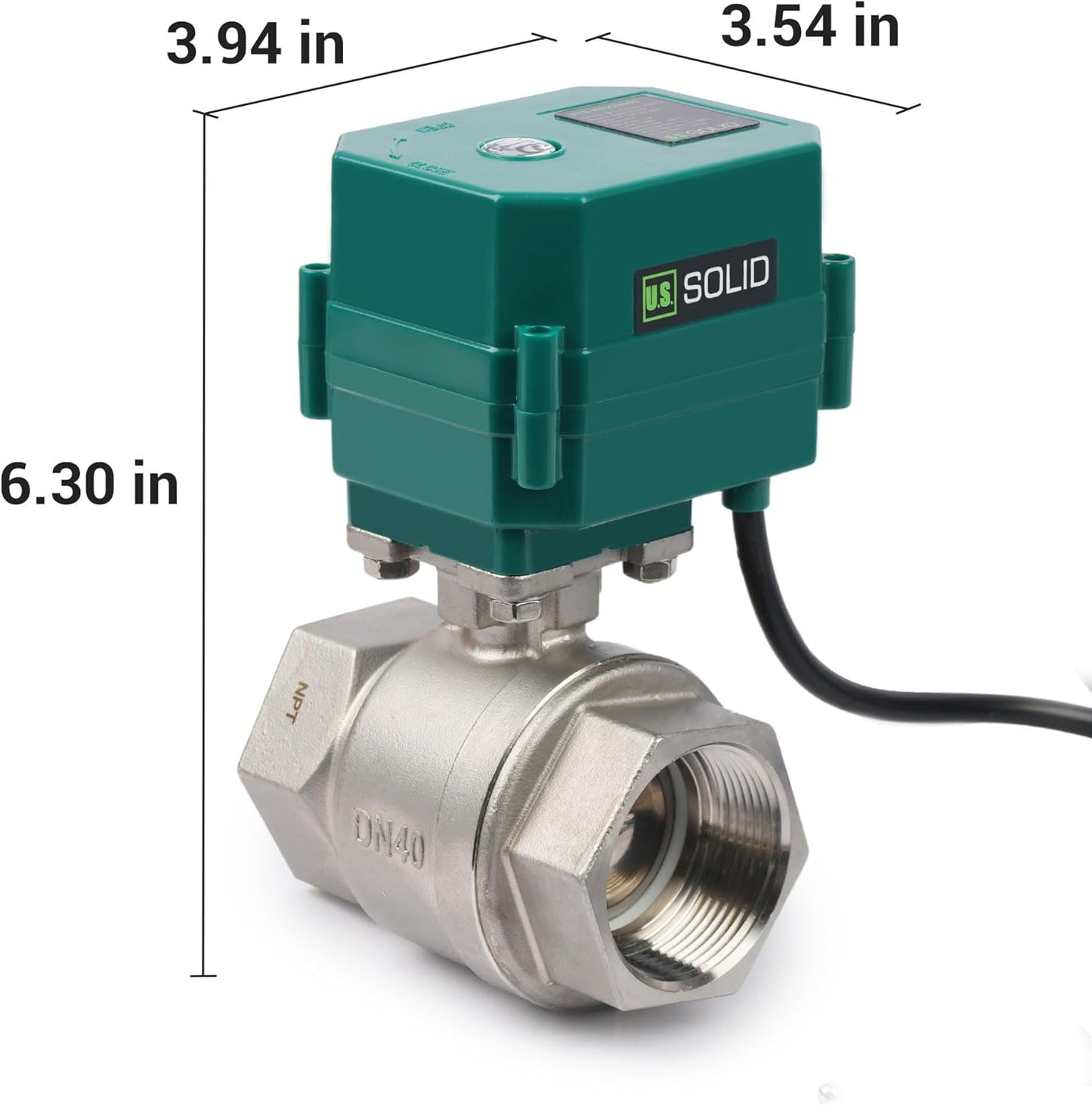

Flow Aperture: 1.5 inch (38 mm)
Normally Open/Closed: Normally Closed
Auto Return: YES
Waterproof Rating: IP65
Wiring: 2 wire,auto return
Seal: PTFE
