Introduction
The U.S. Solid Automatic Tape Cutter JF-6000 is designed for wide tape up to 3.15 inch. It has a LED digital screen to read the length of the tape that is cut, which can range from 0.79 inch to 39.33 inch.
This electric tape dispenser can work on adhesive and non-adhesive tapes, including packaging tapes, double-sided tape, fiber tape, PVC electrical tape, kraft paper tape, masking tape, acetic acid cloth tape, KAPTON tape, PET protective film, Teflon tape, warning tape and etc.
Widened Model: JFZCUT00009-150MM
Applications
This tape dispenser is suitable for offices (document sealing), retail stores, industrial applications (electronics/battery/toy/printing/transformer/e-cigarette factories), logistics, and DIY projects (gift wrapping/crafts).
Features
User Manual
To learn how to use this product, please refer to the user manual.

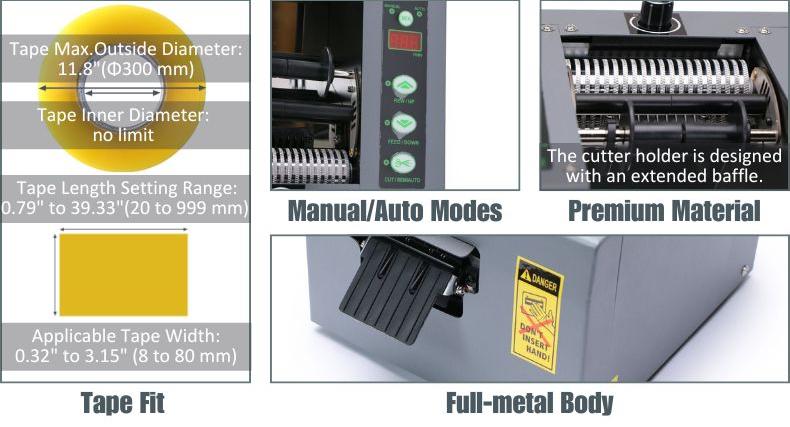

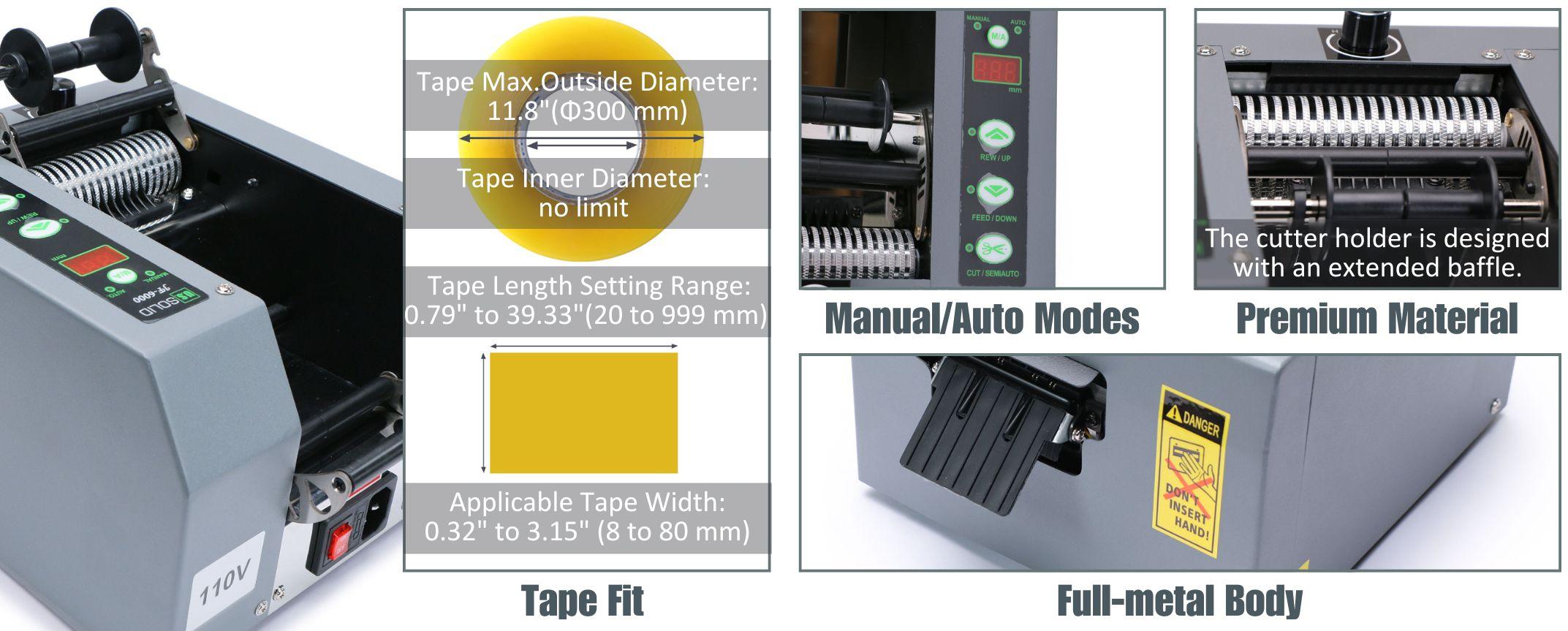

Technical Data
| Model | JF-6000 | Speed | 5.9 inches/second | ||||||
| Applicable Tape Thickness | 0.002" to 0.02"(0.05 to 0.5mm) | SKU | JFZCUT00009 | ||||||
| Applicable Tape Width | 0.32" to 3.15" (8 to 80 mm) | Applicable Tape | Adhesive tape and Non-adhesive tape | ||||||
| Tape Length Setting Range | 0.79" to 39.33"(20 to 999 mm) | Power Consumption | 25 W | ||||||
| Working Mode | 2, Manual/Auto Mode | Net Weight | 10.91 lbs | ||||||
| Tape Inner Diameter | No limit | Product Dimensions | 8.46"x7.48"x6.69" | ||||||
| Tape Max. Outside Diameter | 11.8"(Φ300 mm) | Power | AC 110V 60Hz | ||||||
*To view the full table on mobile, please swipe left or right on the screen.
Troubleshooting
Adjust the induction level
- '+' (Clockwise): Turn ~1mm to increase sensitivity if the tape isn't detected (induction too low, causing continuous cutting/alarms).
- '-' (Counterclockwise): Turn ~1mm to decrease sensitivity if tape release fails (induction too high, false tape detection).
Adjust the pressure setting
- 'S' direction: Turn 0.5-1 turn to decrease pressure if the tape shows excessive indentation (pressure too high, causing deep marks).
- 'H' direction: Turn 0.5-1 turn to increase pressure if the tape fails to feed during cutting (pressure too low, insufficient grip).
FAQ
Problem 1: What is the difference between JFZCUT00009 and JFZCUT00009-150MM?
The JFZCUT00009-150MM is a wider version of the JFZCUT00009. The key difference is that the JFZCUT00009-150MM supports a larger tape width range, with a maximum capacity of 5.90" (150mm) wide tape, whereas the standard JFZCUT00009 has a smaller width limit.
Problem 2: What types of tape are compatible with this model?
This machine is capable of handling various types of tapes, such as packaging tapes, double-sided tape, fiber tape, PVC electrical tape, kraft paper tape, masking tape, acetic acid cloth tape, KAPTON tape, PET protective film, Teflon tape, warning tape, and many more.
All Options
| Model | Type | Applicable Tape Width | Tape Length Setting Range | Inner Diameter | Max. Outside Diameter | Non-adhesive Tape | Adhesive Tape |
| JF-2000 | Industrial | 0.28" to 1.96" | 0.79" to 39.33" | 1"/1.25"/3" | 5.91" | × | ✓ |
| Zcut-2 | Carousel | 0.12" to 0.87" | 0.43" to 2.32" | 1"/1.25"/3" | 5.1" | × | ✓ |
| JF-8000 | Carousel | 0.12" to 0.98" | 0.2" to 2.36" | no limit | 5.91" | × | ✓ |
| JF-5000 | Carousel | 0.12" to 0.98" | 0.6" to 2.76" | no limit | 5.91" | × | ✓ |
| JF-3000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-7000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-9000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000 | Industrial | 0.32" to 3.15" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000-150MM | Industrial | 0.59" to 5.90" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| USS-ZCUT13 | Industrial | 0.79" to 7.87" | 0.79" to 39.33" | 3" | 11.8" | ✓ | ✓ |
| USS-ZCUT1002 | Manual | up to 1.5" | Manual, no limit | 1"/3" | 5.9" | × | ✓ |
| USS-ZCUT1001 | Manual | up to 2.5" | Manual, no limit | 3" | 10" | × | ✓ |
*To view the full table on mobile, please swipe left or right on the screen.
