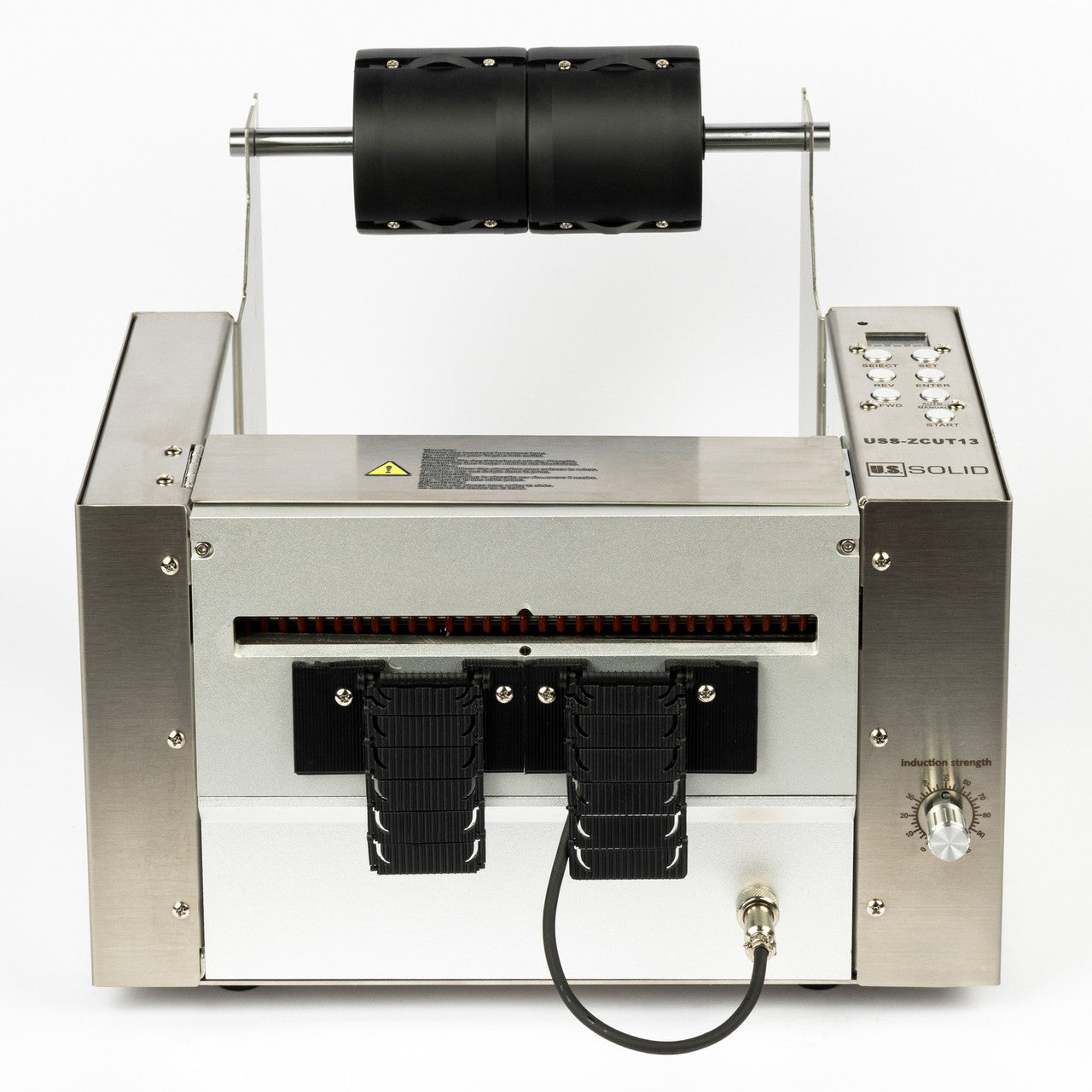

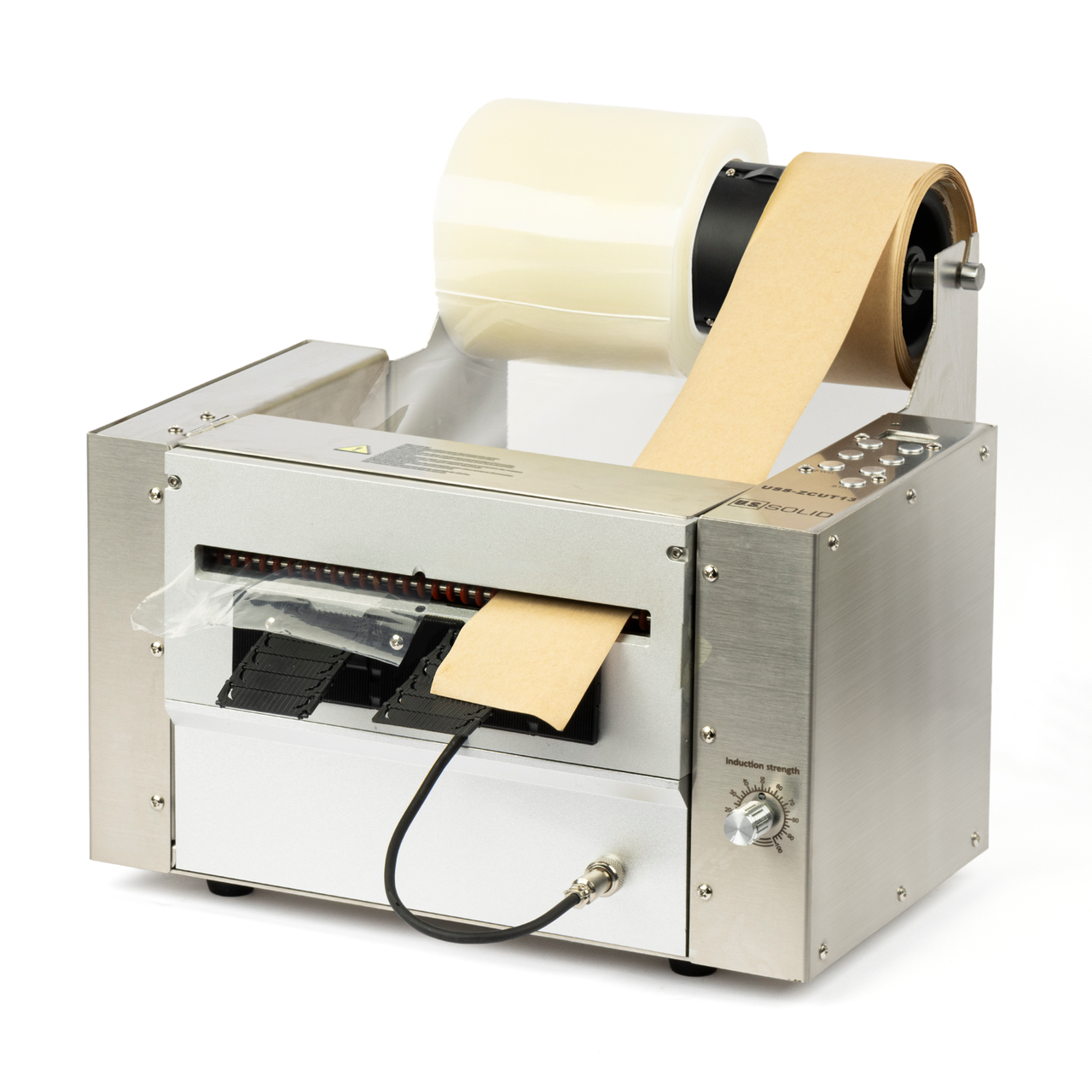

The USS-ZCUT13 is a heavy duty tape cutter perfect for extra wide tapes, including PE protective film, packaging tapes, PVC electrical tape, kraft tape, masking tape, acetic acid cloth tape, aluminum foil tape, Teflon tape, etc. If you need to cut high adhesive tapes, such as double-sided tape and fiber tape, please contact us for customization.
Features:
- An LED digital display shows the precisely set cut length
- Durable stainless steel shell housing

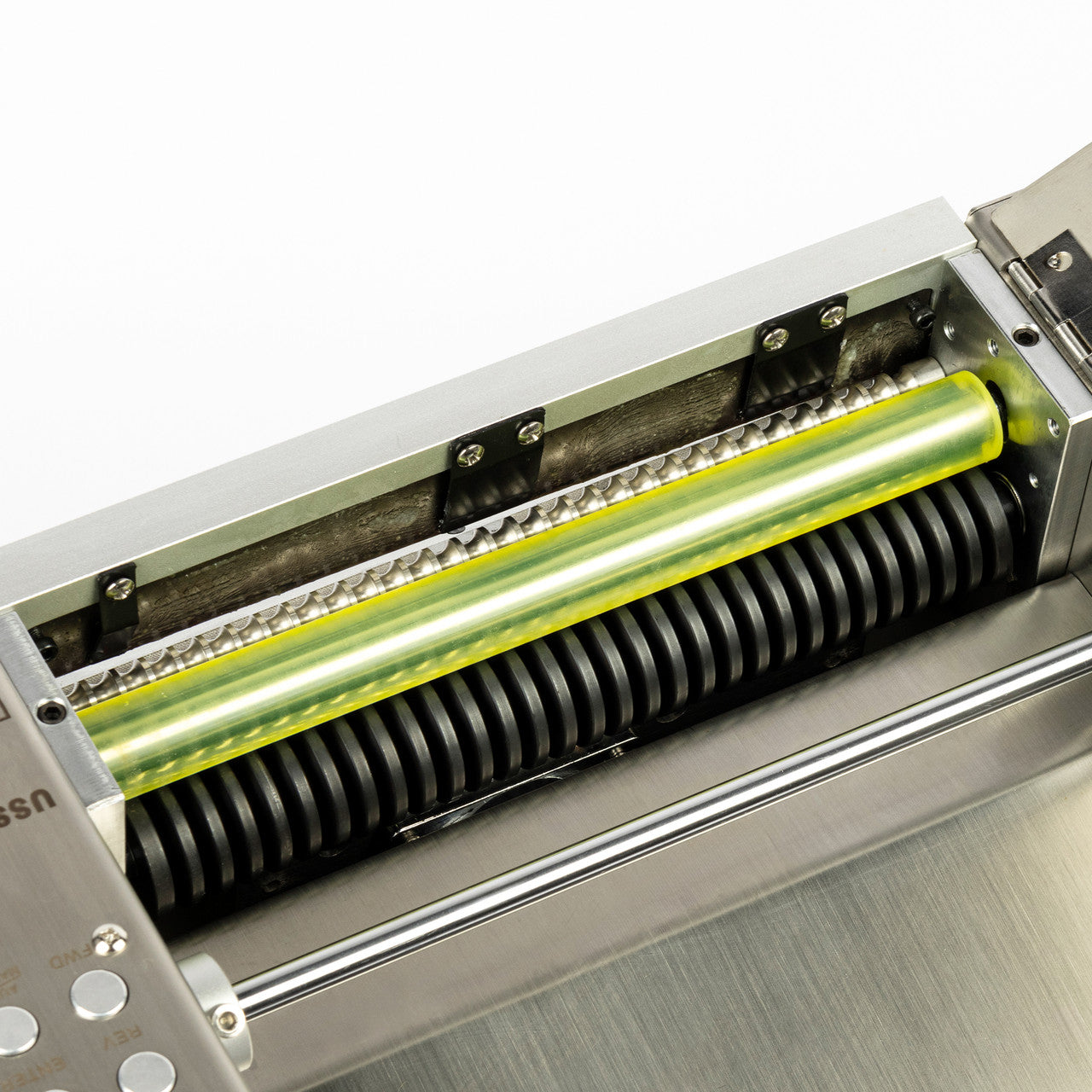

- A stepper motor allows for highly accurate tape feeding
- Memory function, the setting data will be restored after the tape dispenser restart
- Fast cut speed, one machine can be used for 2 operators
- Can operate continuously for 24 hours
- Applicable for cutting various types of adhesive, non-adhesive tape, low-adhesive tape and PE protective film.
Specifications
Applicable Tape Width: 0.79-7.87 inches (20-200 mm)
Tape Length Setting Range: 0.79-39.33 inches (20-999 mm)
Applicable Tape Max. Outside Diameter: 11.8 inches (Ø300 mm)
Applicable Tape Inner Diameter: 3 inches (75 mm)
Cutting Accuracy: ±1 mm
Speed: 44 pcs/minute (100mm tape length)
Voltage: AC100～240V 50/60Hz
Power: 70 Watt
Net Weight: 22 lbs (10 kg)

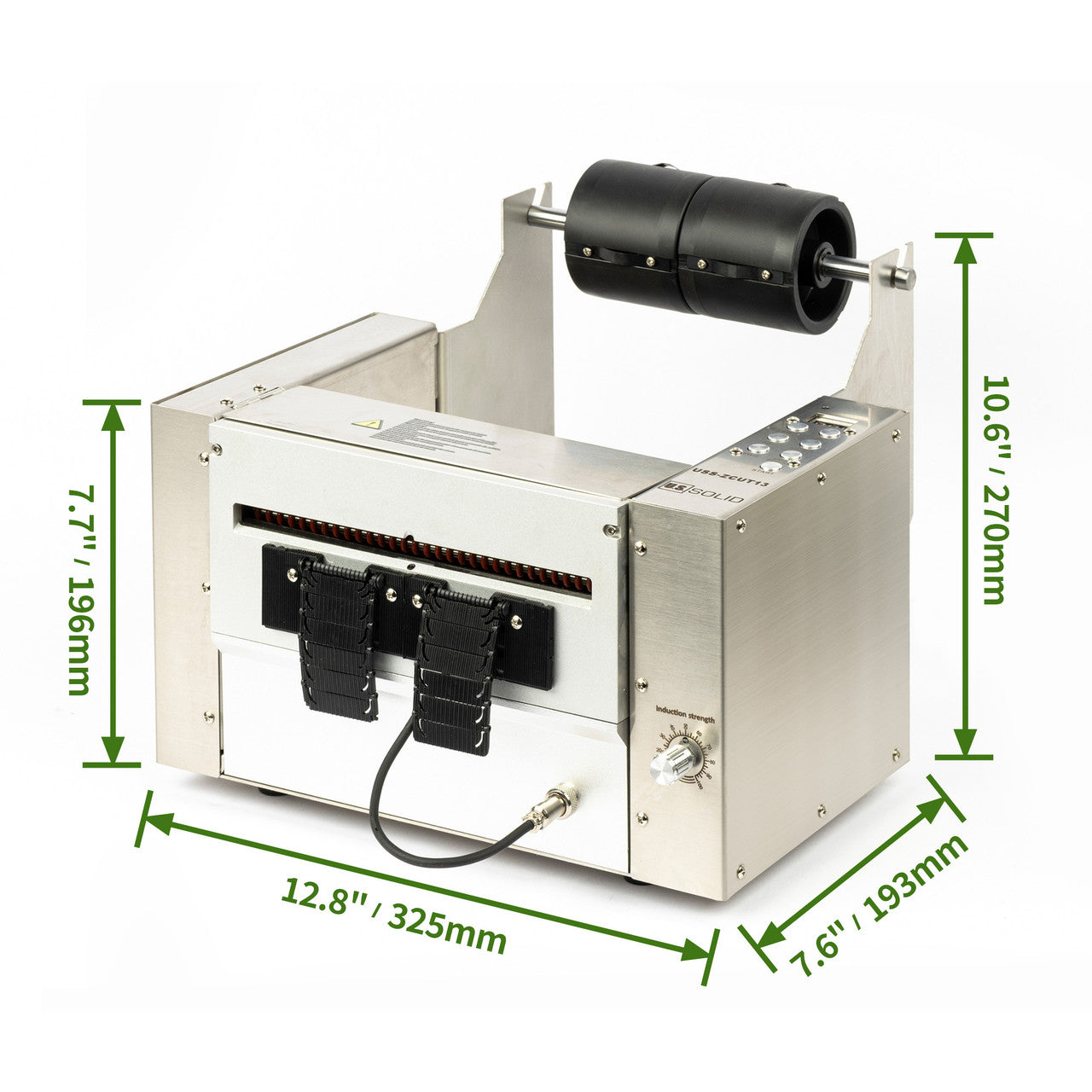

Product Dimensions: 12.8 x 13.2 x 10.6 inches(W*D*H) (325 x 335 x 270mm)
Please note: The processing and delivery time of this item is about 15 working days.
|
SKU |
Model |
Tape Width |
Tape Length |
Inner Diameter |
Max. Outside Diameter |
non-adhesive tape |
adhesive tape |
|
JF-2000 |
0.28” to 1.96” |
0.79” to 39.33” |
1"/1.25"/3" |
5.91" |
× |
√ |
|
|
Zcut-2 |
0.12" to 0.87" |
0.43" to 2.32" |
1"/1.25"/3" |
5.1" |
× |
√ |
|
|
JF-8000 |
0.12" to 0.98" |
0.2" to 2.36" |
no limit |
5.91" |
× |
√ |
|
|
JF-5000 |
0.12" to 0.98" |
0.6” to 2.76” |
no limit |
5.91" |
× |
√ |
|
|
JF-3000 |
0.25” to 2.36” |
0.2” to 39.33” |
no limit |
11.8" |
√ |
√ |
|
|
JF-7000 |
0.25” to 2.36” |
0.2” to 39.33” |
no limit |
11.8" |
√ |
√ |
|
|
JF-9000 |
0.25” to 2.36” |
0.2” to 39.33” |
no limit |
11.8" |
√ |
√ |
|
|
JF-6000 |
0.32” to 3.15” |
0.79” to 39.33” |
no limit |
11.8" |
√ |
√ |
|
|
JF-6000-150MM |
0.59" to 5.90" |
0.79” to 39.33” |
no limit |
11.8" |
√ |
√ |
|
|
Zcut-200 |
0.79” to 7.87” |
0.79” to 39.33” |
3" |
11.8" |
√ |
√ |
