Introduction

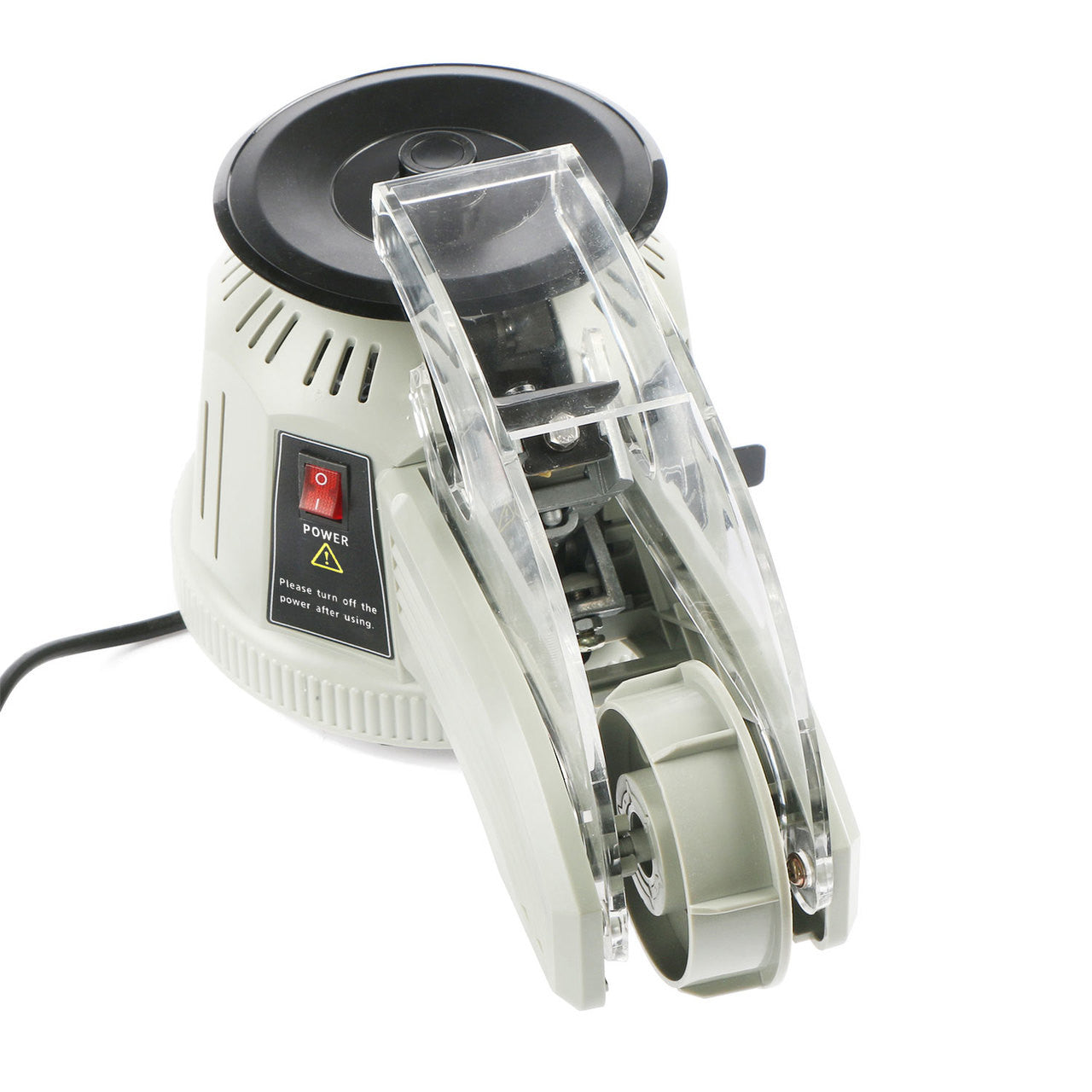

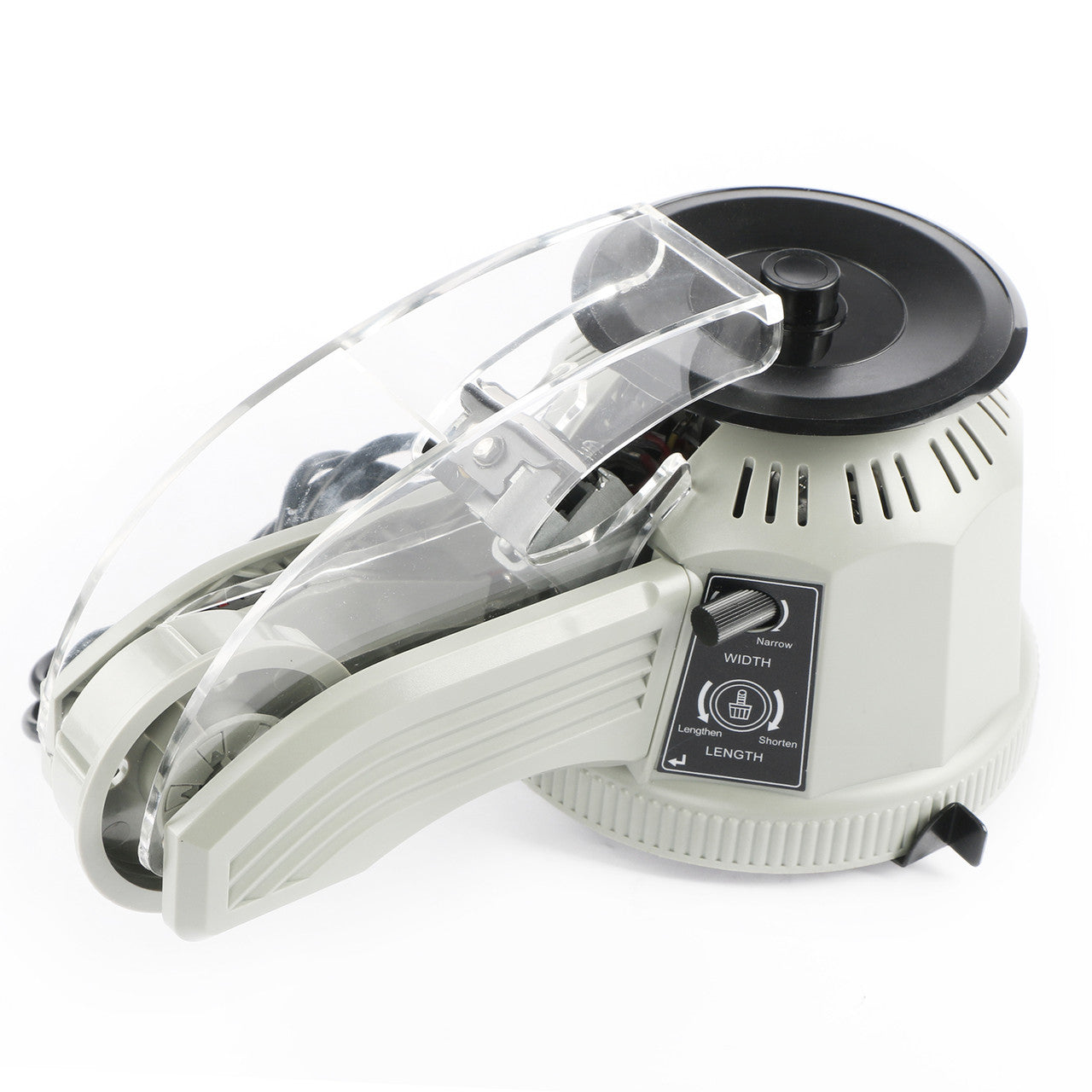

The U.S. Solid ZCUT-2 Automatic Tape Cutter features a carousel-style design that stores up to 20 pre-cut tape segments with adjustable length and spacing settings, supporting simultaneous multi-user operation for enhanced workflow efficiency.
This system is specifically designed for adhesive tape applications including masking tape, PP tape, acetate cloth tape, vinyl tape, PVC electrical tape, cellophane tape, polyethylene tape, Mylar tape, high-temperature tape, and Scotch tape, but is not suitable for non-adhesive and strong adhesive tape materials.
Blade Unit for ZCUT-2: JFZCUT00001-BLADE
Upgraded Version: JF-8000
Applications
This tape dispenser works well in offices (such as for document sealing), retail stores, light industrial settings (including printing, packaging, stationery, and electronics factories), logistics (for small parcels), and DIY projects.
Features
User Manual
To learn how to use this product, please refer to the user manual or watch the tutorial video.
Technical Data
| Model | ZCUT-2 | Speed | Non-adjustable | ||||||

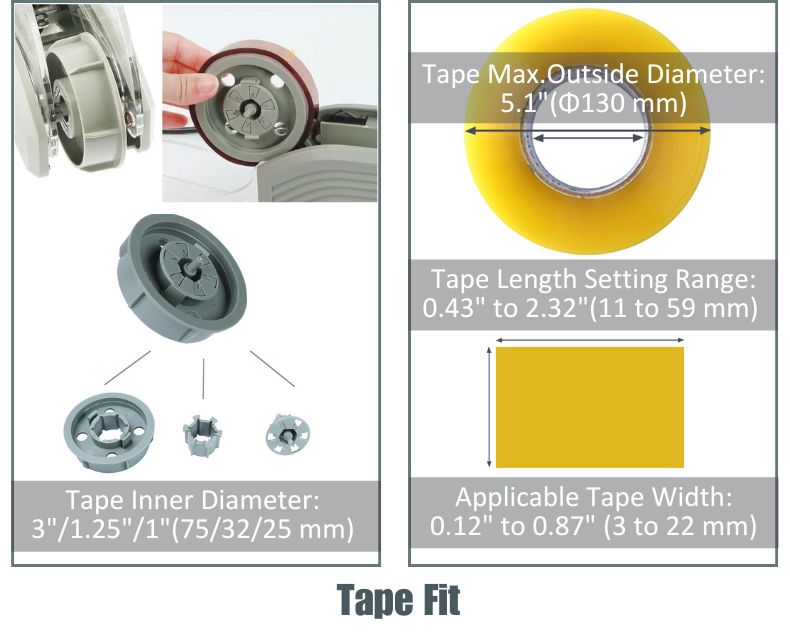

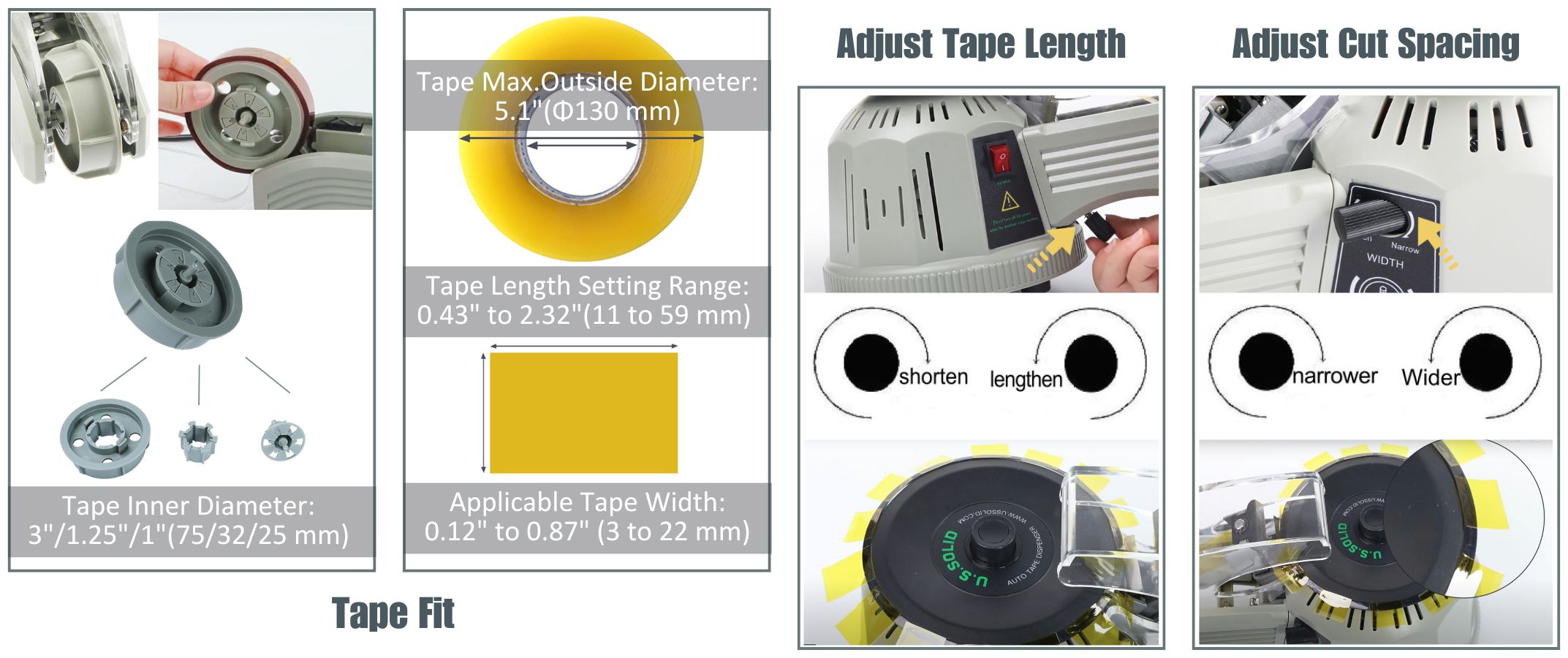

| Applicable Tape Width | 0.12" to 0.87" (3 to 22 mm) | Applicable Tape | Adhesive Tape | ||||||
| Tape Length Setting Range | 0.43" to 2.32"(11 to 59 mm) | Voltage | 160 W | ||||||
| Tape Max. Outside Diameter | 5.1"(Φ130 mm) | Power | AC 110V 60Hz | ||||||
| Tape Inner Diameter | 3"/1.25"/1"(75/32/25 mm) | Product Dimensions | 11.81"x6.50"x6.50" | ||||||
| Length/Spacing Adjustment | Manual | Net Weight | 5.51 lbs | ||||||
*To view the full table on mobile, please swipe left or right on the screen.
Critical Steps
How to use
Below is a simplified procedure. Refer to the manual for full instructions.

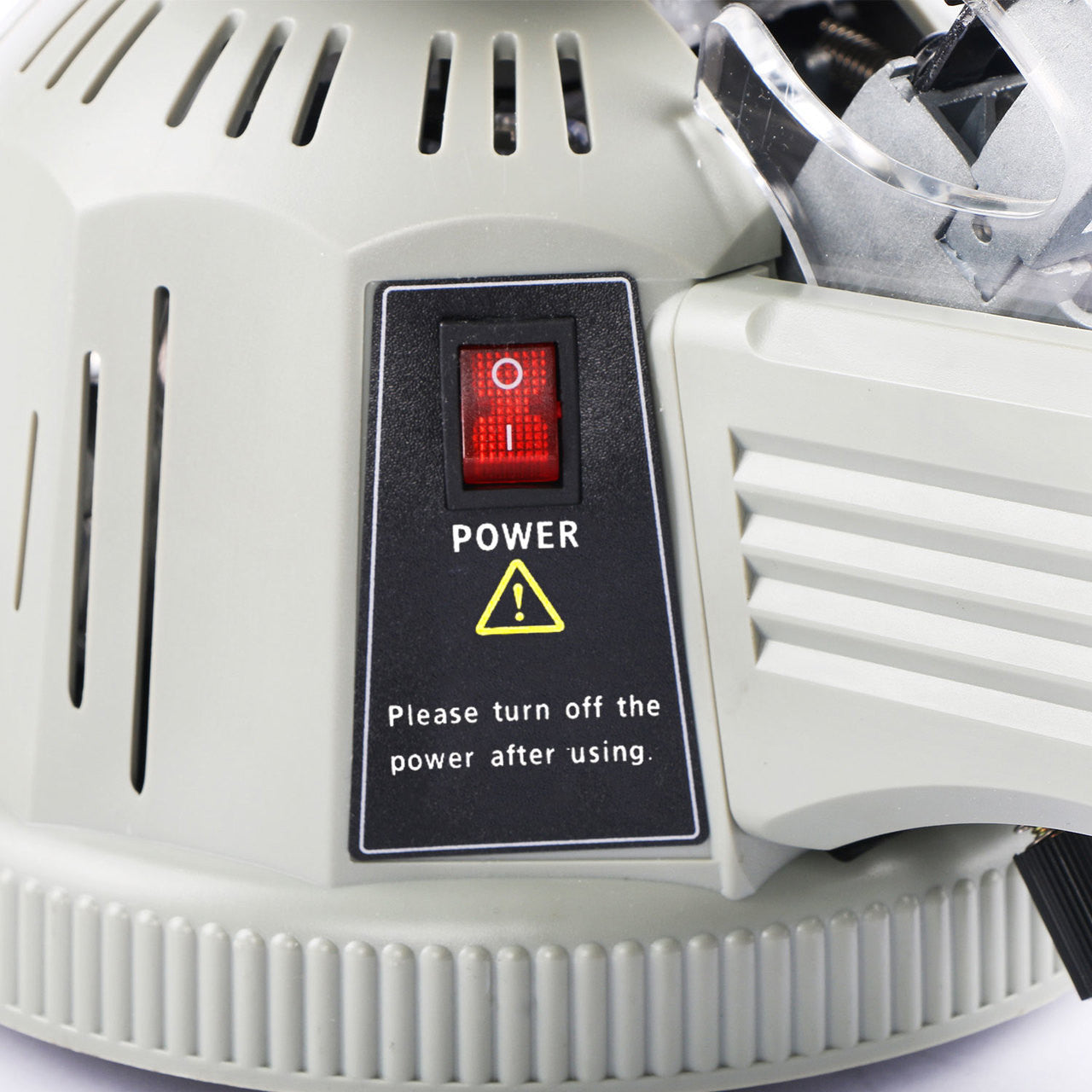

- Make sure the power switch is off.
- Open the safety cover. Move the arm frame by swing the manual lever from one side to the other side repeatedly.

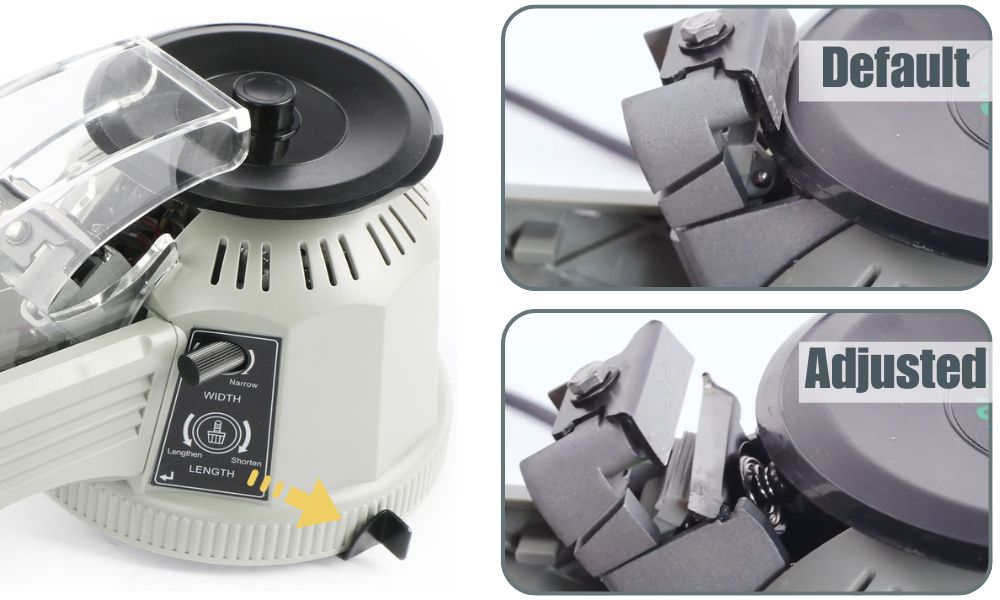

- Adjust the blade and arm frame to the proper working position.
- Select the appropriate bobbin size according to your tape internal diameter (available options:1"/1.5"/3"), ensuring the outer diameter does not exceed 130mm.

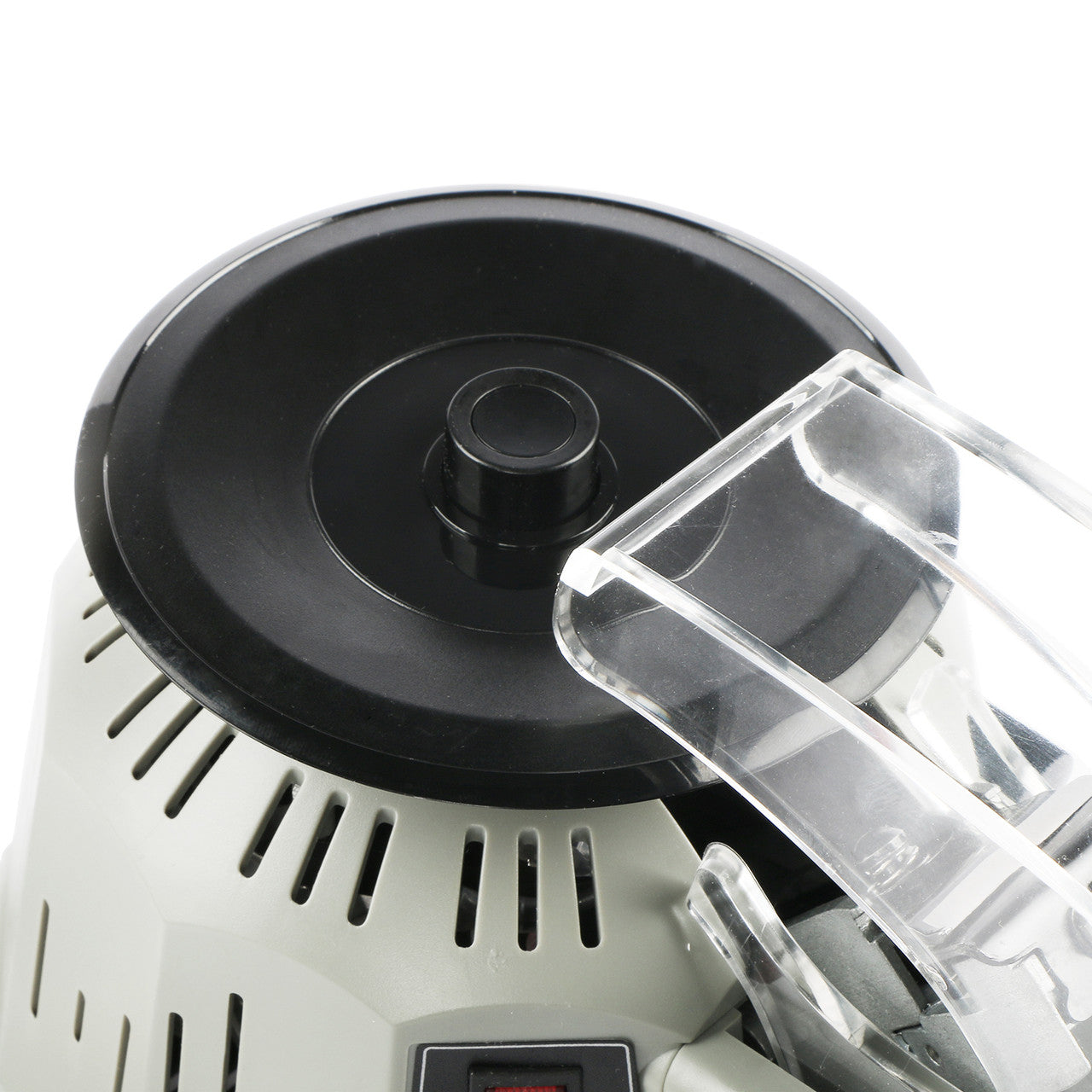

- With approximately 100mm of tape pulled from the spool, securely insert the bobbin into the tape holder. Then thread the tape through the blade assembly and attach it to the center of the carousel surface.
Precautions
- Compatible Tape Types: This model is not suitable for non-adhesive tapes or high-tack adhesive tapes.
- Tape Loading Requirement: Always load tape before operation to prevent blade damage. Ensure the power is switched OFF during tape installation. Never touch the cutting area with bare hands when loading tape.
- Blade Safety Warning: The blades are extremely sharp - never touch directly. Always keep the safety cover securely closed during operation. Wear cut-resistant gloves when handling or replacing blades.
- Safe Maintenance: Before performing any maintenance, ensure the machine is powered OFF and unplugged. Clean the disk surface regularly with a dry cloth, and use alcohol to remove adhesive residue. When cleaning the blades, always use tools instead of fingers, wipe carefully to prevent accidental contact with the sharp blades.

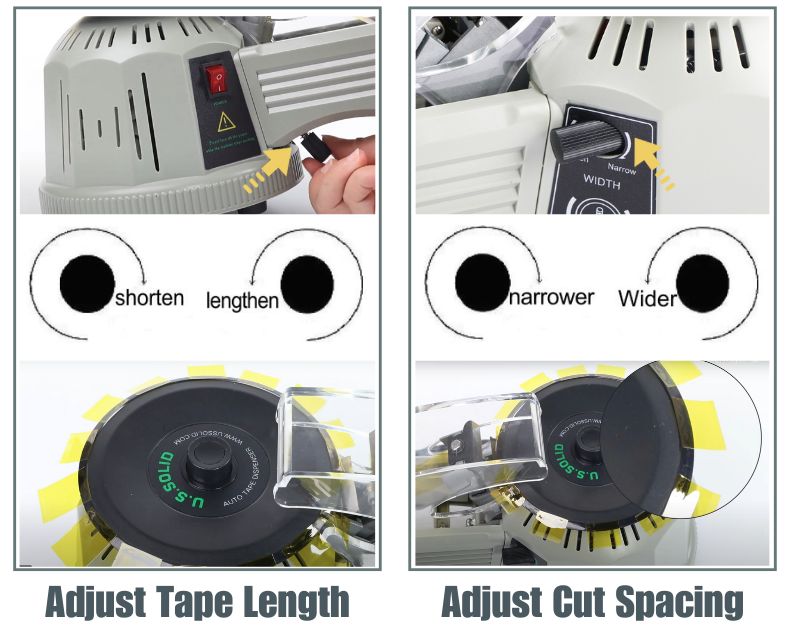

- Length/Spacing Adjustment:Turn the knob to set manually—no markings; adjust by feel.
All Options
| Model | Type | Applicable Tape Width | Tape Length Setting Range | Inner Diameter | Max. Outside Diameter | Non-adhesive Tape | Adhesive Tape |
| JF-2000 | Industrial | 0.28" to 1.96" | 0.79" to 39.33" | 1"/1.25"/3" | 5.91" | × | ✓ |
| Zcut-2 | Carousel | 0.12" to 0.87" | 0.43" to 2.32" | 1"/1.25"/3" | 5.1" | × | ✓ |
| JF-8000 | Carousel | 0.12" to 0.98" | 0.2" to 2.36" | no limit | 5.91" | × | ✓ |
| JF-5000 | Carousel | 0.12" to 0.98" | 0.6" to 2.76" | no limit | 5.91" | × | ✓ |
| JF-3000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-7000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-9000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000 | Industrial | 0.32" to 3.15" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000-150MM | Industrial | 0.59" to 5.90" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| USS-ZCUT13 | Industrial | 0.79" to 7.87" | 0.79" to 39.33" | 3" | 11.8" | ✓ | ✓ |
| USS-ZCUT1002 | Manual | up to 1.5" | Manual, no limit | 1"/3" | 5.9" | × | ✓ |
| USS-ZCUT1001 | Manual | up to 2.5" | Manual, no limit | 3" | 10" | × | ✓ |
