The valve can be energized to open, and left hooked up, with negligible energy used once fully opened. To close, simply shutoff power to the valve. This valve is convenient because it can be operated with a simple on off switch. When on, it will remain open, when turned off (or power is lost for some other reason) the valve automatically closes.

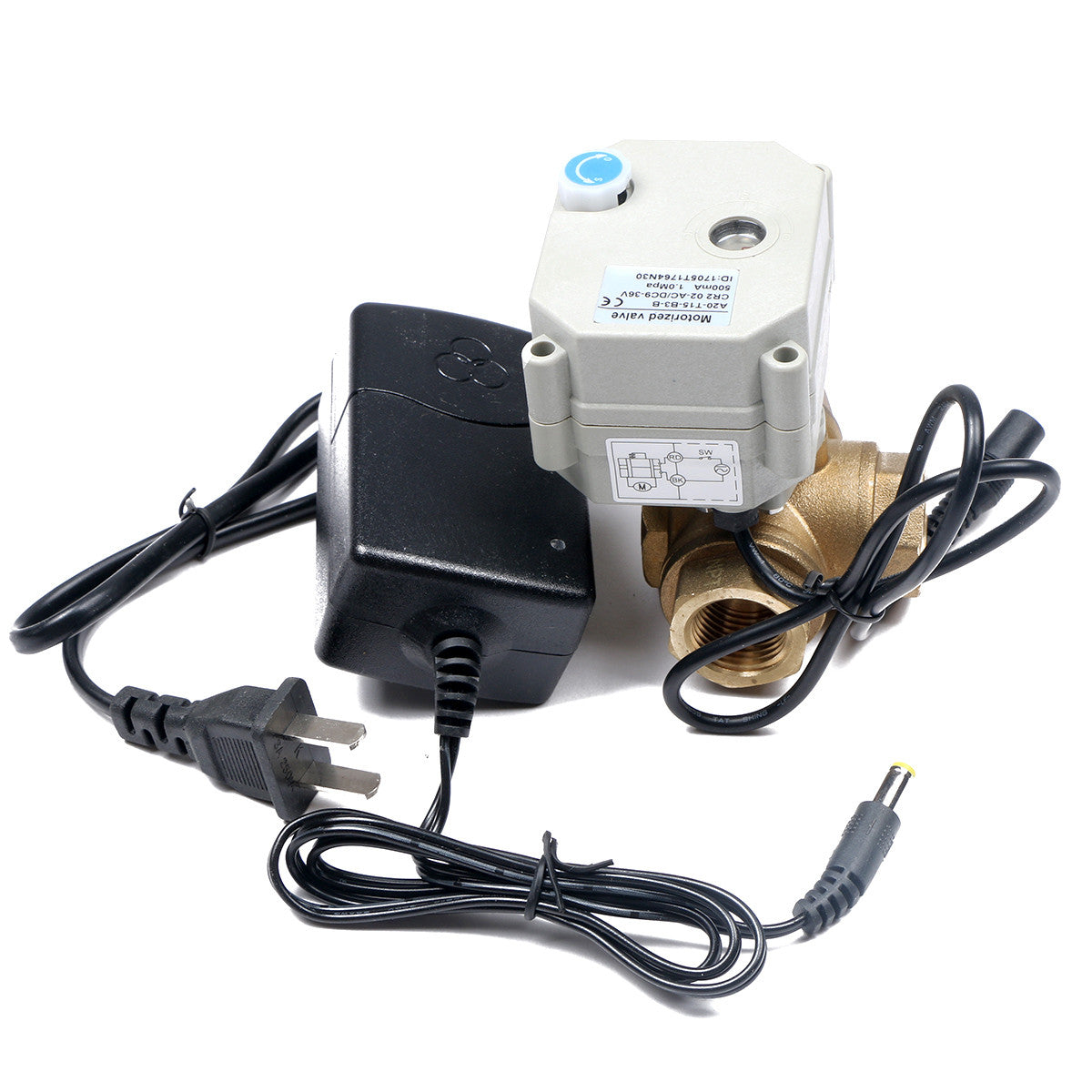

The working voltage of this motorized ball valve is 9-24V AC/DC, and it is also equipped with a power adapter (input voltage is AC 110V ~ 230V, output voltage is 12V DC). If you need to use a power supply with a voltage range of 9-24V AC / DC, you can cut off the terminal connected to the power adapter and then wire it by yourself.
Specifications
U.S. Solid Model: USS-MSV00033
Valve Material : Brass
Seal: FKM
Operating Time : 3-5 Seconds
Working Voltage : 9-24V DC/AC
Input Voltage(adapter）：AC 110V~230V
Max Power : 2 W
Max Torque : 2 N m
Max Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 100°C
Ambient Temperature Range : -20°C to 40°C
Enclosure Rating : IP67
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type: Not Full

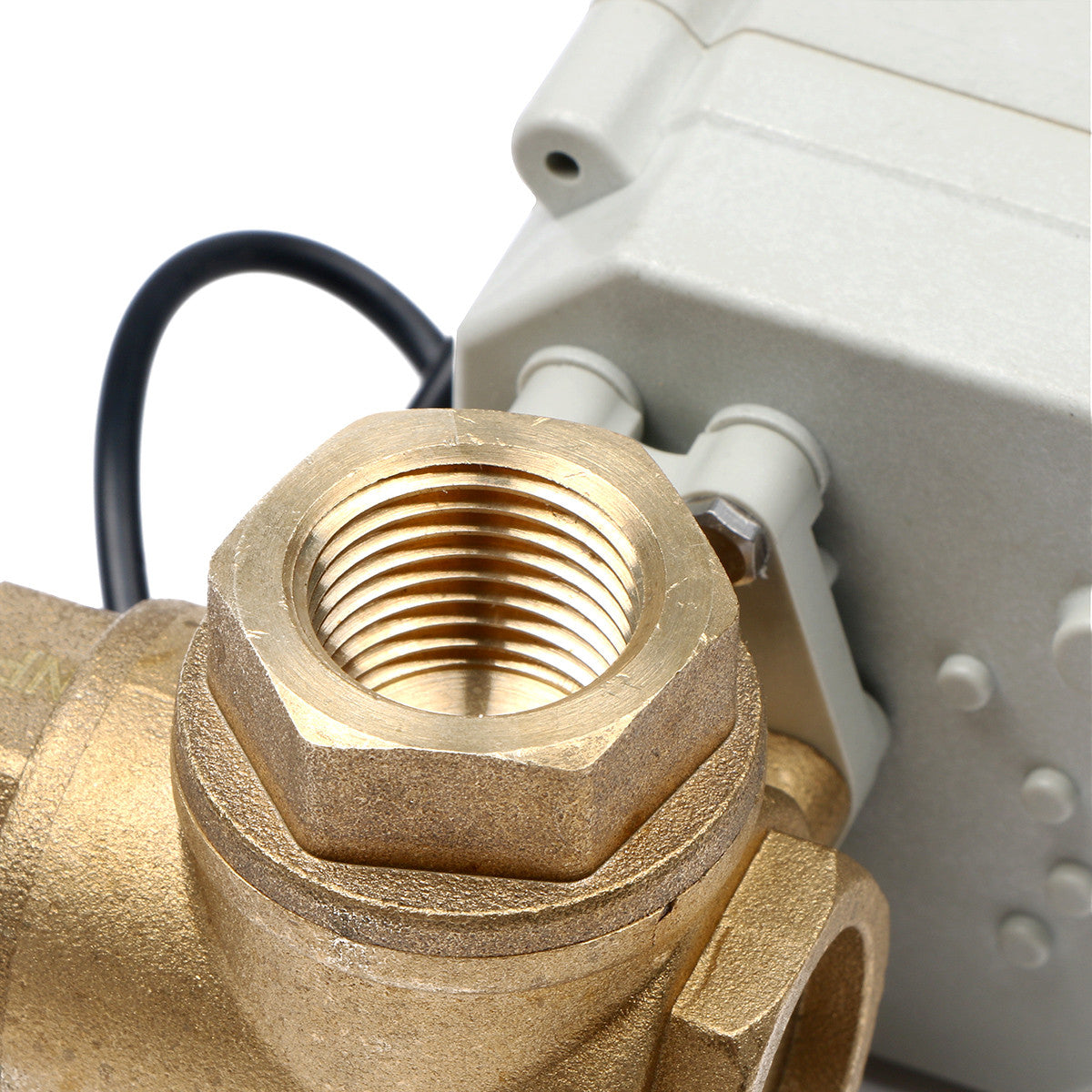

Thread Type : NPT
Wiring Type : 2 Wire Auto Return
