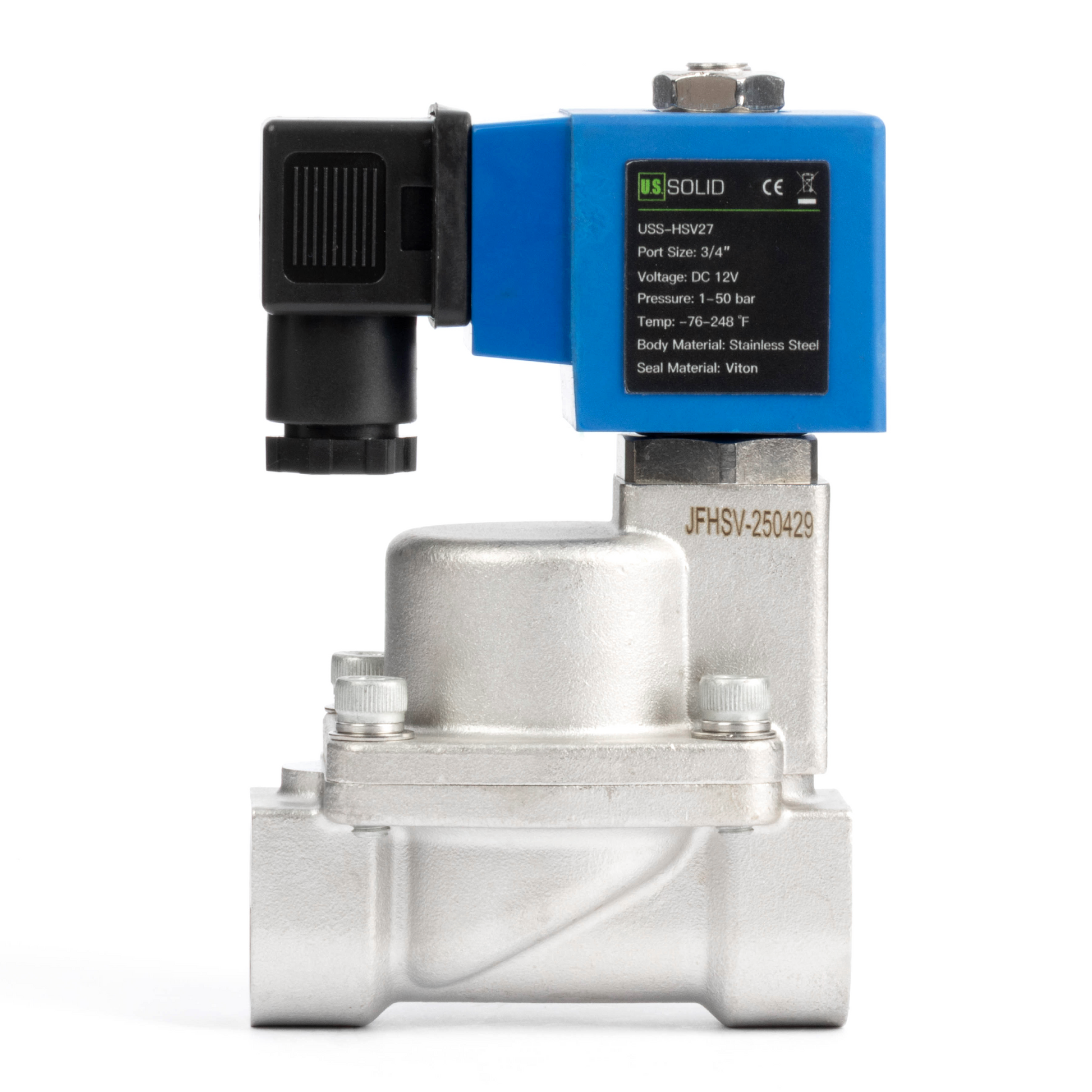

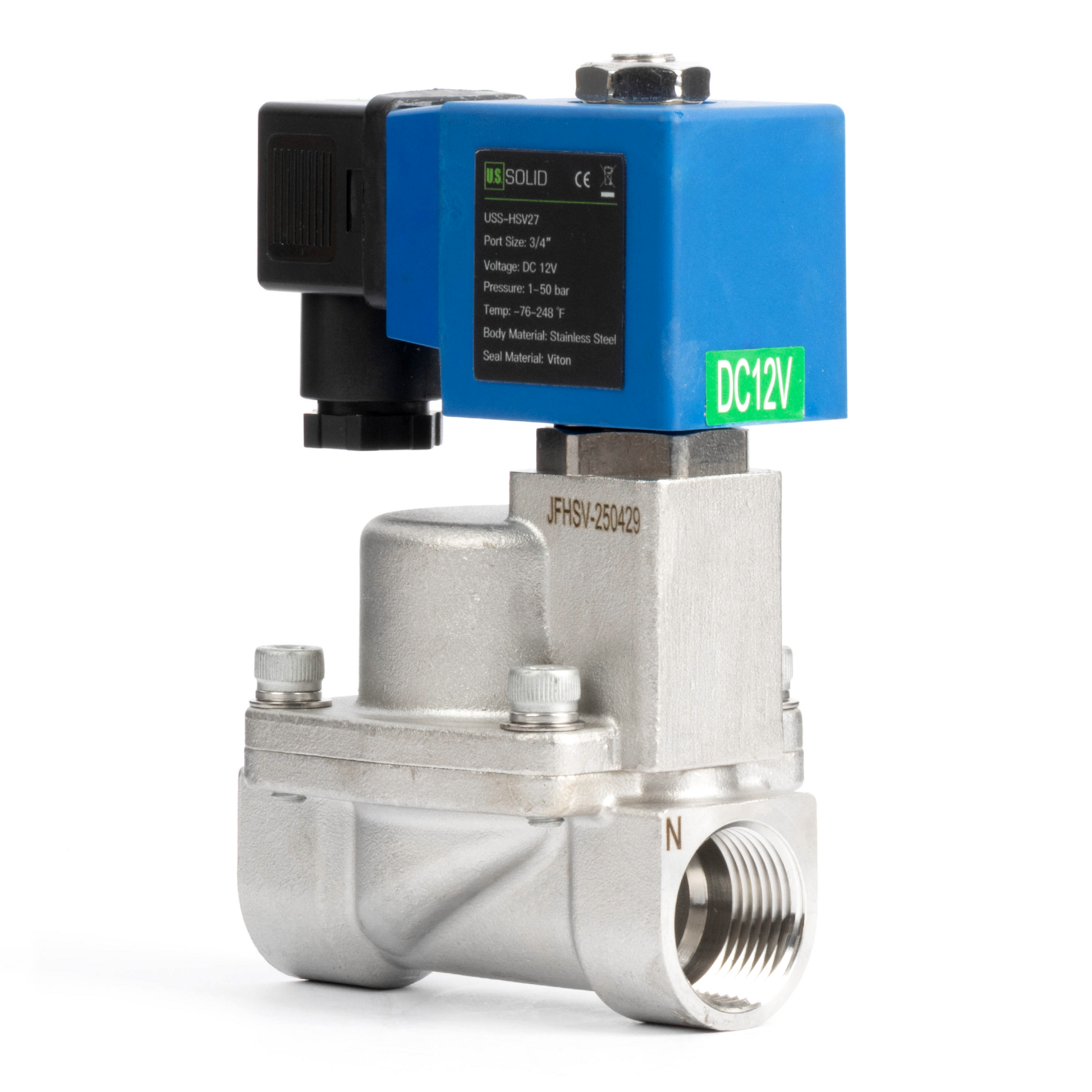

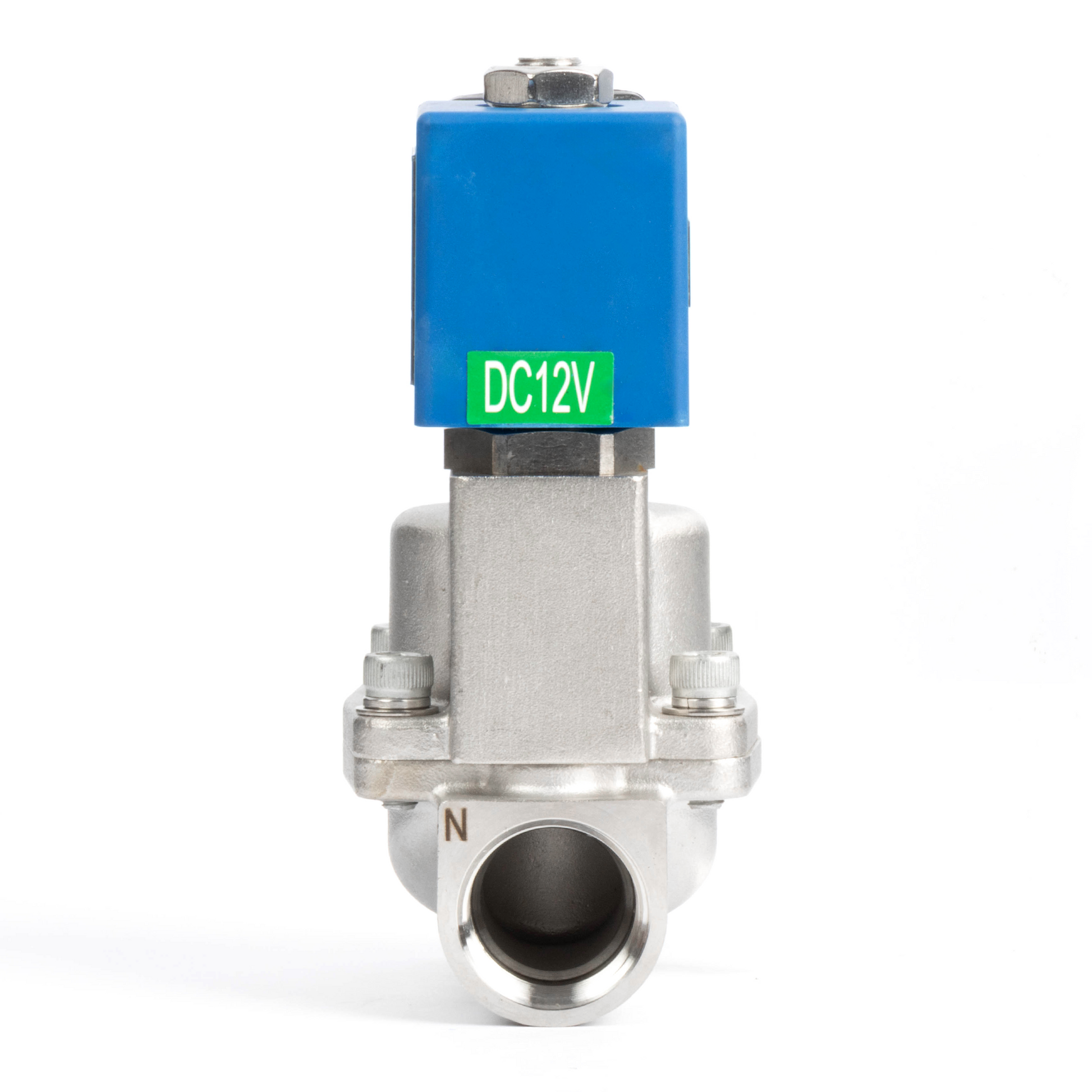

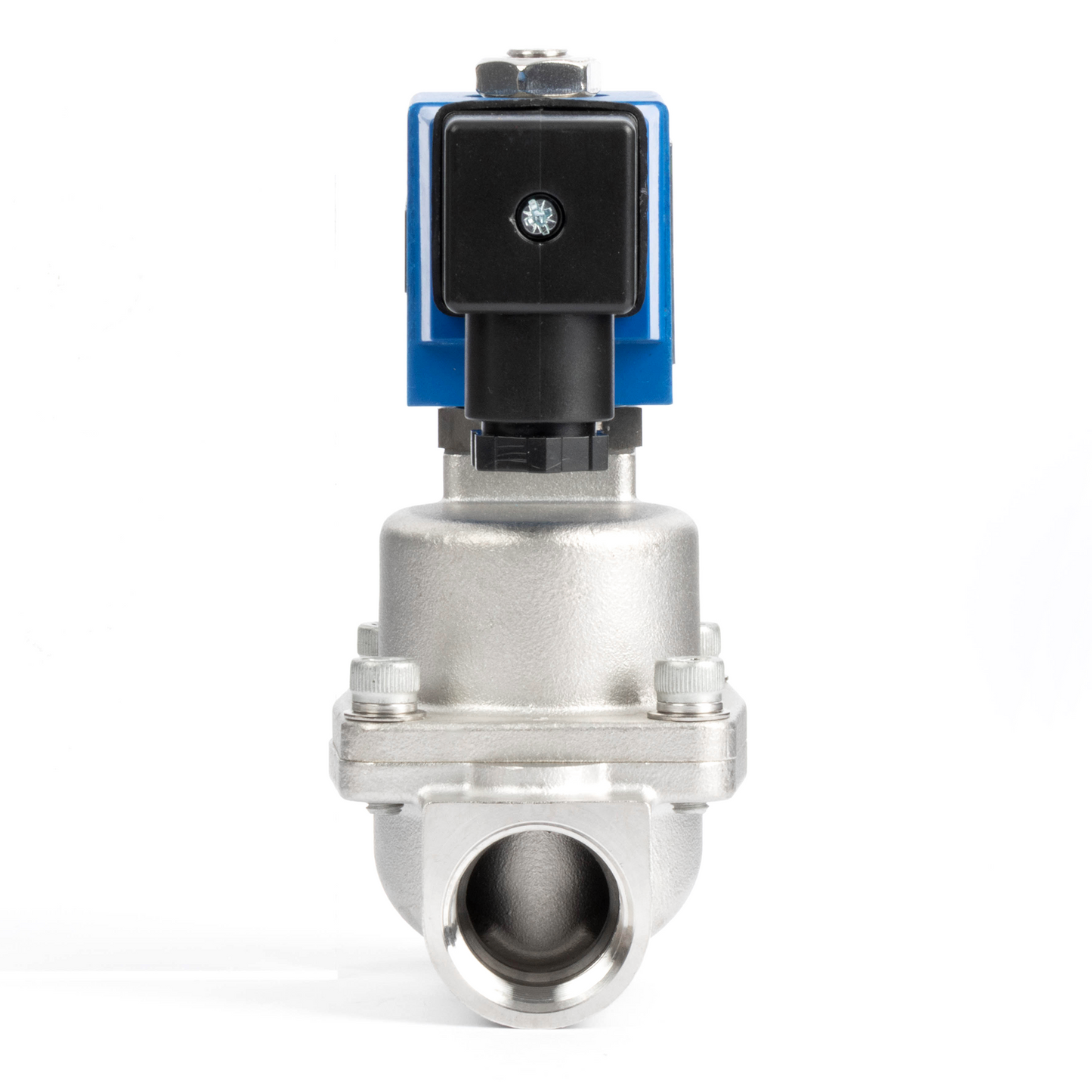

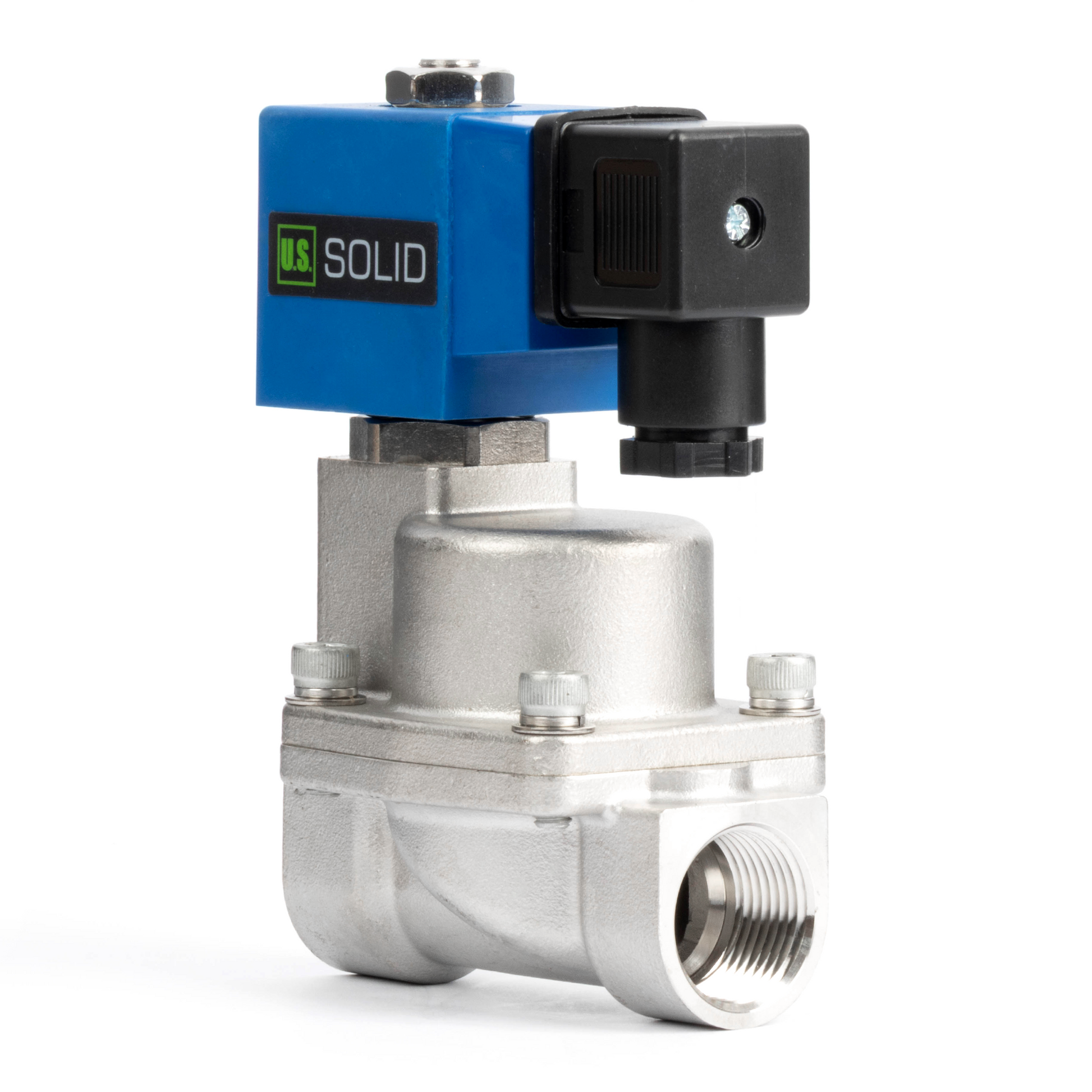

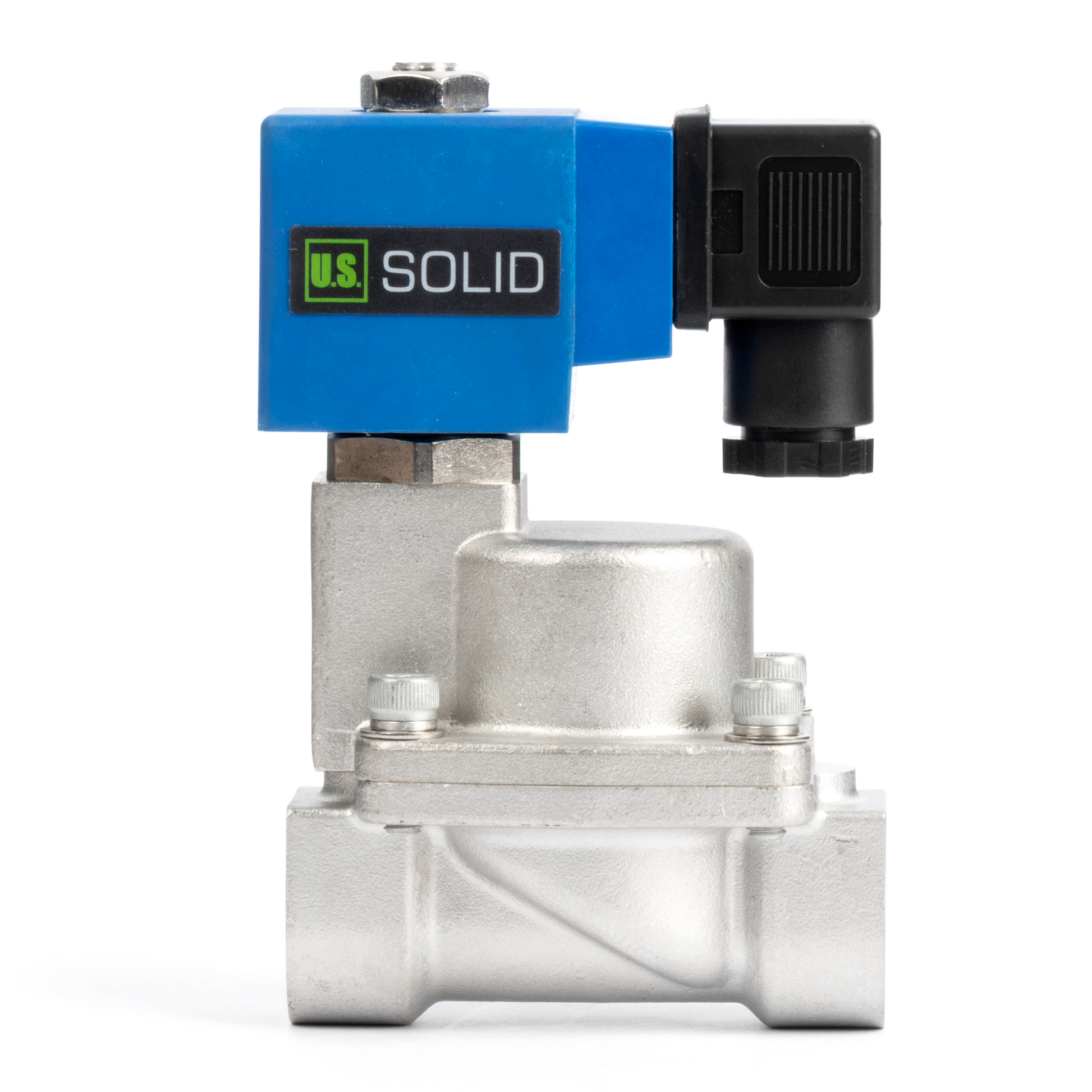

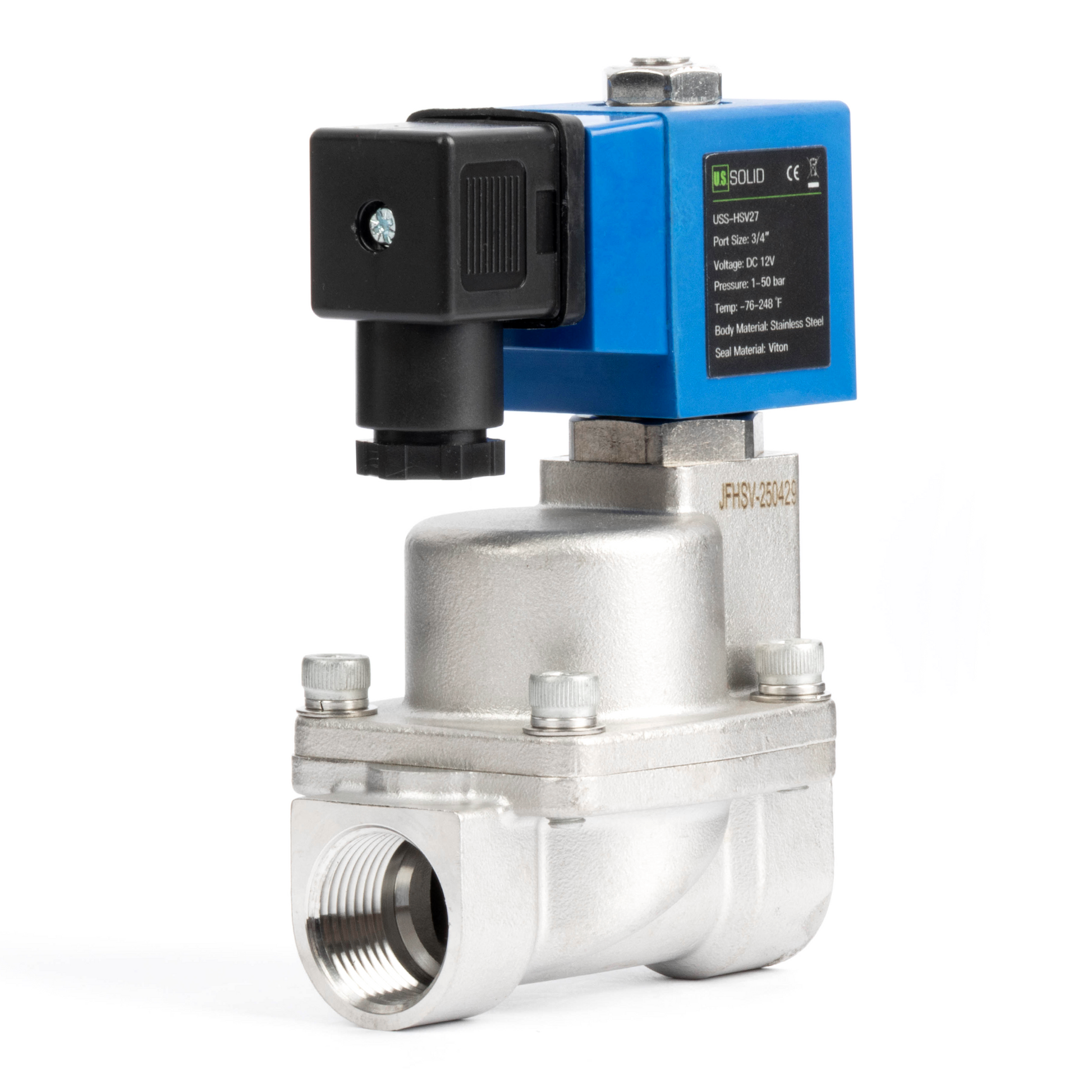

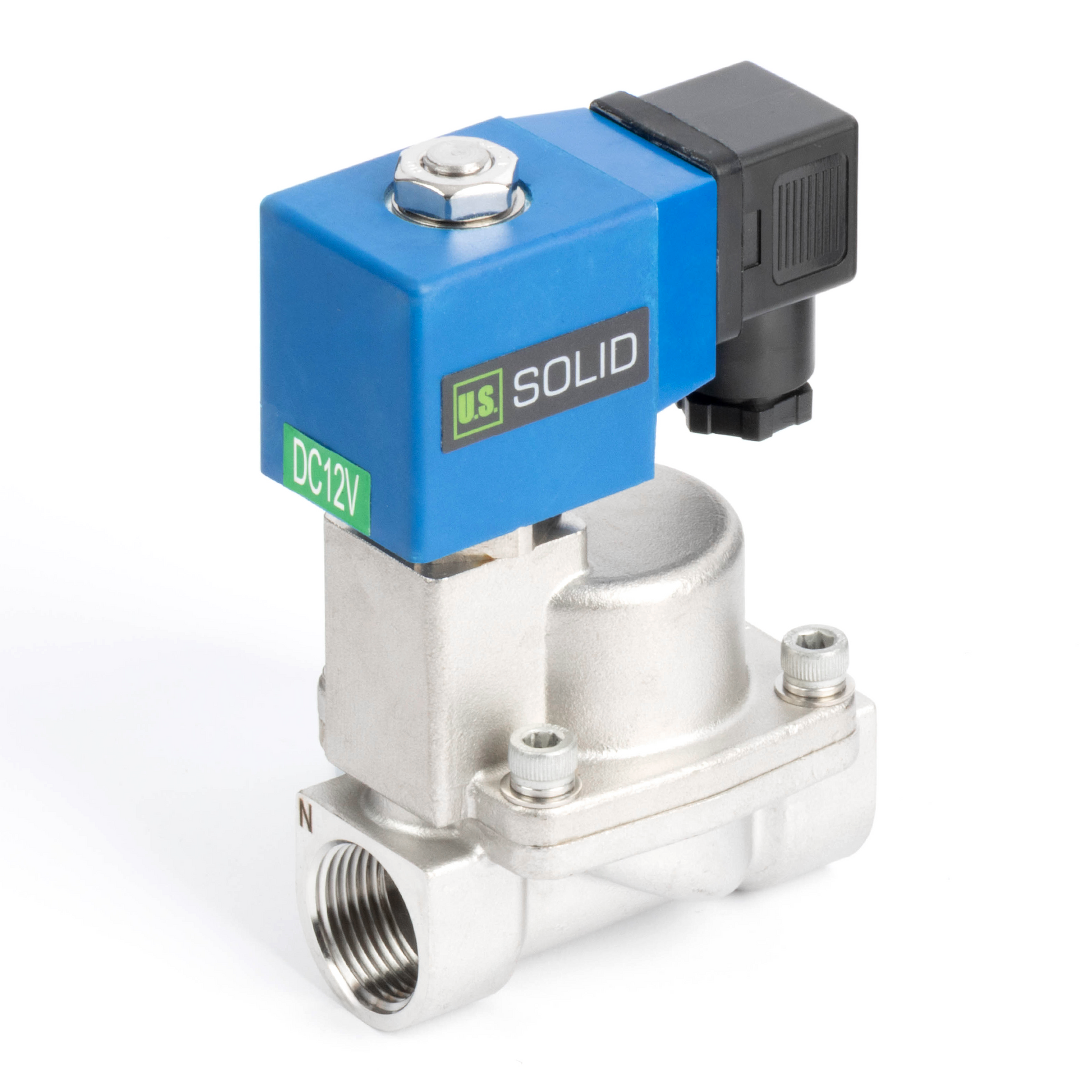

U.S. Solid High Pressure Solenoid Valve features a high-pressure, high temperature resistant design that was built to withstand a high pressure and a high temperature without being damaged. The valve body is made by high-quality stainless steel and the material of seal is PTFE, featuring a strong inner structure, this high-pressure solenoid valve will resist high pressure transfer of liquids, gas, oil or air, up to 50 bar, which is several times more than common solenoid valves. Not only can work for any high-pressure system but this valve also has excellent temperature resistance for up to 248 degrees F. Versatile and super responsive, it can be used for a wide variety of HVAC, industrial, household or commercial applications.
Specifications:
Model: USS-HSV27
Size: 3/4 inches
Material: Stainless Steel
Working Voltage: 12V DC
Output Power: 8.5 W
N.C./N.O.: Normally Closed
Working Pressure: 0-5.0 MPa
Medium Temperature: -30-180°C(-76-248°F)
Orifice: 20 mm
Flow Rate: 9.3 Cv
Seal: PTFE
Operation Type: Pilot-operated
Open/Close Time: < 1 s
