INTRODUCTION
The U.S. Solid Automatic Label Rewinder seamlessly syncs with your printer to automate label management, featuring bi‑directional winding (forward and backward) for total control. It accommodates label rolls up to 120 mm wide and 185 mm in diameter with a standard 0.5" core holder. An adjustable paper guide and intuitive Forward/Off/Backward switch ensure precise, hands‑free operation. Engineered for durability, this rewinder delivers reliable performance in high‑volume environments—all backed by the U.S. Solid quality guarantee.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-LRW00007-12MM | Brand | U.S. Solid |
|---|---|---|---|
| SKU | JFLRW00007-12MM | GTIN-12 (U.P.C.) | 888107128649 |
| Applicable Label Width | Up to 120 mm (4.7") | Applicable Label Length | No limits |
| Max Roll O/D | 185 mm (7.2") | Speed | 0~8"/sec(adjustable) |
| Machine Dimensions | 300(L)*185(W)*220(H)mm (11.8*7.2*8.6 inches) | Gross Weight | 8.49 lbs (3.85 kg) |
| Internal Core Diameter | 11-13mm | Power Supply | AC 100 V-240 V, 50/60 Hz |
WARNING
1.Do not plug in, unplug the cord, or operate the machine with wet hands.
2.This product is only for indoor use and must not be used in wet locations.
3.During the operation of the machine, please do not touch the rewinder shaft, and never stop its rotation.
4.When the product is idling, do not put fingers or sharp objects into the bezel assembly.
5.Turn off the power switch and unplug the machine before removing waste material or performing any cleaning or maintenance services.

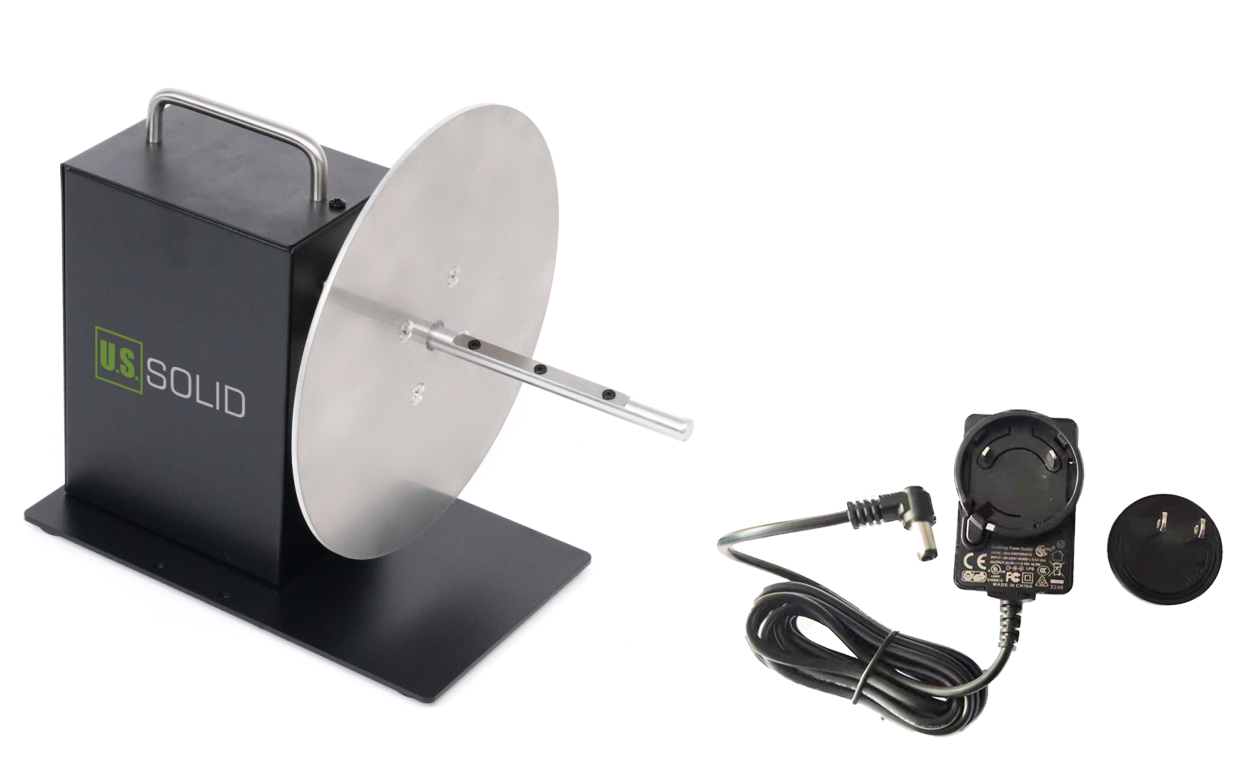

PACKING LIST
- Label Rewinder Machine x1
- Power Cable x1
- Adjustable Paper Guide x1
| SKU | Label Width | Label Length | Max. OD of Label Roll | Core Diameter | Coreless Rewinding | Bi-directional Rewind Capability | Adjustable Paper Guide |
|---|---|---|---|---|---|---|---|
| JFLRW00007 | 100 mm (3.93") | no limit | 185 mm (7.2") | 1"-3" | ✓ | ✓ | ✓ |
| JFLRW00007-12MM | 120 mm (4.7") | no limit | 185 mm (7.2") | 0.5" | x | ✓ | ✓ |
| JFLRW00005 | 120 mm (4.72") | no limit | 220 mm (8.6") | 1"-4" | ✓ | ✓ | ✓ |
| JFLRW00008 | 150 mm (5.91") | no limit | 220 mm (8.6") | 1"-4" | ✓ | ✓ | ✓ |
| JFLRW00003 | 150 mm (5.91") | no limit | 230 mm (9.06") | 1.5"& 3" | ✓ | ✓ | x |
| JFLRW00009 | 80 mm (3.15") | no limit | 138 mm (5.43") | 1"&1.5" | ✓ | ✓ | x |
| JFLRW00012 | 80 mm (3.15") | no limit | 138 mm (5.43") | 1"&1.5" | ✓ | ✓ | ✓ |
| JFLRW00010 | 120 mm (4.72") | no limit | 200 mm (7.87") | 1"&1.5"&3" | ✓ | ✓ | ✓ |
| JFLRW00013 | 160 mm (6.3") | no limit | 220 mm (8.66") | 1"&1.5"&3" | ✓ | ✓ | ✓ |
| JFLRW00014 | 120 mm (4.72") | no limit | 200 mm (7.87") | 1"&1.5"&3" | ✓ | ✓ | ✓ |
| JFLRW00015 | 150 mm (5.91") | no limit | 300 mm (11.8") | 1"-4" | ✓ | ✓ | x |
| JFLRW00016 | 210 mm (8.26") | no limit | 300 mm (11.8") | 3" | x | ✓ | ✓ |
| JFLRW00017 | 105 mm (4.1") | no limit | 180 mm (7") | 1.5"&3" | ✓ | ✓ | x |
Download user manual here
