Introduction
The USS-ZCUT13 is a heavy duty tape cutter perfect for extra wide tapes (the widest model we currently offer online, supporting tape widths from 0.79" to 7.87"), including PE protective film, packaging tapes, PVC electrical tape, kraft tape, masking tape, acetic acid cloth tape, aluminum foil tape, Teflon tape, etc. If you need to cut high adhesive tapes, such as double-sided tape and fiber tape, please contact us for customization.
Applications

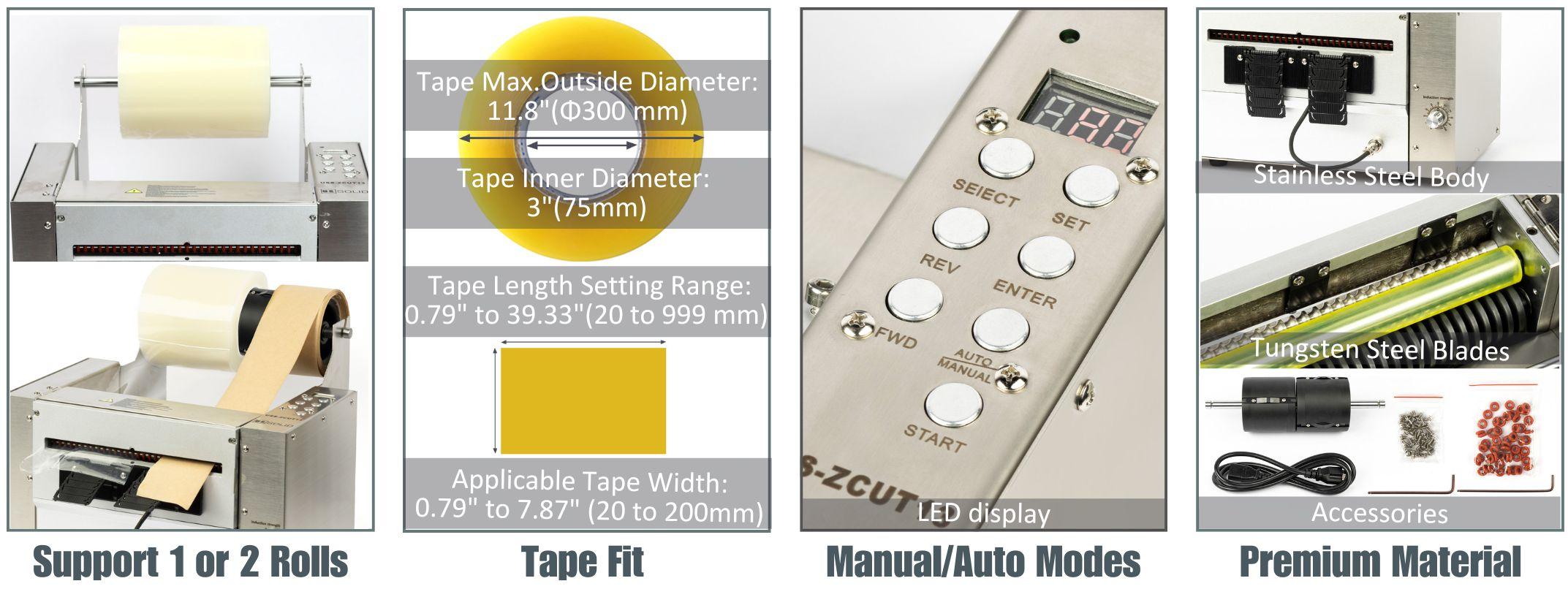

Features

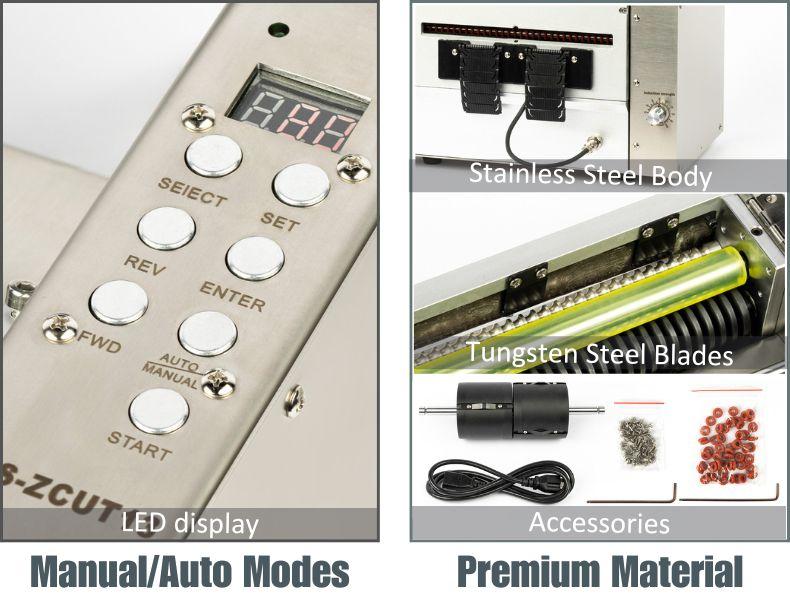

- Premium Material: The stainless steel body and thick tungsten steel blades make the machine durable and provide a neat cutting effect. It uses a stepper motor, which features high precision, low error, and fast cutting.
- Manual/Auto Modes Available:The manual and auto modes can be switched with just one click, making operation easy. The cutting width can reach 200mm, meeting various size requirements.
- Memory Function:This machine has a memory function, which can automatically save the cutting length settings. Even if the machine is turned off and then powered on again, it will retain the original data.

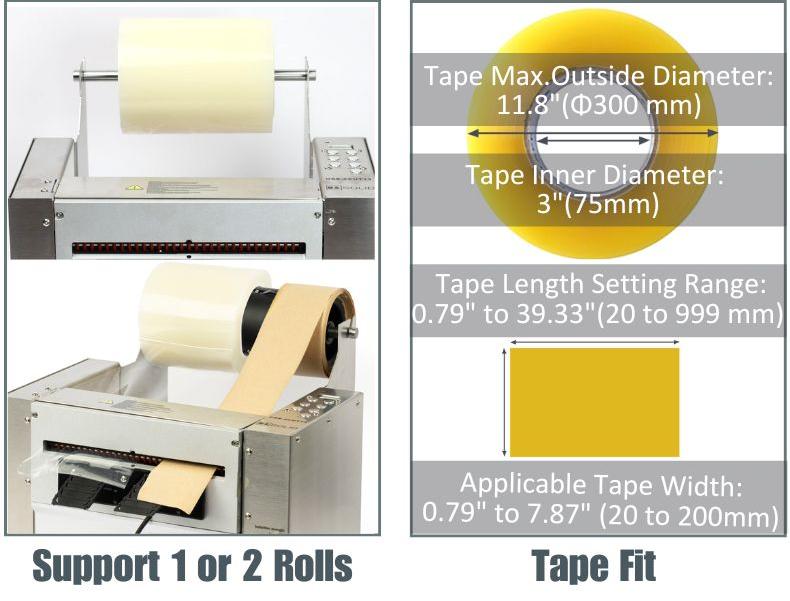

- Support 1 or 2 Rolls:It allows for cutting one or two rolls simultaneously, making it convenient for multiple users to operate at once.
- LED Display:The LED display provides clear visibility of set cutting lengths, which are adjustable via the control panel buttons.
- Applicable Tape:This auto tape dispenser is suitable for various adhesive tapes, non-adhesive tapes, and PE protective films. If you need to cut high adhesive tapes, such as double-sided tape and fiber tape, please contact us for customization.
User Manual
To learn how to use this product, please refer to the user manual or watch the tutorial video.
Technical Data
| Model | USS-ZCUT13 | Tape Thickness | 0.05 to 0.3mm | ||||||
| Simultaneous Tape Loads | Support 1 or 2 rolls | Cutting Accuracy | ±1 mm | ||||||
| Applicable Tape Width | 0.79" to 7.87" (20 to 200mm) | Applicable Tape | Adhesive tape and Non-adhesive tape | ||||||
| Tape Length Setting Range | 0.79" to 39.33"(20 to 999 mm) | Power Consumption | 70 W | ||||||
| Length Adjustment | Button control | Net Weight | 23.92 lbs | ||||||
| Tape Inner Diameter | 3"(75mm) | Product Dimensions | 12.80"x11.81"x10.63" | ||||||
| Tape Max. Outside Diameter | 11.8"(Φ300 mm) | Power | AC 110V 60Hz | ||||||
*To view the full table on mobile, please swipe left or right on the screen.
FAQ
Problem 1: What types of tape are compatible with this model?
This automatic tape dispenser supports both adhesive and non-adhesive tapes, including (but not limited to): PE protective film, packaging tapes, PVC electrical tape, kraft tape, masking tape, acetic acid cloth tape, aluminum foil tape, Teflon tape, and other specialty materials.
Problem 2: Does this model support tape length presets?
No. Manual setting (20-999 mm) is available via panel buttons, but presets are not supported.
Problem 3: How many tapes can this model hold simultaneously?
Up to 2 rolls.
Problem 4: What does the Memory Function of this model refer to?
The function saves the cutting length settings. Even after the machine is powered off and then powered on again, it will retain the previously stored data.
All Options
| Model | Type | Applicable Tape Width | Tape Length Setting Range | Inner Diameter | Max. Outside Diameter | Non-adhesive Tape | Adhesive Tape |
| JF-2000 | Industrial | 0.28" to 1.96" | 0.79" to 39.33" | 1"/1.25"/3" | 5.91" | × | ✓ |
| Zcut-2 | Carousel | 0.12" to 0.87" | 0.43" to 2.32" | 1"/1.25"/3" | 5.1" | × | ✓ |
| JF-8000 | Carousel | 0.12" to 0.98" | 0.2" to 2.36" | no limit | 5.91" | × | ✓ |
| JF-5000 | Carousel | 0.12" to 0.98" | 0.6" to 2.76" | no limit | 5.91" | × | ✓ |
| JF-3000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-7000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-9000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000 | Industrial | 0.32" to 3.15" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000-150MM | Industrial | 0.59" to 5.90" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| USS-ZCUT13 | Industrial | 0.79" to 7.87" | 0.79" to 39.33" | 3" | 11.8" | ✓ | ✓ |
| USS-ZCUT1002 | Manual | up to 1.5" | Manual, no limit | 1"/3" | 5.9" | × | ✓ |
| USS-ZCUT1001 | Manual | up to 2.5" | Manual, no limit | 3" | 10" | × | ✓ |
*To view the full table on mobile, please swipe left or right on the screen.
