Introduction

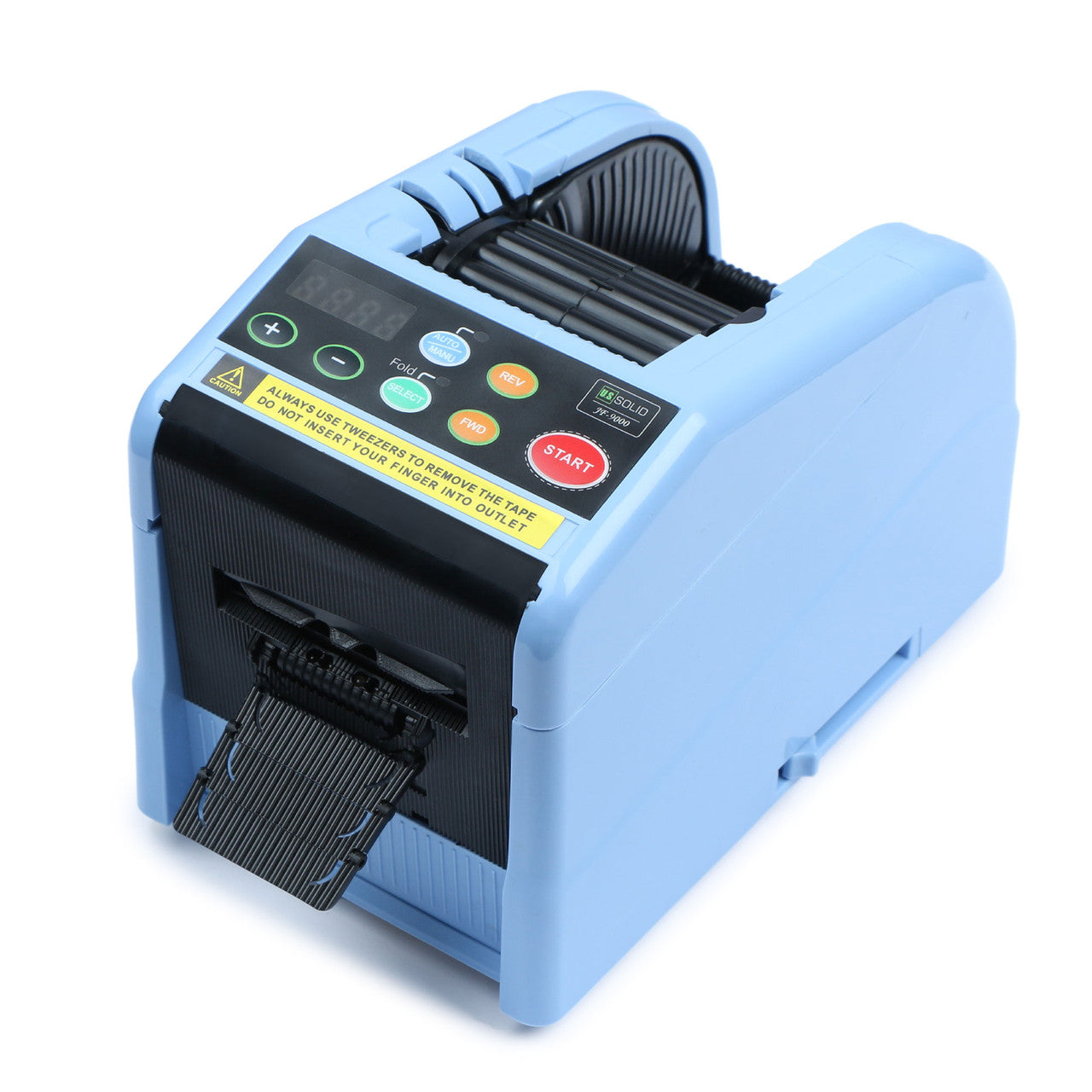

The JF-9000 tape dispenser stands out for its advanced automatic features. One of these features is the automatic edge-folding function, which folds the edge of the tape with a 7mm length. This is especially useful when you need to temporarily secure items and want to be able to remove the tape easily. Another impressive feature of this tape dispenser is its programmable cutting capability. It allows you to set and save six different preset lengths, making it convenient for projects that require multiple tape pieces of specific sizes. The dispenser will automatically repeat and alternate between the preset lengths as needed, saving you time and effort.
This auto tape dispenser is compatible with adhesive tapes and non-adhesive tape types including double-sided, craft, PP, filament, glass cloth, strapping, acetate, fiberglass, aluminum foil, protective films, polyimide films, and more.
If you want to peel the backing paper from a tape roll, you'll need to use the tape dispenser with a liner remover. Click here to purchase the liner remover.
Applications
This tape dispenser is suitable for offices (document sealing), retail stores, industrial applications (electronics/battery/toy/printing/transformer/e-cigarette factories), logistics, and DIY projects (gift wrapping/crafts).
Features
User Manual
To learn how to use this product, please refer to the user manual or watch the tutorial video.
Technical Data
| Model | JF-9000 | Tape Thickness | 0.05 to 0.3mm | ||||||
| Simultaneous Tape Loads | Support 1 or 2 rolls | SKU | JFZCUT00012 | ||||||
| Simultaneous Tape Loads | Support 1 or 2 rolls | Folding Length | 0.28"/7mm | ||||||
| Applicable Tape Width | 0.25" to 2.36" (6 to 60 mm) | Applicable Tape | Adhesive tape and Non-adhesive tape | ||||||
| Tape Length Setting Range | 0.2" to 39.33"(5 to 999 mm) | Power Consumption | 25 W | ||||||
| Length Preset | Supports 6 preset lengths (A-F) | Working Mode | 4, Manual/Auto/Programming/Folding Mode | ||||||
| Length Adjustment | Button control(5 to 999 mm) | Net Weight | 4.30 lbs | ||||||
| Tape Inner Diameter | No limit | Product Dimensions | 7.68"x4.33"x5.12" | ||||||
| Tape Max. Outside Diameter | 11.8"(Φ300 mm) | Power | AC 110V 60Hz | ||||||
*To view the full table on mobile, please swipe left or right on the screen.
About Modes
Programming Function
Refer to the manual for full instructions.
- Single Preset Repeat – Select A-F to cut one length repeatedly.
- Auto Cycle Mode – Cuts all non-zero presets in A-F sequence (e.g., set unused slots to 0 to exclude them).
Folding Mode
Refer to the manual for full instructions.
- Automatically creates a 7mm folded edge on the tape for temporary fastening and easy removal.
FAQ
Problem 1: What types of tape are compatible with this model?
This automatic tape dispenser supports both adhesive and non-adhesive tapes, including (but not limited to): double-sided tape, craft tape, PP tape, filament tape, glass cloth, strapping tape, acetate, fiberglass tape, aluminum foil, protective films, polyimide films, and other specialty materials.
Problem 2: Can I customize the 6 preset tape lengths?
Yes.All 6 presets are adjustable. Set any length between 5-999mm. For detailed setup instructions, please refer to the user manual.
Problem 3: What’s the relationship between Auto/Manual modes and Programming/Folding functions?
Auto and Manual are core operation modes that control how the machine runs, while Programming and Folding are functional add-ons that define what it does.
Problem 4: How many tapes can this model hold simultaneously?
Up to 2 rolls, requiring SEPARATOR installation from the machine base to the TAPE HOLDER for division, with a combined width limit of 60mm.
All Options
| Model | Type | Applicable Tape Width | Tape Length Setting Range | Inner Diameter | Max. Outside Diameter | Non-adhesive Tape | Adhesive Tape |
| JF-2000 | Industrial | 0.28" to 1.96" | 0.79" to 39.33" | 1"/1.25"/3" | 5.91" | × | ✓ |
| Zcut-2 | Carousel | 0.12" to 0.87" | 0.43" to 2.32" | 1"/1.25"/3" | 5.1" | × | ✓ |
| JF-8000 | Carousel | 0.12" to 0.98" | 0.2" to 2.36" | no limit | 5.91" | × | ✓ |
| JF-5000 | Carousel | 0.12" to 0.98" | 0.6" to 2.76" | no limit | 5.91" | × | ✓ |
| JF-3000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-7000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-9000 | Industrial | 0.25" to 2.36" | 0.2" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000 | Industrial | 0.32" to 3.15" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| JF-6000-150MM | Industrial | 0.59" to 5.90" | 0.79" to 39.33" | no limit | 11.8" | ✓ | ✓ |
| USS-ZCUT13 | Industrial | 0.79" to 7.87" | 0.79" to 39.33" | 3" | 11.8" | ✓ | ✓ |
| USS-ZCUT1002 | Manual | up to 1.5" | Manual, no limit | 1"/3" | 5.9" | × | ✓ |
| USS-ZCUT1001 | Manual | up to 2.5" | Manual, no limit | 3" | 10" | × | ✓ |
*To view the full table on mobile, please swipe left or right on the screen.
