U.S. Solid

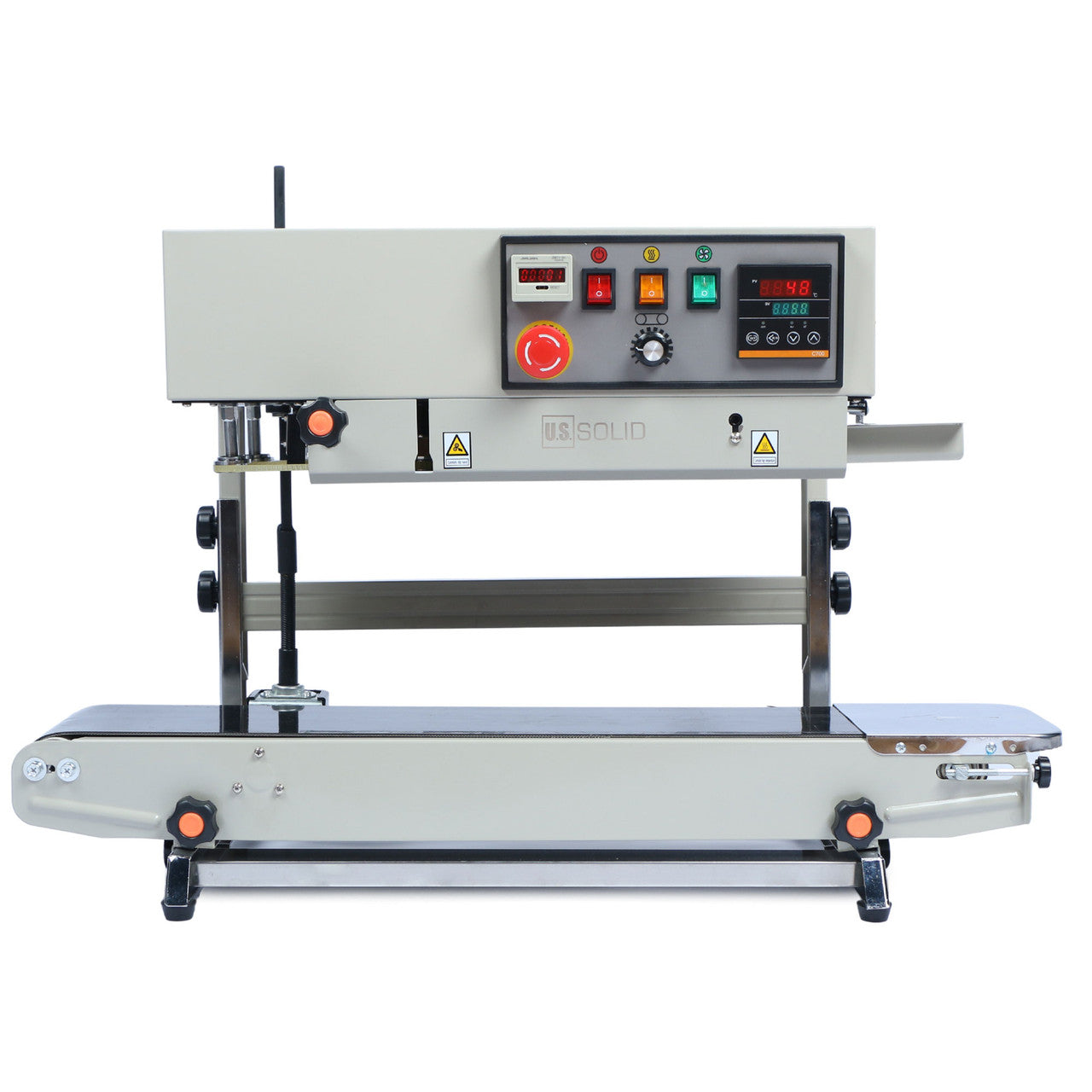

Vertical Automatic Continuous Band Sealer - Sealing Machine for 0.02-0.08mm PVC Films Bag, Digital Temperature Control

Vertical Automatic Continuous Band Sealer - Sealing Machine for 0.02-0.08mm PVC Films Bag, Digital Temperature Control

Product SKU: JFCBB00001

63 in stock

$279.99 USD
$319.99 USD $279.99 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

Estimated Shipping Widget will be displayed here!
View full details

INTRODUCTION

The Vertical Automatic Continuous Sealing Machine is a highly efficient and versatile packaging equipment used in various industries for sealing bags or pouches. It is designed to provide a continuous and automated sealing process, ensuring airtight and secure packaging.The machine is typically constructed with a vertical frame, allowing it to occupy less floor space and making it suitable for smaller production areas. It consists of a conveyor belt system that transports the bags or pouches through the sealing process.The height of the machine is adjustable, and the height range of the bags that can be sealed is 4.33-8.66 inches.

FEATURES

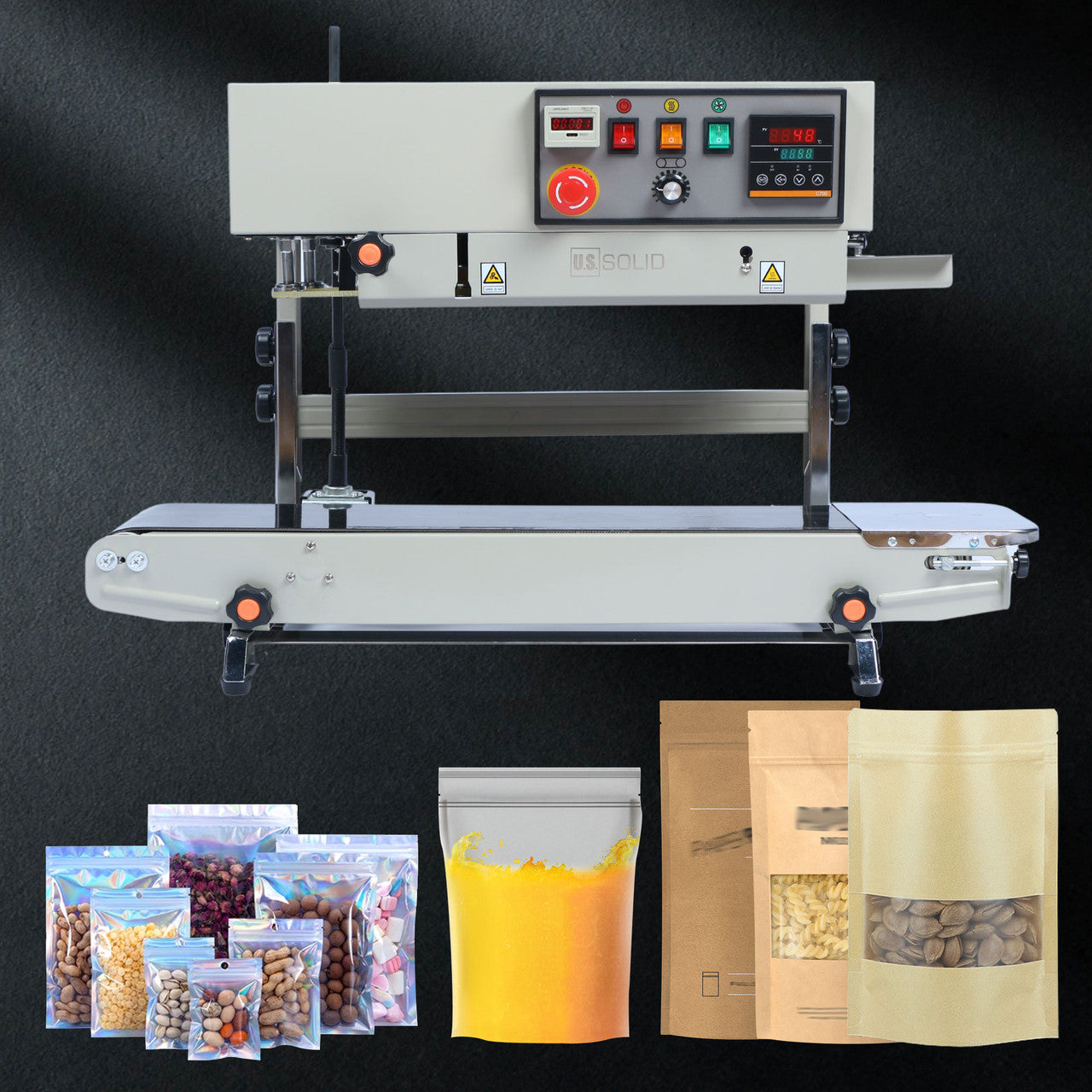

APPLICATIONS

SPECIFICATIONS

Model USS-CBB00001 Brand U.S. Solid
Power Supply 110V,60HZ Power 600W
Sealing Speed 0 - 12M/min (adjustable) Sealing Width 0.47 inch
Max. Seal Thickness 0.03 inch Temp. range 0 - 300°C (adjustable)

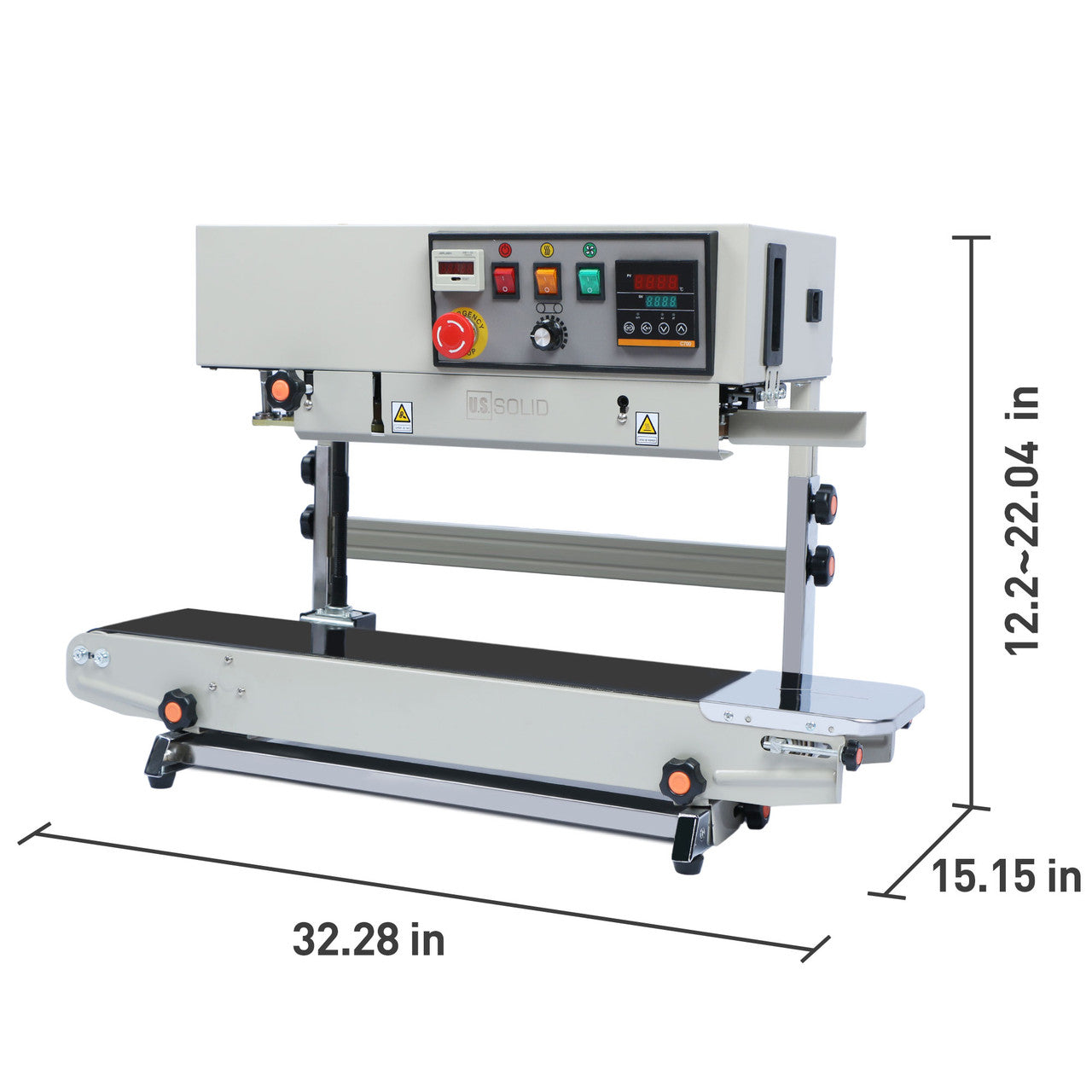

The Height of the Machine Adjustable The Height Range of the Bags 4.33"-8.66"
Max. Load Weight 11 lb Dimensions of Conveyor Table（L*W*H) 53.93"*9.44"*12.2"

WARNING

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

6. When using the machine for the first time, please turn the emergency switch upward to unlock it.

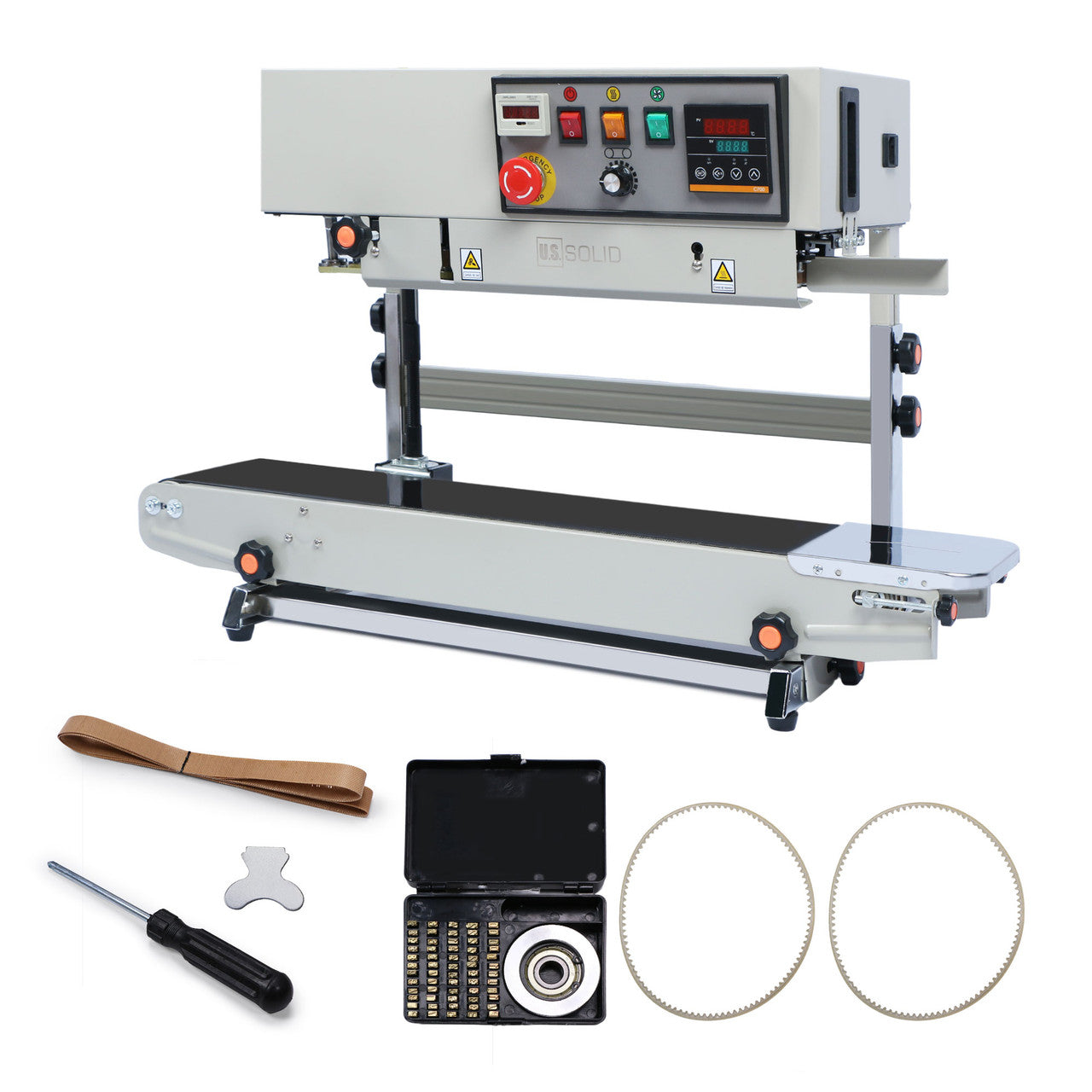

PACKING LIST

  1. Main Machine x1
  2. Accessory Bag x1
  3. User Manual x1

OTHER MODELS

SKU USS-CBB00005 USS-CBB00003 USS-CBB00002 USS-CBB00001 USS-CBB00006-BLACK USS-CBB00005
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~12 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.03 inch 0.019 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 22 lb 2.2 lb 11 lb 6.6 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function × × × × × ×
Conveyor Table √ √ × √ √ √
SKU USS-CBB00006 USS-CBB00007 USS-CBB00008 USS-CBB00009 USS-CBB00010 USS-CBB00011
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × √ ×
Inflation Function × × √ √ × ×
Conveyor Table √ × √ √ √ √
See More ▼
SKU USS-CBB00012 USS-CBB00013 USS-CBB00014 USS-CBB00015 USS-CBB00016 USS-CBB00017
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.5 inch 0.5 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 7 m/min
Max. Seal Thickness 0.011 inch 0.03 inch 0.01 inch 0.03 inch 0.03 inch 0.006 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 13 lb 6 lb 6.6 lb 13 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function √ × × × × ×
Conveyor Table √ √ √ √ √ ×
SKU USS-CBB00018 USS-CBB00019 USS-CBB00020 USS-CBB00021
Seal Width 0.39 inch 0.39 inch 0.39 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 24 m/min 0 ~ 24 m/min
Max. Seal Thickness 0.003 inch 0.03 inch 0.03 inch 0.03 inch
Max. Temperature 572°F 572°F 572°F 572°F
Max. Load Weight 22 lb 2.2 lb 6.6 lb 6.6 lb
Intelligent Inkjet Coding Function × × × ×
With an Ink Wheel × × √ ×
Inflation Function × × × ×
Conveyor Table √ √ √ √

Download user manual here

INTRODUCTION

The Vertical Automatic Continuous Sealing Machine is a highly efficient and versatile packaging equipment used in various industries for sealing bags or pouches. It is designed to provide a continuous and automated sealing process, ensuring airtight and secure packaging.The machine is typically constructed with a vertical frame, allowing it to occupy less floor space and making it suitable for smaller production areas. It consists of a conveyor belt system that transports the bags or pouches through the sealing process.The height of the machine is adjustable, and the height range of the bags that can be sealed is 4.33-8.66 inches.

FEATURES

APPLICATION

SPECIFICATIONS

Model USS-CBB00001 Brand U.S. Solid
Power Supply 110V,60HZ Power 600W
Sealing Speed 0 - 12M/min (adjustable) Sealing Width 0.47 inch
Max. Seal Thickness 0.03 inch Temp. range 0 - 300°C (adjustable)
The Height of the Machine Adjustable The Height Range of the Bags 4.33"-8.66"
Max. Load Weight 11 lb Dimensions of Conveyor Table（L*W*H) 53.93"*9.44"*12.2"

WARNING

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

6. When using the machine for the first time, please turn the emergency switch upward to unlock it.
