INTRODUCTION

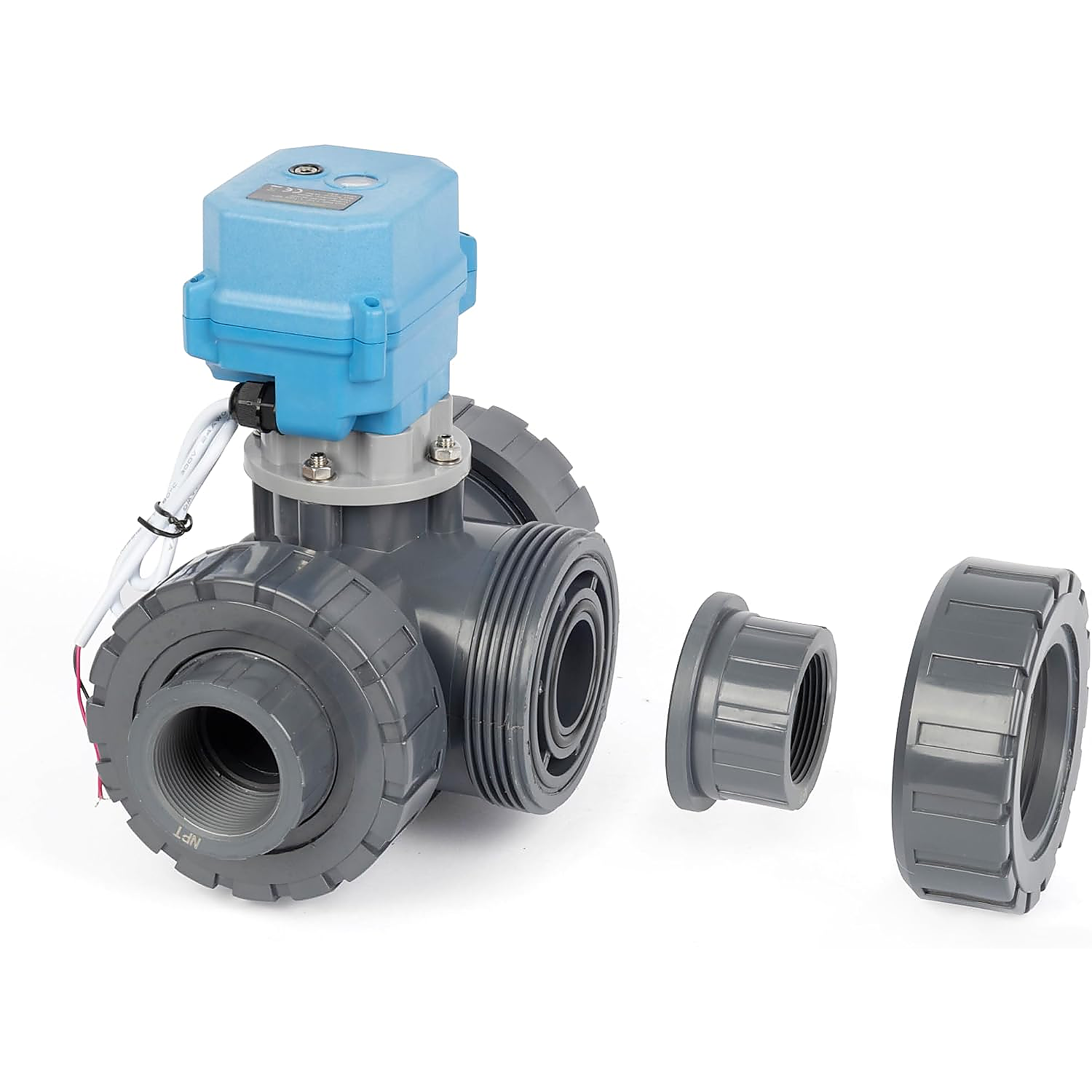

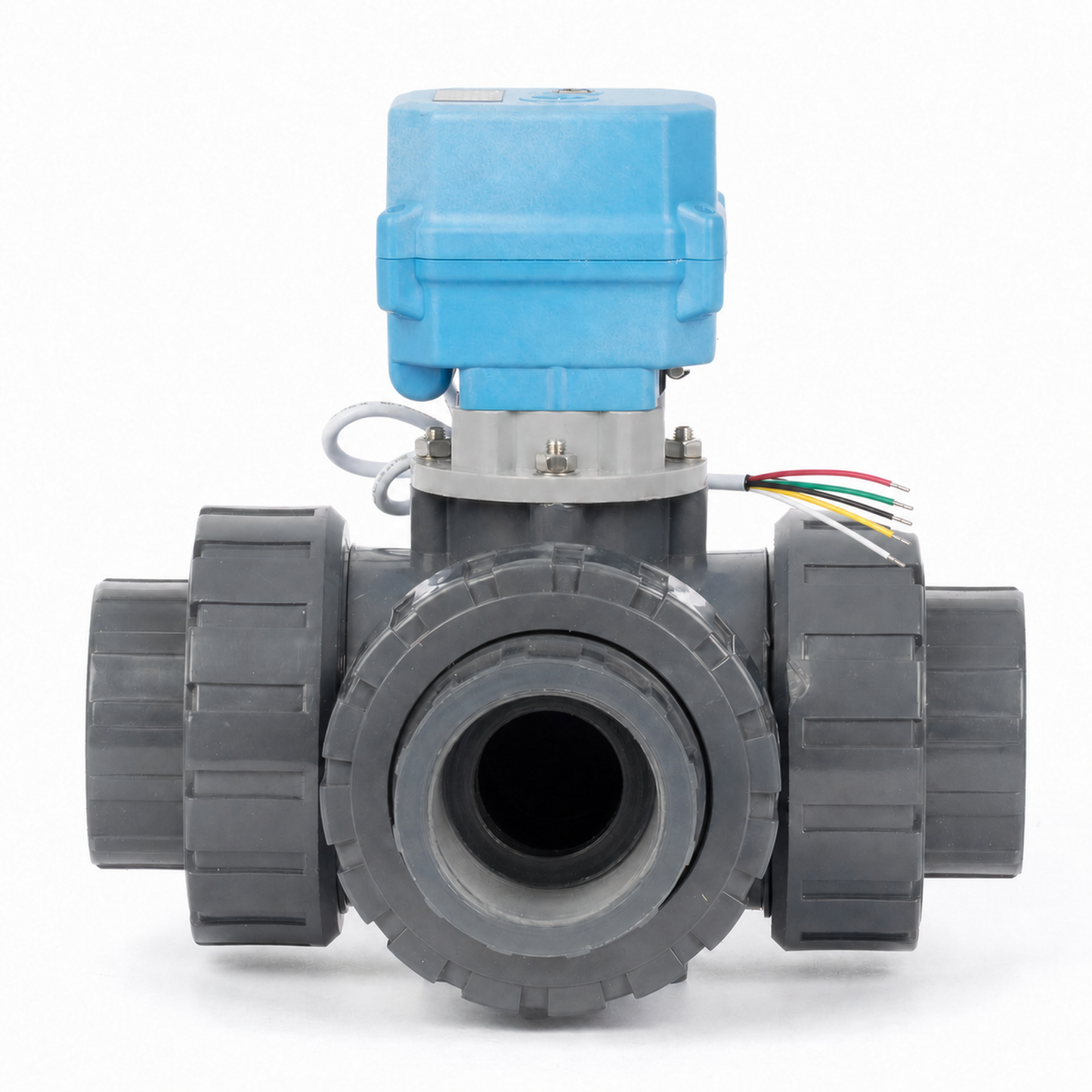

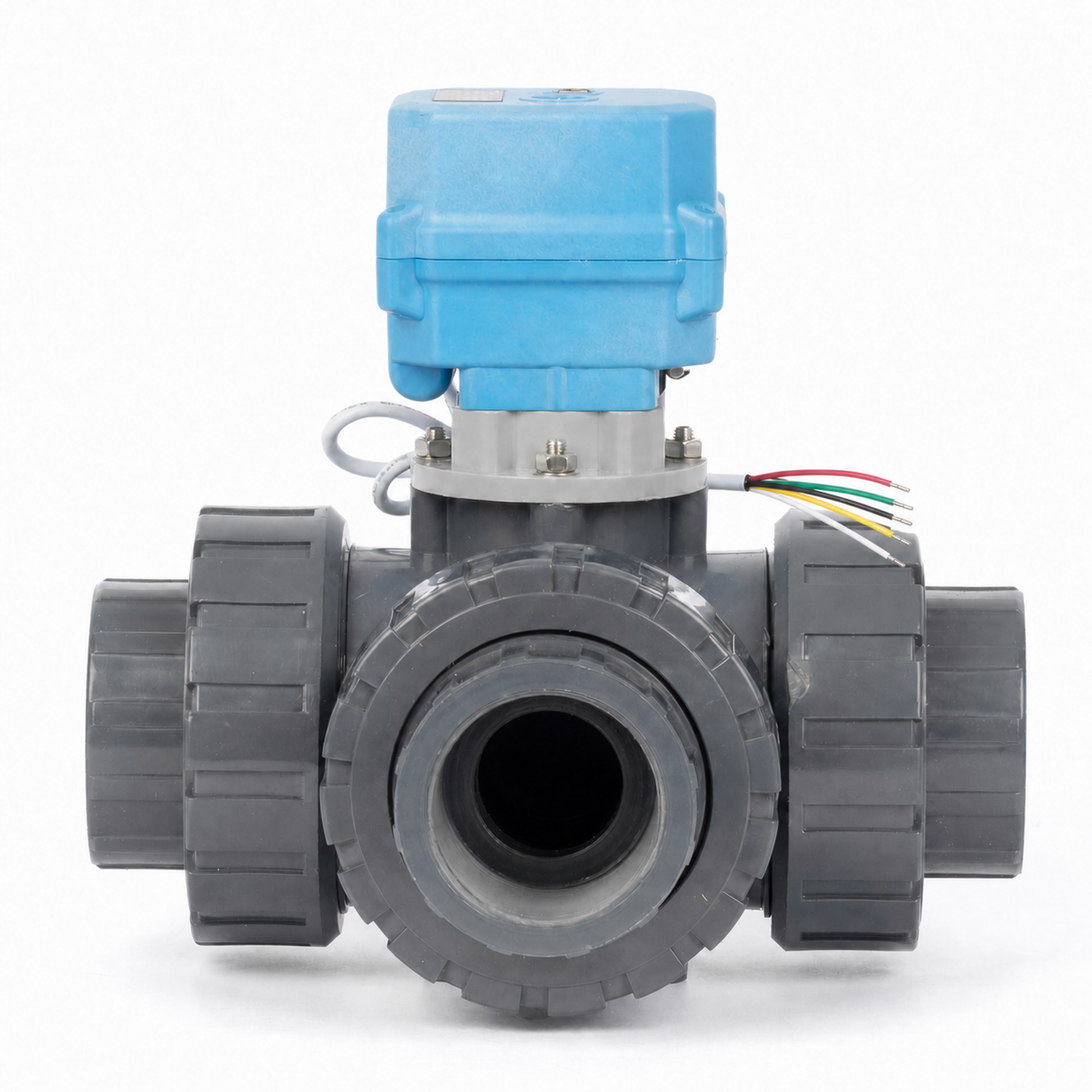

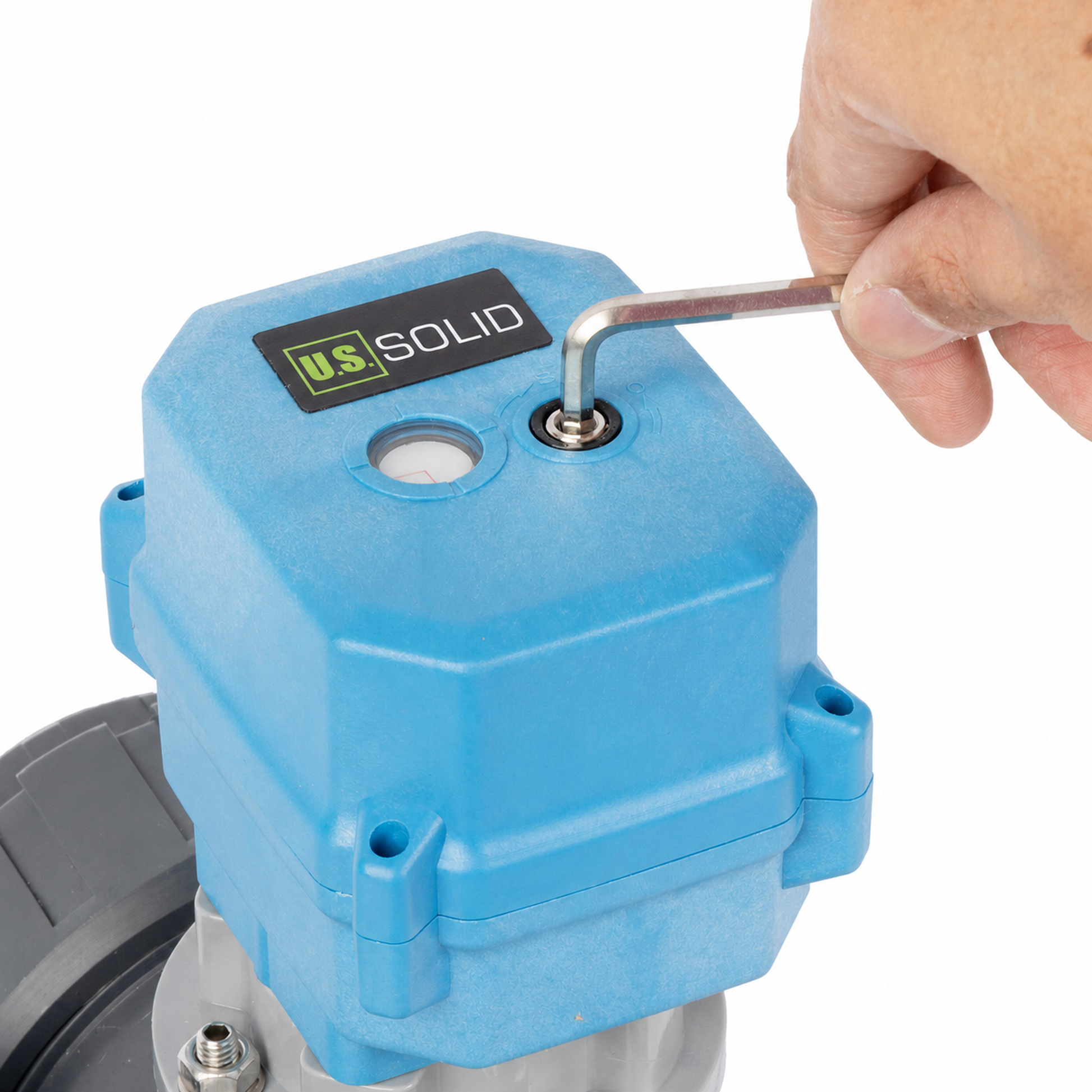

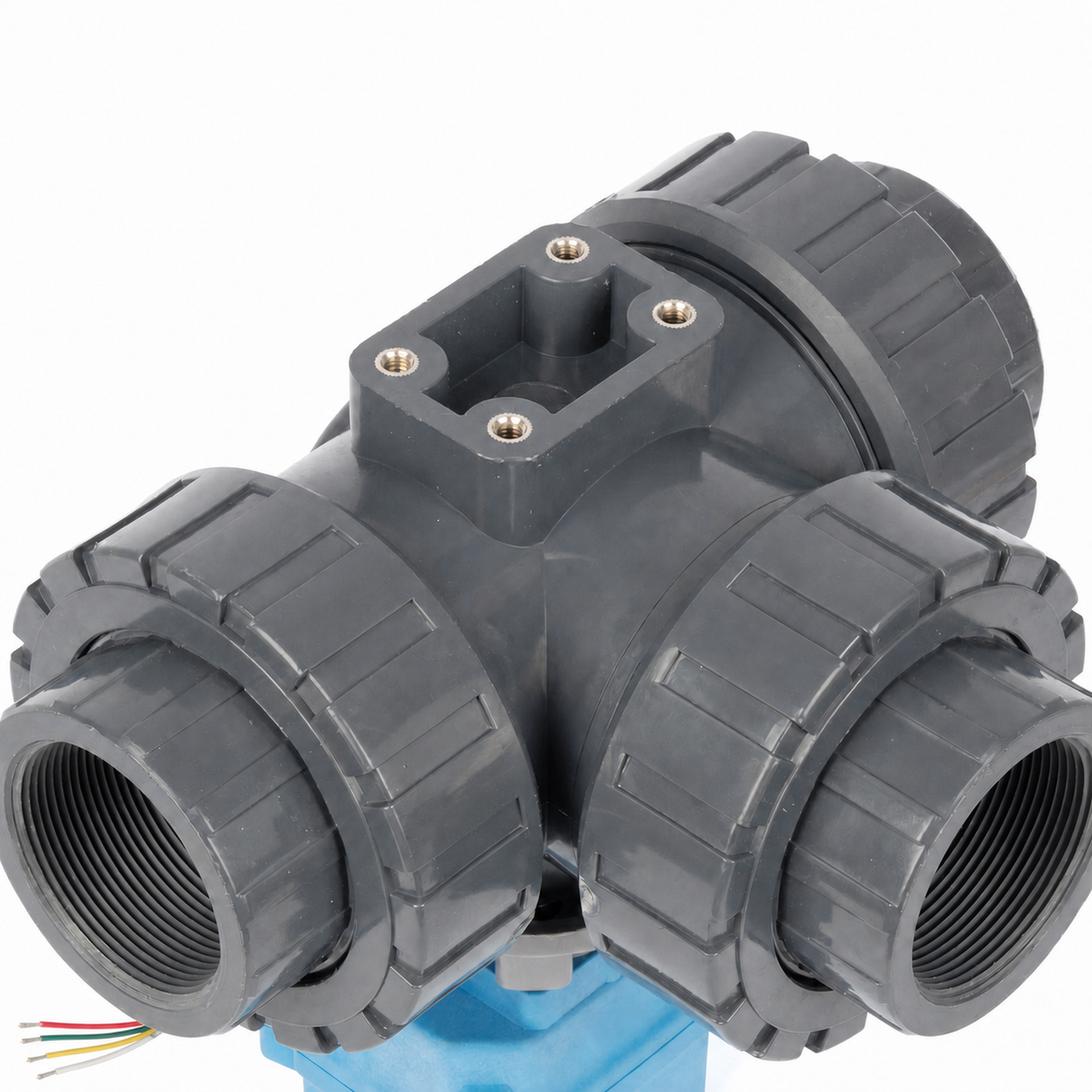

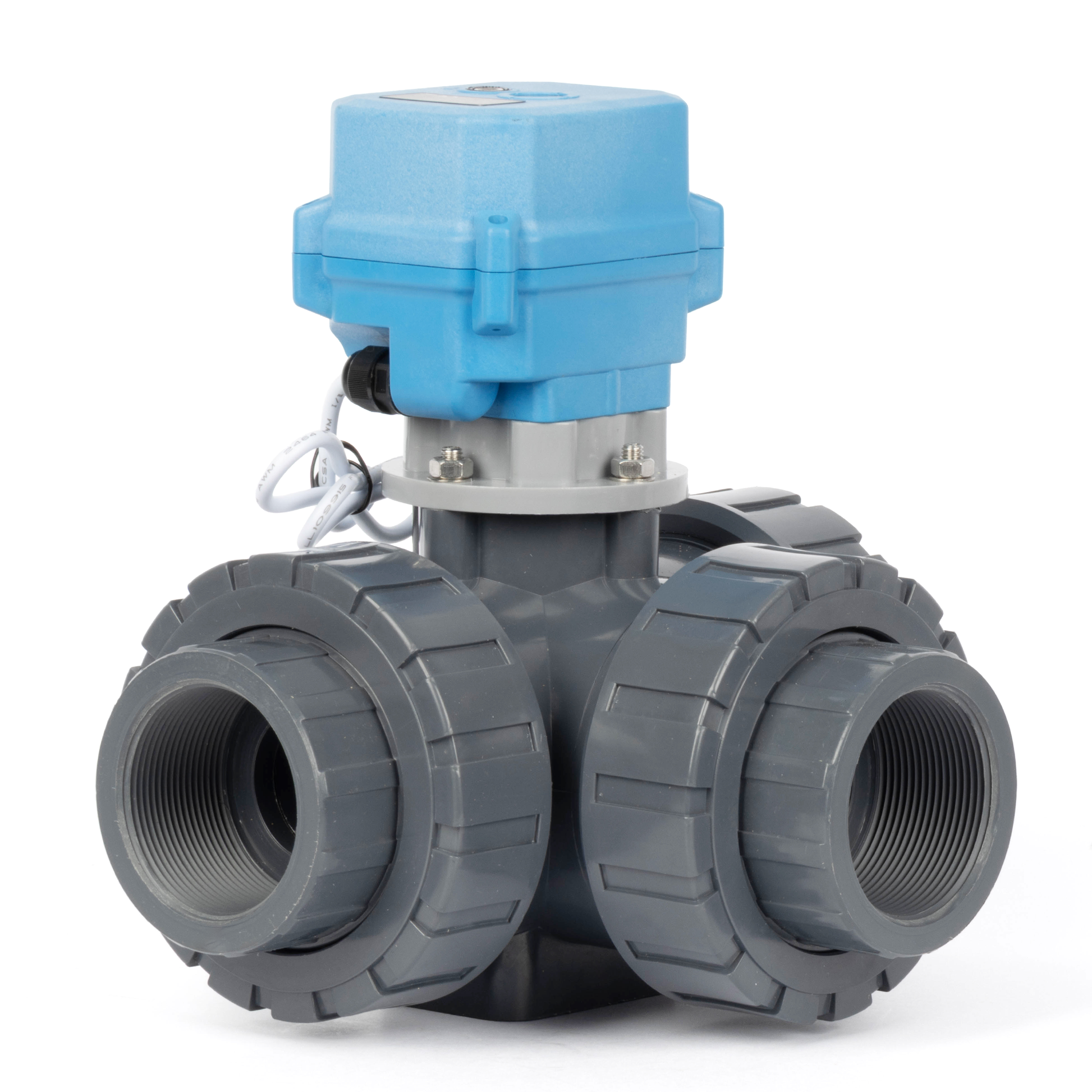

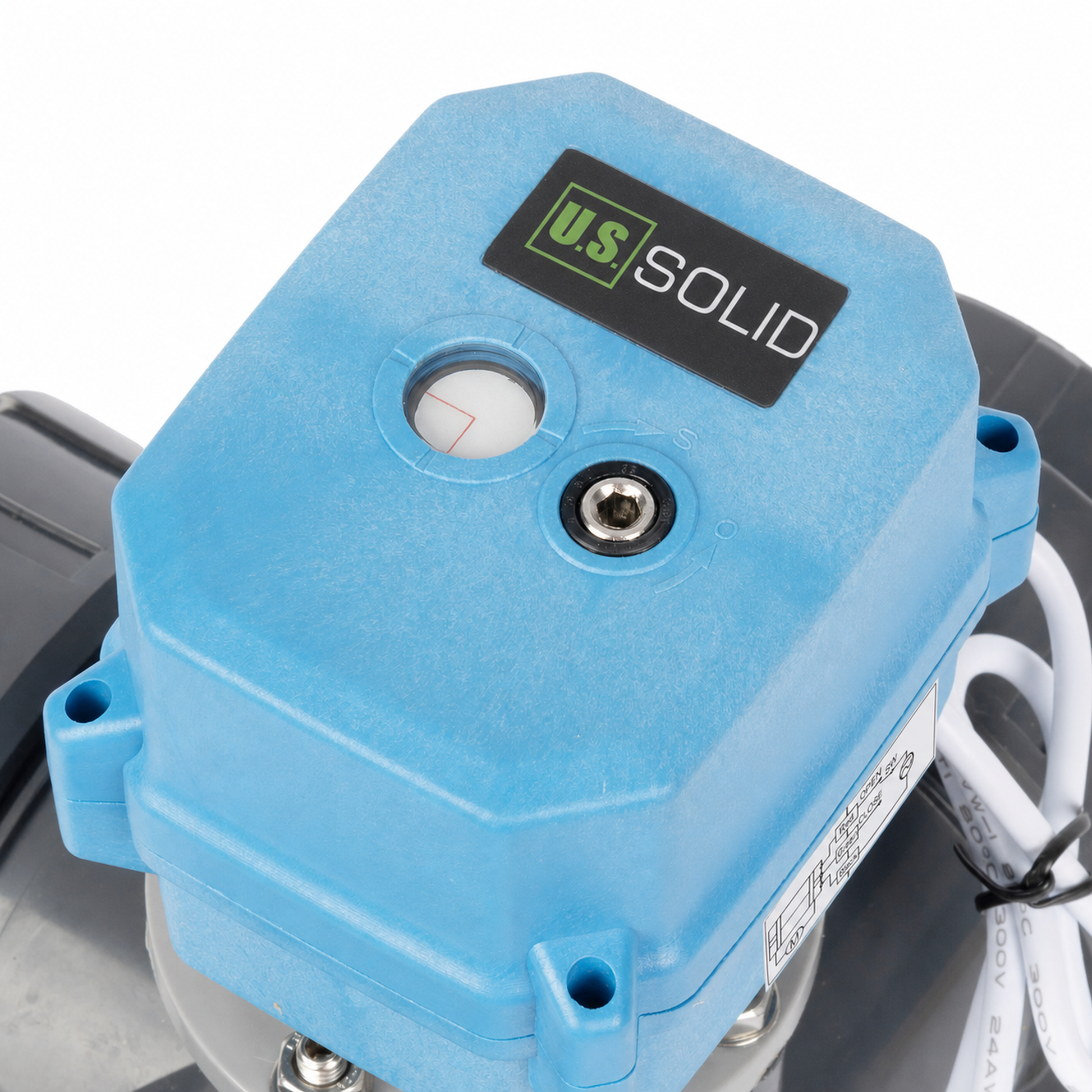

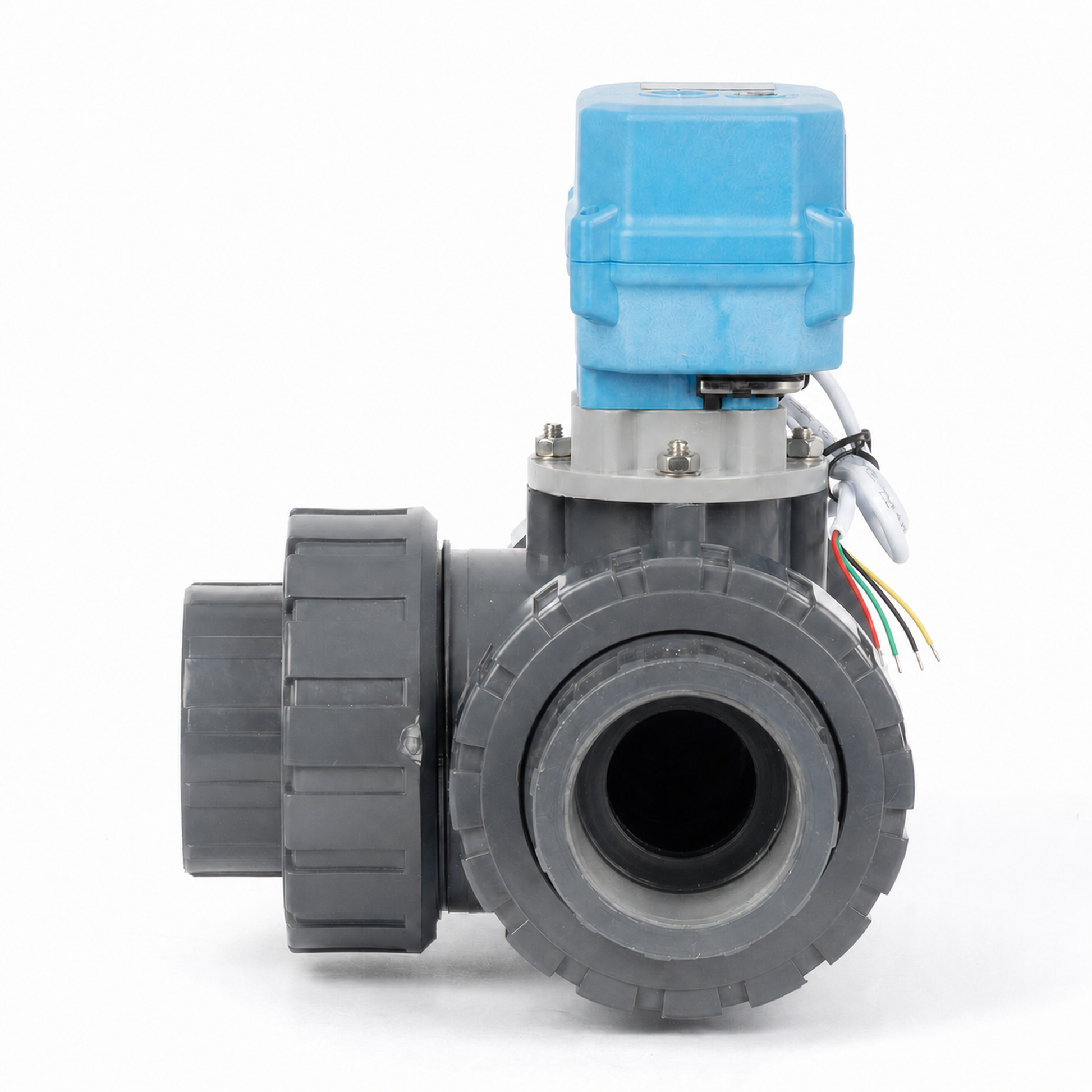

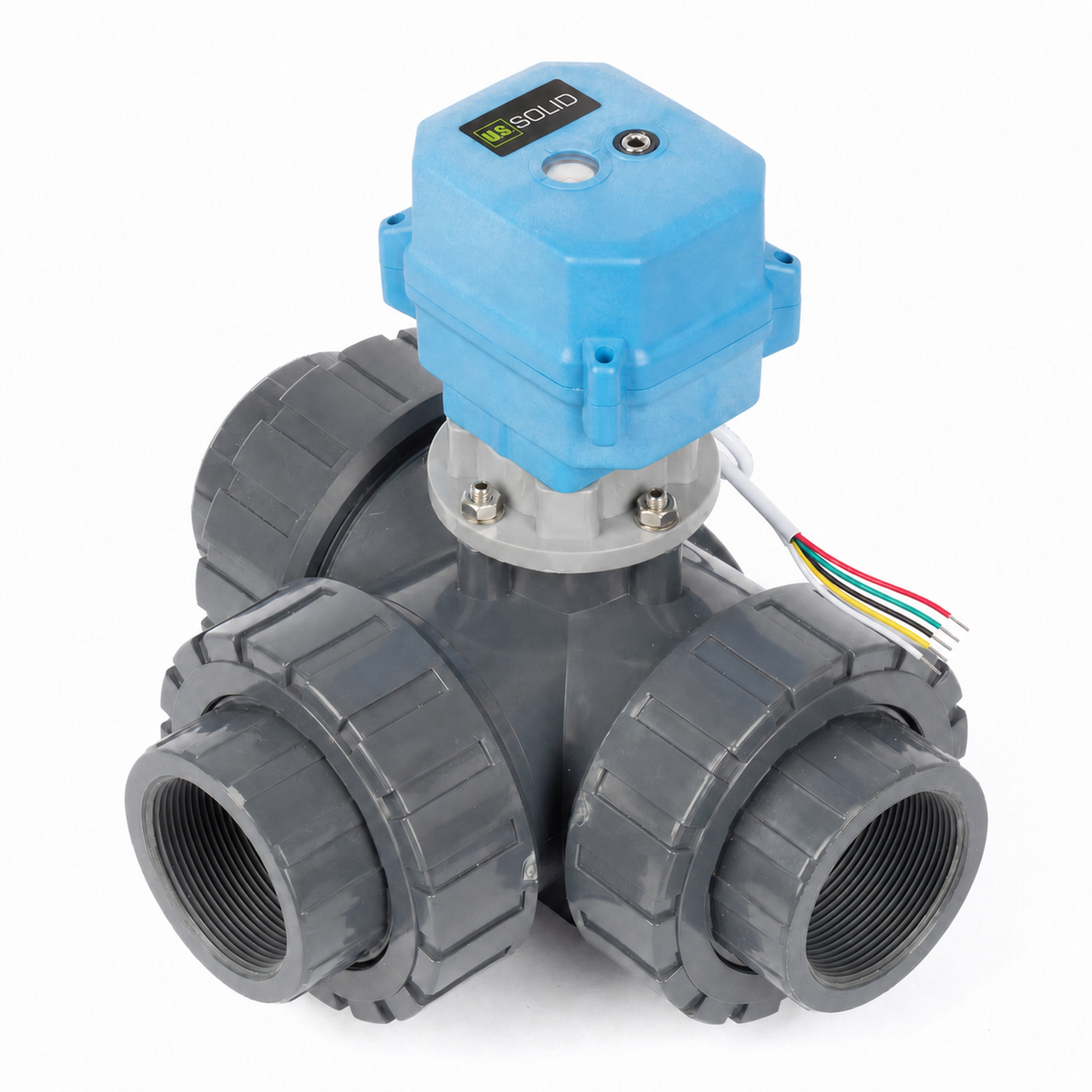

U.S. Solid UPVC Motorized Ball Valve offers reliable automatic flow control with 2-way and 3-way configurations, multiple sizes, voltage options, and wiring methods. Built with corrosion-resistant UPVC material, IP67 waterproof electric actuator, full port design, and manual override capability, this valve ensures smooth operation and easy maintenance. Ideal for pool plumbing, water treatment, irrigation, and industrial piping systems. Engineered for durability with up to 70,000 cycles of reliable performance, providing long service life and dependable flow control in demanding environments.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-MSV50507 | Brand | U.S. Solid |
|---|---|---|---|
| Port Size | 1 1/2" | Valve Material | UPVC |
| Working Voltage | AC/DC 9-24V | Ambient Temperature | -15 ~ 50 °C |
| Media Temperature | 2 ~ 55 °C | IP Grade | IP67 |
| Open/Close Time | ≤ 12 s | Max Power | 36 W |
| Max Working Pressure | ≤ 10 bar | Wiring Type | 5 Wire |
| Port Type | Standard Port | Thread Type | NPT |
| Default State | None | Manual Override | Yes |
| Auto Return | Yes | Compatible Media | Air, Water |
| Signal Indicator | Yes | O-ring Material | EPDM |
| Service Life | 70,000 cycles | Valve Seat Material | PTFE |
| Flow Aperture | 38 mm | Max Torque | 15 Nm |
WIRING INSTRUCTIONS

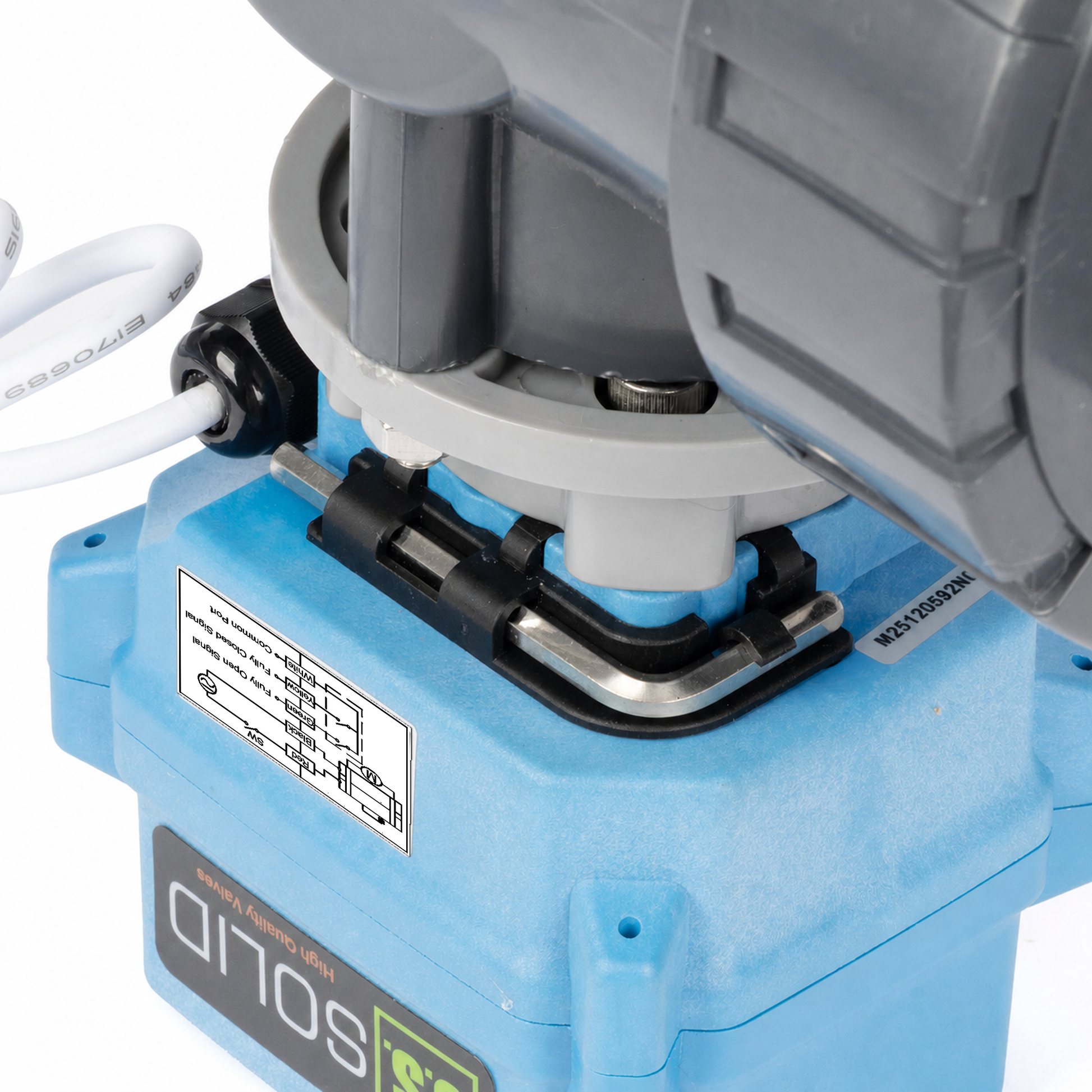

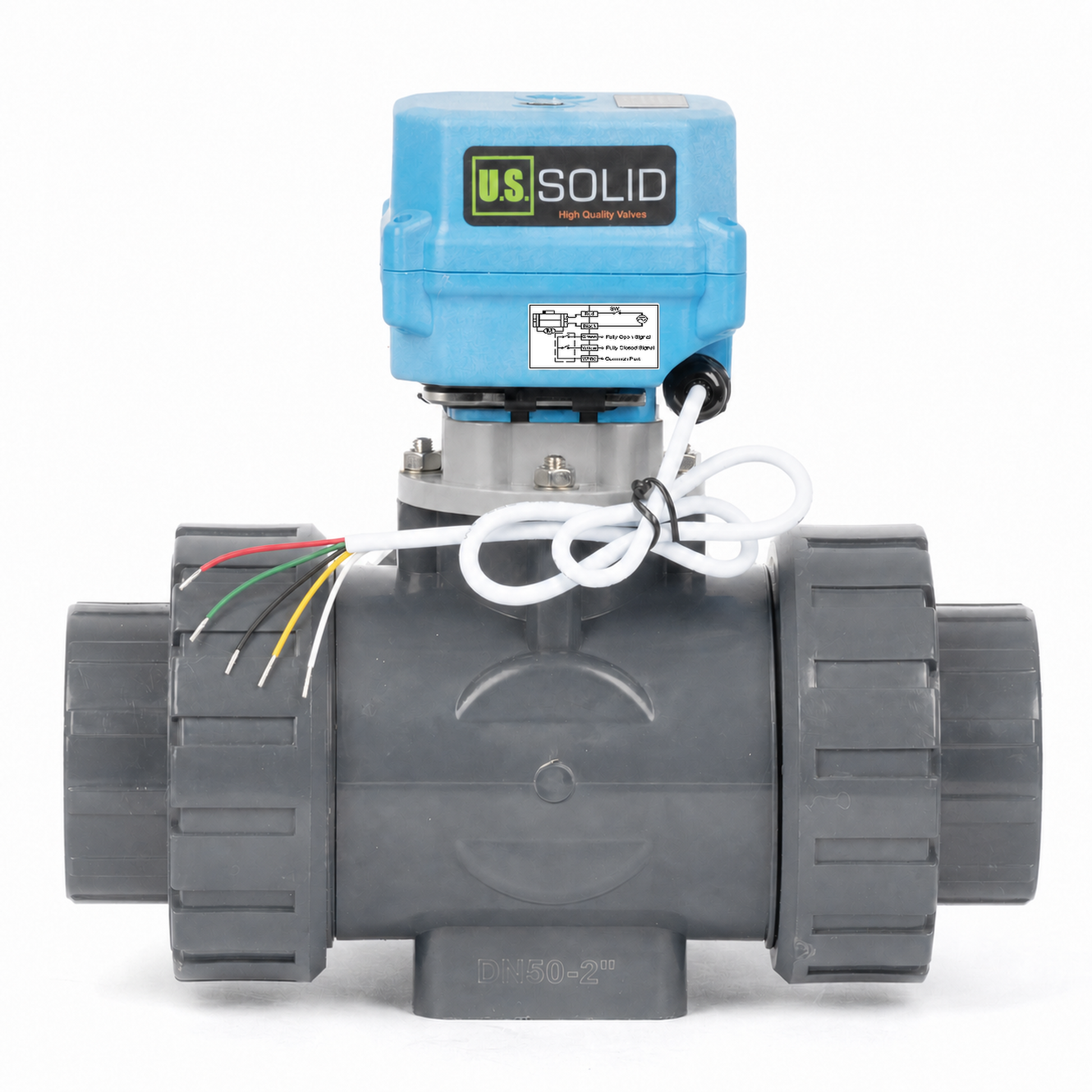

This 5-wire auto-return actuator uses two power wires for valve operation and additional signal wires for position feedback. When power is applied, the actuator drives the valve according to the control signal; when power is removed, the auto-return function returns the valve to its default position. Connect the feedback wires to the controller input terminals to monitor the open and closed positions. Confirm the rated voltage and wiring diagram before installation.
