Enhance your industrial projects with the U.S. Solid solenoid valve, designed for multitudinous applications and compatibility with a wide range of fluids, including gasoline, diesel fuel, natural gas, and even drinking water. Crafted from industrial-grade stainless steel, this valve offers corrosion resistance, making it ideal for welding applications.
Equipped with a durable VITON seal, known for its high performance and ability to withstand high temperatures and corrosive chemicals, this valve ensures reliable and efficient operation. With a rapid response time of less than 1 second, the valve opens and closes instantly when actuated, providing precise flow control for your projects.
Engineered by U.S. SOLID experts, this valve boasts a life cycle of well over a million cycles under proper maintenance and operating conditions. Please note that this valve is not intended for continuous duty exceeding 8 hours in a single cycle to prevent premature wear and core burnout. For continuous duty applications, consider U.S. SOLID's Motorized Ball Valves.

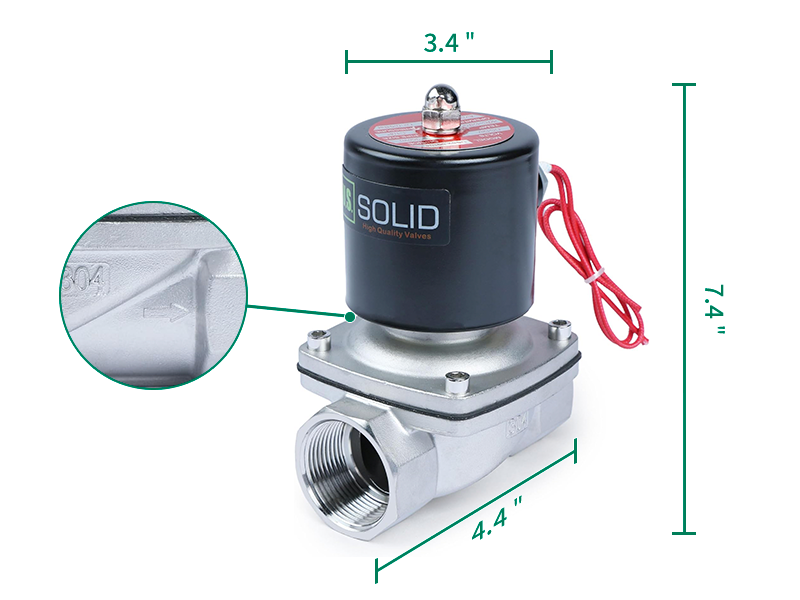

Specifications:
Size: 1-1/4"
Flow Aperture: 35 mm
Body Material: Stainless Steel
Gasket / Diaphragm / Seal: Viton
Rated voltage: DC 12 V, ± 10%
Current: 1.792 A
Power rating: 21.5 W
Operation Type: Semi-direct Lift Valve
Operation Mode: Normally Closed
Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
Flow value: 24 Cv
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc.
Quality assurance: CE Certified
Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve.
