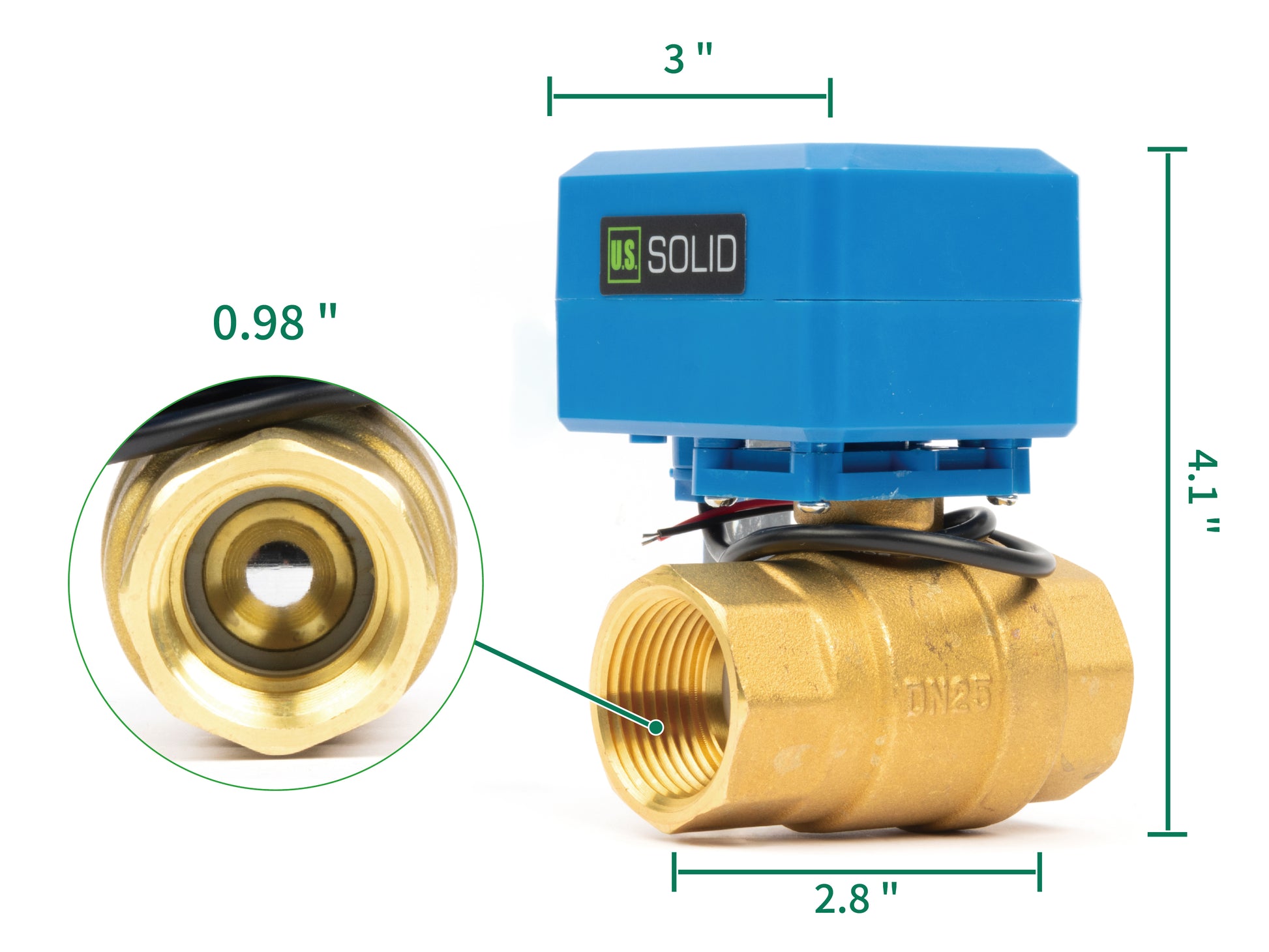

Upgrade your flow control systems with the 1” Brass Motorized Ball Valve, a reliable and versatile solution designed for both residential and industrial applications. This high-performance valve combines advanced functionality with user-friendly features, making it an ideal choice for automatic flow control, water treatment, irrigation, filtration systems, and more.
Key Features:
User-Friendly Indicator Lights: Equipped with dual indicator lights, this motorized ball valve provides clear visual feedback on its status—green for open and yellow for closed. This intuitive design ensures safe and hassle-free operation.
Automatic Return Function: Featuring a simple 2-wire connection, the valve automatically returns to a fully closed position when power is disconnected, ensuring fail-safe operation and preventing unintended flow.
Wide Voltage Compatibility: With an operating range of 9-36V AC/DC, this valve offers exceptional versatility, making it suitable for a wide variety of applications and power sources.
Normally Closed Configuration: The valve’s normally closed design ensures the passageway remains securely sealed when not in use, providing added safety and reliability for critical systems.
Enhanced Safety Features: The valve automatically cuts off power upon reaching the fully open or closed positions, reducing the risk of overheating and offering a safer, more efficient alternative to traditional solenoid valves.
Specifications:
Size: 1"
Valve Material: Brass
Seal: PTFE
Flow Aperture: 25 mm
Working Voltage: 9-36V AC/DC
Mechanism : 2 Wire Auto Return
N.C./N.O.: Normally Closed
Close/Open Time: 6-8 Seconds
Life Cycle: 80000-100000
Indicator Lights: Open, Closed
Max Power: 5 W
Max Torque: 2 N m
Max Pressure: 1.0 Mpa
Temperature for Flow Medium: 0- 90°C (32-194°F）
Ambient Temperature: -5-40°C (23-104°F）
Bore Type: Standard
Thread Type: NPT
