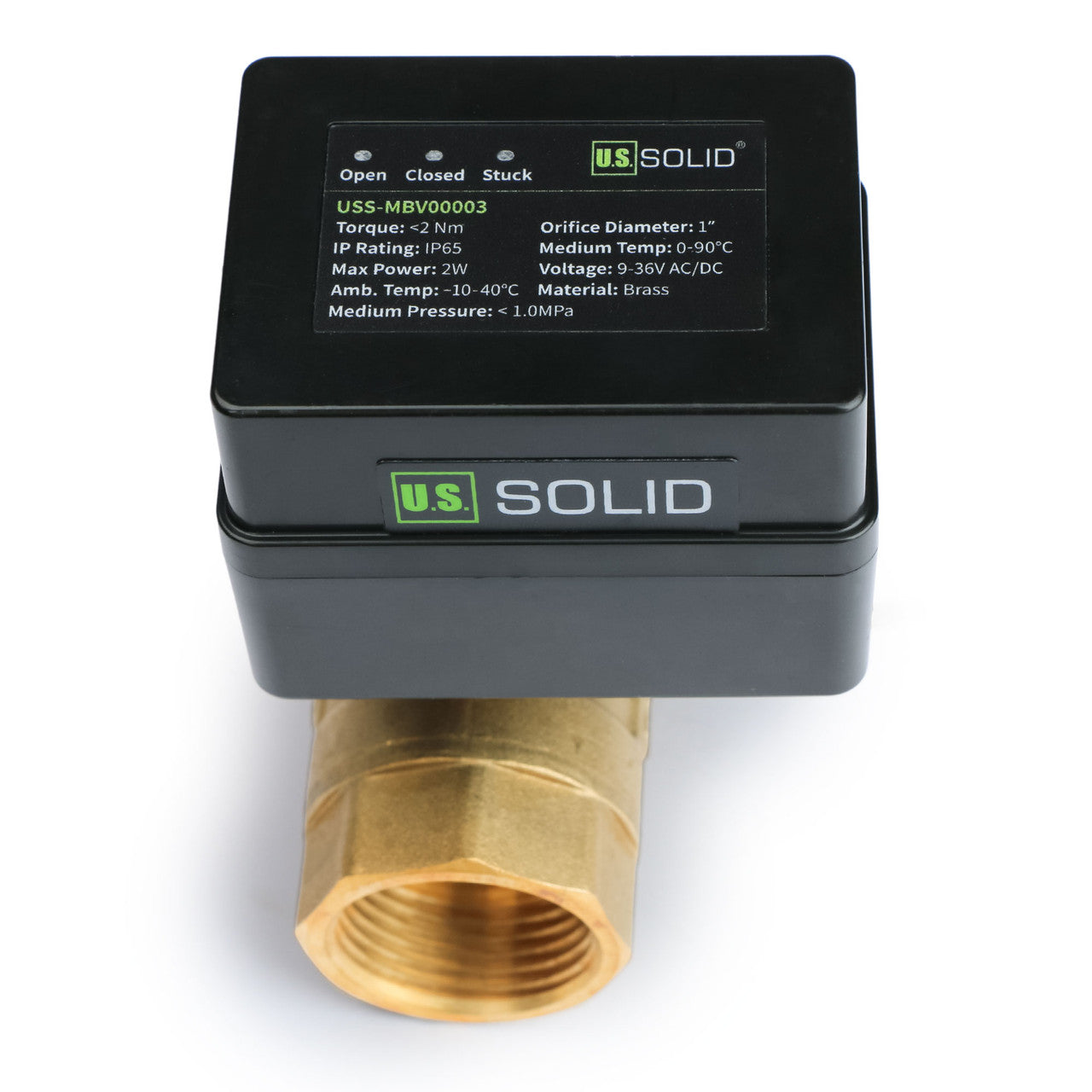

USS-MBV motorized ball valves feature 3 indicator lights - open, closed and stuck. The three indicator lights will illuminate under the respective working conditions to inform the user of the valve’s current state and prevent false opening or false closing.
The two-wire auto return design will greatly simplify the wiring process and improve the convenience of operation. Additionally, the normally open (N/O) design is more practical for use cases that need be kept open for a long time.
The valve actuates with 9-36V of DC power. When energized, it will close fully in 6-10 seconds. As a normally open (N/O) ball valve, it will automatically return to the open position when the power shuts off. There is negligible power used once fully closed, allowing the indicator lights to remain in operation. This feature makes it a far more environmentally friendly option than most solenoid valves.
Specifications:
Valve Material: Brass
Size: 1 inch
Seal: PTFE
N.C./N.O.: Normally Open
Close/Open Time: 6-10 Seconds
Working Voltage: 9-36V AC/DC
Max Power: 2 W
Max Torque: 2 N m
Max Pressure: 1.0Mpa
Temperature range for Flow Medium: 0°C to 90°C
Ambient Temperature Range: -5°C to 40°C
Enclosure Rating: IP65
Bore Type: Standard
Thread Type: NPT
Wiring Type : 2 Wire Auto Return Video
