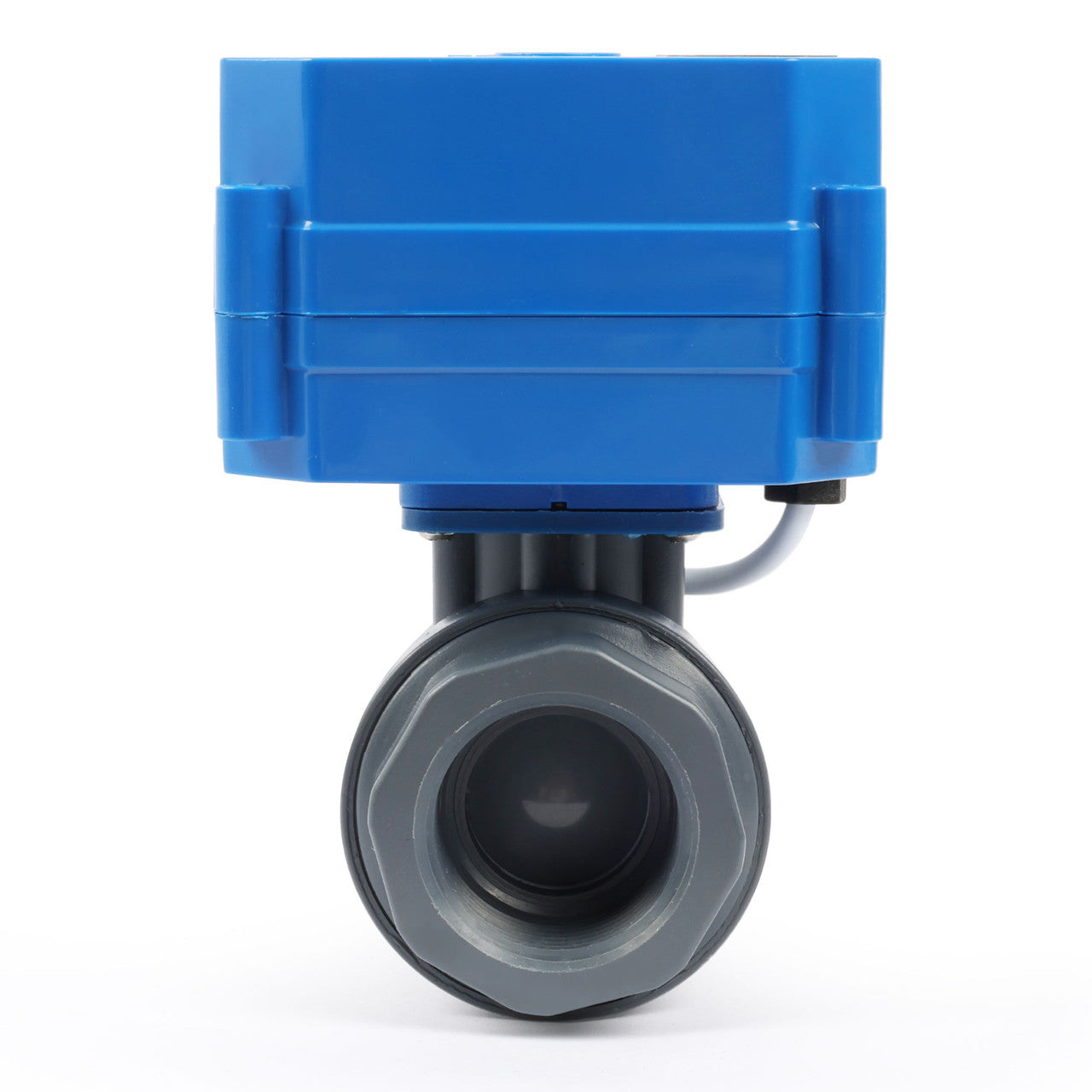

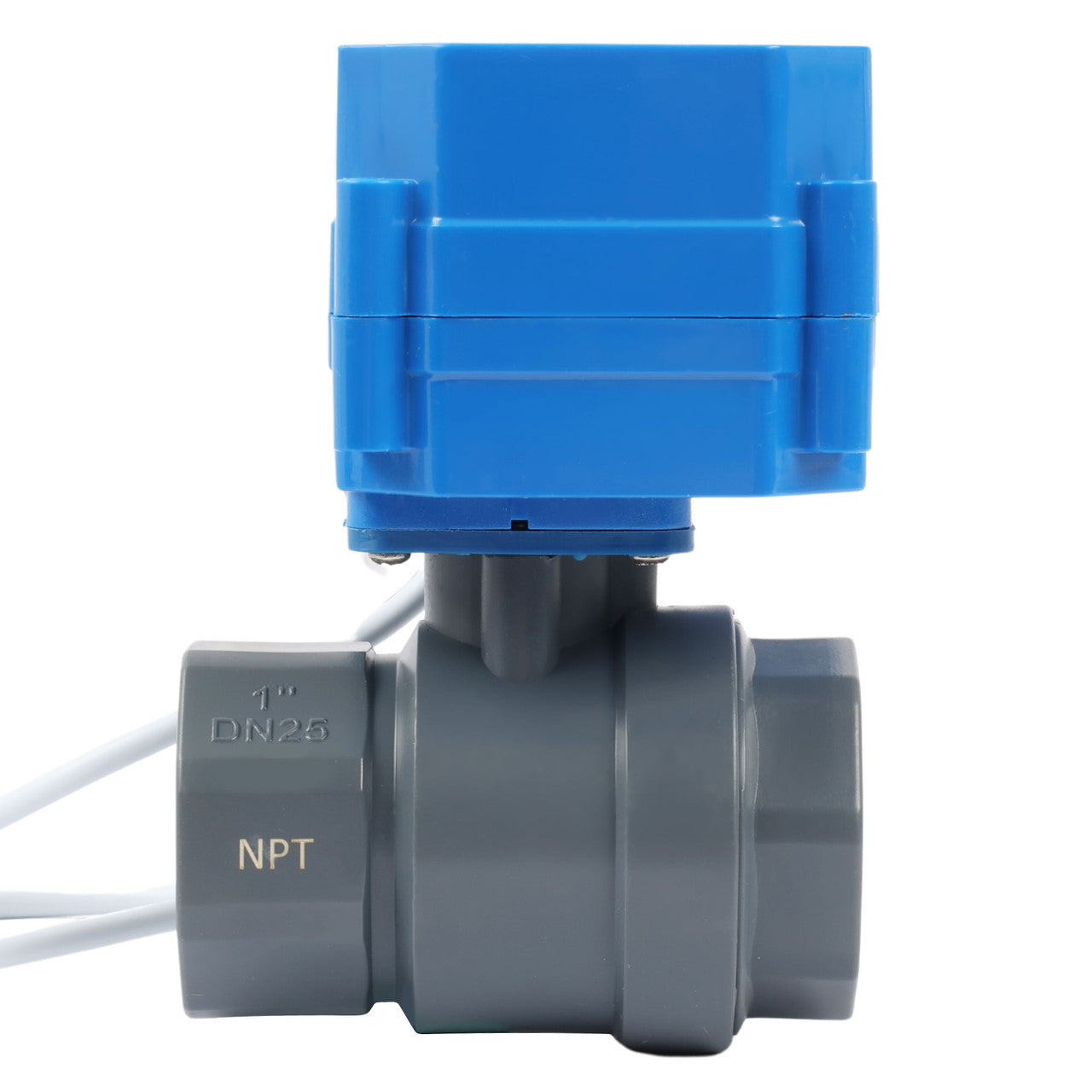

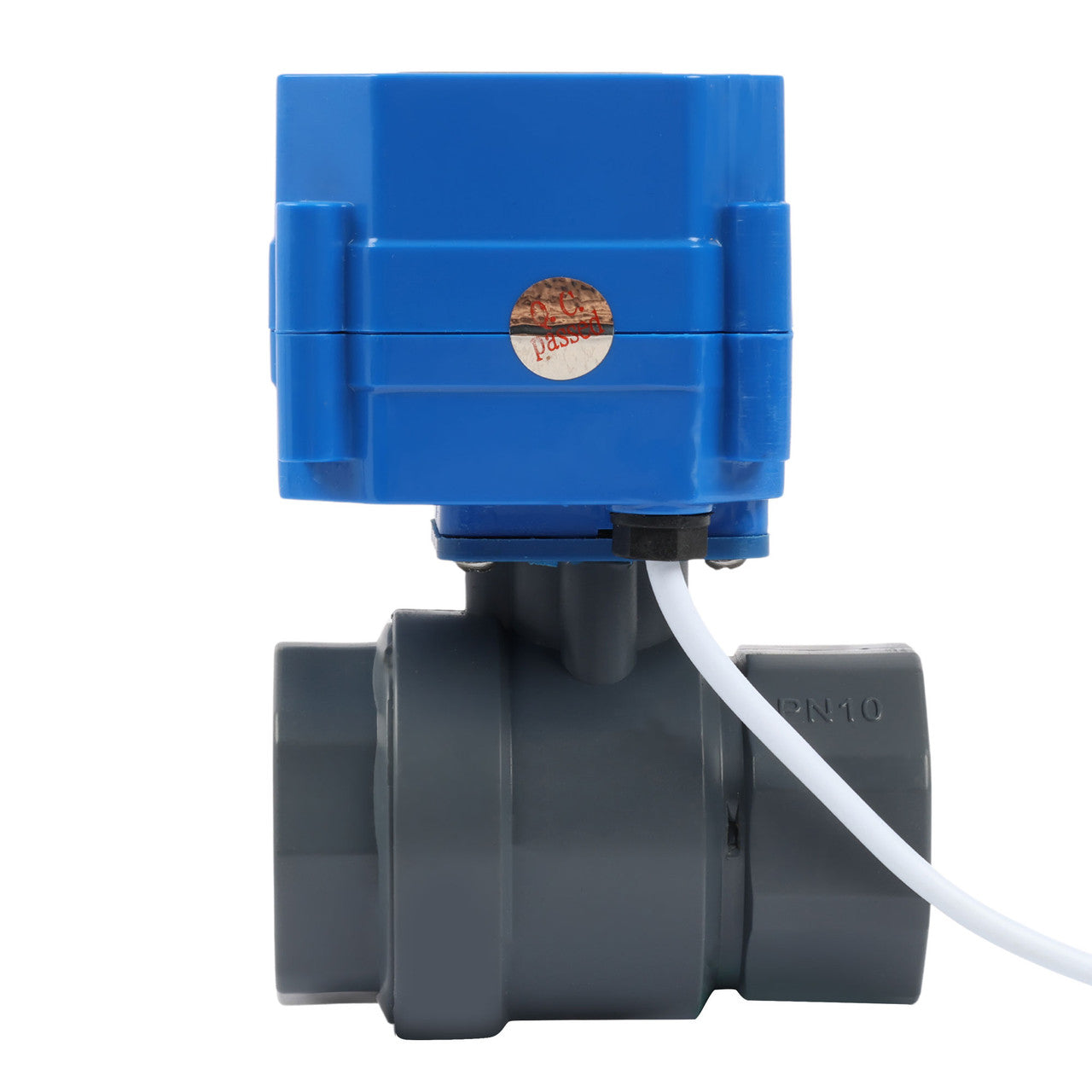

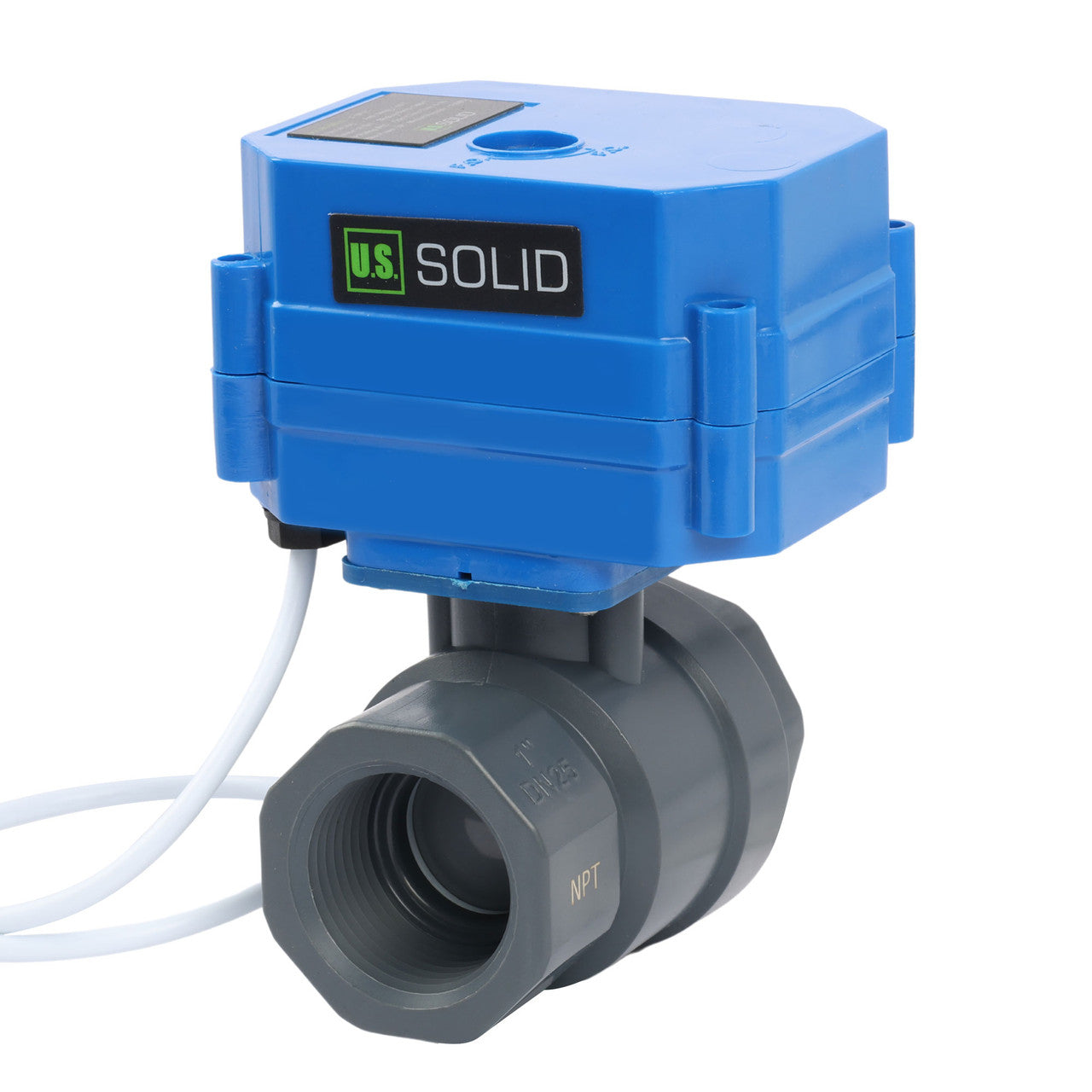

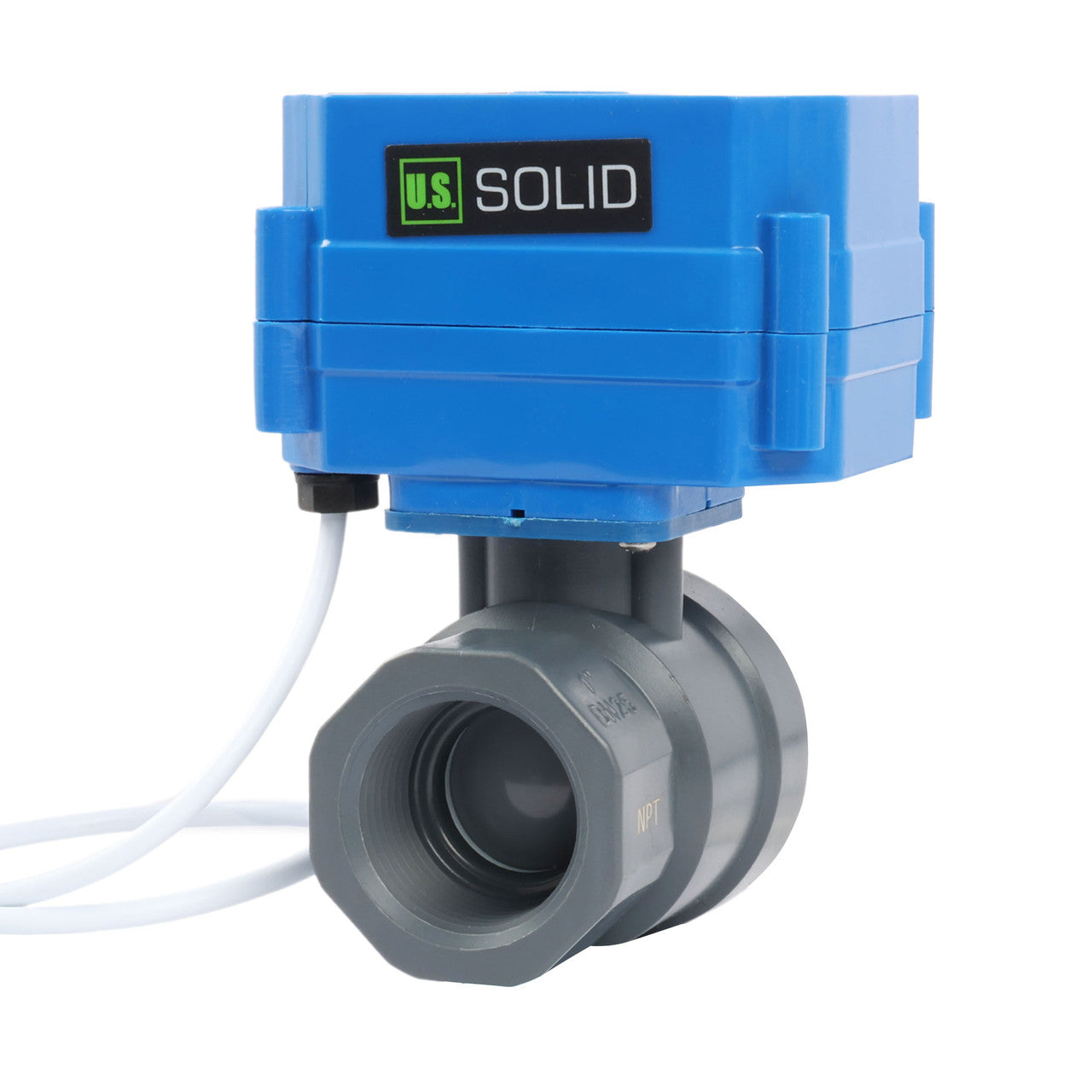

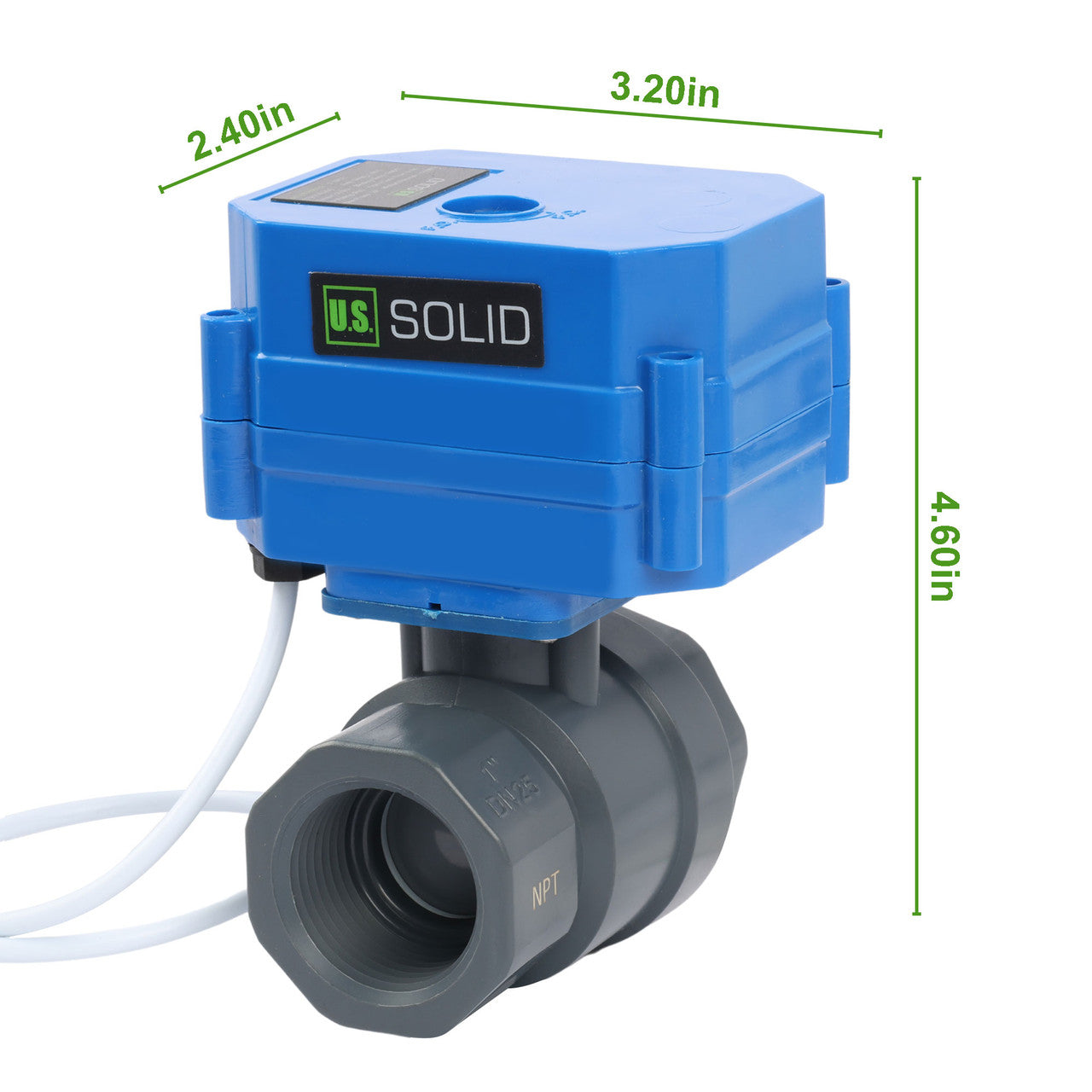

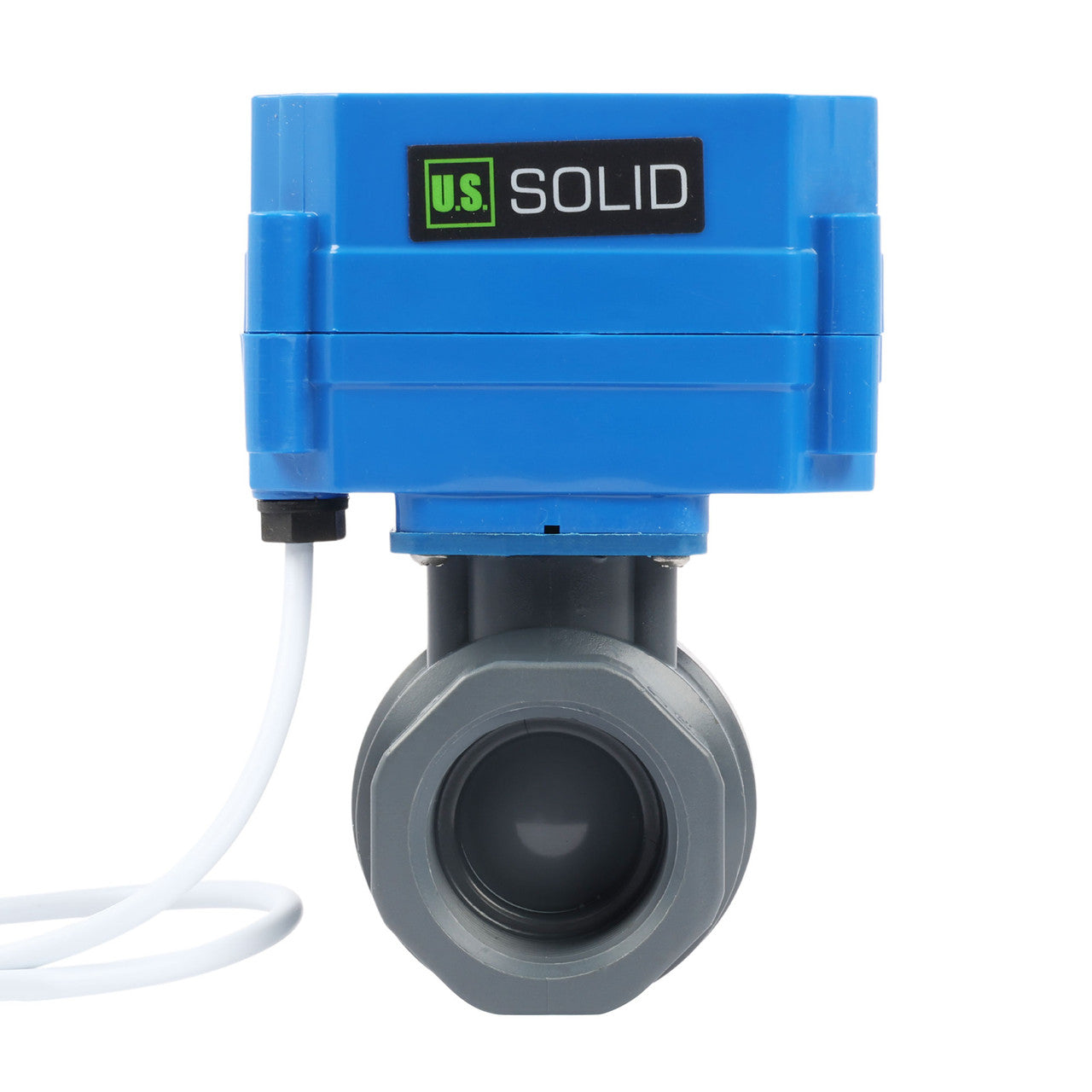

The motorized ball valve features a sturdy UPVC valve body, which is renowned for its superior durability and extended lifespan compared to PVC options. This UPVC construction not only enhances longevity but also results in a lighter valve than those made from brass or stainless steel, making installation on various pipelines much easier. Additionally, the lead-free body design makes it a safe choice for drinking water pipelines, providing a reliable and convenient solution for such applications.

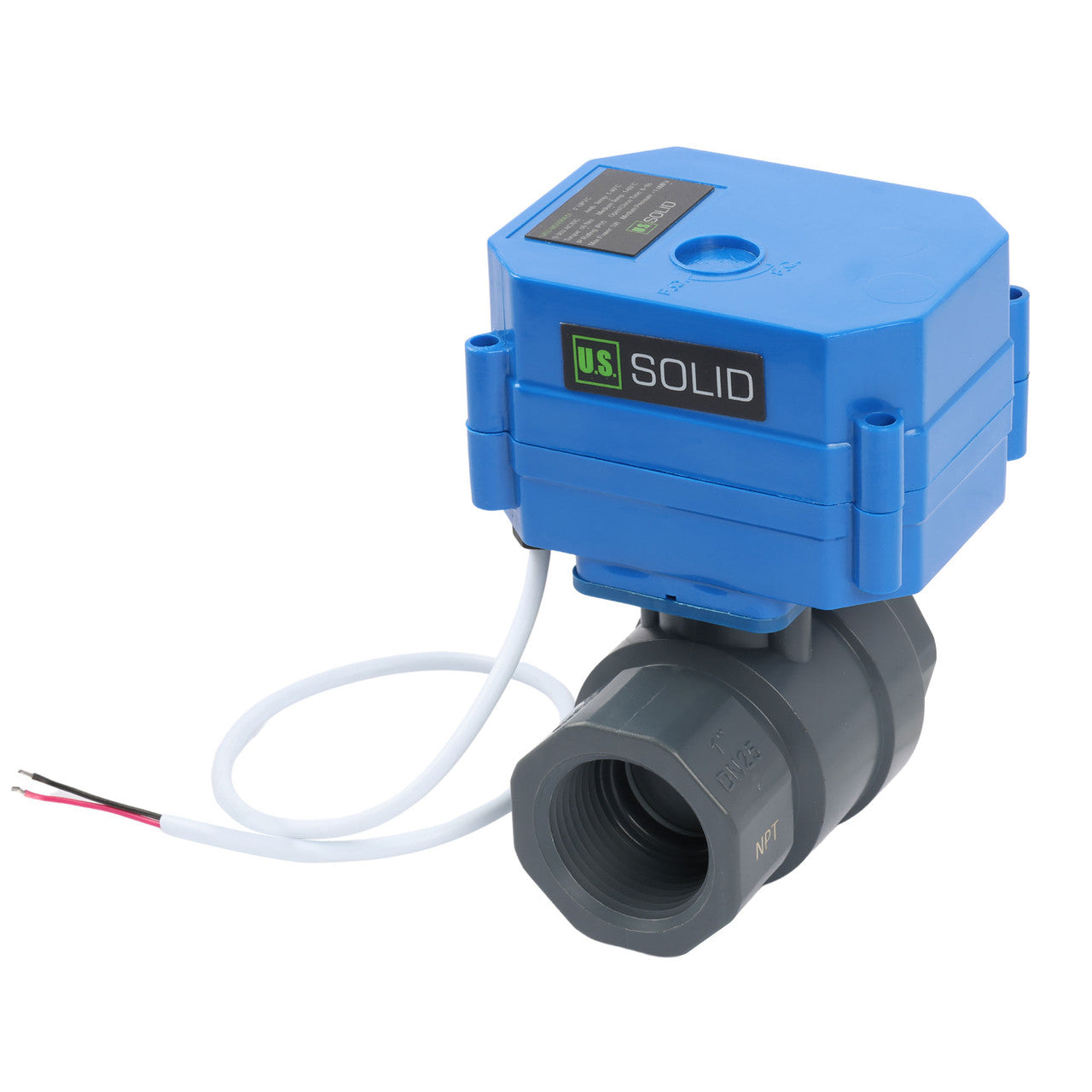

The two-wire auto-return model is particularly well-suited for situations where the valve needs to close automatically in the event of a power outage. This model allows for straightforward operation; it can be powered to open and will maintain its position while consuming minimal energy once fully opened. To close the valve, simply disconnect the power supply. This user-friendly design enables operation with a simple on/off switch: when turned on, the valve remains open, and when switched off, it automatically closes.

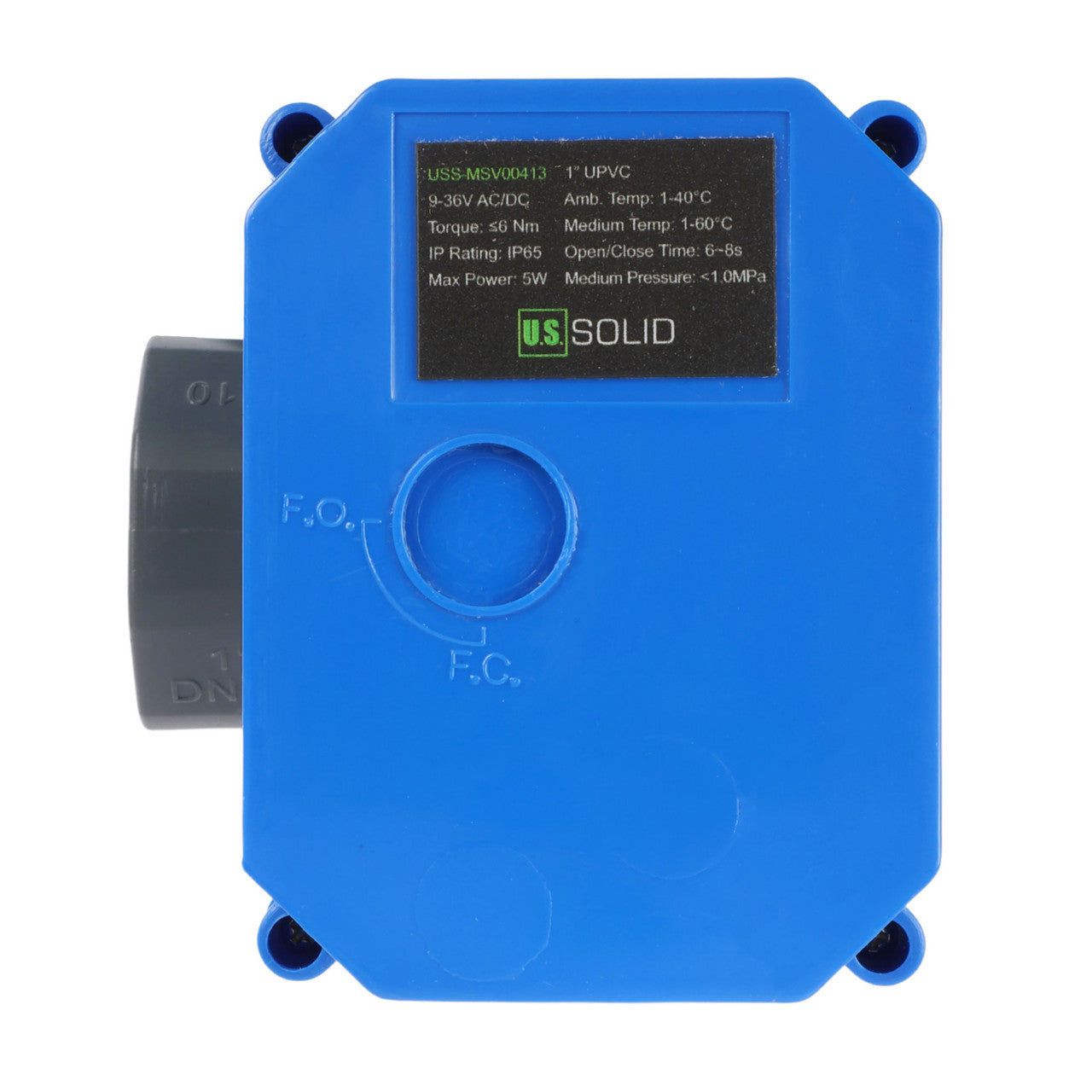

Specifications:

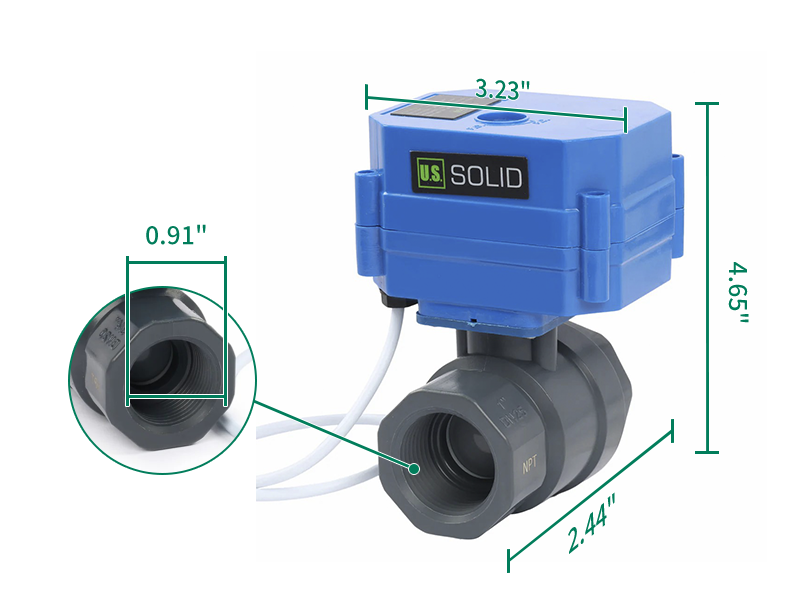

Size: 1"
Valve Material: UPVC
Seal: PTFE
Working Voltage: 9-36V AC/DC
Mechanism : 2 Wire Auto Return
Orifice: 23 mm
N.C./N.O.: Normally Closed
Close/Open Time: 6-8 Seconds
Life Cycle: 80000-100000
Max Power: 5 W
Max Torque: 6 N m
Max Pressure: 1.0 Mpa
Temperature for Flow Medium: 0- 60℃ (32-140℉）
Ambient Temperature: -5-40℃ (23-104℉）
Enclosure Rating: IP65
Bore Type: Standard
Thread Type: NPT
