INTRODUCTION

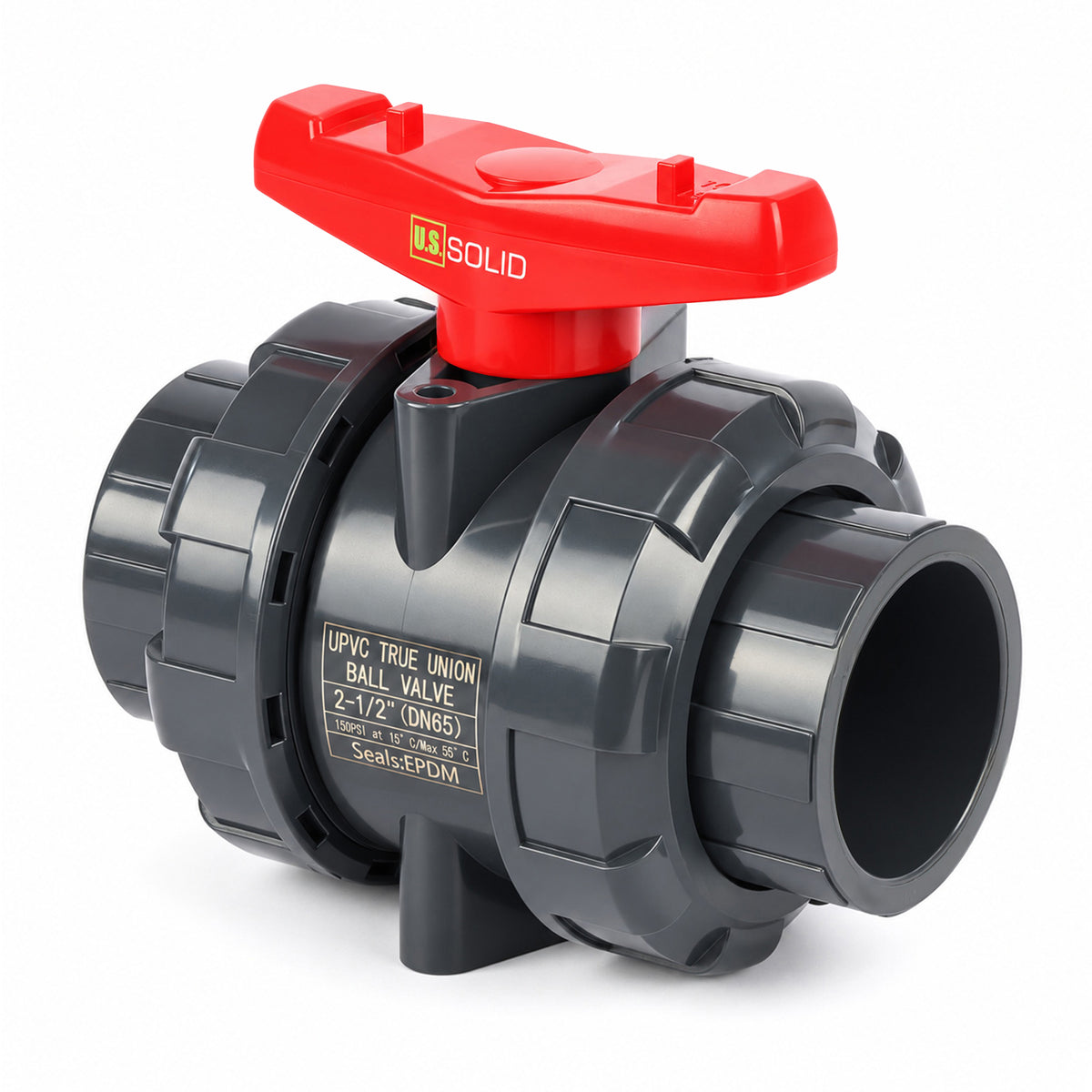

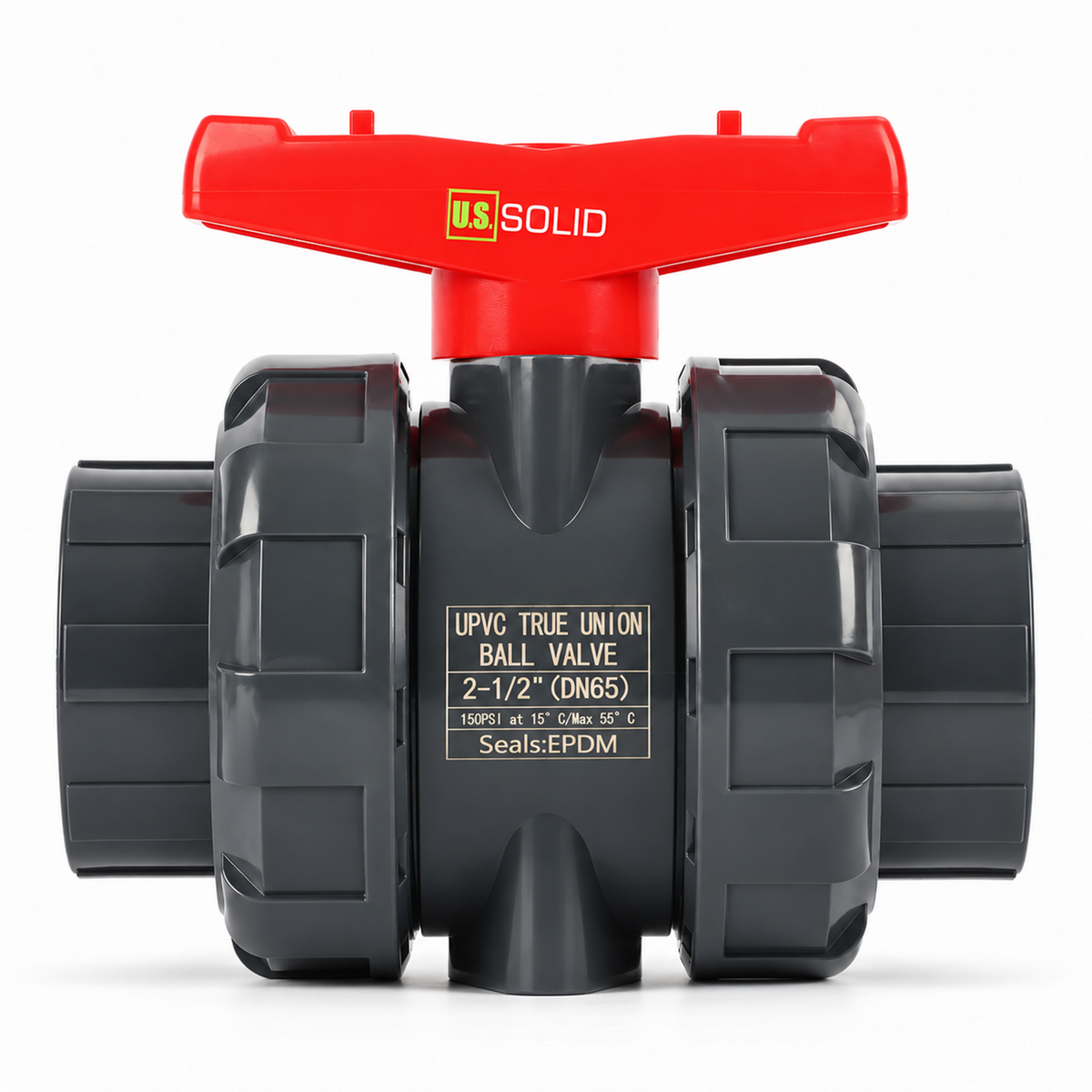

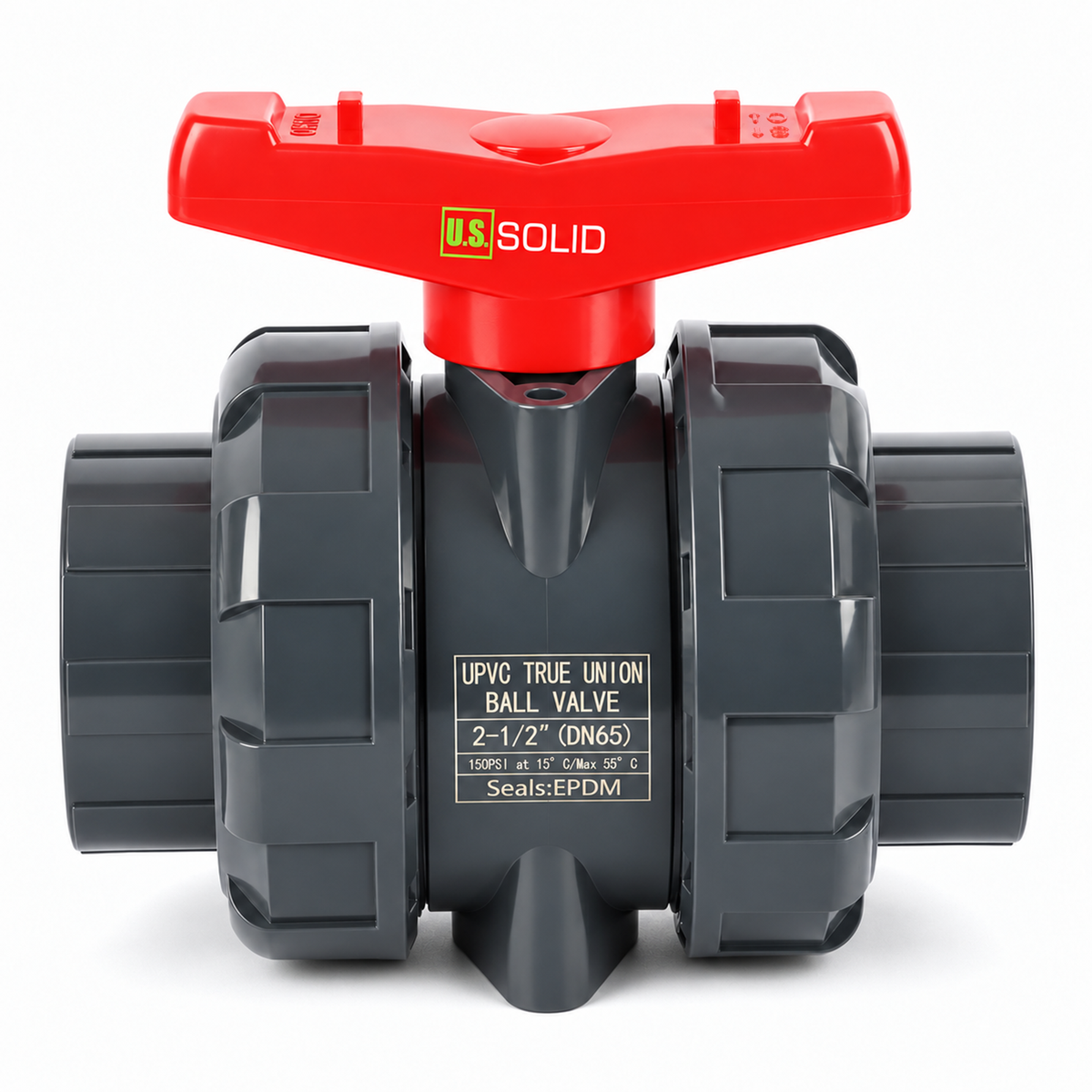

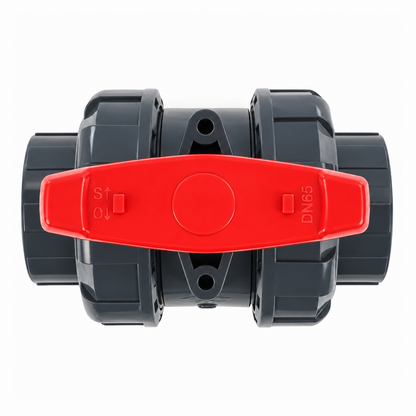

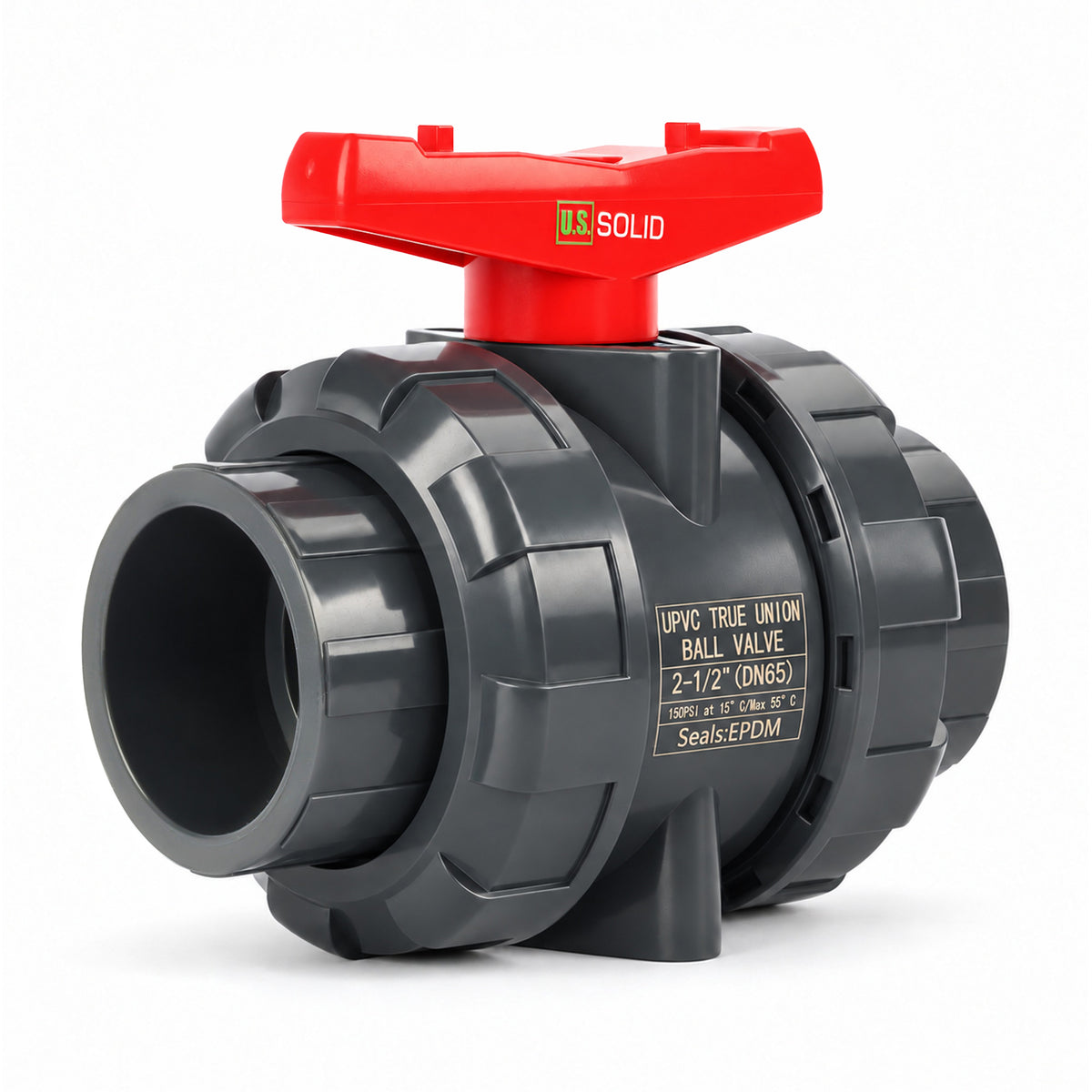

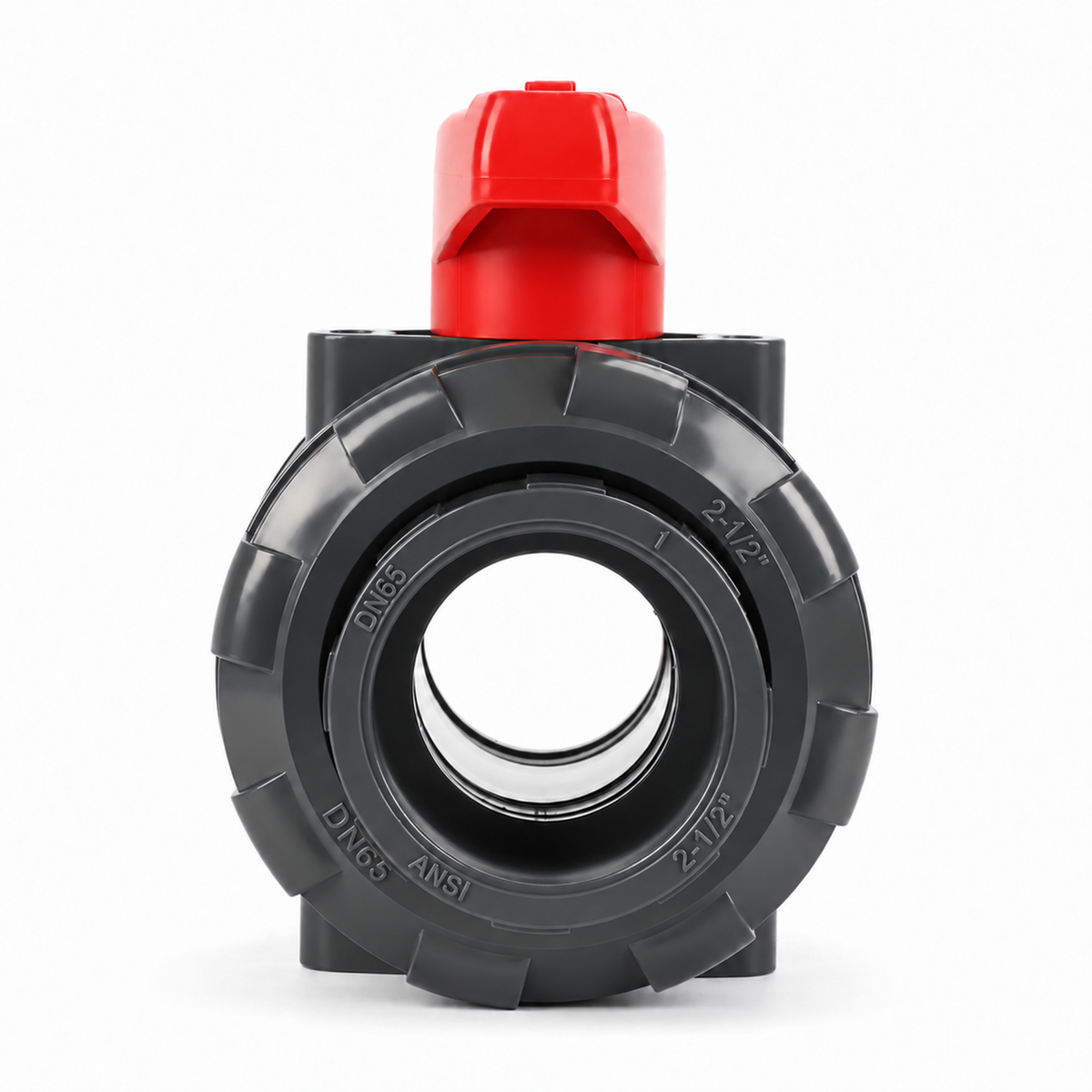

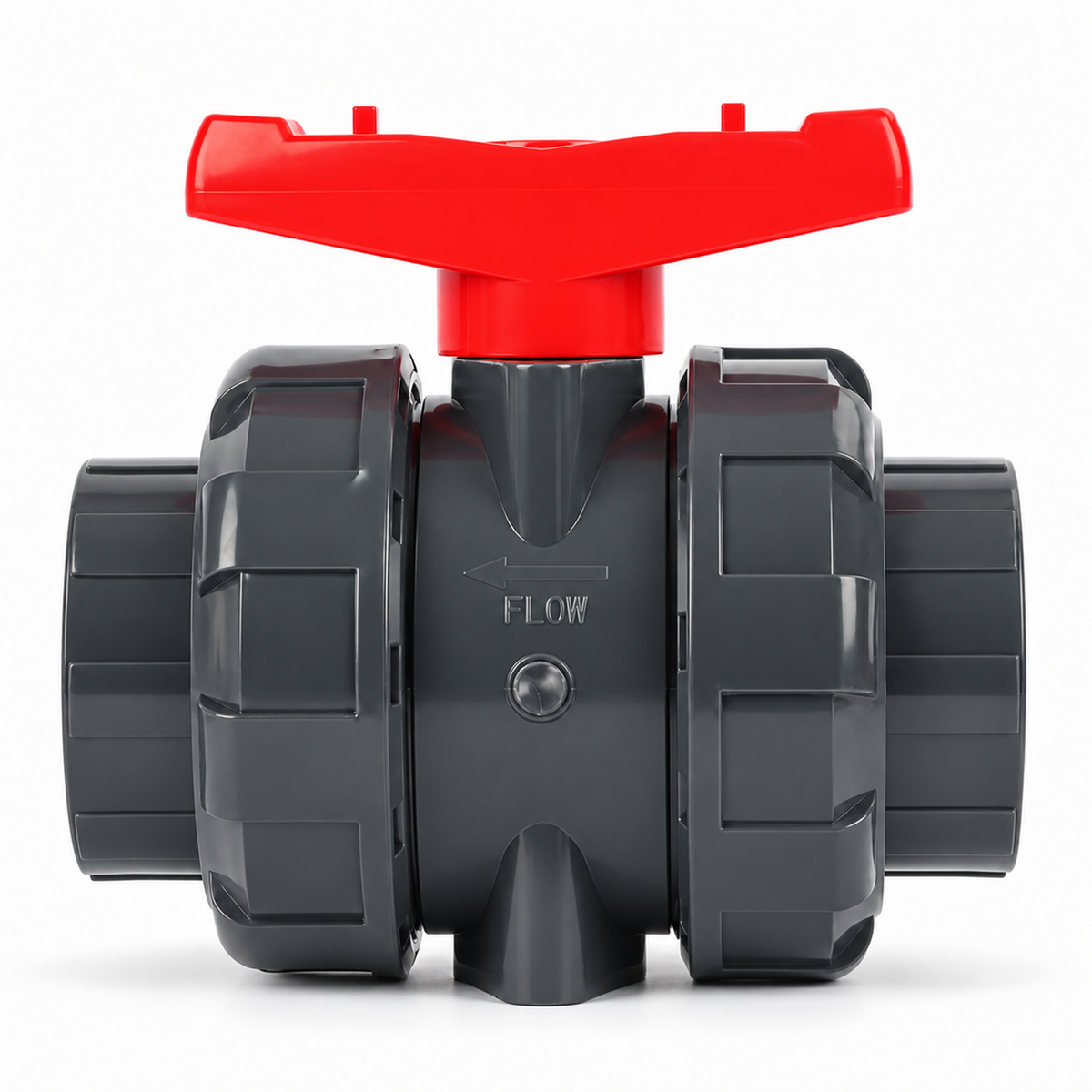

This package contains 1 U.S. Solid DN65 2-1/2 in PVC true union ball valve for use in water, irrigation, pool, aquarium, wastewater, and water-treatment systems. The full-port design helps reduce flow restriction, while the removable center body allows inspection, cleaning, and seal replacement without cutting the connected pipe. Slip socket ends fit 2-1/2 in US IPS Schedule 40 and Schedule 80 PVC pipe with an outside diameter of 2.875 in (73.0 mm). Rated for 150 psi at 59°F (15°C), with a maximum operating temperature of 131°F (55°C). Use a suitable PVC primer and solvent cement. Not NSF certified or intended for certified drinking water systems, compressed gas, or oil.
FEATURES
APPLICATIONS

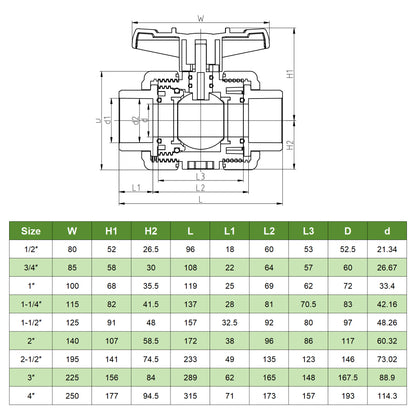

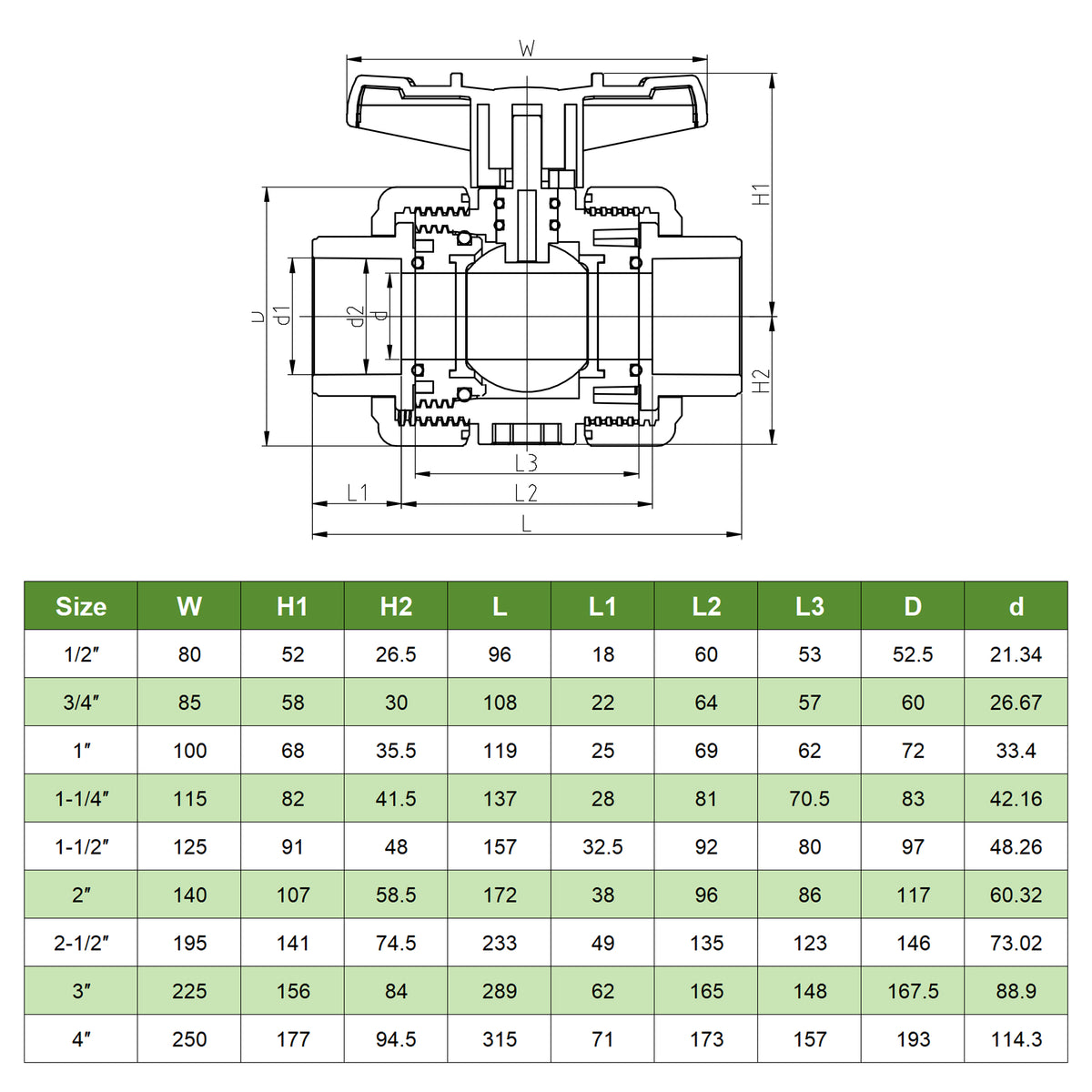

SPECIFICATIONS
| Model | USS-PVC00013 | Brand | U.S. Solid |
|---|---|---|---|

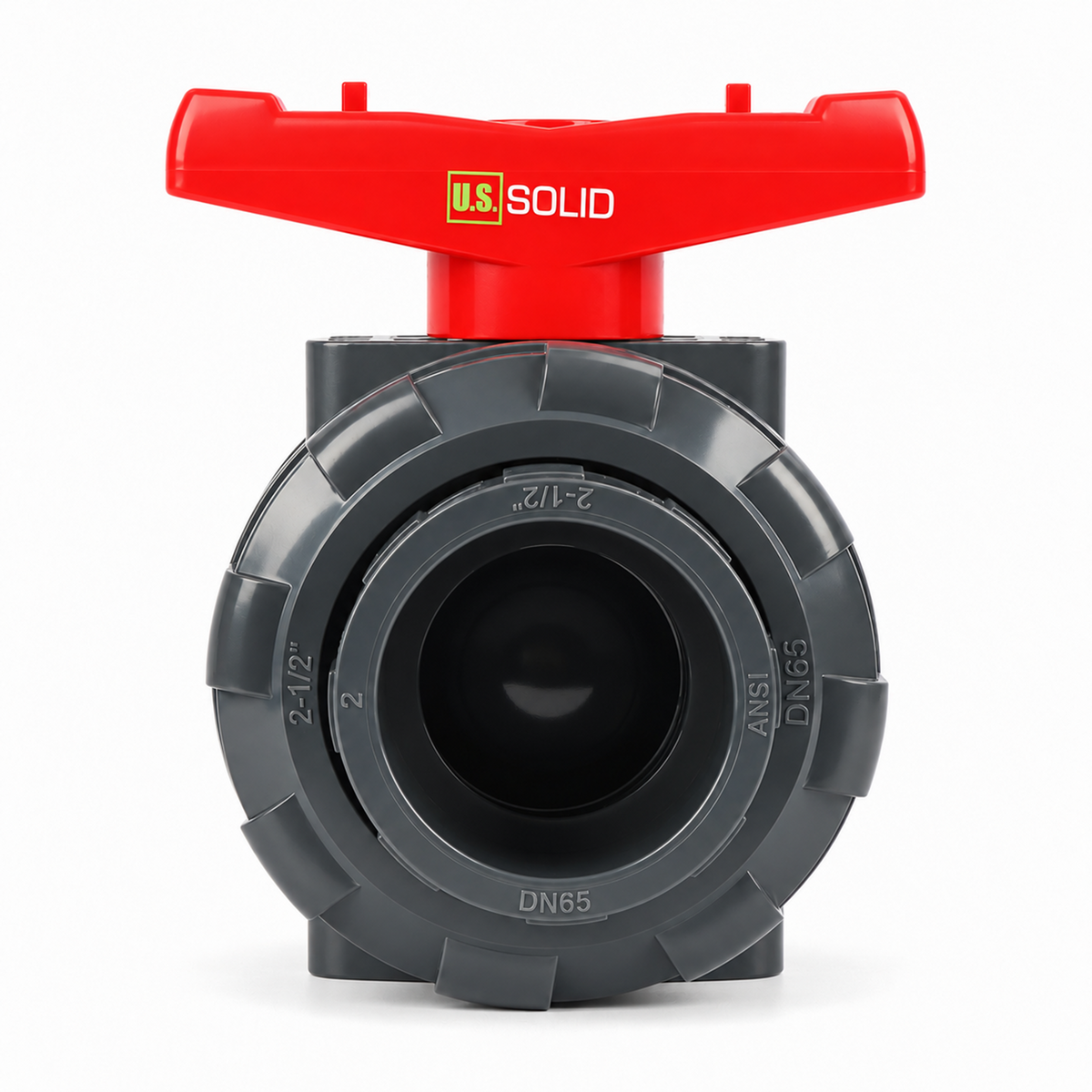

| Size | 2-1/2" | Compatible Pipe OD | 2.875 in (73.0 mm) |
| Port Type | Full Port | Compatible Pipe | US IPS Schedule 40 and Schedule 80 PVC Pipe |
| Body Material | UPVC | Seat Material | PTFE |
| Handle Material | ABS | Socket Connector Material | UPVC |
| O-Ring Material | EPDM | Maximum Working Pressure | 150 PSI at 59°F / 15°C |
| Maximum Operating Temperature | 131°F / 55°C | Connection Type | Slip Socket |
Installation and Operation
1. Cut The Pipe: Cut the PVC pipe square and deburr the edge.
2. Clean The Socket: Clean and dry the pipe end and valve socket. Remove dust and moisture.
3. Apply Pvc Cement: Apply PVC primer and solvent cement to the pipe exterior and socket interior.
4. Insert & Hold: Insert the pipe fully into the socket, twist slightly, hold in place, and allow the cement to cure.
FAQ
1.Why choose a True Union Ball Valve?
A True Union Ball Valve makes maintenance easier. The center valve body can be removed from the piping system without cutting or rebuilding the connected pipe.
2.Can this valve be used for drinking water?
NO. This product is not NSF certified and is not intended for certified drinking water systems.
3.Where can this valve be used?
It is suitable for use in water systems, irrigation, swimming pools, aquariums, ponds, wastewater, and water-treatment applications.
4.Can I clean or repair the valve without removing the pipes?

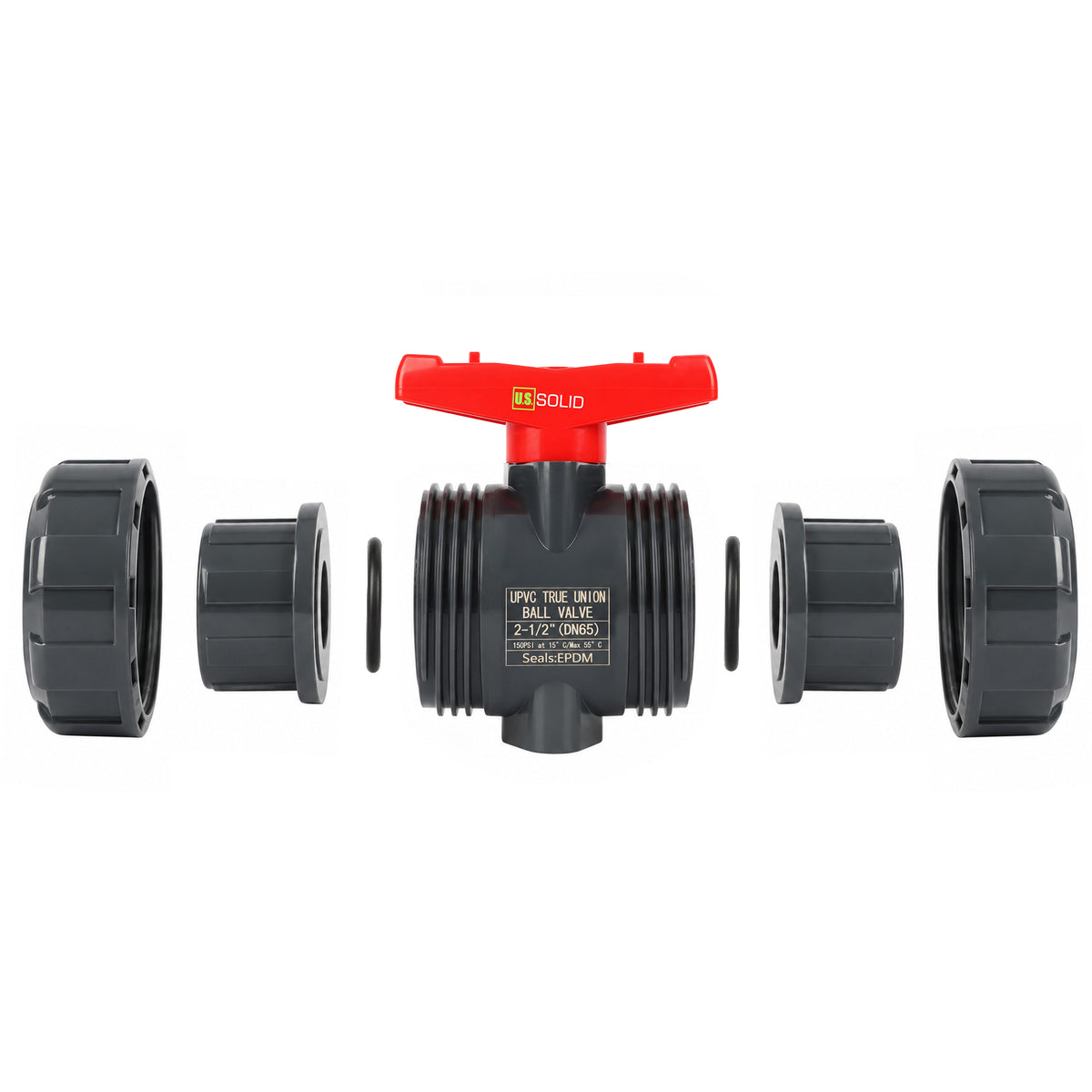

Yes. After shutting off the system and releasing the pressure, loosen the union nuts to remove the center body for inspection, cleaning, or seal replacement.
5.Does this valve prevent backflow?
No. This is a ball valve, not a check valve. Use a separate check valve if backflow prevention is required.
6.How can I help prevent leaks during installation?
Make sure the pipe and valve socket are clean and properly prepared before bonding. Insert the pipe fully, allow the joint to cure as directed, and avoid over-tightening the union nuts.
OTHER MODELS
Explore Our Full Range of Ball Valves
We offer a variety of models with different sizes and connection options to meet your specific ball valve requirements.
VIEW MODEL SELECTION TABLE
