Introduction
Our electric UPVC ball valve series has been upgraded to include three larger sizes: 1-1/4", 1-1/2", and 2". These larger valves feature NPT thread and double union connection—enabling exceptional ease of installation and maintenance. For other connection standards, please contact our customer service.
These valves are 2-wire auto return and remain in a normally-closed position. They automatically close if power is lost. A manual override is also included for use during power outages. All valves have EPDM seals for reliable performance.
NOTE 1: This auto-return ball valve requires a min. power-on duration of 60 seconds (≥60s) . This step is mandatory on first commissioning or after prolonged power cut to ensure reliable auto-reset performance.

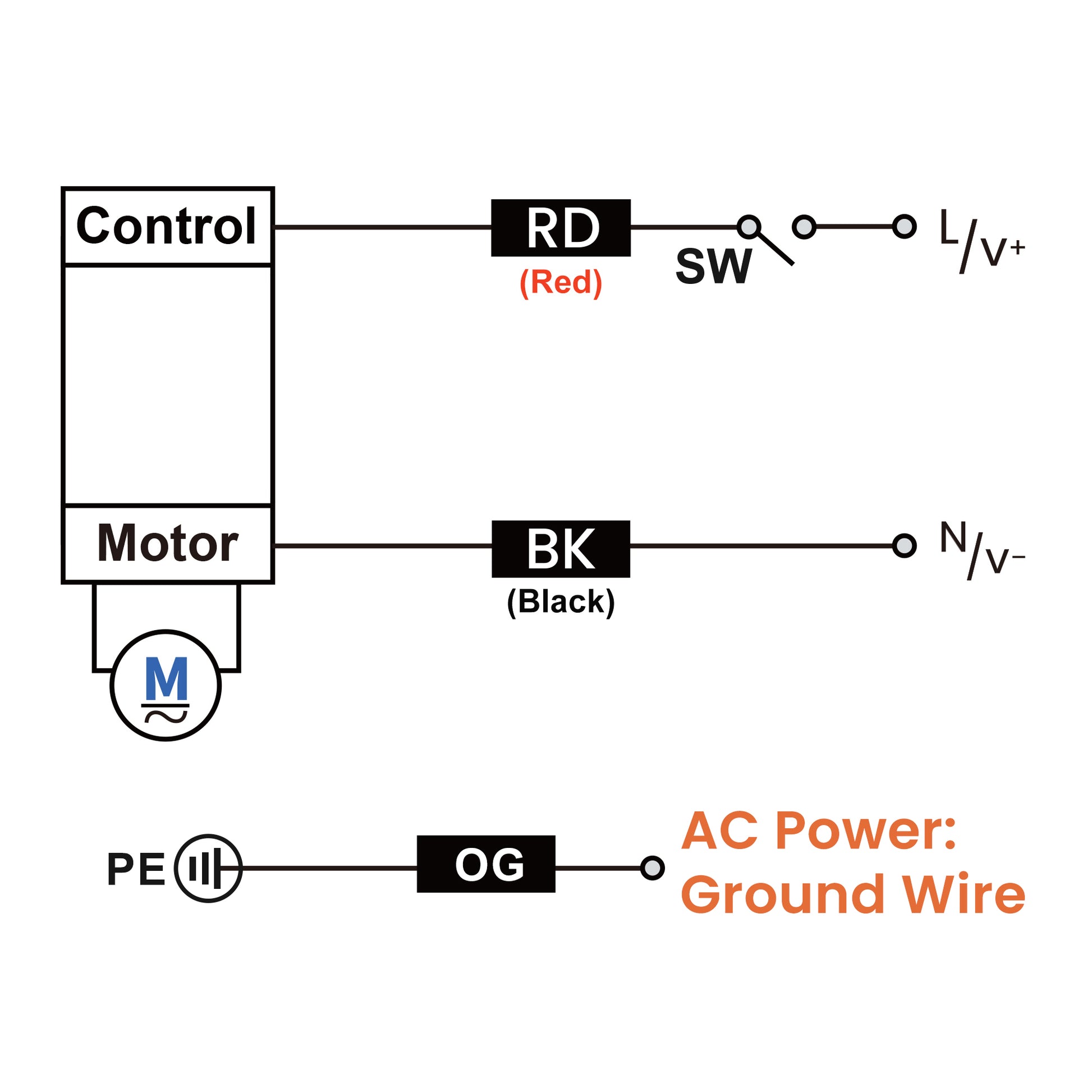

NOTE 2: Although it is a 2-wire auto-return valve, the AC 110V-220V version has an additional orange grounding wire, making 3 wires in total.
Specifications
Model: USS-MSV493
Size: 2"
Connection: Union, NPT
Socket Inside Diameter: 60.3mm
Socket Inside Diameter: 60.3mm
Material: UPVC
Normal Position: Normally Closed
Working Voltage: AC110V-220V
Max Power: 36W
Max Torque: 20 N·m
Max. Pressure: 232 psi
Medium Temp: 33.8℉ to 104℉
IP Rating: IP65
Life Expectancy: 20,000Cycles
Close/Open Time: 10-12s
Wiring: 2 wire,auto return
Manual Function: Yes
Signal feedback function: No
Seal: EPDM
