INTRODUCTION

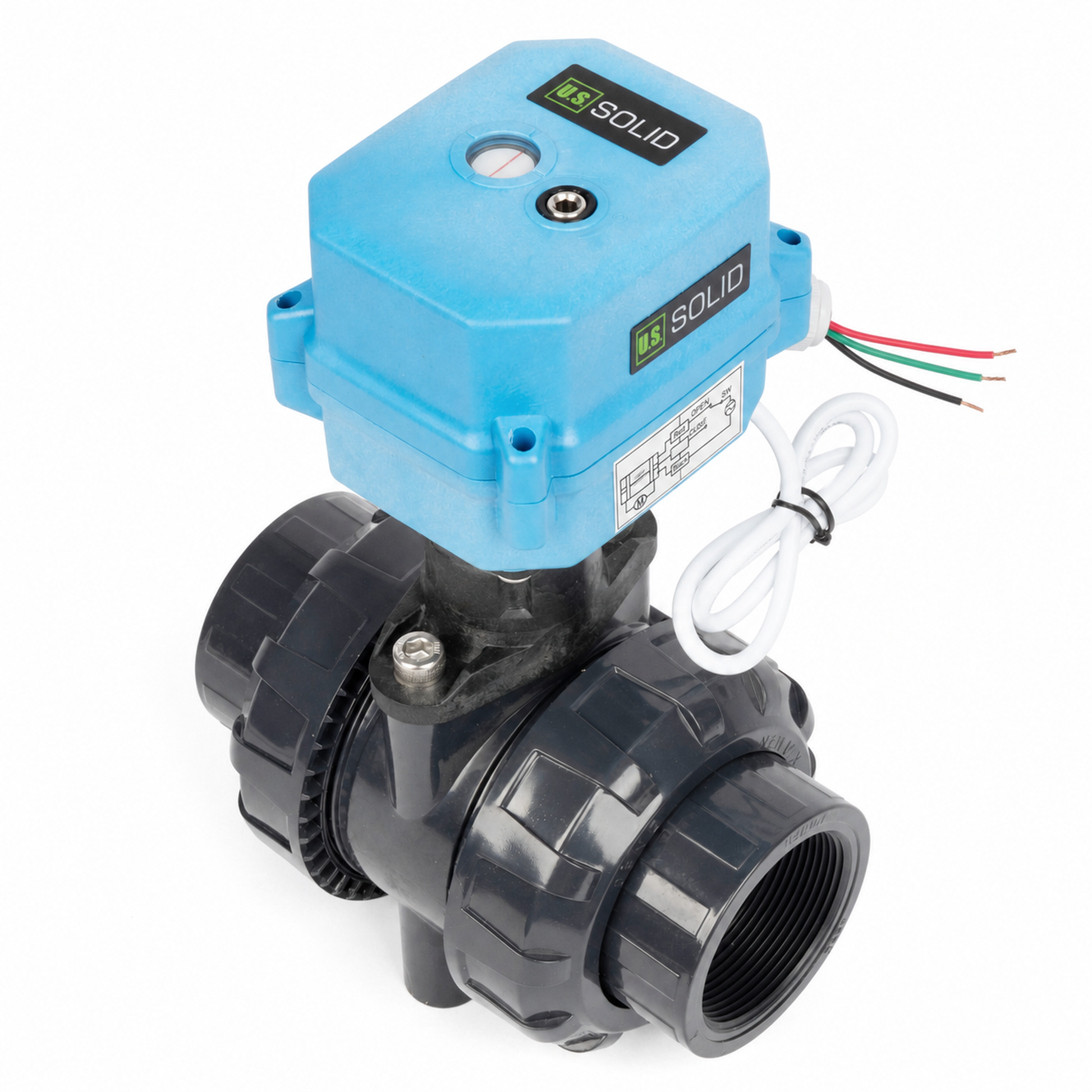

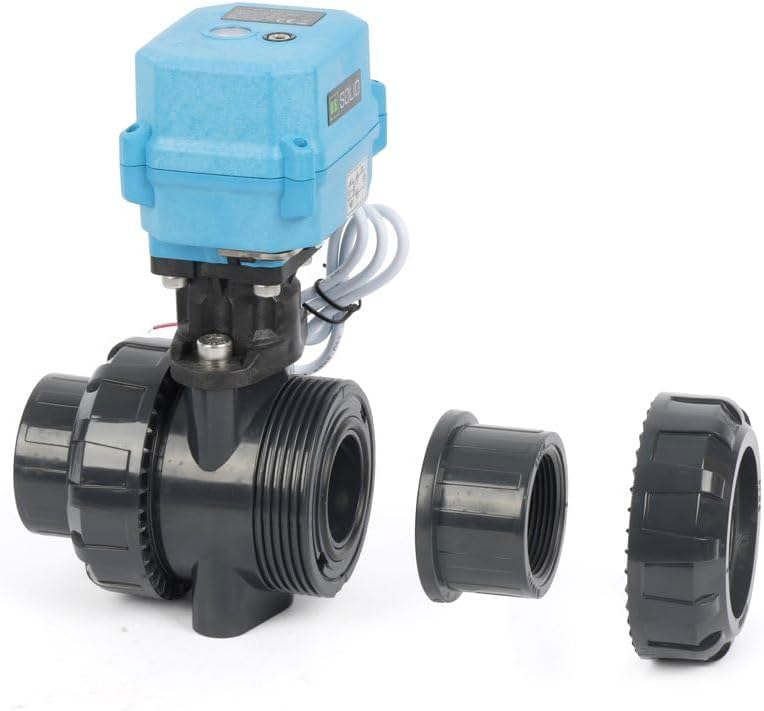

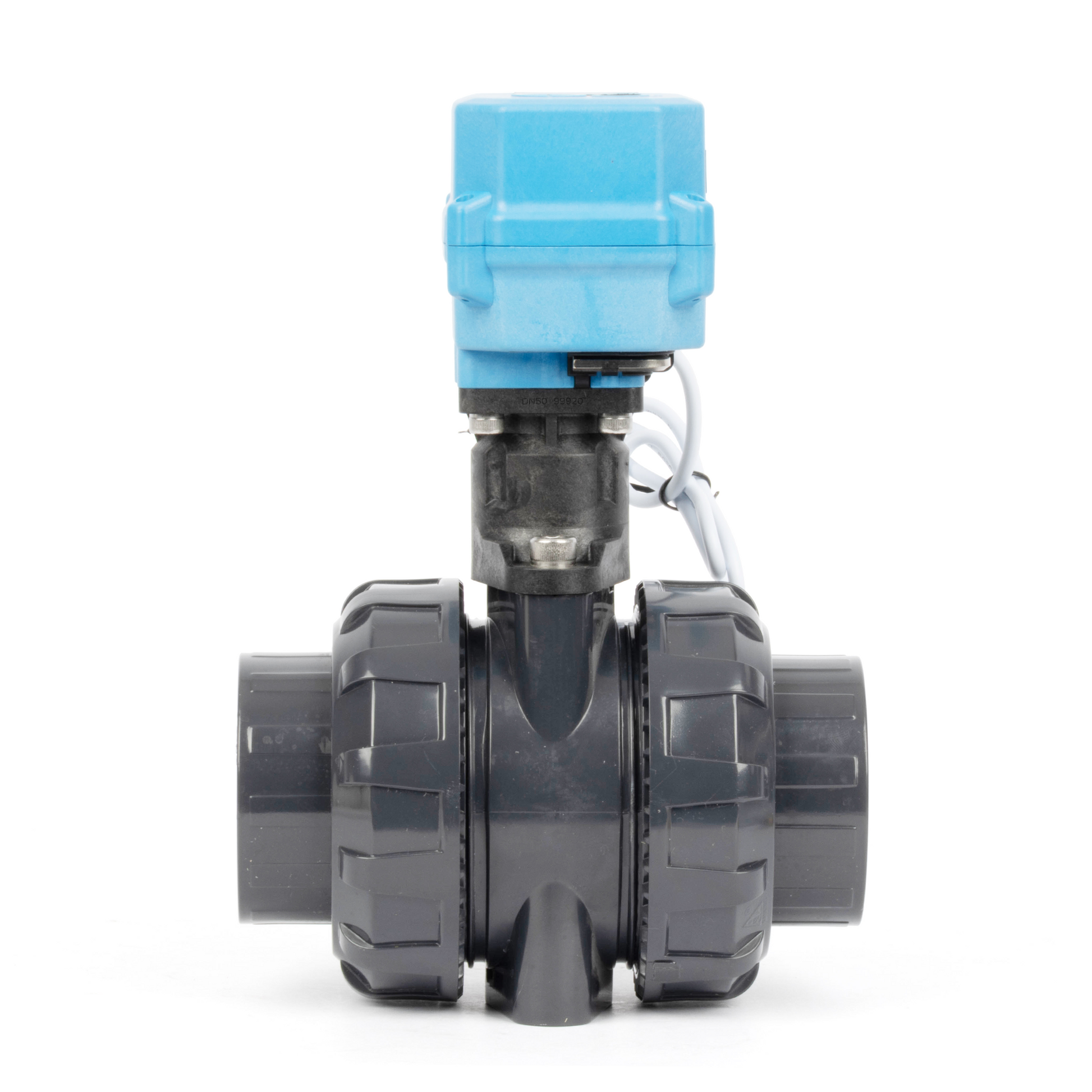

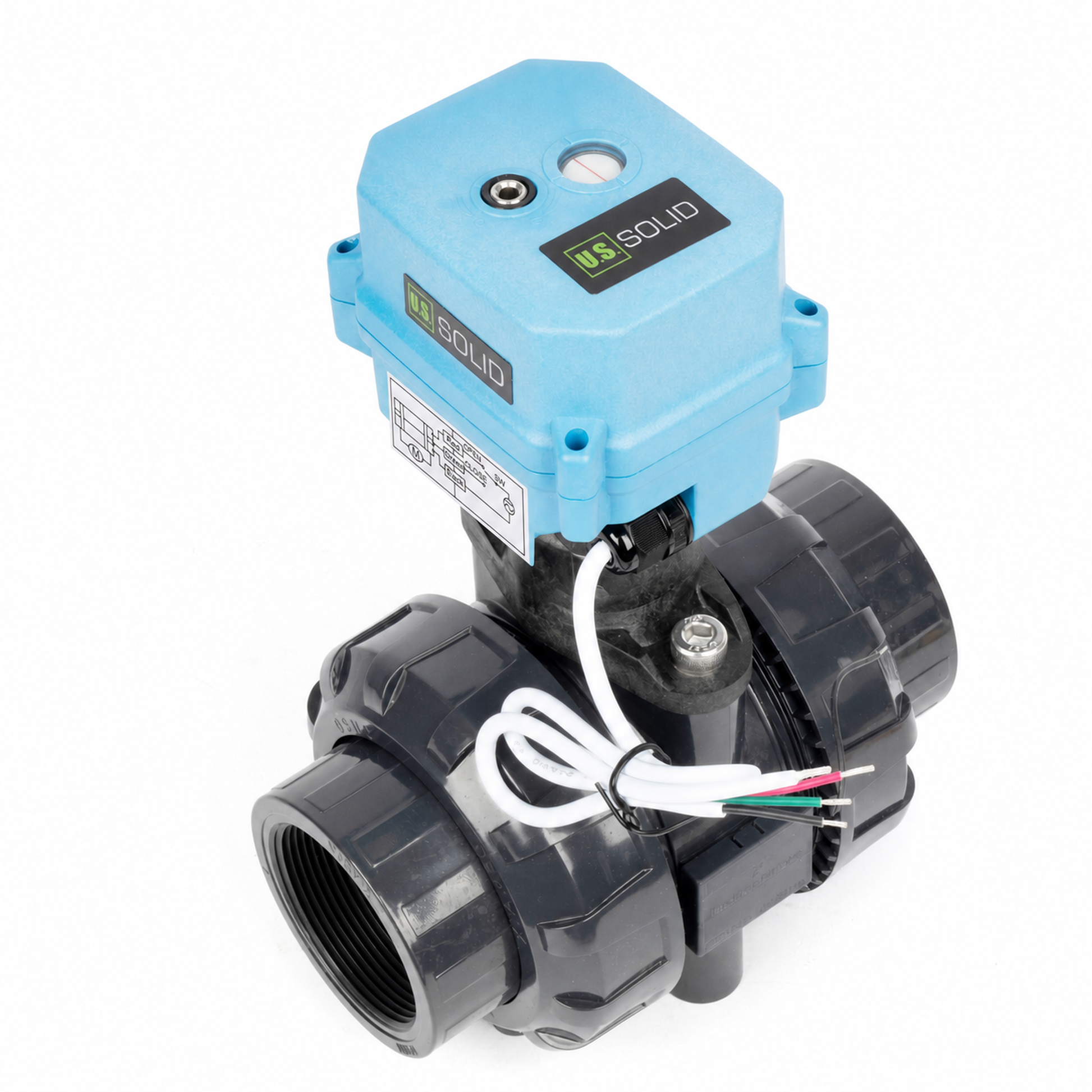

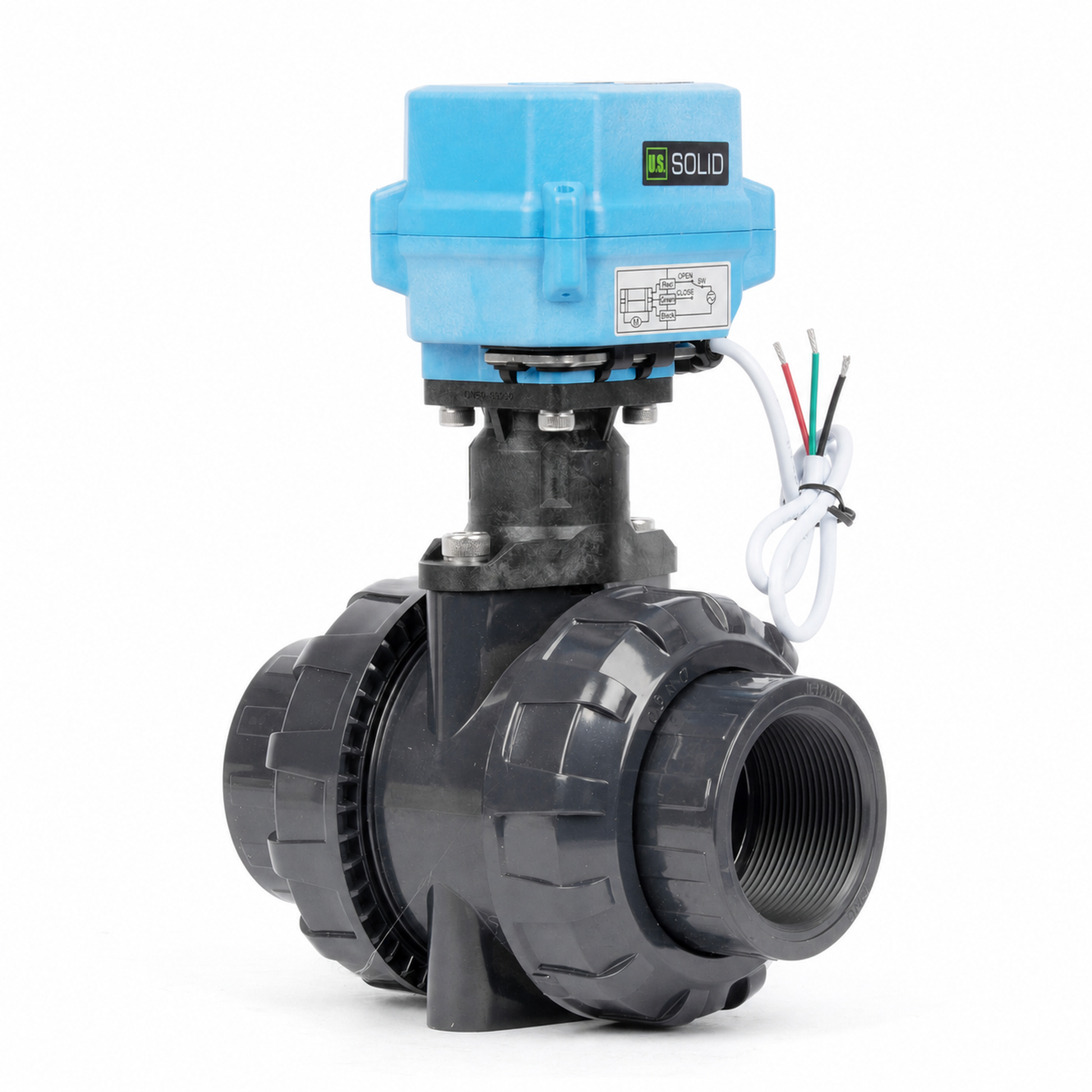

U.S. Solid UPVC Motorized Ball Valve offers reliable automatic flow control with 2-way and 3-way configurations, multiple sizes, voltage options, and wiring methods. Built with corrosion-resistant UPVC material, IP67 waterproof electric actuator, full port design, and manual override capability, this valve ensures smooth operation and easy maintenance. Ideal for pool plumbing, water treatment, irrigation, and industrial piping systems. Engineered for durability with up to 70,000 cycles of reliable performance, providing long service life and dependable flow control in demanding environments.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-MSV50302 | Brand | U.S. Solid |
|---|---|---|---|
| Port Size | 2" | Valve Material | UPVC |
| Working Voltage | DC 24V | Ambient Temperature | -15 ~ 50 °C |
| Media Temperature | 2 ~ 55 °C | IP Grade | IP67 |
| Open/Close Time | ≤ 12 s | Max Power | 36 W |
| Max Working Pressure | ≤ 10 bar | Wiring Type | 3 Wire |
| Port Type | Full Port | Thread Type | NPT |
| Default State | Normally Closed | Manual Override | Yes |
| Auto Return | No | Compatible Media | Air, Water |
| Signal Indicator | Yes | O-ring Material | EPDM |
| Service Life | 70,000 cycles | Valve Seat Material | PTFE |
| Flow Aperture | 50 mm | Max Torque | 15 Nm |

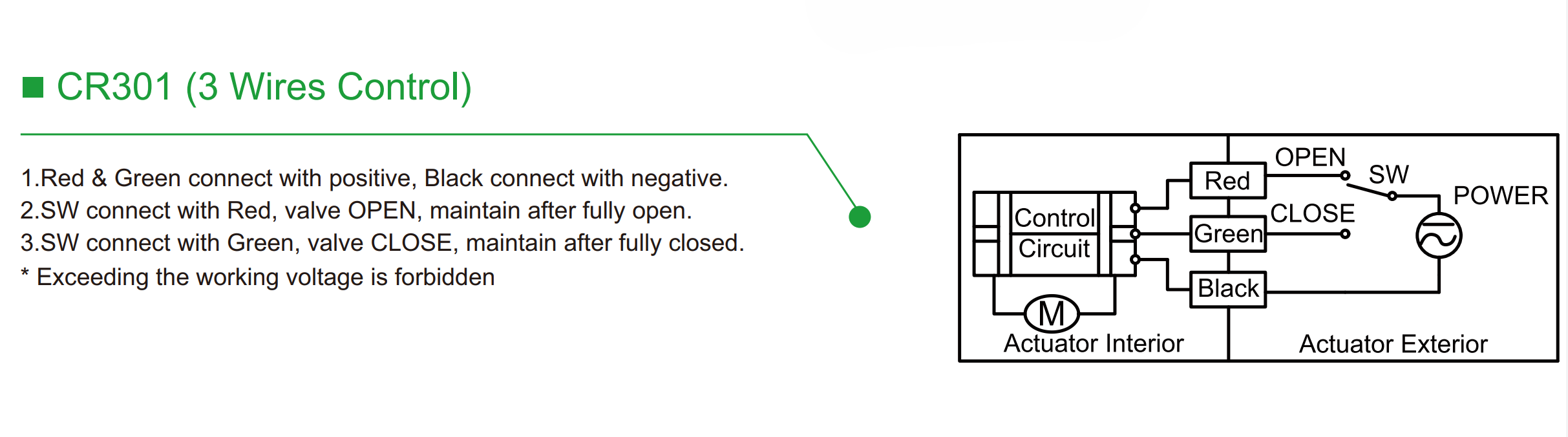

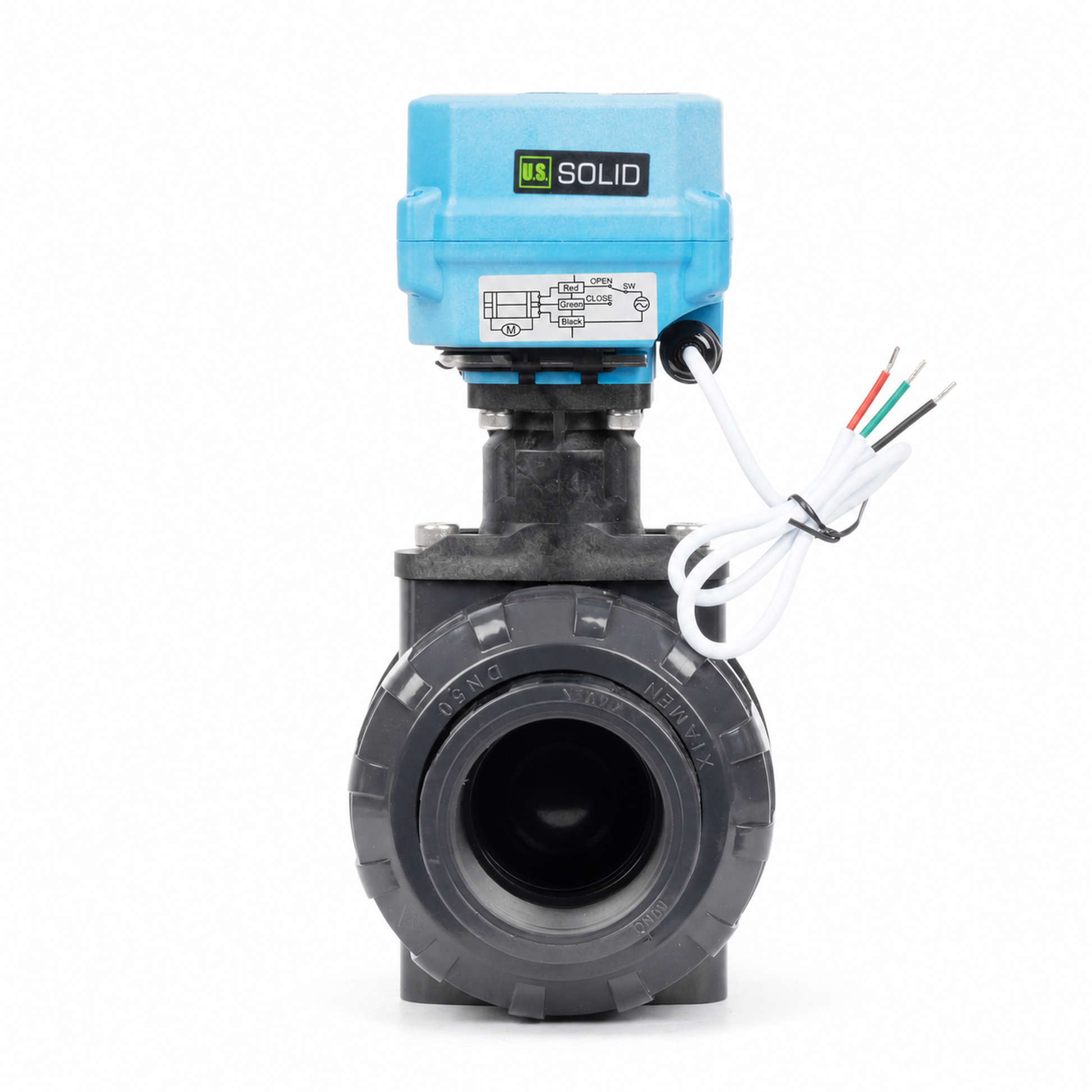

WIRING INSTRUCTIONS
This 3-wire ON/OFF actuator is designed for simple electric valve control. Connect the common wire and the open/close control wires to the rated 24 V DC control circuit according to the wiring diagram. The actuator drives the valve between operating positions when the corresponding control signal is applied. Confirm all wiring assignments before powering the valve.
