CE Certified
Precise measurements, fast. Strain gauge load cell and LCD backlight screen make for fast easy use of this scale. The plate is corrosion resistant and set up for anti-electromagnetic interference so you get the correct measurement every time.
For best results, set up your scale in a temperature controlled environment free from vibrations. Allow the scale to warm up for 30 minutes before calibration. After calibrating the scale, place desired object in the center of the scale for the most accurate measurement.
Other features include multiple measurement units and glass box to prevent errors due to wind interference. Piece counting featured included for more complex laboratory experiments.
Features
Stainless Steel Pan
Super bright LCD display with backlight

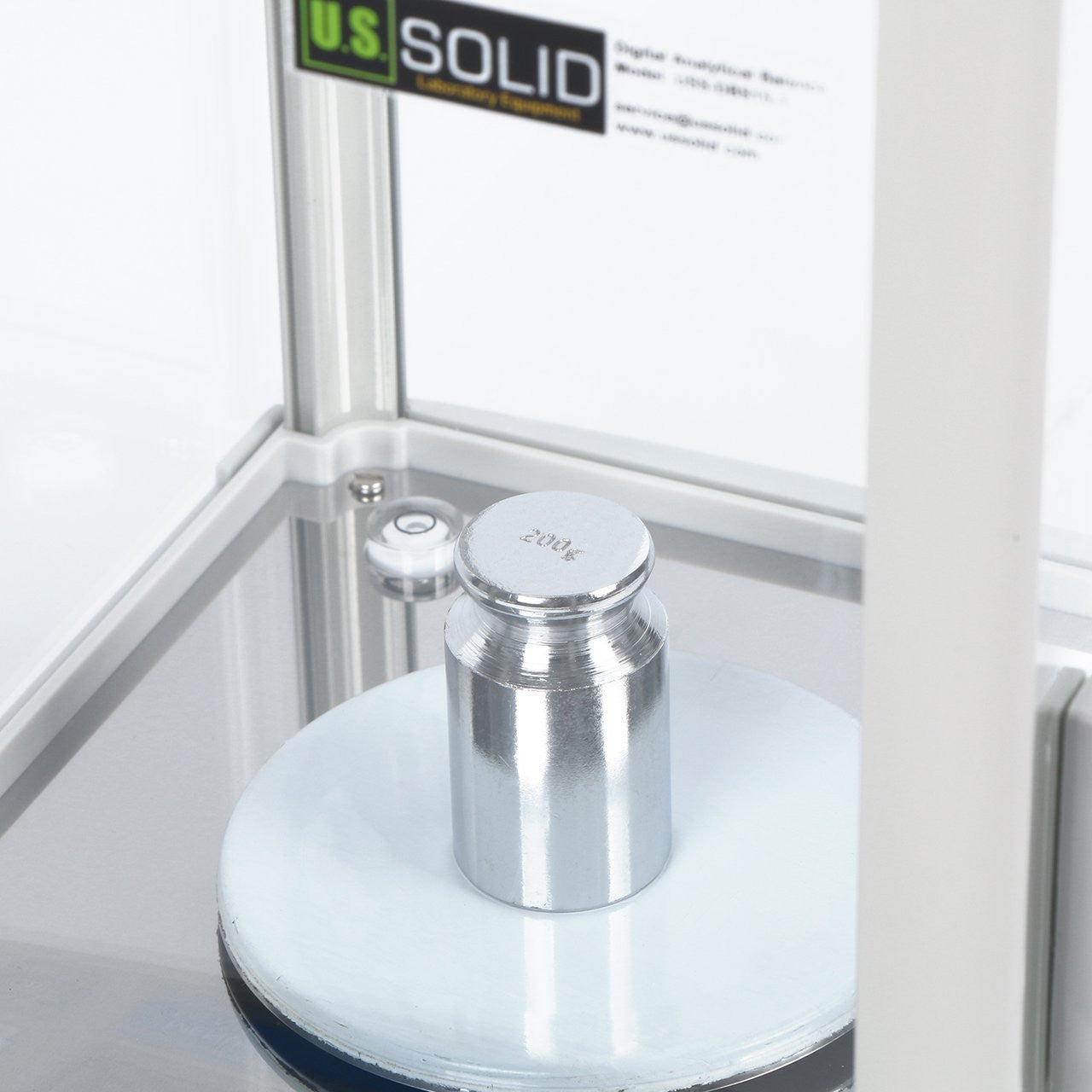

Standard calibration weight and windshield supplied as standard
Adjustable feet so you choose the height.
Manual Calibration
Unit Conversions( ounce, karat, gram, milligram, pound )/(oz,ct,g,mg,lb)
Technical Data
Model No : USS-DBS15
Max. Capacity : 200 g
Min. Capacity : 20 mg
Readability : 1 mg
Repeatability : ±2 mg
Linearity : ±2 mg
Pan Size : Ø90 mm

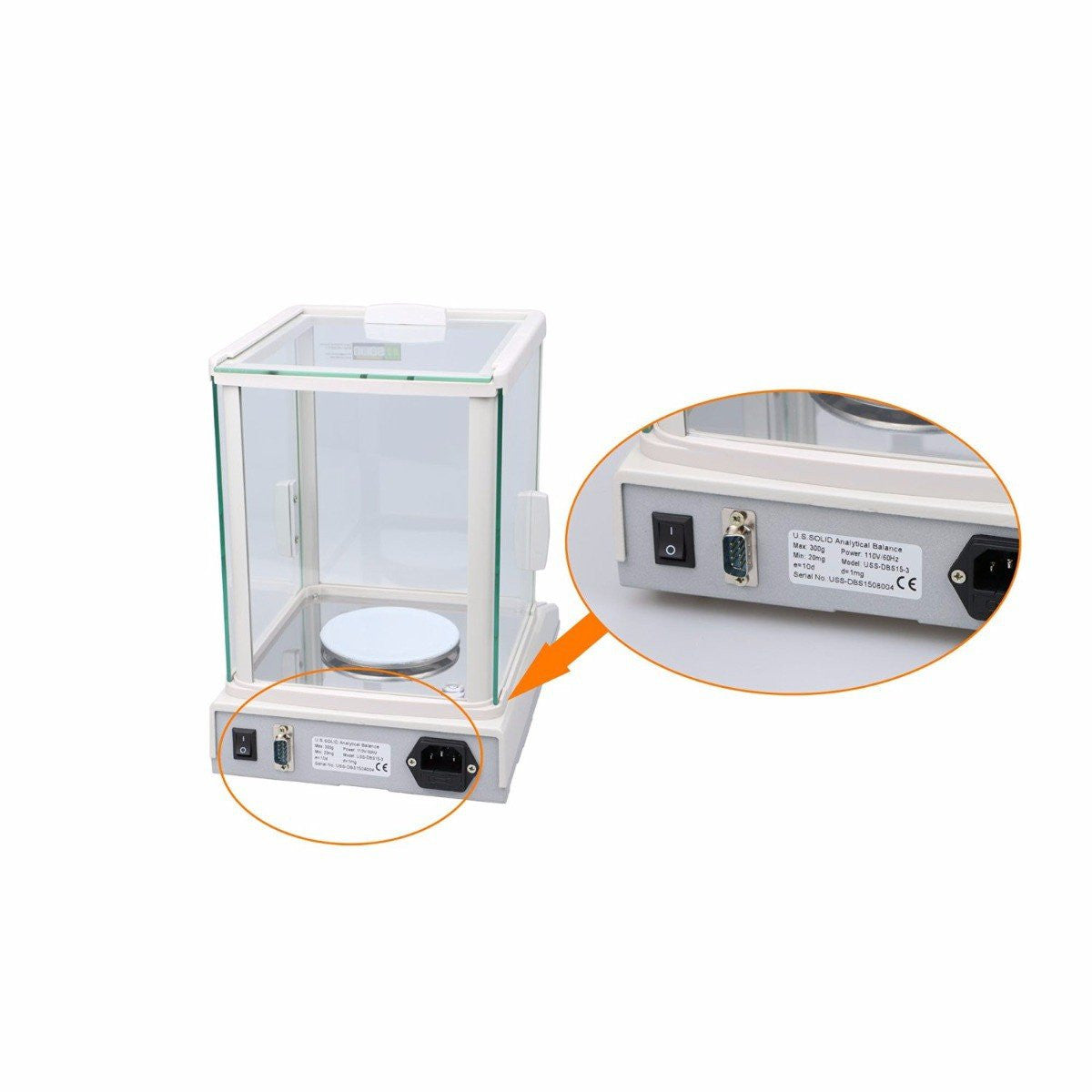

Output Interface : RS232
Working Temperature: 41～80.6℉
Dimensions : 290 × 185 × 270 mm
Net Weight : 3 kg
Power Supply : AC 110 V, 60Hz
Package List
1 x Analytical Balance
1 x Weight
1 x Manual
1 x Power Cable
|
Accuracy\Capacity |
100 g + |
200 g + |
300 g + |
500 g + |
1 kg + |
2 kg + |
3 kg + |
5 kg |
|
0.1 g |
|
|
|
|
|
|
|
|
|
0.01 g |
|
|||||||
|
0.001 g (1 mg) |
|
|||||||
|
0.0001 g (0.1 mg) |
|
|
|
|
|
