INTRODUCTION
The Ultrasonic Vibrating Rod Series is designed for liquid processing in reactors, jacketed vessels, and larger containers. Compared with conventional small probe sonicators, this split-type ultrasonic system uses a flange-mounted titanium alloy vibrating rod to deliver ultrasonic energy across a wider processing area.
It is suitable for dispersion, emulsification, extraction, homogenization, degassing support, cell disruption where applicable, and process intensification in compatible liquid systems. The system is suitable for laboratories, research facilities, pilot production lines, and industrial process development teams.

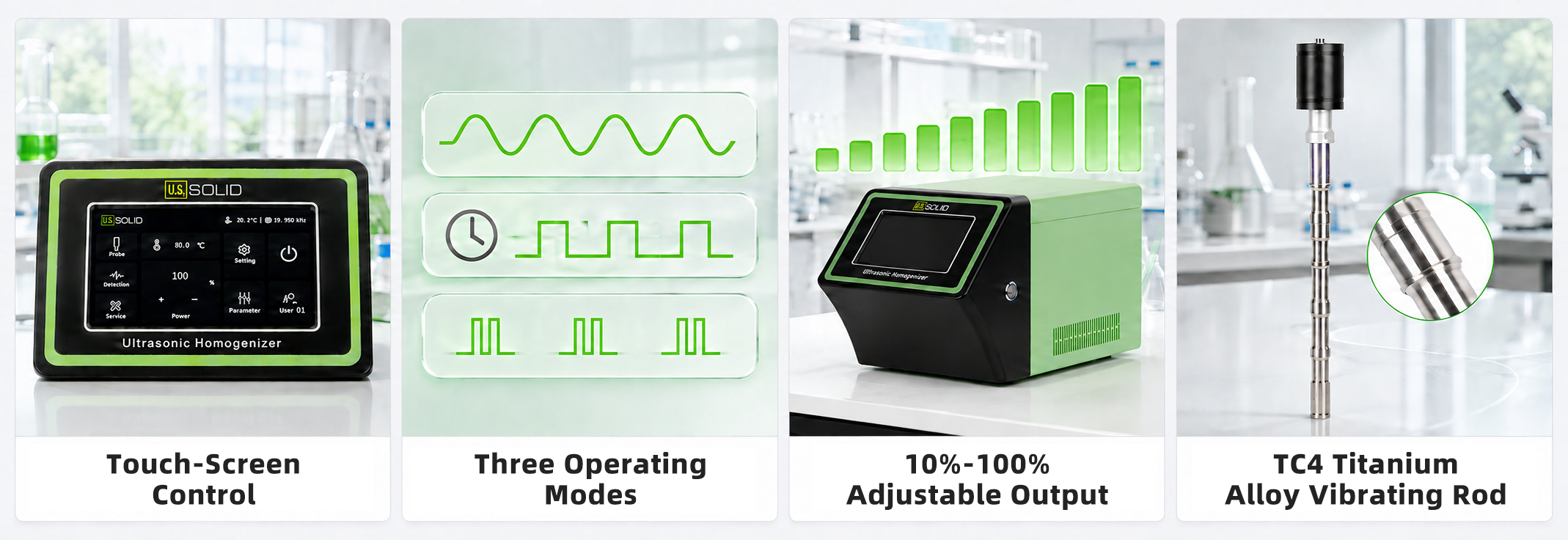

FEATURES
APPLICATIONS
SPECIFICATIONS
| Ultrasonic Power | 2000 W | Energy-Saving Electrical Power | 660 W |
|---|---|---|---|
| Rod Length Below Flange | 435 mm | Probe Diameter | 40 mm |
| Total Length | 698 mm | Processing Capacity | 10-20 L |
| Reactor Mixer Compatible Capacity | 30-50 L | Power Adjustment | 10%–100% Adjustable, 10% Increments |
| Nominal Frequency | 19–26 kHz | Timer | 1–999 Seconds Adjustable |
| Vibrating Rod Material | Titanium Alloy TC4 | Mounting Method | Flange Quick-Connect |
| Voltage | AC 110V/220V | Product Series | Ultrasonic Vibrating Rod Series |
INSTALLATION AND SAFETY NOTES
The vibrating rod must be securely mounted, and the working end must be fully immersed in liquid before ultrasonic output is started. Do not operate the ultrasonic output in air. Before use, confirm vessel clearance, flange sealing, grounding, cooling conditions, and sample compatibility.
For product operation and safety instructions, please download the user manual below:
