INTRODUCTION

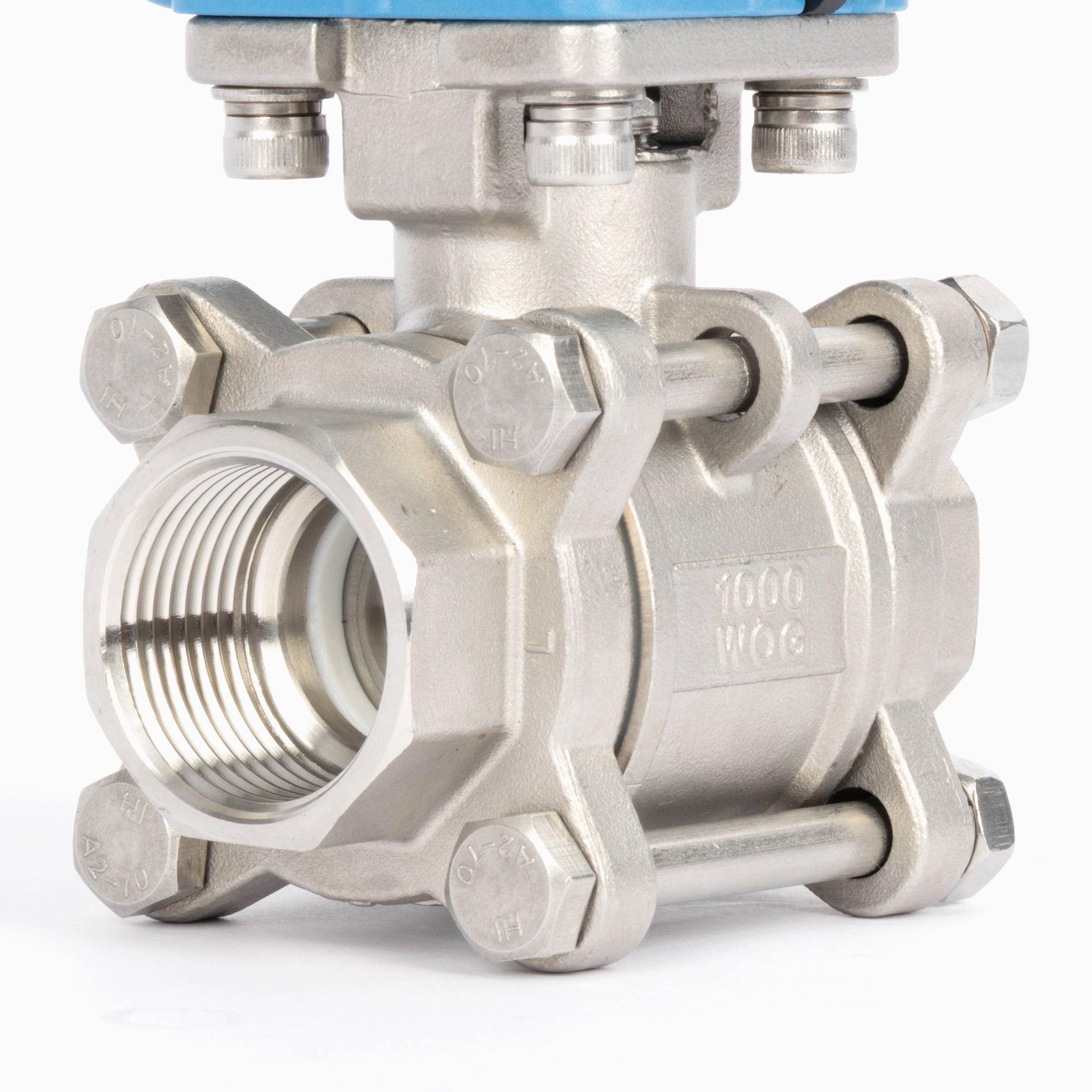

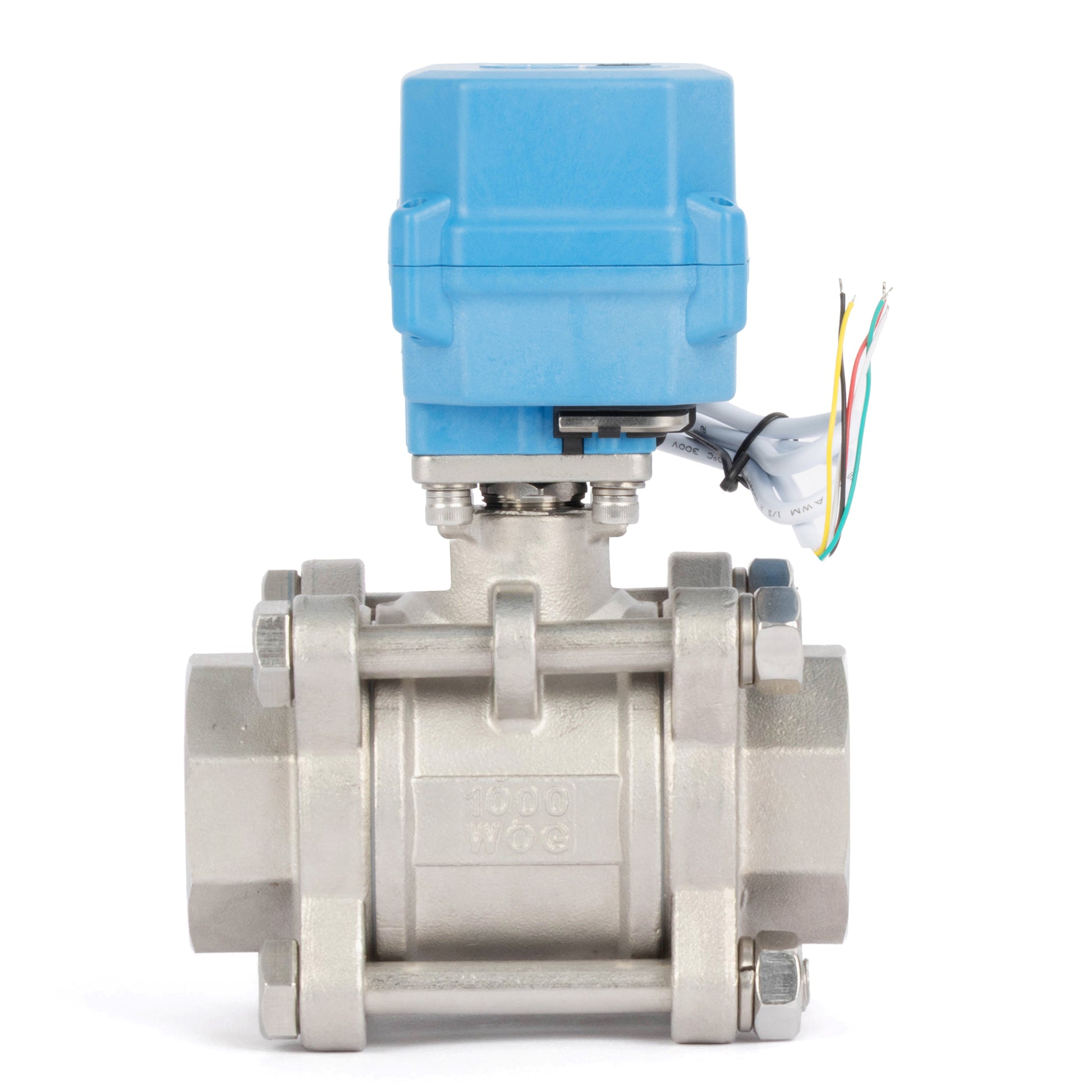

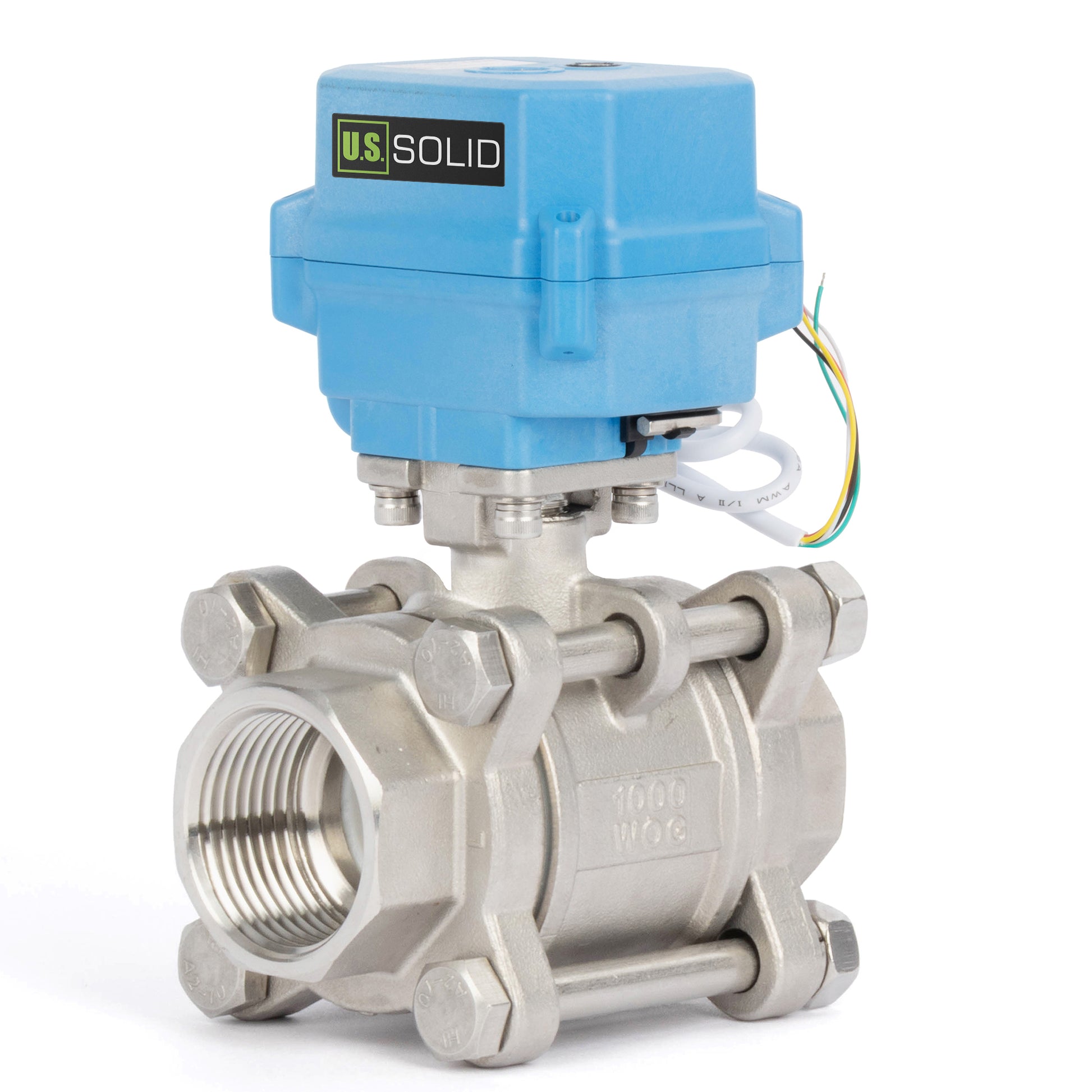

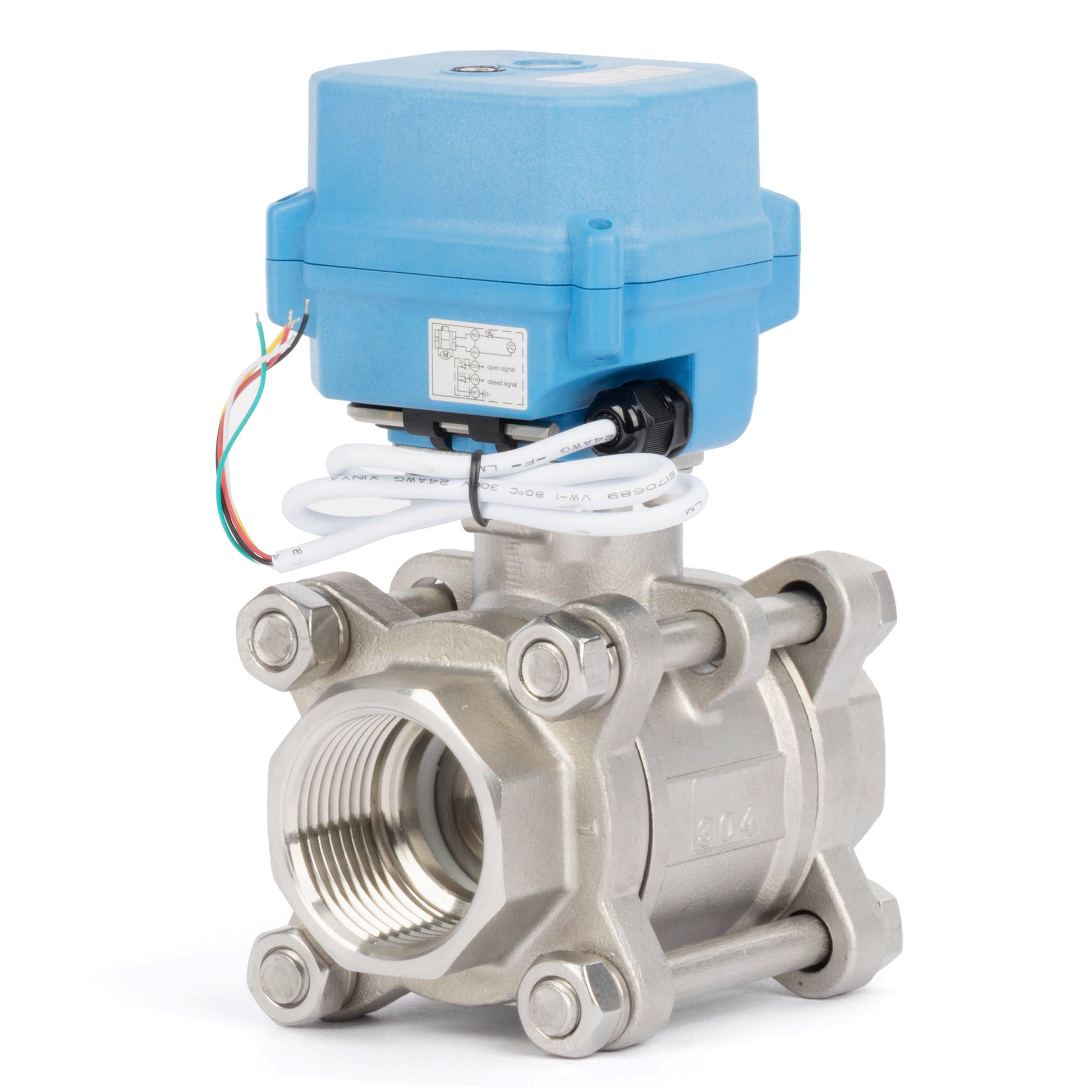

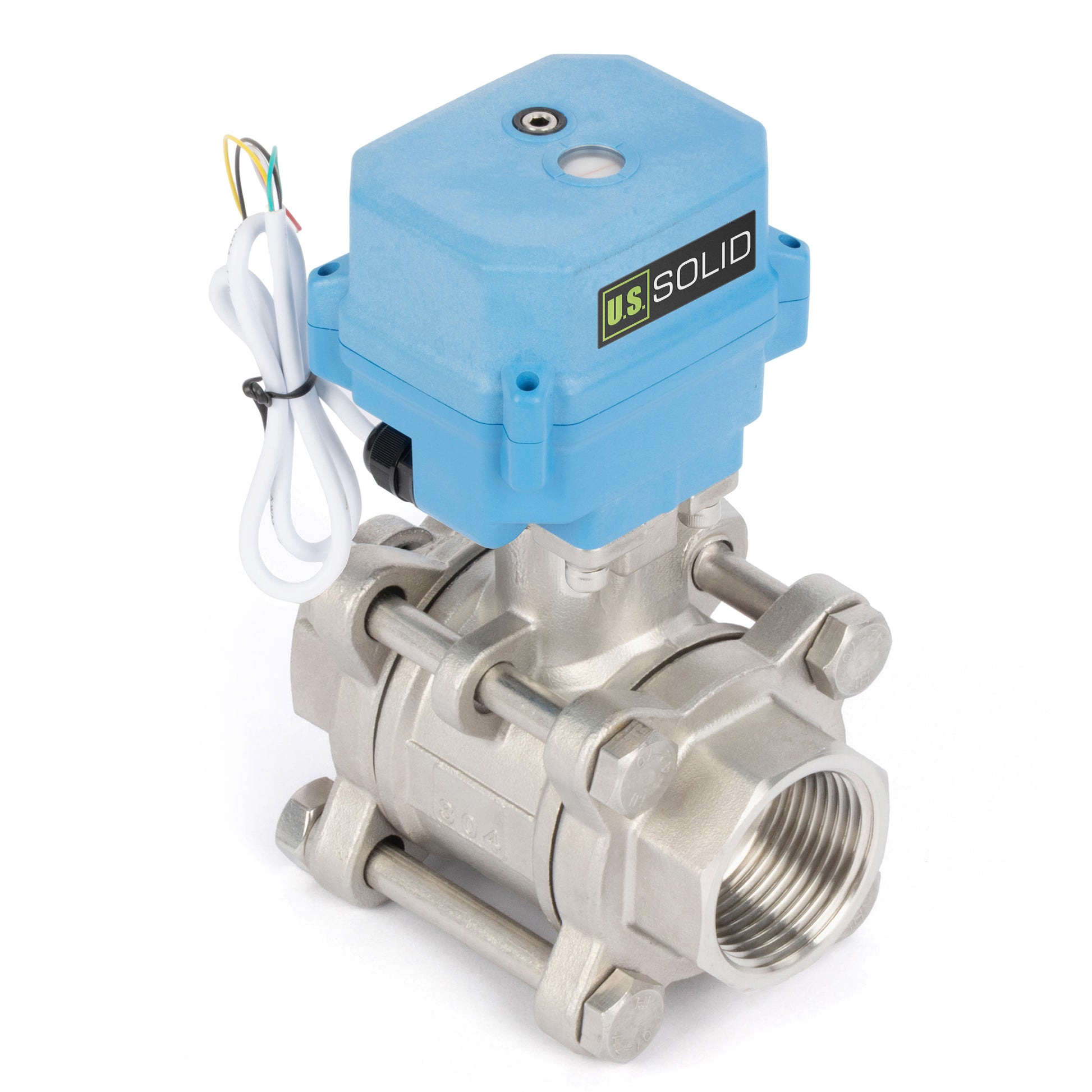

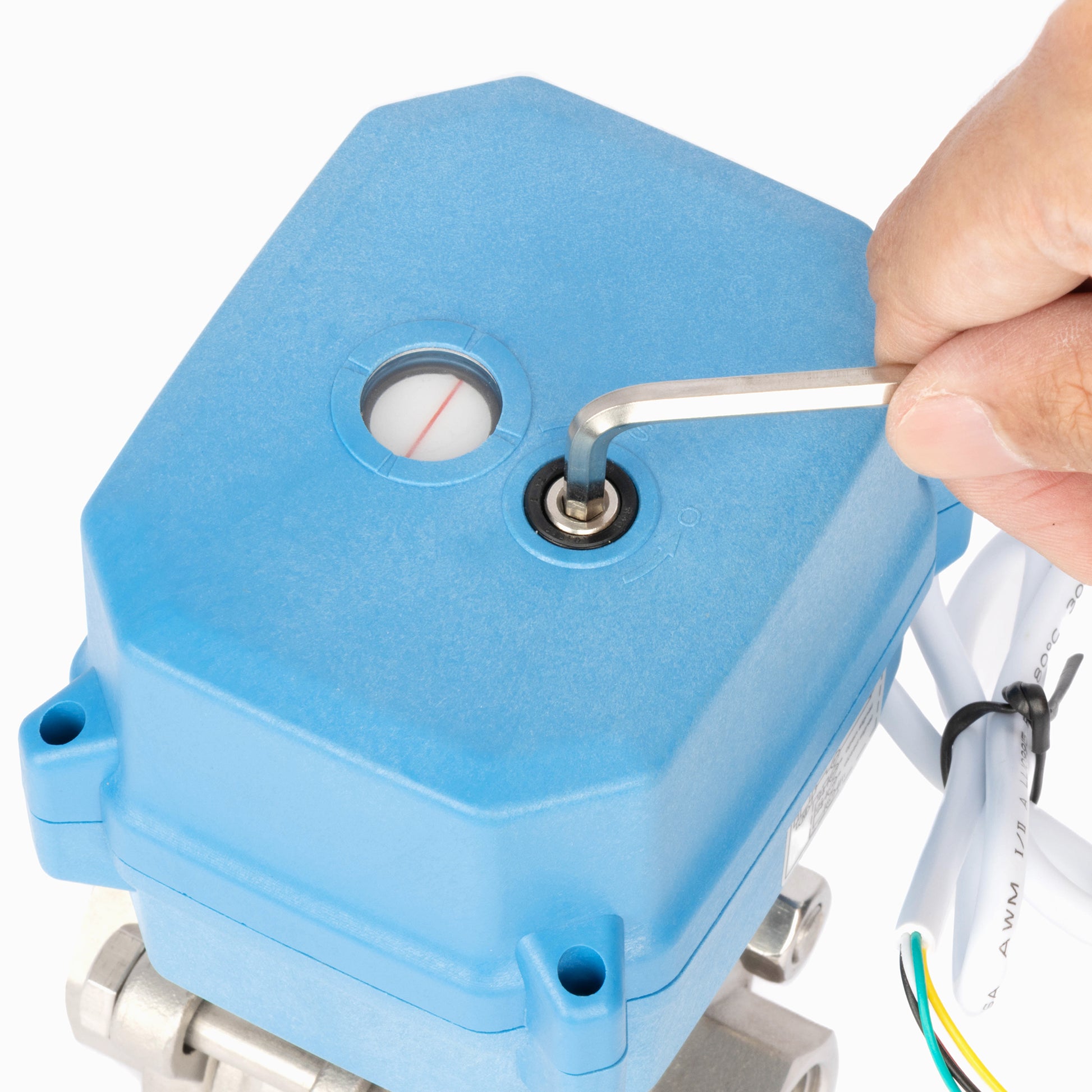

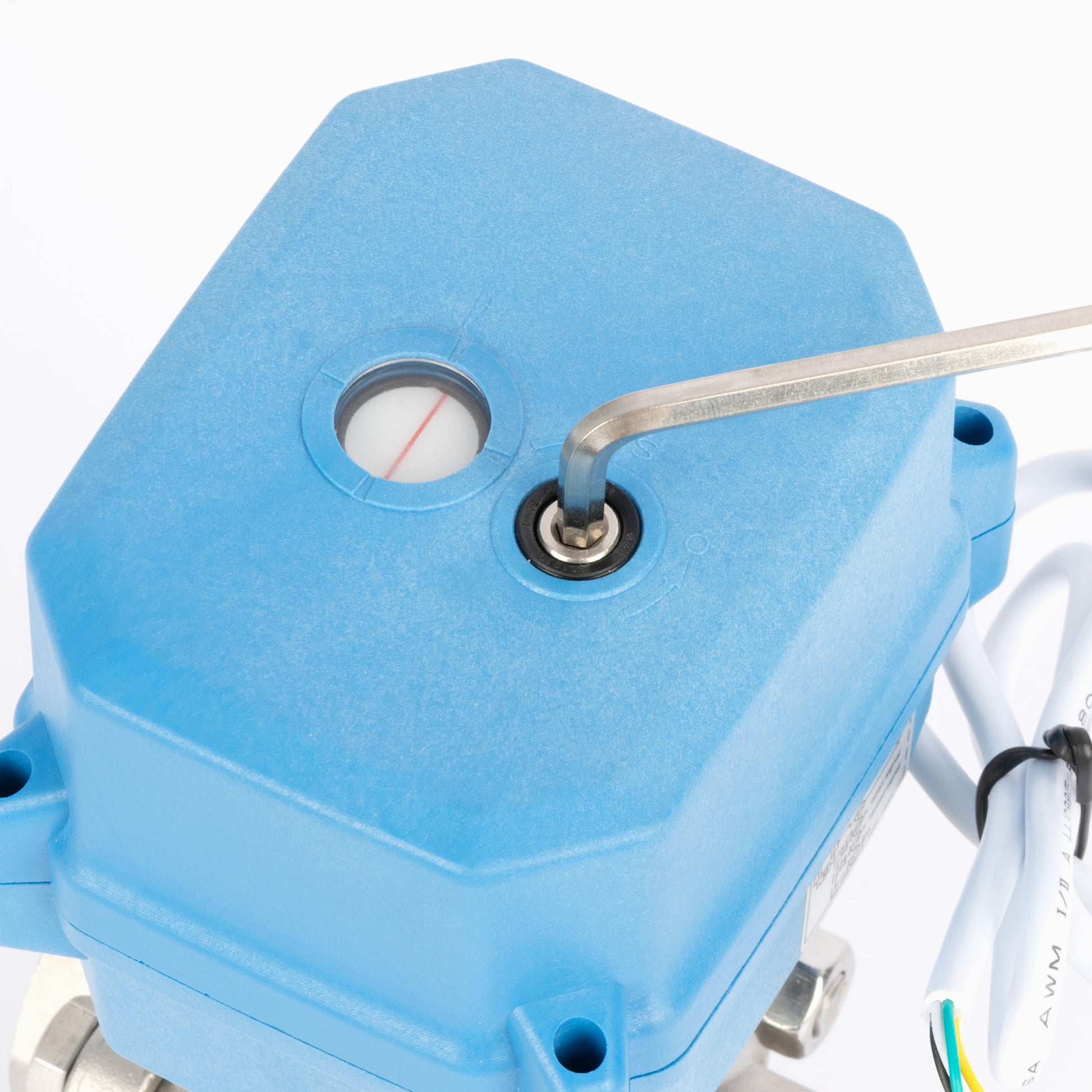

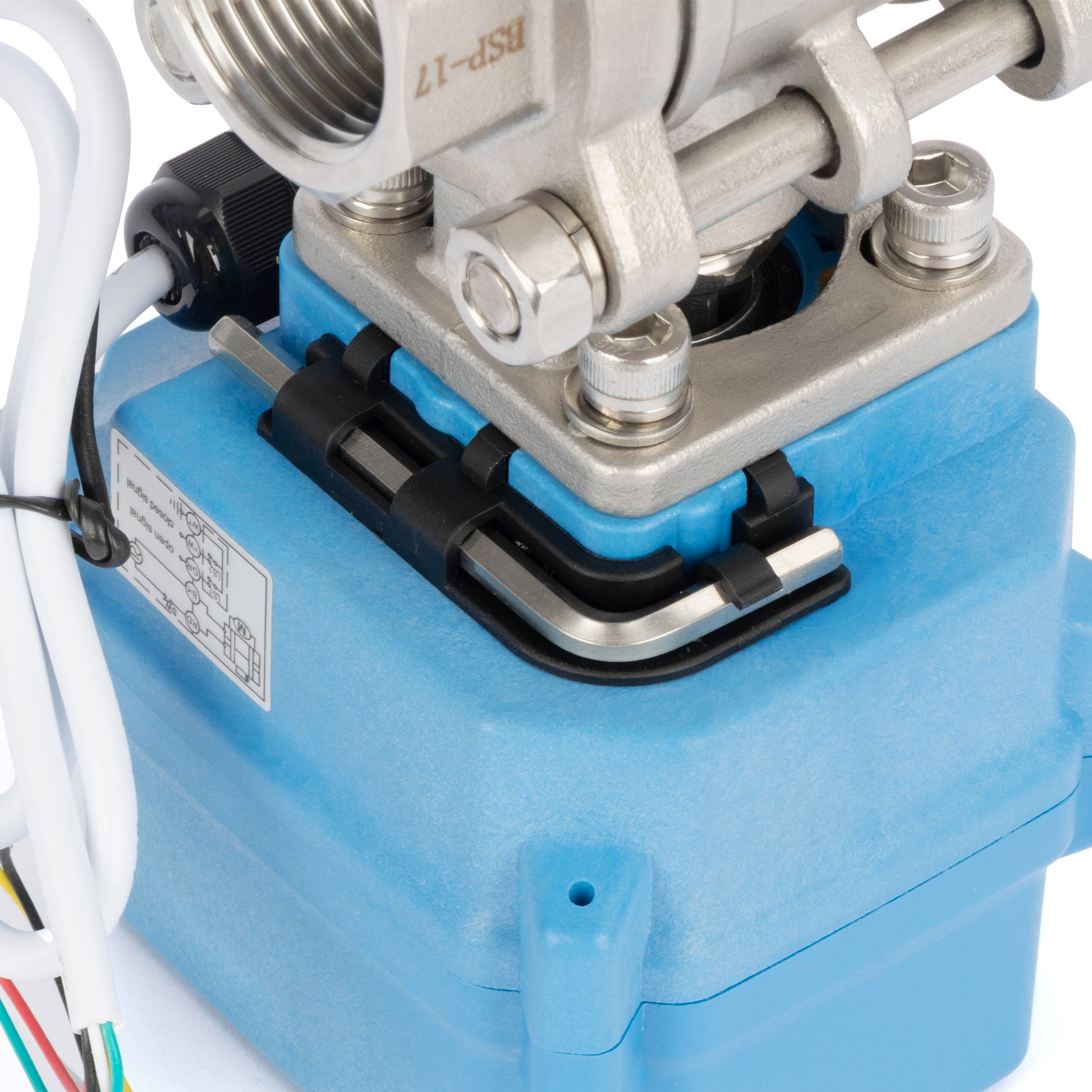

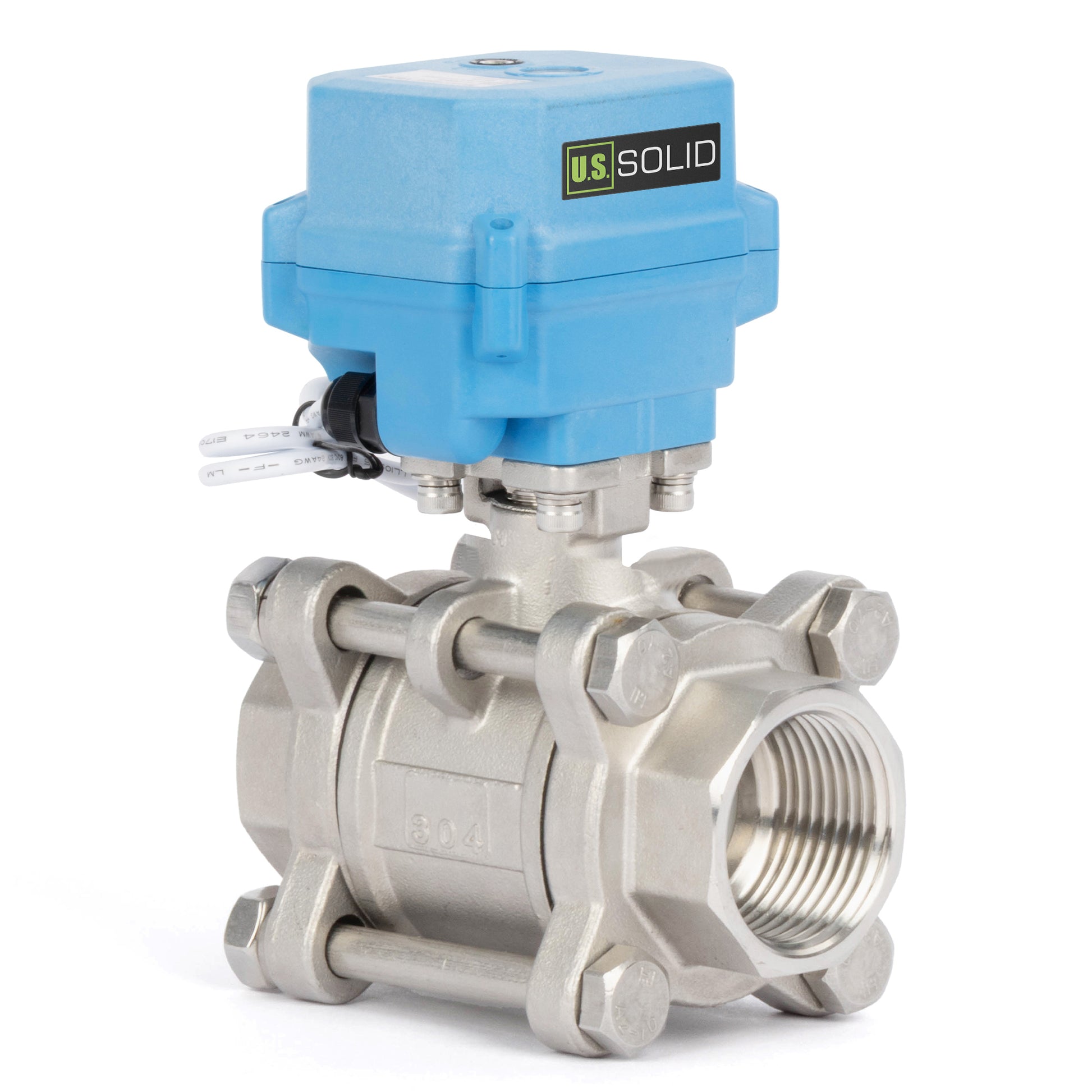

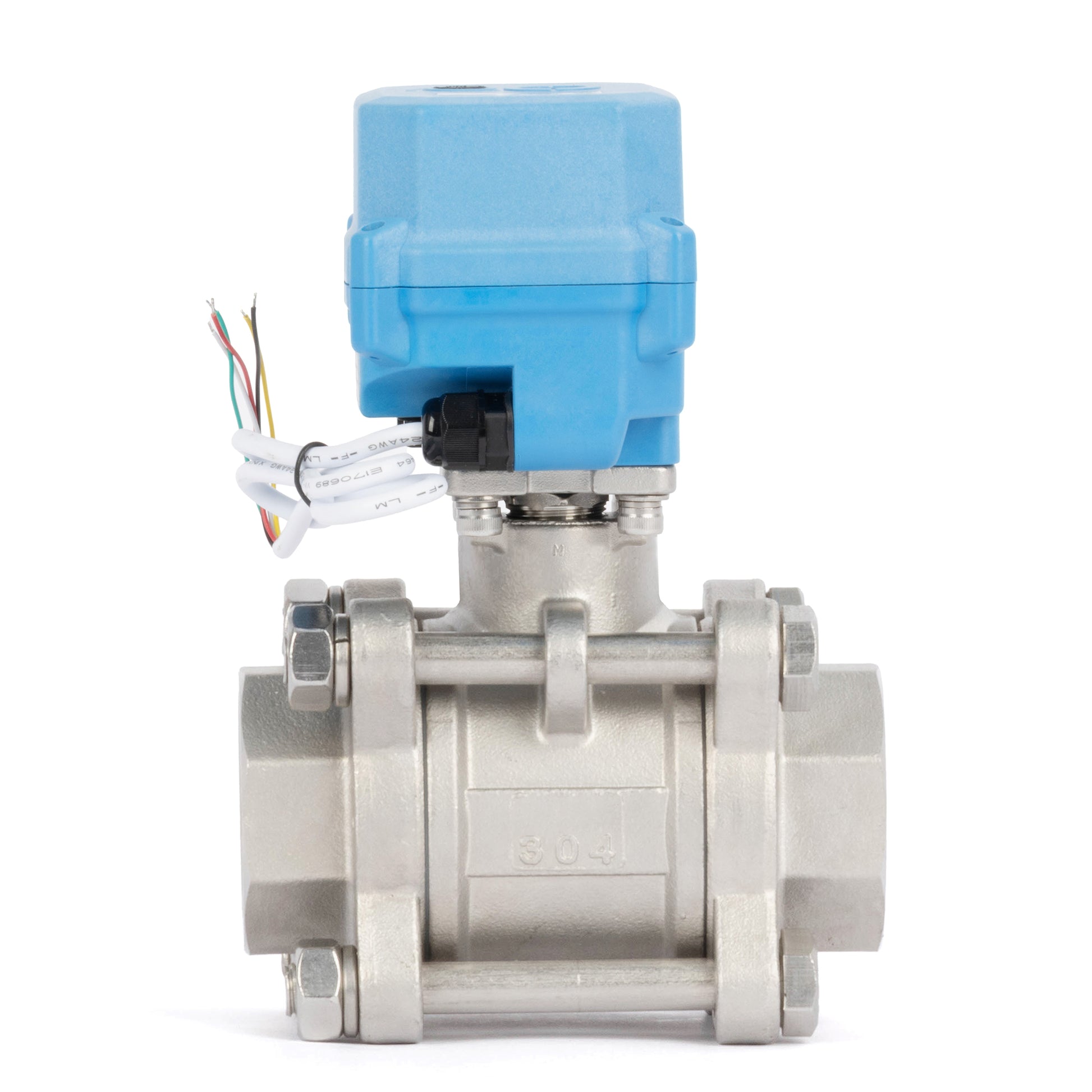

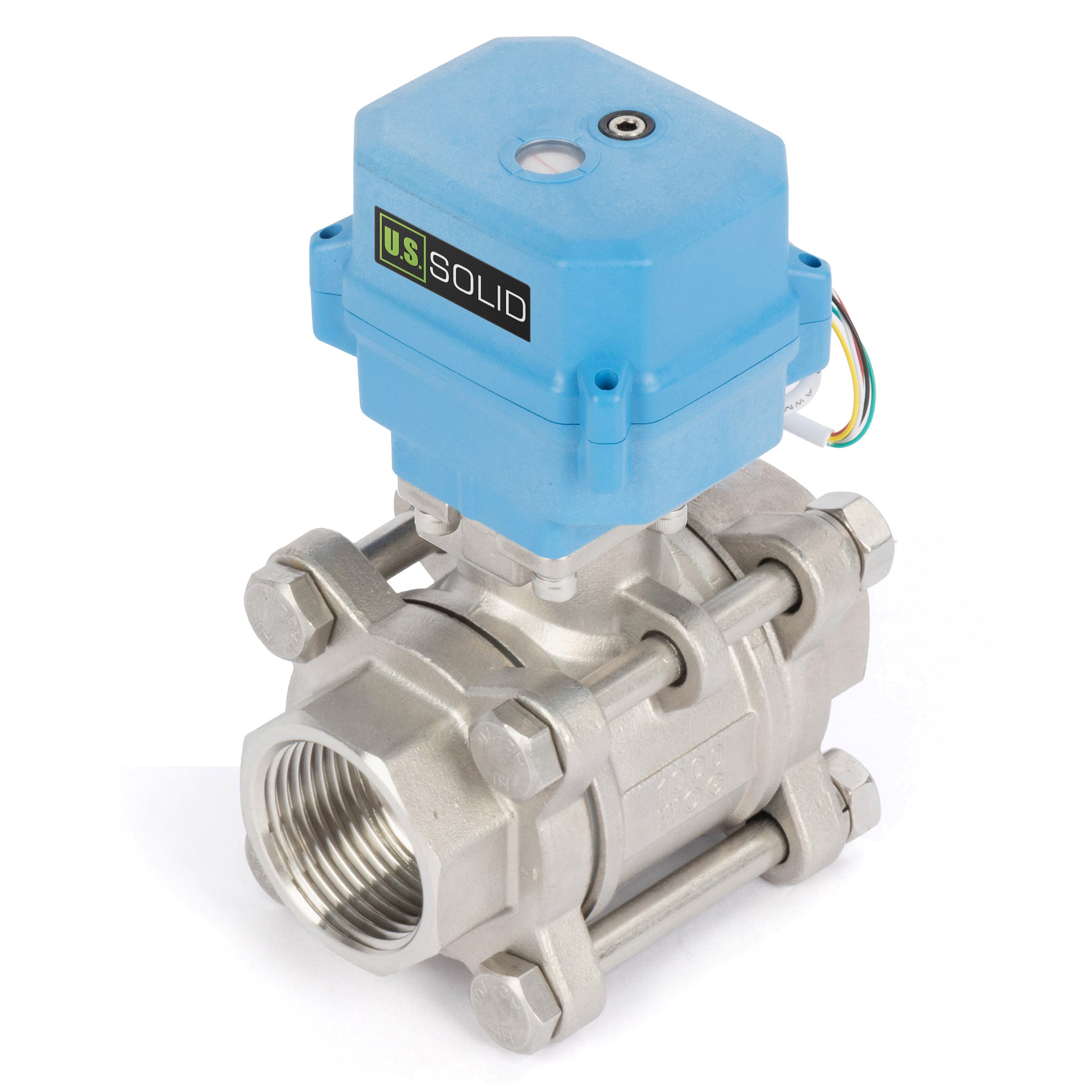

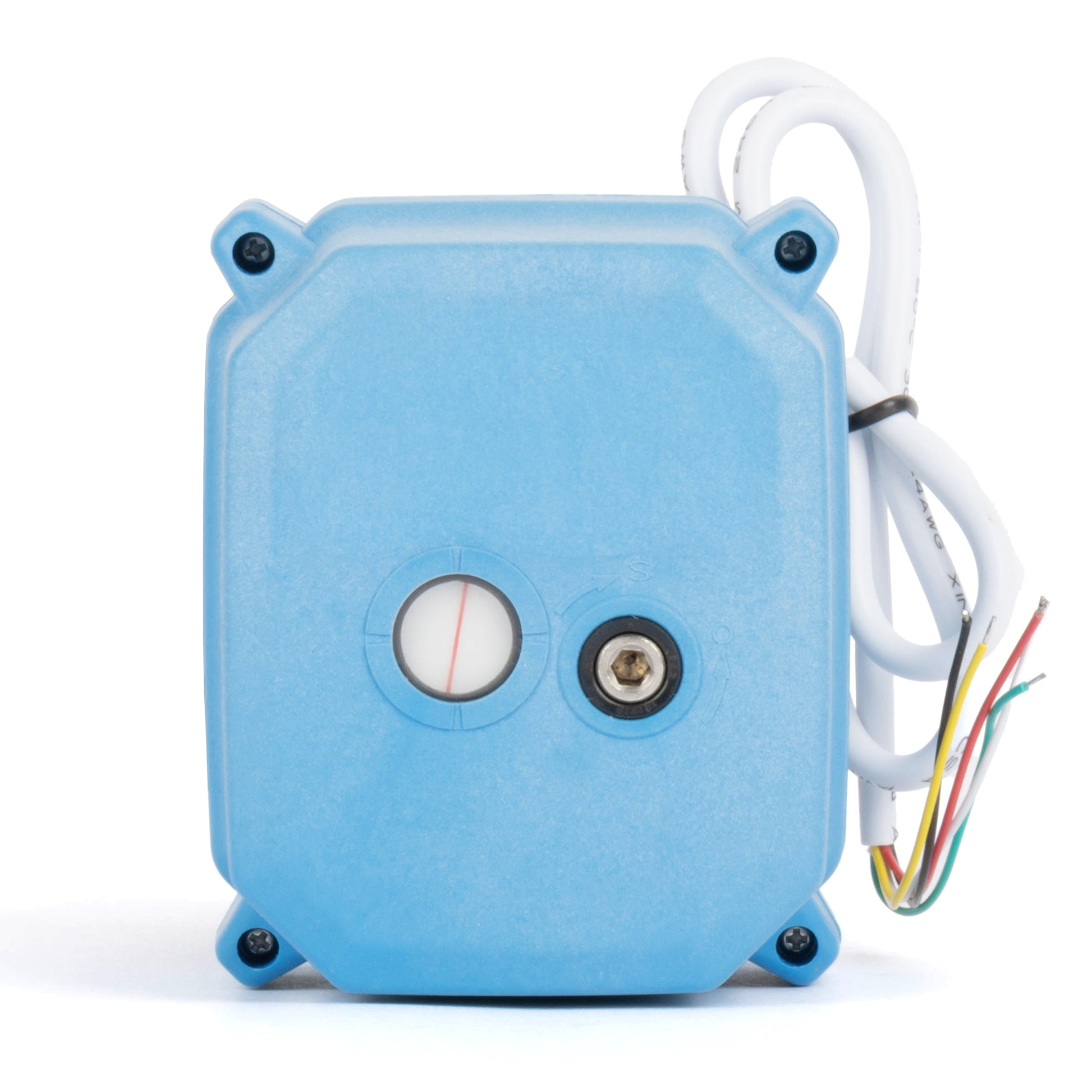

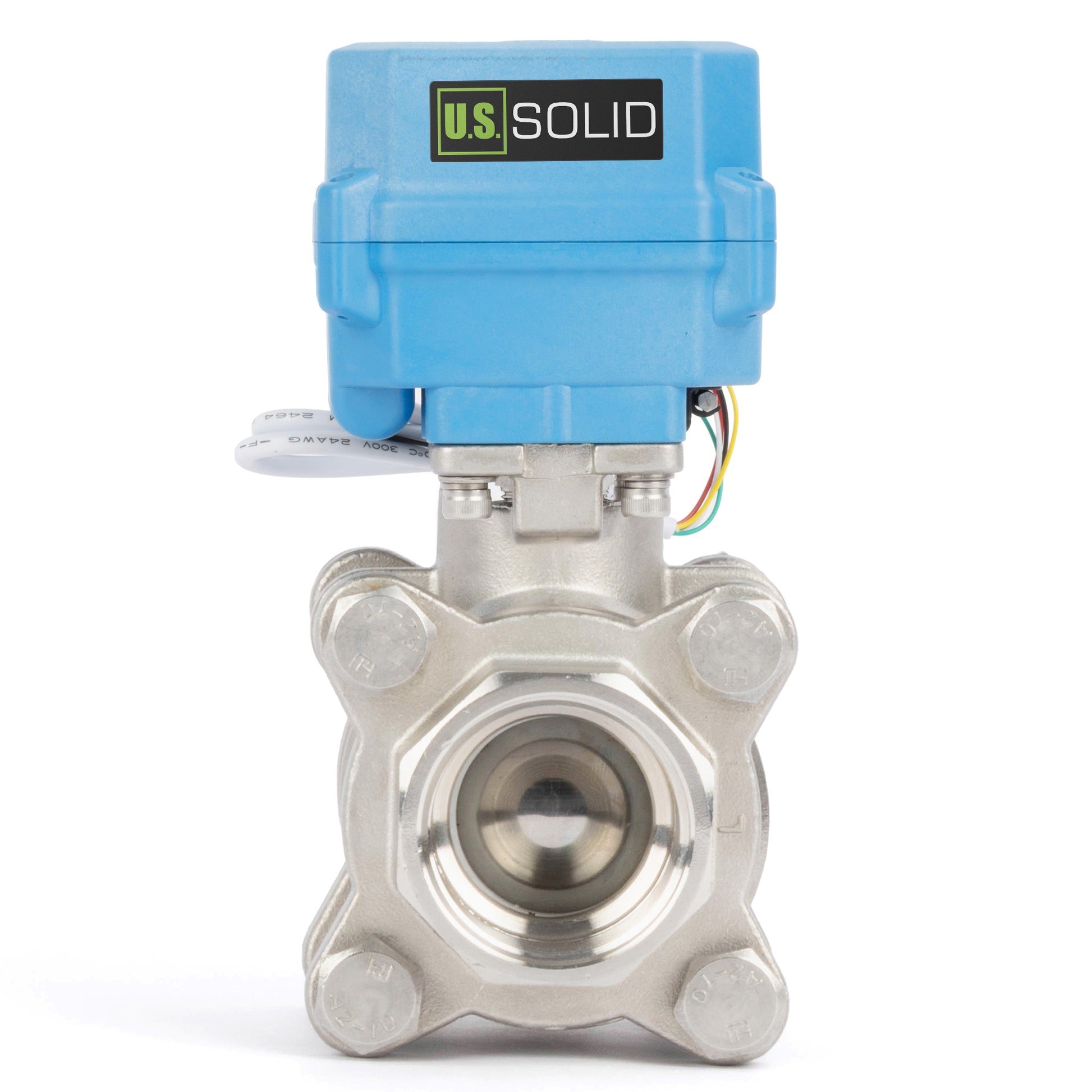

The U.S. Solid 3 in motorized ball valve has a 304 stainless steel 3-piece body that is corrosion-resistant and designed for reliable fluid control applications. The bolted body unbolts into three pieces so the center ball and PTFE seats can be cleaned or reseated in line without cutting the pipe. It uses a 5-wire auto return, normally closed design: energize to open, and on power loss an internal capacitor drives the valve back to the fully closed position for safe shutoff, while the signal wires report open or closed status to your PLC, controller, or panel. A top indicator shows valve position at a glance, and a manual override with the included hex key works the valve by hand during a power outage. The standard-port bore handles up to 1.0 MPa (145 psi) for water and air lines, filtration, dosing, and other automated fluid control systems.
FEATURES
APPLICATIONS
Suitable applications include reliable fluid control applications.
SPECIFICATIONS
| Model | USS-MSV55008 | Brand | U.S. Solid |
|---|---|---|---|
| Valve Material | 304 Stainless Steel | Seal Material | PTFE |
| Port Size | 3" | Open/Close Time | 15 s or less |
| Working Voltage | 12-24 V DC / 24 V AC | Max Torque | 50 Nm |
| Max Working Pressure | 1.0 MPa (145 psi) | Media Temperature | 2°C to 90°C (36°F to 194°F) |
| Ambient Temperature | -15°C to 50°C (5°F to 122°F) | Service Life | 30,000 cycles |
| Default State | Normally Closed | Wiring Type | 5-Wire Auto Return |
| IP Grade | IP67 | Bore Type | Standard Port |
DIMENSIONS
The following dimensions apply to model JFMSV55008. All dimensions are in mm unless otherwise specified.
| Model | JFMSV55008 | Size | 3" |
|---|---|---|---|
| A | 126.4 mm | B | 105.8 mm |
| C | 88.8 mm | D1 ± 0.5 | 3" |
| d1 ± 0.5 | 80 mm | L1 ± 2 | 192.5 mm |
| L2 ± 1 | 38 mm | H1 ± 2 | 197.8 mm |
WIRING INSTRUCTIONS
Connect red to the positive supply and black to the negative supply, with the external switch SW in series with the red-wire power circuit. When SW is closed, the actuator opens; after the valve reaches the fully open position, the internal feedback contact connects green to white, indicating the fully open position. When SW is open, the actuator closes; after the valve reaches the fully closed position, the internal feedback contact connects yellow to white, indicating the fully closed position. White is the feedback common and the green, yellow, and white wires must not be treated as ordinary power-input wires.
