The USS-MBV Series Motorized Ball Valve represents U.S. Solid's second-generation advancement in motorized ball valve technology. Building on the success of our USS-MSV series, which is a top-selling motorized ball valve on Amazon, we incorporated valuable design insights and customer feedback to develop the enhanced USS-MBV series.
These motorized ball valves are equipped with two indicator lights—open and closed. The lights illuminate under their respective conditions, providing clear visual feedback on the valve’s status and helping to prevent issues such as false opening or closing.
Featuring a two-wire auto-return design, the valves simplify the wiring process and enhance operational convenience. They operate on 9-36V DC power, opening fully in just 6-10 seconds when energized. As normally closed valves, they automatically return to the closed position when power is disconnected. Once fully open, the valves consume minimal power, allowing the indicator lights to remain active. This energy-efficient design makes them a more environmentally friendly choice compared to traditional solenoid valves.

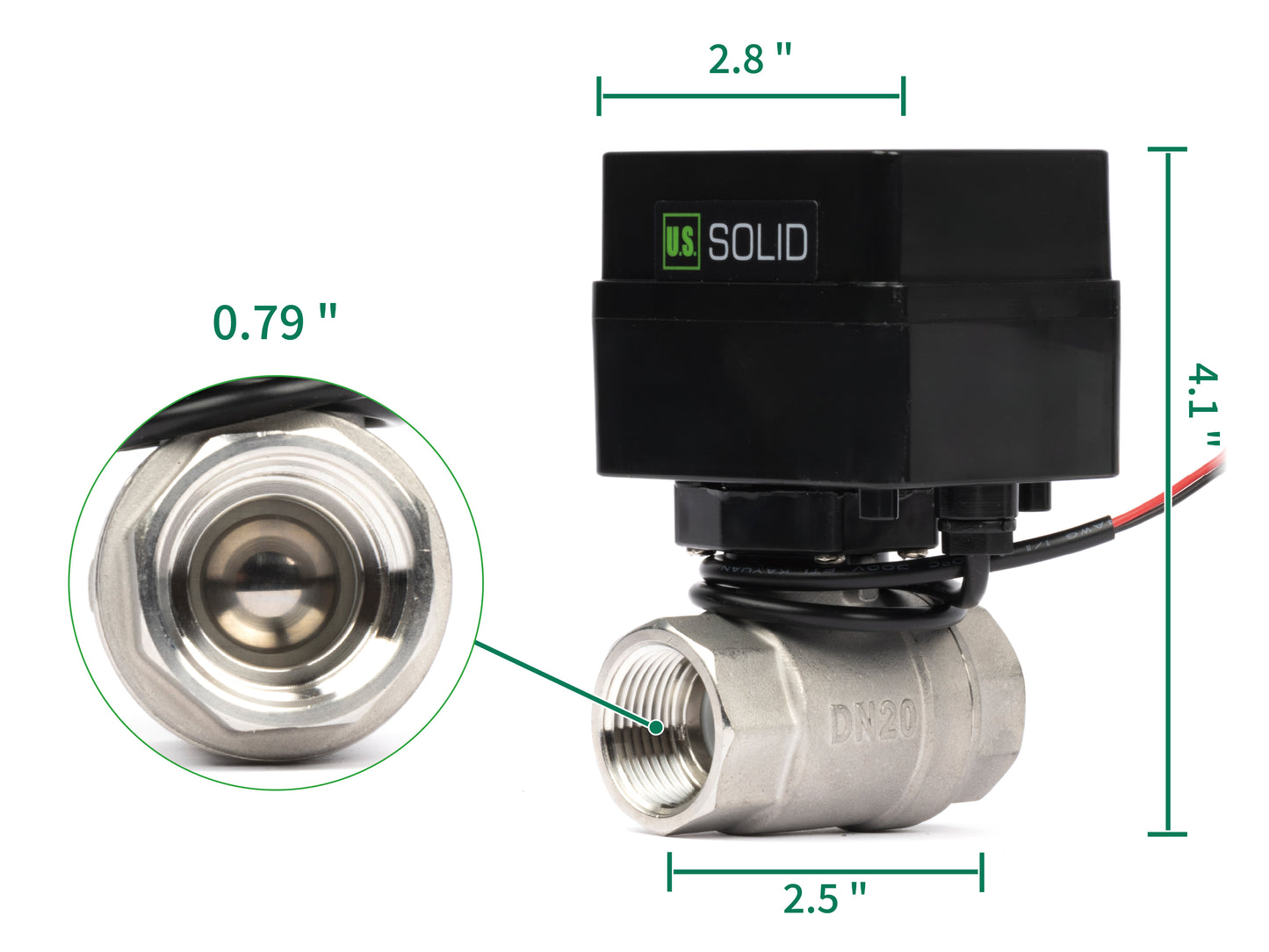

Specifications:
Size: 3/4"
Valve Material: Stainless Steel
Seal: PTFE
Flow Aperture: 20 mm
Working Voltage: 9-36V AC/DC
Mechanism : 2 Wire Auto Return
N.C./N.O.: Normally Closed
Close/Open Time: 6-8 Seconds
Life Cycle: 80000-100000
Indicator Lights: Open, Closed
Max Power: 5 W
Max Torque: 2 N m
Max Pressure: 1.0 Mpa
Temperature for Flow Medium: 0- 90°C (32-194°F）
Ambient Temperature: -5-40°C (23-104°F）
Bore Type: Full
Thread Type: NPT
