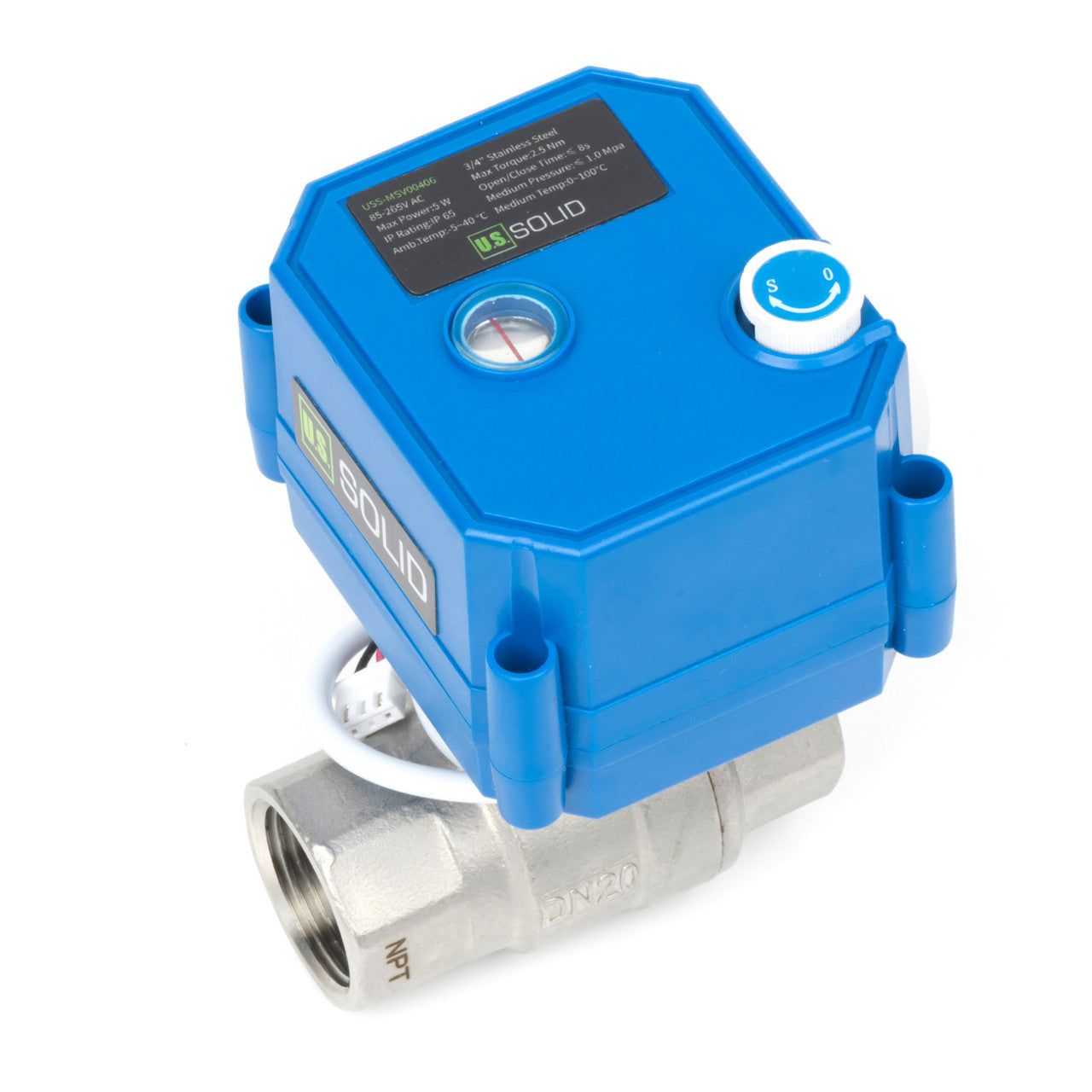

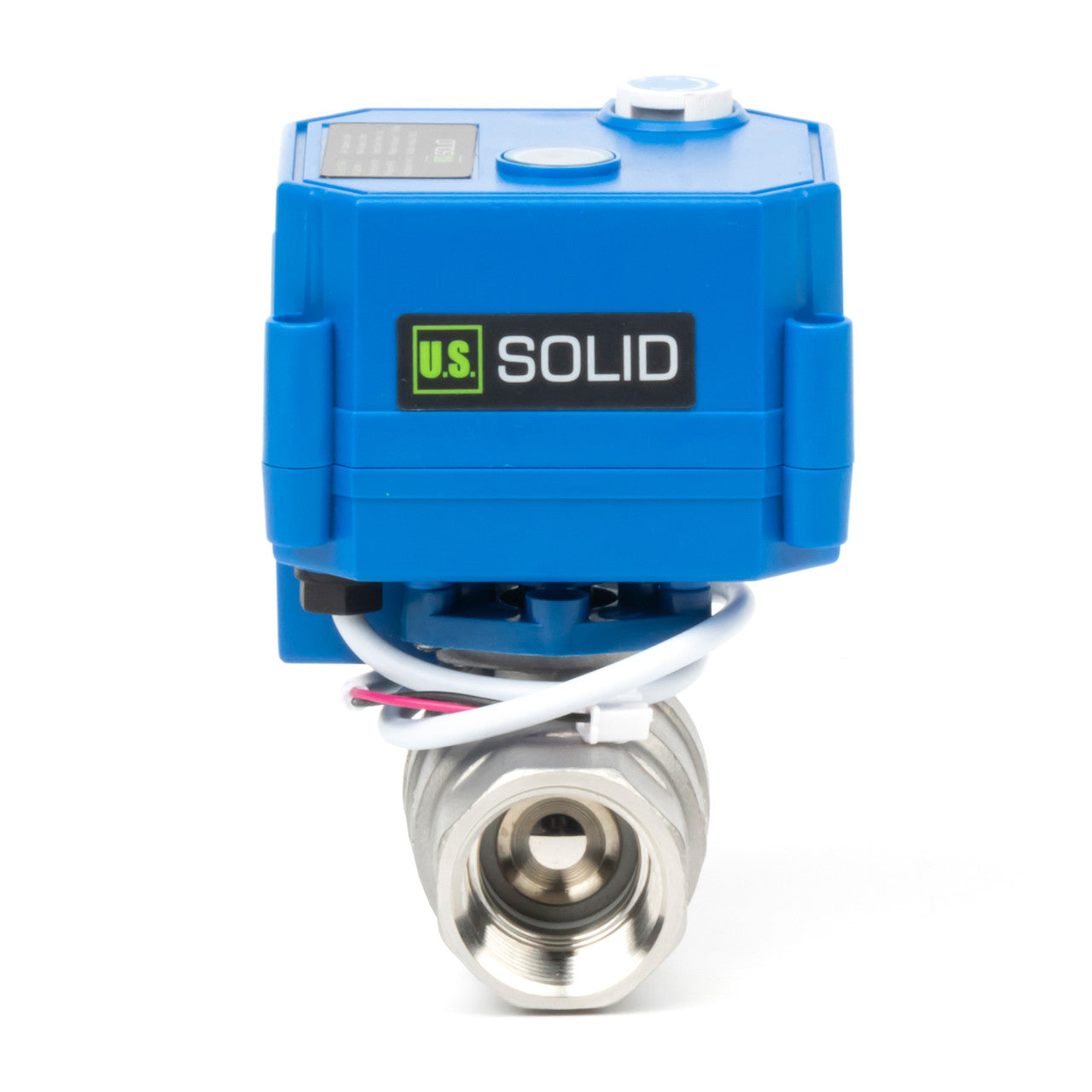

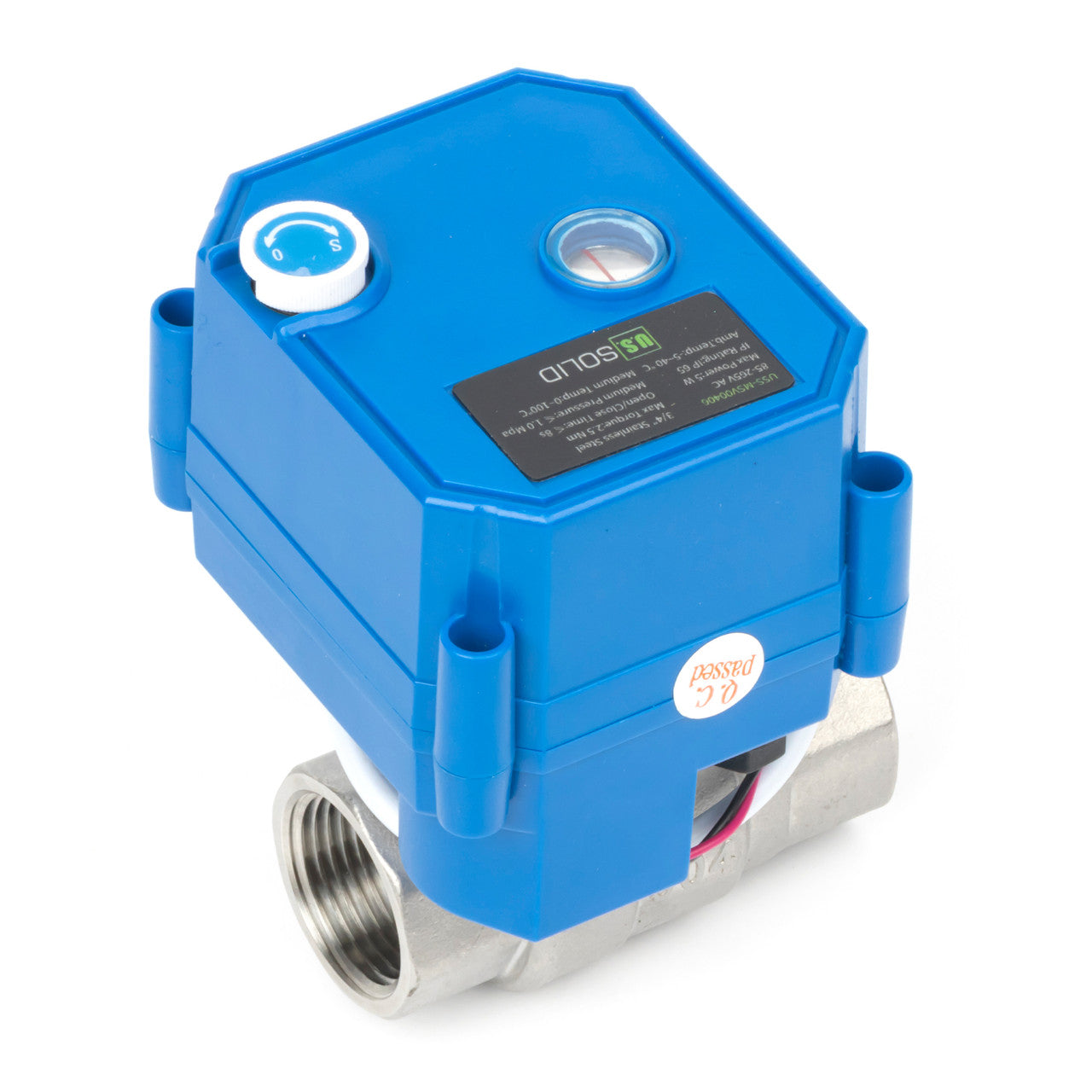

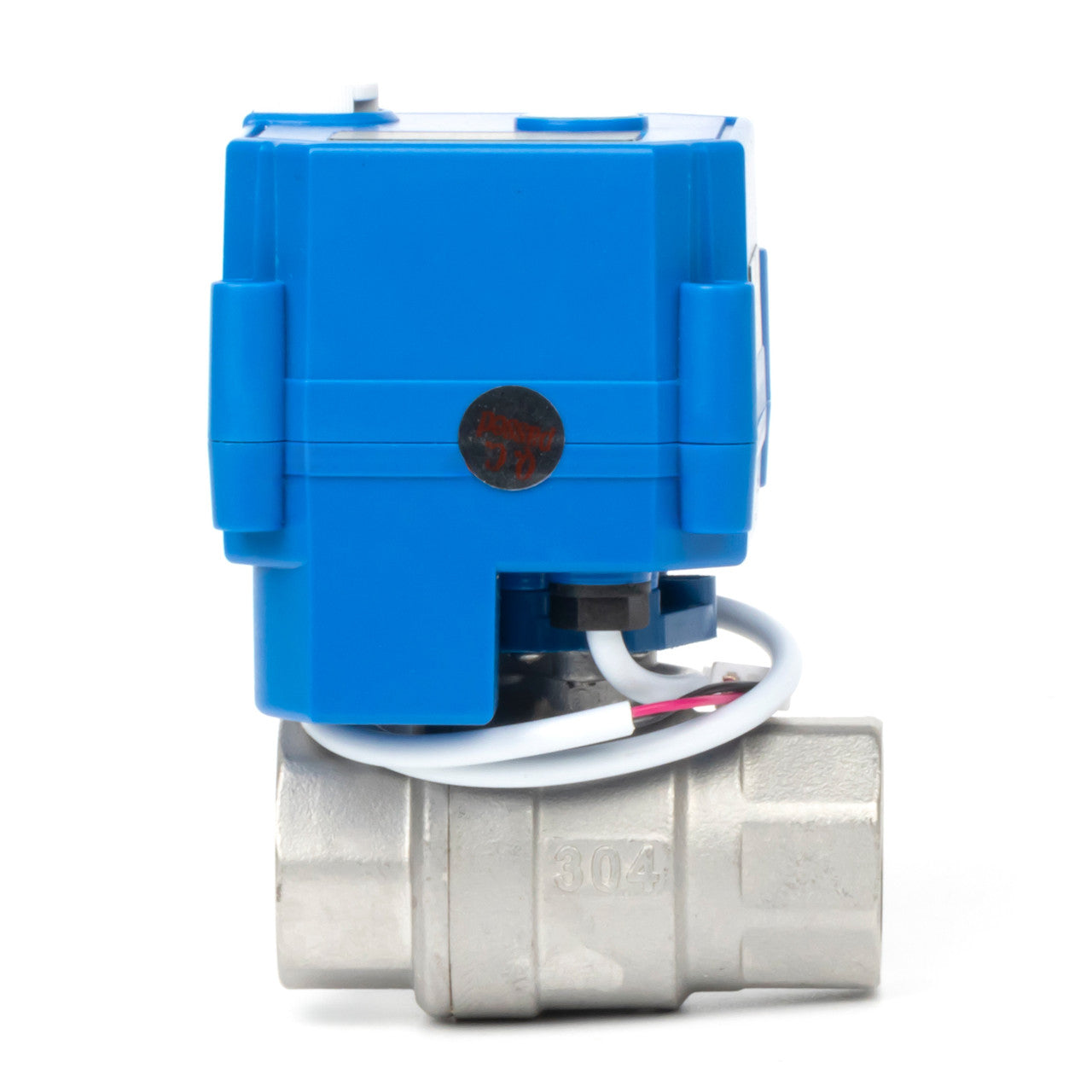

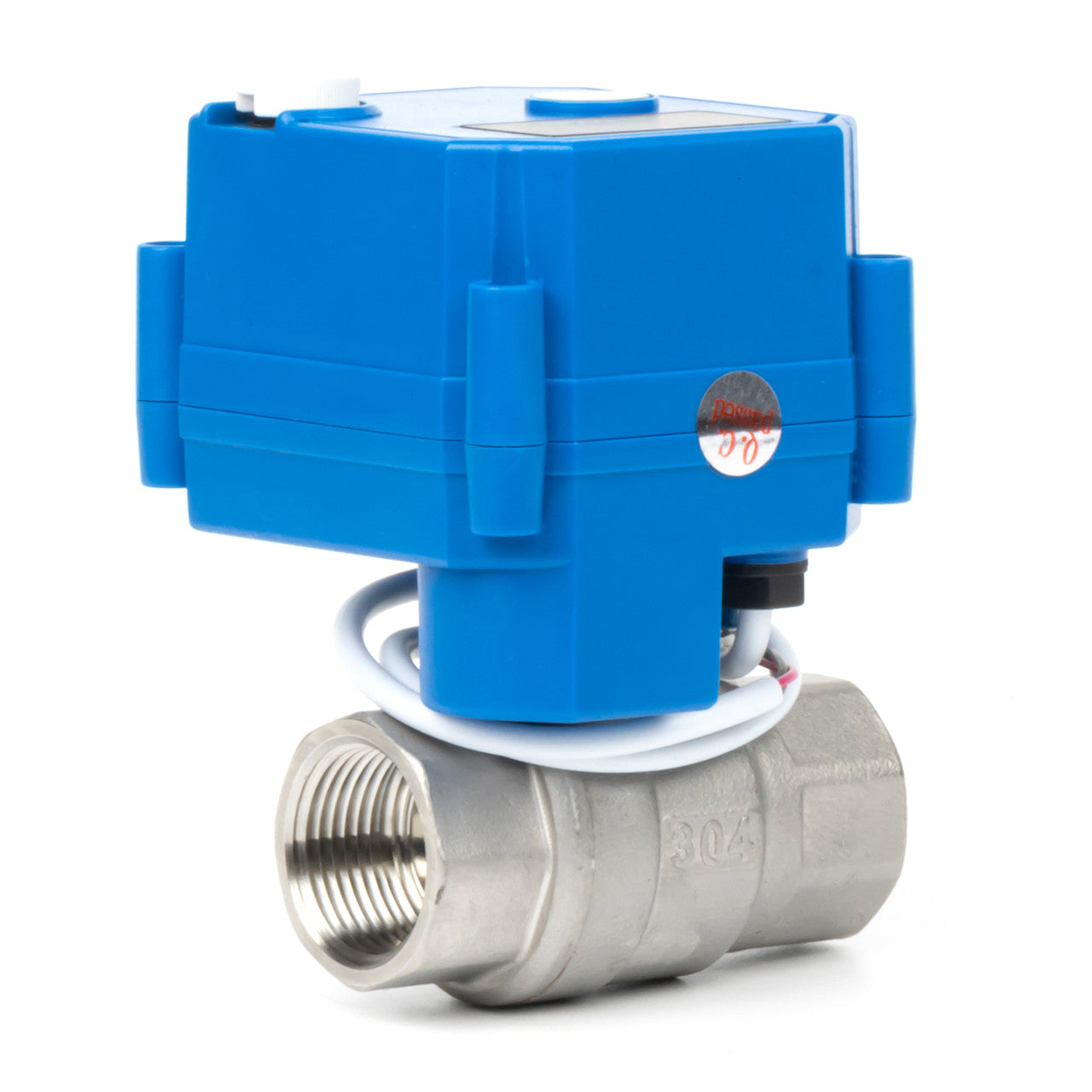

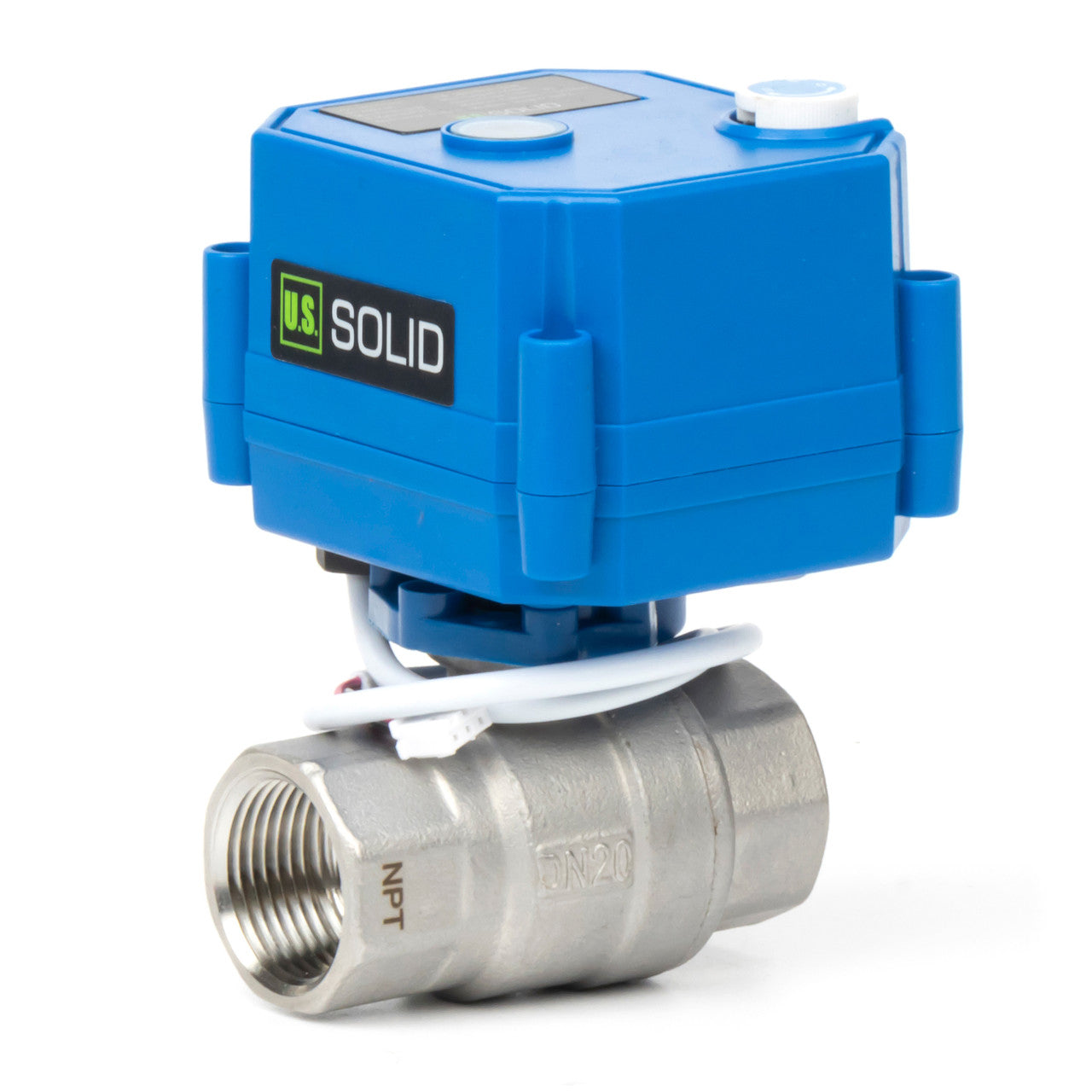

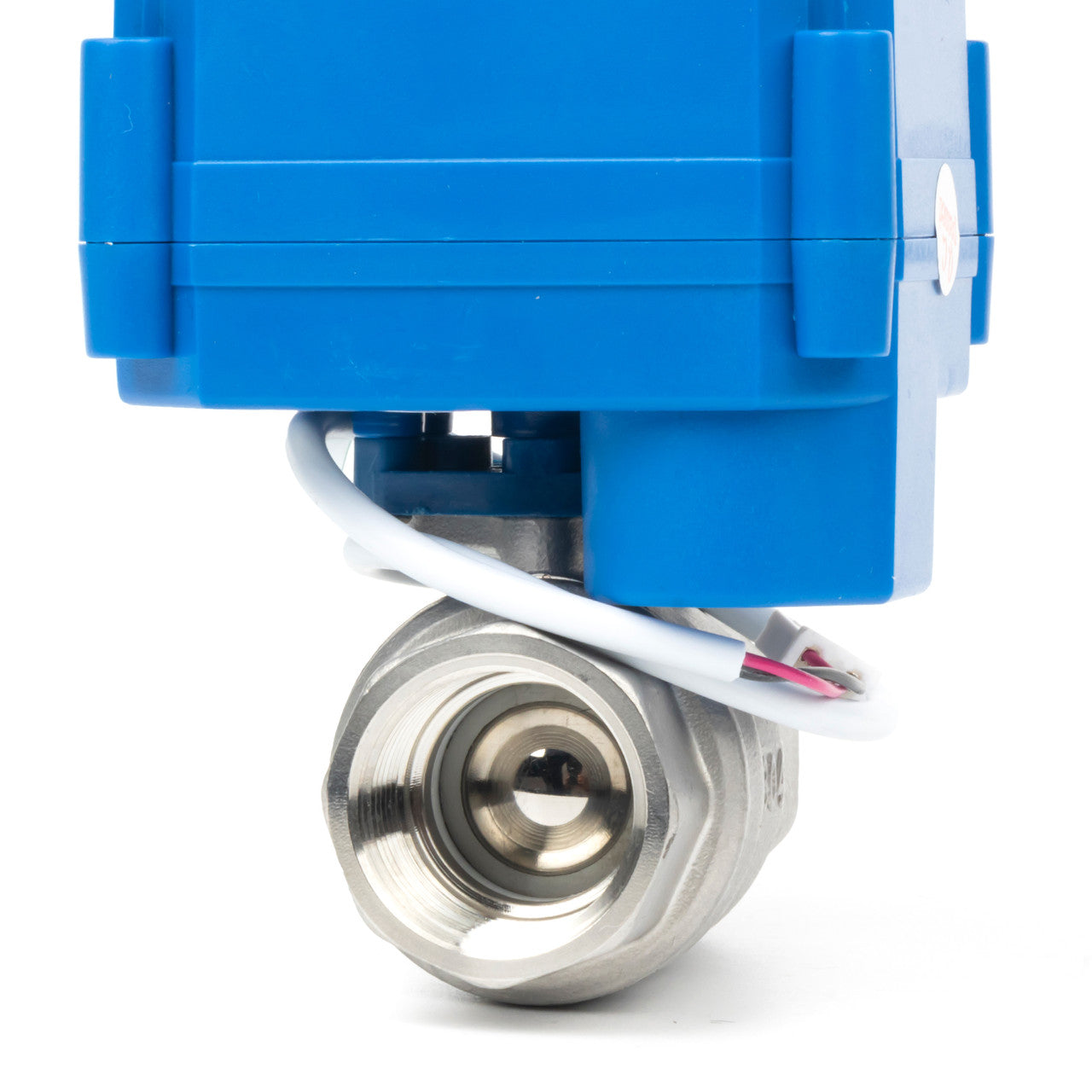

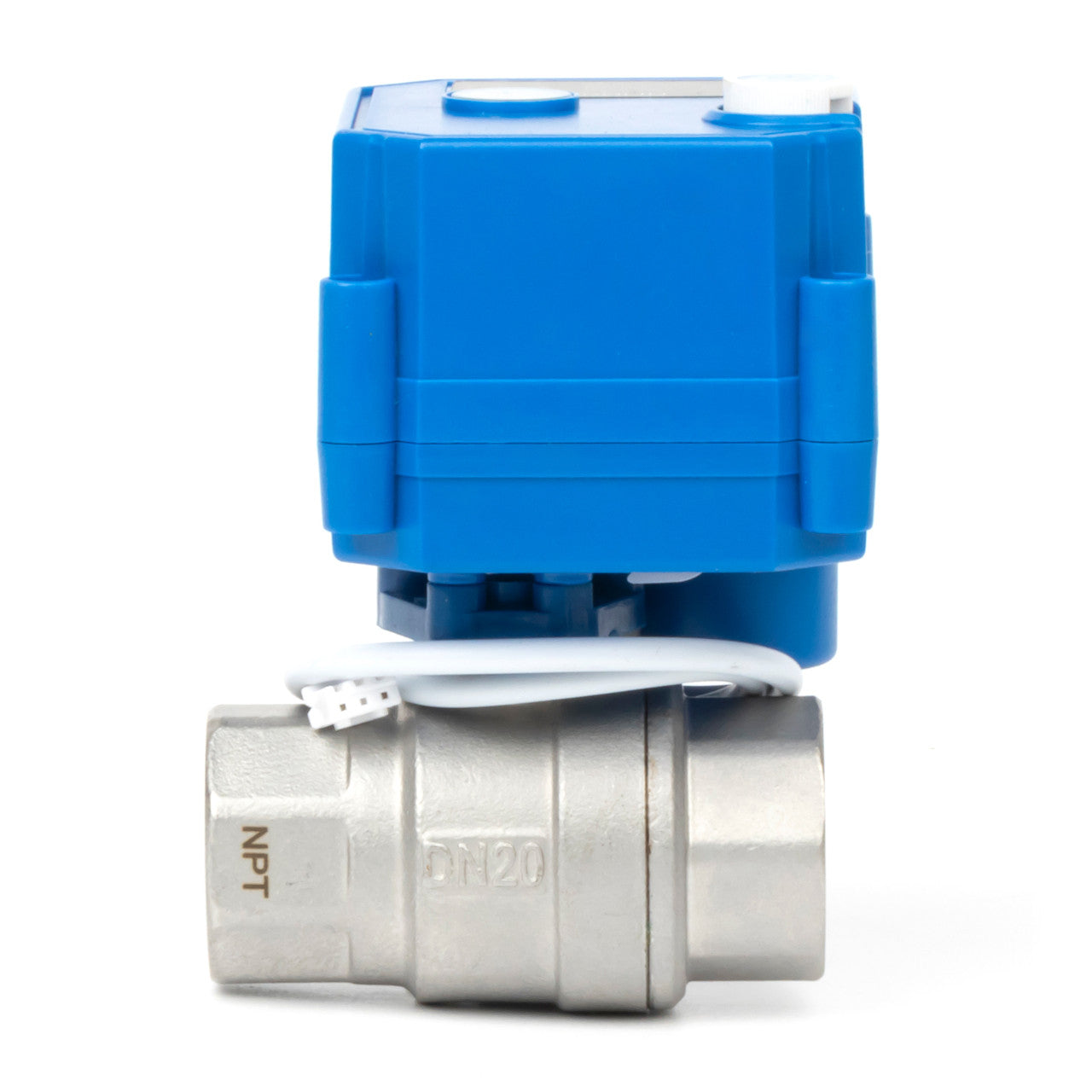

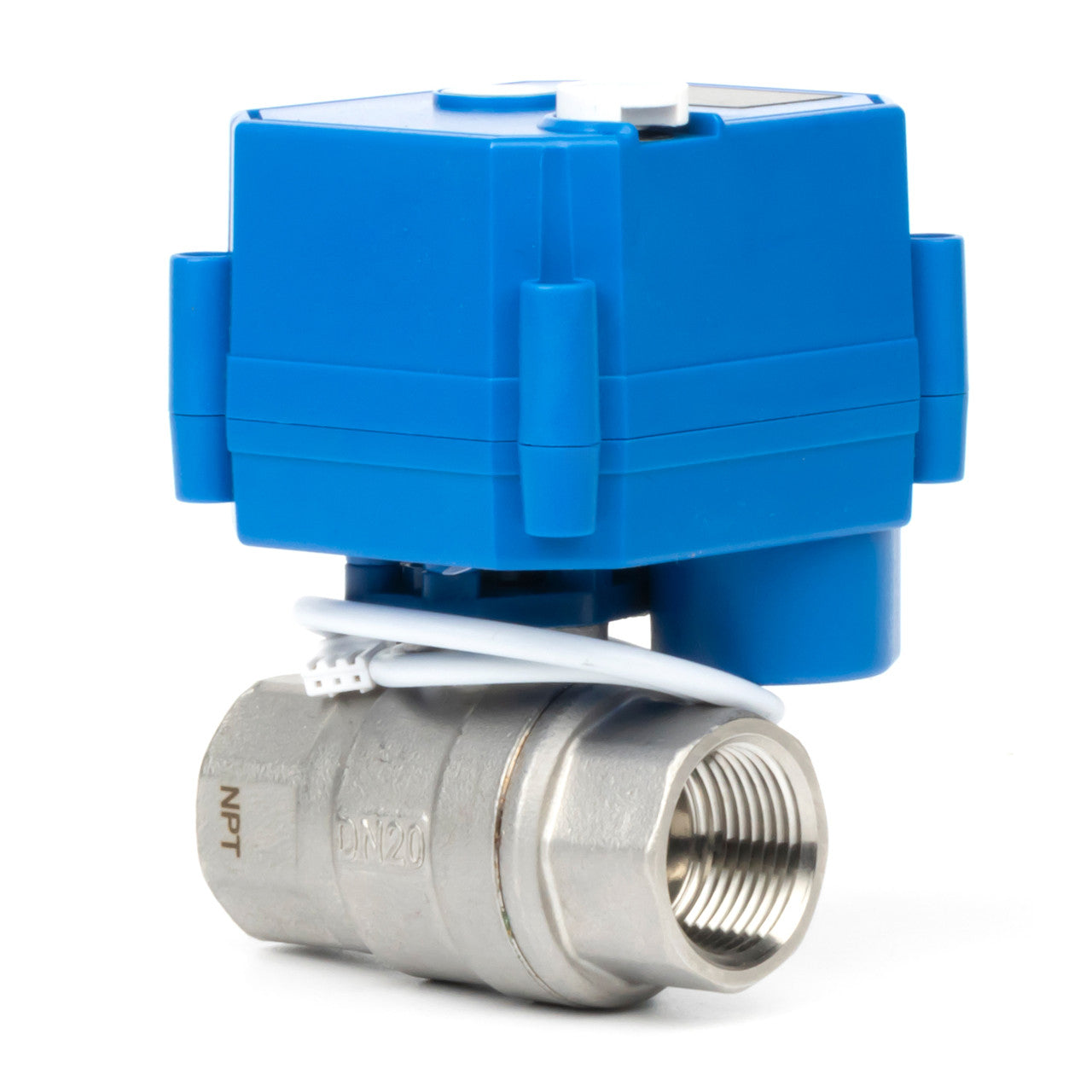

The 3/4-inch motorized ball valve, crafted from durable brass and featuring a 2-wire automatic return, is a versatile component for a variety of pipe systems. Activated by an alternating voltage range of 85-265 V AC, this valve swiftly opens within 6 to 8 seconds upon actuation. Equipped with built-in limit switches, the valve operates with minimal energy consumption and automatically closes in the event of a power outage. Additionally, the valve offers a manual function for convenient operation during power failures and includes a handy position indicator at the top of the actuator for easy status identification.
Features:
Versatile Control: The motorized ball valve provides both manual and wired control options for independent operation.

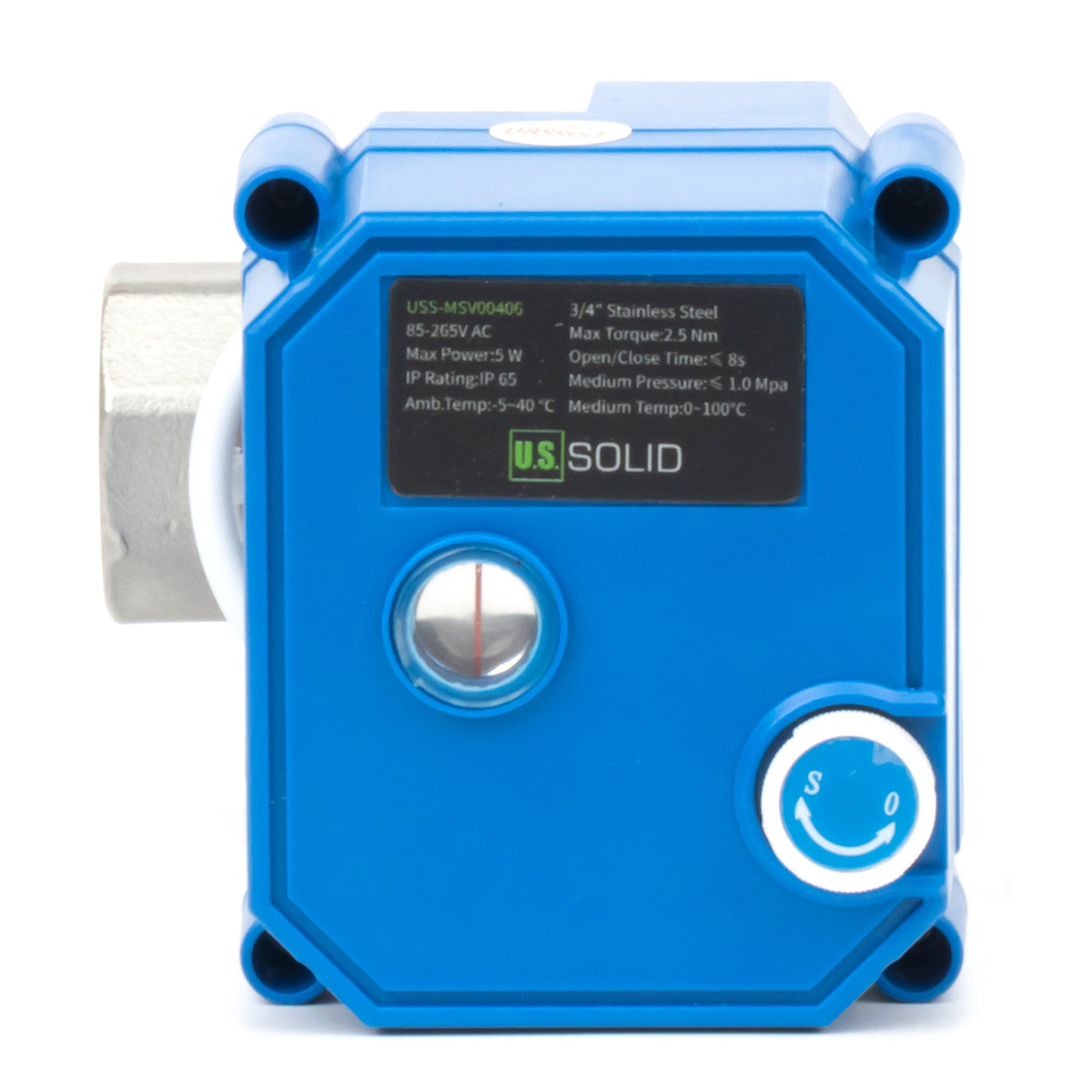

Status Clarity: Equipped with a position indicator, this valve offers clear visibility into whether it is open or closed at any given moment.
Wide Voltage Compatibility: Operating efficiently within a broad voltage range of 85-265V AC/DC, the valve swiftly opens or closes in just 6-8 seconds with no energy consumption post-movement.
Convenient Auto Return: Featuring a 2-wire auto return setup, the valve automatically returns to the closed position when power is disconnected, ensuring hassle-free operation.
Reliable Performance: With a lifespan of 80,000 to 100,000 cycles, this valve is a durable and energy-efficient alternative to solenoid valves, reducing the risk of overheating and ensuring long-term reliability.
Specifications:

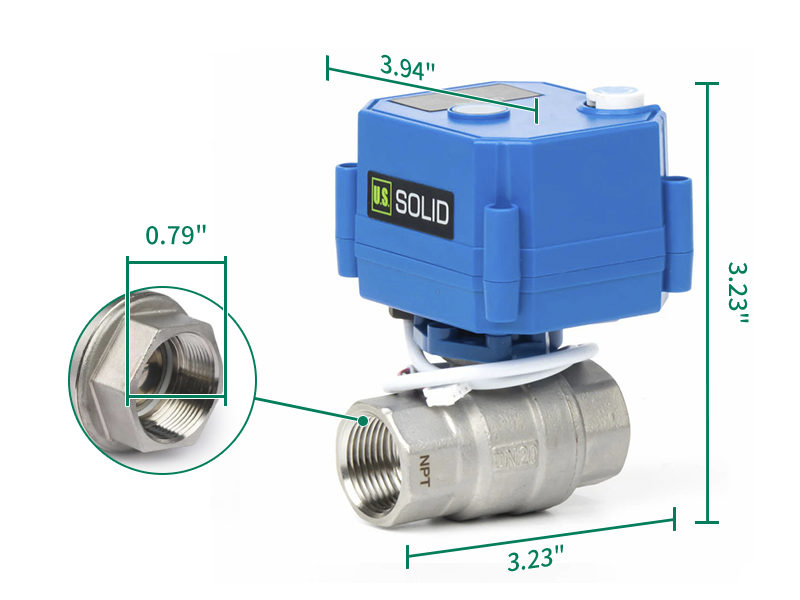

Size: 3/4”
Material: Stainless Steel
Ball Seat: PTFE
Seal: Silicone Rubber
Close/Open Time: 6-8 Seconds
Voltage: 85-265V AC/DC
Max. power: 5W
Max. torque: 2.5 N m
Max. pressure: 1.0 MPa
Temperature range for flow medium: 0°C to 100°C
Environment Temperature Range: -5°C to 40°C
Housing rating: IP65
Life Expectation: 80,000-100,000 cycles
Thread: NPT
Bore Type: Full
The valve cannot be used in strong acid, strong base, sewage, industrial gas and other media with many impurities.
Please note: To ensure automatic reset functionality when the power is disconnected, it is essential to power the device for approximately one minute to charge the capacitor in 2-wire auto return motorized ball valves.
