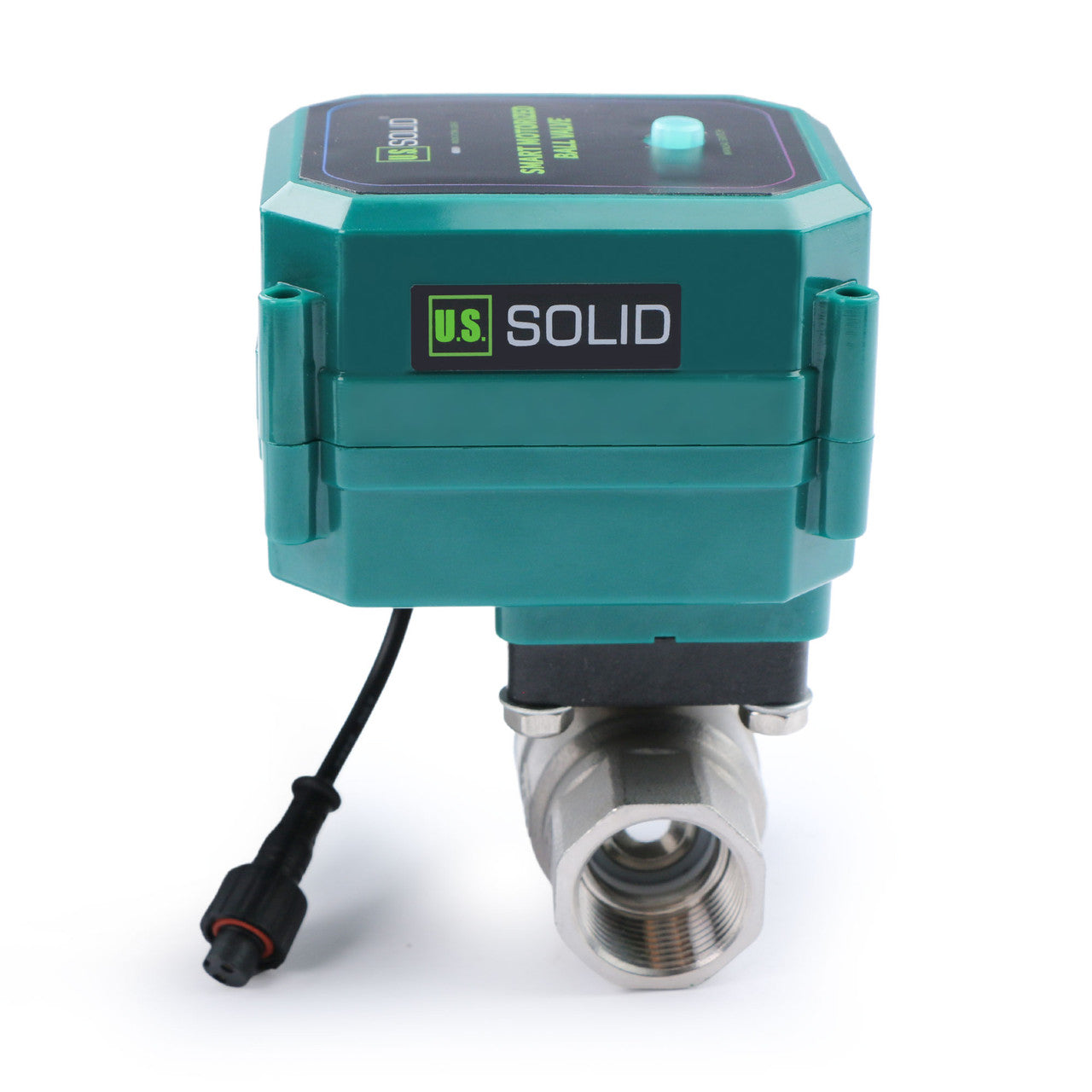

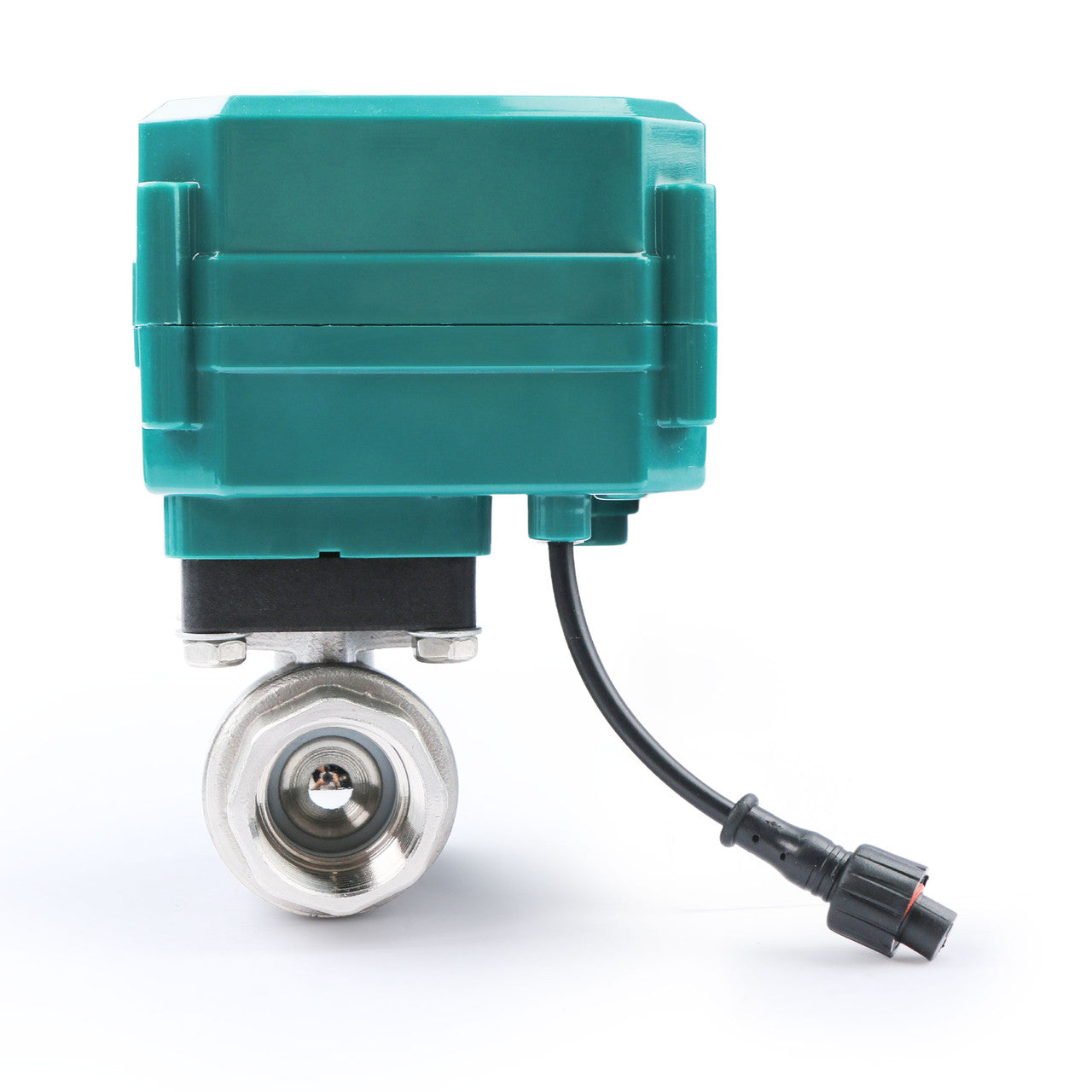

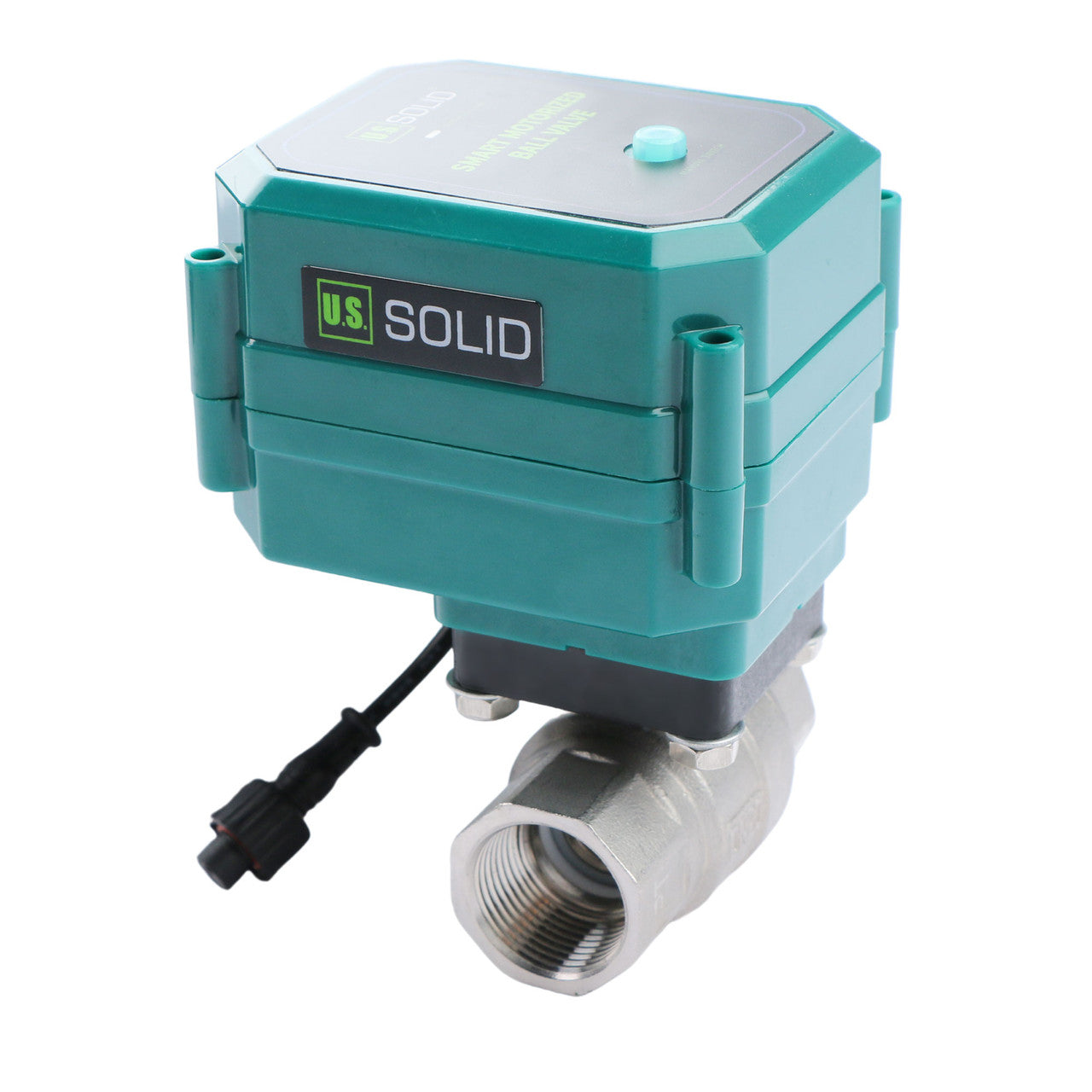

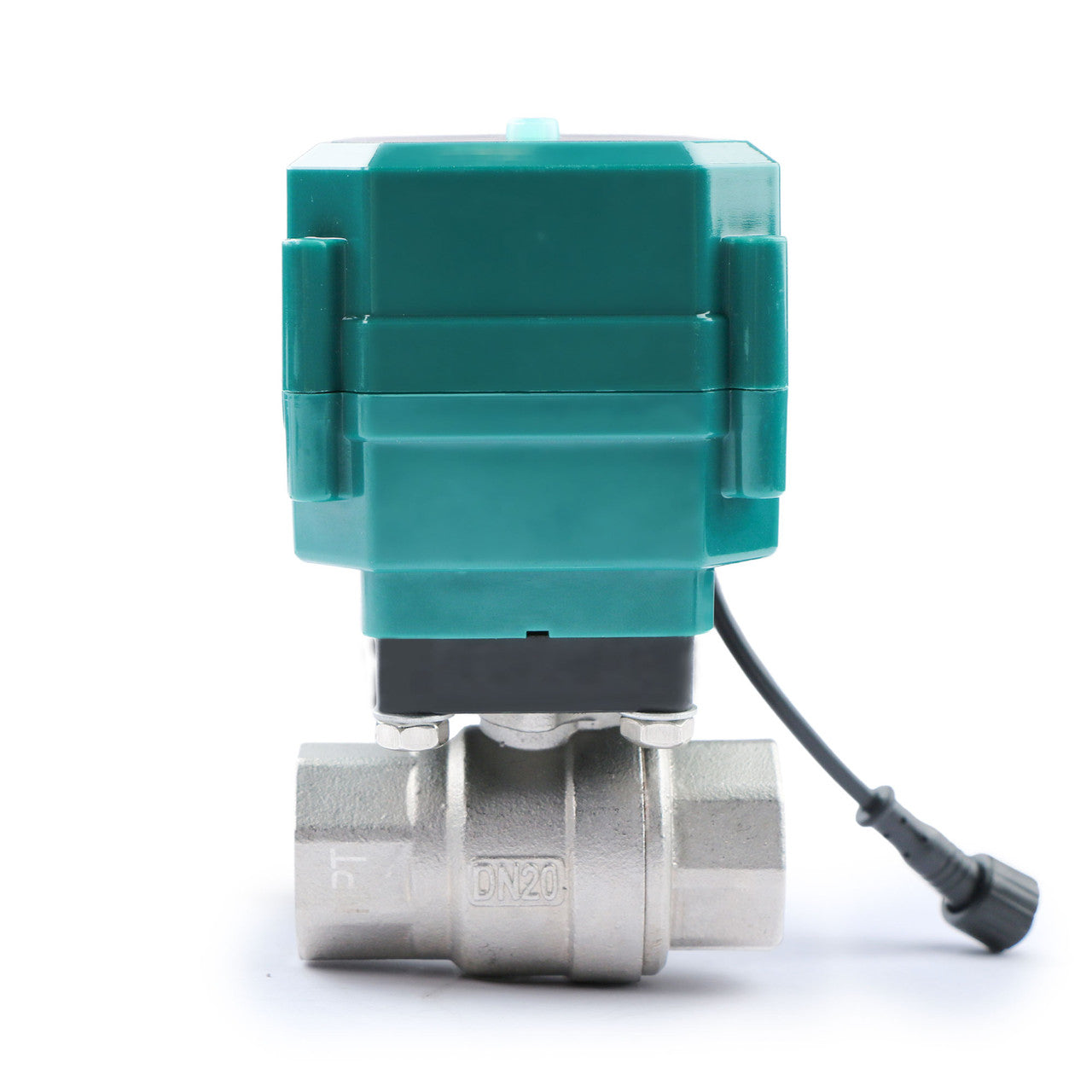

U.S. Solid Smart Motorized Ball Valve is a new innovative motorized ball valve that comes with a smart control function. The smart valve can be controlled by an application on mobile devices after setting up network distribution for connection to Wi-Fi. It is a revolutionary product in intelligence and convenience as compared to a traditional motorized ball valve.
Key Features:

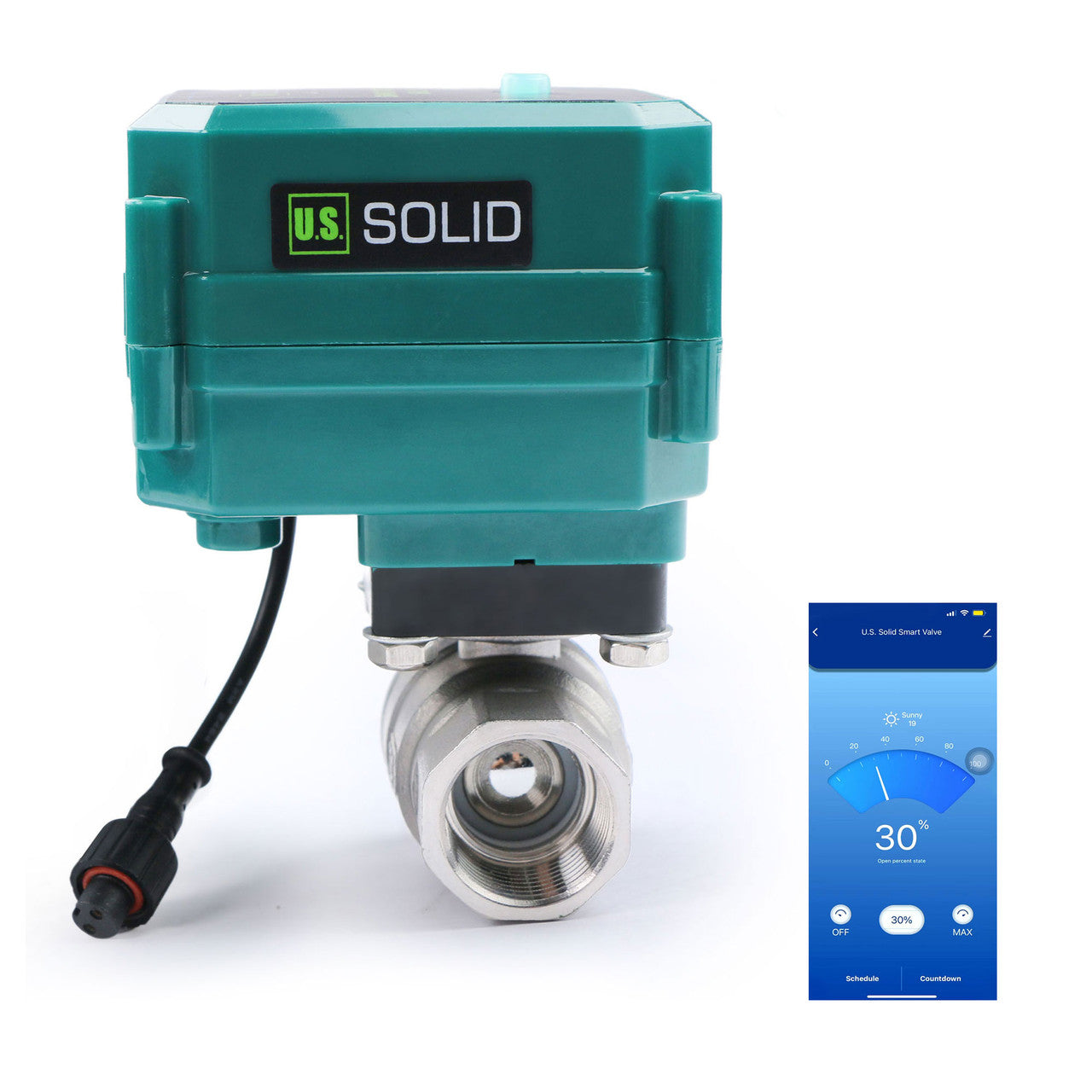

Smart Control : The valve can be controlled by mobile device, it means you can remote control it wherever you are
Open Percentage : The open percentage can be selected on the operation interface to finely control the flow rate of the medium
Schedule Setting : It will automatically open or close as soon as the scheduled time is up after the time is set

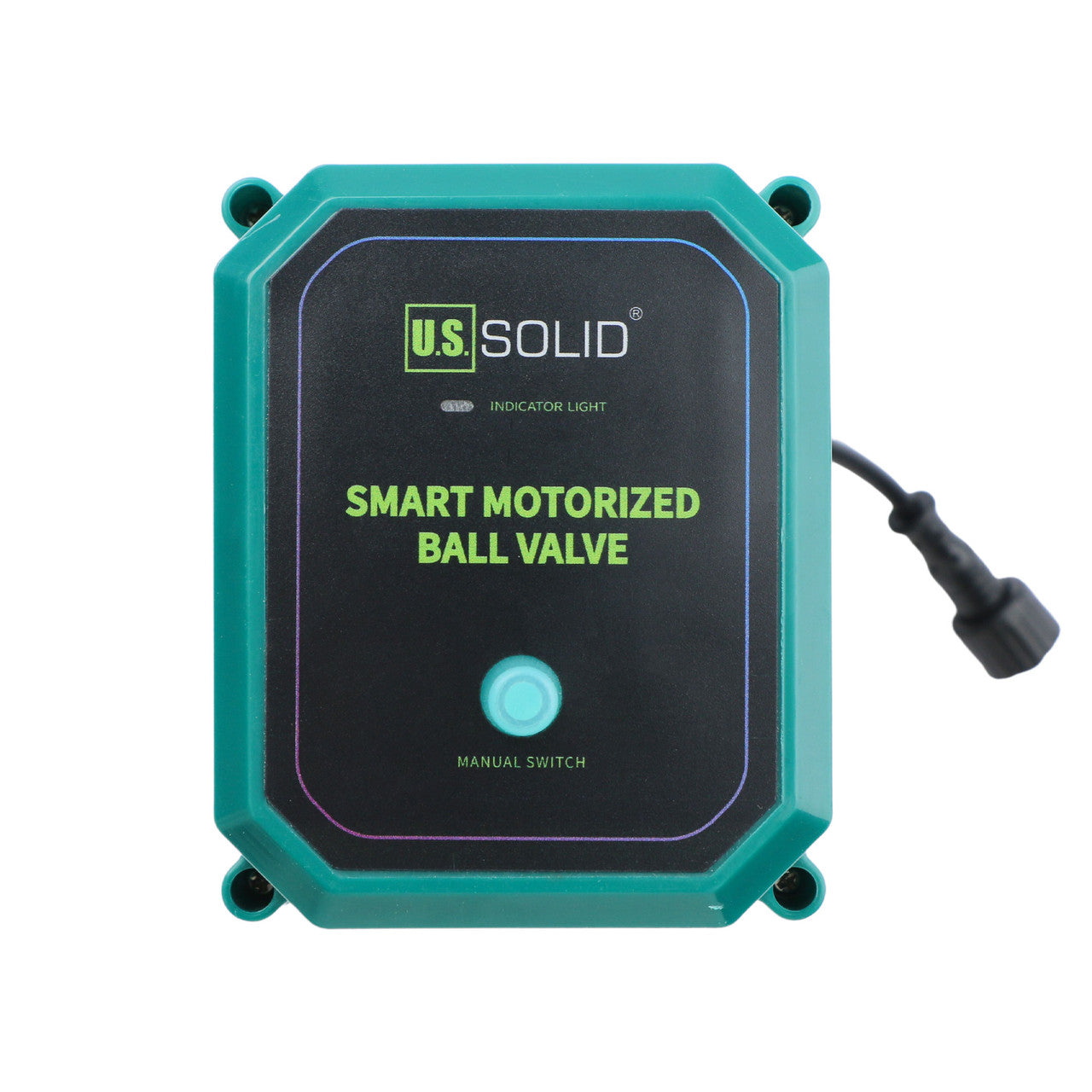

Manual Switch : The valve also provides a manual switch to control its open and close

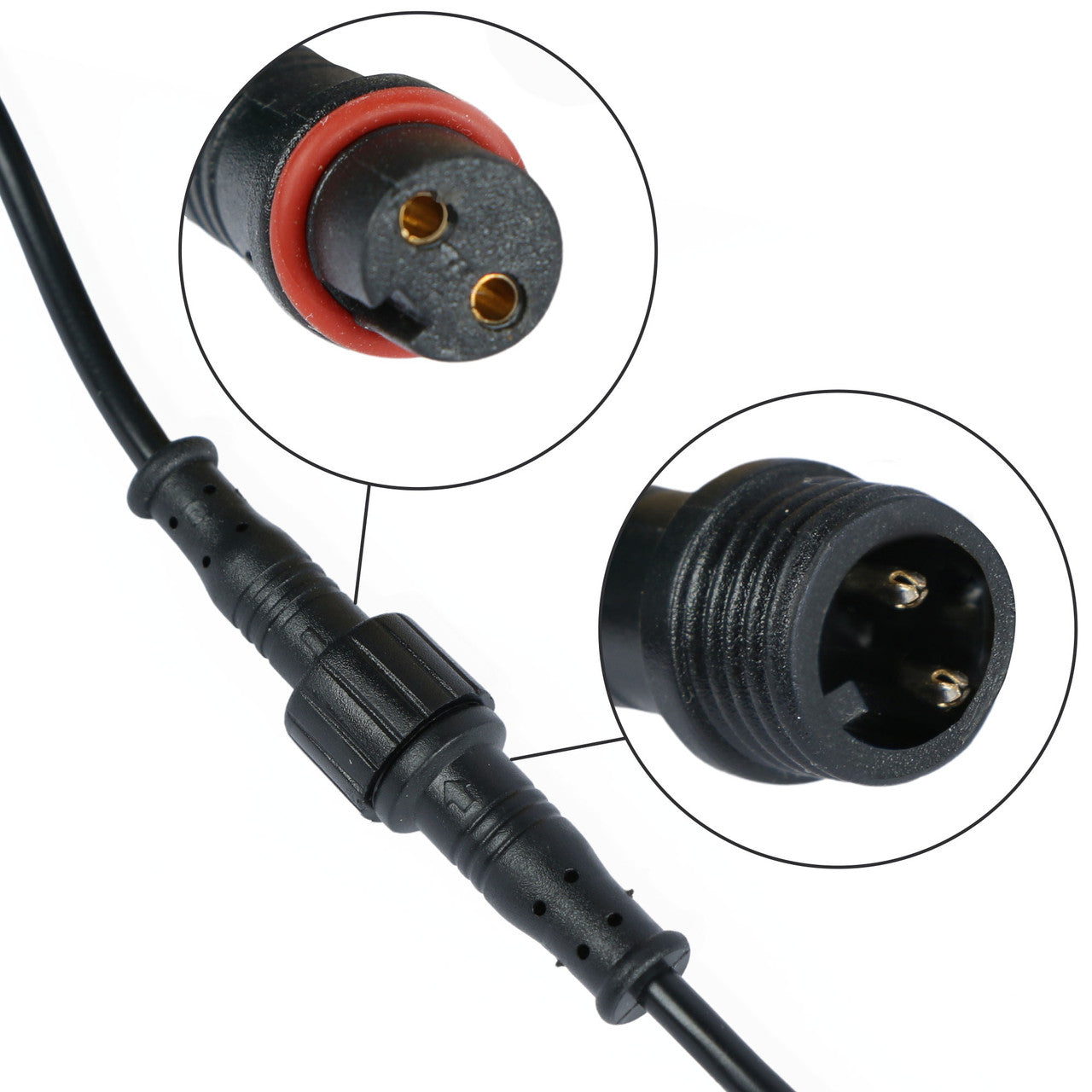

USB Connection : To simplify the wiring, this valve is made to connect by USB port
Power-failure Protection : If the power is suddenly cut off, the valve will automatically close within 2 seconds.
Specifications:
Model: USS-MSV00083

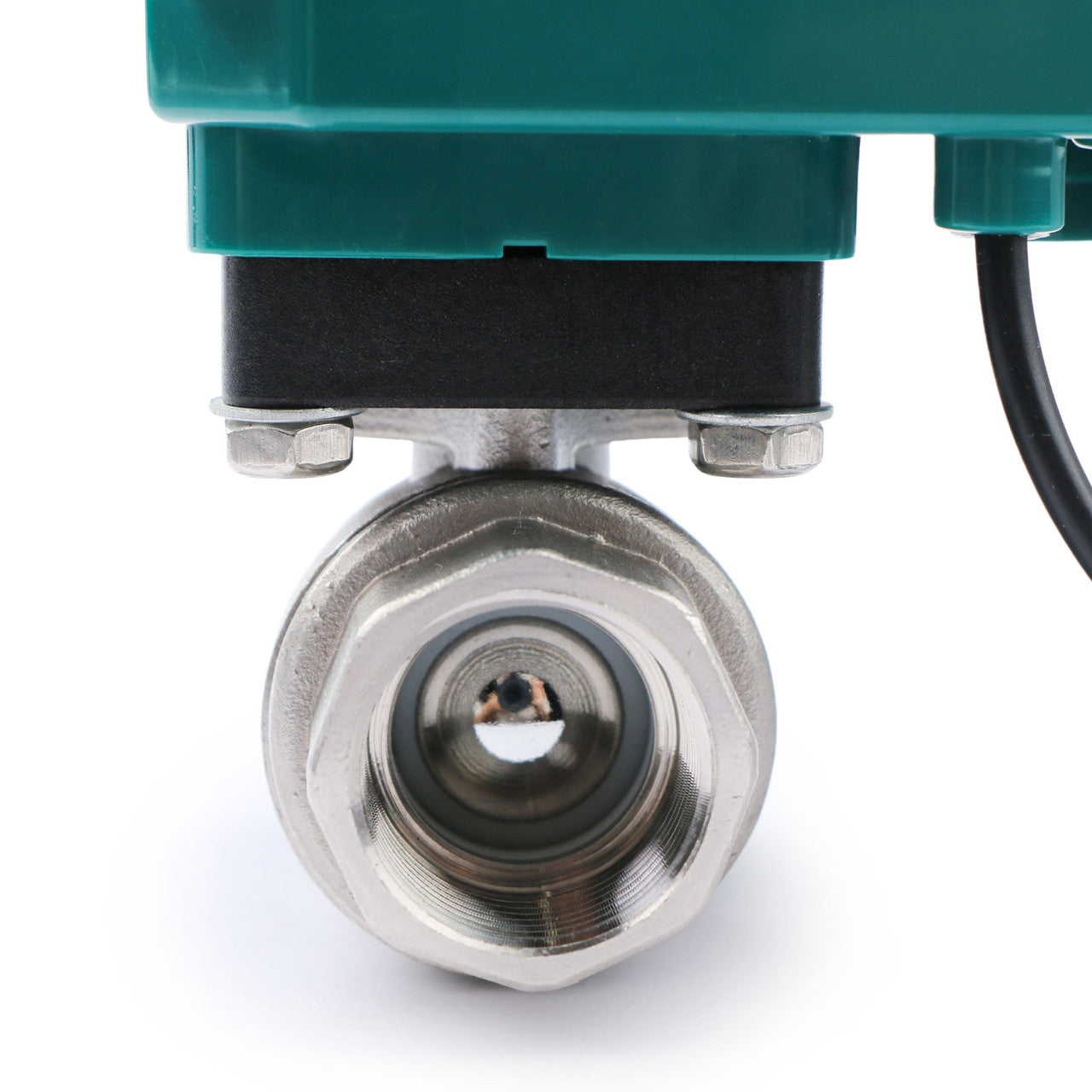

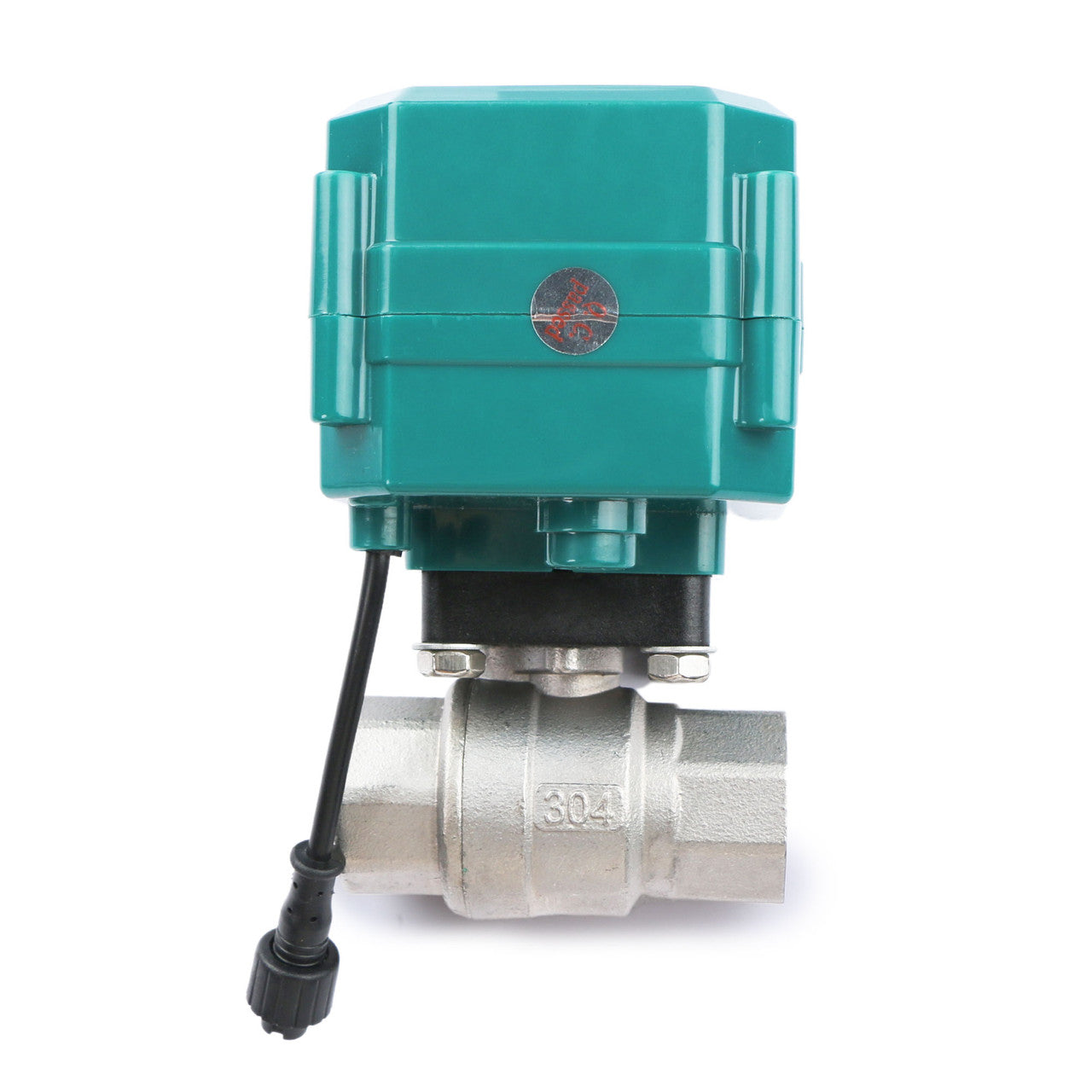

Body Material: Stainless Steel
Shell Material: UPVC
Thread Type: NPT
Input Voltage: 5V DC
Power: < 5 W
Wiring Type: USB
Max Pressure: 1.0 Mpa
Output Torque: 10 Nm
Ambient Temp. Range: -4°F-113°F (-20°C-45°C)
Media Temp. Range: 32°F-48.2°F (0°C-90°C)
Protection Grade: IP 65
Wi-Fi Frequency: 2.4 G
Packing List：
1 · Smart Motorized Ball Valve

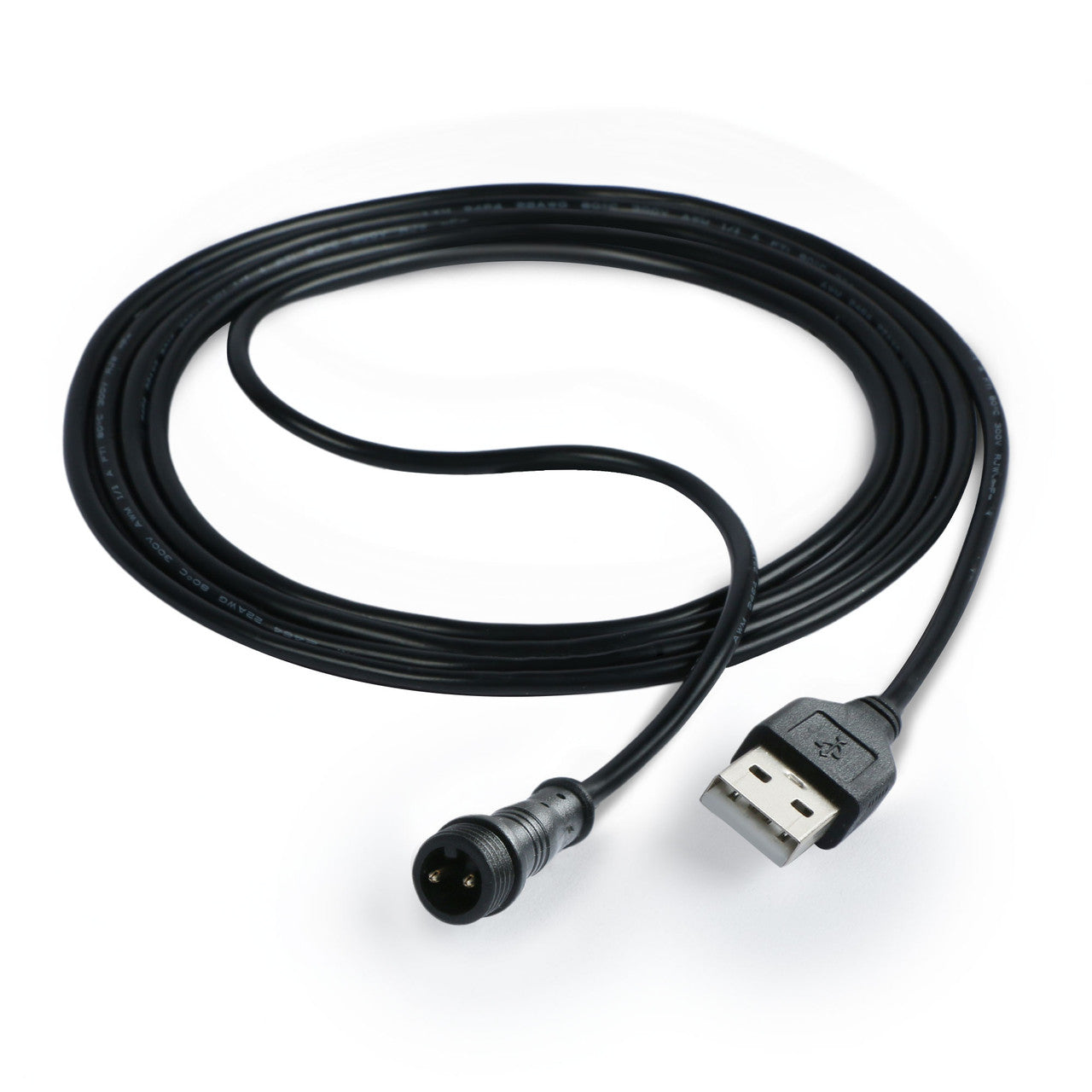

1 · USB Cable
1 · Instruction Manual
