U.S. Solid

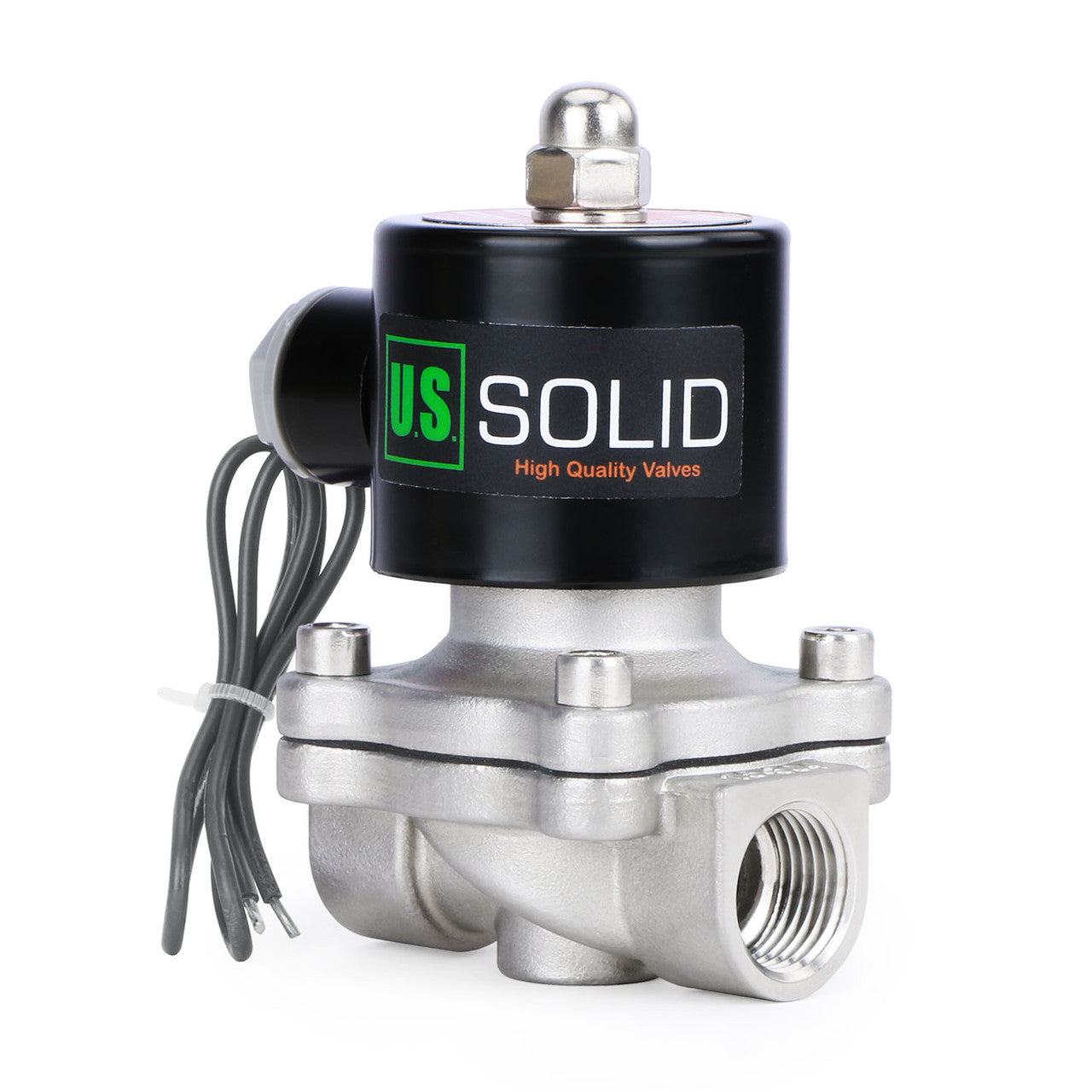

3/4” Solenoid Valve - 24V DC Stainless Steel Electric Valve, Normally Open, Viton Seal

3/4” Solenoid Valve - 24V DC Stainless Steel Electric Valve, Normally Open, Viton Seal

Regular price $47.99 USD
Regular price Sale price $47.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details

This U.S. Solid solenoid valve is made from industrial-grade stainless steel, offers superior corrosion resistance, ease of welding, and is perfect for high-temperature projects. Its compatibility with diesel fuel, natural gas, air, and even suitability for drinking water or other water-based projects make it a versatile tool. It's engineered to respond swiftly, capable of opening or closing in less than a second when triggered. This guarantees instantaneous flow control when turned on or off. Under proper maintenance and operating conditions, our engineers estimate its life cycle to exceed a million cycles.
The solenoid valve, in its default state, uses the solenoid's magnetic field to move the plunger and close the orifice, blocking any fluid or gas flow. This changes when the solenoid is energized. It includes a Viton gasket, a modern material lauded for its chemical inertness and common usage with gasoline, kerosene, and other organic solvents. The direct-acting solenoid valve's versatility extends to a variety of industries, including water projects, chemical processing, power generation, and healthcare. Its quick, precise fluid control makes it ideal for uses ranging from brewing systems to automatic irrigation.

Specifications:

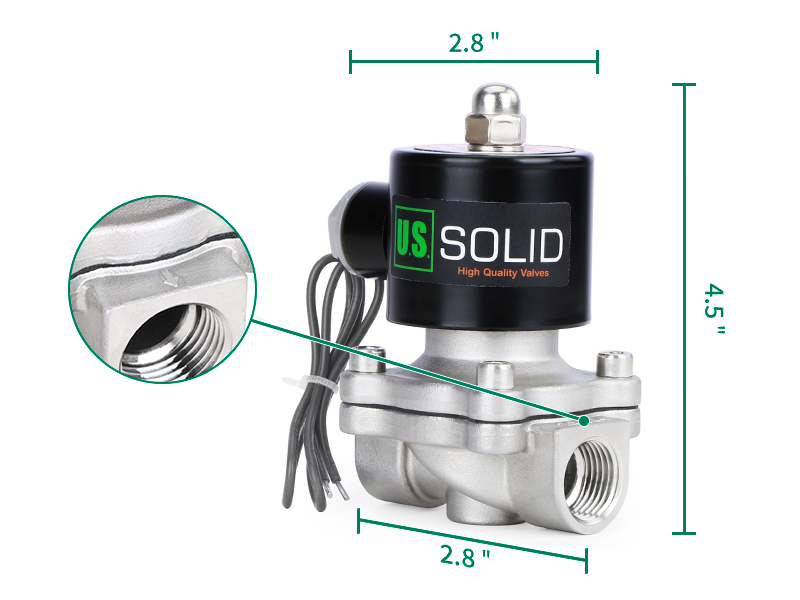

Size: 3/4"
Body Material: Stainless Steel
Flow Aperture: 20 mm
Gasket / Diaphragm / Seal: VITON
Rated voltage: DC 24 V, ± 10%
Power rating: 20 W
Operation Type: Semi-direct lift valve
Operation Mode: Normally Open
Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
Flow value: 7.6 Cv
Flow capacity: 7.6 gallons per minute (GPM) of water at 60℉ with a pressure drop of 1 PSI

Operational temperature: 14 - 248 degrees Fahrenheit

OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 80℃. It is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8h the coil may burn.
