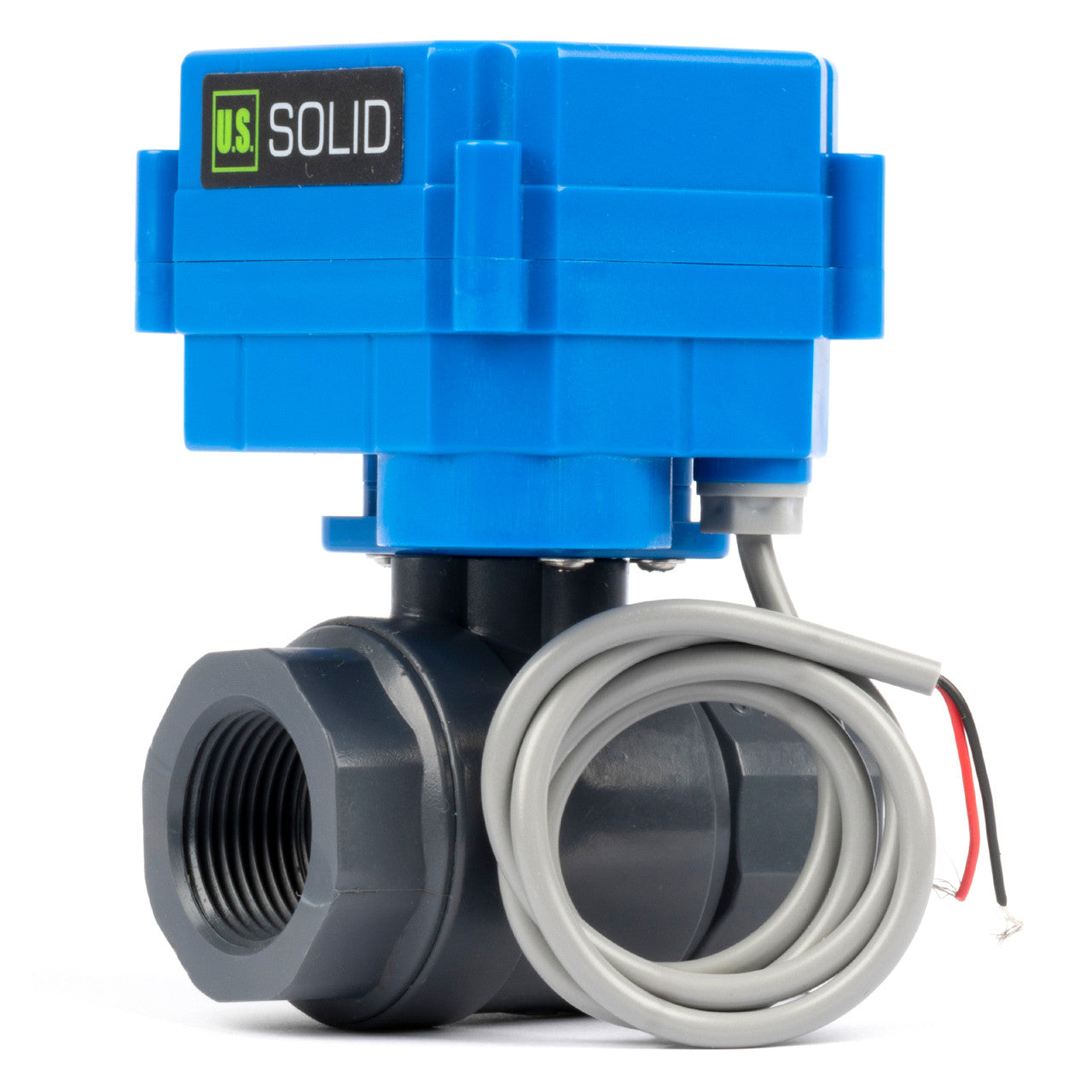

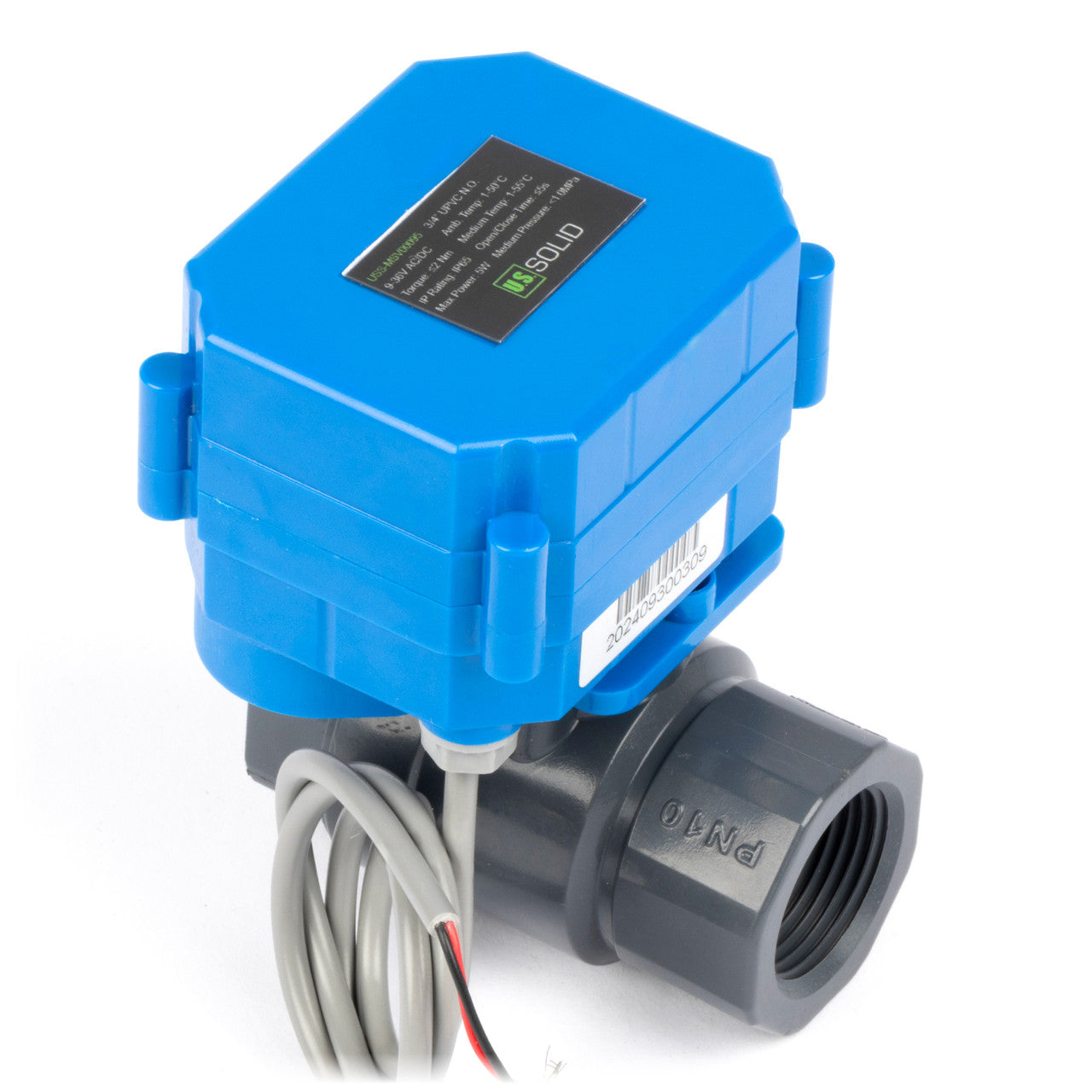

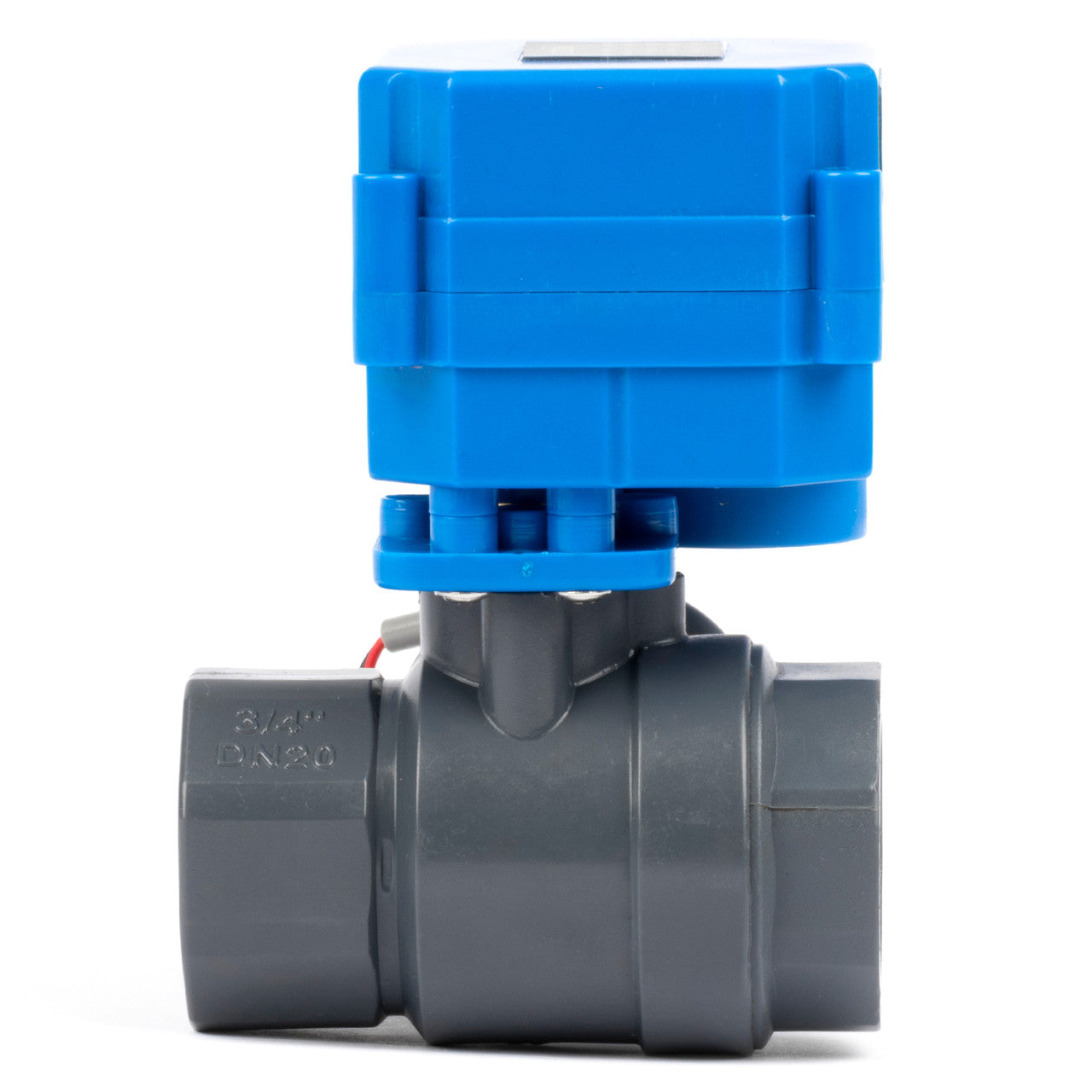

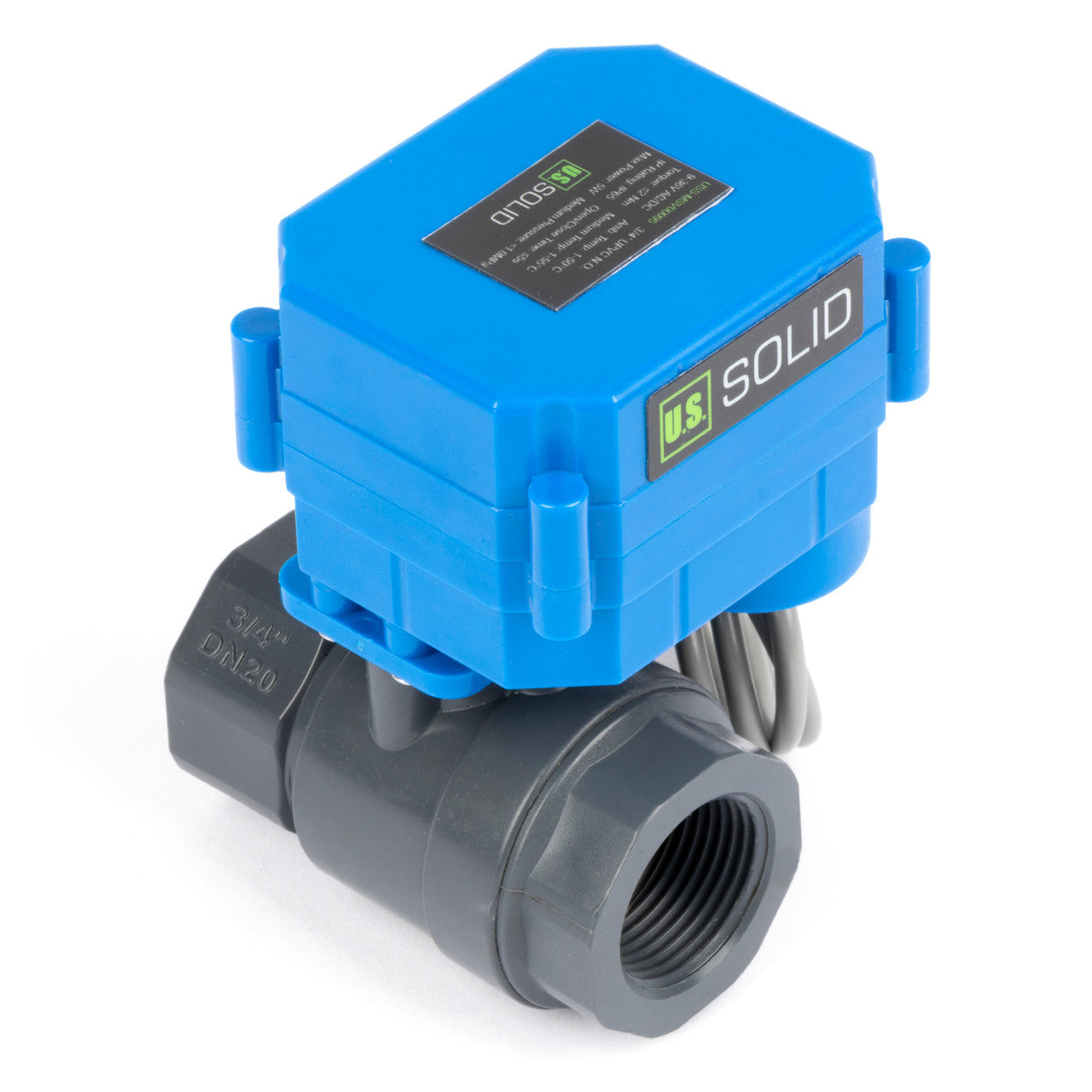

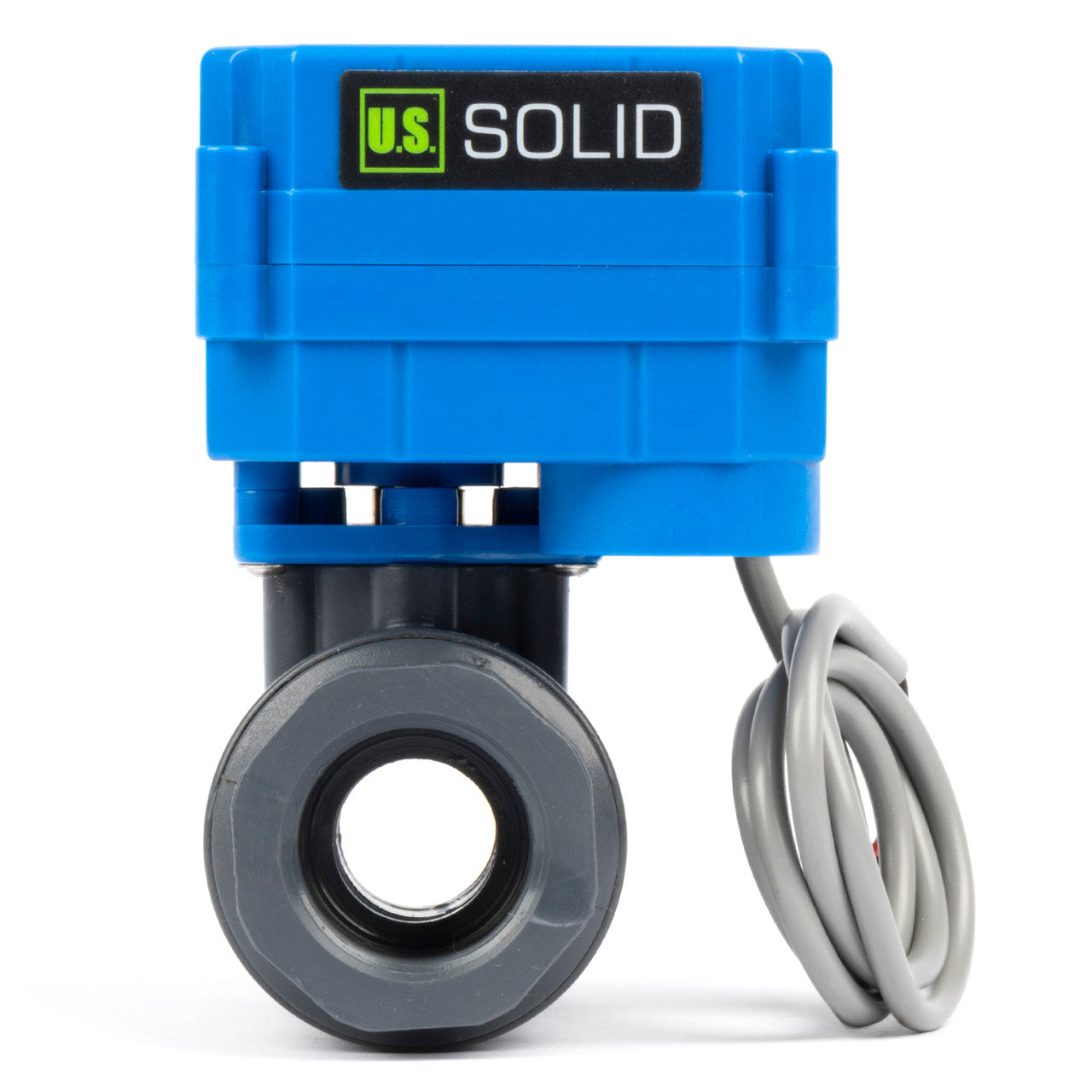

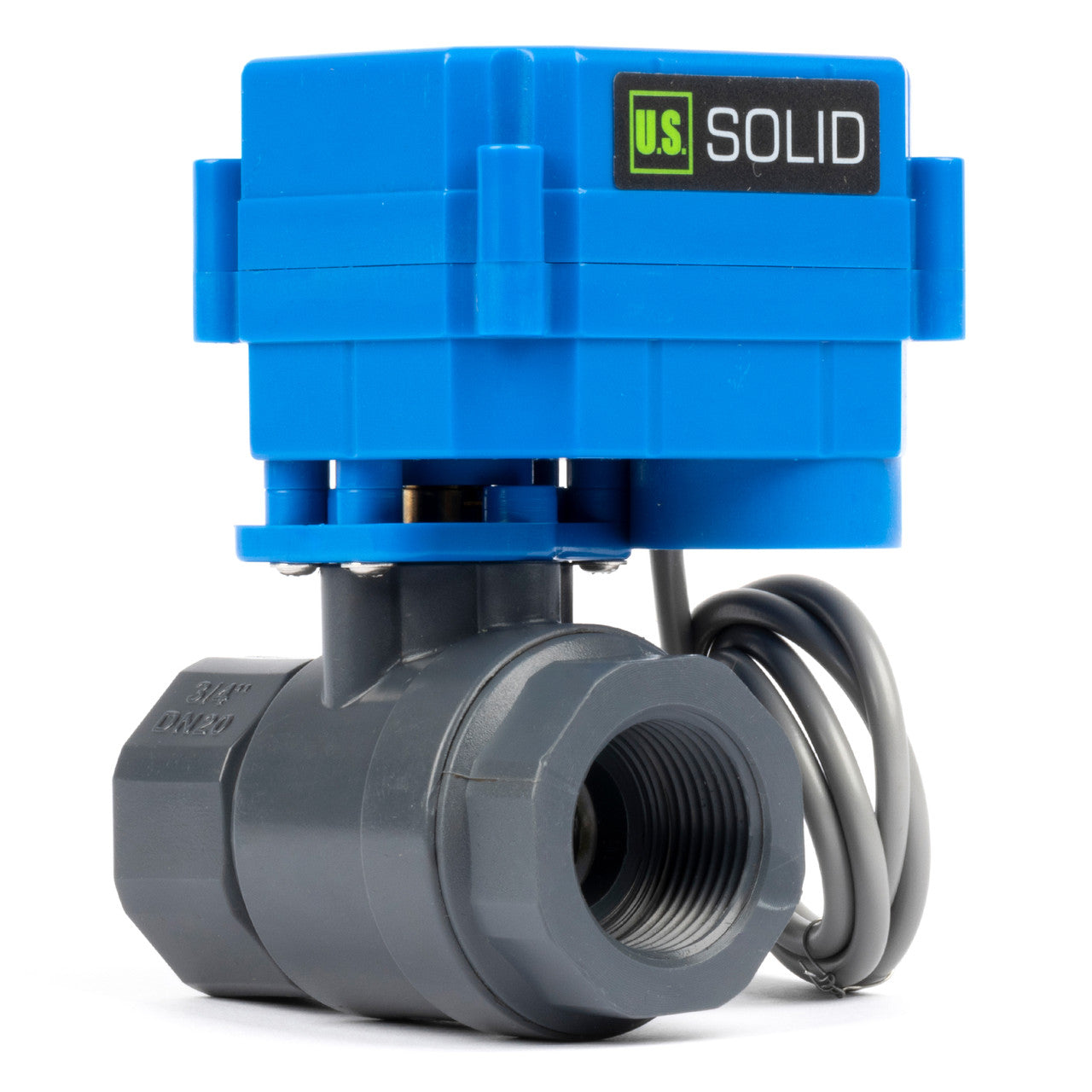

The motorized ball valve is equipped with a robust UPVC valve body, known for its exceptional durability and longevity compared to PVC alternatives. This UPVC construction not only ensures longevity but also results in a lighter valve compared to those with brass or stainless steel bodies. This lightweight design facilitates easier installation on various pipelines. Moreover, the valve's lead-free body makes it suitable for use in drinking water pipelines, offering a safe and convenient solution for such applications.
The 2 wire auto return model is an ideal choice for scenarios where the valve must be closed in the event of a power loss. This model allows for easy operation as it can be energized to open and left connected, consuming minimal energy once fully opened. To open the valve, simply disconnect the power supply. This convenient design enables the valve to be operated with a simple on/off switch. When switched off, the valve will remain open, and when switched on, it will automatically close.
Specifications:

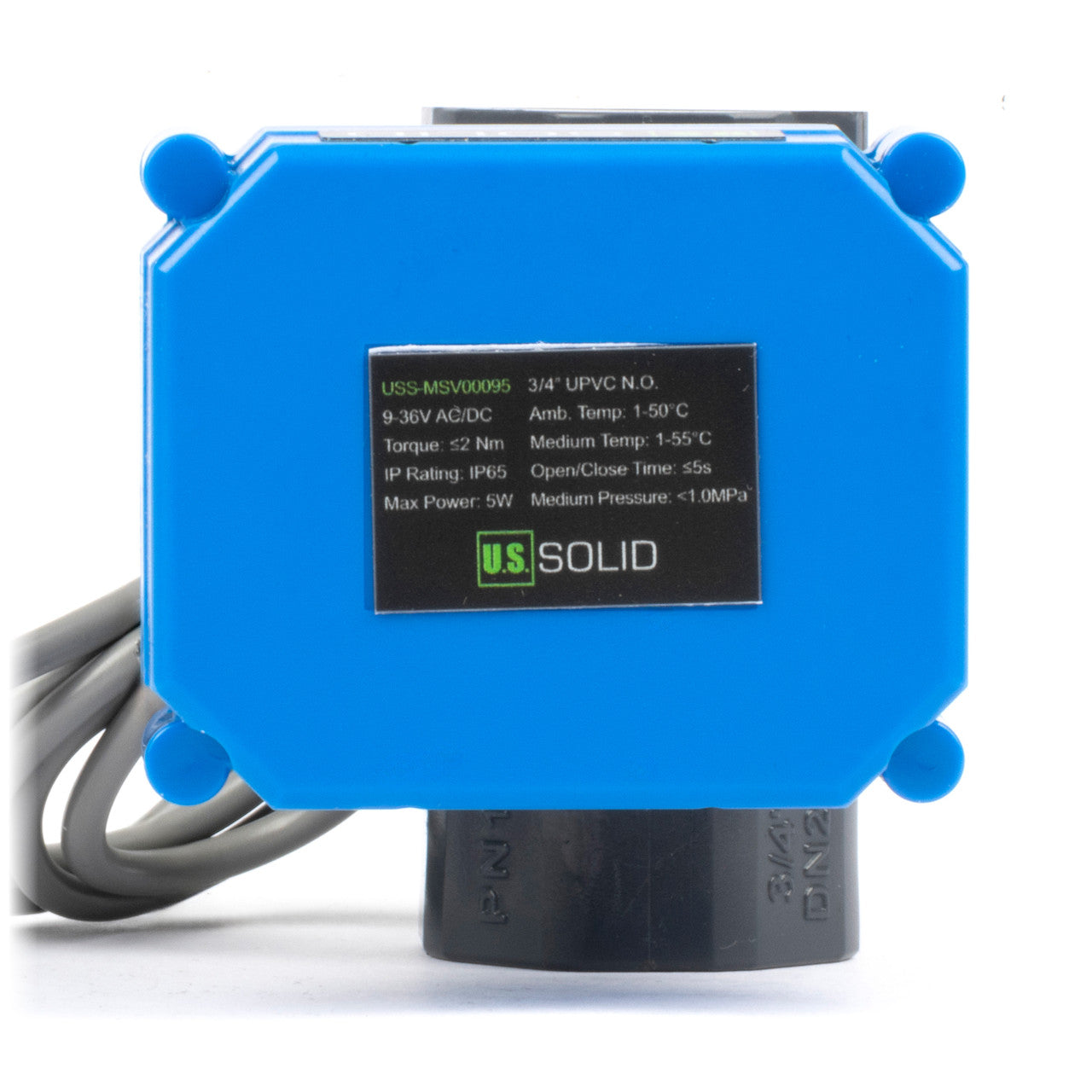

Model: USS-MSV00095

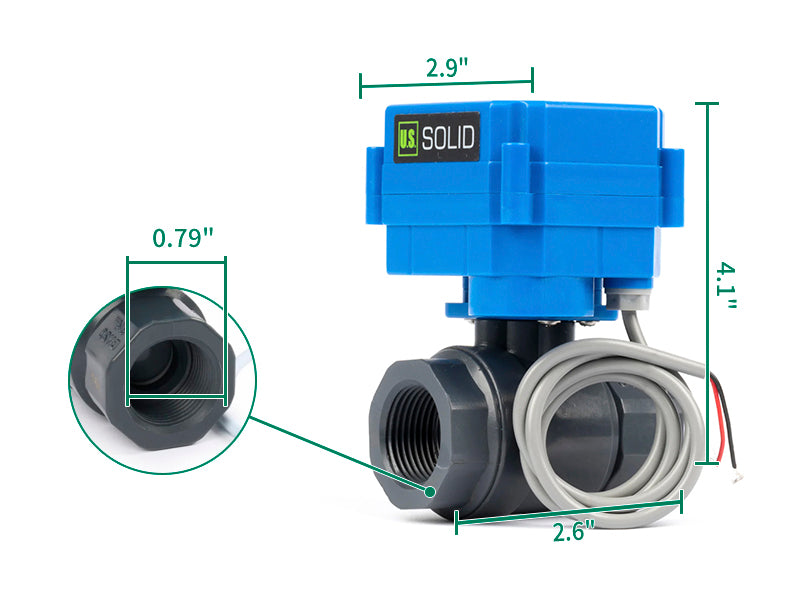

Size: 3/4”
Material: UPVC

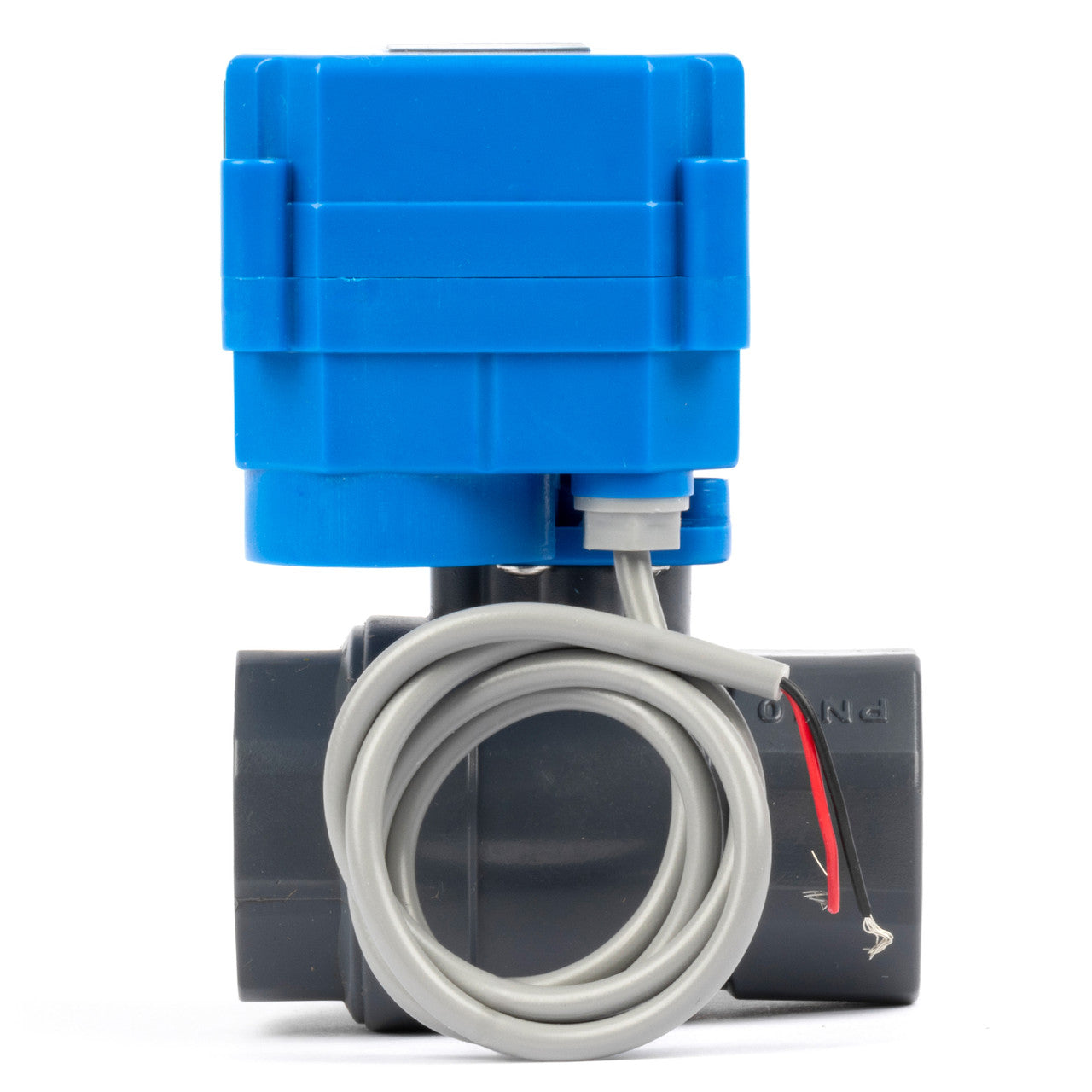

Wiring Type: 2 Wire Auto Return
Thread Type: NPT
Seal: PTFE
N.C./N.O.: Normally Open
Input Voltage: 9-36V AC/DC
Max. Power: 5 W
Torque: 2 Nm
Max Pressure: 1.0 Mpa
Ambient Temperature: 33℉-122℉
Medium Temperature: 33℉-131℉
