INTRODUCTION

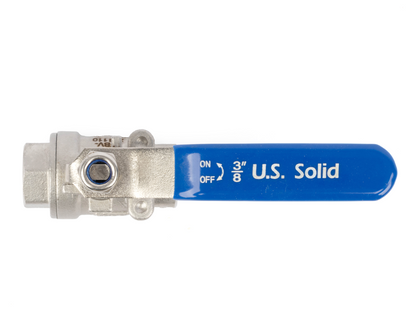

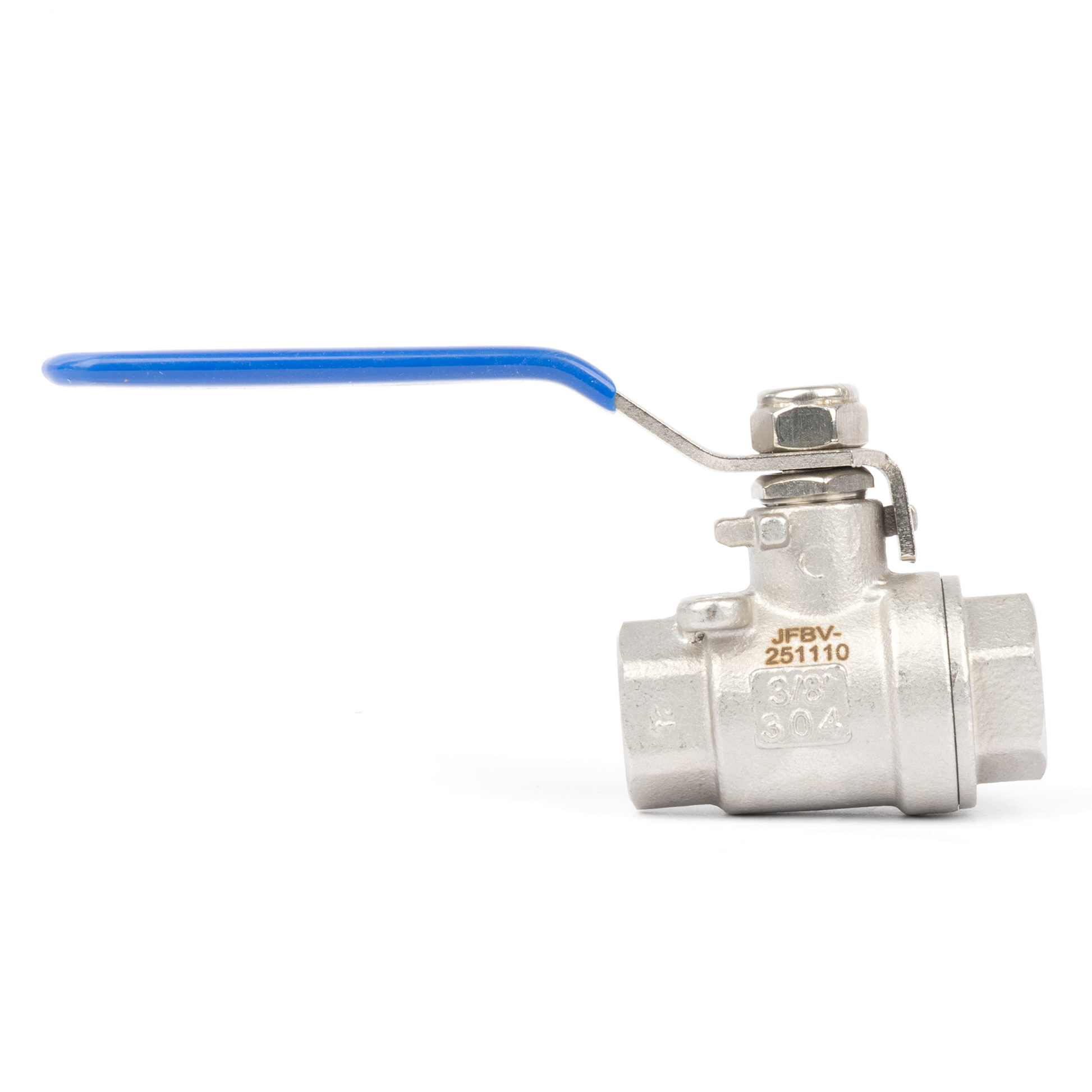

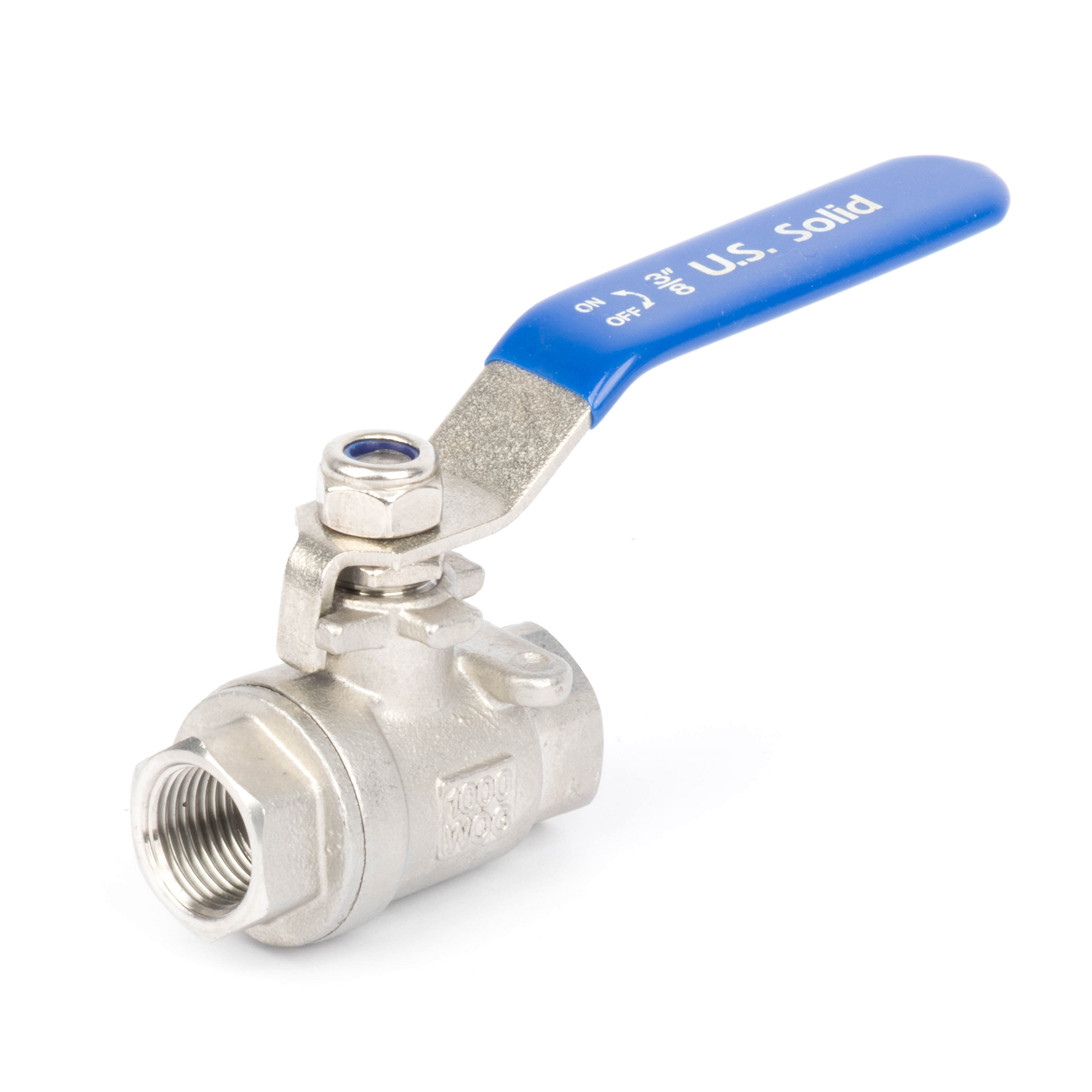

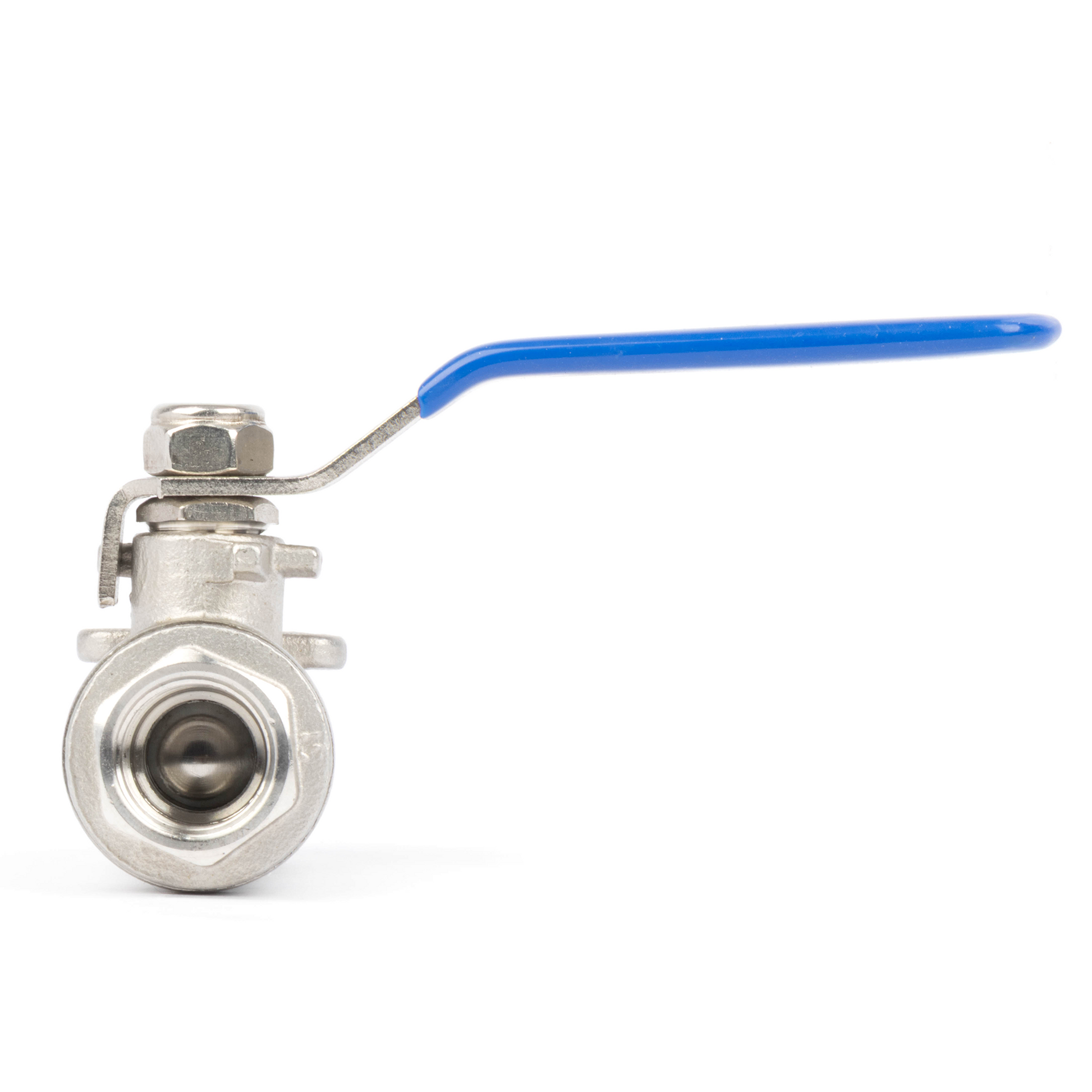

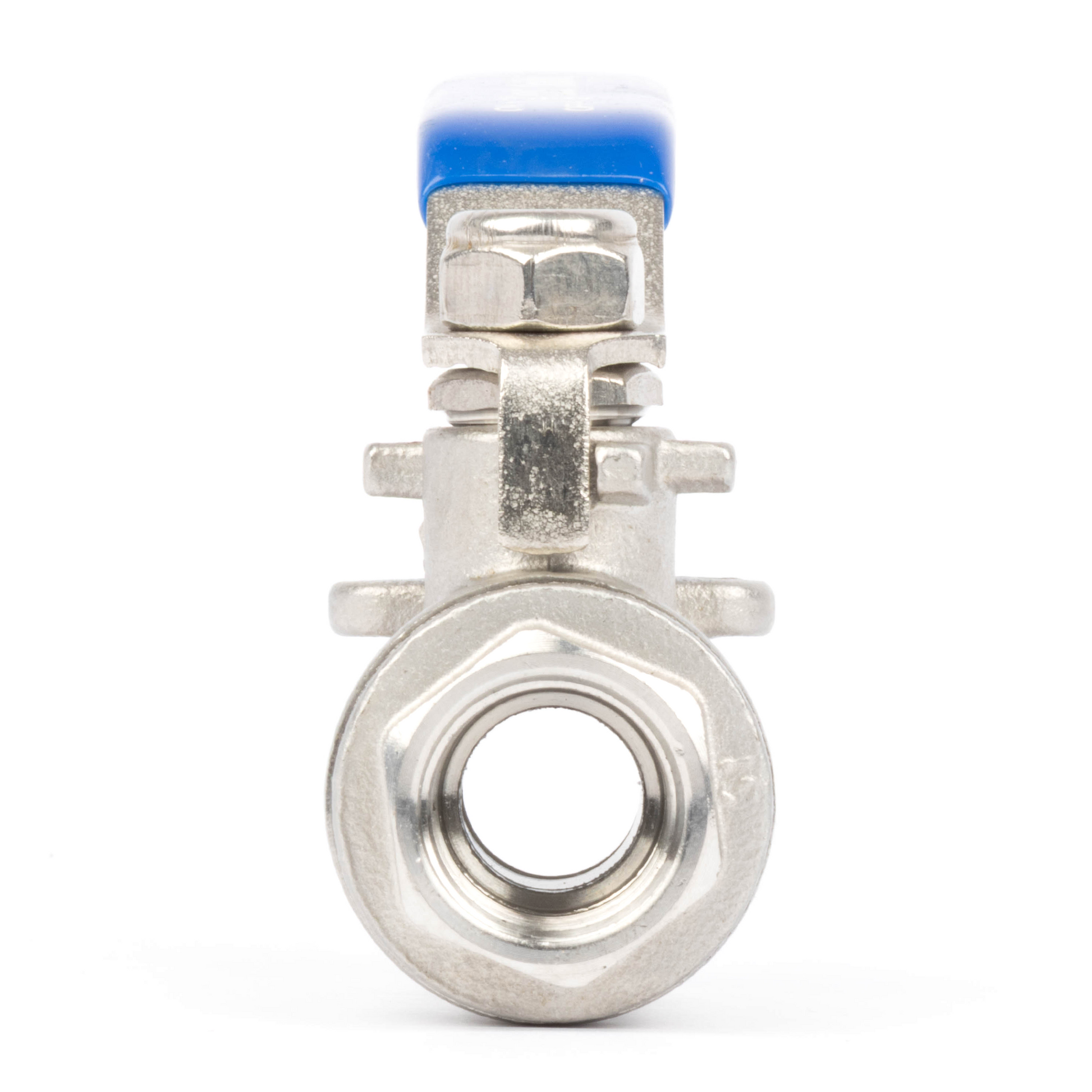

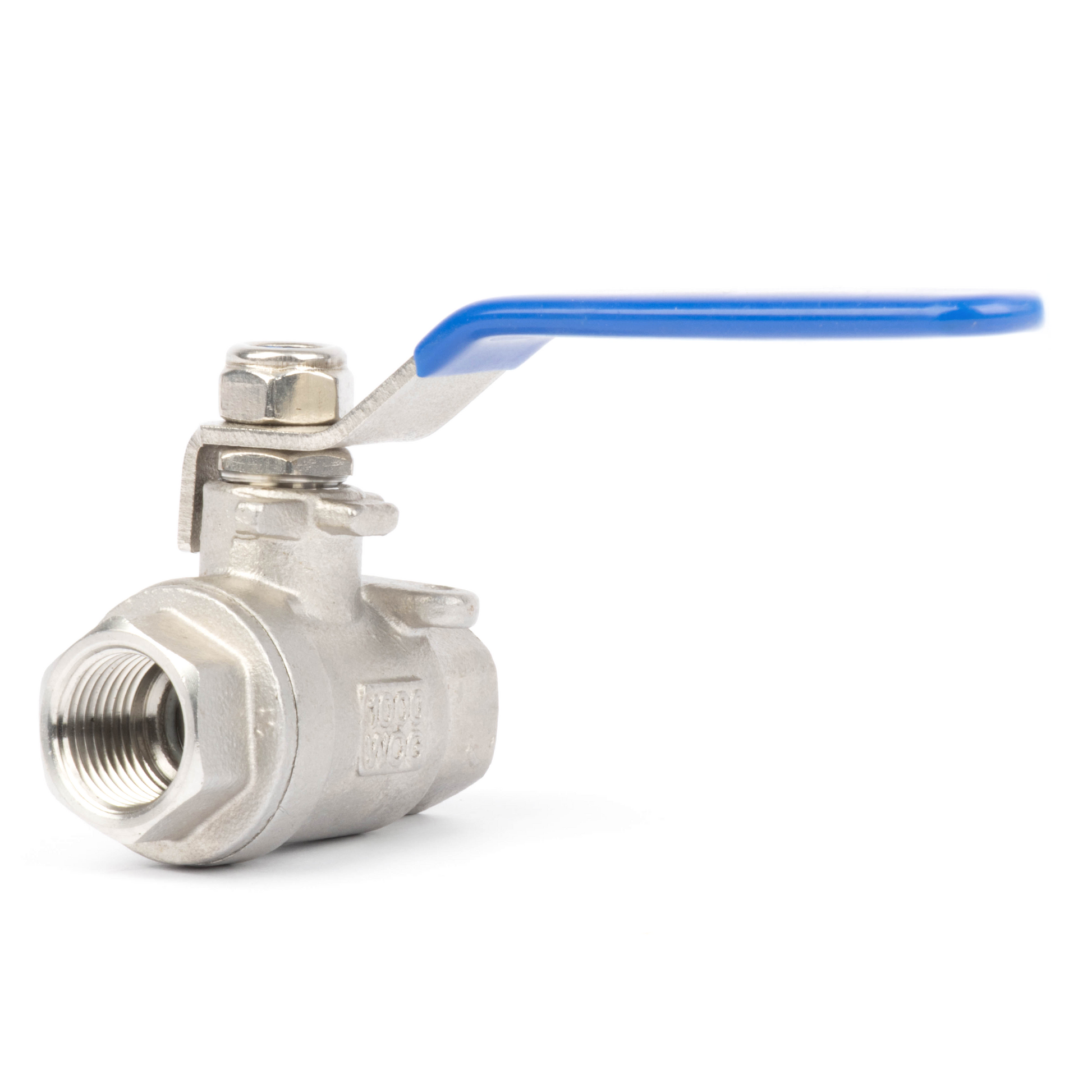

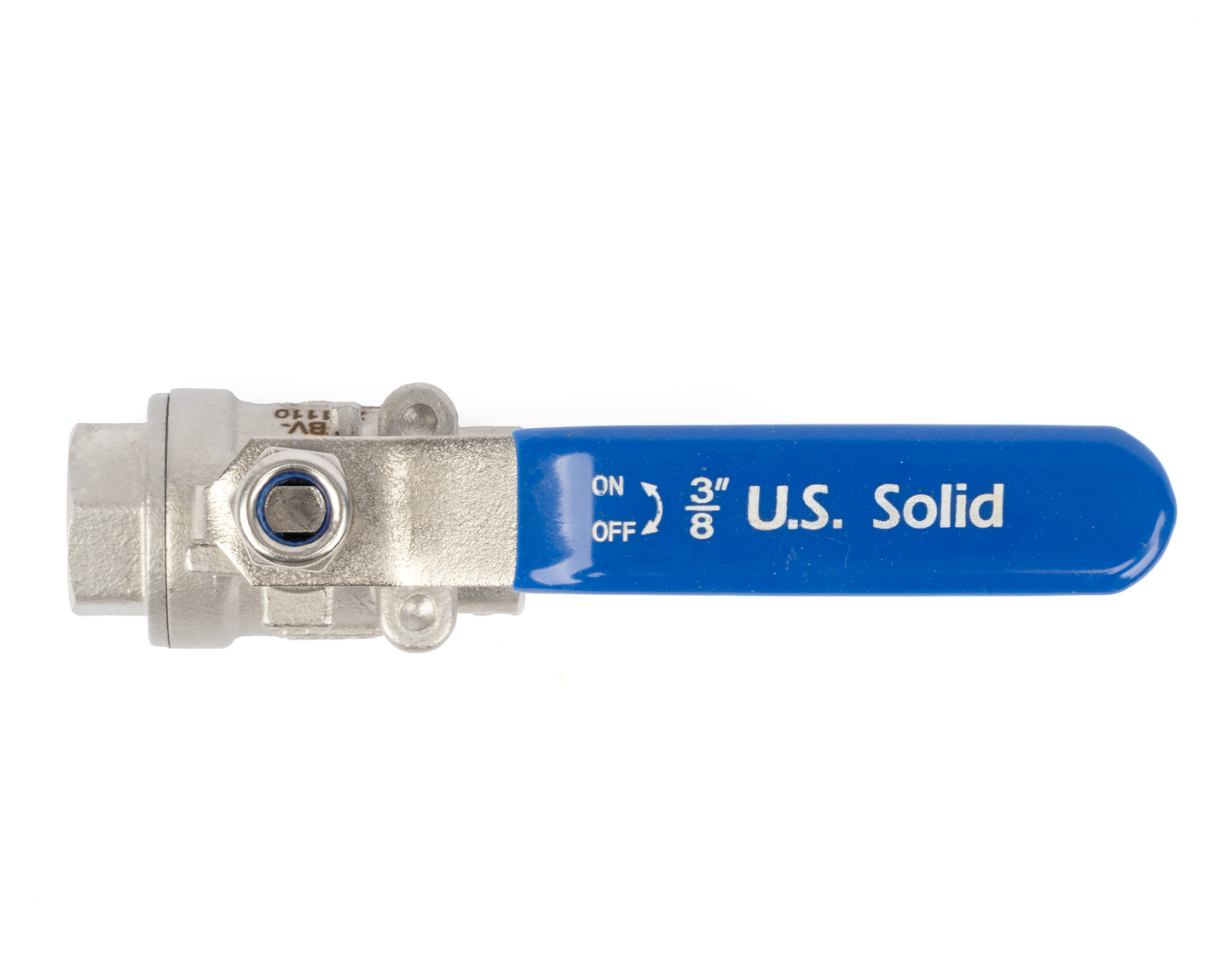

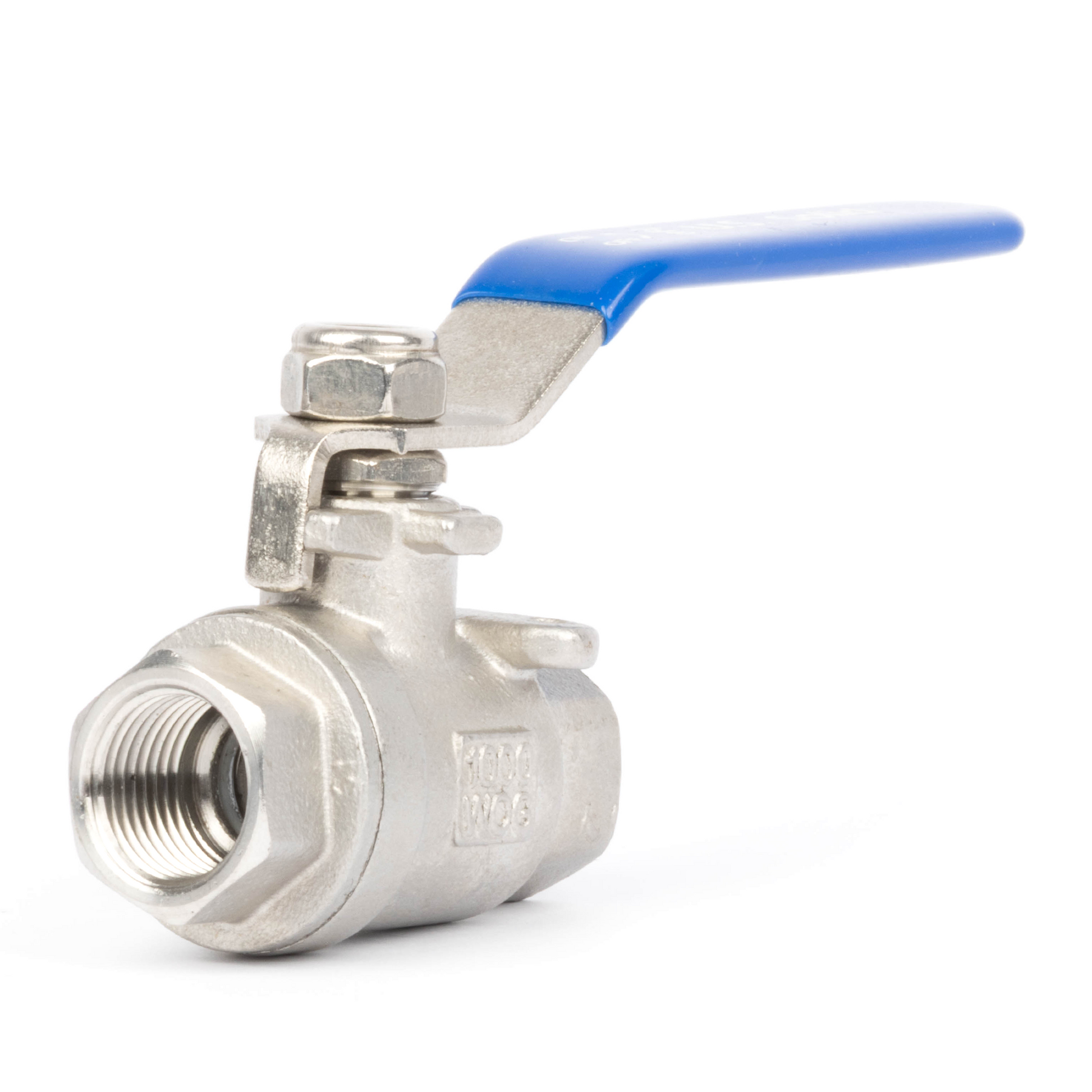

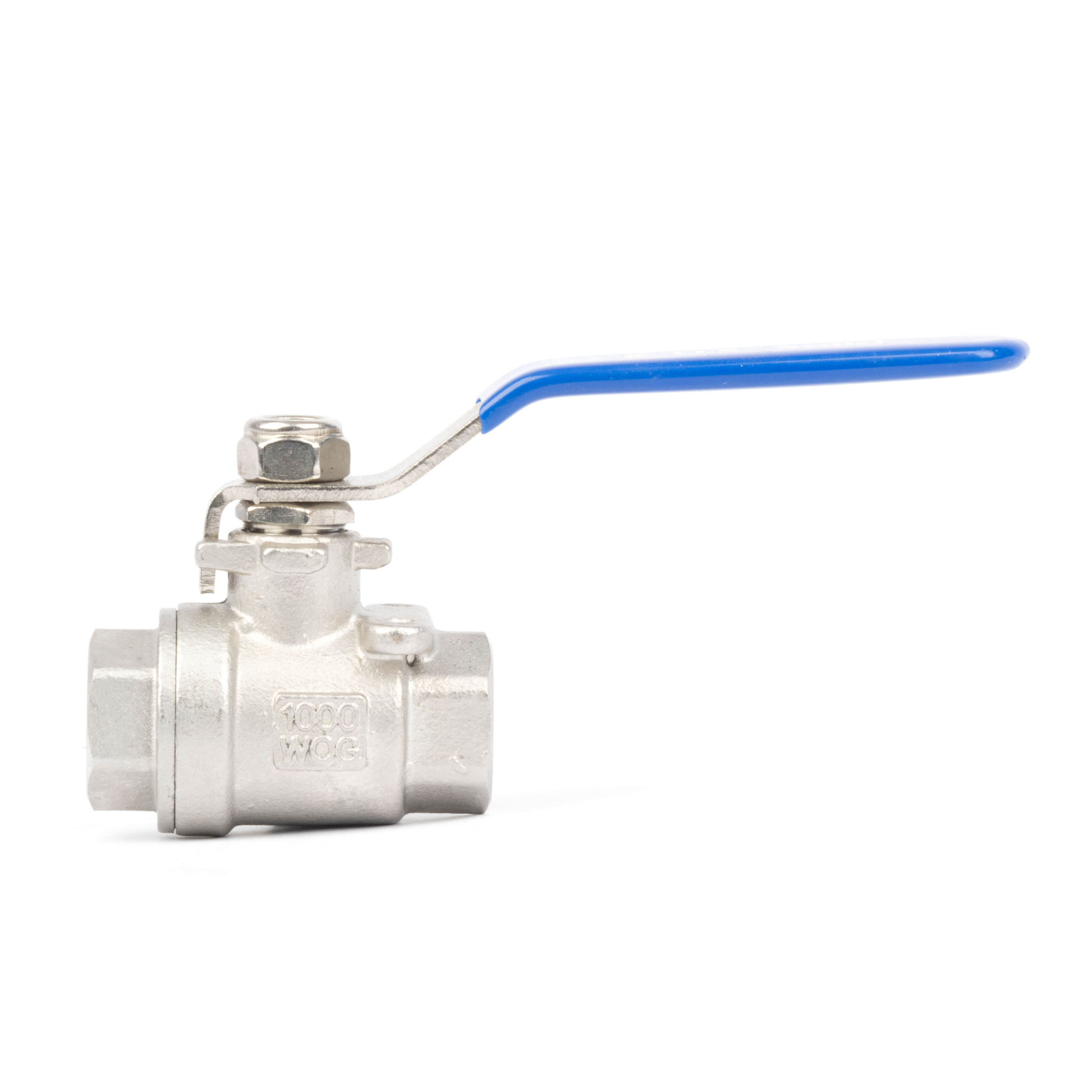

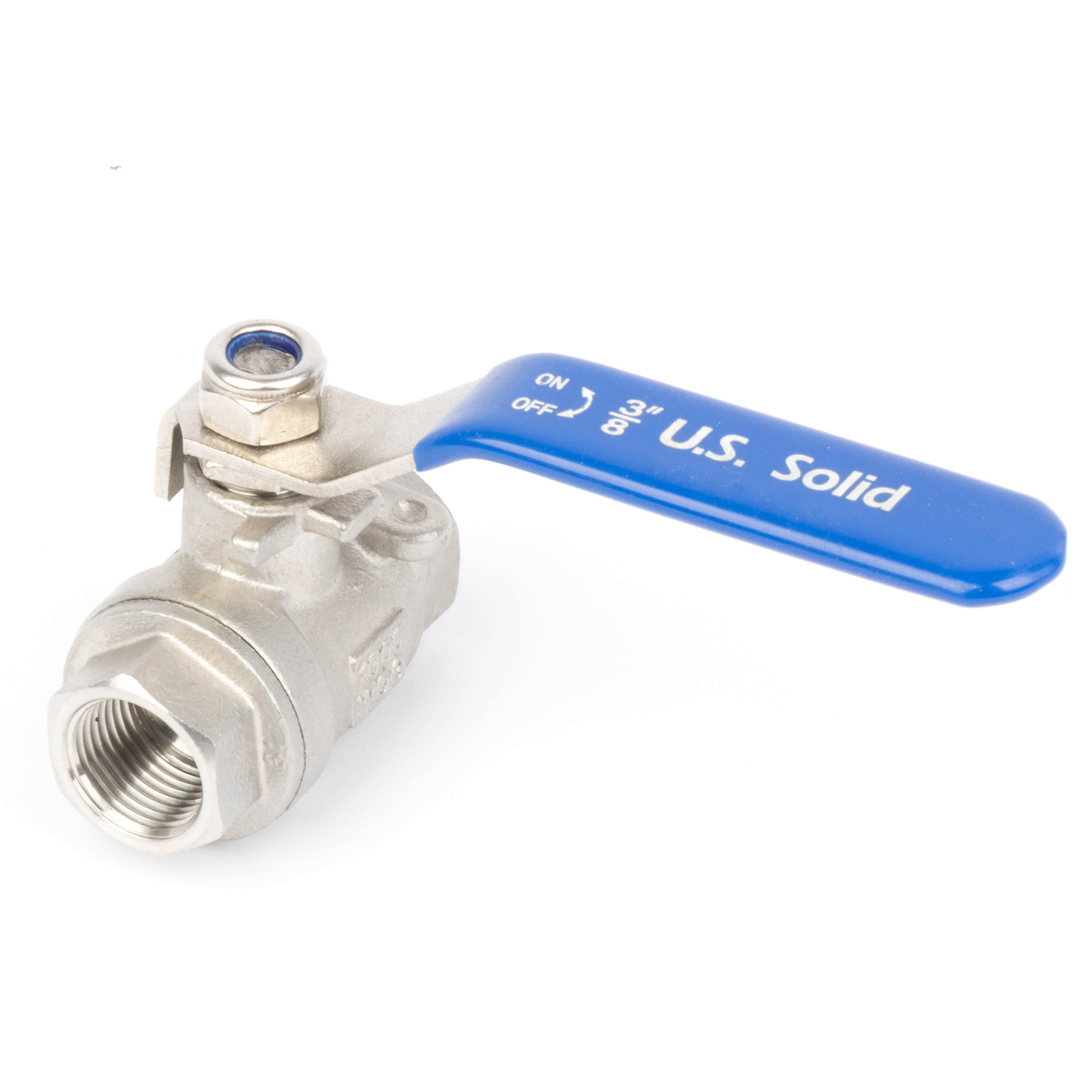

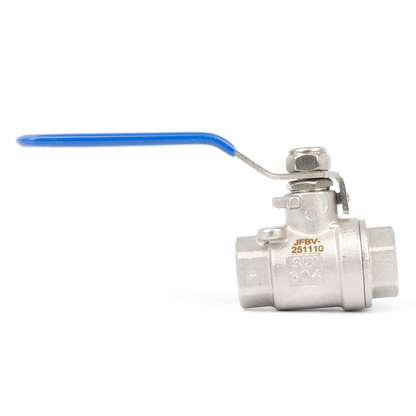

Our high-quality ball valve stands out for its top-notch materials and unrivaled reliability. Whether deployed in industrial plants for complex operations or in home settings for daily use, it guarantees outstanding performance and long-lasting durability. Its intricately designed structure makes it highly versatile. It can precisely control water flow in household plumbing and manage chemical processes in factories. Capable of withstanding high-pressure conditions, it also perfectly meets general usage requirements, making it an ideal choice across diverse scenarios.
FEATURES
APPLICATIONS

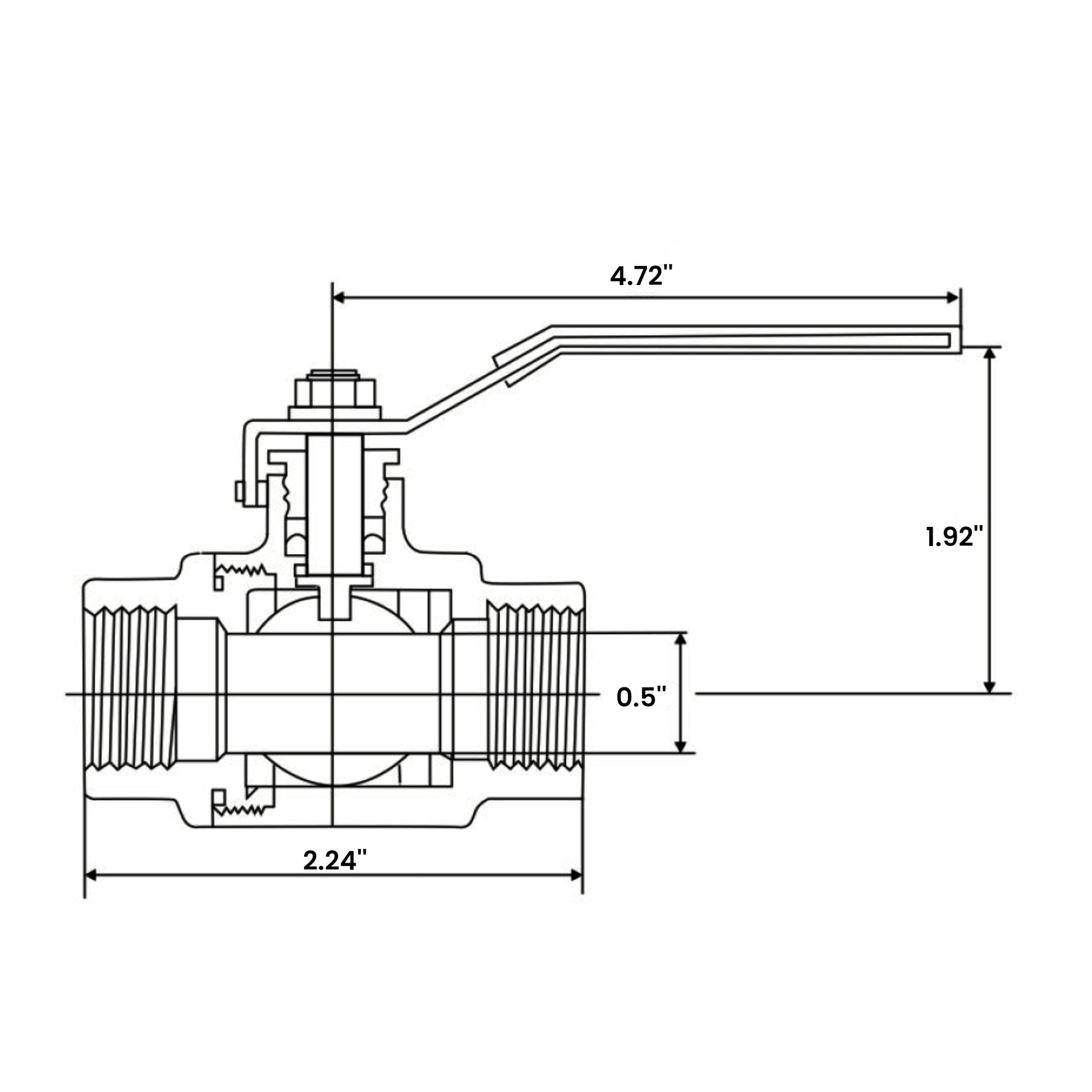

SPECIFICATIONS
| Model | USS-BV13 | Brand | U.S. Solid |
|---|---|---|---|
| Size | 3/8" | Thread Type | NPT/G |
| Orifice | 10mm | Flow Value | 9.3 Cv |
| Valve Material | 304 Stainless Steel | Gasket / Seat | PTFE |
| Working Pressure | ＜16 bar | Operating Temperature | -30-120℃(-22-248℉) |
| Operating State | Normally Closed | Applicable Media | Water, gas and oil |
HOW to OPERATE
FAQ
1.Is there a requirement for the installation direction of a manual ball valve?
Yes. There are usually flow direction markings on the valve body. During installation, the flow direction of the medium should be consistent with the marked direction to ensure the normal operation and sealing performance of the valve.
2.What are the requirements for the pipeline when installing a manual ball valve?
The pipeline needs to be clean and free of impurities to prevent debris from entering the ball valve and affecting the sealing and rotation of the ball. At the same time, the connection parts of the pipeline should be flat and match the valve interface to ensure a firm connection and prevent leakage.
3.How to operate a manual ball valve correctly?
When operating, turn the handle slowly and avoid using excessive force. After fully opening or closing the valve, do not over - rotate the handle. To open the valve, turn the handle counterclockwise; to close it, turn the handle clockwise.
4.Can this be used for Drinking Water?
YES. This ball valve is made of 304 Stainless Steel, which is lead - free and suitable for use in drinking water systems.
5.Does a manual ball valve need regular maintenance?
Yes. Regularly check the appearance of the valve for any damage or leakage signs, and turn the handle to ensure its flexible operation. Lubricate the moving parts such as the valve stem at regular intervals, which can extend the service life of the valve.
| Size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
|---|---|---|---|---|---|---|---|
| 2 Way 304SS | USS-BV13 | USS-BV07 | USS-BV08 | USS-BV09 | USS-BV10 | USS-BV11 | USS-BV12 |
| 2 Way 316SS | USS-BV04 | USS-BV05 | USS-BV06 | ||||
| 3 Way 304SS T Type | USS-BV24 | USS-BV25 | USS-BV26 | USS-BV27 | USS-BV28 | USS-BV29 | |
| 3 Way 304SS L Type | USS-BV21 | USS-BV22 | USS-BV23 | ||||
| 2 Way Carbon Steel | USS-BV18 | USS-BV19 | USS-BV20 | ||||
| 2 Way 304SS Male Thread | USS-BV40 | USS-BV41 | USS-BV42 |
