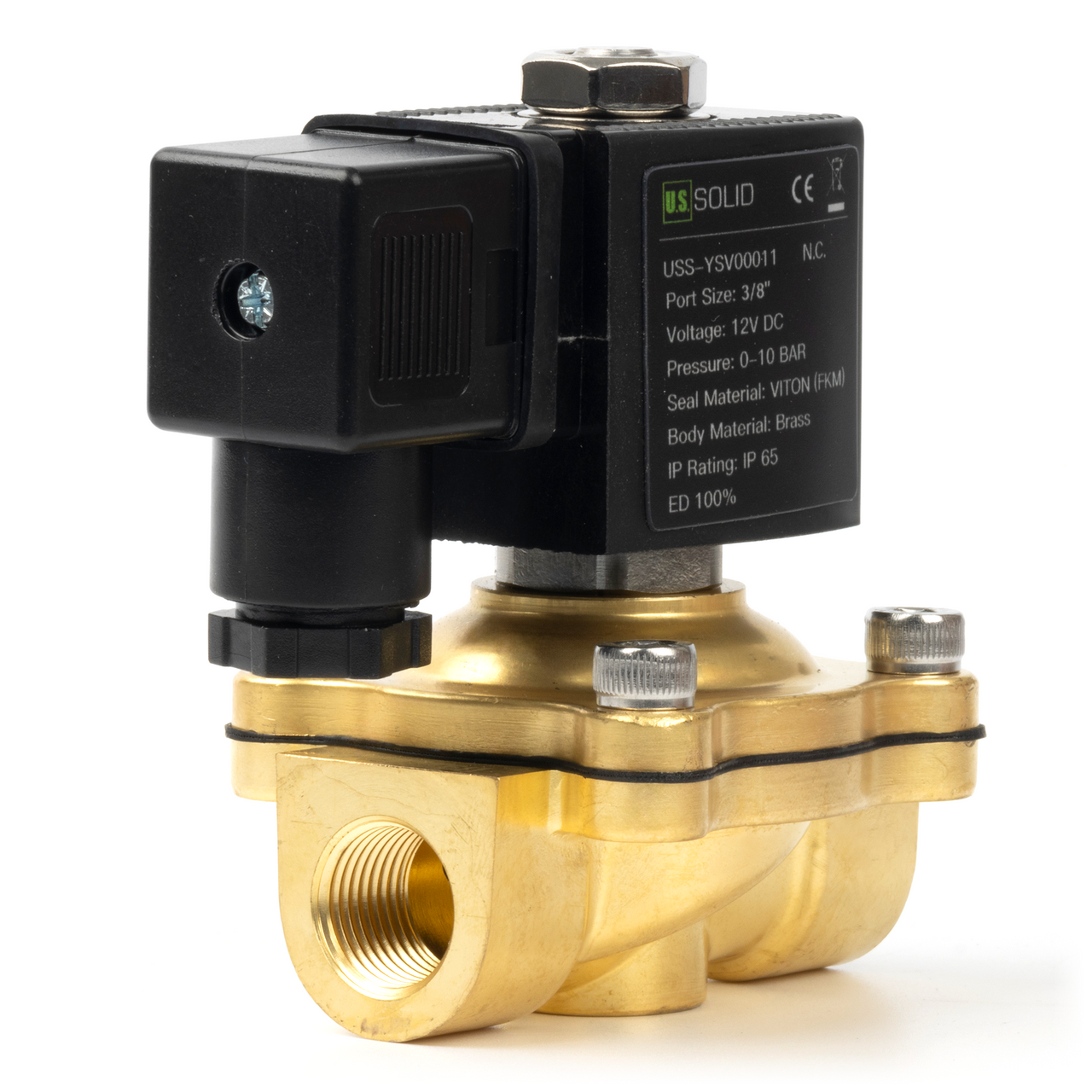

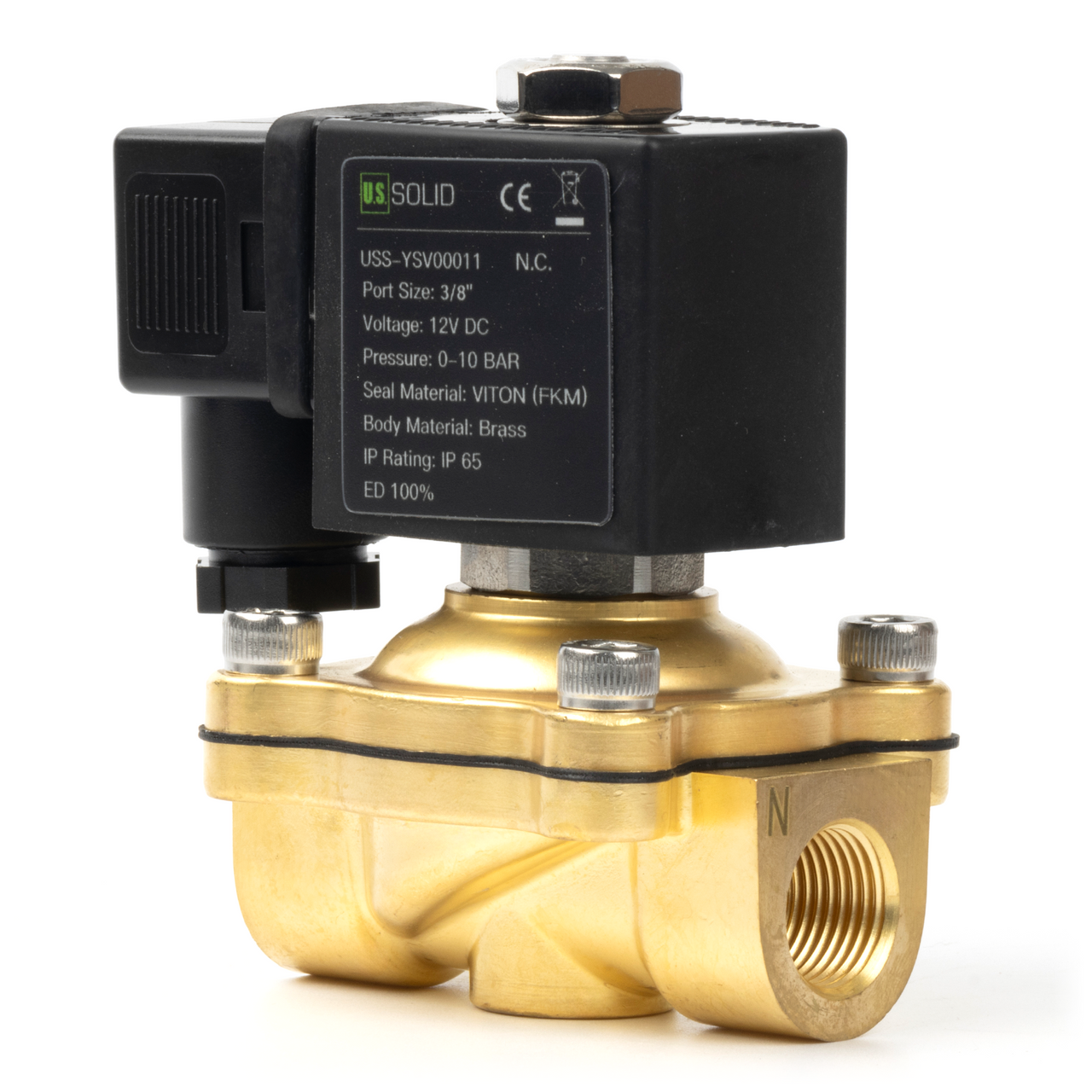

The U.S. Solid USS-YSV Series offers 2-way electric solenoid valves with both normally closed and normally open models, featuring semi-direct-acting functionality. These valves are available in 220/24 VAC and 24/12 VDC voltages and are constructed with industrial-grade brass or 304 stainless steel bodies and VITON seal materials. Featuring a high-quality coil, this solenoid valve efficiently controls the opening and closing of the diaphragm in under 1 second for precise flow control. Suitable for various media types such as air, water, oil, natural gas, gasoline, diesel fuel, kerosene, and low viscosity fluids (less than 20 centistokes), this valve is designed for reliable performance.
Specifications
Port Size: 3/8” NPT
Body Material: Brass
Gasket/Diaphragm/Seal Material: Viton
Voltage: DC 12V ± 10%
Operating Mode: Normally Closed, Semi-Direct
Current: 1.5 A
Power Rating: 18 W
Flow Aperture: 12 mm
Flow Value: 4.5 Cv
Operating Temperature: -22℉ ~ 302℉
Operating Pressure: 1.45 - 145 PSI
Housing Rating: IP65
Response Time: Fast Acting (Less than one second)
Suitable Media: Air, water, oil, natural gas, gasoline, diesel fuel, kerosene, low viscosity fluids (less than 20 centistokes), etc.
CA PROP65 WARNING - This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. They are not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
OVERHEAT WARNING
It is normal for solenoid valves to become very hot (up to about 80°C) after prolonged use. This valve supports 100% continuous operation, but we do not recommend continuous operation for more than 8 hours at a time when energized. Because doing so will shorten the life of the valve and may burn out the coil.
