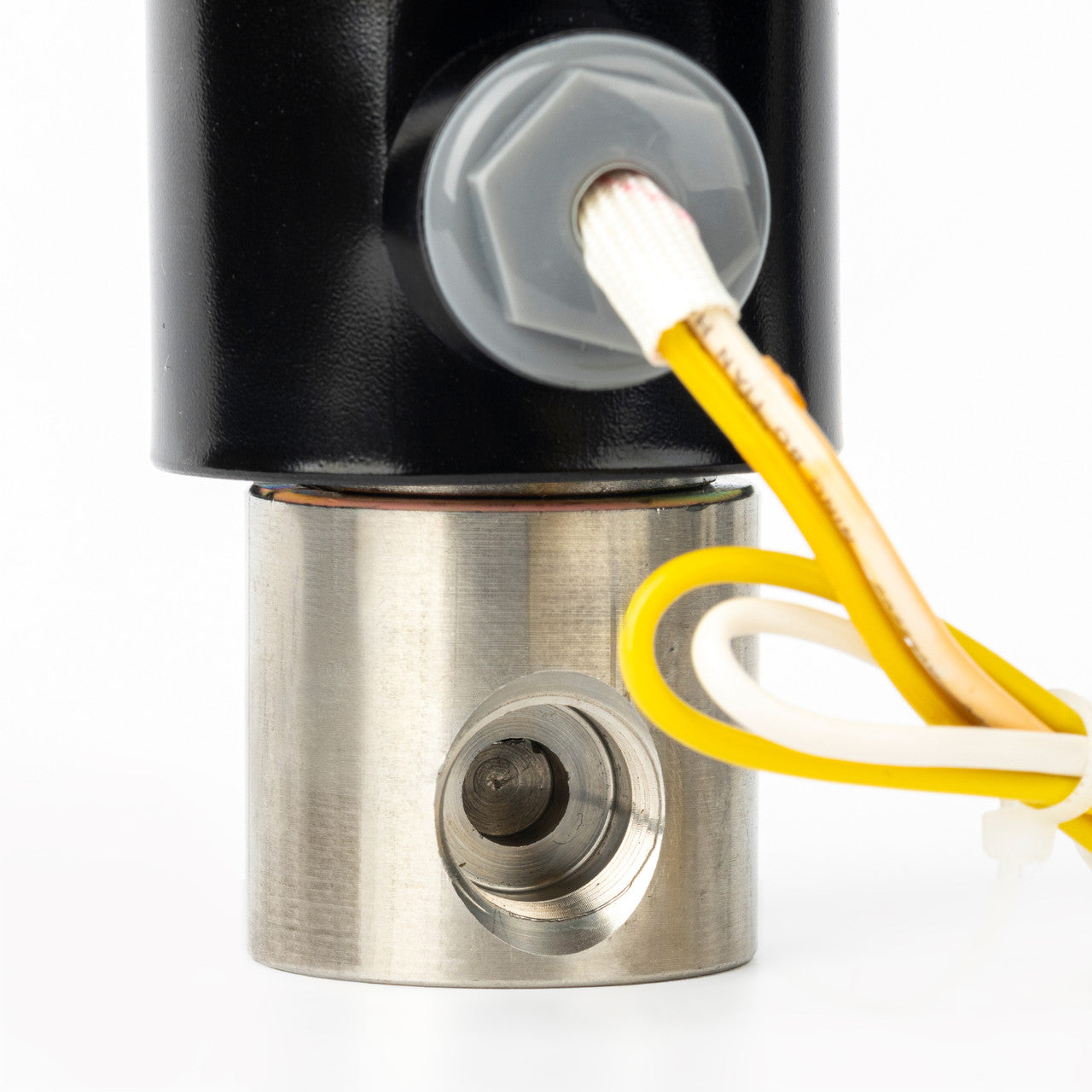

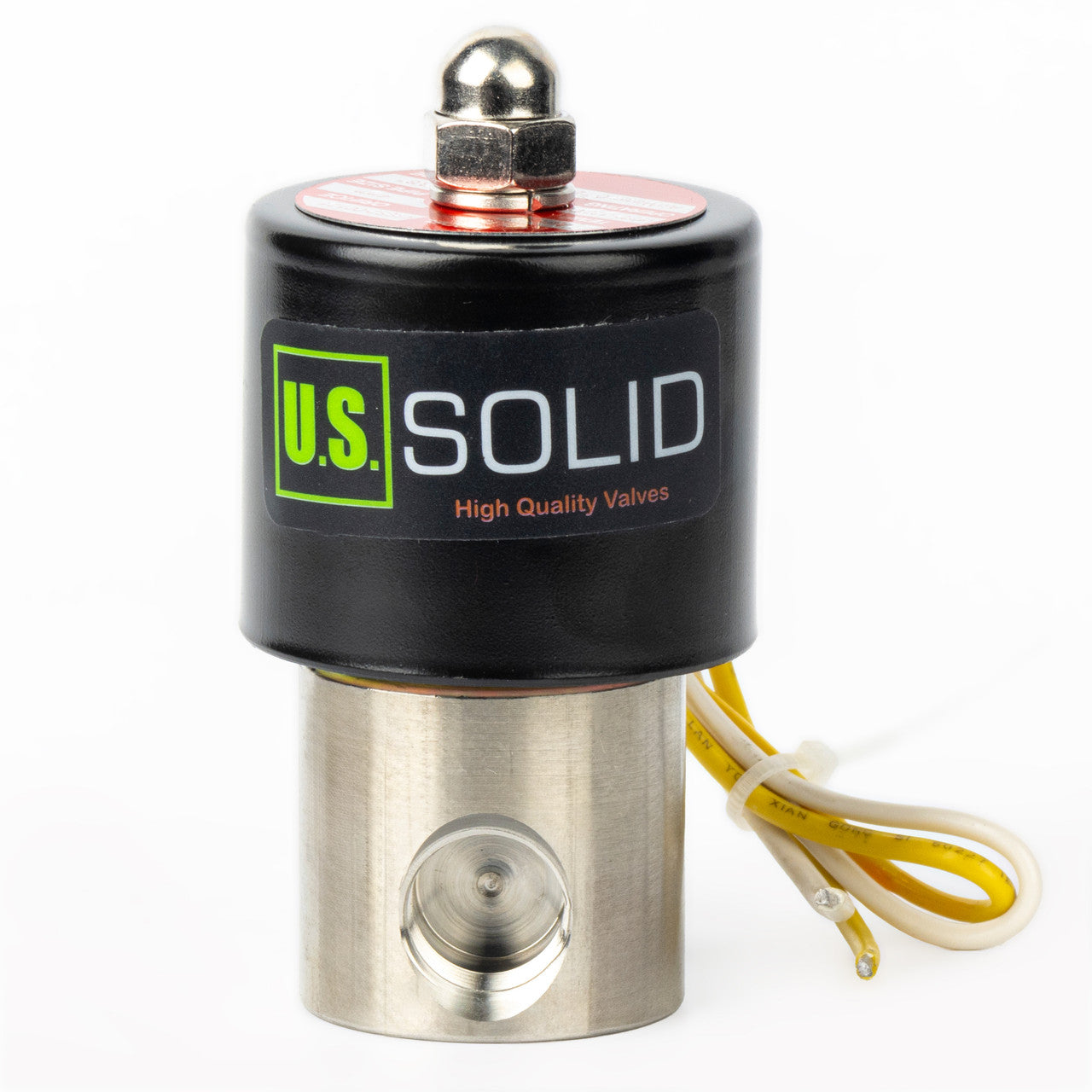

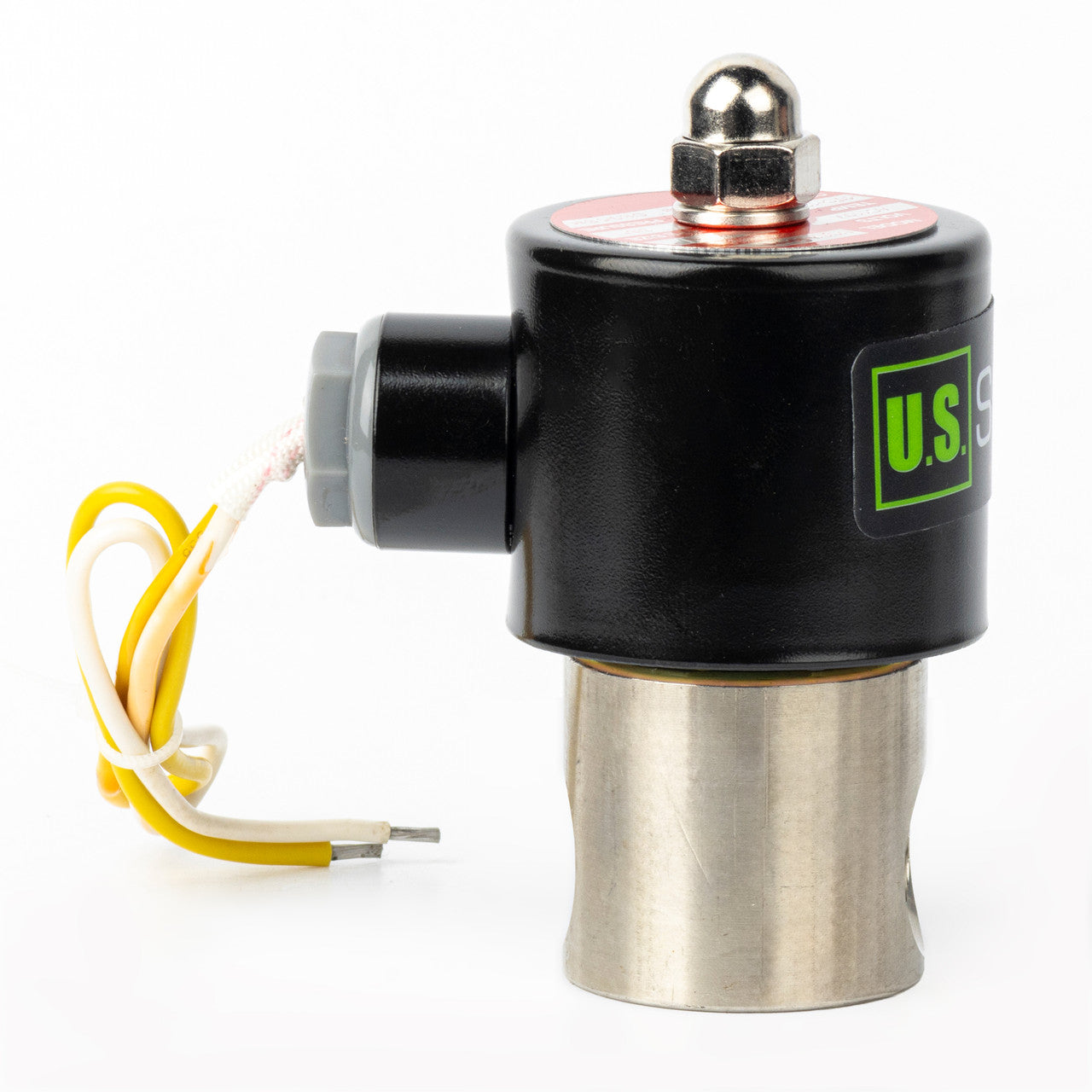

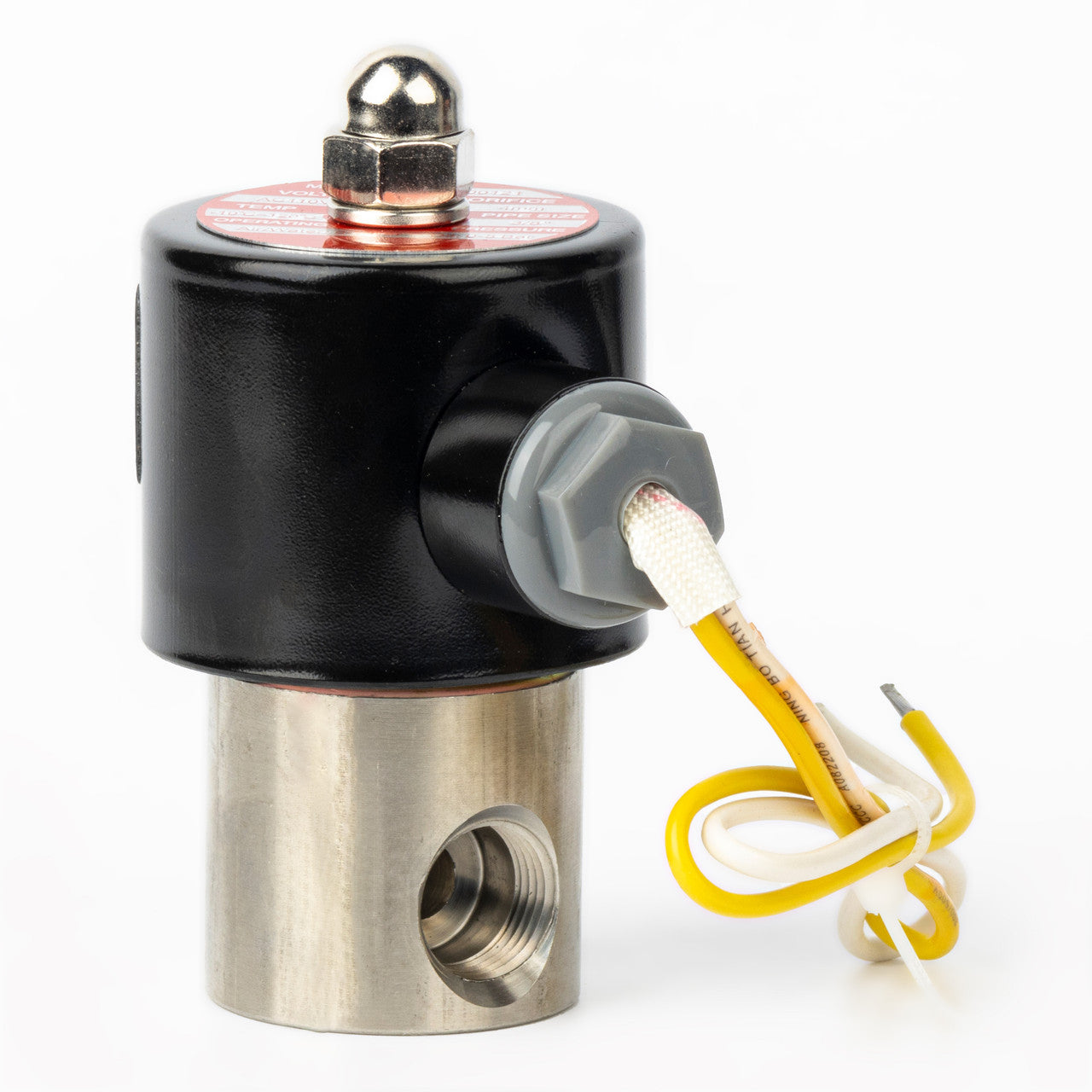

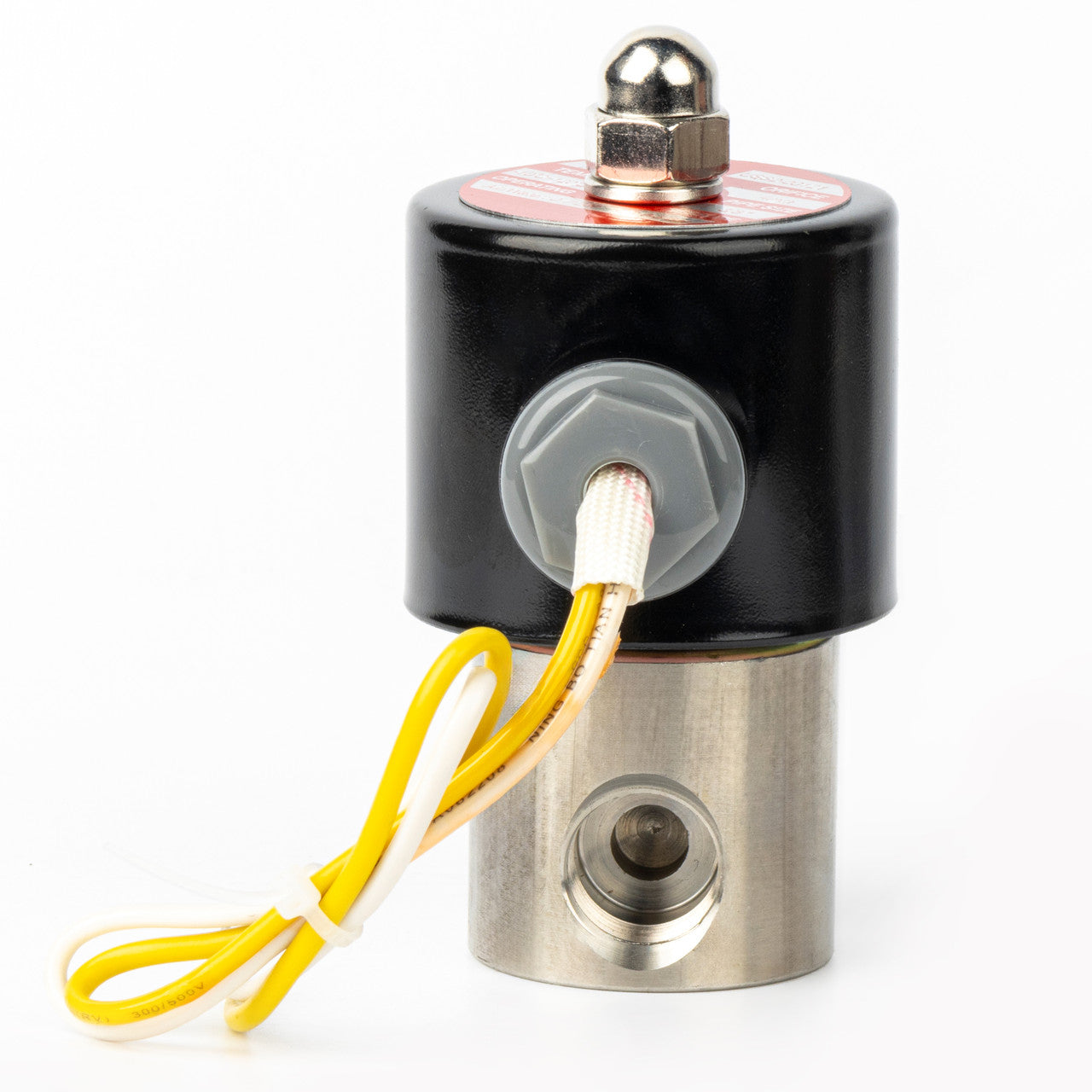

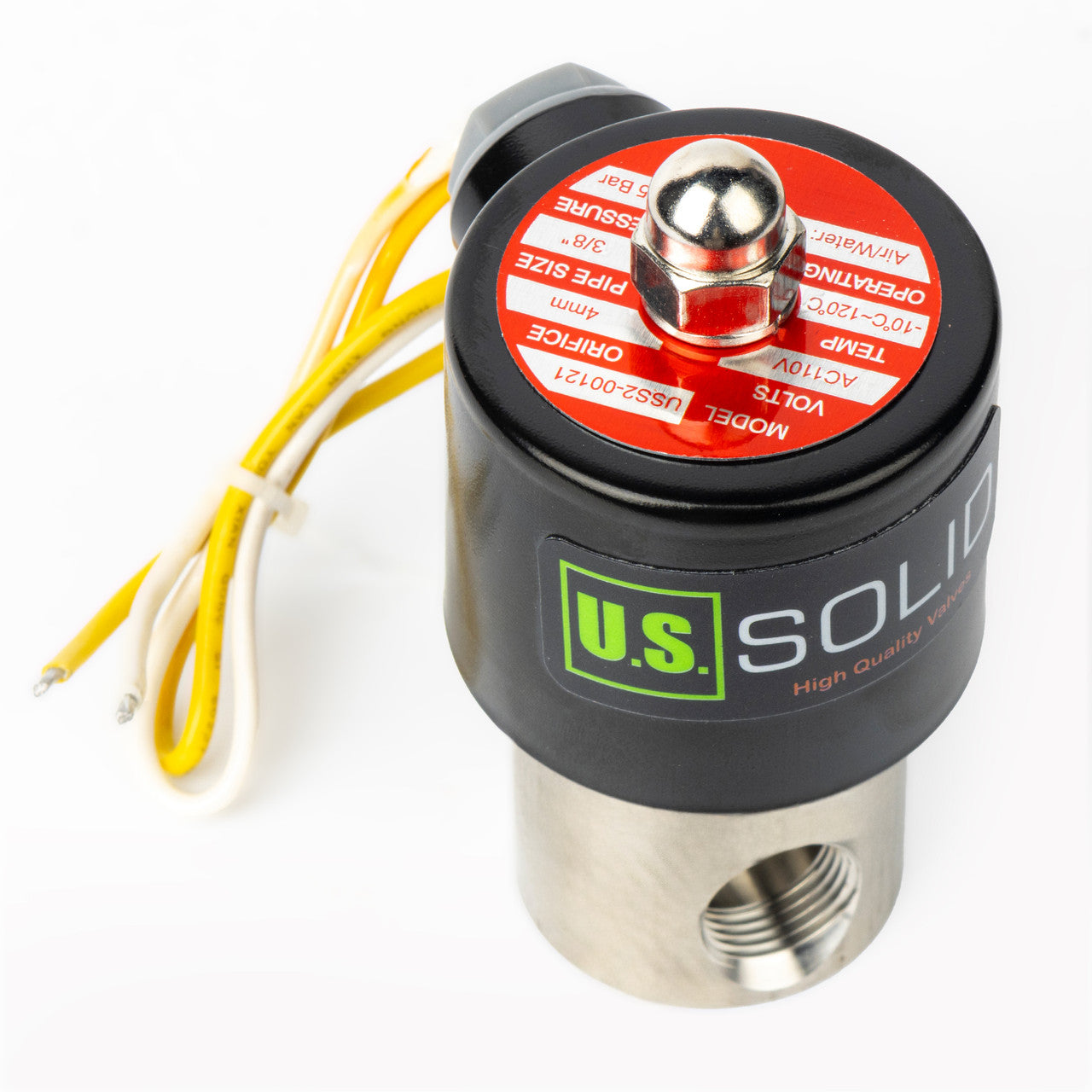

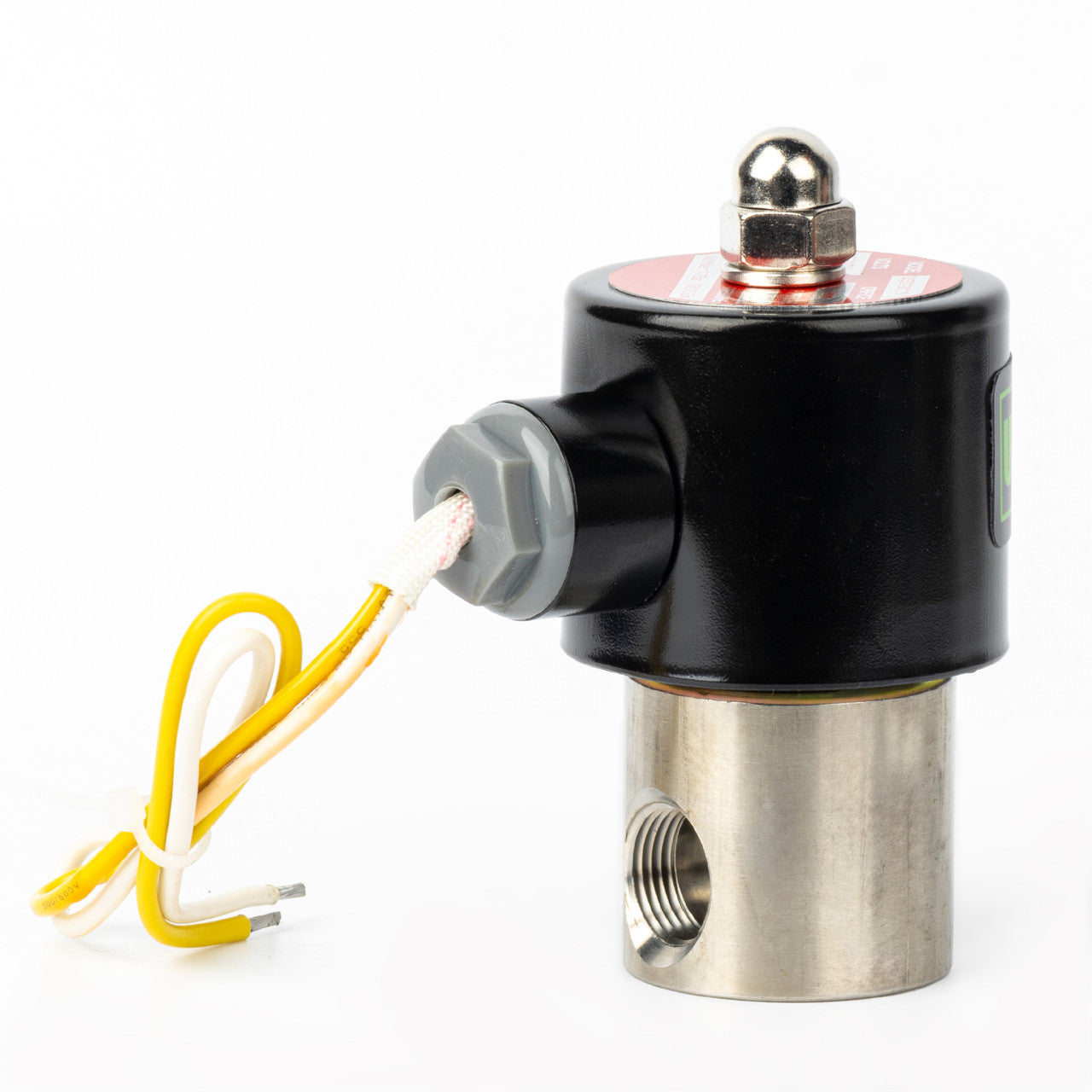

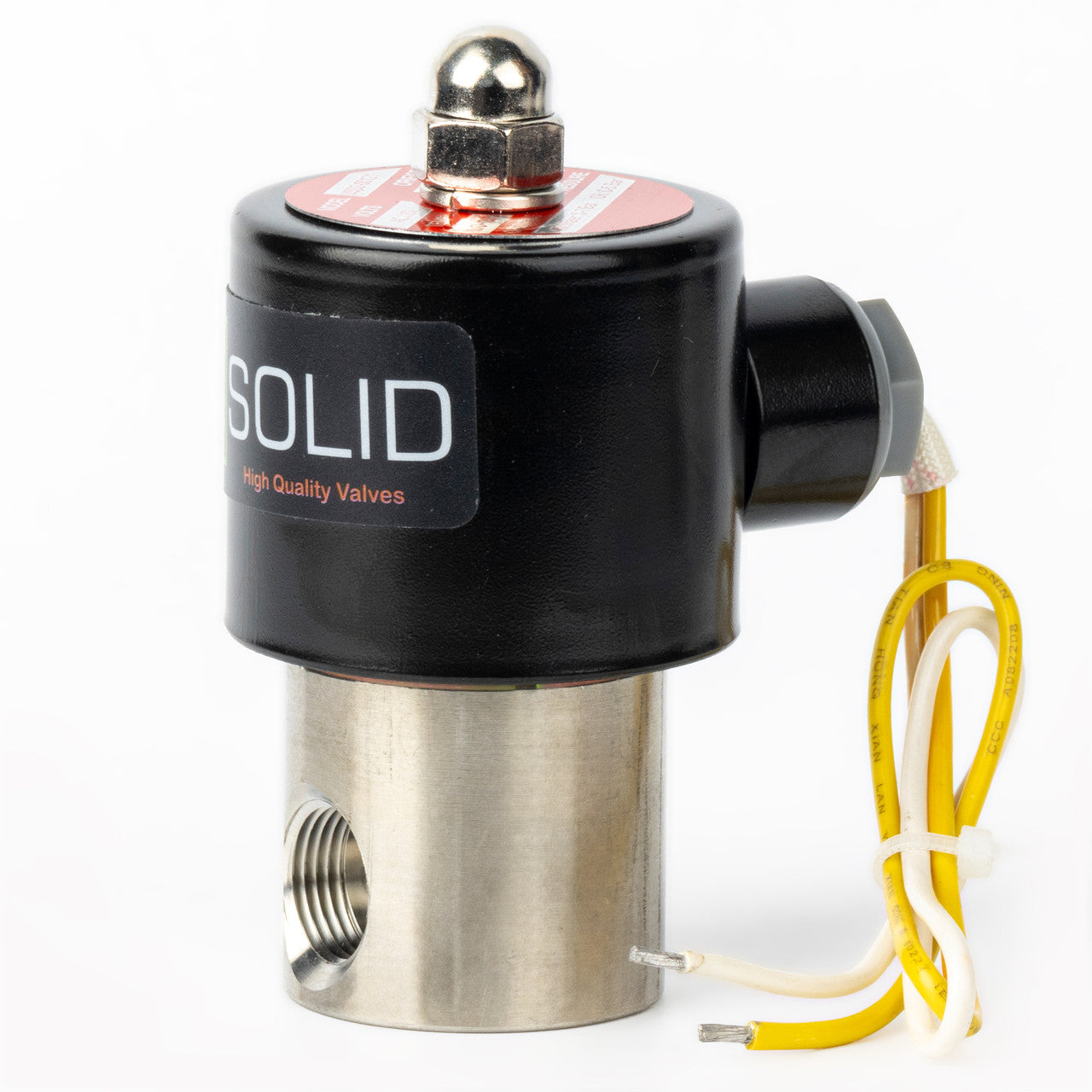

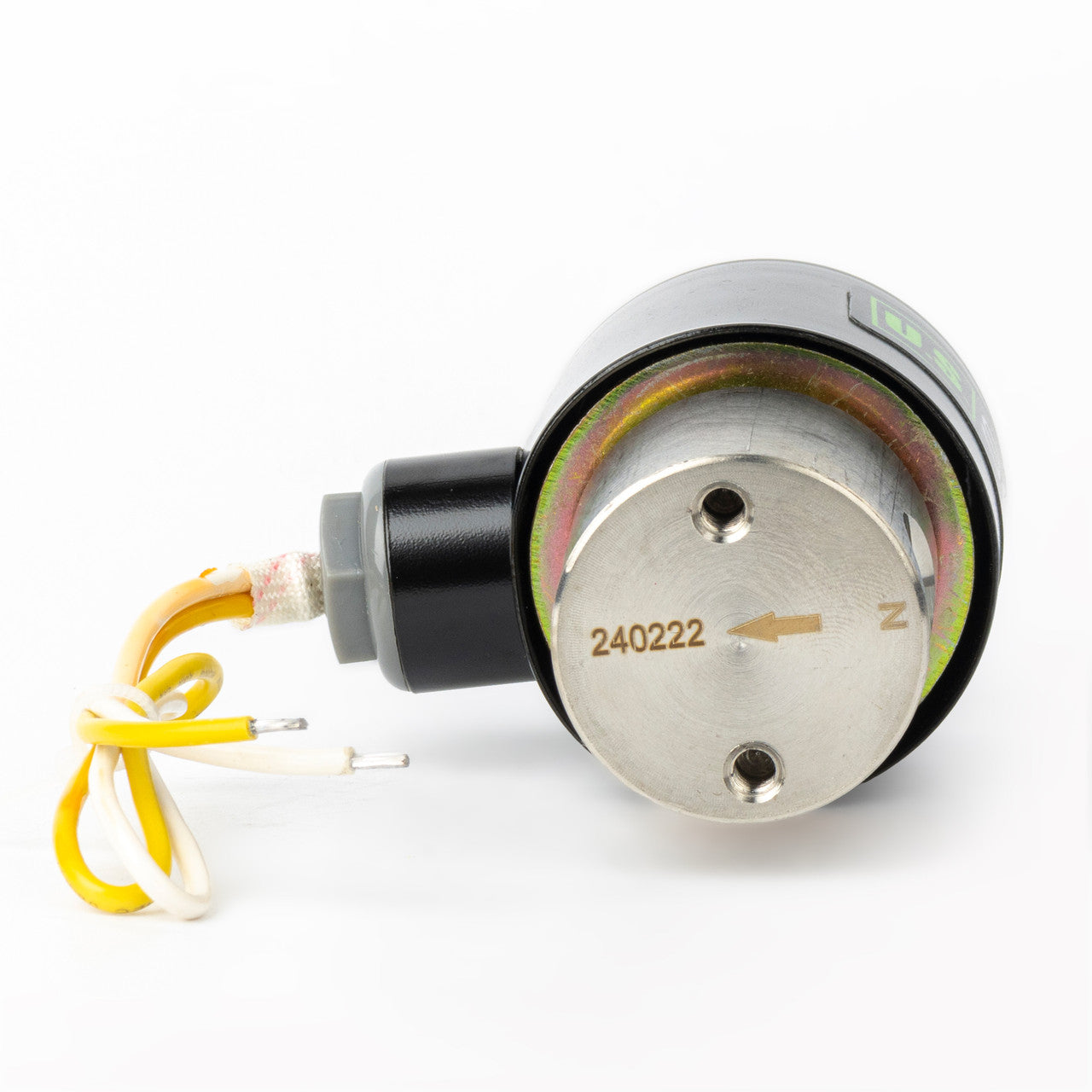

Meet the U.S. Solid Electric Solenoid Valve, crafted from durable, industrial-grade stainless steel. It's compatible with materials like gasoline, diesel fuel, kerosene oil, natural gas, and air. This valve stands out with its high-performance Viton seal, which resists high temperatures and corrosive chemicals.
This valve offers rapid responsiveness, opening and closing in less than a second when actuated. Despite its robustness, please remember that it's not meant for continuous use over 8 hours in a single cycle.

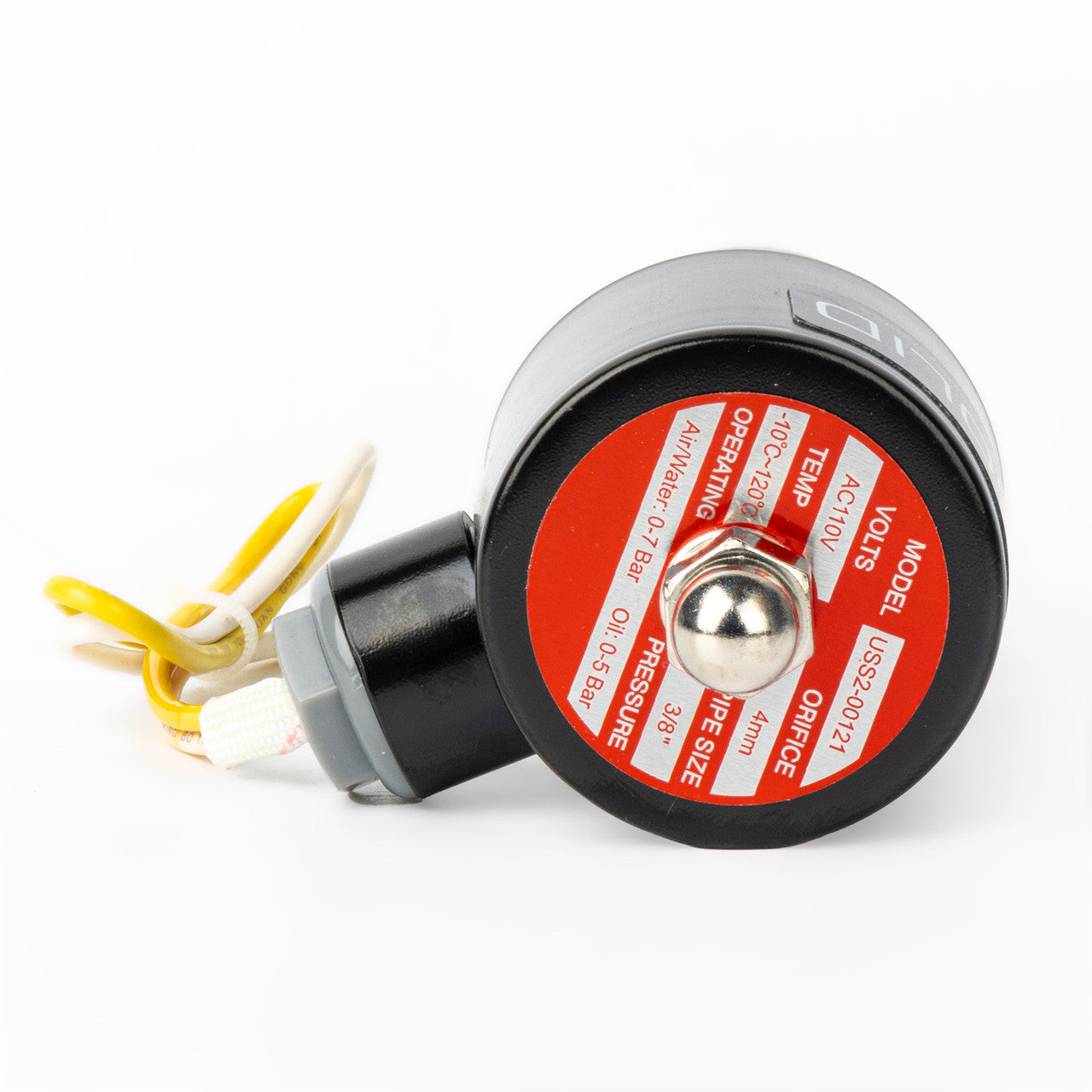

Specifications:
Size: 3/8"
Flow Aperture: 4 mm
Body Material: Stainless Steel
Gasket / Diaphragm / Seal: VITON
Rated voltage: AC 110 V, ± 10%
Current: 0.196 A
Power rating: 21.5 VA
Operation Type: Semi-direct Lift Valve
Operation Mode: Normally Closed
Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
Flow value: 0.6 Cv
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc.
Quality assurance: CE Certified
Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve.
