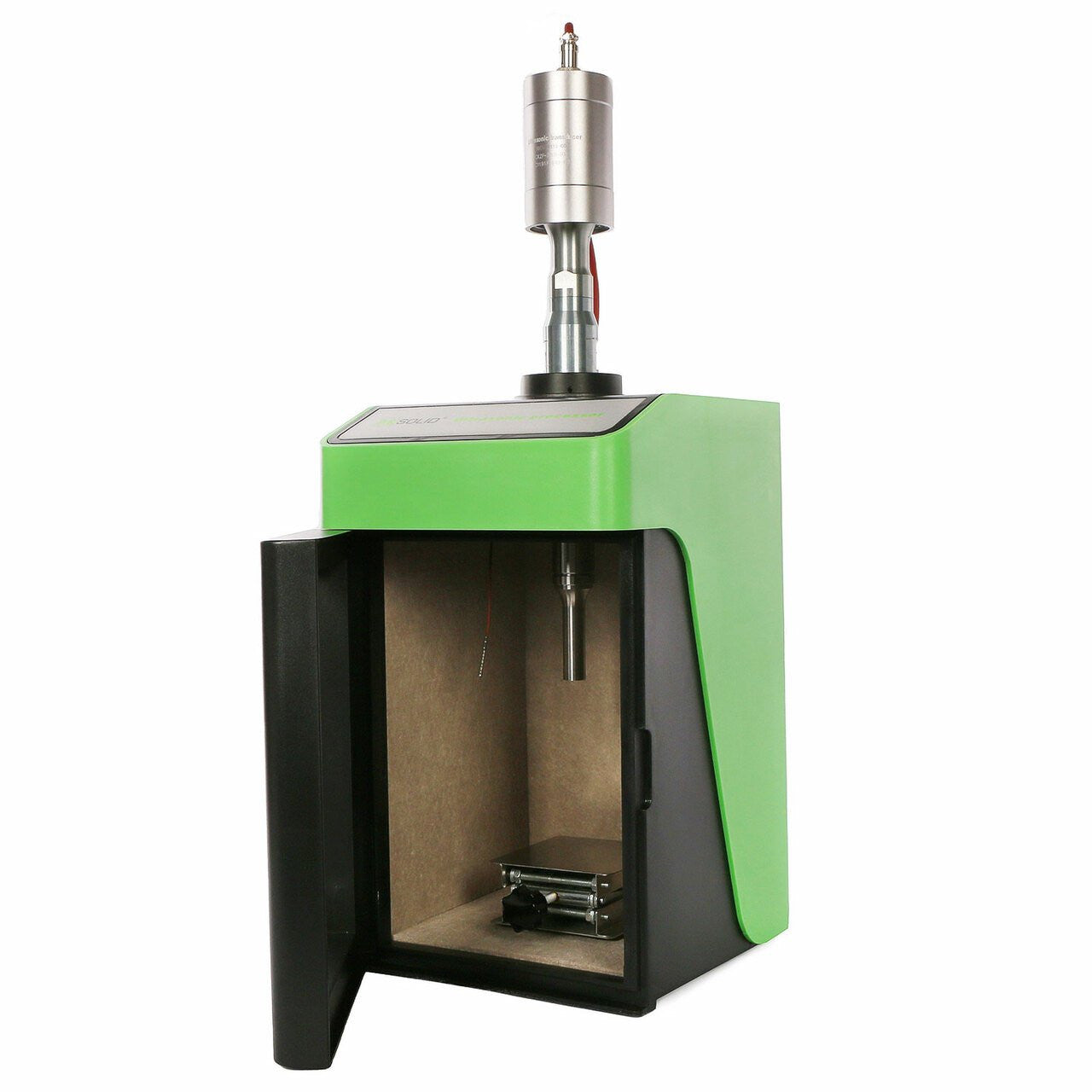

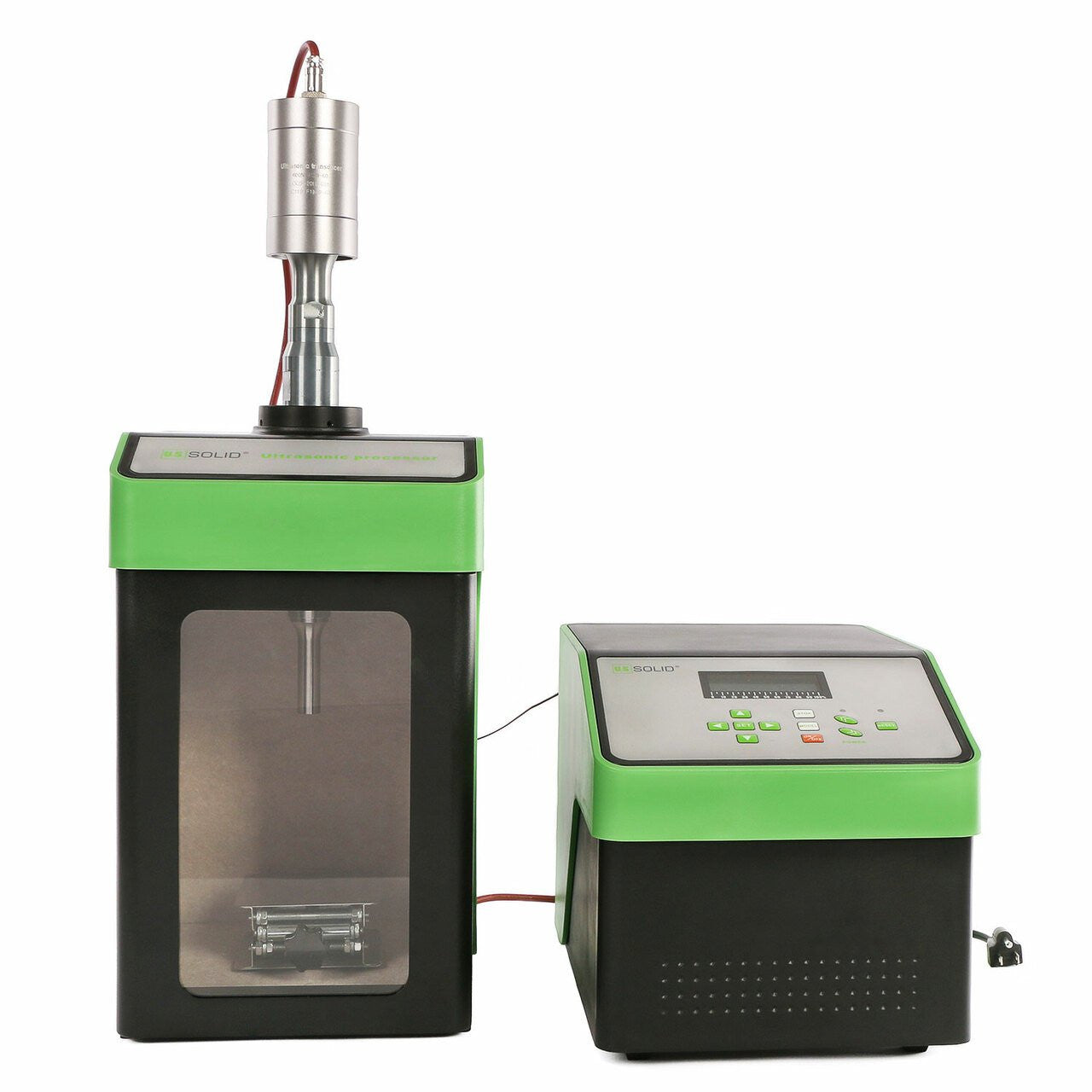

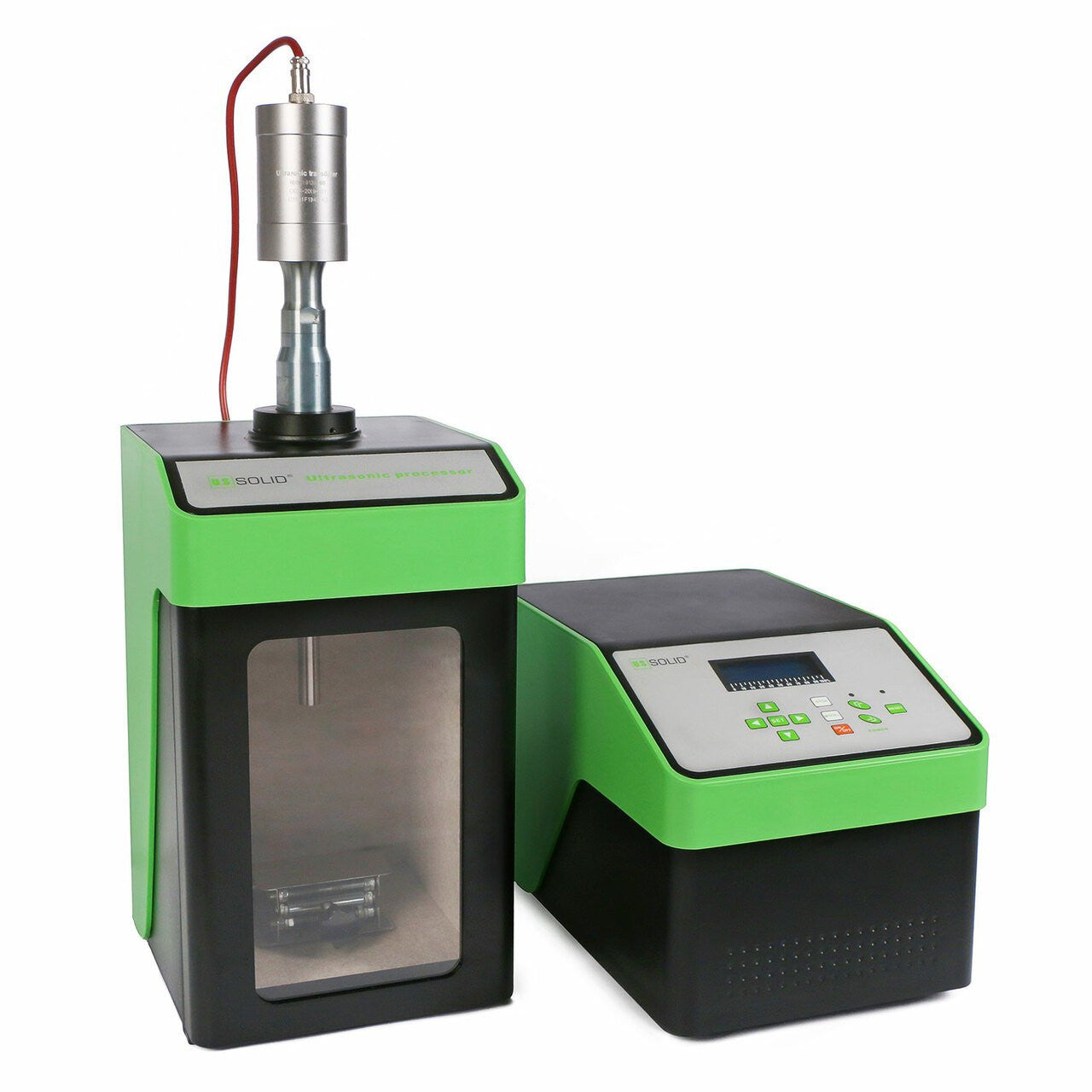

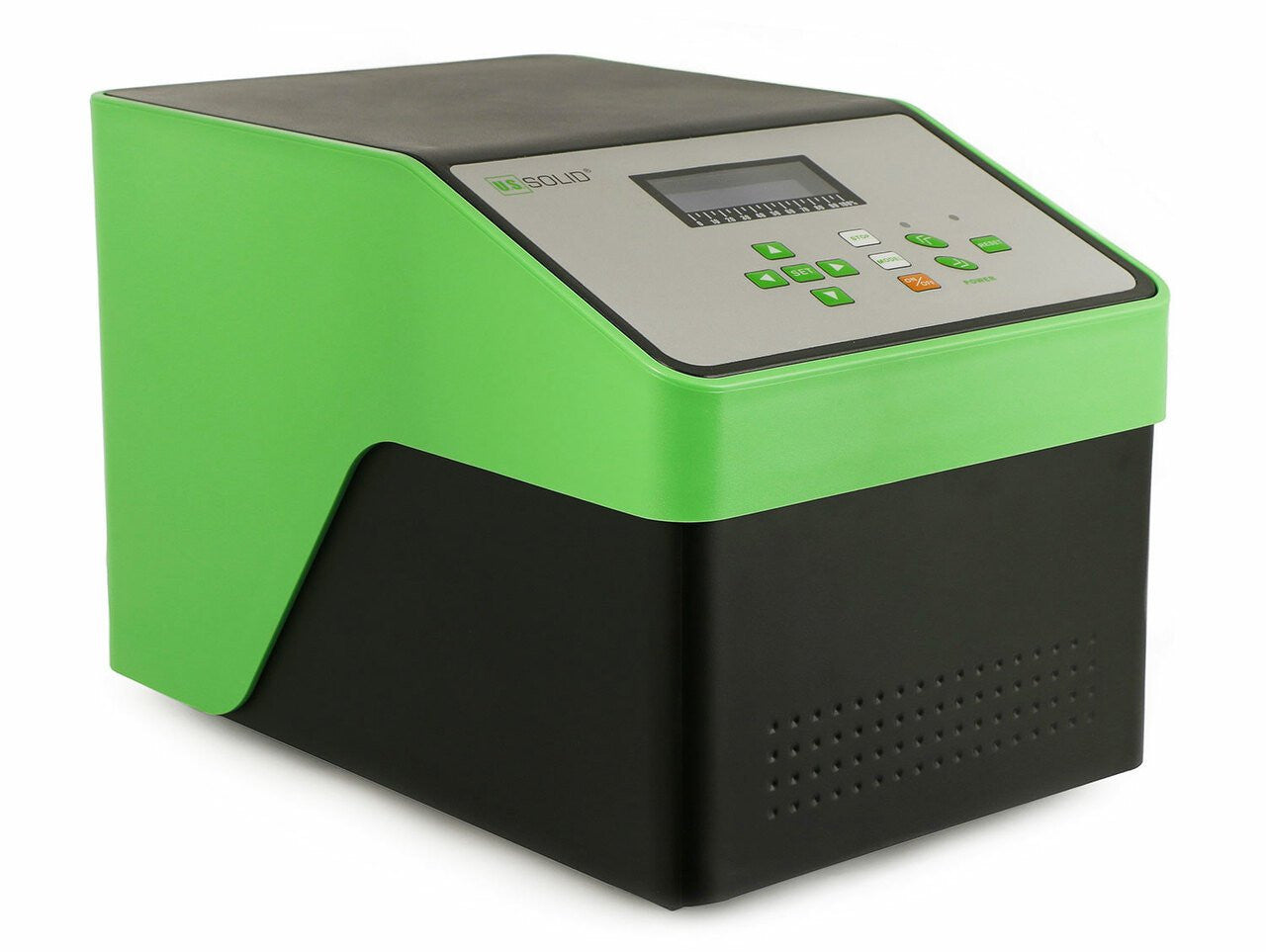

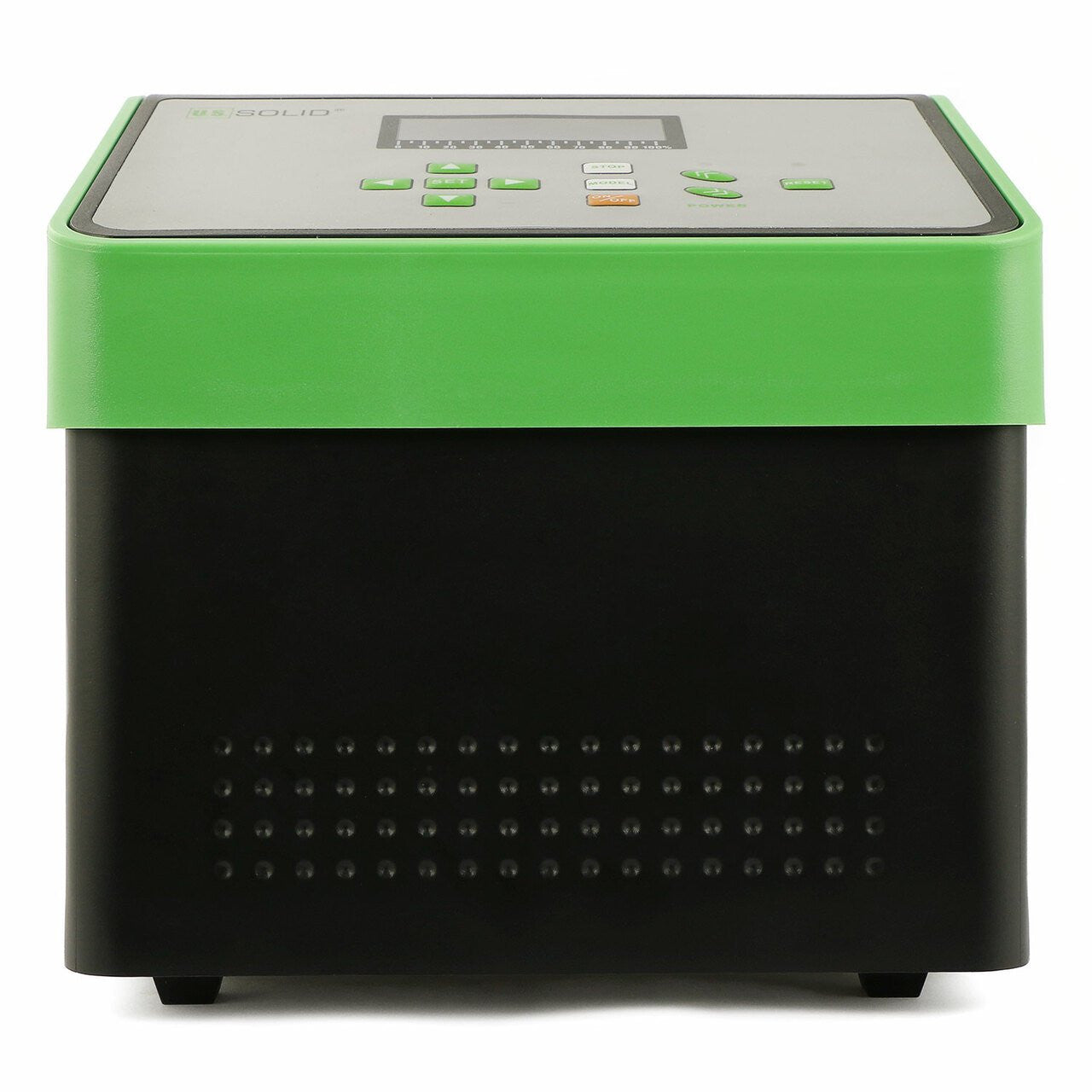

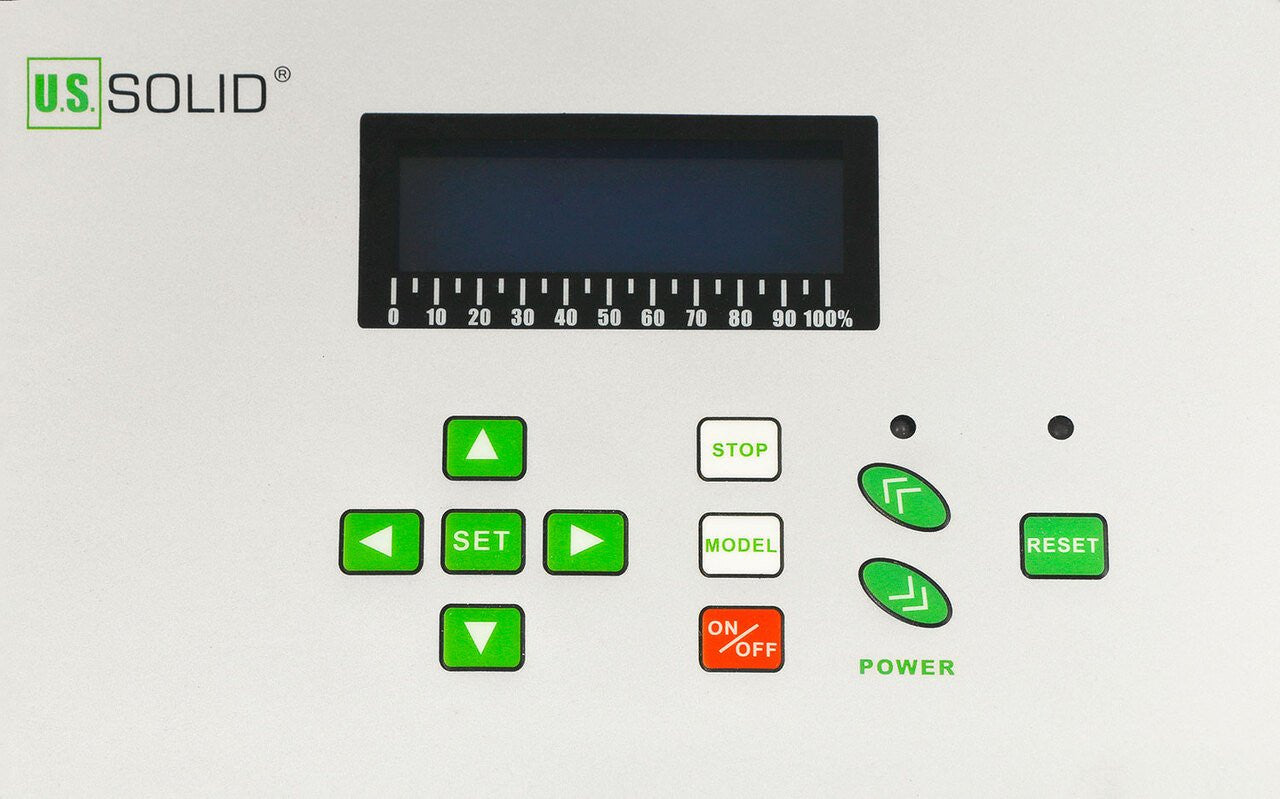

LCD Digital display, 99 hours total working time, variable output for pulsation, temperature indicator to prevent overheating, easy to use programming for optimal efficiency, automatic amplitude control, sound abating chamber to reduce cavitation noise, duty ratio of 0-100% depending upon needs.
TECHNICAL PARAMETER
|
Sample capacity |
Diameter of Probe |
Recommend Container |
|
500ul-10ml |
Φ 2 mm |
EP tube, microcentrifuge tube or small tube |
|
500ul-50ml |
Φ 3 mm |
|
|
2ml-100ml |
Φ 6 mm |
small tube, diameter <10mm; or small beaker |
|
5ml-200ml |
Φ 8 mm |
small tube, diameter <10mm |
|
5ml-200ml |
Φ 10mm |
Beaker (or you can choose container according to the actual sample capacity) |
|
10ml-300ml |
Φ 13 mm |
|
|
20ml-500ml |
Φ 16 mm |
|
|
20ml-500ml |
Φ 18 mm |
|
|
50ml-2000ml |
Φ 20 mm |
|
|
50ml-3000ml |
Φ 25 mm |
|
|
50ml-3000ml |
Φ 30 mm |
Specifications:
U.S. Solid Model: USS-HLUH00013
Frequency Range: 20KHz
Output Power: 300 W
Total Working Timer: 1 sec to 99 hours
Ultrasonic Output Impulse: 1 sec to 99 min on timer
Duty Ratio: 0-100%
Probe Diameter: 8 mm
Sample Processing Volume: 5-200 ml
Packing Size: 20” * 14” * 30”
Gross Weight: 12 kg

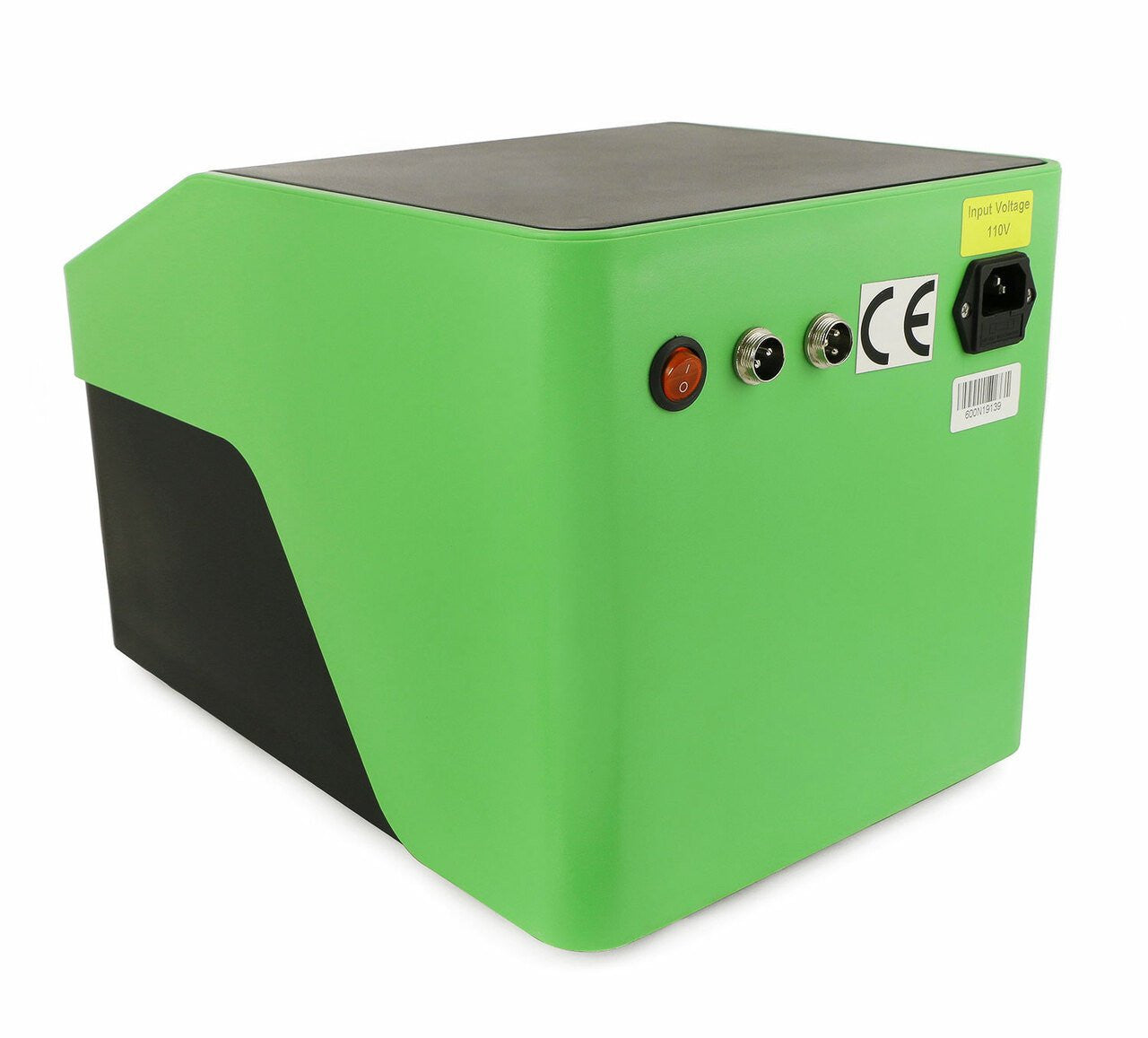

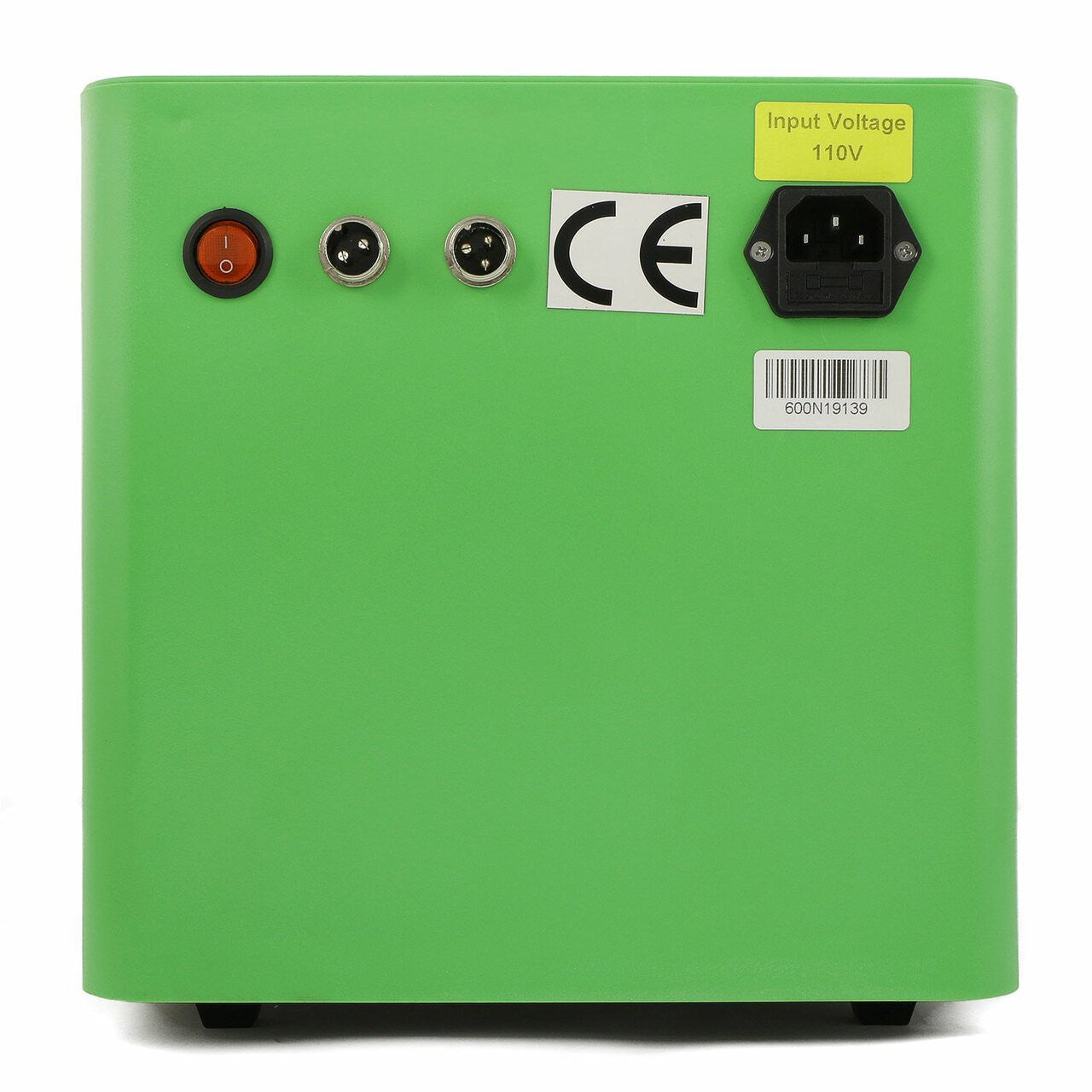

Power Supply: AC 110V, 60 Hz
|
Model |
||||||
|
Output Power |
150 W |
300 W |
450 W |
600 W |
1200 W |
1800 W |
|
Probe Diameter |
6 mm |
8 mm |
13 mm |
16 mm |
20 mm |
25 mm |
|
Capacity |
2-100 ml |
5-200 ml |
10-300 ml |
1-500 ml |
50-2000 ml |
50-3000 ml |
