INTRODUCTION

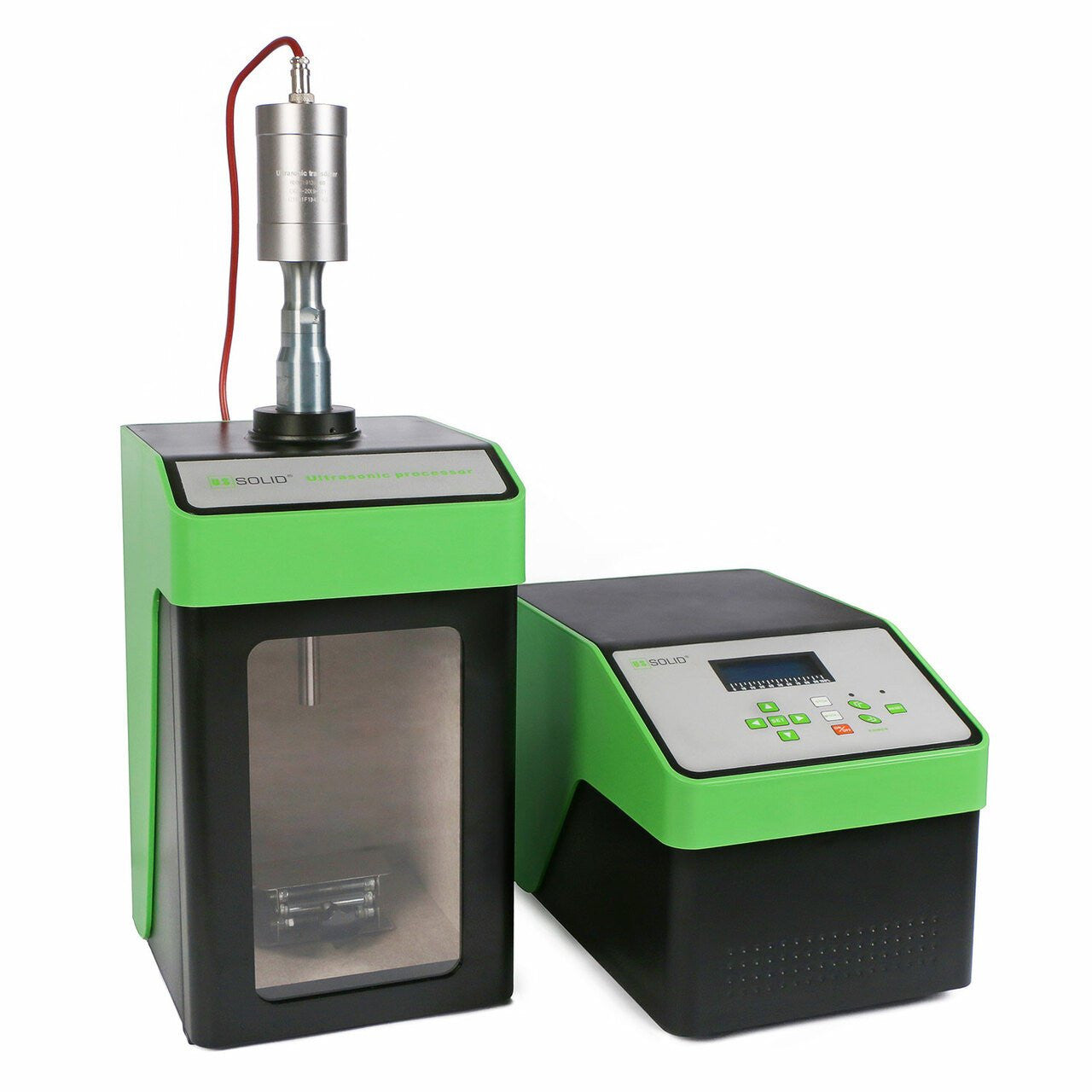

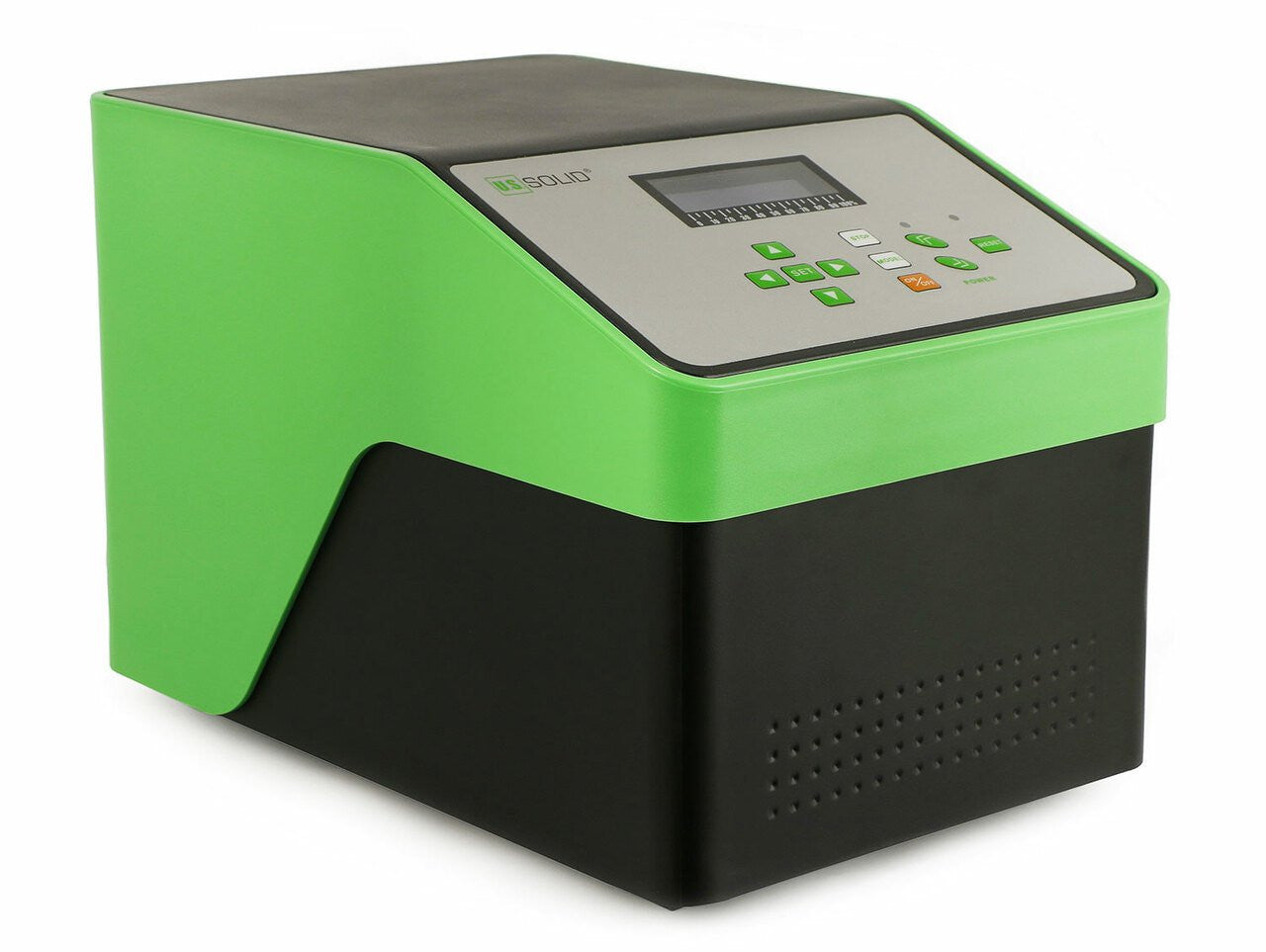

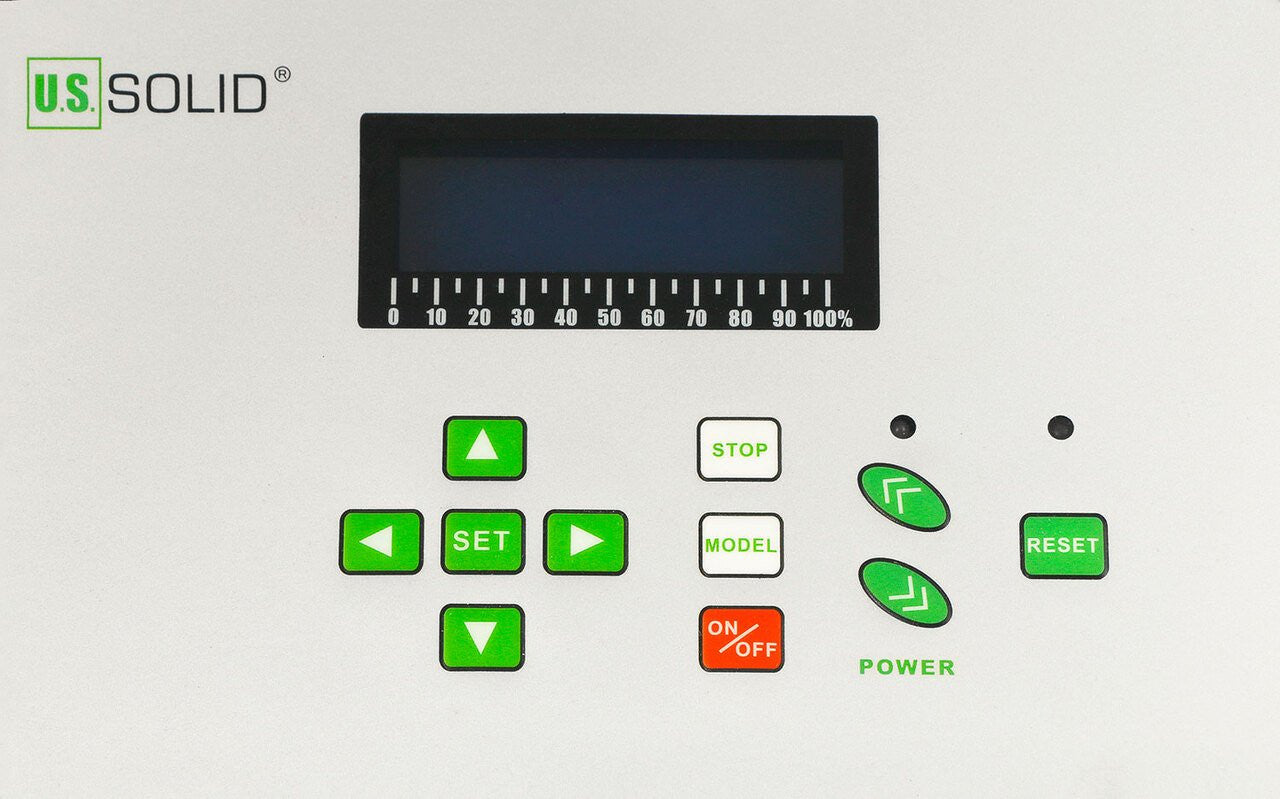

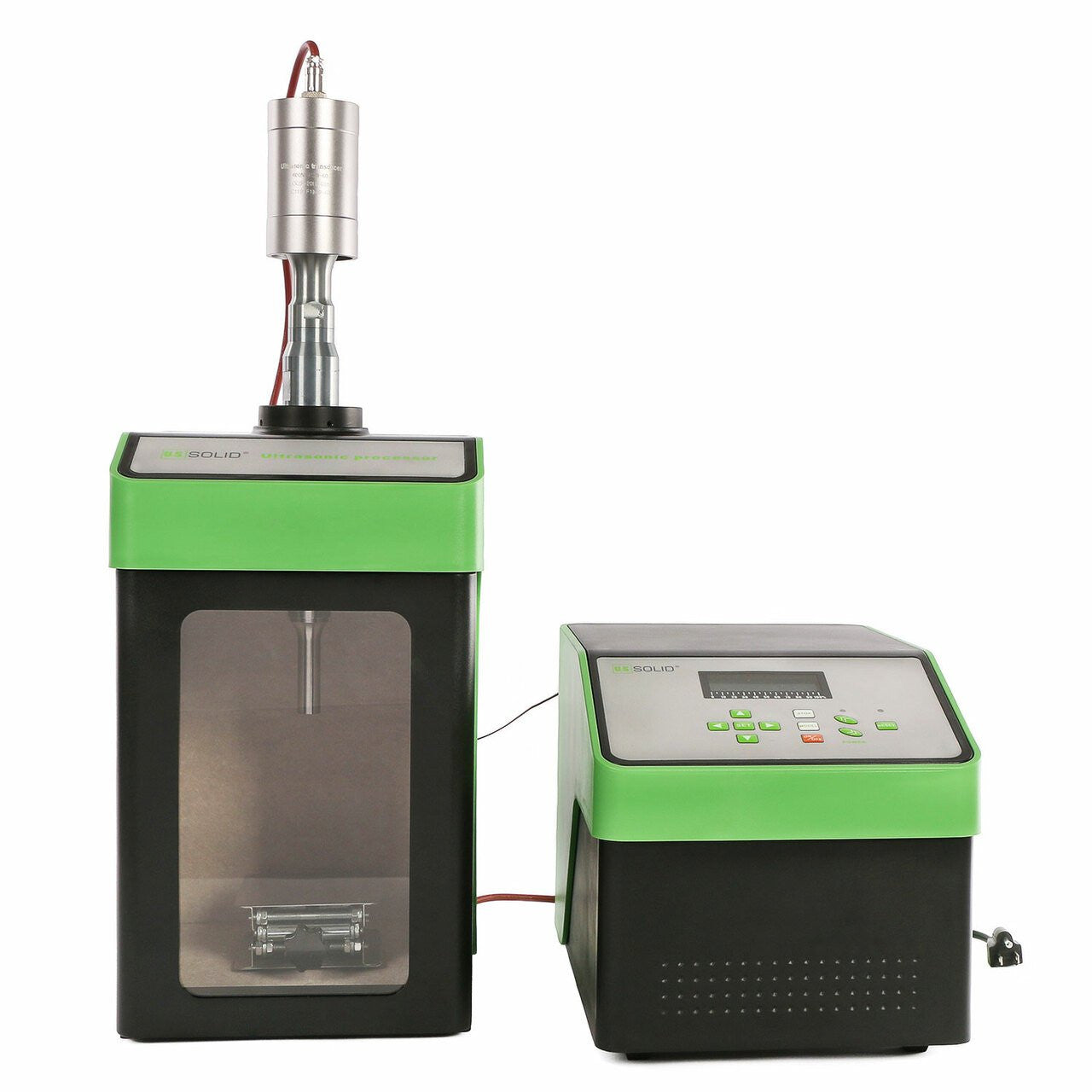

Ultrasonic homogenizer for use in a laboratory for the purposes of mixing, emulsifying, homogenizing, disrupting cells, and reducing particle size in a sample.LCD Digital display, 99 hours total working time, variable output for pulsation, temperature indicator to prevent overheating, easy to use programming for optimal efficiency, automatic amplitude control, sound abating chamber to reduce cavitation noise, duty ratio of 0-100% depending upon needs.
FEATURES
APPLICATIONS
OPERATION PERFORMANCE
EMULSIFICATION
|
DISPERSION
|
SPECIFICATIONS
| Model | USS-HLUH00015 | Brand | U.S. Solid |
|---|---|---|---|
| Frequency range | 20kHz (frequency is auto-tracked) | Total working time | 1s – 99hours with pause function |
| Duty ratio | 0%-100% | Power supply | 110V, 60Hz |
| Material of probe | Titanium alloy | Packing size | 70*50*36cm |
| Weight | 14kg | Output Power | 600 W |
| Standard Probe Diameter | 16 mm | Standard Sample Capacity | 20ml-500ml |
FAQ
1. Can ultrasonic output be started when the probe tip is exposed in the air?
No. Ultrasonic output should never be started when the probe tip is exposed in the air.
2. Does the apparatus need an industrial frequency transformer for the power supply?
No. The apparatus adopts switching power supply without industrial frequency transformer. Do not touch randomly after opening the generator housing to avoid electroshock.
3.Does the apparatus need to warm up before use?
No. The apparatus does not need to warm up and should be grounded well when in use.
4.In what kind of environment can the apparatus be used?
It should be used in the environment free from moisture, sunshine and corrosive gases.
5.How should the correct use regarding the platform and ultrasonic probe be ensured?
The platform should be tightly fixed to the rod, and the ultrasonic probe should be in liquid and not touch the walls of the sample vessel.
WARNING
1.The liquid temperature will increase rapidly due to the cavitation effect during crushing. Pay attention to the temperatures for different cells and consider adopting multiple short - time crushing (not longer than 5s each time) and ice bath cooling.
2.Multiple short - time operations (working time 1 - 2s and interval time 1 - 2s) have better effects than continuous long - time operations to avoid liquid heating.
3.The horn end will become rough due to cavitation corrosion after being used for a period of time. Use oil stone or rasp to smooth, otherwise it will influence the working effects.
4.For long - run operations with sample heating, gross sample heating can be minimized by nesting the sample vessel in an outer vessel containing ice, selecting longer interval (gap) times, or using a specially fabricated leptomastic ultrasonication vessel (available as an accessory).
5.If the liquid volume containing the sample is less than 5 ml, choose an ultrasonic probe having a tip diameter of 2 or 3 mm, and ensure the depth and distance requirements are met.

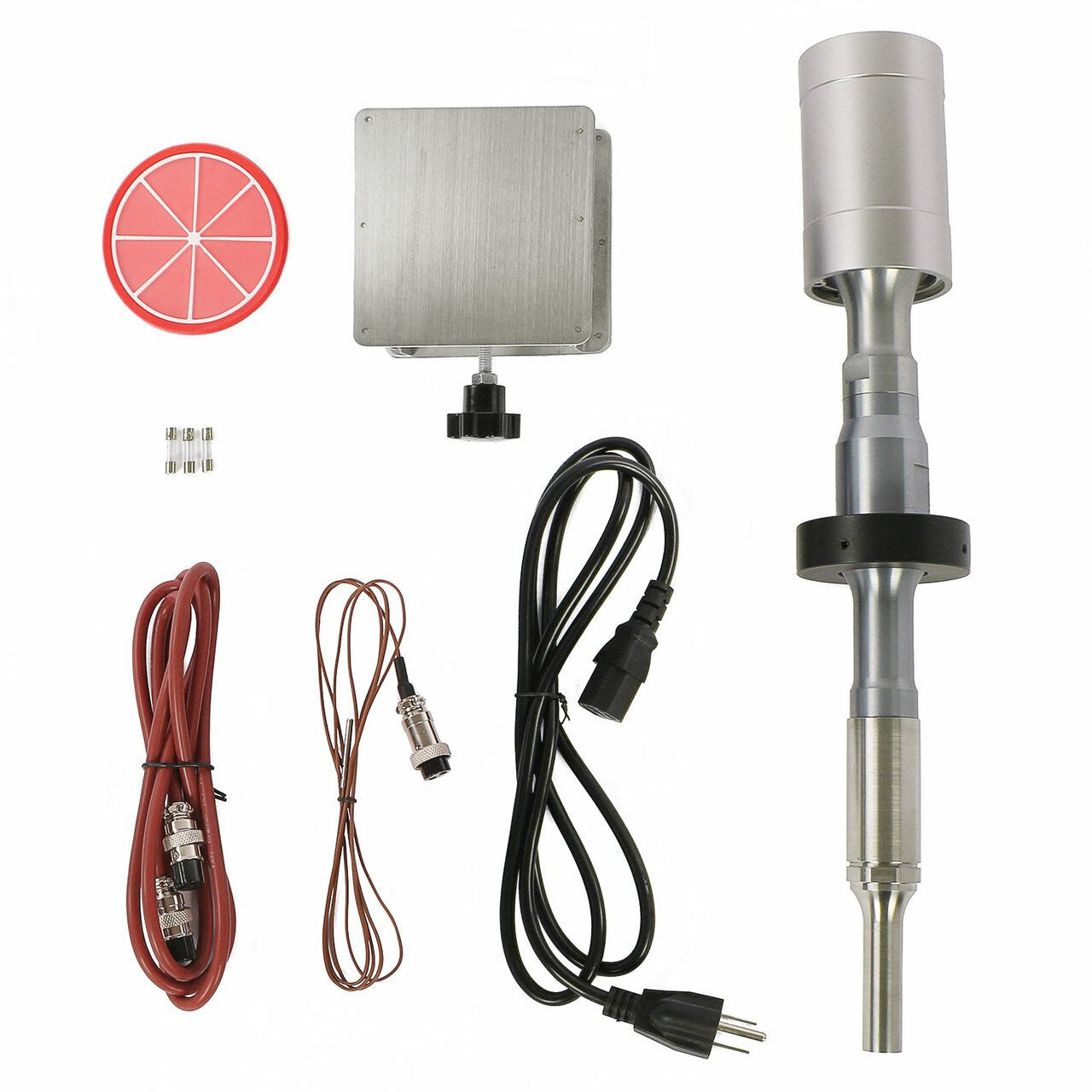

PACKING LIST
- Main machine x1

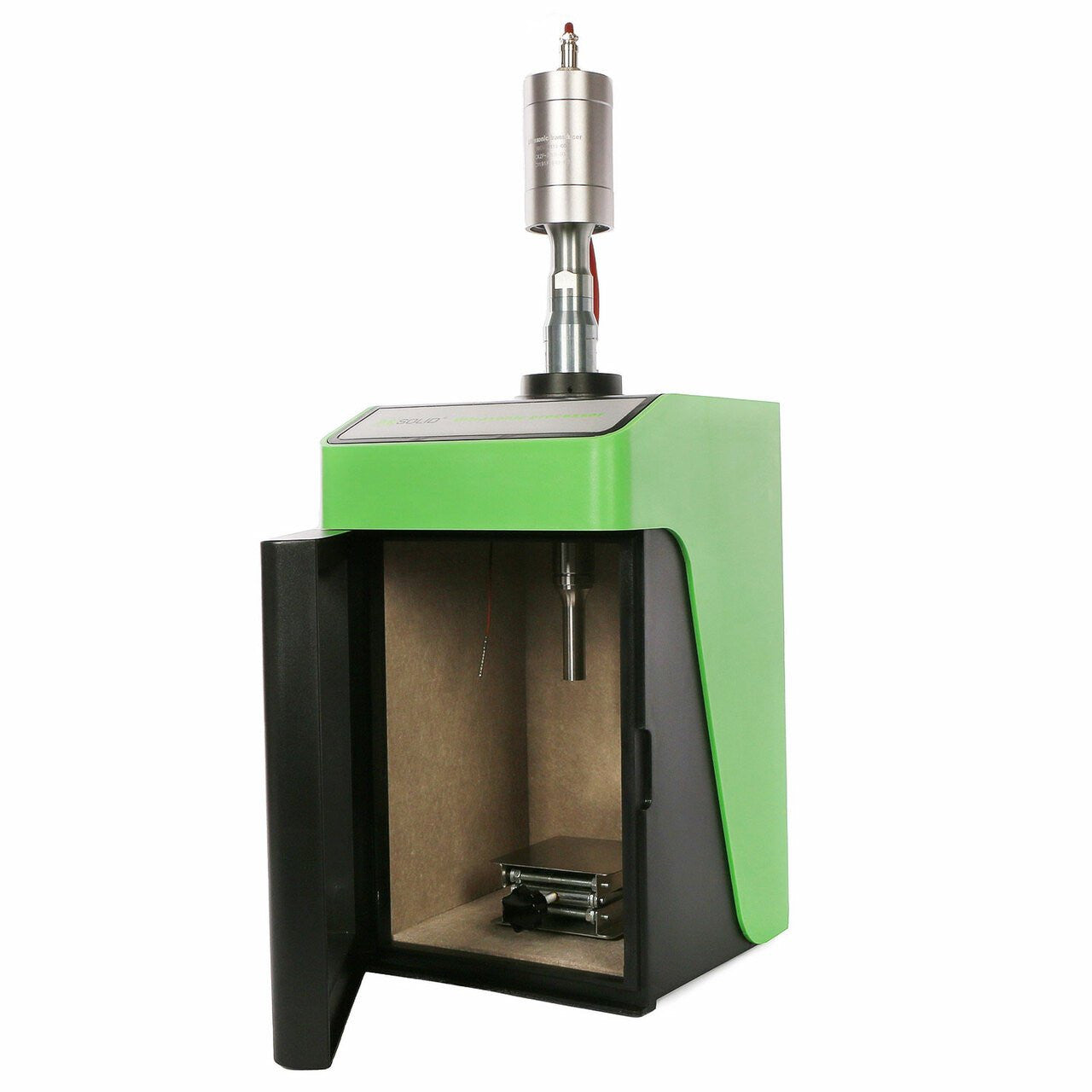

- Soundproof box x1
- Stainless steel lifting platform x1
- Fuse x2
- Power cable x1
- Standard Probe x1
- Temperature probe x1
- User manual x1
OTHER MODELS
| Model | USS-HLUH00012 | USS-HLUH00013 | USS-HLUH00014 | USS-HLUH00015 | USS-HLUH00016 | USS-HLUH00019 |
|---|---|---|---|---|---|---|
| Output Power | 150 W | 300 W | 450 W | 600 W | 1200 W | 1800 W |
| Probe Diameter | 6 mm | 8 mm | 13 mm | 16 mm | 20 mm | 25 mm |
| Capacity | 2-100 ml | 5-200 ml | 10-300 ml | 1-500 ml | 50-2000 ml | 50-3000 ml |
OPTIONAL PROBES
| Model | USS-HLUHP00019 | USS-HLUHP00020 | USS-HLUHP00021 | USS-HLUHP00022 | USS-HLUHP00023 | USS-HLUHP00025 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter of Probe | Φ 3 mm | Φ 6 mm | Φ 8 mm | Φ 10 mm | Φ 13 mm | Φ 18 mm | ||||
| Sample capacity | 0.2ml-50ml | 2ml-200ml | 5ml-300ml | 10ml-400ml | 10ml-500ml | 50ml-500ml | ||||
| Recommended Container | Small tube, diameter <10mm; or small beaker | Small tube, diameter <10mm | Beaker (or you can choose container according to the actual sample capacity) | |||||||
Download user manual here
