Features:
• Bidirectional Rewind/Unwind Capability.

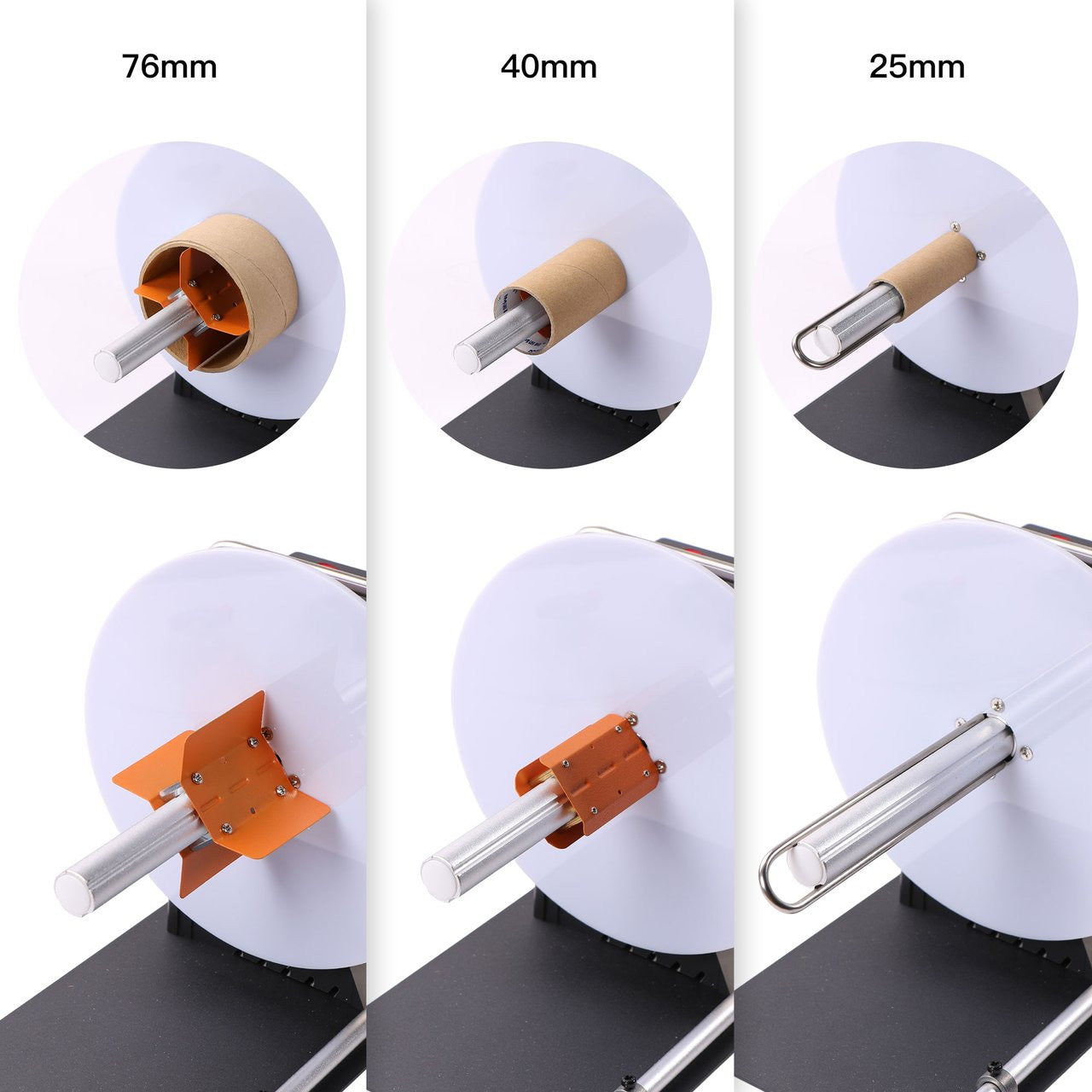

• Come with core holder 1", 1.5” and 3”.
• Labels can be wound without paper tube.
• Adjustable Speed to synchronize the speed of the printer.
• Work with dual flange plate and two stop levels, label will be more tidy.
Technical Specifications:
Max. Label Width: 4.72 inches (120mm)
Label Length: No Limits
Max. OD of Label Roll: Ø 7.87 inches (200 mm)
Max. Label Roll Weight: 4.4 lbs. (2 kg)
Core Diameter: 1”(25mm)&1.5” (40mm) &3” (76mm)&exempt core
Speed: 1~8 inches /second
Voltage: AC 100V-240V, 50/60Hz
Net Weight: 5.3lbs(2.4kg)
Product Dimensions: 10.24” (L)x 5.91” (W)x9.05” (H) (260*150*230mm)

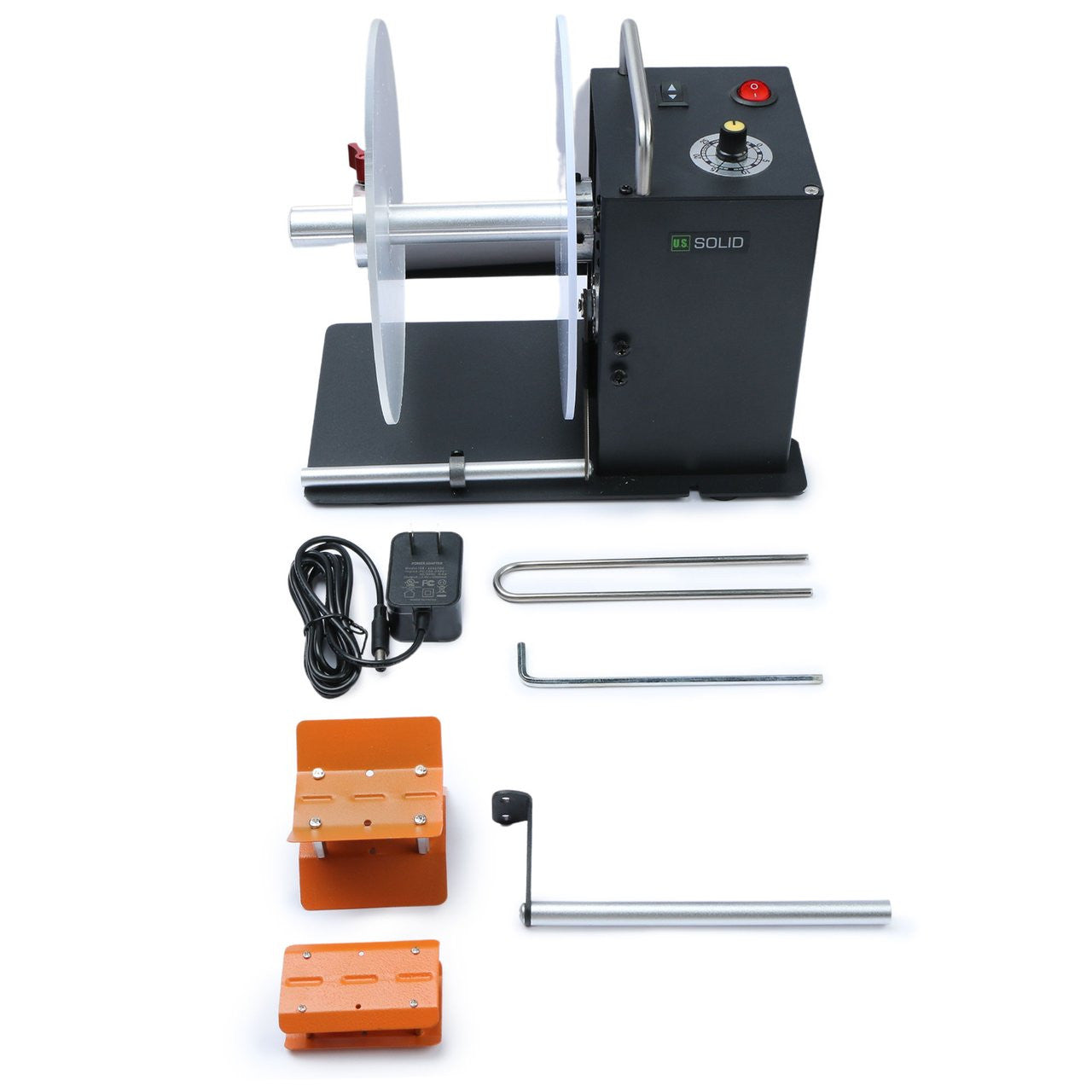

Packing List:
1* Label Rewinder Machine
1* Power Adapter
1* 1” (25mm) Core Holder
1* 1.57”(40mm) Core Holder
1* 3”(76mm) Core Holder
1* L-shaped Rod for Core-free Rewinding
1* Stop Lever
|
SKU |
Label Width |
Label Length |
Max. OD of Label Roll |
Core Diameter |
Coreless Rewinding |
Bi-directional Rewind Capability |
Adjustable Paper Guide |
|
100 mm (3.93") |
no limit |
185 mm (7.2") |
1"-3" |
✓ |
✓ |
✓ |
|
|
120 mm (4.72") |
no limit |
220 mm (8.6") |
1"-4" |
✓ |
✓ |
✓ |
|
|
150 mm (5.91") |
no limit |
220 mm (8.6") |
1"-4" |
✓ |
✓ |
✓ |
|
|
150 mm (5.91") |
no limit |
230 mm (9.06") |
1.5"& 3" |
✓ |
✓ |
x |
|
|
80 mm (3.15") |
no limit |
138 mm (5.43") |
1"&1.5” |
✓ |
✓ |
x |
|
|
80 mm (3.15") |
no limit |
138 mm (5.43") |
1"&1.5” |
✓ |
✓ |
✓ |
|
|
120 mm (4.72") |
no limit |
200 mm (7.87") |
1"&1.5”&3" |
✓ |
✓ |
✓ |
|
|
150 mm (5.91") |
no limit |
212 mm (8.34”) |
1"&1.5”&3" |
✓ |
✓ |
✓ |
