Features:
- Bidirectional Rewind/Unwind Capability.
- Come with core holder 1", 1.5” and 3”.
- Labels can be wound without paper tube.
- Adjustable Speed to synchronize the speed of the printer.
- Work with dual flange plate and two stop levels, label will be more tidy.
Technical Specification:
Max. Label Width: 5.91 inches (150mm)
Label Length: No Limits
Max. OD of Label Roll: Ø 8.34 inches (212 mm)
Max. Label Roll Weight: 6.6 lbs. (3 kg)
Discs Diameter: Ø 7.79 inches (198 mm)
Core Diameter: 1”(25mm)&1.5” (40mm) &3” (76mm)&exempt core
Speed: 1~8 inches /second
Voltage: AC 100V-240V, 50/60Hz
Net Weight: 5.3lbs(2.4kg)
Product Dimensions: 12.04” (L)x 7.79” (W)x8.58” (H) (306*198*218cm)

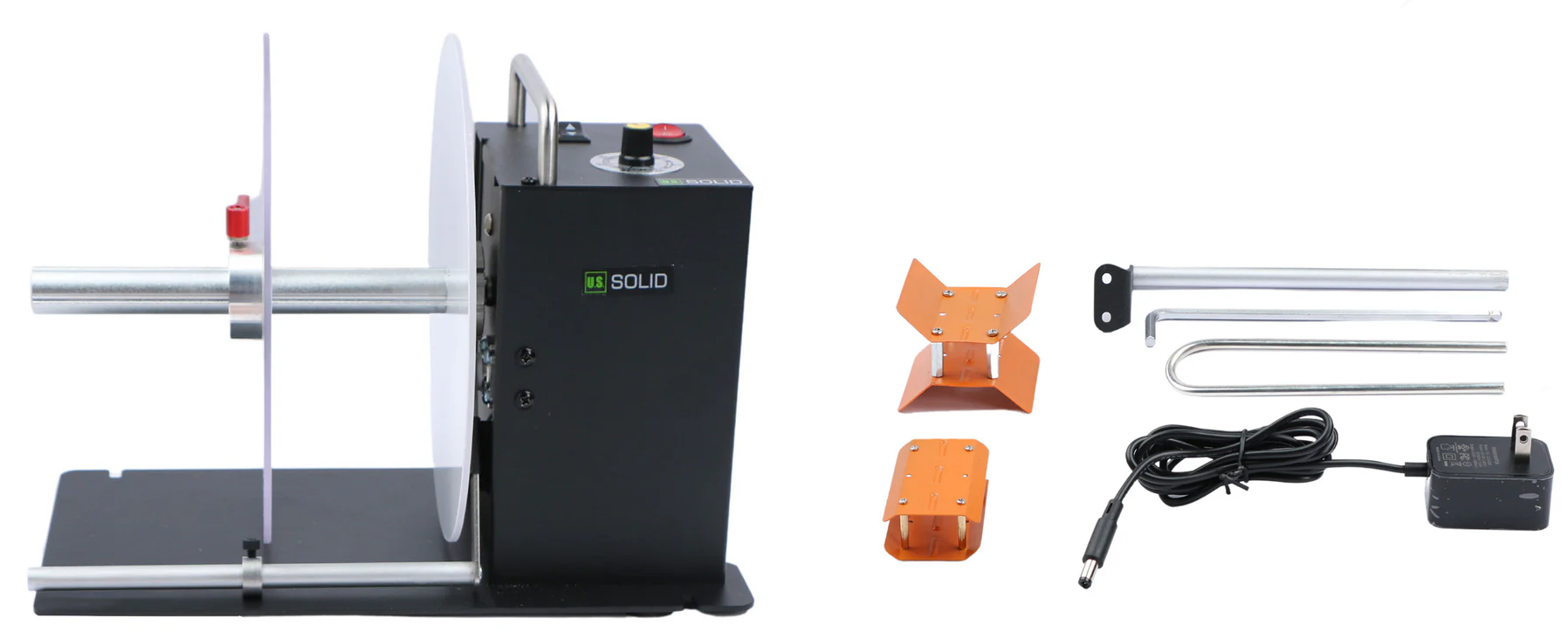

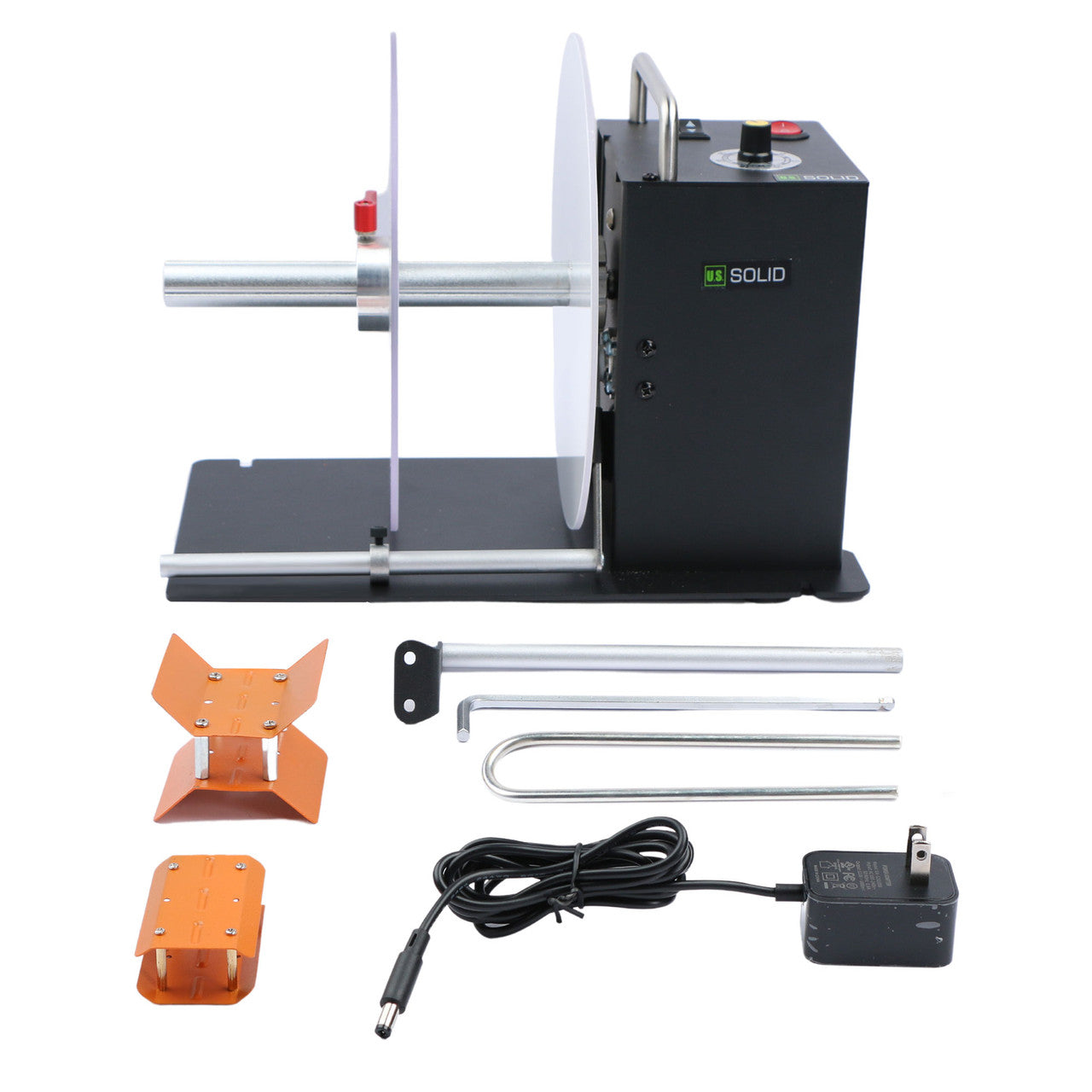

Packing List
1* Label Rewinder Machine
1* Power Adapter
1* 1” (25mm) Core Holder
1* 1.57”(40mm) Core Holder
1* 3”(76mm) Core Holder
1* L-shaped Rod for Core-free Rewinding
1* Stop Lever
|
SKU |
Label Width |
Label Length |
Max. OD of Label Roll |
Core Diameter |
Coreless Rewinding |
Bi-directional Rewind Capability |
Adjustable Paper Guide |
|
100 mm (3.93") |
no limit |
185 mm (7.2") |
1"-3" |
✓ |
✓ |
✓ |
|
|
120 mm (4.72") |
no limit |
220 mm (8.6") |
1"-4" |
✓ |
✓ |
✓ |
|
|
150 mm (5.91") |
no limit |
220 mm (8.6") |
1"-4" |
✓ |
✓ |
✓ |
|
|
150 mm (5.91") |
no limit |
230 mm (9.06") |
1.5"& 3" |
✓ |
✓ |
x |
|
|
80 mm (3.15") |
no limit |
138 mm (5.43") |
1"&1.5” |
✓ |
✓ |
x |
|
|
80 mm (3.15") |
no limit |
138 mm (5.43") |
1"&1.5” |
✓ |
✓ |
✓ |
|
|
120 mm (4.72") |
no limit |
200 mm (7.87") |
1"&1.5”&3" |
✓ |
✓ |
✓ |
|
|
150 mm (5.91") |
no limit |
212 mm (8.34”) |
1"&1.5”&3" |
✓ |
✓ |
✓ |
