INTRODUCTION

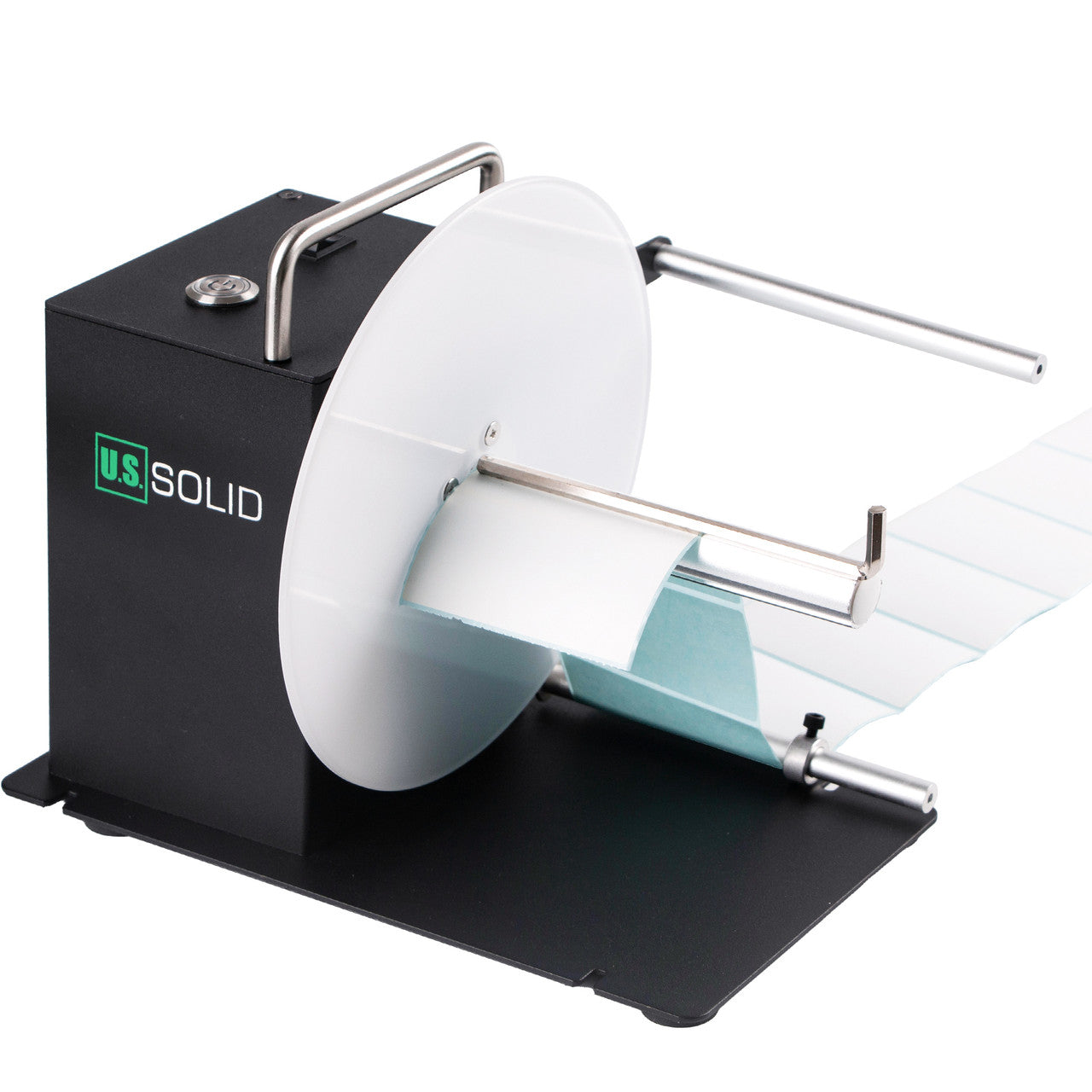

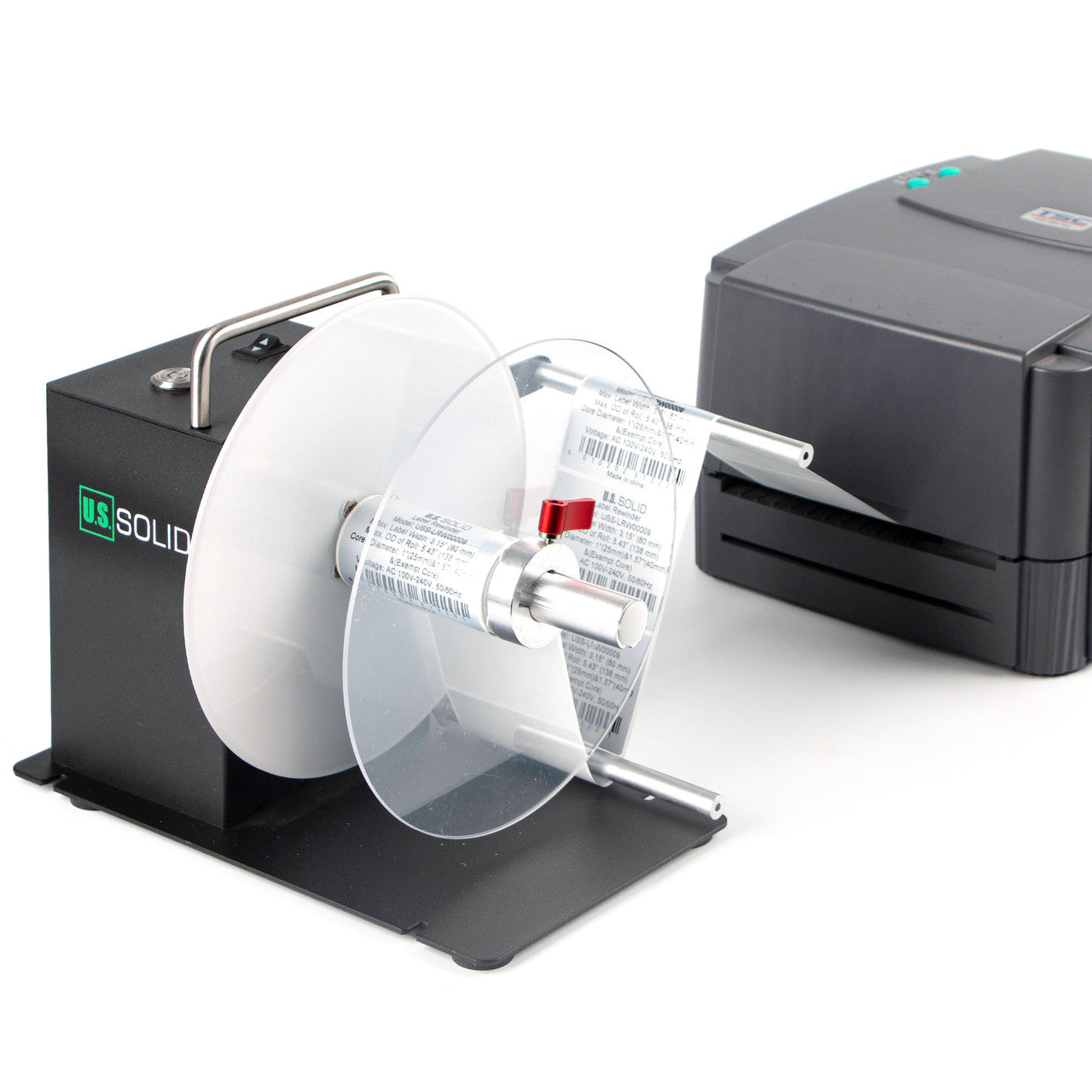

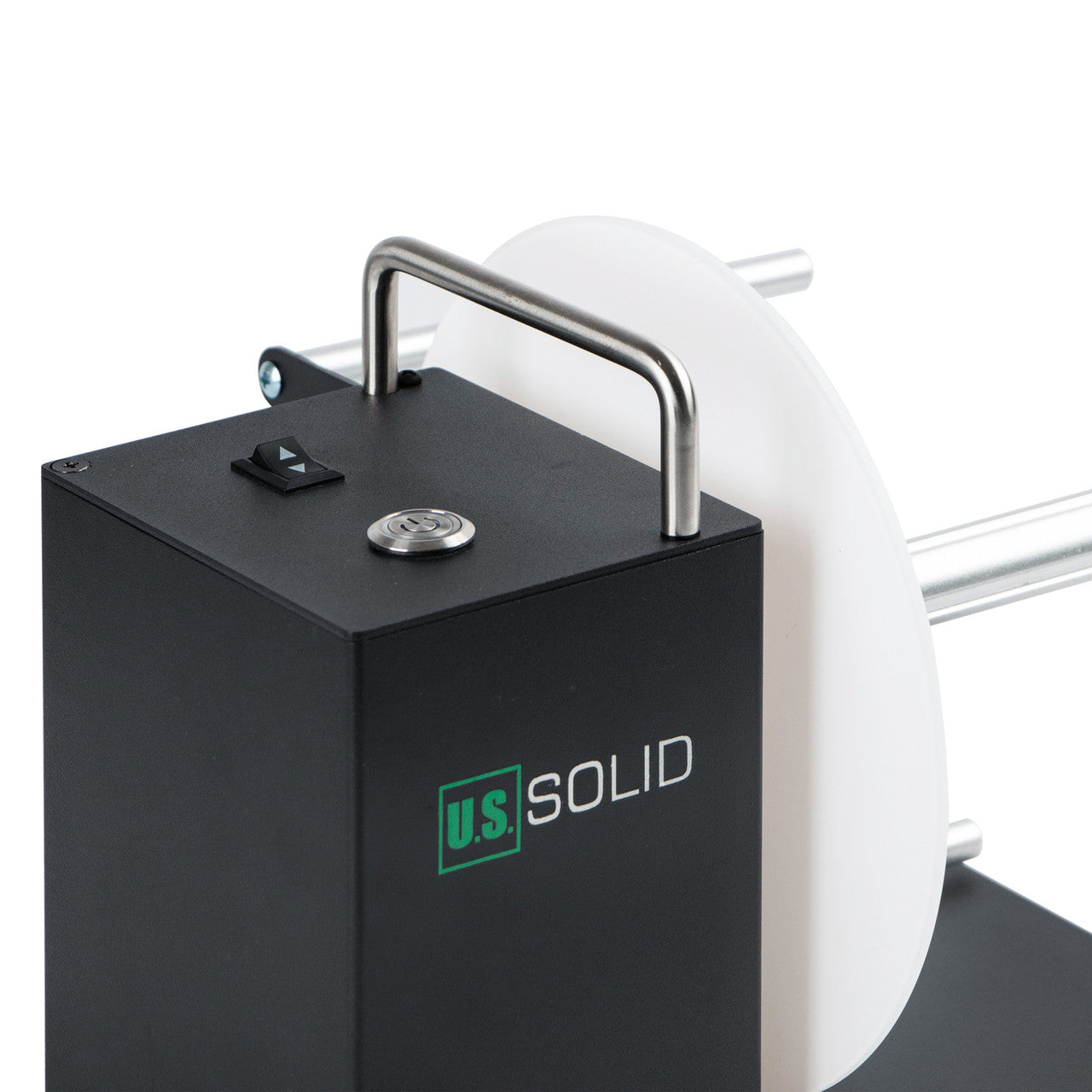

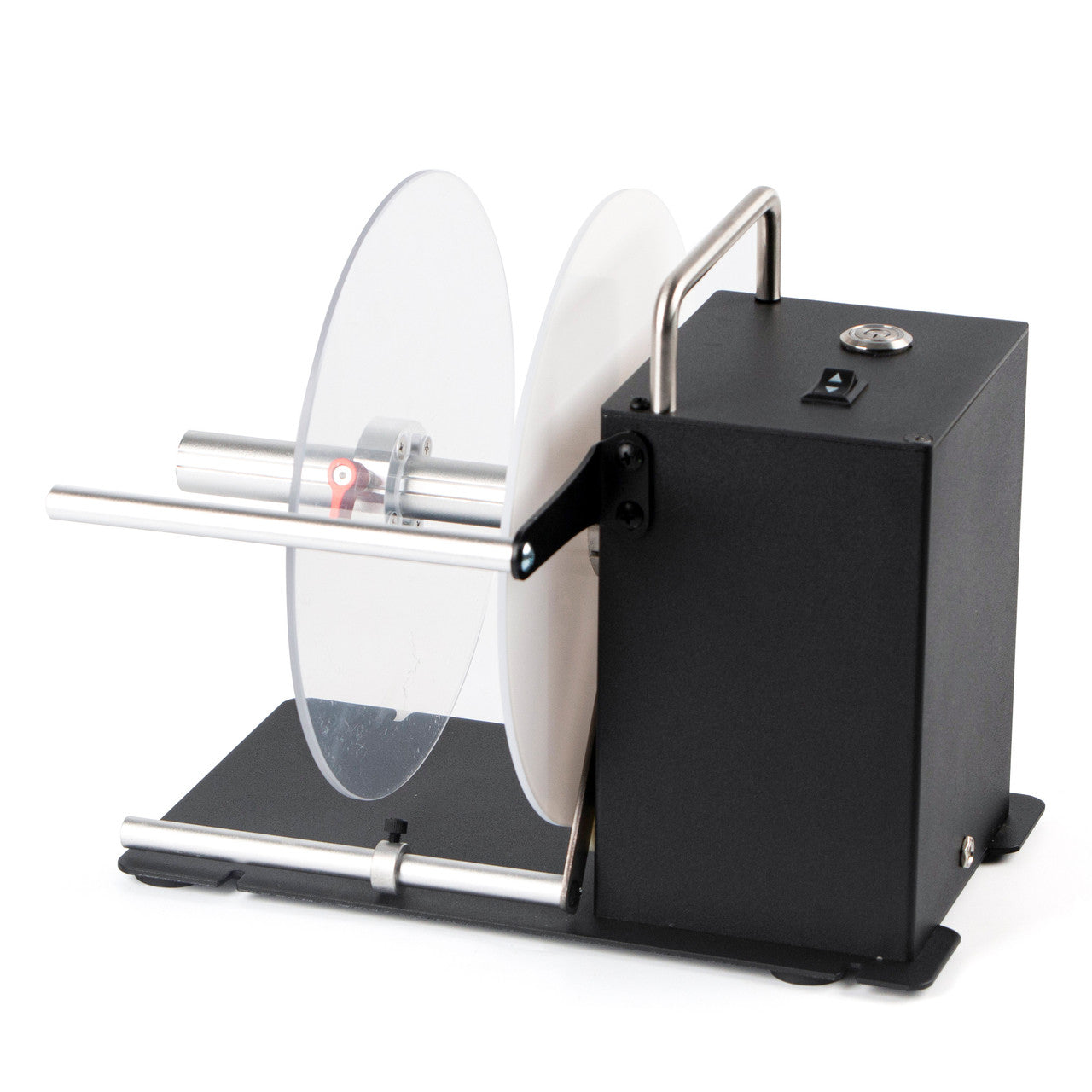

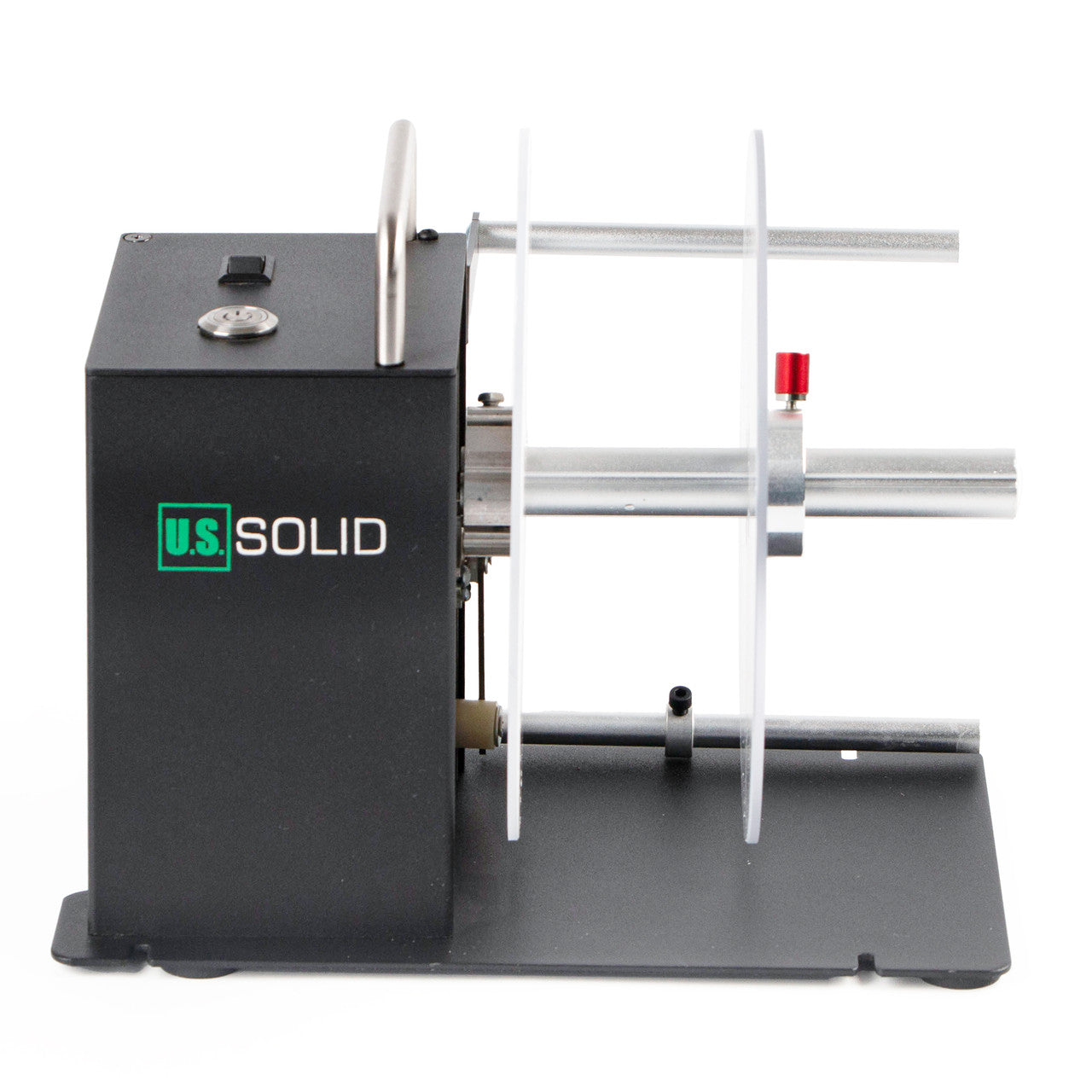

The U.S. Solid Automatic Label Rewinding Machine simplifies label management with adjustable speeds and bi-directional winding to match printer output. It produces compact rolls for easy storage, supports coreless or cored rewinding, and handles a wide range of label widths. The tool-free design includes an adjustable paper guide and directional controls for precision, eliminating manual handling. Compatible with various workflows, its durable construction ensures reliable performance for high-volume tasks, backed by a quality guarantee.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-LRW00014 | Brand | U.S. Solid |
|---|---|---|---|
| SKU | JFLRW00014 | GTIN-12 (U.P.C.) | 888107109433 |
| Applicable Label Width | Up to 120 mm | Applicable Label Length | No limits |
| Max Roll O/D | 200 mm (7.87") | Speed | 1~8 inches /second |
| Machine Dimensions | 260(L)*210(W)*235(H)mm (10.24"*8.27"*9.25") | Gross Weight | 4.85lbs (2.2kg) |
| Internal Core Diameter | 1"(25mm)&1.5"(40mm) &3"(76mm)&exempt core | Power Supply | AC 100 V-240 V, 50/60 Hz |
WARNING
1.Do not plug in, unplug the cord, or operate the machine with wet hands.
2.This product is only for indoor use and must not be used in wet locations.
3.During the operation of the machine, please do not touch the rewinder shaft, and never stop its rotation.
4.The outer diameter of label roll should not exceed the outer diameter of the flange plate, and the rewinder must not be blocked for a long time.(The machine is in working state but is bound and cannot turn), otherwise the rewinding machine or power source will be damaged.
5.Turn off the power switch and unplug the machine before removing waste material or performing any cleaning or maintenance services.

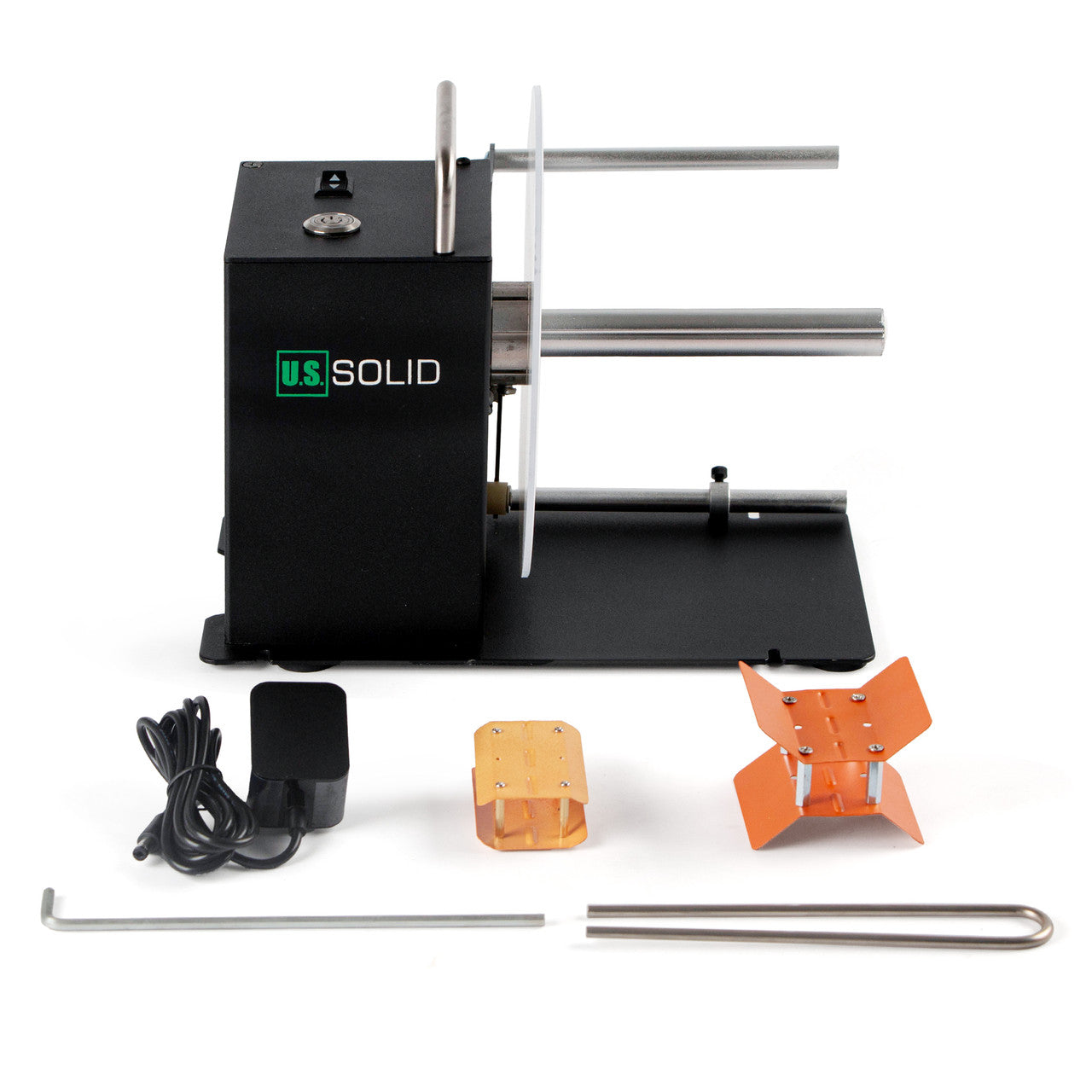

PACKING LIST
- Label Rewinder Machine x1
- Power Adapter x1
- 1" (25mm) Core Holder x1
- 1.57" (40mm) Core Holder x1
- L-shaped Rod for Core-free Rewinding x1
- 3"(76mm) Core Holder x1
- Stop Lever x1
Download user manual here
