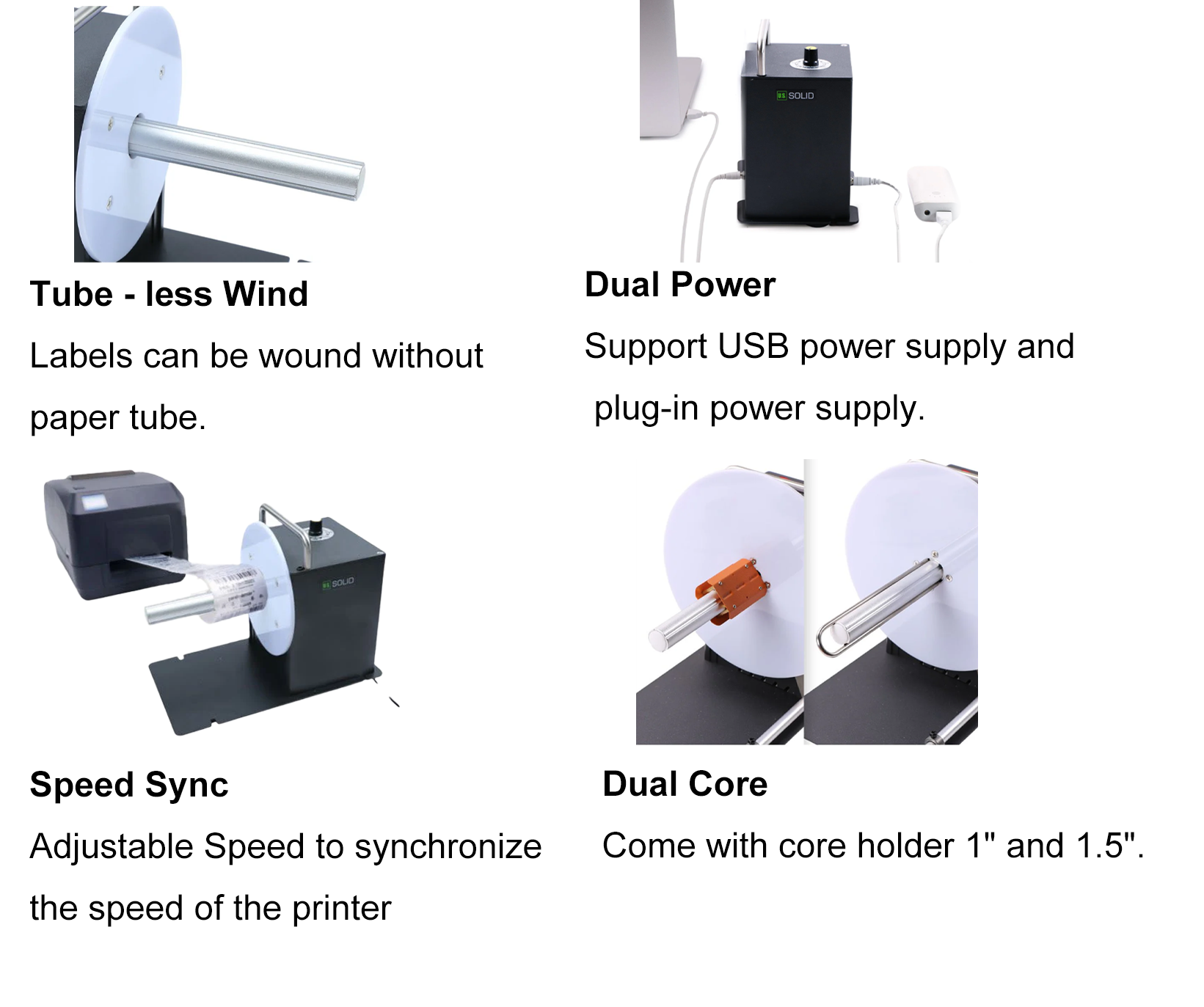

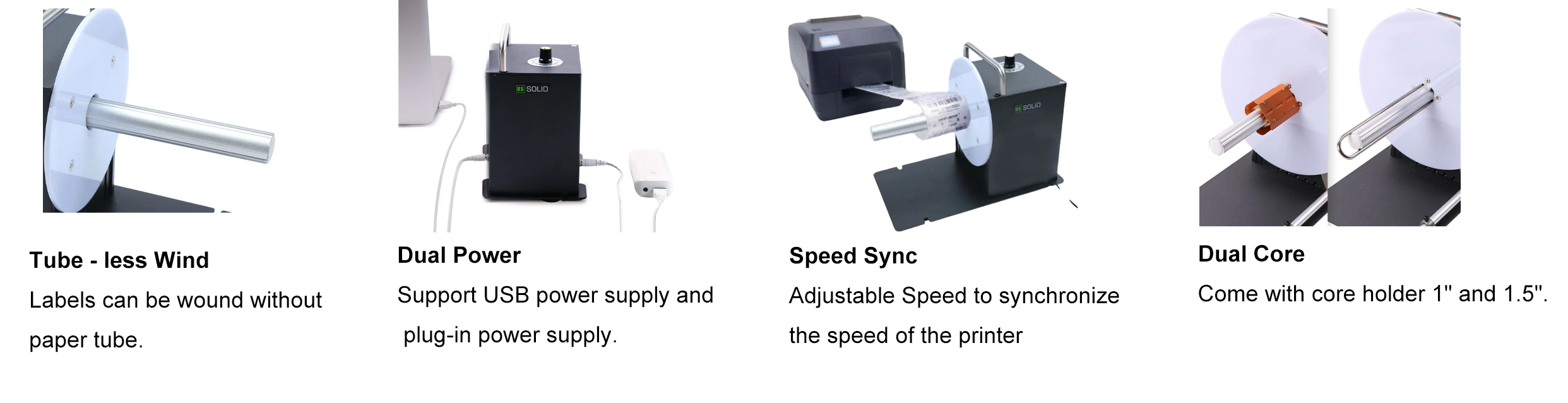

Features:
- No direction switch, but can achieve bidirectional rewind/unwind by changing the position of the rewinder relative to the printer
- Come with core holder 1" and 1.5”.
- Labels can be wound without paper tube.

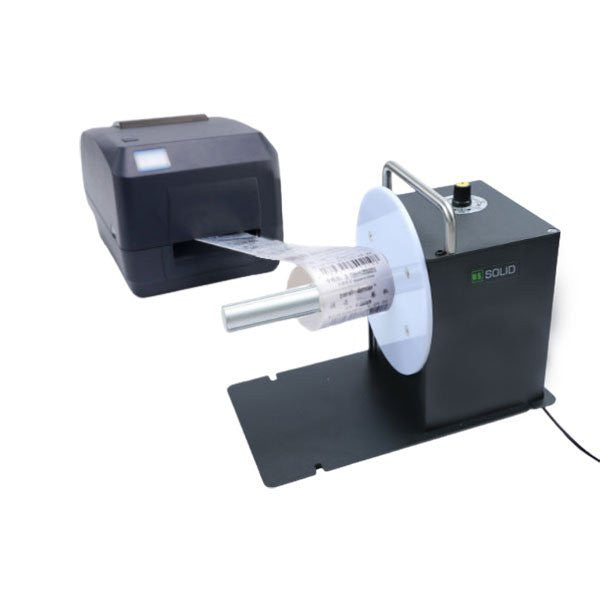

- Adjustable Speed to synchronize the speed of the printer

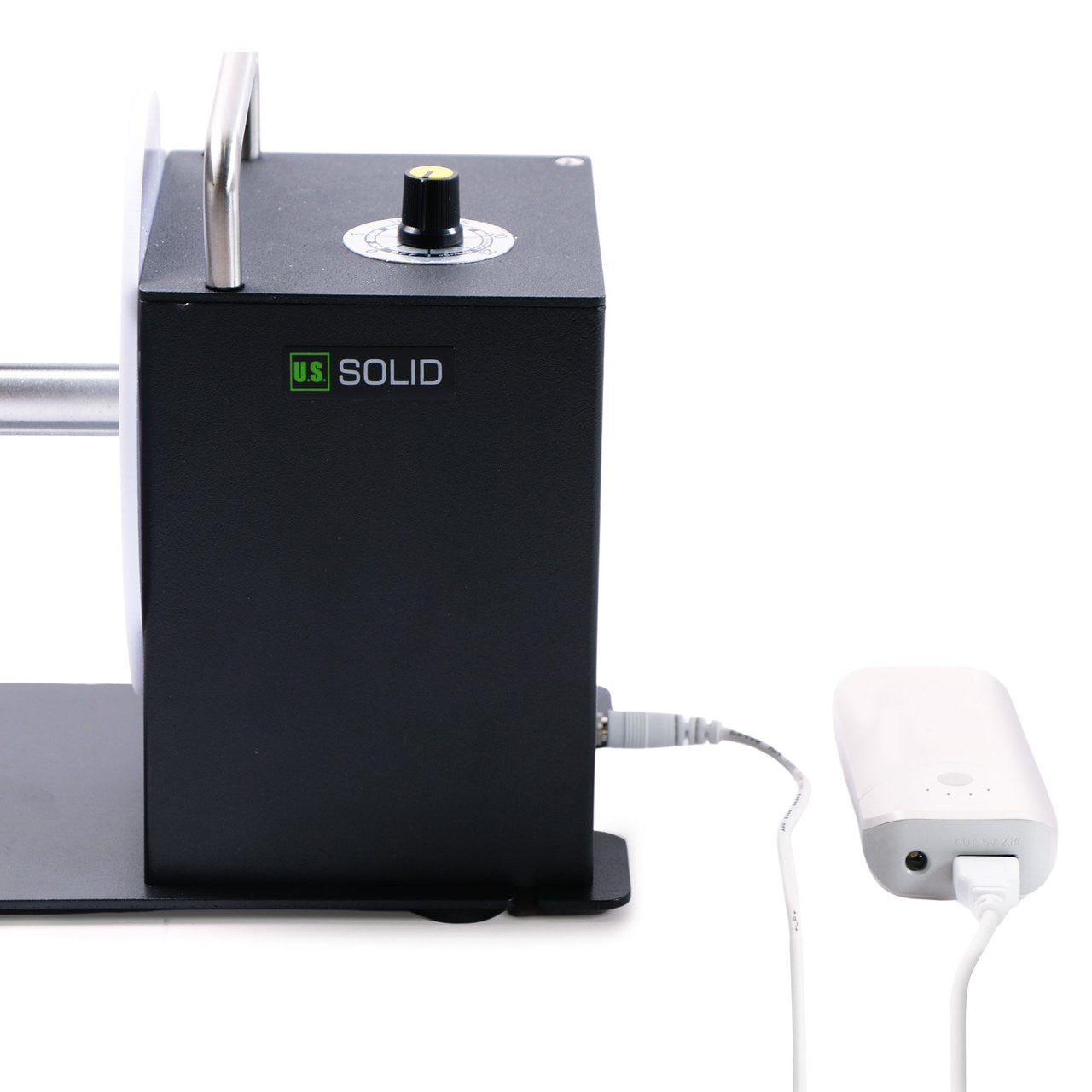

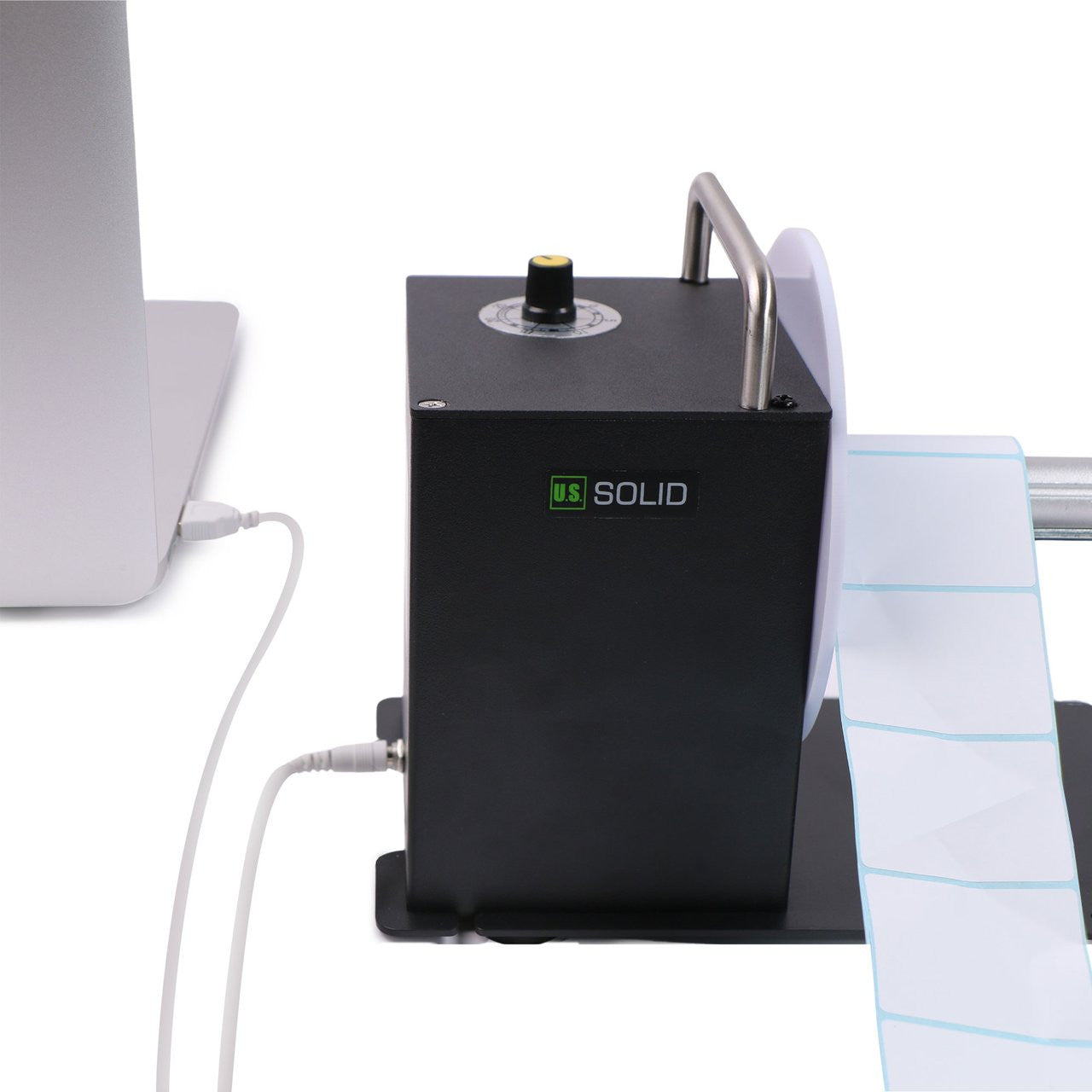

- Support USB power supply and plug-in power supply.

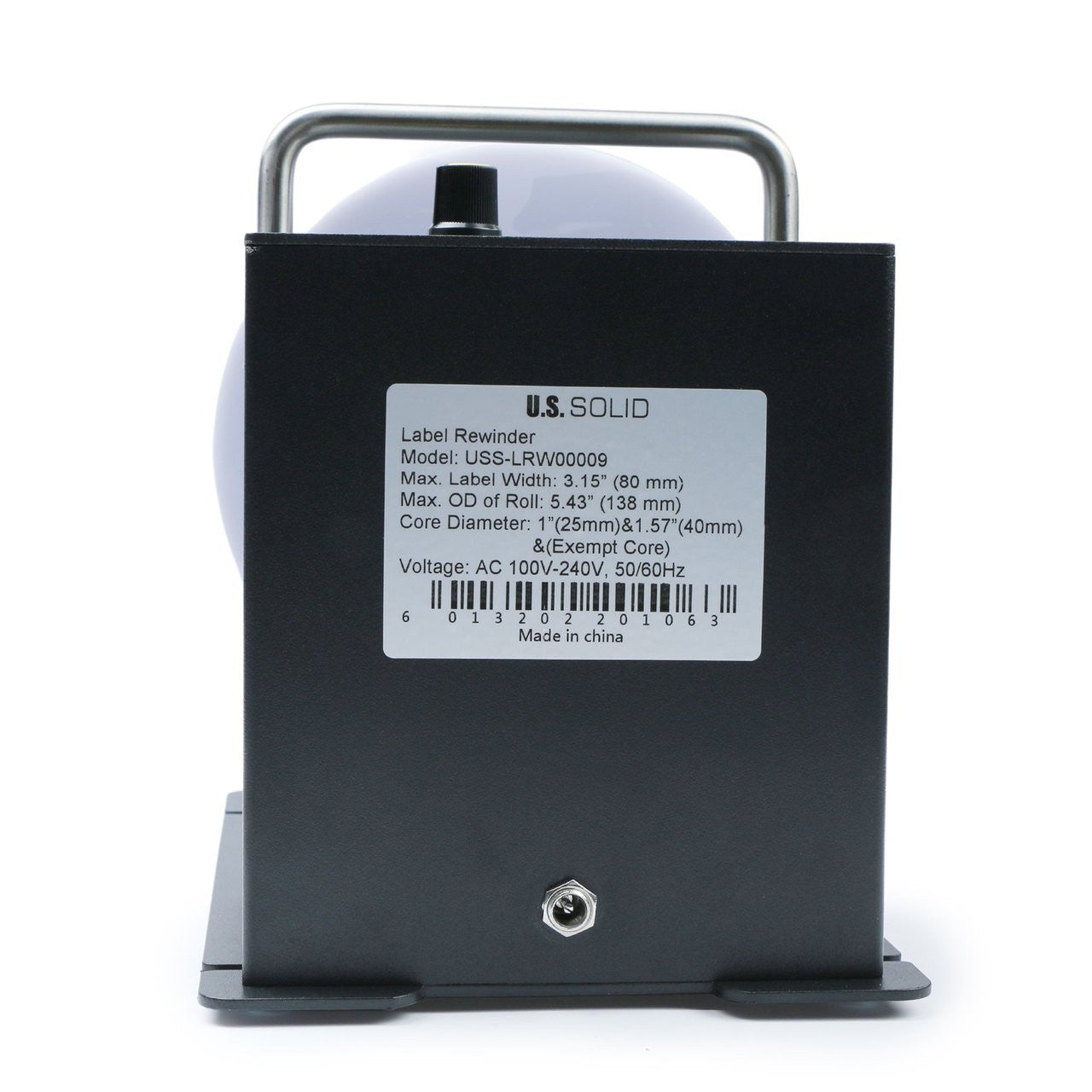

Technical Specification:
Max. Label Width: 3.15 inches (80mm)
Label Length: No Limits
Max. OD of Label Roll: Ø 5.43 inches (138 mm)
Max. Label Roll Weight: 2.2 lbs. (1 kg)

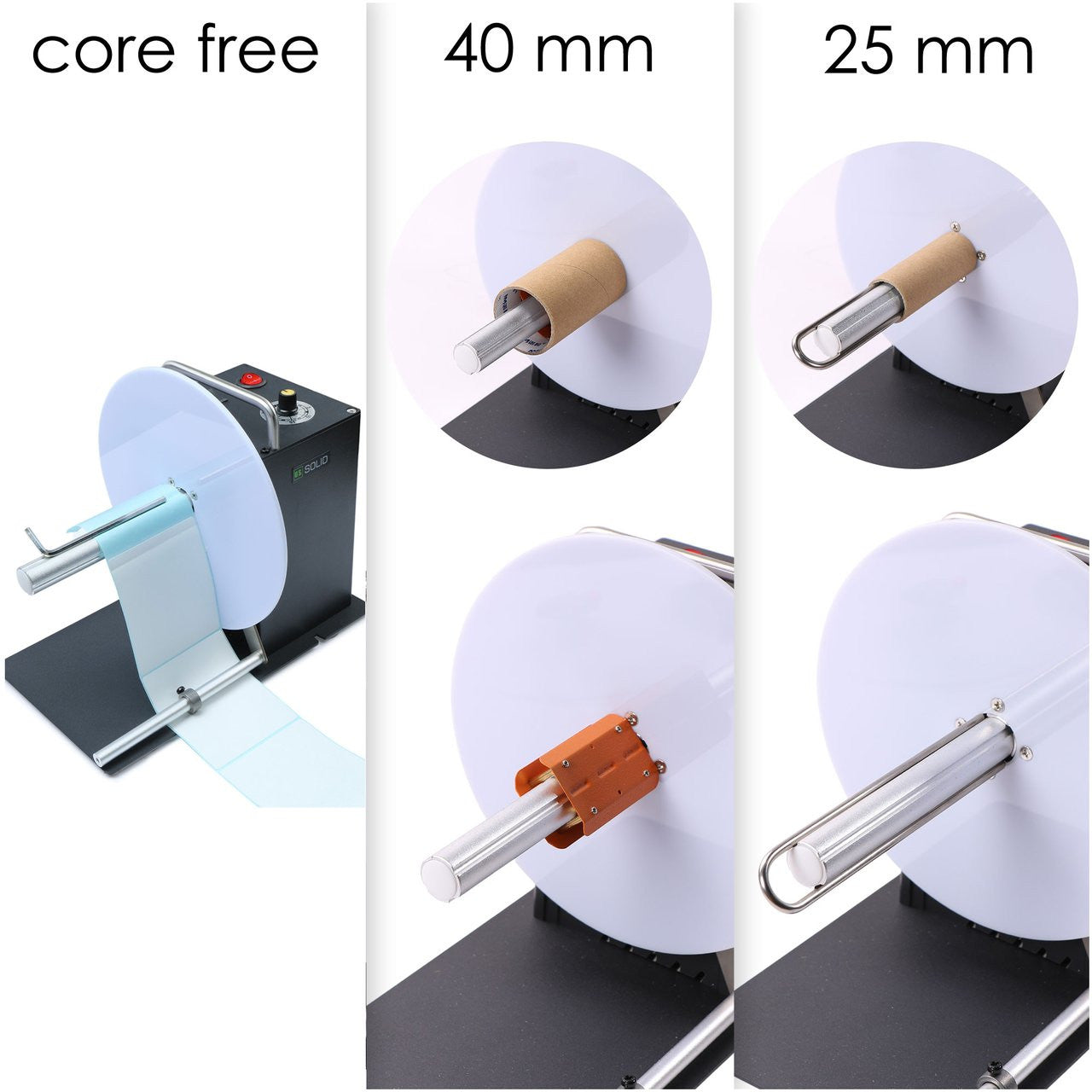

Core Diameter: 1”(25mm)&1.5” (40mm)&exempt core
Speed: 1~8 inches /second
Voltage: AC 100V-240V, 50/60Hz
Net Weight: 3.3lbs(1.5kg)

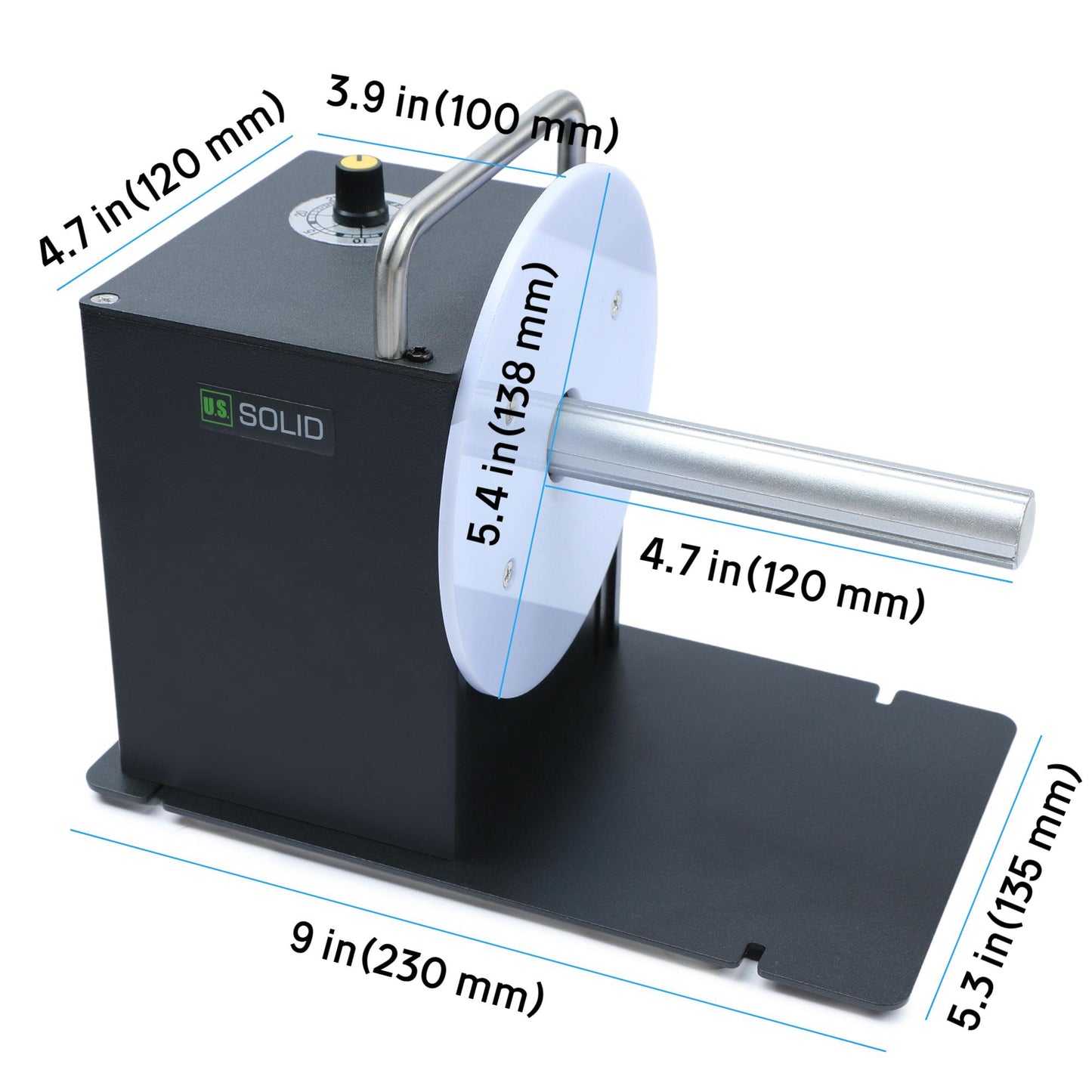

Product Dimensions: 9.05” (L)x 5.31” (W)x6.89” (H) (230*135*175mm)

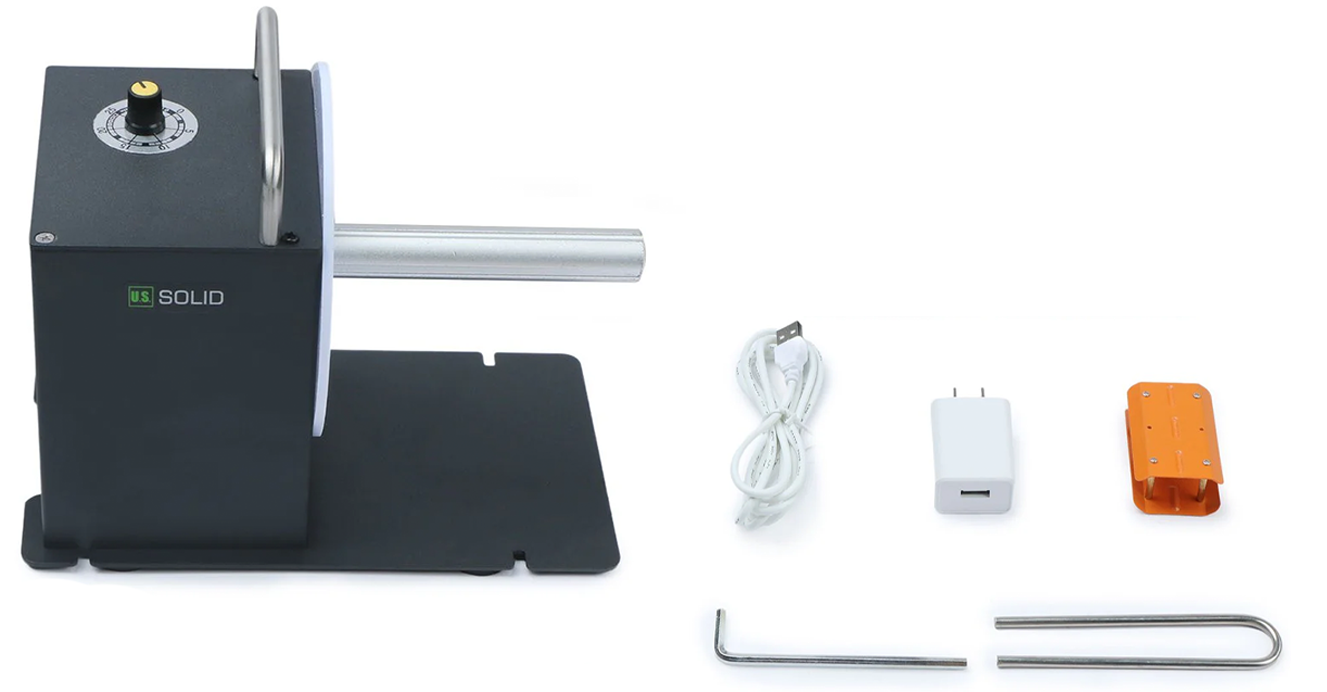

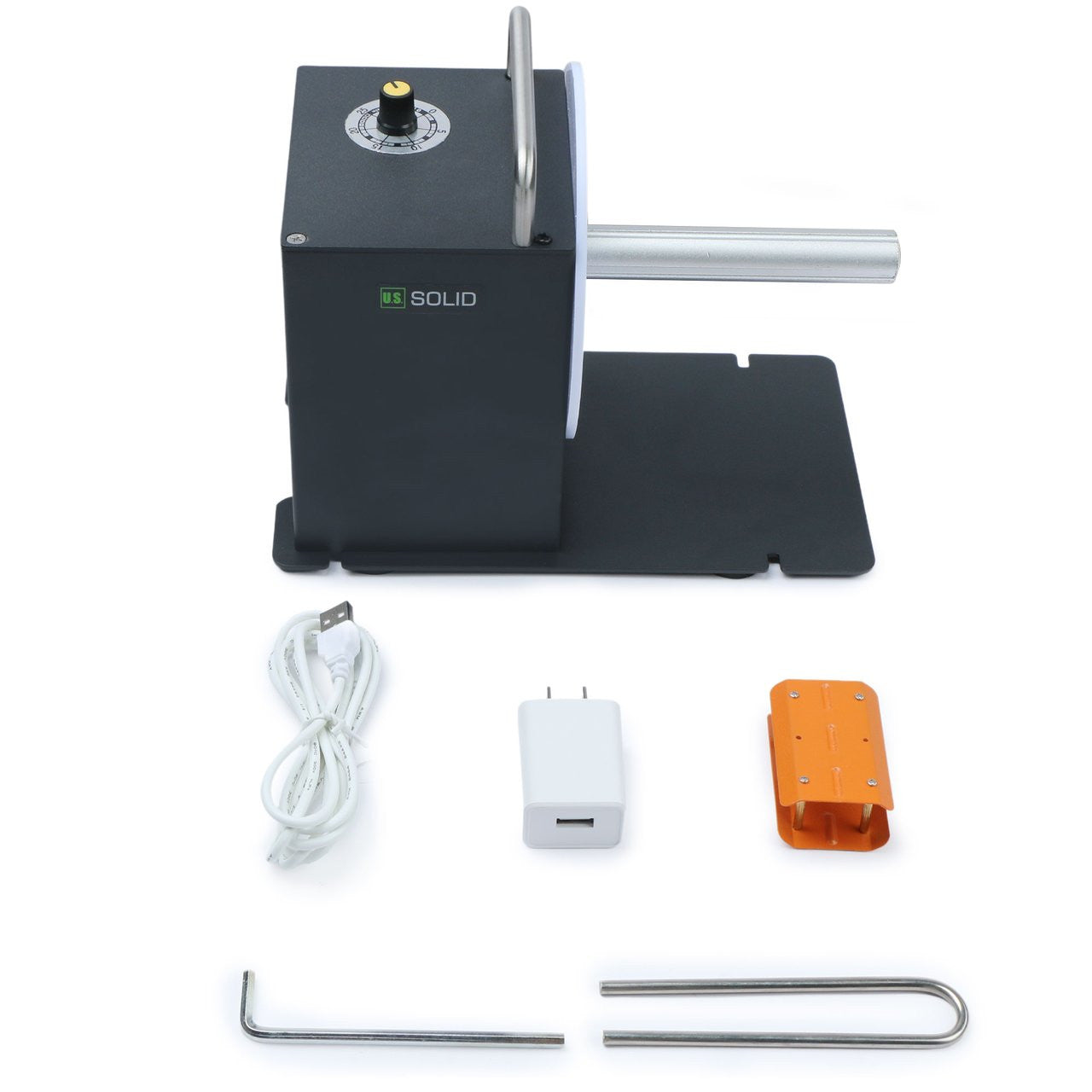

Packing List:

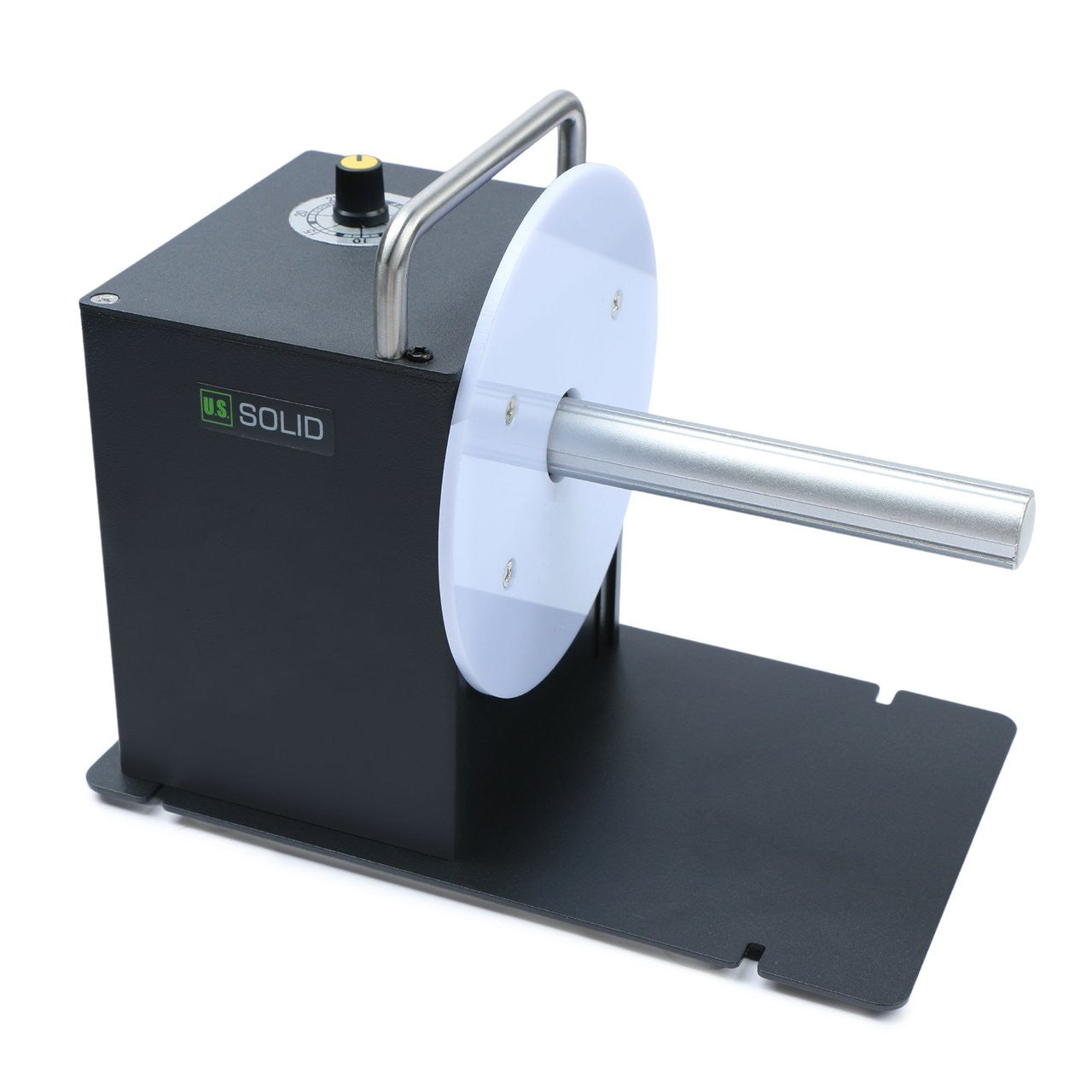

1* Label Rewinder Machine
1* Power Adapter
1* 1” (25mm) Core Holder
1* 1.5” (40mm) Core Holder
1* L-shaped Rod for Core-free Rewinding
SKU |
Label Width |
Label Length |
Max. OD of Label Roll |
Core Diameter |
Coreless Rewinding |
Bi-directional Rewind Capability |
Adjustable Paper Guide |
100 mm (3.93") |
no limit |
185 mm (7.2") |
1"-3" |
✓ |
✓ |
✓ |
|
120 mm (4.72") |
no limit |
220 mm (8.6") |
1"-4" |
✓ |
✓ |
✓ |
|
150 mm (5.91") |
no limit |
220 mm (8.6") |
1"-4" |
✓ |
✓ |
✓ |
|
150 mm (5.91") |
no limit |
230 mm (9.06") |
1.5"& 3" |
✓ |
✓ |
x |
|
80 mm (3.15") |
no limit |
138 mm (5.43") |
1"&1.5” |
✓ |
✓ |
x |
|
80 mm (3.15") |
no limit |
138 mm (5.43") |
1"&1.5” |
✓ |
✓ |
✓ |
|
120 mm (4.72") |
no limit |
200 mm (7.87") |
1"&1.5”&3" |
✓ |
✓ |
✓ |
|
150 mm (5.91") |
no limit |
212 mm (8.34”) |
1"&1.5”&3" |
✓ |
✓ |
✓ |
