Introduction

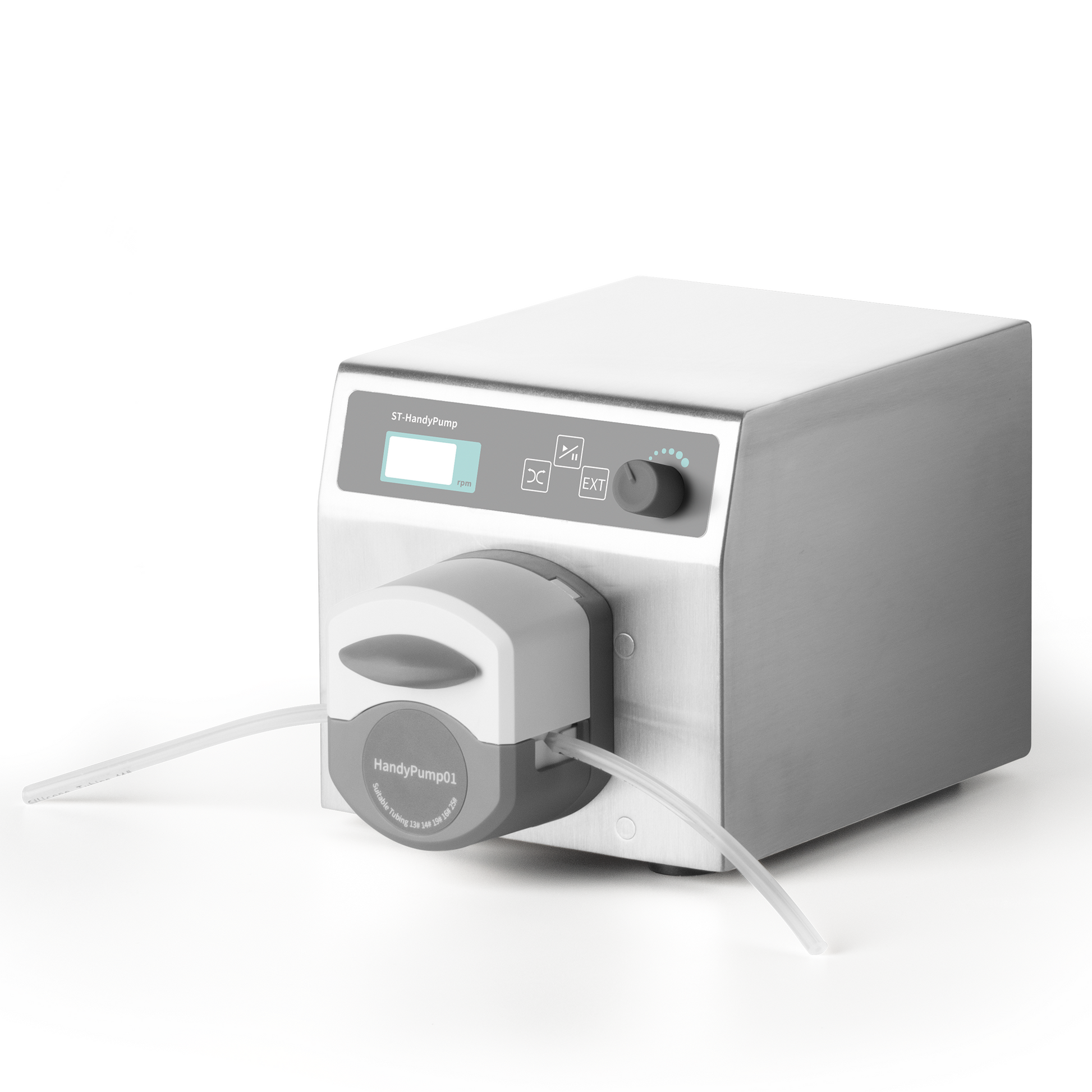

The ST-HandyPump features a 304 stainless steel housing that's rust-proof and GMP-compliant. It comes with an OLED display showing real-time speed and operation status, with digital knob speed adjustment. The pump's external control uses standard terminal blocks for easy industrial integration, and its stackable design allows multiple units to be placed together to save space.

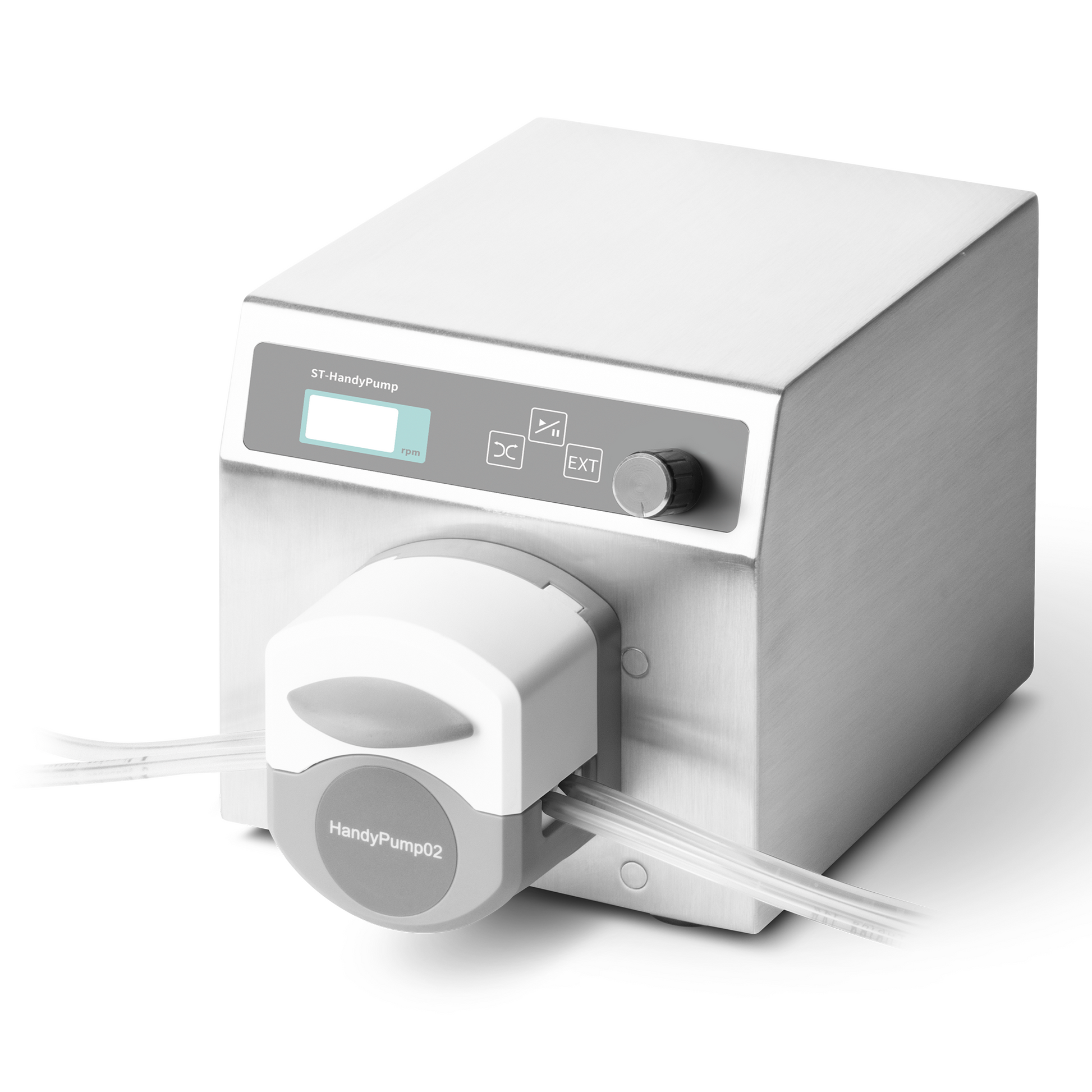

The drive unit supports HandyPump series pump heads, including the single-channel HandyPump01 (0.0033-365.69 ml/min) and dual-channel HandyPump02 (0.0033-190.76 ml/min per channel), each requiring different sized silicone tubing for optimal performance.
Applications
Features
- Flow Rate Range: HandyPump01 (0.0033-365.69 ml/min) and HandyPump02 (dual-channel, 0.0033-190.76 ml/min per channel)
- OLED Display: Current speed & status monitoring with intuitive knob adjustment (0.1-300 rpm)
- 304 Stainless Steel Housing: Corrosion-resistant, stackable design for space-saving setups
- Closed-loop Stepper Motor: Compact, low-noise, and minimal vibration operation
- Communication Interfaces: RS232 & RS485 for seamless integration
- Wide Voltage Input (AC110V-240V): Universal power compatibility
- User-friendly Functions: Power-off memory & one-touch rotation reversal
- Flexible Control Options: Supports multiple external control methods
Model
| Product Model | Drive Model | Pump Head Model | Number of Channel | Flow Rate Range | Tubing |
| USS-PP01001 | ST-HandyPump | Handypump01 | 1 | 0.0033-365.69 ml/min | 13#,14#,19#,16#,25# |
| USS-PP01002 | Handypump02 | 2 | 0.0033-190.76 ml/min | 13#,14#,19#,16# |
*Note: Your selected channel count (1 or 2) automatically determines the required pump head configuration (HandyPump01 or HandyPump02) and its corresponding tubing/flow specifications.
Packing List
| If HandyPump01 (1channel) | ST-Handypump Drive x 1 | If HandyPump02 (2channel) | ST-Handypump Drive x 1 |
| Handypump01 Pump Head x 1 | Handypump02 Pump Head x 1 | ||
| Drive Instruction Manual x 1 | Drive Instruction Manual x 1 | ||
| Pump Head Instruction Manual x 1 | Pump Head Instruction Manual x 1 | ||
| Power Cable x 1 | Power Cable x 1 | ||
| 13#,14#,19#,16#,25# - 1 pc each × 2m | 13#,14#,19#,16# - 1 pc each × 2m |
*To view the full table on mobile, please swipe left or right on the screen.
User Manual
To learn how to use this product, please refer to the user manual.
Technical Data
| Display | OLED | Control | Knob and Button |
| Motor Type | Closed-loop Stepper Motor | Communication | RS232, RS485 |
| Housing Material | 304 Stainless Steel | IP Rate | IP31 |
| Speed Range | 0.1-300rpm, adjustable | Power Supply | AC110V-240V |
| Speed Resolution | 0.1rpm | Power Consumption | ≤75W |
| External Speed Control Signal | 0-5V(standard); 0-10V, 4-20mA(optional) | Net Weight (Drive) | 6.44 lb |
*To view the full table on mobile, please swipe left or right on the screen.
FAQ
1.What type of peristaltic pump is this? What are its main functions?
As the most basic type of peristaltic pump, it supports core functions including speed adjustment, start/stop control, and direction reversal.
2.Does it have a timing function?
No, it does not have a timing function.
3.Does it support external control?
Yes. Please note that the button and knobs will no longer work after switching to external control mode.
4.Which types of tubing are compatible with this peristaltic pump?
Compatible tubing models vary by channel: the single-channel pump supports 13#, 14#, 19#, 16# and 25# tubing, while the dual-channel pump supports 13#, 14#, 19# and 16# tubing. Common-size tubing information is provided below for reference only and does not imply full compatibility with all listed sizes.
