Compact Peristaltic Pump with Timer - Speed-Adjustable Single Channel for 1.6mm Wall Thickness (0.0053-2580 mL/min)

Introduction

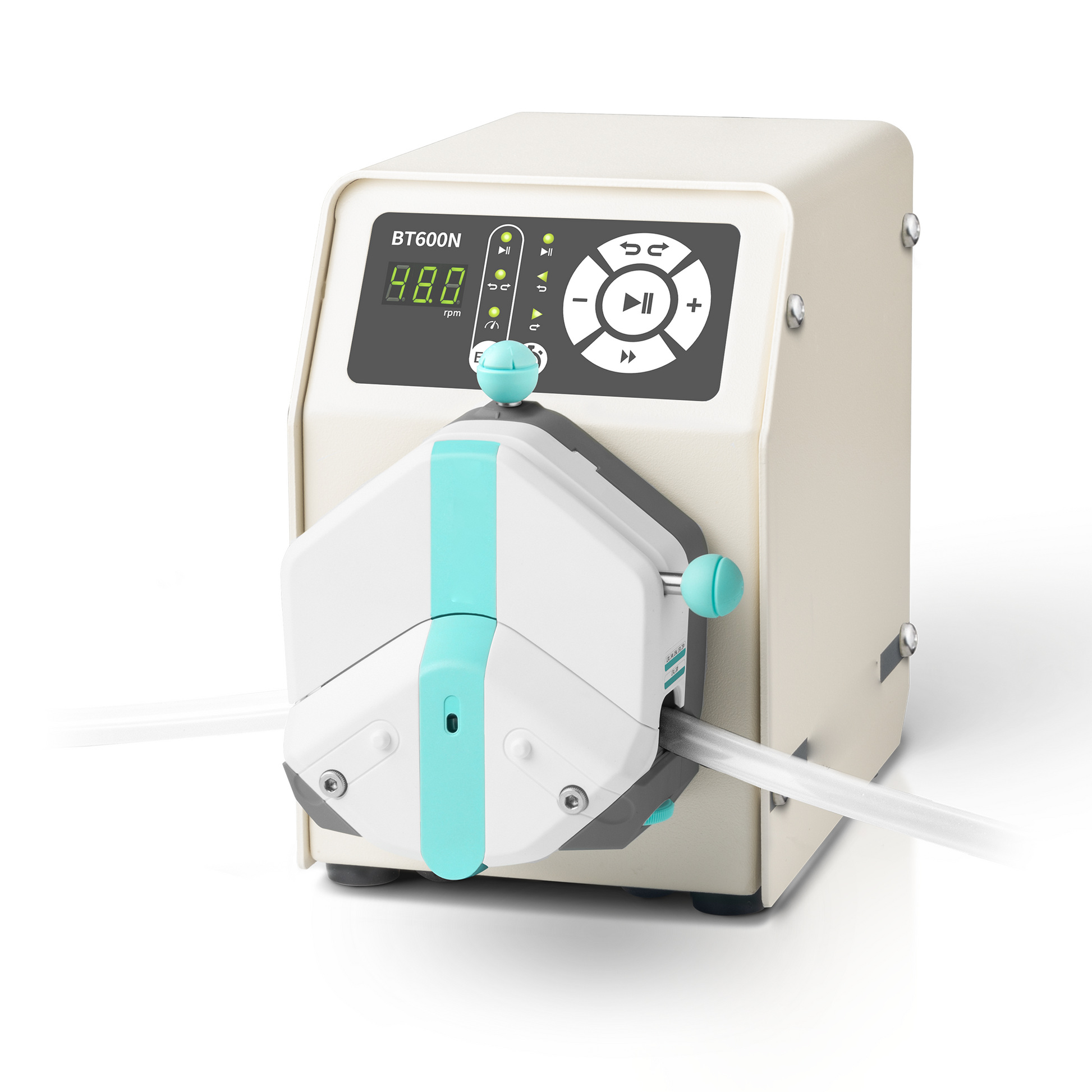

The BT600N is a basic stepper motor-driven peristaltic pump with a speed range of 0.1-600 RPM. Compatible with EasyPump series pump heads, it offers a flow rate ranges: 0.0053-2580 mL/min. Featuring a timer function and compact design, it comes in a metal powder-coated enclosure with membrane buttons for start/stop, direction change, and timer operation. The pump supports seven external control modes and includes RS232/RS485 communication interfaces (Modbus RTU protocol) for easy integration with computers, and PLCs, enabling remote control. Ideal for university labs, research institutes, and analytical instrument applications.

Features

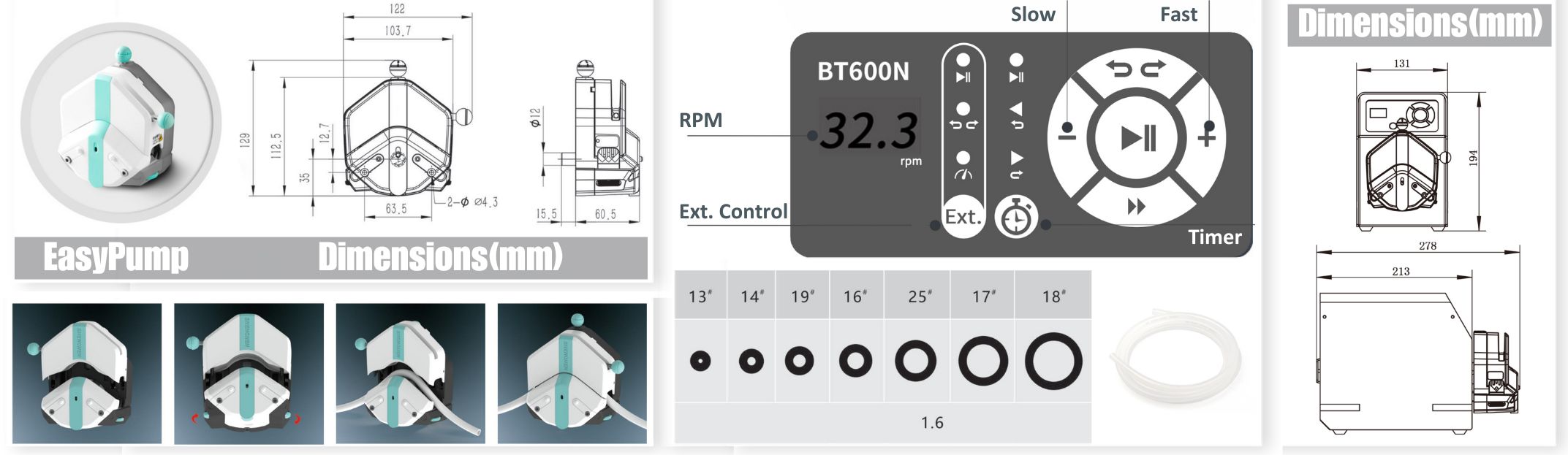

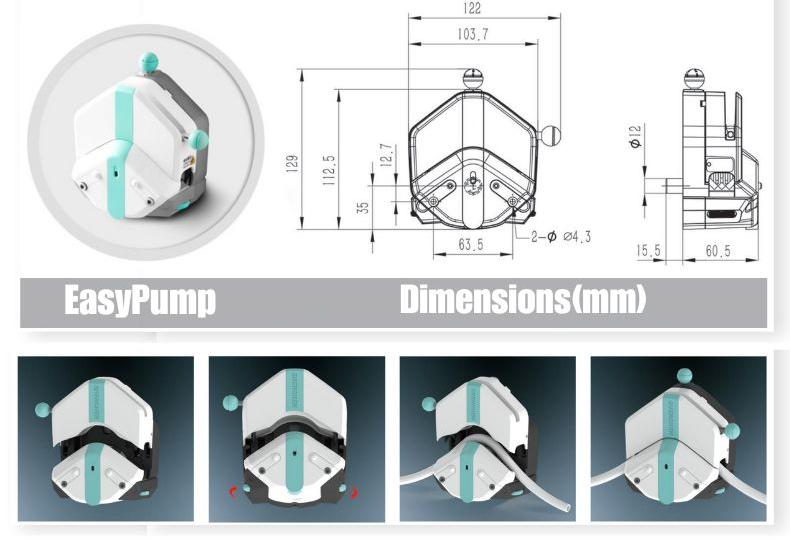

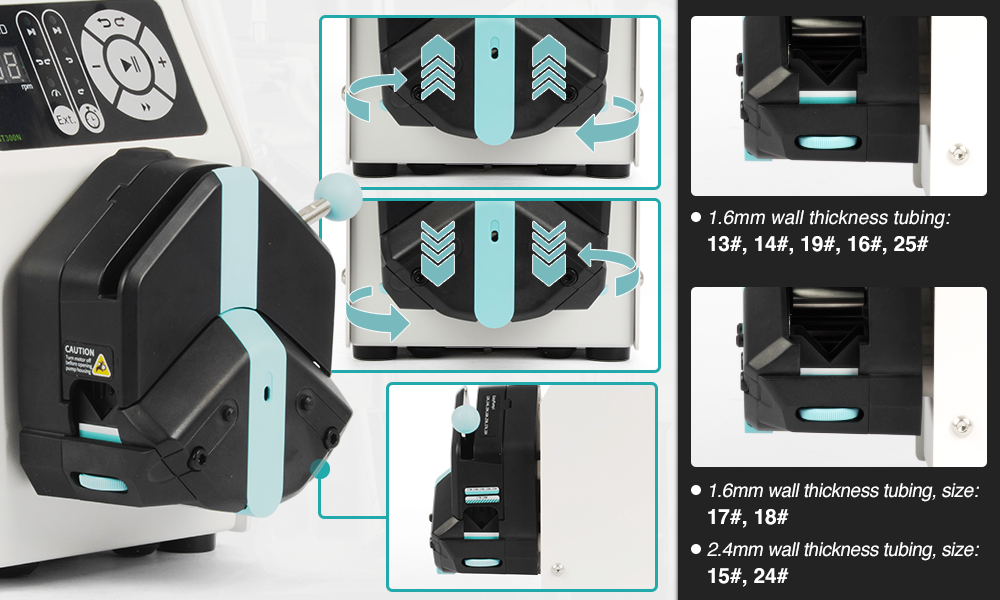

• EasyPump Pump Head: Features roller adjustment and lever-assisted mechanism for quick, tool-free tubing installation.
• Flow Range: 0.0053-2580 mL/min

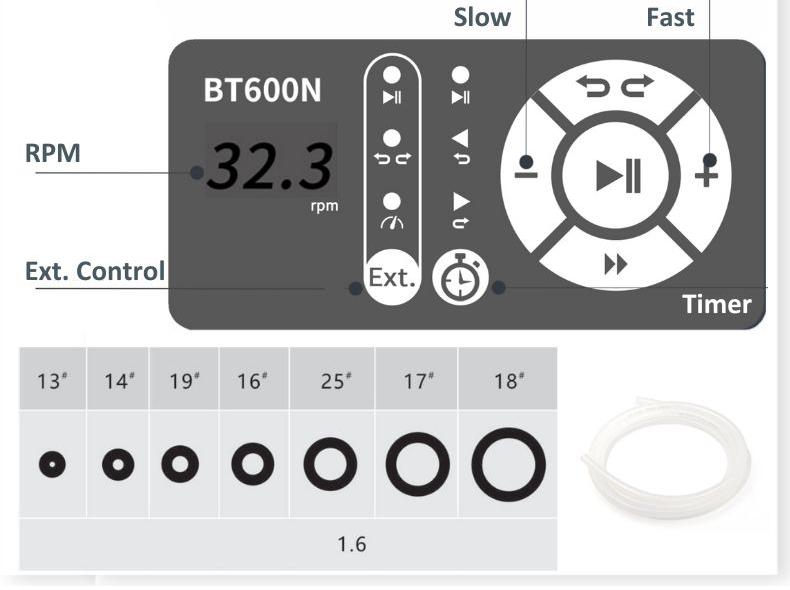

• LED Screen: Displays speed. Easy button speed adjustment (0.1-600 RPM).
• Metal Powder-Coated Housing: Compact & durable.
• Stepper Motor: Low noise & vibration.
• Communication: RS232 & RS485 (Modbus RTU protocol).
• Features: Reversible flow, timer, one-key drainage.
• Flexible Control Options: Supports multiple external control methods

Precautions

1.Screen does not light up when the switch is turned on

Check if the power cable is properly and securely connected./Confirm that there is power supply./Check if the fuse is damaged.

2.Pump head does not rotate when the start button is pressed

Check if the pump head screws are tightened./Check for any foreign objects blocking the pump head rollers./Check if the roller bearings are severely corroded and unable to rotate (check after power off)./Confirm if the machine is in external control mode (refer to external control instructions).

3.No fluid transfer during operation

Check if the hose installed is compatible with the pump head./Confirm if there is enough fluid at the inlet (fluid level above the pipe inlet)./Check if there is any damage or leakage in the pipe and replace or seal it./Check if any solid material is blocking the pipe.

4.Actual fluid output does not match the preset value

Check if the hose settings for the pump head match the actual installation and usage./If using external control, confirm if the external control signal is complete or has attenuation.
