U.S. Solid

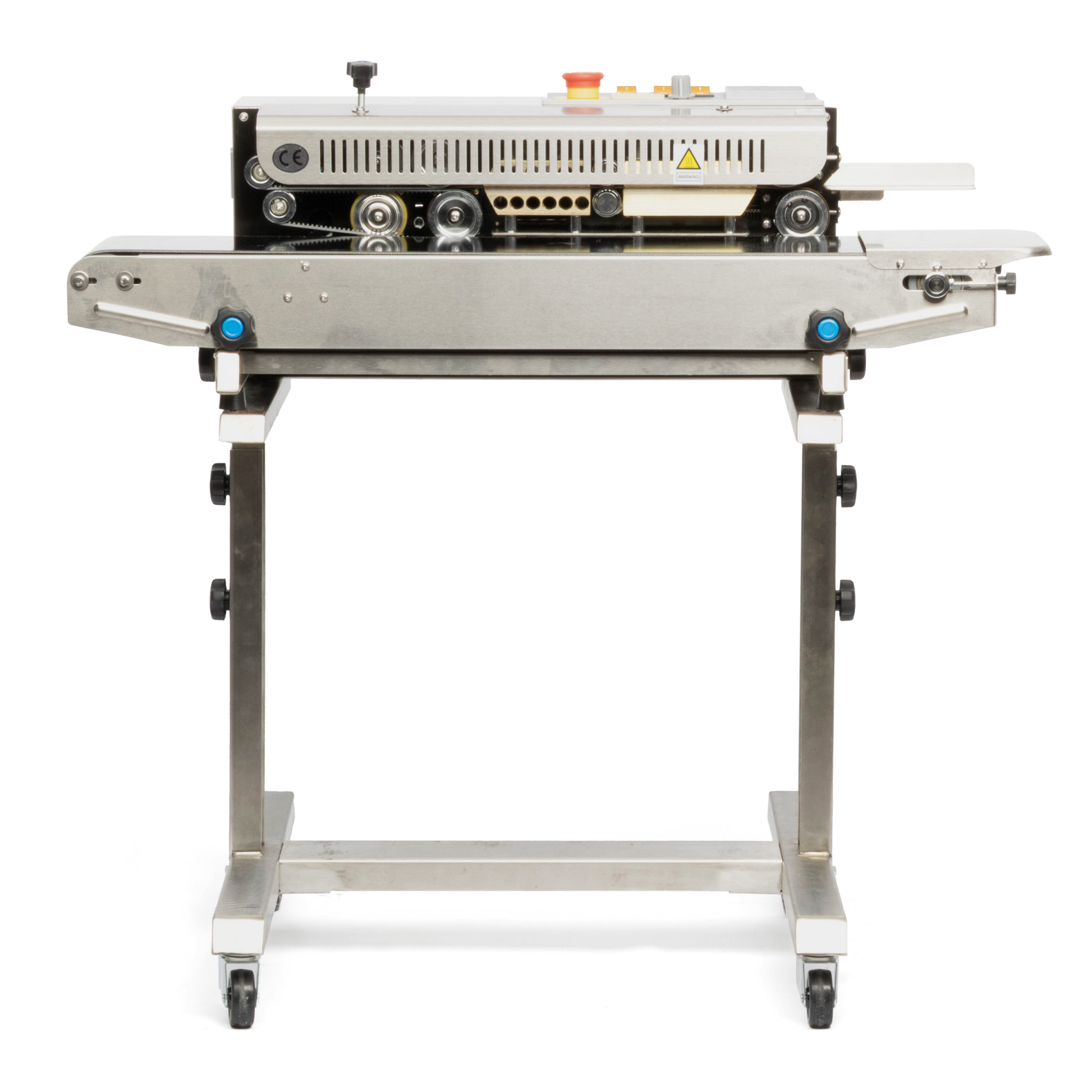

Continuous Band Sealer - Stand-mounted Bag Sealing Machine by U.S. Solid

Continuous Band Sealer - Stand-mounted Bag Sealing Machine by U.S. Solid

SKU: Product SKU: JFCBB00011

Out of stock

Regular price $1,499.99 USD
Regular price $1,899.99 USD Sale price $1,499.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details

INTRODUCTION

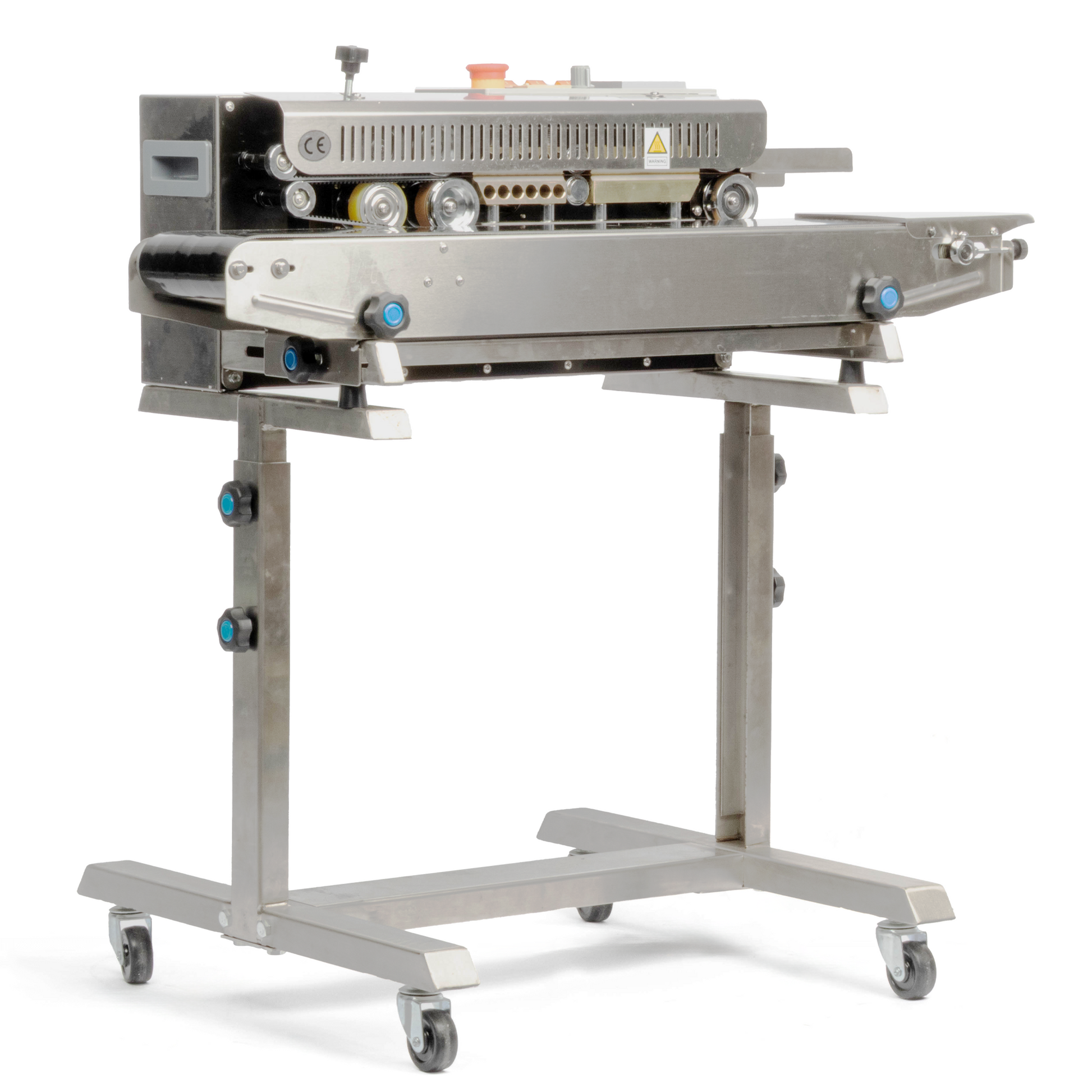

Our industrial continuous band sealer offers unlimited-length sealing with adjustable speed (0-23 m/min) and temperature (0-300°C). It simultaneously marks dates or codes with an integrated 15-character embossing printer. Built for heavy-duty performance with an all-metal frame and copper heating blocks, this mobile unit comes on a sturdy stand with casters for ultimate workflow flexibility.

FEATURES

APPLICATIONS

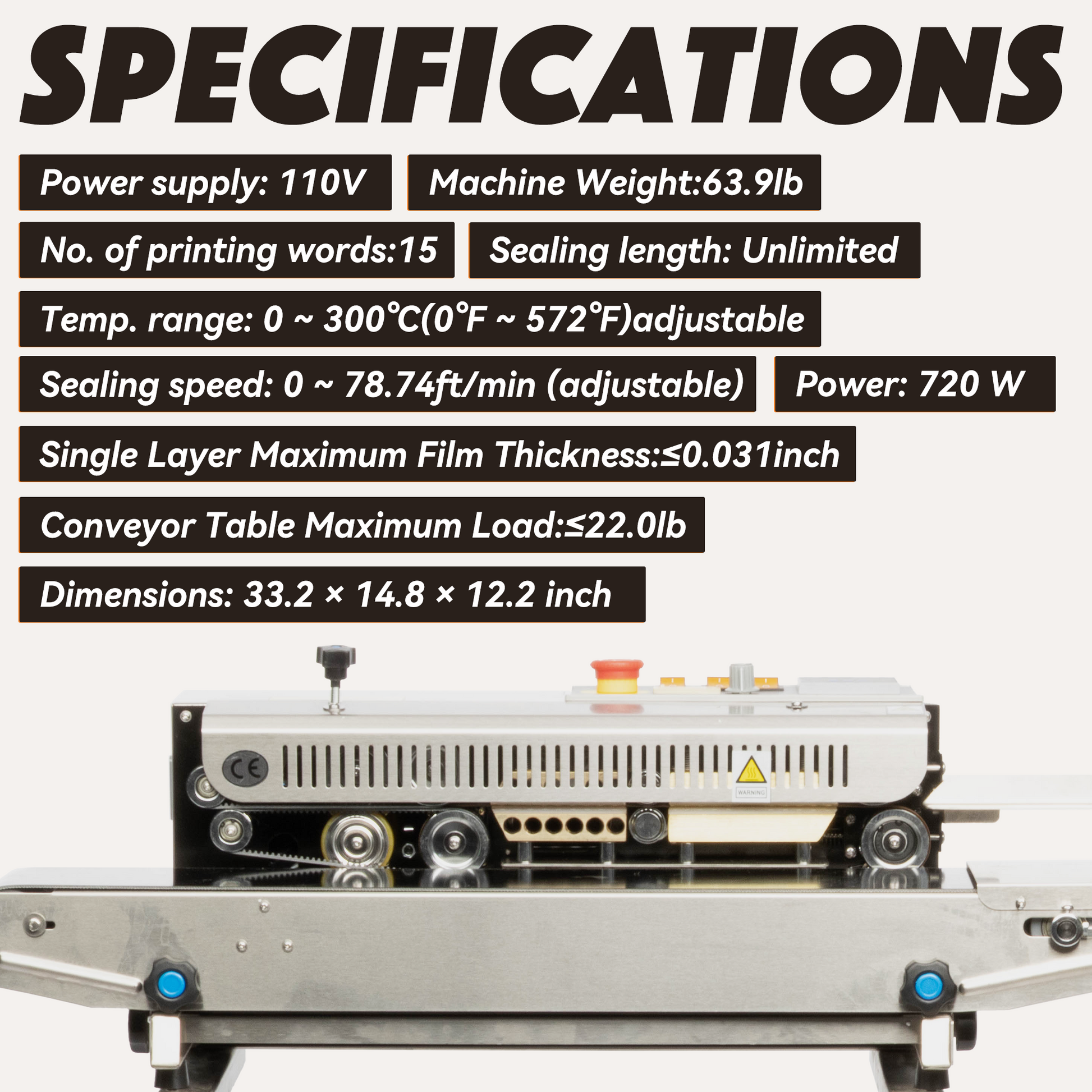

SPECIFICATIONS

Model USS-CBB00011 Brand U.S. Solid
Power Supply 110V,60HZ Power 720W
Sealing Speed 0 - 23M/min (adjustable) Sealing Width 0.39 inch
Maximum Seal Thickness 0.04 inch Temp. range 0 - 300°C(adjustable)

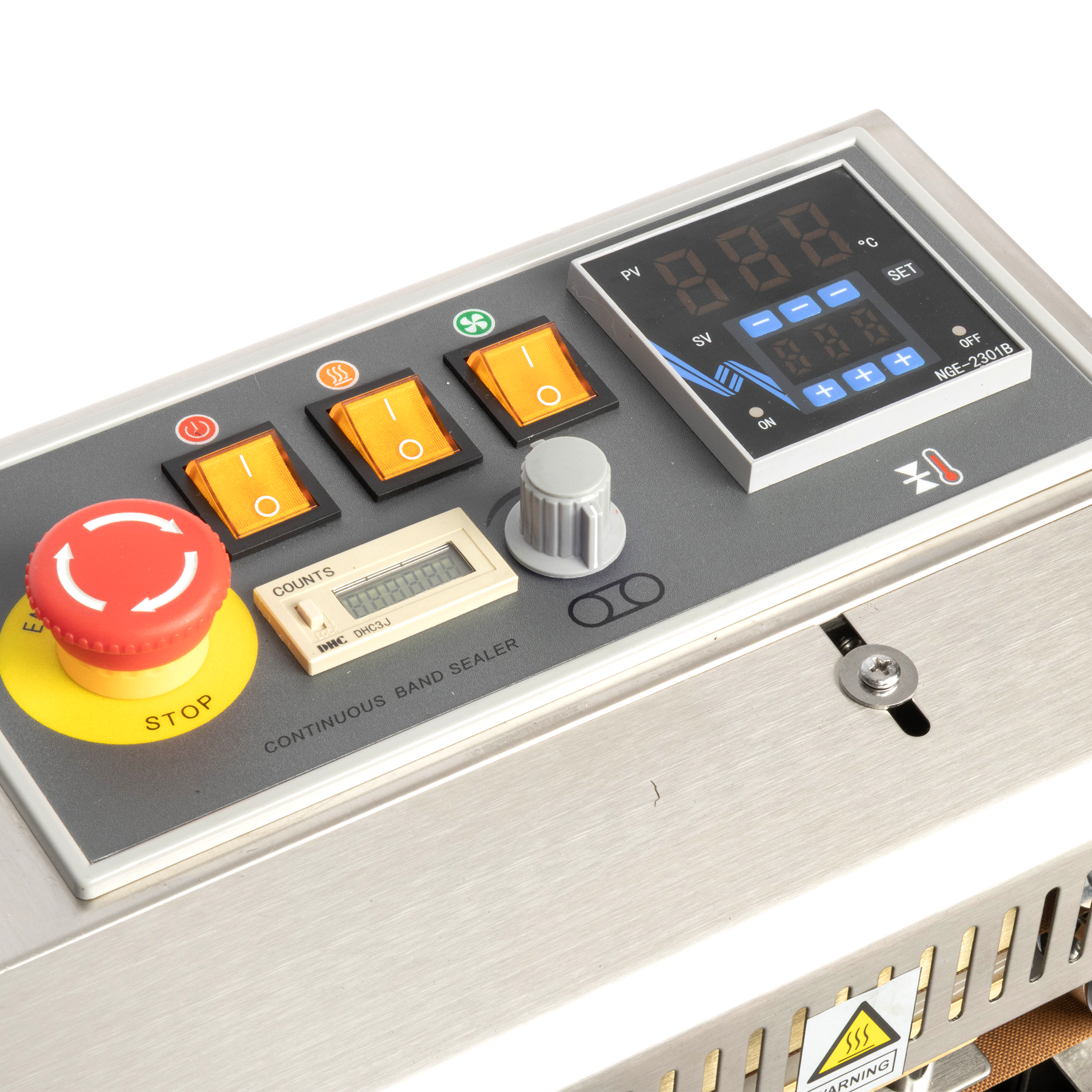

Counting Function Yes Conveyor Belt Color Black
Maximum Load-bearing Weight 22 lb Dimensions of Conveyor Table(L*W*H) 33.2"*14.8"*12.2"

WARNING

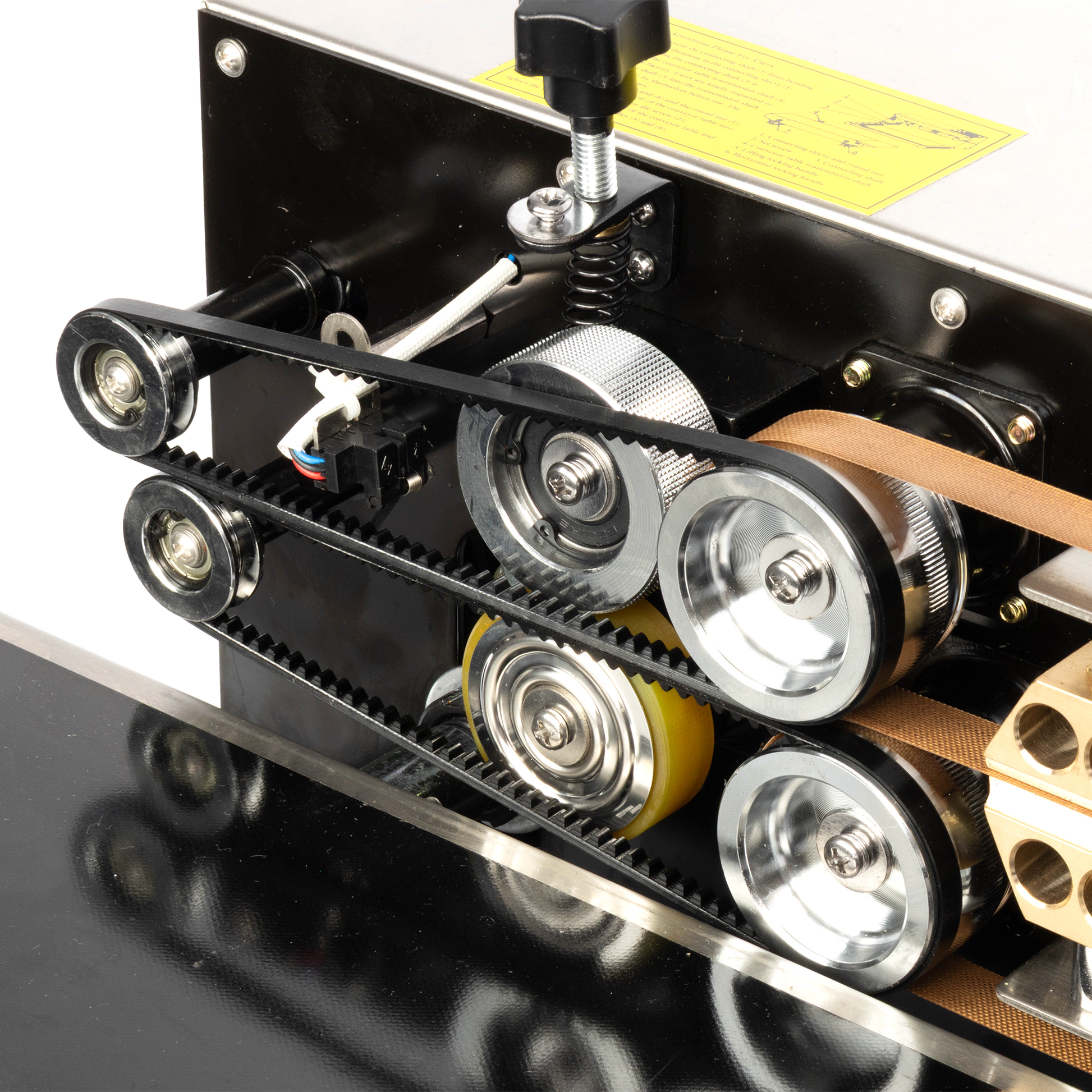

1.Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2.Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3.Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

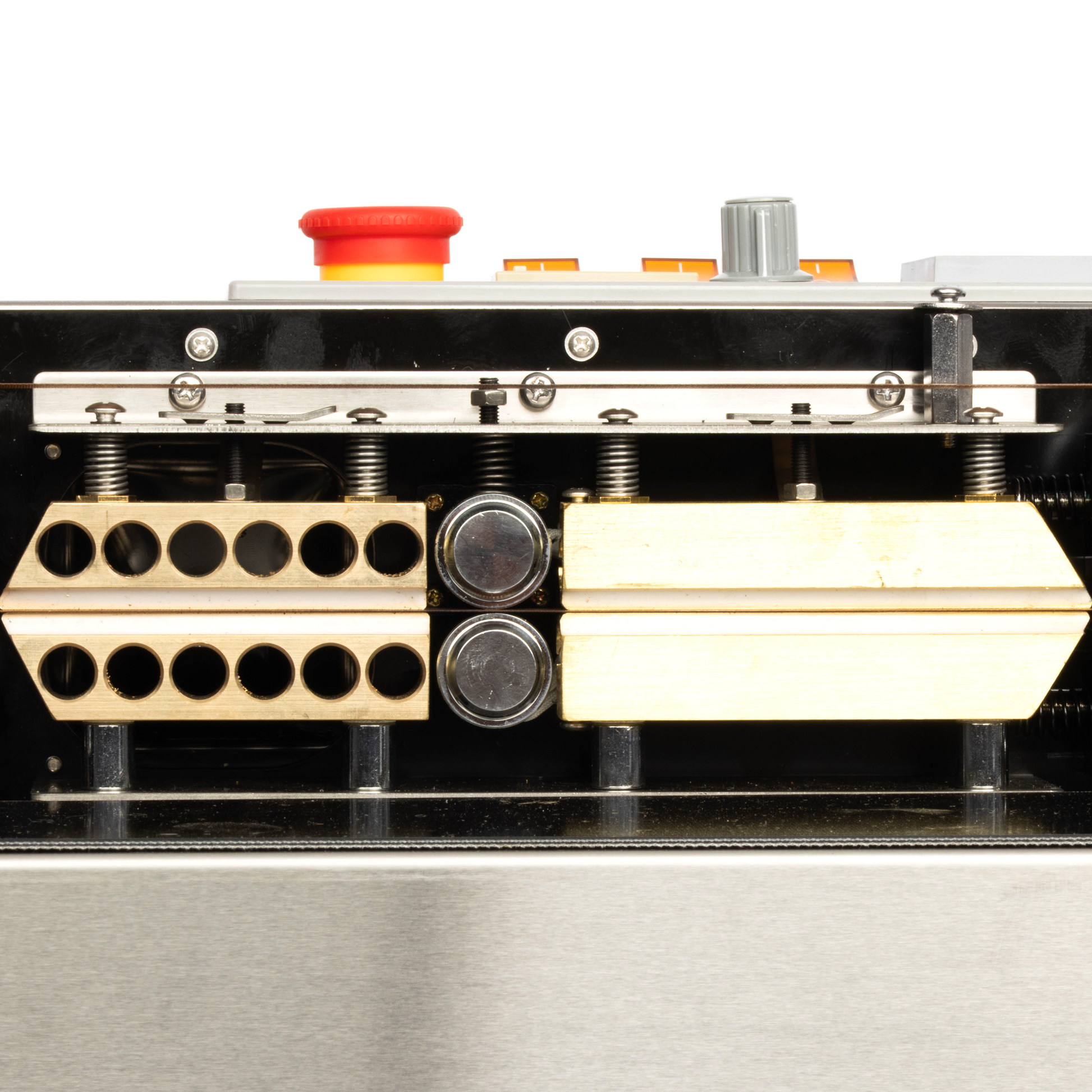

4.Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5.Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

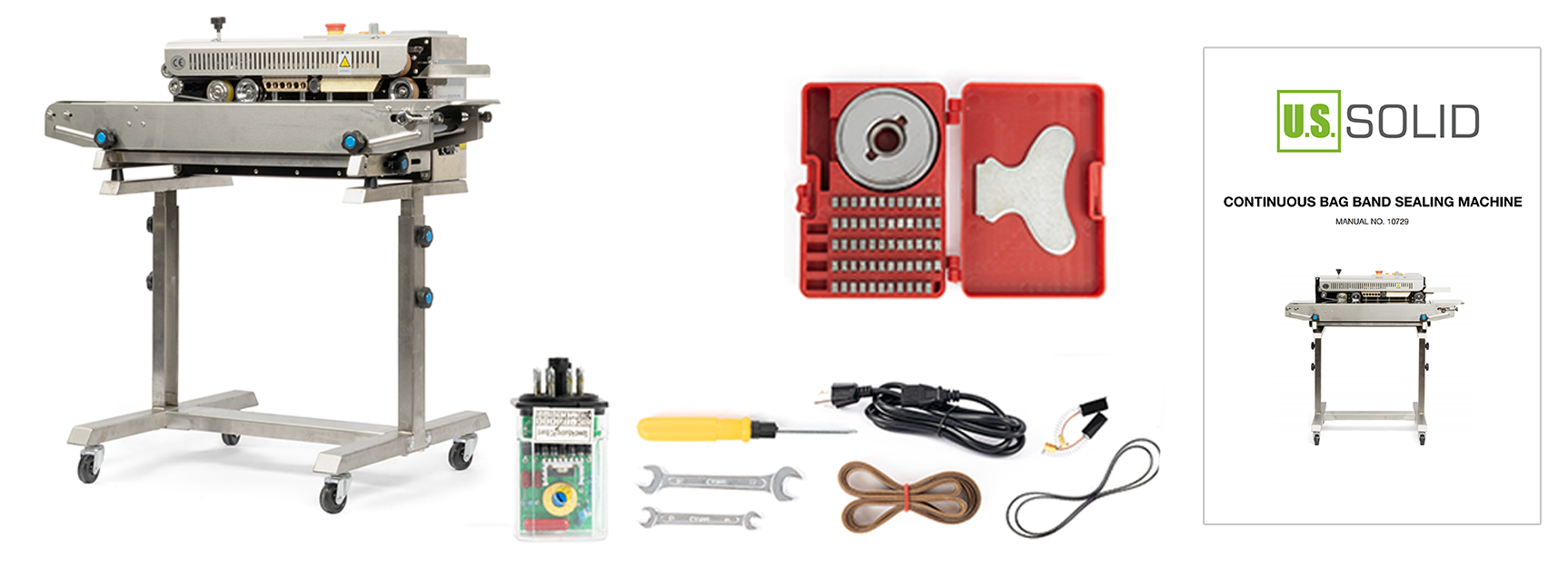

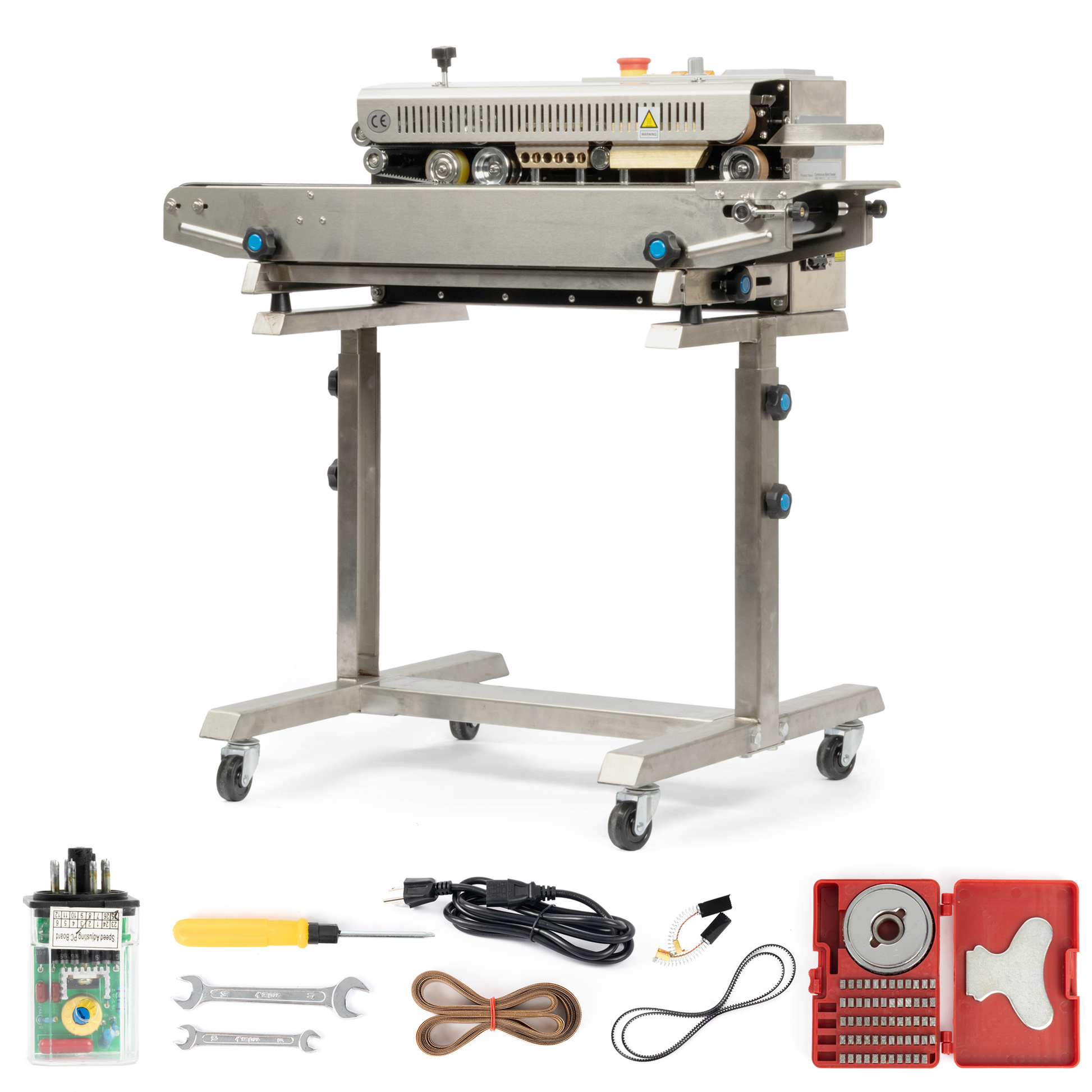

PACKING LIST

  1. Main Machine x1
  2. Accessory Bag x1
  3. Bracket x1
  4. User Manual x1

OTHER MODELS

SKU JFESM00005 JFCBB00003 JFCBB00002 JFCBB00001 JFCBB00004 JFCBB00005 JFCBB00006
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.39 inch 0.39 inch 0.47 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 23 m/min 0 ~12 m/min 0 ~ 12 m/min
Maximum Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.015 inch 0.019 inch 0.03 inch
Maximum Adjustable Temperature 572°F 572°F 572°F 572°F 536°F 572°F 572°F
Maximum Load-bearing Weight 6.6 lb 22 lb 2.2 lb 11 lb 11 lb 2.2 lb 6.6 lb
Dimensions of Conveyor Table(L*W) 32.28"inch*5.31" 35"*15.7" Non-rotatable conveyor plate 53.93"*9.44" 70.86"*7.08" Non-rotatable conveyor plate 36.22"*3.94"
SKU JFCBB00006-BLACK JFCBB00007 JFCBB00008 JFCBB00009 JFCBB00010 JFCBB00011 JFCBB00012
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch 0.47 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min 0 ~ 16 m/min
Maximum Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch 0.011 inch
Maximum Adjustable Temperature 572°F 572°F 572°F 572°F 536°F 572°F 572°F
Maximum Load-bearing Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb 13 lb
Dimensions of Conveyor Table(L*W) 32.28"*5.31" Non-rotatable conveyor plate 37.56"*6.02" 37.56"*6.02" 37.6"*6" 33.23"*6.02" 33.27"*6"

Download user manual here

INTRODUCTION

Our industrial continuous band sealer offers unlimited-length sealing with adjustable speed (0-23 m/min) and temperature (0-300°C). It simultaneously marks dates or codes with an integrated 15-character embossing printer. Built for heavy-duty performance with an all-metal frame and copper heating blocks, this mobile unit comes on a sturdy stand with casters for ultimate workflow flexibility.

FEATURES

APPLICATION

SPECIFICATIONS

Model USS-CBB00011 Brand U.S. Solid
Power Supply 110V,60HZ Power 720W
Sealing Speed 0 - 23M/min (adjustable) Sealing Width 0.39 inch
Maximum Seal Thickness 0.04 inch Temp. range 0 - 300°C(adjustable)
Counting Function Yes Conveyor Belt Color Black
Maximum Load-bearing Weight 22 lb Dimensions of Conveyor Table(L*W*H) 33.2"*14.8"*12.2"

WARNING

1.Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2.Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3.Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

4.Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5.Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

OTHER MODELS

SKU JFESM00005 JFCBB00003 JFCBB00002 JFCBB00001 JFCBB00004 JFCBB00005 JFCBB00006
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.39 inch 0.39 inch 0.47 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 23 m/min 0 ~12 m/min 0 ~ 12 m/min
Maximum Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.015 inch 0.019 inch 0.03 inch
Maximum Adjustable Temperature 572°F 572°F 572°F 572°F 536°F 572°F 572°F
Maximum Load-bearing Weight 6.6 lb 22 lb 2.2 lb 11 lb 11 lb 2.2 lb 6.6 lb
Dimensions of Conveyor Table(L*W) 32.28"inch*5.31" 35"*15.7" Non-rotatable conveyor plate 53.93"*9.44" 70.86"*7.08" Non-rotatable conveyor plate 36.22"*3.94"
SKU JFCBB00006-BLACK JFCBB00007 JFCBB00008 JFCBB00009 JFCBB00010 JFCBB00011 JFCBB00012
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch 0.47 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 14 m/min 0 ~ 14 m/min 0 ~ 14 m/min 0 ~24 m/min 0 ~ 14 m/min
Maximum Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch 0.011 inch
Maximum Adjustable Temperature 572°F 572°F 572°F 572°F 536°F 572°F 572°F
Maximum Load-bearing Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb 13 lb
Dimensions of Conveyor Table(L*W) 32.28"*5.31" Non-rotatable conveyor plate 37.56"*6.02" 37.56"*6.02" 37.6"*6" 33.23"*6.02" 33.27"*6"

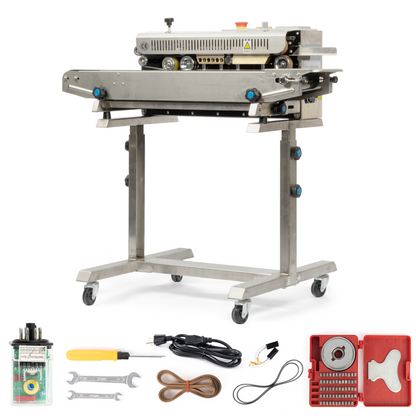

PACKING LIST:

  1. Main Machine x1
  2. Accessory Bag x1
  3. Bracket x1
  4. User Manual x1
Product Image

Download user manual here
