INTRODUCTION

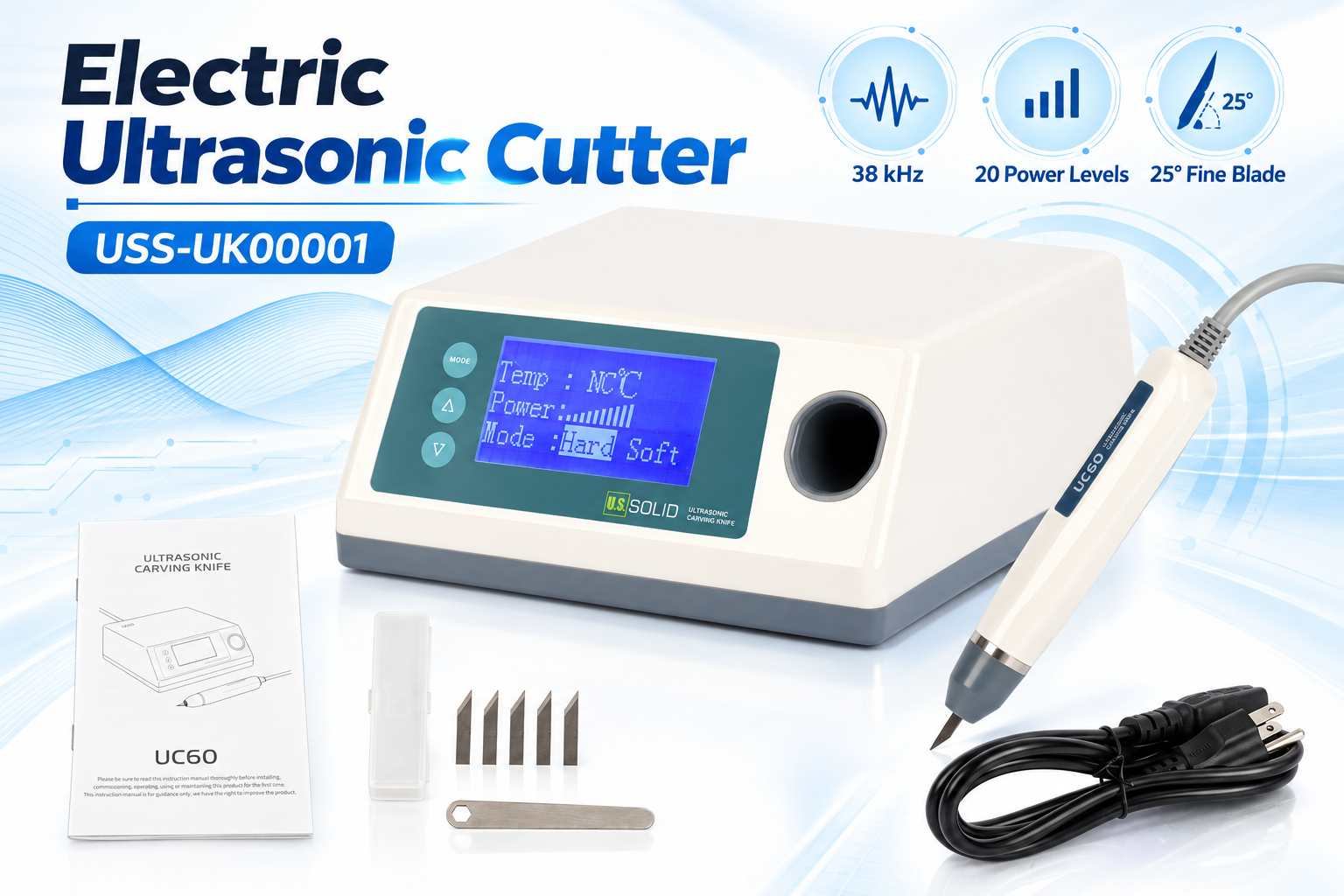

The U.S. Solid USS-UK00001 Ultrasonic Cutter is an electric precision carving tool designed for smooth, strain-free cutting of plastic models, 3D prints, and craft materials. Its piezoelectric ceramic transducer vibrates at 38,000 Hz, helping the blade glide through tough materials with minimal hand pressure, noise, and dust.
FEATURES

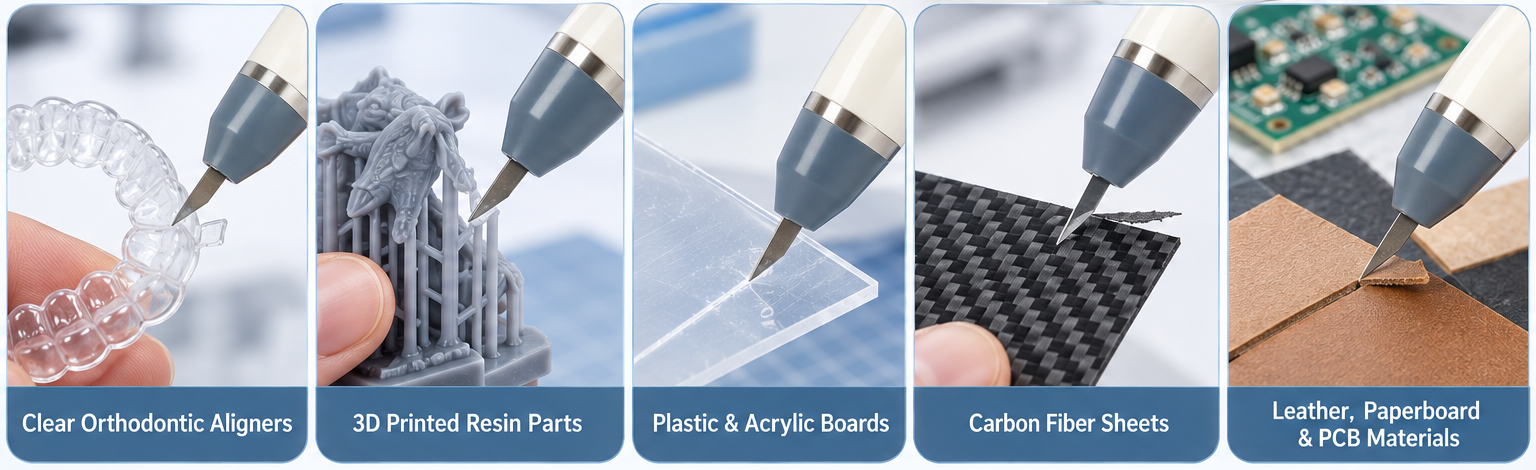

APPLICATIONS
SPECIFICATIONS
| Model | USS-UK00001 | Ultrasonic Frequency | 35 to 41 kHz (38,000 Hz typical) |
|---|---|---|---|
| Input Voltage | 110–220 V AC, 50/60 Hz | Output Power | 5 to 20 W, 20-level adjustable |
| Tip Vibration Frequency | 38 kHz ±10% | Tip Vibration Offset | 150 μm ±50% |
| Blade Specification | 25 degree angle stainless carbon steel | Vibration Amplitude | 100 μm (±50%) |
| Display | LCD digital screen | Working Mode | Soft Mode, Hard Mode |
| Vibration Intensity Levels | 10 levels per mode | Recommended Service Life | 6 years |
| Operating Ambient Temperature | +10℃ to +40℃ | Operating Relative Humidity | 30% to 75% |
| Storage Temperature | −10℃ to +50℃ | Storage Relative Humidity | ≤90% |
| Atmospheric Pressure | 50 to 106 kPa | Included Accessories | Main unit, handpiece, five replacement blades, blade wrench, power cable |
WARNING
MATERIALS CUTTING REFERENCE
| Material | Recommended Application | Cutting Recommendation |
|---|---|---|
| Clear Orthodontic Aligners | Edge trimming and finishing | Use controlled pressure for clean edges |
| 3D Printed Resin Parts | Support removal and detail trimming | Suitable for precision hobby work |
| Plastic Sheets and Acrylic Boards | Model making and custom parts | Use the appropriate power level for material hardness |
| Carbon Fiber Sheets | DIY and composite-part trimming | Wear eye protection and work in a ventilated area |
| Leather and Paperboard | Craft and pattern cutting | Guide the handpiece steadily along the cut line |
| PCB Materials | Hobby and workshop trimming | Secure the workpiece before cutting |
